| Product Type | Foldable Electric Treadmill |
| Brand | SereneLife |
| Model | SLFTRD50 |
| Motor Power | 2.5 HP (peak) |
| Speed Range | 0.5 - 10 mph (0.8 - 16 km/h) |
| Incline | Manual, 3 levels |
| Running Surface | 40 x 16 inches (101.6 x 40.6 cm) |
| Max User Weight | 220 lbs (100 kg) |
| Folding | Yes, hydraulic soft drop system |
| Display | LCD with time, distance, speed, calories, pulse |
| Heart Rate Monitor | Pulse grip sensors on handles |
| Bluetooth | No |
| Speakers | Built-in speakers with audio input |
| Programs | 12 pre-set programs + manual mode |
| Safety Key | Emergency stop key included |
| Power Supply | 120V / 60Hz |
| Assembled Dimensions | 60 x 28 x 50 inches (152.4 x 71.1 x 127 cm) |
| Folded Dimensions | 30 x 28 x 60 inches (76.2 x 71.1 x 152.4 cm) |
| Net Weight | 110 lbs (49.9 kg) |
| Shipping Weight | 130 lbs (59 kg) |
| Warranty | 1 year parts and labor |
| Color | Black / Grey |
| Assembly Required | Yes (tools included) |
Frequently Asked Questions - SLFTRD50 SereneLife
User questions about SLFTRD50 SereneLife
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Treadmills in PDF format for free! Find your manual SLFTRD50 - SereneLife and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SLFTRD50 by SereneLife.
USER MANUAL SLFTRD50 SereneLife
Catalogue
Product Introduction .... 3
Safety Precautions and Warnings 4\~10
Exercise Advice and Guideline 10\~11
Product Function Description 12\~14
Product Maintenance 15\~17

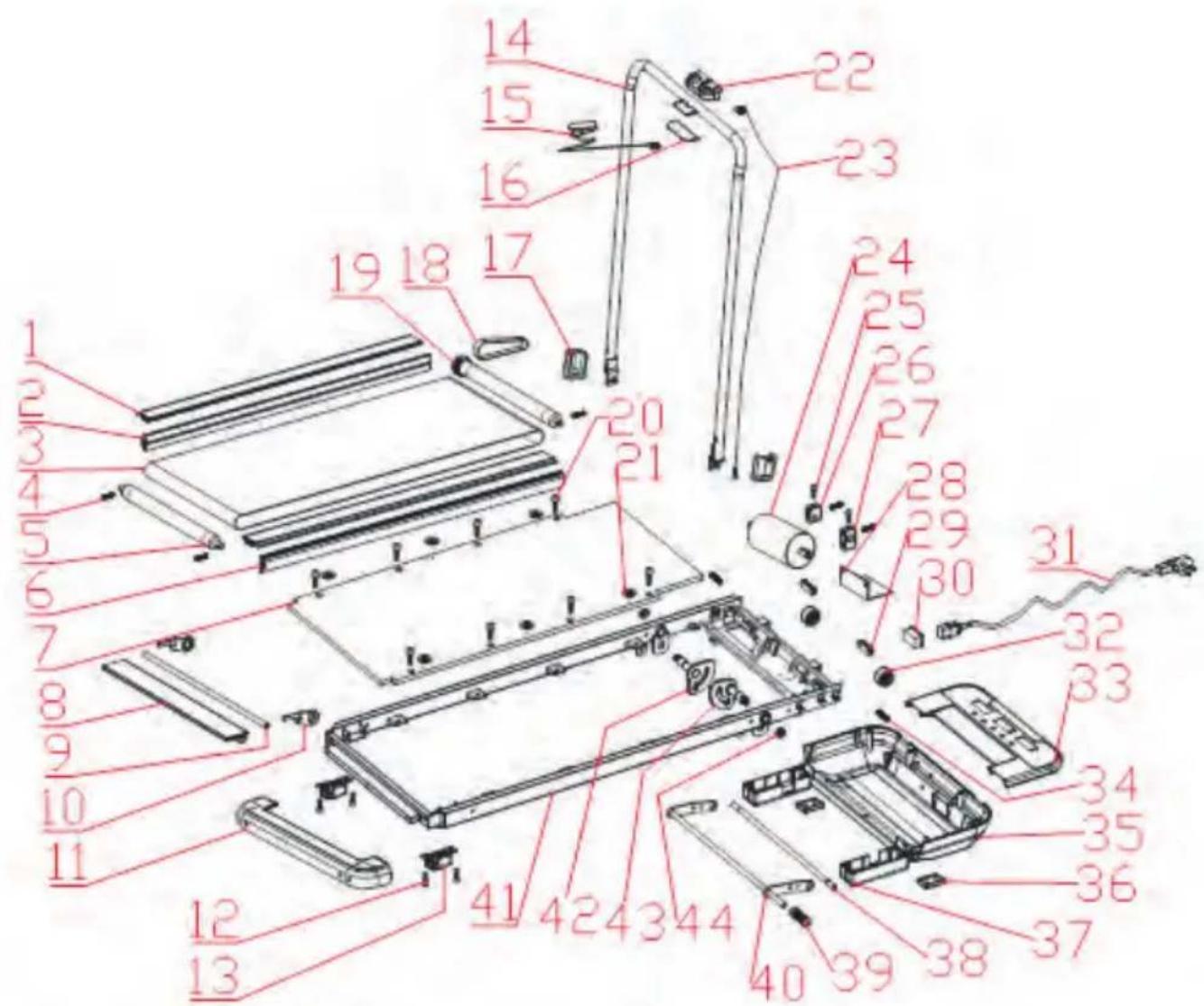

Exploded Drawing 18
Parts List 18
Features and Technical Specs.... 20

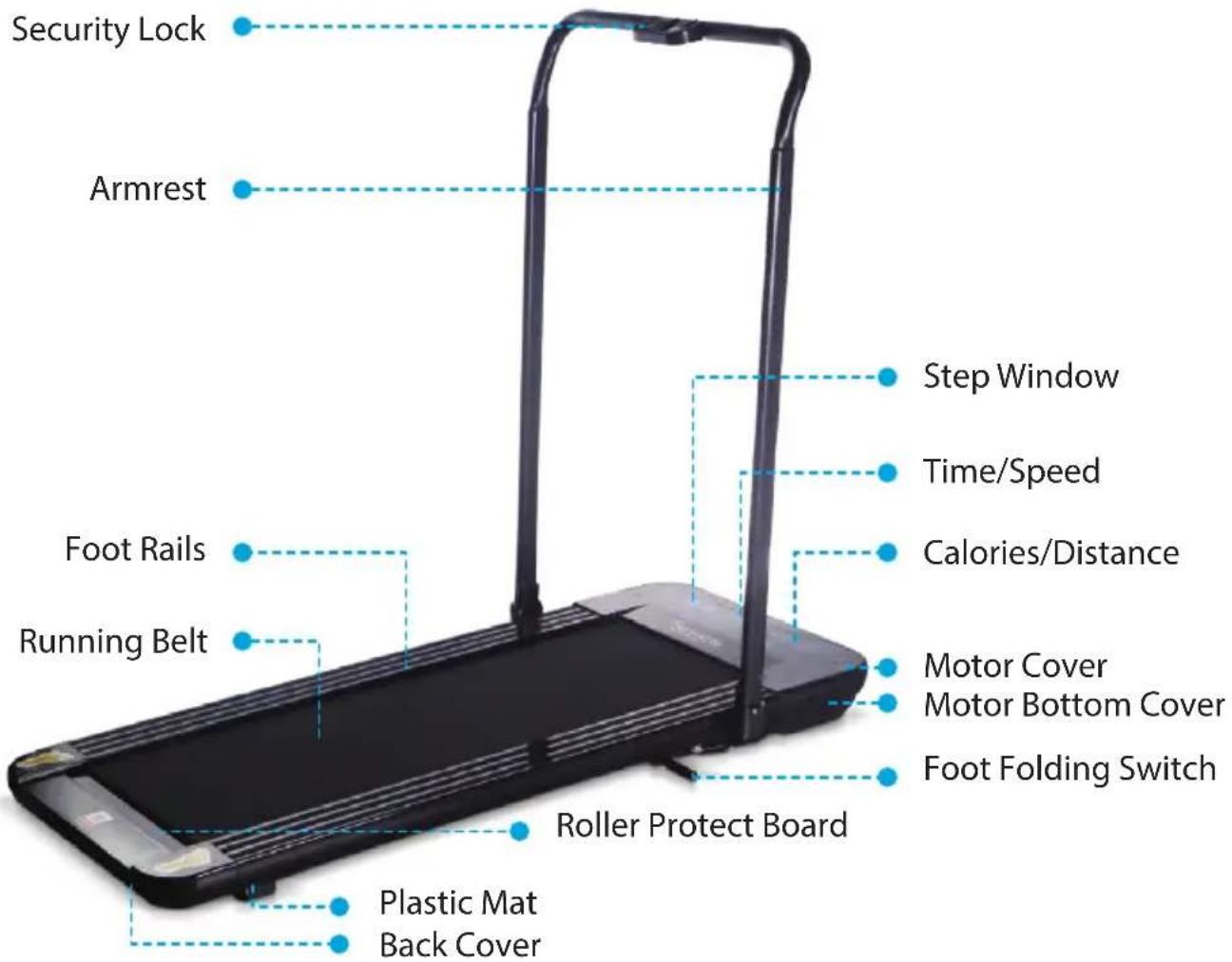

Product Introduction
1. Track Base Digital Treadmill
| THE MAIN PARAMETERS AND CONFIGURATION LIST | ||
| SLFTRD50 MAIN TECHNICAL PARAMETERS | ||
| NO. | Parameter Name | Description |
| 1 | Rated voltage | 100-120V |
| 2 | Rated frequency | 50/60Hz |
| 3 | Rated power | 350W |
| 4 | Speed | 0.8-6.0Km/h |
| 5 | Belt size | 365*1000 |
| 6 | Max loading weight | 100KG |
| Packing List | |||||
| NO. | Name | UNIT | QTY | ||
| 1 | Treadmill machine | PCS | 1 | ||
| 2 | Accessories kit | BAG | 1 | ||
| Accessories Bag List | |||||
| NO. | Name | UNIT | NO. | NAME | UNIT |
| 1 | Allen wrench 6mm | 1 | 3 | Silicone oil | 1 Bottle |
| 2 | Manual/Warranty Card/Qualification Certificate | 1BAG | 4 | Power supply | 1 |
2. Safety Precautions and Warnings
Notice: Read all instructions before using this treadmill. When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions. If you have any questions after reading this manual, contact Customer Tech Support.
Safety Instructions:
This product already avoided many safety issues in designing and manufacturing, but please follow the instructions below, just in case. We do not bear any consequences caused by abnormal operations. This machine has an emergency stop switch (red security lock). Attach the red clip end securely to your clothing. If the red safety lock comes off, the treadmill will stop immediately.
- Please use the treadmill indoors to keep dry. Place the treadmill on a level surface. There should be 6 feet of clearance behind the treadmill, 3 feet on each side and one foot in front for folding and the power cord. Do not place the treadmill in any area that will block any vent or air openings. The treadmill should not be located in a garage, covered patio, near water or outdoors.
- Before exercising, please wear suitable sportswear, sports shoes, and avoid accidental contact with the treadmill. It is forbidden to exercise barefoot on the treadmill. Please do a full body stretching exercise before running.
- The power plug must be reliably grounded, and the socket must have a dedicated circuit to avoid sharing with other electrical equipment.
- Keep children away from the machine and to avoid accidents.
- The treadmill is intended for in-home use only and not suitable for long time running, which may cause damage to the motor and controller, seed up the wear and aging of bearings, running belts and running boards. Maintain the treadmill regularly.
- Please do not store and use the walking machine in a dusty space and maintain a certain degree of humidity in the room to avoid generating strong static electricity, otherwise it may interfere with the normal operation of electronic watch and the controller.
- To disconnect, turn all controls t off position, then remove plug from the wall outlet after your exercise.
- Please keep indoor air circulation when using the treadmill.
- Keep safety lock clamps on clothing during exercise, incase of emergency and safety shutdown.
- If you experience abnormalities such as maladaptation during use, stop exercising and consult a doctor.
- Please keep the unused silicone oil out of children's reach to avoid serious consequences of misuse.
Warning:
To reduce accidents or injure others, please observe the following rules:
- Before using the treadmill, please check if your clothing is buckled or zippered, or if the clothes are too loose.
- Do not wear clothes that can be easily hooked by treadmill.
- Do not put the power cord near hot or moving objects.
- Do not leave children unsupervised near or on the treadmill.
- Do not use the treadmill outdoors.
- Ensure the master power switch is off and the power cord is un-plugged from wall outlet before storing the appliance.
- Non-professionals are not allowed to disassemble the machine without authorization, otherwise serious consequences may occur.
- The treadmill is limited to 20 amp circuits.
- Only one person should use the treadmill at a time.
- If you feel dizzy, chest pain, nausea, or shortness of breath while exercising, stop immediately and consult your fitness instructor or doctor.
- Please do not use this product outdoors, in high humidity and sunlight.
- Please turn off and unplug when not in use.
- This product should not be used for a long time. It is recommended to use the treadmill for an interval of half an hour. Using the treadmill for a long period of time may cause overheating of the treadmill's electrical equipment and may cause electrical failure.
Special safety instructions
- Plug the indicated end of the power cord into the socket of the treadmill.
- Do not plug your treadmill into an extension cord. Improperly plugging in your treadmill can result in injury to you or damage to the treadmill.
- Please use a qualified outlet to avoid danger. If the plug and socket are incompatible, please do not move the plug. Ask an electrician to handle it.
- The use of voltage 110V-120V AC power supply.
- Please don't let the power cord touch the roller, don't put the power cord on the running belt, don't use damaged plug.
- To prevent electrical shock, please turn off and unplug the treadmill before cleaning or performing routine maintenance.
Warning: Failure to remove the plug may result in personal injury and damage to the equipment.
Warning! Mandatory!
• Who is being treated by a doctor or the following patients must be consulted with a professional doctor before use.
- Those who have suffered back pain or who have been injured in the previous leg, waist and neck. Legs, waist, neck and hand numbness (with disc herniation, spondylolisthesis, cervical spondylosis and other diseases).
- People with deformed arthritis, rheumatism, and gout.
- People with abnormal osteoporosis.
- People with circulatory disorders (heart disease, vascular disorders, hypertension, etc.).
- Those with respiratory disorders.
- The artificial heart rate adjuster is being used to implant in vivo medical electronic devices.
- There are malignant tumors.
-
There are thrombosis or severe aneurysm, acute venous tumors and other blood circulation disorders or various skin infections and other symptoms.
-
There is a person with a perceptual disorder caused by a high degree of peripheral circulatory disturbance caused by diabetes or the like.
- Injured skin.
- High fever (above 38 degrees) due to illness.
- Abnormalities in the spine or bending of the backbone.
- Women who are pregnant or may be pregnant or are in menstruation.
- If you feel an abnormal body, you need to rest.
- Obviously poor physical condition.
- For rehabilitation purposes.
- In addition to the above-mentioned circumstances, especially those who feel physically abnormal. ---- May cause accidents or poor health.
- In the process of exercising, feel pain or coordination abnormalities such as back ache, numbness in legs, dizziness, heartbeat, etc.
- When starting to use this product for training, consider your physical condition and exercise properly and regularly to ensure that you have enough physical strength to train. Wrong or excessive training will not benefit your health.
- This product is not intended for use by children. Physically uncomfortable or mentally impaired persons and those lacking common sense are prohibited from use unless they are under the supervision or guidance of the person responsible for their safety regarding the use of the product. Children should be monitored to ensure that they do not play with the equipment. ----If you do not comply, there may be danger of injury.
- During use or when inserting or removing the product, be sure to check that there are no people or pets in the surroundings (back, bottom, front of the product).
- This product is suitable for home use and is not suitable for professional training and testing, it cannot be used for medical purposes.
Prohibited!
Do not use the product in a state where the housing is cracked, broken off (exposed inner structure), or cracked at the welded part. ----Otherwise accident or injury may occur.
- Do not jump on the machine during exercise which can lead to injuries.
- Do not use and store walkers outdoors, in wet places or near the bathroom.
- Do not use or store the product in places exposed to direct sunlight, high-temperature places such as stoves, and electric heating carpets. ----Otherwise it may lead to electric leakage and fire.
-
Do not use when the power cord or power plug is damaged or the socket of the socket is loose. -Otherwise it will cause electric shock, short circuit, and fire.
-
Do not damage or forcibly bend or twist the power cord. Also do not place heavy objects on it. ---- Otherwise it may result in fire or electric shock.
The walking machine is limited to one person walking. Be careful not to let the surrounding people approach during use. - Otherwise, accidents or injuries may occur due to a fall. If you can't express your own consciousness then you can't use it. ----Accidents or injuries may occur. Avoid contact with water.
Do not spray water or drink in the main body or operating part.
----It may cause electric shock and fire.
Prohibited!
- People with low levels of exercise do not suddenly perform intense exercise on a treadmill. Do not use it after a meal or when you are tired, or when you have just exercised or have an abnormal physical condition. ---- May cause damage to health. This product is suitable for home use. It is not suitable for use in unspecified places such as schools and gymnasiums.
• There is risk of injury - Use without food or other activities.
- Do not use it when you feel unconscious after drinking alcohol.
---- May cause an accident or injury.
- Do not use in the pants pocket with hard objects.
---- May cause an accident or injury.
- Do not use needles, garbage, or moisture on the power plug.
----May cause electric shock or short circuit, fire.
- Do not use with wet hands!
When deactivated, unplug the power plug from the outlet and allow the machine to be completely disconnected from the power supply.
----Insulation ages due to dust and moisture, resulting in a leakage fire.
Grounding Instructions
- The product must be grounded. If the unit malfunctions, grounding will provide the least resistance to current flow to reduce the risk of electric shock.
- The product is equipped with a power plug with a grounding conductor for the equipment and a grounding plug. The plug must be plugged into a suitable socket that has been properly installed and grounded in full compliance with local regulations or decrees.
-
Improper connection of the grounding conductor of the equipment can result in a risk of electric shock. If you have doubts about the correct grounding of the product, please entrust a professional electrician to inspect it. Even if the plug and socket provided with the product do not match, you can't modify it. Please entrust a professional electrician to install a suitable socket.
-
This product has a grounding plug. Please make sure the product is linked to a socket that has the same shape as this product. The product cannot use an adaptor socket.
- If the power cord is damaged, it must be replaced by the manufacturer, its maintenance department, or a similar professional in order to avoid danger.
• This product is HC grade. - Please check all parts before use to ensure that the screws and nuts are locked.
- When in use, please wear comfortable and tight clothes to prevent the clothes from being caught by the machine; do not allow children and pets to play beside them to avoid accidents.
- Please place the product on a smooth, clean, level surface to ensure that there are no sharp objects nearby and do not use it near sources of water and heat.
- Keep hands away from all moving parts and keep hands and feet out of the gap under the running belt.
- Ensure that the screws are tightened after the product is assembled.
- Please use the original accessories, it is strictly forbidden to replace privately.
Assembly:
- Read assembly instructions carefully before you install.
- Take out all the packaging components and place them on a clean floor.
This will make it easier for you to check and make your installation easier. - According to the packing list, carefully check whether all parts are complete.
- When you are using tools or moving, please pay attention to safety.
Please do not install it according to personal preference when assembling. - Please make sure that the tools you have left behind are already in danger of packaging materials. Plastics and foam are harmful to children.
- According to the instructions to assemble the product, please read the assembly procedure and instructions carefully.

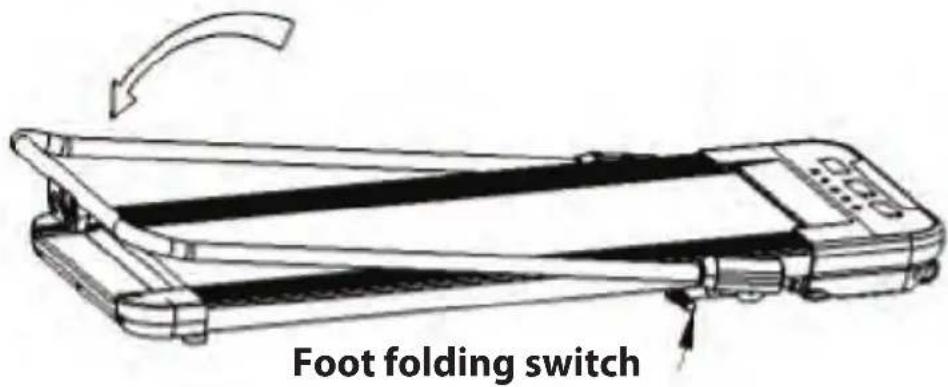

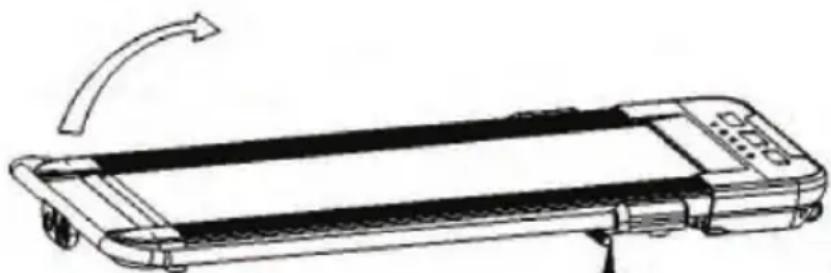

- When unpacking, please use the foot pedal (foot pedal folding switch) to open the armrest in place according to the picture, and shake the armrest firmly before and after shaking it firmly.
- When you need to fold and retract the armrest, use the foot pedal (foot pedal folding switch) to hand-hold the armrest and fold it back as shown in the picture.
This product must be carefully installed by adults. If necessary, ask a professional to install.
Important Matters
Before using this product, please consult your doctor and do a complete health check. Before performing frequent and intense exercise, you should obtain a doctor's permission. If you use this product to cause any discomfort, please stop using it and consult your doctor. The product must be used in the correct way. Please read the manual carefully before exercise. If this product is left unattended or in use, please prevent children and pets from approaching. Before you start: How to start an exercise and fitness program depends on your physical condition. If you have not exercised for many years, or if you are overweight, you must increase your exercise time slowly and progressively, for example, every few minutes every week.
Warning: Carefully install the product without damaging the product.
3. Exercise Advice and Guidelines
Warm-up and Stretching Exercise
A successful exercise program is composed of three parts: warm-up exercise, aerobic exercise and soothing exercise. Warm-up sports Forging is a very important part of the exercise, and warm-up exercises must be performed before each workout. Warm-up exercise can warm up the body, stretch muscles, and allow the body to adapt to more intense exercise.
Repeated warm-up exercises at the end of the exercise can help relieve muscle soreness. We recommend that you follow the illustration below to do the appropriate warm-up and mitigation exercises:
Head Exercise
The head is stretched first to the right shoulder, the left neck straightens, and rotates clockwise back; Stretch the head to the left shoulder and turn it counterclockwise. Repeat.
Shoulder Exercise
Bring the left shoulder to the back and repeat 5 times; then lift the Right shoulder back, repeat 5 times, alternate.
Stretching
Stretch your hands straight over your head, then grab the right hand wrist with your left hand and stretch it until you feel right Hands straighten completely straight for 5 seconds, right hand.
Quadriceps Stretching exercises
Support the wall with your right hand and keep your body in balance. Raise your left foot with your left foot so that your left heel is as close to your hips as possible. Stay for 15 seconds, change to the other foot.
Inner Thigh Stretch
Sit on the floor, keep your both feet together, hold your feet in both hands and pull your feet as close to your body as possible. Slowly press down on your heel and keep this position for 15 seconds.
Hamstring Stretch
Sit down, stretch your right leg, bend your left leg, and push your left ankle with your left foot as close to your body as you can. And the sole of the foot is close to the inner side of the right thigh, and then the body is pressed down, and the left and right forward stretches touch the tip of the toe, The greater the degree, the better. Hold this position for 15 seconds and change your left leg.
Calf Stretch
With both hands on the wall, the body is 45 degrees to the ground, and the left and right feet alternately straighten back to do walking exercises.
4. Product Use Function Description
Using the Treadmill:
-
Plug in the power, turn on the switch (switch is red) (1), it will light up, then you will hear a "di", then the screen will light up.
-
When not using the tradmill, please keep the safety lock out of the reach of children; the silicone oil bottle inside the accessory bag should be kept out of the reach of children, if accidentally eat or get into the eyes, rinse with water and see a doctor timely.

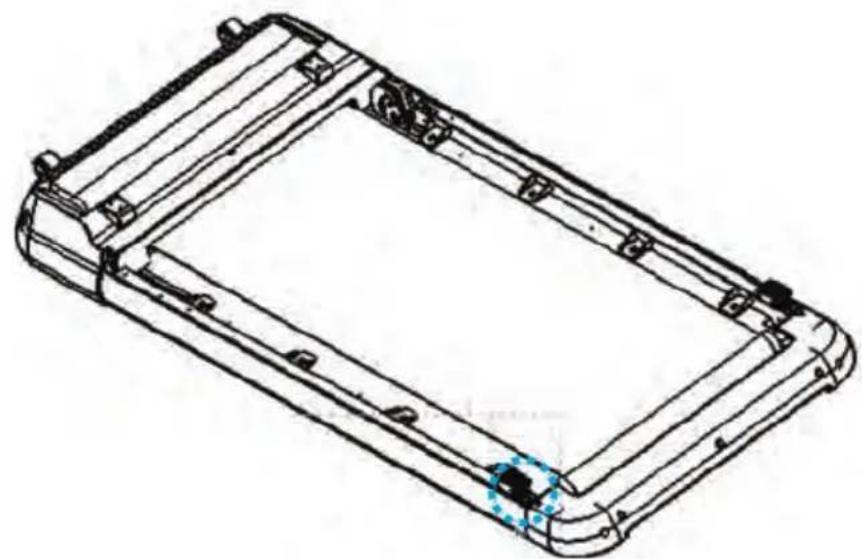

3. Upright the Treadmill
Walking machine can be upright to save space. Before upstanding, turn off the treadmill's power switch and unplug the power plug. Upright the treadmill by hand and place against the wall. Tilt should be placed so as not to fall down. There is a special binding hole behind the treadmill and you need to use rope to bind the fixed object. See the picture of this hole.


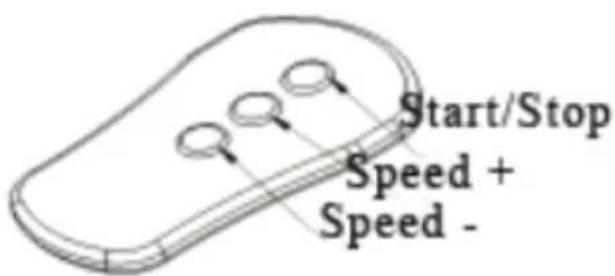

4.1. Note (products can be purchased with a remote control style), press this instruction: Press the red start/stop button on the remote control, the treadmill starts up. After the movement is completed, press the treadmill again to stop. There is also a start stop button on the machine head panel. The function is the same.

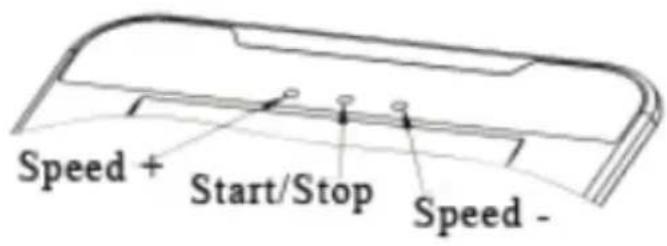

4.2. Speed Plus or Minus keys
After the treadmill starts, it can be used to adjust the speed, step 0.1Km/times, and automatically continue to increase or decrease when holding for more than 2 seconds.
5. Display Function
5.1. Step Value Display Window
Displays the current value of moves. When the value of moves reaches 9999 steps.
5.2. Time/Speed Display
Displays the current running time and speed value. The window automatically switches the display.
5.3. Calories / Distance Display
Display calorie accumulation and distance value of current exercise.
Window automatically switches display.
5.4. Calorie standard value is 30 kcal/kilometer.
5.5. Acceleration is 0.1Km/S, deceleration is 0.1Km/S.
6. Error Message Code
| ERROR CODE | FAULT DESCRIPTION | SOLUTION |
| ER 1 | The board did not receive a signal | 1. Check for loose, dropped or damaged communications lines.2. Check or replace the electronic watch board.3. Check or replace the controller. |
| ER 3 | Overvoltage protection | 1. Please check if the voltage on the power supply line is normal: AC 200-240V2. Check or replace the controller.3. Check or replace the motor. |
| ER 4 | Overcurrent protection | 1 Check for overload.2. Check if the mechanical moving parts are stuck.3. Check if there is a lack of release agent. If there is a lack of release agent, the friction between the running belt and the running plate will increase.4. Check the running plate for serious wear.5. Check the running belt for serious wear.6. Check if the motor cable is short-circuited.7. Check or replace the controller.8. Check or replace the motor. |
| ER 5 | Overload protection | 1. Check for overload.2. Check if the mechanical moving parts are stuck.3. Check if there is a lack of release agent. If there is a lack of release agent, the friction between the running belt and the running plate will increase.4. Check the running plate for serious wear.5. Check the running belt for serious wear.6. Check if the motor cable is short-circuited.7. Check or replace the controller.8. Check or replace the motor. |
| ER 6 | Motor not connected | 1. Check if the motor cable is loose or falling off.2. Check or replace the motor.3. Check or replace the controller. |
| ER 7 | Controller receives no signal | 1. Check for loose, dropped or damaged communications lines.2. Check or replace the electronic watch board.3. Check or replace the controller. |
| ER 13 | IGBT Short circuit | 1. Check if the machine has strong interference signals.2. Check or replace the controller. |
| ER 14 | Load Short | 1. Check if there is a foreign object in the controller output that leads to a short circuit.2. Check or replace the motor. |
| SAFE | Security lock off | 1. Check if the security lock is in place and safety switch is in position.2. Check if the safety lock is good, and the magnetic ring pipe is broken and replaced. |
5. Product Maintenance
Warning: Before cleaning or maintaining the product, be sure to remove the treadmill's power plug.
Cleaning: Full cleaning will extend the life of the treadmill.
Regularly remove dust to keep parts clean. Be sure to clean the exposed parts of both sides of the running belt, which will reduce the accumulation of impurities under the running belt. Make sure the trainers are clean and avoid wearing foreign objects into the running belt and running belts. The surface of the running belt must be scrubbed with a damp, soapy cloth. Be careful not to spill water on the electrical components and underneath the running belt.
Warning: Be sure to remove the power plug of the treadmill before moving the front guard. Open the front guard at least once a year to clean the motor vacuum
Running Belts and Running Lubricants
This electric treadmill has been pre-lubricated between the running plate and the running belt. The friction between the running belt and the running plate has a great influence on the service life and performance of the electric treadmill.
Therefore, it must be regularly lubricated. We recommend regular inspection of the board. If the board is damaged, please contact our customer service center.
We recommend to lubricate the treadmill between the running belt and the running board according to the following schedule:
Lightweight users (less than 3 hours per week) Once every 1 month;
Heavyweight users (more than 7 hours per week) once every two weeks.
- In order to better maintain your treadmill and extend the life of the machine, we recommend that you turn off the power and allow the machine to rest for 10 minutes after 2 hours of continuous use.

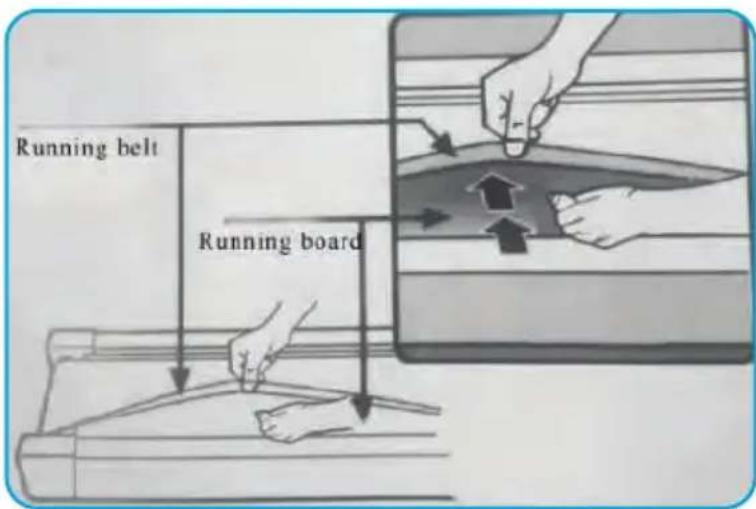

- If the running belt is too loose, there will be slippage when running; if it is too tight, over-tightening may reduce the performance of the motor and increase the wear of the roller and running belt. When the running belt is appropriate, the walking belt can be lifted from the running board about 50-75mm by hand.
Adjustment of running belt centering and tightness
It is necessary to adjust the running belt to the best condition in order to use the treadmill and for best results.
Running belt centering:
- Put the treadmill on a flat ground.
- Operate the treadmill at a speed of approximately 3-5 km/h.

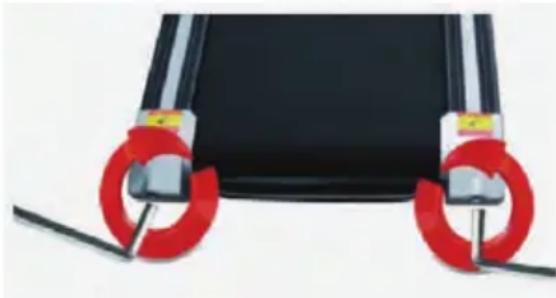

- If the running belt is biased to the right, turn the adjusting bolt on the right by 1/2 circle clockwise, and then turn the left adjusting bolt by 1/2 turning it counterclockwise. Like picture A
- If the running belt is biased to the left, turn the adjustment screw on the left side 1/2 turn clockwise, and then turn the right adjustment screw 1/2 turn counterclockwise. Like picture B
Multi-wedge belt tightness adjustment
When you use the treadmill for a long time, the V-ribbed belt will loosen due to slight wear or stretch deformation. At this time, you must make appropriate adjustments to facilitate safe use. The judgment method is: If you feel that running with occasional pauses when your feet are on the running board during your normal walking movement, it means that the running belt or belt is somewhat loose and must be further confirmed. To determine which component is loose, remove the four screws on the upper cover and let the treadmill run at a speed of 1 km/hour.
Then you stand on the running belt and hold the armrests with both hands. Use one force to crush the running belt. (We recommend using the amount of pedaling pressure generated by the user's own weight to step on the running belt.)
A. If the momentary step on the pressure can not stop the running belt, it shows that the tightness of the V-ribbed belt and running belt is appropriate.
B. If you observe that the momentary step on the pressure makes the running belt stop rotating, and the V-ribbed belt and the front roller are still rotating, it means that the running belt is a little slack and you must make appropriate adjustments to facilitate safe use. (Adjust the tightness of the running belt. See the maintenance guide on the previous page.)
C. If you observe that the momentary step on the pressure makes the running belt and V-ribbed belt stop rotating, and the motor is still rotating, it means that the V-ribbed belt is somewhat loose and must be adjusted properly to facilitate safe use.
Step 2: Use a wrench to adjust the adjustment screw on the motor base as appropriate. At the same time, gently turn the V-ribbed belt between the motor shaft and the front roller by hand. If it is too loose, you can turn the multi-wedge belt upside down by 100% ; if it is too tight, you can turn the V-ribbed belt at an angle. Very limited; it is appropriate to turn 80% of the V-ribbed belt after adjustment. Please adjust the tension of the V-ribbed belt to 80% .
Step 3: Finally, lock the motor base and install the front guard.
Method of adding silicone oil:
Step 1: The treadmill will be lifted upwards.
Step 2: Open the silicone bottle and squeeze it over the running plate as shown on the picture.
6. Exploded View Drawing
| No. | Parts Name No. | Parts Name | Total Qty. | Total Qty. | |
| 1 | Foot Rails 23 | 2 | Hexagon Countersunk Head bolt | ||
| 2 | Running Belt 24 | Foot Rails Buckle 81 | |||
| 3 | Back Roller 25 Locknut M10 | 11 | |||
| 4 | Cylindrical head Socket head bolt | 26 | Motor multi-slot belt | ||
| 5 | Side Rails | 2 | 27 | Belt Adjustment | |
| 6 | Protective plate left and right connecting piece | 28 | Transmission wheel 12 | ||
| 7 | Roller Protect Board 29 | Electronic Control 11 | |||
| 8 | Protective plate shaft 30 | Motor | 11 | ||
| 9 | Running Board | 1 | 31 | Power Cable | 1 |
| 10 | Back cover | 1 | 32 | Three in one switch | 1 |
| 11 | Semi circular head hexagon socket head bolt | 33 | Motor front plastic mat | 21 | |
| 12 | Plastic mat | 1 | 34 | Moving wheel | 2 |
| 13 | Column Stand | 1 | 35 | Semi circular head hexagon socket head bolt | 1 |
| 14 | Security Lock | 1 | 36 | Motor bottom cover | 1 |
| 15 | Security Lock back cover | 37 | Curved floor mat 21 | ||
SLFTRD50
Track Base Digital Treadmill
Features:
• Smart Digital Treadmill Design
- Compact Form-Fitting Design for Any Room in the House
- Dual Operation: Touch Button Control and Remote Control
- Wide Digital LCD Display Screen
• Displays Step Count, Speed, Time, Distance and Calories Burned
- Adjustable Speed Settings
- Simple Electric Motorized Plug-in Design
- Convenient Folding Style with Wheels for Easy Setup & Storage
- Remote Control Battery x1 'CR2025'
• Used for Walking, Jogging, Running Exercise Training
• Perfect for Weight Loss, Cardiovascular Fitness, Endurance & Stamina Building
• Integrated Safety Key, Emergency Power Off
Technical Specs:
• Construction Material: Powder Coated Steel, ABS
- Motorized Treadmill Motor Power: 350W
- Running Belt / Running Surface Size (L x W): 49.2" x 18.3"-inches
- Adjustable Speed: 0.8 – 6.0 mph
• Maximum Weight Support: Up to 220 lbs.
• *Assembly Required
• Power Cord Length: 59.06 inches
• Power Supply: 100-120V, 60Hz
- Remote Control Battery: x1 'CR2025'
- Assembled Dimensions (L x W x H): 57.4" x 27.5" x 6.10" –inches
SereneLife
- Catalogue
- Product Introduction
- Track Base Digital Treadmill
- Safety Precautions and Warnings
- Safety Instructions:
- Warning:
- To reduce accidents or injure others, please observe the following rules:
- Special safety instructions
- Warning: Failure to remove the plug may result in personal injury and damage to the equipment.
- Warning! Mandatory!
- Prohibited!
- Grounding Instructions
- Assembly:
- Important Matters
- Exercise Advice and Guidelines
- Warm-up and Stretching Exercise
- Head Exercise
- Shoulder Exercise
- Stretching
- Quadriceps Stretching exercises
- Inner Thigh Stretch
- Hamstring Stretch
- Calf Stretch
- Product Use Function Description
- Using the Treadmill:
- Upright the Treadmill
- Start Up
- Speed Plus or Minus keys
- Display Function
- Step Value Display Window
- Time/Speed Display
- Calories / Distance Display
- Error Message Code
- Product Maintenance
- Running Belts and Running Lubricants
- Adjustment of running belt centering and tightness
- Running belt centering:
- Multi-wedge belt tightness adjustment
- Method of adding silicone oil:
- Exploded View Drawing
- SLFTRD50
- Track Base Digital Treadmill
- Features:
- Technical Specs:
- SereneLife
Brand : SereneLife
Model : SLFTRD50
Category : Treadmills
