V9 - Loudspeaker Valore - Free user manual and instructions

Type	Portable Bluetooth Speaker
Brand	Valore
Model	V9
Connectivity	Bluetooth 5.0
Wireless Range	10 meters
Power Source	Built-in rechargeable battery (3.7V, 1500mAh)
Playback Time	Up to 10 hours (at 50% volume)
Charging Time	Approximately 2-3 hours
Charging Port	Micro USB
Audio Output Power	3W RMS
Frequency Response	80Hz - 20kHz
Driver Unit	40mm full-range
Signal-to-Noise Ratio	≥80dB
Dimensions (W x H x D)	180 x 70 x 70 mm
Weight	400 g
Material	Plastic with fabric cover
Color	Black
Controls	Power, Volume +/-, Play/Pause, Multifunction button
Microphone	Built-in for hands-free calls
Compatibility	Smartphones, tablets, laptops with Bluetooth
Included Accessories	Micro USB charging cable, 3.5mm audio cable, user manual
Cleaning Instructions	Wipe with a soft, dry cloth. Avoid liquids.
Storage	Store in a cool, dry place away from direct sunlight.
Warranty	1 year limited warranty

Frequently Asked Questions - V9 Valore

How do I pair my Valore V9 speaker with a device?

Turn on the speaker by pressing and holding the power button. The speaker will enter pairing mode automatically (indicated by a flashing blue LED). On your device, enable Bluetooth and select 'Valore V9' from the list of available devices. If prompted for a PIN, enter '0000'.

How do I charge the Valore V9 speaker?

Use the included Micro USB cable to connect the speaker to a USB power source (e.g., computer, wall charger). The LED indicator will turn red during charging and change to blue or turn off when fully charged. Charging takes about 2-3 hours.

What is the battery life of the Valore V9?

The battery life can last up to 10 hours of playback at moderate volume levels. Actual battery life may vary depending on volume, audio content, and usage conditions.

Can I use the Valore V9 speaker while it is charging?

Yes, you can use the speaker while it is charging, but it may take longer to fully charge. However, it is recommended to let it charge fully for optimal battery performance.

How do I reset the Valore V9 speaker?

To reset the speaker, first turn it off. Then press and hold the power button and the volume up button simultaneously for about 5 seconds until the LED flashes quickly. This will clear the pairing list and restore factory settings.

What should I do if the speaker does not connect via Bluetooth?

Ensure the speaker is in pairing mode (LED flashing). On your device, forget any previous 'Valore V9' connections and try again. Also, check that the speaker is within range (10 meters). If problems persist, reset the speaker as described above.

Can I use the Valore V9 speaker with a wired connection?

Yes, the speaker has a 3.5mm audio input. Use the included audio cable to connect it directly to devices without Bluetooth, such as older MP3 players or computers. The speaker will automatically switch to wired mode when a cable is inserted.

How do I adjust the volume on the Valore V9?

Use the volume up (+) and volume down (-) buttons on the speaker. Note that adjusting the volume on the speaker also controls the connected device's volume if using Bluetooth. For wired connections, use both the speaker and the source device.

Is the Valore V9 speaker waterproof?

The Valore V9 is not rated as waterproof. It should be kept away from water and moisture. Do not expose it to rain, splashes, or submersion. Clean only with a dry cloth.

How do I clean the Valore V9 speaker?

Use a soft, dry cloth to wipe the exterior. Do not use any liquids, solvents, or abrasive cleaners. Avoid getting any moisture into the ports or openings. For the fabric cover, you can use a soft brush or lint roller to remove dust.

USER MANUAL V9 Valore

Thank you for purchasing the Valore Outdoor Wireless Speaker (V9).

Hook this wireless speaker onto your bag with the carabiner and bring it along with you for your next outdoor adventure. Manage your calls directly with the built-in microphone. Plus, it is certified IPX4 international standard which guarantees effective splash proof.

Important: Please read the user manual thoroughly before using your outdoor wireless speaker.

Specifications:

• Wireless range: Up to 10m
  • Built-in battery: 800mAh Li-Polymer battery
• Standby time: Up to 120 hours
• Charging time: Up to 2.5 hours
• Playback time: Up to 5 hours
  • Power input: DC5V/0.5A
  • Power output: 3W
• Dimension (L x W x H): 100 x 65 x 43mm
  • Material: ABS + Rubber
• Weight: 175g

Package Contents:

• Outdoor wireless speaker
- Micro USB charging cable
• 3.5mm Auxiliary cable
- Carabiner

UNDERSTANDING THE PRODUCT

① Multi-functional button (M)
② Volume ‘-’ / Previous song
③ Play / Pause button
④ Volume ' +' / Next song
⑤ LED indicator
⑥ Charging indicator
⑦ Micro USB charging port
⑧ 3.5mm Auxiliary port
⑨ Mic

START USING THE WIRELESS SPEAKER

1) Power On/Off

Press and hold the multi-functional button for 3 seconds to turn On or Off speaker.

2) Charging the wireless speaker

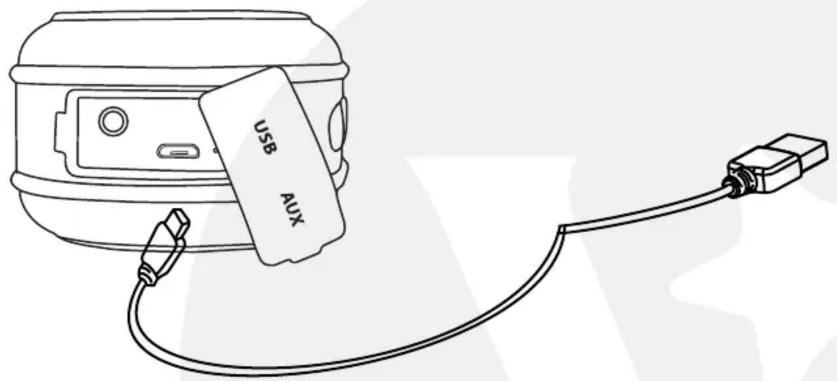

Connect the USB charging cable provided to the micro USB charging port located under the rubber cover. A red LED turns on during charging and turns off when it is fully charged. When battery is low, red LED light will be flashing.

Note: Please charge the speaker for at least 8 hours before first use. Please make sure that the speaker is switched off when charging is in progress.

3) Pairing the wireless speaker (switched off)

Step 1: Activate Bluetooth function on your mobile device to begin pairing with speaker.
Step 2: Press and hold the Multi-functional button till LED indicator flashes red and blue.
Step 3: Connect to the speaker by selecting 'Valore V9' under the device list.
Step 4: Once connected, the LED light at the will be solid blue.

Note: If the pairing is not successful, please turn off wireless speaker first, and then re-pair again. After pairing is successful, paired devices will remember each other. Unless pairing information is deleted because of new pairing, no need to pair when using the next time.

If you want to pair the wireless speaker with other devices, please turn off Bluetooth function of existing source device, and pair the wireless speaker with the new device according to steps 1-4 mentioned above.

4) Wireless speaker controls

Play/Pause/Handsfree button

When there is an incoming call, short press this button to answer phone calls. Short press again to end call. When playing music, short press to Play/Pause.

Volume ‘+’/ Next song

Short press to go to next song. Press and hold to increase volume.

Volume ‘-’/ Previous song

Short press to go to previous song. Press and hold to decrease volume.

Multi-functional button

When switched on, short press this button to switch between Bluetooth/Line-in mode.

TROUBLESHOOTING

Issue 1: Speaker is unable to connect successfully to your mobile device

Problem 1: Speaker's battery is flat

Solution: Fully charge the speaker (2.5 hours) and retry connection with your mobile device.

Problem 2: Speaker not paired to your mobile device

Solution: Make sure that the speaker is successfully paired upon selecting ‘Valore BTS-126’ in the device list.

Problem 3: Speaker and mobile device too far apart

Solution: Make sure that the speaker is within a metre range during pairing and connection.

Problem 4: Speaker is connected to other mobile device

Solution: Make sure that the speaker has already been disconnected before making a new connection with a new device.

Issue 2: Sound from the speaker is too soft or silent

Problem 1: Speaker's battery is low / flat

Solution: Fully charge the speaker (2.5 hours) and retry connection with your mobile device.

Problem 2: Speaker or mobile device's volume is too low

Solution: Turn the volume of the speaker or mobile device up to increase the volume.

Problem 3: Music track may not be audible

Solution: Make sure that the music track is of a playable format for the mobile device.

Problem 4: Speaker and mobile device might not be connected properly.

Solution: Repeat the connection step via Bluetooth again to make sure that it is connected properly and try again.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not store the speaker in a high temperature environment.
• Do not place the speaker near a fire or other excessively hot environments.
• Do not expose this speakerto moisture or submerge it in liquid. Keep speaker dry at all times.
• Do not attempt to charge the speaker using any other method or connection other than the headset's provided charging cable.
• Do not disassemble this speaker or attempt to repair or modify it in any manner.
• Be cautious of excessive drops, bumps, abrasions or other impacts to this headset. If there is any damage to the speaker such as dents, punctures, tears, deformities or corrosion, stop using the speaker and contact us immediately via email at [e-mail], or return this product to the store where you have purchased it from.
• If the product produces an abnormal smell, high temperature (low temperature during normal use), discolours or changes shape abnormally, stop using the product and contact us immediately via email at [e-mail].

DISCLAIMER & TRADEMARKS

All information, trademarks, logos, graphics, and images (“Materials”) provided on this user manual are copyrighted or trademarked and are the property of Valore Lifestyle Pte Ltd. Any unauthorized use of any material contained on the instruction manual may violate copyright laws, trademark laws, laws of privacy and communications statutes.

The trademarks, service marks and logos used and displayed in the Materials are registered and unregistered trademarks and service marks of Valore and others. All other registered and unregistered company names, product names and marks mentioned herein the (“Materials”) are the property of their respective owners and may be trademarks or registered trademarks.

Complies with IMDA Standards DA103331
