Product Type	Portable Wireless Speaker
Brand	Valore
Model	BTS-78N
Dimensions (L x W x H)	100 x 105 x 51 mm
Weight	405 g
Power Input	DC 5V via Micro USB
Battery Type	Lithium-ion 3.7V / 650 mAh
Battery Life	Up to 8 hours
Charging Time	2.5 hours
Wireless Range	Up to 10 m
Power Output	5 W
Material	ABS + Iron Mesh Grill
Connectivity	Bluetooth, Auxiliary (3.5 mm)
Functions	Music Playback, Hands-free Calling
Controls	Volume +/-, Previous/Next, Play/Pause, Hands-free Button
LED Indicators	Charging (red/blue), Bluetooth Connection
Travel Lock	Yes
Microphone	Built-in
Package Contents	Speaker, USB Cable, Auxiliary Cable
Care Instructions	Keep dry, avoid moisture, wipe with soft cloth
Safety Precautions	Avoid heat, do not disassemble, use provided cable
Warranty Registration	Visit www.valore.sg

Frequently Asked Questions - BTS-78N Valore

How do I pair the speaker with my phone?

Ensure the travel lock is off, then push and tilt the top of the speaker. The blue LED will flash. Activate Bluetooth on your phone and select Valore BTS-78N from the device list. Once connected, the LED will turn solid blue.

How do I charge the speaker?

Turn off the speaker. Plug the micro USB cable into the charging port and connect to a wall adapter. The red LED will turn on during charging, and it will switch to blue when fully charged. A full charge takes about 2.5 hours. For the first use, charge for at least 8 hours.

How long does the battery last?

The built-in lithium-ion battery provides up to 8 hours of playback time on a full charge, depending on volume level.

How do I answer calls using the speaker?

Press the hands-free button once to answer an incoming call. Press it again to end the call. Adjust call volume using the volume buttons. Press and hold the hands-free button to return to music mode.

What is the Bluetooth range?

The wireless range is up to 10 meters (33 feet) in open space, but walls and obstacles may reduce the effective range.

Can I use the speaker while it's charging?

It is recommended to turn off the speaker while charging. Using it during charging may affect battery life and charging efficiency.

What should I do if the speaker doesn't connect?

Ensure the speaker is charged and within 1 meter during pairing. Check that the speaker is not already connected to another device. Turn off the speaker and try pairing again. Also, make sure Bluetooth is enabled on your phone and select Valore BTS-78N from the device list.

How do I switch between tracks?

Short press the Volume '+' button to go to the next track, and short press the Volume '-' button to go to the previous track.

How do I clean the speaker?

Wipe the speaker with a soft, dry cloth. Avoid using water or cleaning agents. Do not submerge the speaker in water, as it is not waterproof.

What is the travel lock for?

The travel lock is a switch that prevents accidental activation of the speaker during storage or transport. Ensure it is unlocked before use.

USER MANUAL BTS-78N Valore

Thank you for purchasing the Valore Wireless Speaker.

Wireless and ultra-compact for you to enjoy your music conveniently wherever you go. It features an unique push and tilt on/off switch and three simple control buttons. The built-in rechargeable lithium-ion battery delivers up to 8 hours of playtime.

Important: Please read the user manual thoroughly before using your wireless speaker.

Specifications:

• Built-in battery: Lithium-ion battery 3.7V/650mA
- Wireless range: Up to 10m
- Power input: DC5V
• Power output: 5W
- Charging time: 2.5 hours
- Playback time: 8 hours
• Material: ABS + iron mesh grill
• Dimension (L x W x D): 100 x 105 x 51mm
- Weight: 405g

Package Contents:

• Wireless speaker
• USB charging cable
• Auxiliary Cable

UNDERSTANDING THE PRODUCT

① Volume' - ' and previous track button
② Play/Pause and hands-free button
③ Volume' + ' and next track button
④ LED indicator
⑤ Microphone
⑥ Micro USB port
⑦ Charging indicator
⑧ Travel lock

START USING THE WIRELESS SPEAKER

1) Charging the speaker

Make sure that the wireless speaker is turned off before charging. Plug the micro USB cable into the charging port located at the back of the wireless speaker and connect it to a wall plug. A red LED indicator will turn on when the speaker is charging. The red LED light will switch to blue when speaker is fully charged. To fully charge the speaker, it will require at least 2.5 hours.

Line drawing of a portable air conditioner unit with attached cable (no text or symbols)

Note: Please charge the speaker for at least 8 hours before first use. Please make sure that the speaker is switched off when charging is in progress.

2) Pairing the wireless speaker (switched off)

Step 1: Switch off the travel lock, push and tilt top part of the speaker and the blue LED indicator light flashes

Step 2: Activate Bluetooth function on your mobile device to begin pairing with speaker.

Step 3: Connect to the speaker by selecting 'Valore BTS-78N' under the device list.

Step 4: Once connected, the LED light at the Bluetooth button will indicate solid Blue.

Note: If the pairing is not successful, please turn off wireless speaker first, and then re-pair again. After pairing is successful, paired devices will remember each other. Unless pairing information is deleted because of new pairing, no need to pair when using the next time.

If you want to pair the wireless speaker with other devices, please turn off Bluetooth function of existing source device, and pair the wireless speaker with the new device according to steps 1-4 mentioned above.

3) Re-pairing the wireless speaker

Each time the wireless speaker is turned on, it will attempt to connect to the last device it was paired with automatically (mobile device with Bluetooth function turned on).

The wireless speaker will do as follows:

1. Connect to last connected devices automatically;
2. Be listed in the screen of devices as an output channel. Select 'Valore BTS-78N' as the output channel to play music.

Note: In some cases, the speaker may need to be manually selected from your operating system sound or hardware output list.

4) Answering a phone call via the wireless speaker

Step 1: To pick up an incoming call, press the Hands-free button once to answer via the wireless speaker.

Step 2: Press again to end a call.

Step 3: Press the volume buttons to adjust the volume of the call.

Step 4: Press and hold the Hands-free button to switch back to the music audio mode.

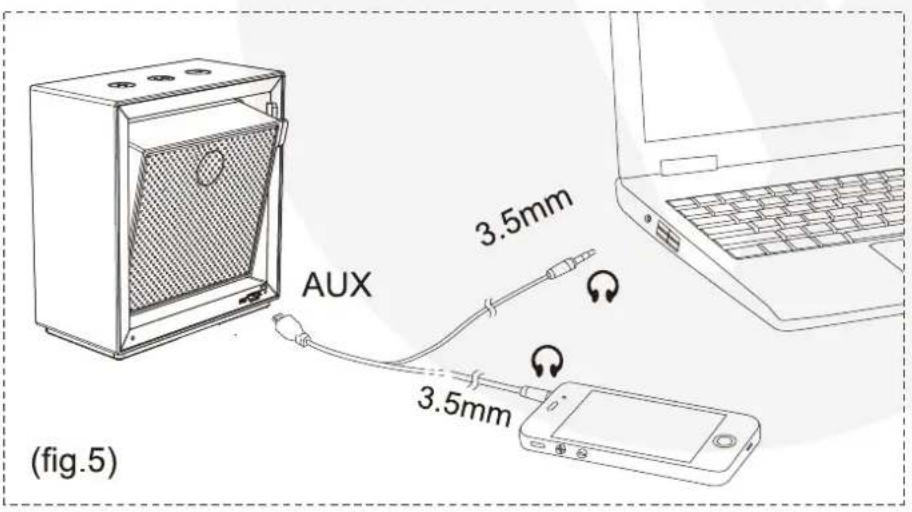

5) Connect via auxiliary cable

You may also connect to the wireless speaker via the provided auxiliary cable with your mobile device to enjoy music of the same sound quality.

6) Wireless speaker controls

a) Volume

• Control the volume via the Bluetooth device itself;
- Control the volume by press and hold the Volume +/- buttons

b) Play and Pause music

• Press Play/Pause button to pause the music
• Press again to resume playback

c) Next and Previous track

• Short press Volume “+” button to go to next track
• Short press Volume “-” button to go to previous track

TROUBLESHOOTING

Issue 1: Speaker is unable to connect successfully to your mobile device

Problem 1: Speaker's battery is flat
Solution: Fully charge the speaker (2.5 hours) and retry connection with your mobile device.

Problem 2: Speaker not paired to your mobile device Solution: Make sure that the speaker is successfully paired upon selecting ‘Valore BTS-78N’ in the device list.

Problem 3: Speaker and mobile device too far apart Solution: Make sure that the speaker is within a metre range during pairing and connection.

Problem 4: Speaker is connected to other mobile device Solution: Make sure that the speaker has already been disconnected before making a new connection with a new device.

Issue 2: Sound from the speaker is too soft or silent

Problem 1: Speaker's battery is low / flat Solution: Fully charge the speaker (2.5 hours) and retry connection with your mobile device.

Problem 2: Speaker or mobile device's volume is too low
Solution: Turn the volume of the speaker or mobile device up to increase the volume.

Problem 3: Music track may not be audible Solution: Make sure that the music track is of a playable format for the mobile device.

Problem 4: Speaker and mobile device might not be connected properly. Solution: Repeat the connection step via Bluetooth/auxiliary cable again to make sure that it is connected properly and try again.

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [e-mail].
• For Warranty Registration, visit www.valore.sg.

Cautions:

Read all the instructions and warnings carefully prior to using this product.

• Do not store the speaker in a high temperature environment.
• Do not place the speaker near a fire or other excessively hot environments.
• Do not expose this speaker to moisture or submerge it in liquid. Keep speaker dry at all times.
• Do not attempt to charge the speaker using any other method or connection other than the speaker's provided charging cable.
• Do not disassemble this speaker or attempt to repair or modify it in any manner.
• Be cautious of excessive drops, bumps, abrasions or other impacts to this speaker. If there is any damage to the speaker such as dents, punctures, tears, deformities or corrosion, stop using the speaker and contact us immediately via email at [e-mail], or return this product to the store where you have purchased it from.
• If the product produces an abnormal smell, high temperature (low temperature during normal use), discolours or changes shape abnormally, stop using the product and contact us immediately via email at [e-mail].

DISCLAIMER & TRADEMARKS

All information, trademarks, logos, graphics, and images (“Materials”) provided on this user manual are copyrighted or trademarked and are the property of Valore Lifestyle Pte Ltd. Any unauthorized use of any material contained on the instruction manual may violate copyright laws, trademark laws, laws of privacy and communications statutes.

The trademarks, service marks and logos used and displayed in the Materials are registered and unregistered trademarks and service marks of Valore and others. All other registered and unregistered company names, product names and marks mentioned herein the (“Materials”) are the property of their respective owners and may be trademarks or registered trademarks.

Complies with

IDA standards

DA 103331
