Product Type	Tower Fan
Brand	Termozeta
Model	AirZeta Living TZAZ07
Dimensions (H x W x D)	Approx. 105 x 30 x 30 cm
Weight	Approx. 4.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	45 W
Speed Settings	3 speeds (Low, Medium, High)
Oscillation	80° horizontal oscillation
Remote Control	Yes, included
Timer	Up to 7.5 hours
Airflow Modes	Normal, Natural, Sleep
Noise Level	< 56 dB(A)
Display	LED touch control panel
Material	ABS plastic
Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Overheat protection, tip-over switch
Spare Parts Availability	Contact Termozeta service center
Reparability	Repairs by qualified technician only
Certifications	CE, RoHS

Frequently Asked Questions - AirZeta Living TZAZ07 TERMOZETA

How do I clean the AirZeta Living TZAZ07 fan?

Unplug the fan and use a soft, damp cloth to wipe the exterior. Do not use abrasive cleaners or immerse the fan in water. The front grille can be removed for deeper cleaning.

Can I use the fan outdoors?

No, this fan is designed for indoor use only. It is not weatherproof and should not be exposed to rain or moisture.

How do I set the timer on the TZAZ07?

Press the Timer button repeatedly to set the desired shut-off time (up to 7.5 hours). The fan will automatically turn off once the timer expires.

What should I do if the fan stops working?

Check if the power cord is properly plugged in and the outlet is working. If the fan still does not operate, contact Termozeta customer service for assistance.

Does the fan have a remote control?

Yes, the AirZeta Living TZAZ07 comes with a remote control for convenient operation from a distance.

How do I adjust the oscillation?

Press the Oscillation button on the control panel or remote to start or stop the oscillating motion. The fan will sweep across an 80° angle.

What are the different fan speeds?

The fan offers three speed settings: Low, Medium, and High. Press the Speed button to cycle through them.

Is the fan noisy?

The fan operates quietly with a noise level below 56 dB(A), making it suitable for use in bedrooms or offices.

How do I store the fan?

Clean the fan, ensure it is dry, and store it in a cool, dry place. Avoid placing heavy objects on top of it.

Can I use an extension cord with this fan?

It is recommended to plug the fan directly into a wall outlet. If an extension cord is necessary, use a heavy-duty cord with a rating of at least 10 amps.

USER MANUAL AirZeta Living TZAZ07 TERMOZETA

VENTILATORE A TORRETTA

AIRZETA LIVING

cod. TZAZ07

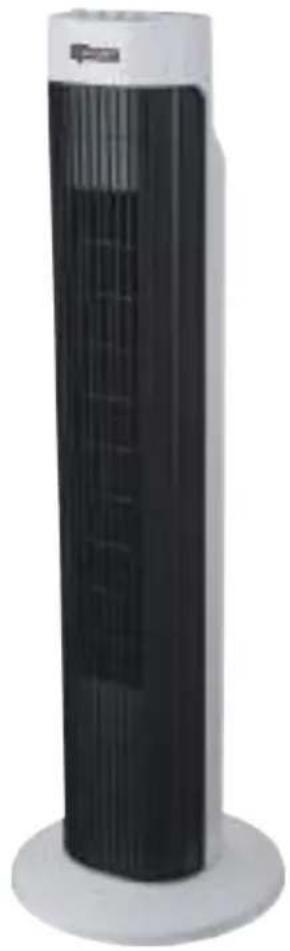

Black and white vertical tower with ventilation grilles, no visible text or symbols

MANUALE D'ISTRUZIONI

Black and white vertical tower with ribbed grille and base (no visible text or symbols)

INSTRUCTION MANUAL

Read this instruction manual carefully. Keep it for future reference.

SAFETY INSTRUCTIONS

1. The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capability or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. After removing the packing materials, check the integrity of the appliance; if You are unsure, do not use it and ask for professional help. The packing materials (plastic bags, polystyrene foams, nails, etc) must be kept out the reach of children because they are potential source of danger.
3. This appliance is intended for home use only, and it is suitable for domestic ventilation according to the methods shown in this manual. Any other use in considered inappropriate and therefore dangerous. The manufacturer cannot be held responsible for eventual damages caused by inappropriate, improper or irresponsible use and/or for repairs made to the product by unauthorised personnel.
4. Don't connect the fan to the power supply until the fan is fully assembled.
5. Before connecting the appliance check the electrical data shown in the rating label, correspond to the main supply electrical data.
6. Unplug the fan before any adjustment or cleaning procedures.
7. Never operate the fan if it has damaged or worn parts. It should be returned to the manufacturer, its Service Agent or similar qualified person for repair.
8. Always use on a stable level surface.
9. Never immerse the product in water or other liquids.
10. Don't put any heavy object on power cable. Keep the cable far

from heat source. The cable could be damaged.

1. Do not spray anything inside the fan.

2. Do not use the fan near flammable materials or substances.

3. To reduce the risk of electric shock, do not remove any screw from the product.

4. Do not insert fingers or other objects through the guards fan.

5. Do not children use or operate the fan.

6. If power cord is damaged, the appliance must not be used. It must be returned to the manufacturer, its Service agent or similar qualified person in order to avoid hazard.

7. Children should be supervised to ensure that they do not play with the appliance.

8. Do not pull the mains cable or the appliance itself when disconnecting the plug from the socket.

9. Do not let cord hang over edge of table, or touch hot surface.

10. Be sure that every part of the fan is correctly assembled following the instructions given in this manual. Uncorrect assembly can be dangerous and be source of hazards for persons, animals and object. The supplier cannot be considered responsible is case in uncorrect assembly of the product.

11. Never use the product for purposes different. This appliance is for Household use only.

12. Don't leave the product unattended when it is operating.

13. To avoid overheatings, it is recommended to fully unwrap the power cable when the product is operating.

14. Do not use the appliance after a possible irregular working. In this case, switch it off and do not break it open

15. Unplug the appliance when not in use, before assembly or disassembly, and before cleaning the product.

16. Position the product to a reasonable distance from walls, doors, windows or any object that could cause an un-proper operation.

17. Do not touch the appliance with wet hands or feet or barefood.

18. Do not expose the appliance to atmospheric agents such as rain, wind, snow, hail. Do not use outdoors.

19. Do not move the appliance when it is operating.
20. Don't unplug the product pulling the power cable or the product itself.
21. Don't pull the power cable to move the product.
22. Don't position the product just near the power outlet.
23. In general, the use adaptors multiple plugs and/or extensions is not recommended; if they are necessary, use only simple or multiple adaptors and extensions in accordance with the applicable Safety Standards.
24. Always unplug the appliance before you assembling, disassembly, cleaning or adjusting any part of the product.
25. Never pull the power cable or the product itself to unplug the product from the socket.
26. Do not place the appliance near an open flame, cookers or any other heating appliance.
27. Keep the fan far away from curtains, or materials that could obstruct the air intake grille
28. Make sure that the power cable is not touching rough, hot or moving surfaces and not twisted or :-wrapped around the appliance.
29. Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid risk of fire, since a fire risk exists if the heater is covered or positioned incorrectly.
30. Do not leave the device exposed to the weather (sun, rain, etc.).
31. The power socket must be easy to reach so the plug can be removed quickly in case of emergency.
32. Position the appliance on a horizontal, flat surface or table; do not stand on a inclined plane (the appliance could fall down).

INSTALLATION

After removing the packing materials, check the integrity of the heater; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger.

Before connecting the appliance, check that the voltage values shown on the data plate correspond to those of the electricity supply network.

The power socket must be easy to reach so the plug can be removed quickly in case of emergency.

Never place the appliance near sinks or other container of liquids (minimum distance to avoid the risk of contact.

Keep the fan far away from clothes (curtains, etc.) or flying materials that could obstruct the air intake grille; make sure that the front is free of flying materials (dust, etc.).

Make sure that the electric cord is not touching rough, hot or moving surfaces and not twisted or wrapped around the appliance.

Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid risk of fire, since a fire risk exists if the heater is covered or positioned incorrectly.

Position the appliance on a horizontal, flat surface or table; do not stand on a inclined plane (the appliance could upset).

In the event of a breakdown or poor operation, turn the fan heater off and ask for professionally qualified help.

ASSEMBLY

Attention: always unplug the appliance before you assemble.

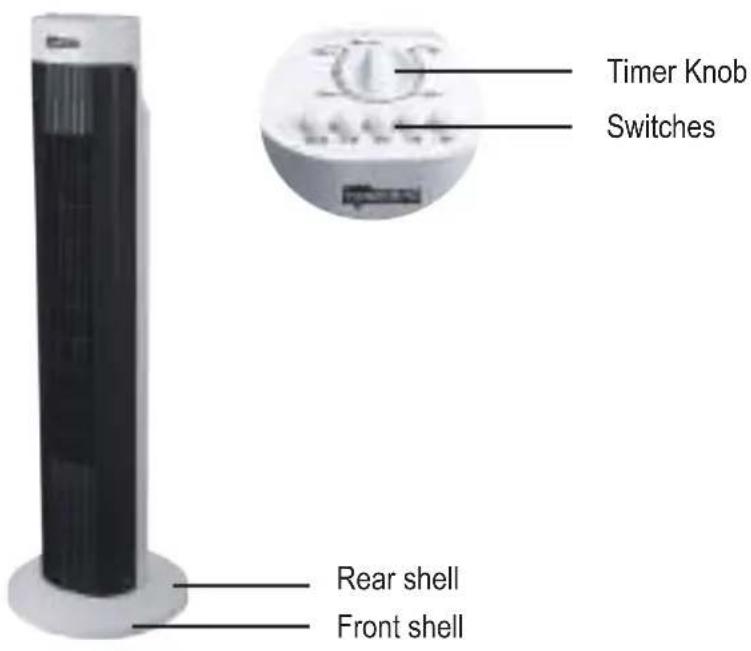

Attention: the fan can only be used if complete with the support base (front and rear shell).

To assemble it, refer to figures.

Unscrew the ring nut on counterclockwise bottom of the body, in case the nut is screwed.	Place the front shell on the body first.	Couple the rear shell to the front (align the four shell holes) secure the set by turning clockwise the ring nut.	Plug the power cord through the guidance of the back shell.

USE

Before each use, verify that the unit is in good condition, the electric cord is not damaged, if the power cord is damaged, it must be replaced by the manufacturer or a competent qualified electrician or a person with similar qualifications, in order to avoid any risk.

Your appliance is equipped with the following regulation elements, controlled by turn the knobs on the keyboard located on the rear of the control panel.

Plug the product in.

Timer: This appliance has a timer for automatic switching off at the end of the time set; to set the time turn the timer knob (A) clockwise to the position corresponding to the desired operating time (0-120 min.); in order to operate the appliance in a continuous manner, and to therefore exclude use of the timer, turn the knob anticlockwise to the "ON" position.

Ventilation:

After setting the timer, select the desired speed using the push-button pos.:

= Speed minimum

= Speed medium

= Speed maximum

Horizontal oscillation (right-left): this is controlled by the oscillation switch ( ). To stop the movement and to keep the fan still, press the oscillation button again.

To switch off the appliance, press the switch , and then remove the plug from the socket. When not in use for long periods, the plug must always be removed from the socket.

MAINTENANCE AND CLEANING

Attention: before normal cleaning, remove the plug from the socket.

Clean the body with soft, slightly damp, cloth; do not use abrasive or corrosive products.

Do not immerse any part of the fan in water or other liquid: if this should happen, do not put your hand in the liquid, but first remove the plug from the socket. Carefully dry the appliance and make sure that all the electrical parts are dry: in the case of doubt, ask for professionally qualified help. It is essential that the motor's air holes be kept from dust and lint.

If the fan will not be used for long periods, it must be protected from dust and humidity; we recommend storing it in its original packaging

Should you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them.

SPECIFICATION

PRODUCT: TOWER FAN

MODEL: TZAZ07

POWER: 45W

VOLTAGE: 220V-240V / 50 Hz

Information requirements
Maximum air flow	F	26,71	m^3/min
Fan power input	P	34,20	W
Service value	SV	0,78	(m^3/min)/W
Standby power consumption	Psb W	0
Fan sound power level	Lwa dB(A)	69,90
Maximum air velocity	C	3,49	m/s
Measuring standard of service value	GB/T 13380:2007
Contact details for obtaining more information	Daniele Fontana

Used electric household devices

1. If you do not want to use your electrical appliance any longer, return it free of charge to a recycling depot for used electric appliances.
2. Used electric devices do not belong in the household garbage (see symbol). Further disposal instructions
3. Return the electrical appliance in such a condition that its later re-use or recycling is not adversely affected. Batteries must be removed in advance and the destruction of parts which contain fluids must be avoided.
4. Electrical appliances can contain harmful substances. Improper handling or damage to the appliance can lead to health problems or water or ground contamination, when the appliance is recycled later.

Lange Distribution S.r.l. reserves the right to introduce technical and/or aesthetic changes to its products intended to improve performances. Termozeta is an international trademark. Copyright © 1995. All rights reserved. Lange Distribution S.r.l. -Via Treviso,35-20127 Milano-Italy
