Type	2-way bookshelf loudspeaker
Low-frequency transducer	5-1/4" (130mm) aluminum cone with cast frame
High-frequency transducer	1" (25mm) aluminum dome with acoustic lens waveguide
Recommended amplifier power	50 – 120 watts
Low-frequency extension	44Hz (-10dB); 56Hz (-6dB); 60Hz (-3dB)
Nominal impedance	8 ohms
Sensitivity (2.83V/1m)	86dB
Crossover frequency	2.3kHz
Enclosure type	Bass-reflex via rear-mounted port
Inputs	Gold-plated binding posts (accepts banana plugs, spade lugs, pin connectors, bare wire)
Available finishes	Piano black, piano white, high-gloss walnut
Dimensions (H x W x D)	14" x 7-7/8" x 9-3/4" (356mm x 200mm x 248mm)
Weight	15.7 lb (7.2kg)
Warranty (passive loudspeakers)	5 years (A-stock), 1 year (B-stock)
Port plugs included	Yes, foam port plugs for adjusting low-frequency performance
Grille attachment	Magnetic, removable for clean appearance
Recommended placement height	Tweeter at ear level, approximately 36" (91cm) above floor
Speaker cable requirement	Maximum loop resistance 0.07 ohms per run; refer to gauge table in manual

Frequently Asked Questions - Performa3 M105 Revel

What is the recommended amplifier power range for the M105?

The recommended amplifier power range is 50 to 120 watts per channel.

How should I place the M105 speakers for best sound?

Place them equidistant from the primary listening position and side walls, with tweeters at ear level (about 36 inches high). Toe them in toward the listening position for optimal imaging. Avoid obstructions between the speakers and listener.

Can I use the M105 without the grilles?

Yes, the grilles are magnetically attached and can be removed. The baffle is designed to look clean without grilles.

What are the port plugs for?

Foam port plugs are included to reduce excessive bass when the speaker is placed close to walls or in cabinets. Insert them into the rear port to tame low-frequency output.

How do I connect the M105 to my amplifier?

Use high-quality speaker cable with proper polarity: connect amplifier + to speaker + and amplifier - to speaker -. The binding posts accept banana plugs, spade lugs, pin connectors, or bare wire. Ensure all components are off when making connections.

What is the warranty period for the M105?

For A-stock (new from authorized dealers), the warranty is 5 years for passive loudspeakers. B-stock (part numbers ending in -Z) have a 1-year warranty.

How do I clean the M105 cabinet and grille?

Use a soft microfiber cloth and high-quality auto wax for the cabinet. Avoid the rubberized side trim; clean it with denatured alcohol. Vacuum the grille gently with a soft brush attachment.

What type of speaker wire should I use?

Use wire with total loop resistance of 0.07 ohms or less per run. Refer to the manual's gauge table: for runs up to 87 feet, use 6 AWG; for shorter runs, lighter gauge is acceptable.

Can I use the M105 in a home theater system?

Yes, the M105 works well as front left/right or surround speakers. Ensure proper placement and crossover settings in your receiver (typically 60-80 Hz).

What is the difference between M105 and M106?

The M105 has a 5-1/4" woofer and is slightly smaller, while the M106 has a 6-1/2" woofer with deeper bass extension (39Hz vs 44Hz at -10dB) and higher sensitivity (87dB vs 86dB).

USER MANUAL Performa3 M105 Revel

M106/M105 Bookshelf Loudspeaker Owner's Manual

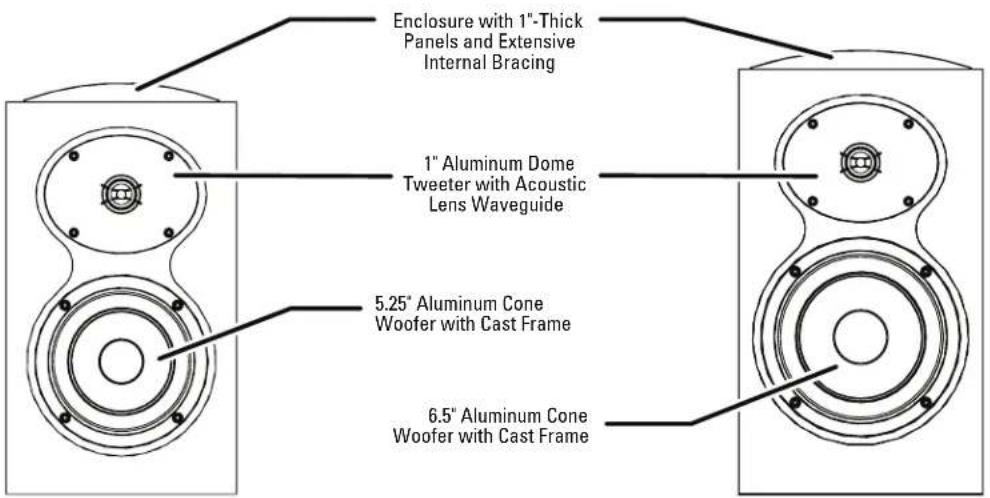

Line drawing of a two-tiered speaker with circular and rectangular components (no text or symbols)

Line drawing of a two-tiered speaker with circular and rectangular components (no text or symbols)

TABLE OF CONTENTS

About Revel Performa3 Bookshelf Loudspeakers....2

M106/M105 Overview....3

Installation Considerations Loudspeaker Placement, Listening Room Acoustics, Acoustic Treatment Materials 4

Making Connections Observe Proper Polarity, Speaker Cable, M106/M105 Connections....5

Optimizing Performance Port Plugs, Adjustments, Loudspeaker Volume Levels......6

Caring for Your Loudspeakers Grilles, Finish....6

Specifications M106, M105....7

ABOUT REVEL PERFORMA3 BOOKSHELF LOUDSPEAKERS

Thank you for purchasing Revel Performa3 bookshelf loudspeakers. These true full-range loudspeakers feature small footprints and sleek designs, allowing them to blend-in easily with your existing décor. They deliver an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.

Revel M106 and M105 low-frequency transducers feature distortion reduction mechanisms that stabilize the flux field during operation, assuring low distortion even at high listening volumes. These precision transducers utilize ribbed aluminum cones for ideal piston-like behavior that eliminates a major source of resonances that are clearly audible in most other loudspeakers. Their cast aluminum frames eliminate another source of resonances that is common in many lesser-quality loudspeakers. These loudspeakers employ a sophisticated fluid-model designed low-frequency port with identical flares on both ends. This greatly minimizes dynamic compression and port-generated noise, assuring low-distortion low-frequency performance.

The M106 and M105 tweeter has been created around a newly-designed motor and dome assembly that sets a new standard of transparency for speakers anywhere near the Performa3's class. The tweeter's integrated acoustic lens waveguide is based on a breakthrough mathematical approach that accurately matches the tweeter's dispersion to that of the low-frequency transducer in the crossover region. This gives the loudspeaker very smooth sound far off-axis – an important contributor to overall sound quality, providing consistent sound over an exceptionally wide listening area. In fact, this new waveguide actually increases the tweeter's dispersion at higher frequencies.

The M106 and M105 are housed in enclosures that are similar to our flagship Ultima2 Series. These fully-curved enclosures are inherently stiffer than conventional box shapes and are formed with contiguous wood layers that prevent splitting. They feature strategically-oriented bracing that eliminates the possibility of enclosure-induced coloration. These beautiful, modern enclosures are finished in high-gloss piano black, high-gloss piano white or genuine American walnut in a process (developed and overseen by Italian luxury cabinet makers)

that exceeds automotive finish quality. The loudspeaker grilles are designed to minimize sonic diffraction or veiling and provide a clean, subtle appearance. The magnetic grille attachment method completely eliminates ugly hardware on the loudspeaker baffle, so if you decide to use the loudspeakers without grilles they will look like they were designed to be used without grilles.

Revel Performa3 crossover networks feature carefully-selected components that contribute to great performance and benchmark-setting value. These high-order crossover networks dramatically reduce distortion and dynamic compression for clear sound that maintains the same quality over a very wide dynamic range. These precision networks optimize the speakers' timbral accuracy, enhancing musical enjoyment for listeners who are anywhere in the room, not only those seated on-axis to the loudspeakers.

During development, every Revel loudspeaker model is compared to competitive models in our unique position-independent double-blind listening lab. This process utilizes the latest psychoacoustic research to assure that these listening tests are valid, enabling us to verify that all Revel loudspeakers are superior to their competitors before they are allowed to go into production.

M105 M106

INSTALLATION CONSIDERATIONS

Loudspeaker fidelity depends on the following three factors: loudspeaker accuracy, loudspeaker placement and listening room acoustics.

Advanced Revel design features allow the M106 and M105 to achieve exceptional acoustical precision. As a result, experimenting with loudspeaker placement and listening room acoustics will have the most significant impact on the loudspeakers' performance.

LOUDSPEAKER PLACEMENT

The following are important loudspeaker placement considerations for the M106 and M105:

- Remove all obstructions between the loudspeaker and the primary listening position. For instance, a coffee table between the loudspeaker and the primary listening position will create reflections that will degrade stereo imaging and timbre. Placing the loudspeakers near large objects may also cause unwanted reflections.

- For the best stereo imaging, place the loudspeakers so that they are both the same distance from the primary listening position and so they are both the same distance from the side walls, as shown in the illustration below.

• For optimal stereo imaging and timbre, aim the loudspeakers almost directly toward the primary listening position as shown in the illustration above. If you wish to widen the stereo soundstage you can reduce this toe-in angle, even to the point at which the loudspeakers are pointing straight forward.
• Moving the loudspeakers farther from the front and side listening room walls will improve stereo imaging and the sense of spaciousness in the listening space.
• Moving the loudspeakers closer to the corners or walls of the listening room will increase bass response.

- For best results, place the speaker so the tweeter is aligned with a seated listener's ears, approximately 36" (91cm) above the floor.

- Optional Performa3 M Stand pedestal stands are available for the M106 and M105 that place the speakers at the proper height for seated listeners. Refer to the assembly instructions that are included with the stands for additional information.

CAUTION: When placed on the optional pedestal stands, loudspeakers such as the M106 and M105 have a high center of gravity, which may cause them to fall if tipped or improperly positioned. To avoid this, anchor the stand to the floor and/or wall using the same procedures and hardware used to anchor bookcases, wall units, and other furniture. HARMAN International Industries, Inc. assumes no responsibility for proper selection and installation of hardware or for any personal injuries or product damages resulting from improper installation or a fallen loudspeaker.

LISTENING ROOM ACOUSTICS

Listening rooms have a profound impact on sound, particularly at lower frequencies. In fact, the effect of the listening room can dominate sounds below about 400Hz. Ideally, listening rooms would include optimized dimensional ratios to minimize the effects of room resonances. But in reality, most listening rooms are not designed to enhance loudspeaker performance.

The interaction between loudspeakers and listening rooms is complex, with two important determinants that affect the loudspeaker and the listener:

• Surfaces and other boundaries often cause large peaks and dips in low-frequency response. These peaks and dips can often range 12dB or more.
• Standing waves (also known as room modes or resonances) interact with both the loudspeaker and the listener, resulting in large errors in frequency response.

Unfortunately, there is no simple solution that addresses both of these factors. Even computer software programs that examine one or both factors may not calculate proper primary listening position or loudspeaker placement values.

In most cases, proper selection of the primary listening position combined with proper placement of the loudspeaker can result in superior performance at lower frequencies. The difference between superior and inferior results is often just a small adjustment of the primary listening position or loudspeaker placement. Contact your authorized Revel dealer for assistance.

ACOUSTICTREATMENT MATERIALS

The M106 and M105 feature high-order filters that optimize the loudspeakers' on-axis and off-axis response, minimizing sonic degradations that occur in overly "live" rooms (those with surfaces that are acoustically reflective). Placing minimal acoustic treatment materials at the room's primary reflection points will reduce these distortions even further. Ideally, acoustic absorbers should be placed at the first reflection points on the front and side walls and either acoustic absorbers or diffusers should be placed at the first reflection points on the rear wall.

Because the listener's eyes and ears are on the same plane, the "mirror method" is an accurate determinant of critical reflection points. This method can be used to determine reflection points for side walls, rear walls, front walls, and even the ceiling. Applying acoustic treatment materials to the side walls is most important, followed by the ceiling, front wall and rear wall.

To determine reflection points using the mirror method:

1. Once the loudspeakers have been placed, sit in the primary listening position and ask another person to slide a mirror along the listening room walls.
2. Note the locations at which you can see either loudspeaker in the mirror from the primary listening position. Be sure to look for both loudspeakers in the reflection on each room boundary. These are reflection points that require acoustic treatment materials.

If acoustic treatment materials are not available, hanging a rug over the reflection points will help reduce sonic degradation in overly "live" rooms. Carpeting the floor area between the loudspeakers and the primary listening position and placing irregular surfaces such as bookcases at the first reflection points will also help minimize strong reflections.

MAKING CONNECTIONS

CAUTION: Never make or break connections unless all system components are powered off.

OBSERVE PROPER POLARITY

Connect the amplifier's positive (+) terminal to the positive (+) terminal on the corresponding speaker; connect the amplifier's negative (−) terminal to the negative (−) terminal on the corresponding speaker. Do not reverse polarities (that is, do not connect + to −, or − to +) when making connections. Doing so will cause poor stereo imaging and diminished bass response.

SPEAKER CABLE

Use high-quality loudspeaker cable with a maximum total loop resistance of 0.07 ohms or less for each wire run. Refer to the table below to determine the appropriate wire gauge for your installation.

MINIMUM WIRE GAUGE

Maximum Wire Length (Feet)	Maximum Wire Length (Meters)	Minimum Wire Gauge (AWG)
<87 <27 6
<69 <21 7
<58 <18 8
<43 <13 9
<34 <10 10
<27 <8 11
<22 <7 12
<17 <5 13
<14 <4 14
<11 <3.5 15
<9 <3 16
<7 <2 17
<5 <1.5 18

NOTE: High loop resistances that exceed 0.07 ohms (for each wire run) will cause the loudspeaker's filter network to be mis-terminated, resulting in considerable degradation of sound quality.

M106/M105 CONNECTIONS

The M106 and M105 feature gold-plated binding posts that provide secure connection for speaker cables terminated with banana plugs, spade lugs, pin connectors or bare wire.

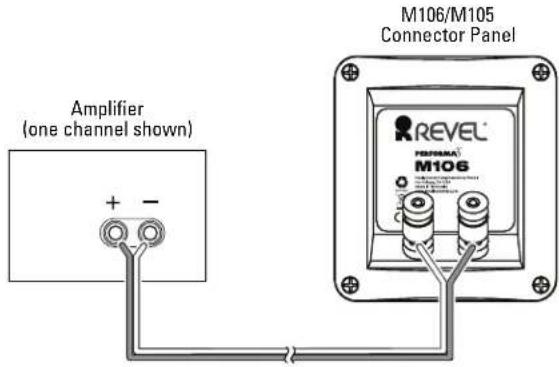

Connect both loudspeakers using the same method, using speaker cables of the same length for each speaker.

- Review the owner's manuals for all associated audio components to determine their correct connection procedures.

OPTIMIZING PERFORMANCE

PORT PLUGS

Revel Performa3 bookshelf loudspeakers include a pair of foam port plugs that can be used to adjust the loudspeaker's low-frequency performance in certain installation situations.

If your loudspeakers are built into an entertainment center or shelving unit, or if the loudspeaker is located less than about two feet (0.61m) from walls or other large objects, inserting the port plugs into the loudspeaker's port openings can reduce the overly-aggressive bass output that can be created by the speaker's proximity to large surfaces that reflect bass energy.

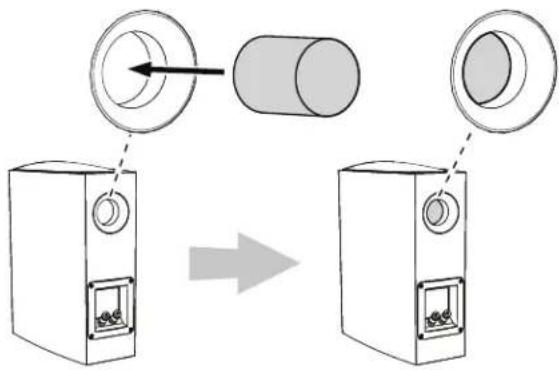

Insert the port plug into the loudspeaker's port tube opening far enough so that the end of the plug is flush with the inside end of the port tube's flared section.

CAUTION: Be careful not to insert the port plug so far into the port tube that it falls inside of the speaker.

ADJUSTMENTS

1. Begin playback of a familiar music or film source.
2. Listen from the primary listening position, increasing volume to a comfortable level.
3. Experiment with the loudspeakers' placement to achieve the best overall tonal balance, stereo image precision, and sense of spaciousness in the listening room. Refer to the Installation Considerations section on page 4 for additional information about loudspeaker placement.
4. Experiment with the port plugs to achieve the best low-frequency performance for your particular listening room and installation.

LOUDSPEAKER VOLUME LEVELS

The high-order filters employed in Revel Performa3 series loudspeakers include steep cut-offs to reduce potential transducer damage from "out-of-band" frequencies. Combined with carefully selected transducers and filter network components, this approach helps the Performa3 Bookshelf loudspeakers maintain their performance under extreme operating conditions.

However, all loudspeakers have limits when it comes to continuous playback. To avoid exceeding these limits, avoid playback at volume levels that distort or strain the sound.

CAUTION: To avoid damage, reduce volume level immediately if the loudspeaker sound is not clean and clear.

CARING FOR YOUR LOUDSPEAKERS

GRILLES

Revel Performa3 bookshelf speakers feature grilles with a magnetic attachment method that eliminates unsightly attachment hardware from the speaker baffle, so if you decide to use your speakers with the grilles removed they will retain their elegant appearance.

When installing the grille on the speaker, orient it so that the plastic frame's crossbar is more towards the top of the speaker cabinet.

CABINET FINISH

The cabinet's wood finish does not require routine maintenance. Cabinet surfaces that have been marked with dust, fingerprints, or other dirt can be cleaned using a soft cloth – preferably micro-fiber, and high quality auto wax. Take care not to come in contact with the transducers.

- Use caution to avoid contacting the rubberized trim on the sides of the loudspeaker with auto wax. If necessary, the rubberized trim can be cleaned with denatured alcohol on a microfiber cloth.

To clean the grille, gently vacuum it using a soft-bristled brush vacuum attachment with the vacuum cleaner set to the lowest possible suction.

CAUTION: To prevent cabinet damage, do not use a cloth made with steel wool or metal polish to clean the cabinet. To prevent possible transducer damage, do not apply furniture polish directly to the cabinet.

SPECIFICATIONS

M106

Type: 2-way 6-1/2" bookshelf loudspeaker
Low-frequency transducer: 6-1/2" (165mm) aluminum cone, with cast frame
High-frequency transducer: 1" (25mm) aluminum dome, with acoustic lens waveguide
Recommended amplifier power range: 50 – 150 watts
Low-frequency extension: 39Hz (-10dB); 54Hz (-6dB); 59Hz (-3dB)
Nominal impedance: 8 ohms
Sensitivity (2.83V/1m): 87dB
Crossover frequency: 2.3kHz
Enclosure type: Bass-reflex via rear-mounted port
Inputs: Gold-plated binding posts
Available finishes:	Piano black, high-gloss walnut
Dimensions (H x W x D):	15" x 8-1/4" x 11" (381mm x 210mm x 278mm)
Weight:	18.5 lb (8.4kg)

M105

Type: 2-way 5-1/4" bookshelf loudspeaker
Low-frequency transducer: 5-1/4" (130mm) aluminum cone, with cast frame
High-frequency transducer: 1" (25mm) aluminum dome, with acoustic lens waveguide
Recommended amplifier power range: 50 – 120 watts
Low-frequency extension: 44Hz (-10dB); 56Hz (-6dB); 60Hz (-3dB)
Nominal impedance: 8 ohms
Sensitivity (2.83V/1m): 86dB
Crossover frequencies:	2.3kHz
Enclosure type: Bass-reflex via rear-mounted port
Inputs: Gold-plated binding posts
Available finishes:	Piano black, piano white, high-gloss walnut
Dimensions (H x W x D):	14" x 7-7/8" x 9-3/4" (356mm x 200mm x 248mm)
Weight:	15.7 lb (7.2kg)

LIMITED WARRANTY

Revel Series speakers are warranted against defects. The duration of the speaker's warranty depends on the laws in the country in which it was purchased. Your local ReveP ^ retailer can help you determine the length of your warranty.

HARMAN

HARMAN International Industries, Incorporated

8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2012 HARMAN International Industries, Incorporated. All rights reserved.

Revel and the Revel logo are trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.

Features, specifications and appearance are subject to change without notice.

For questions, assistance or additional information concerning any of our products, call us at: [phone] or [phone]. For technical support, submit your detailed inquiry to:[e-mail].

Part No. REVP4835 Rev: A

REVEL

by HARMAN

www.revelspeakers.com

LIMITED WARRANTY

United States, US Territories – Effective January 1, 2017

This limited warranty (this "Limited Warranty") protects only the original end-user ("you" or "your"), and is not transferable. Any attempt to transfer this Limited Warranty shall immediately make this Limited Warranty void.

Harman International Industries, Incorporated ("Harman") warrants to you that your Revel product (the "Product") will be free from defects in workmanship and materials for the corresponding period set forth in the table below (the "Warranty Period").

A-stock(purchased from authorized resellers)		B-stock(denoted with "-Z" at the end of the part number)
Product Category	Warranty Period	Product Category	Warranty Period
Passive Loudspeakers	5 years	Passive Loudspeakers	1 year
Powered Loudspeakers	5 years	Powered Loudspeakers	1 year
In-wall Loudspeakers	Lifetime	In-wall Loudspeakers	1 year
In-ceiling Loudspeakers Lifetime In-ceiling Loudspeakers 1 year

This Limited Warranty does not cover defects which are a result of: (1) damage caused by accident, disaster, misuse, abuse or other unreasonable use or neglect (including the lack of reasonable and necessary maintenance); (2) damage occurring during shipment (claims must be presented to the carrier); (3) damage caused by improper installation or adjustment; (4) damage to, or deterioration of, any accessory or decorative surface; (5) damage resulting from failure to follow instructions contained in your owner's manual; or (6) damage resulting from the performance of repairs by someone other than an authorized Revel service center.

Furthermore, this Limited Warranty covers only actual defects within the Product itself, and does not cover the cost of installation or removal from a fixed installation, setup or adjustments, claims based on misrepresentation by the seller, performance variations resulting from installation-related circumstances such as program source quality or AC power or Product modifications, any Product on which the serial number has been effaced, modified or removed, or any Product sold on an "as-is" or final sale basis. This Limited Warranty is valid only for Products purchased from an authorized Revel dealer.

THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. EXCEPT TO THE EXTENT EXPRESSLY PROHIBITED BY APPLICABLE LAW, HARMAN EXPRESSLY DISCLAIMS ALL SUCH OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT, WITH RESPECT TO THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, HARMAN SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES EXCEPT TO THE EXTENT EXPRESSLY PROVIDED (OR PROHIBITED) BY APPLICABLE LAW, EVEN IF HARMAN HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Notwithstanding the above, if you qualify as a "consumer" under the Magnuson-Moss Warranty Act, or applicable state laws, then you may be entitled to any implied warranties allowed by law for the Warranty Period. Further, some states do not allow limitations on how long an implied warranty lasts or allow the exclusion or limitation of consequential damages, so such limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

This Limited Warranty is applicable in the United States and its territories. Outside of the United States and its territories, please contact an authorized Revel dealer for warranty and service information.

When the Product needs service contact an authorized Revel dealer, or contact Revel customer support to request information about where the Product should be taken or sent. To validate your right to this Limited Warranty, you must provide the original dated sales receipt or other proof of ownership and date of purchase. Do not return your Product for service without prior authorization from an authorized service center. Warranty repair of the Product must be carried out by an authorized service center. Unauthorized warranty repair will void this Limited Warranty and is performed at your sole risk.

During the Warranty Period, Harman will at its sole option and expense, repair or replace any product found to be defective. In the event that the Product is no longer available and cannot be repaired effectively, Harman, at its sole option, may replace it with a reasonable equivalent, or refund the original purchase price paid. Harman will cover reasonable return shipping charges within the United States and its territories, only if the Product is found to be defective under this Limited Warranty.

You will be charged for the cost of examining any Product that is not in need of repair (including resulting shipping costs), or for necessary repairs not covered by this Limited Warranty.

We sincerely thank you for your expression of confidence in Revel. We wish you many years of listening pleasure.
