ORH 280 W - Freezer Orima - Free user manual and instructions

Product Type	Chest Freezer
Brand	Orima
Model	ORH 280 W
Net Capacity	280 L
Energy Class	E (EU 2019)
Annual Energy Consumption	280 kWh/year
Noise Level	40 dB(A)
Climate Class	SN-N-ST (10°C - 38°C)
Temperature Range	-18°C to -24°C
Defrost Type	Manual
Freezing Capacity	18 kg/24h
Storage Time During Power Failure	Up to 24 hours
Dimensions (H x W x D)	85 x 100 x 70 cm
Net Weight	50 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	150 W
Refrigerant	R600a (Isobutane)
Number of Baskets	2
Lockable Lid	Yes
Interior Light	No
Wheel Kit	Yes (4 castors)
Installation Type	Free-standing

Frequently Asked Questions - ORH 280 W Orima

What is the recommended temperature setting for the Orima ORH 280 W freezer?

The recommended temperature is -18°C for optimal food preservation. You can adjust between -18°C and -24°C using the thermostat dial.

How do I defrost my Orima ORH 280 W chest freezer?

To defrost, unplug the freezer and remove all food. Leave the lid open to allow frost to melt. Clean the interior with a damp cloth and dry thoroughly before restarting. Never use sharp tools to scrape off ice.

What is the energy consumption of the Orima ORH 280 W?

The annual energy consumption is approximately 280 kWh, based on standard testing. Actual consumption may vary depending on usage and environment.

Can I install the Orima ORH 280 W in an unheated garage?

Yes, the freezer has climate class SN-N-ST, meaning it can operate in ambient temperatures from 10°C to 38°C. However, if temperatures drop below 10°C, performance may be affected.

How long can food stay frozen during a power failure?

The freezer can keep food frozen for up to 24 hours if the lid remains closed. Avoid opening the lid during a power outage to maximize storage time.

What is the freezing capacity of the ORH 280 W?

The freezing capacity is 18 kg per 24 hours. Do not exceed this amount when freezing fresh food to ensure proper freezing.

How do I clean the Orima ORH 280 W freezer?

Clean the interior with a solution of warm water and mild detergent. Rinse and dry thoroughly. The exterior can be wiped with a damp cloth. Avoid abrasive cleaners.

Is the Orima ORH 280 W freezer lockable?

Yes, the lid is equipped with a lock. Use the key to secure the freezer. Keep the key in a safe place, as it is necessary for unlocking the lid.

What should I do if the freezer is not cooling properly?

First, check the power supply and ensure the thermostat is set correctly. Clean the condenser coils if dusty. If the problem persists, contact a qualified technician. Do not attempt to repair yourself.

Are spare parts available for the Orima ORH 280 W?

Orima provides spare parts such as baskets, thermostat, and lid seals. Contact Orima customer service or an authorized dealer for availability.

USER MANUAL ORH 280 W Orima

MANUAL DE INSTRUÇÕES

INSTRUCTION MANUAL LIVRE D'INSTRUCTIONS LIBRO DE INSTRUCCIONES

www.orima.pt

facebook.com/orima.pt

White refrigerator with two doors, no visible text or symbols on the front panel

MMA

JALATI MEANDU DE ALMEGA

FRIGORÍFICO

Line drawing of a refrigerator with a lid and front panel (no text or symbols)

Line drawing of a mechanical device with a labeled component (no text or symbols present)

Line drawing of a mechanical assembly with a hanging clamp and a circular inset showing a tool or component (no text or symbols)

Pure mechanical diagram showing two vertical supports with circular features and a curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Technical line drawing of a mechanical lifting device with a magnified inset showing gear mechanism (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a circular component labeled 'A' (no text or symbols on the device itself)

Line drawing of a rectangular electronic device with a handle and base (no text or symbols)

Instalação

Espaço necessário

Instalação

Posição

Instale este aparelho num local onde a temperatura ambiente corresponda à classe climática indicada na matrícula do aparelho:

Classe Climática	Temperatura Ambiente
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

Localização

Simple line drawing of concentric circles with a small droplet on the right side (no text or symbols)

Line drawing of a hand using a tool to clean or install a shelf (no text or symbols)

Simple line drawing of a container with two upward arrows inside (no text or symbols)

Ficha Técnica

Simple line drawing of an airplane inside a boat hull, with no text or symbols present.

Technical line drawing of a mechanical device with internal components (no text or symbols)

Refrigerator Freezer ORH 280 W

Content
1. Safety Information	Page 1~9
2. Overview	Page 10
3. Reverse Door	Page11~13
4. Installation	Page 14~15
5. Daily Use	Page 16~20

!

CE

•

•

!

!

process, other

!

!

!

•

•

•

•

•

!

CE

!

!

:

•

•

•

•

•

•

•

•

•

recommendations

!

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

This illustration is only for hinting, the detail please check your appliance.

Reverse Door

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

Ensure the unit is unplugged and empty.
To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
- All parts removed must be saved to do the reinstallation of the door.
Do not lay the unit flat as this may damage the coolant system.
It's better that 2 people handle the unit during assembly.

1. Remove two screws at rear side of top cover.

2. Remove top cover and place it aside.

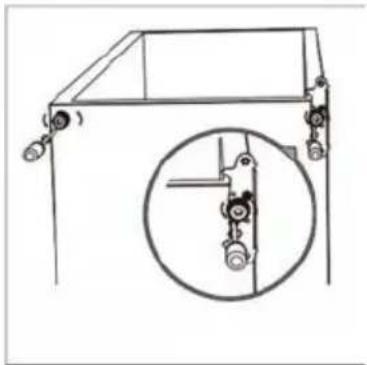

3. Unscrew top hinge and then remove upper door and place it on a soft pad to avoid scratch.

4. Unscrew middle hinge. Then lift lower door and place it on a soft pad to avoid scratch.

Line drawing of a refrigerator with lid and frontrest (no text or symbols)

Line drawing of a refrigerator interior with a hand holding a tool and a circular icon labeled '电视' (TV) pointing to the side panel.

1. Move the hinge hole covers from left side to right side.

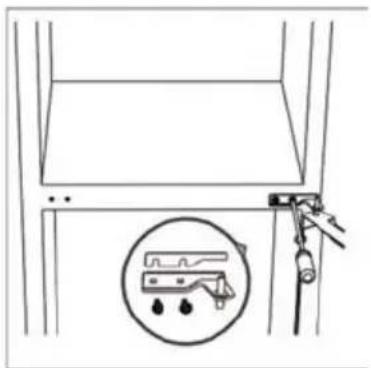

2. Unscrew bottom hinge. Then remove the adjustable feet from both side.

Simple line drawing of a symmetrical structure with two vertical supports and circular elements, no text or symbols present.

Technical line drawing of a mechanical frame with a circular inset showing internal components (no text or symbols)

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Reverse Door

1. Make the middle hinge reverse the direction180°C, then transfer it to the left property position. Make the middle hinge pin in the upper hole of the lower door, then tight the bolts.

2. Place the upper door back on. Ensure the door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the top hinge.

3. Put the top cover and fix it with 2 screws on the back.

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical or electrical component with no visible text, numbers, or symbols

Line drawing of a rectangular electronic device with a handle and base (no text or symbols)

Space Requirement

□ Keep enough space of door open.
□ Keep at least 50mm gap at two sides.

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

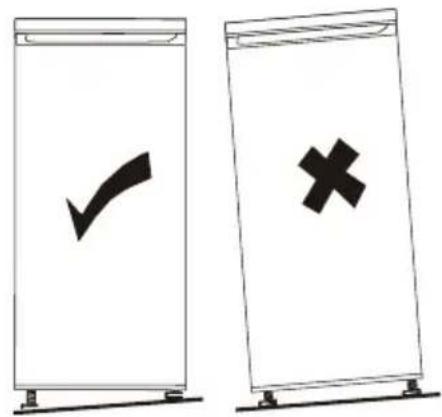

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi- net and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Temperature Setting

Plug on your appliance. The internal temperature is controlled by a thermostat. There are 8 settings . 1 is warmest setting and 7 is coldest setting and 0 is off.
The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

Simple line drawing of concentric circles with a small droplet on the right side (no text or symbols)

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams, juices, drinks, condiments.·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf – bottom Chiller (box/drawer)	Raw meat, poultry, fish (for short-term storage)
Fridge shelf – middle	Dairy products, eggs
Fridge shelf – top	Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	·Foods for long-term storage.·Bottom drawer/shelf for raw meat, poultry, fish.·Middle drawer/shelf for frozen vegetables, chips.·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
Place the fresh food to be frozen in the freezer compartment.
☐ The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Ice-cube

This appliance may be equipped with one or more ice-cube to produce ice.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Line drawing of a hand installing or adjusting a shelf panel (no text or symbols)

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Technical Information

Helpful hints and tips

To help you make the most of the freezing process, here are some important hints:

□ the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
the freezing process takes 24 hours. No further food to be frozen should be added during this period;
□ only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
☐ do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
□ lean foods store better and longer than fatty ones; salt reduces the storage life of food;
☐ water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
☐ it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

☐ be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;

☐ not open the door frequently or leave it open longer than absolutely necessary.

□ once defrosted, food deteriorates rapidly and cannot be re-frozen;

☐ do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

Do not store warm food or evaporating liquids in the refrigerator
Do cover or wrap the food, particularly if it has a strong flavour
☐ Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
☐ For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.
□ Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
☐ butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
□ Milk bottle: these should have a cap and should be stored in the balconies on the door.
□ Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

Clean drain hole

To avoid defrost water overflowing into the fridge, periodically clean the drain hole at back of fridge compartment. Use a cleaner to clean the hole as showed in right picture.

Simple line drawing of a heart-shaped object with arrows indicating rotation or movement, no text or symbols present.

☐ Do not allow such substances to come into contact the appliance parts.
Do not use any abrasive cleaners
□ Remove the food from the freezer. Store them in a cool place, well covered.
Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
☐ Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
After everything is dry place appliance back into service.

Defrosting of the freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows:

□ pull out the plug from the socket;
□ remove all stored food, wrap it in several layers of newspaper and put it in a cool place;
□ keep the door open, and placing a basin underneath of the appliance to collect the defrost water;
□ when defrosting is completed, dry the interior thoroughly
□ replace the plug in the power socket to run the appliance again.

Replace the lamp

Caution! Before replacing the lamp, shall disconnect the appliance from mains power supply.

Lamp specification is listed in rating label.

Follow below process to replace the lamp:

1. Set the temperature regulation knob at number "0" to switch off the appliance.
2. Unplug the appliance to make sure the appliance is disconnected from main power supply.
3. Remove the screw of the lamp cover.
4. Pull the lamp cover out.
5. Unscrew the lamp.
6. Fit new lamp according to the opposite direction, then replace the lamp cover and screw.
7. Plug in the appliance and regulate the knob to right position.

Technical line drawing of a mechanical device with internal components (no text or symbols)

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Temperature regulation knob is set at number “0”.	Set the knob at other number to switch on the appliance.
	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much	Temperature is set too cold.	Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning section.
Side panel is hot	Condenser is inside the panel.	It's normal.

If the malfunction shows again, contact the Service Center.

Technical Information

Model	ORH
Total Gross Volume, L	210
Net Volume of the Refrigerator, L 169
Freezer Net Volume, L 39
The current consumption depends on how the appliance is used and its location
Energy efficiency class A +
Energy consumption: kWh/year 217
Climate Class	ST
Dimensions (H x W x D), mm	1430*550*580
Noise Level, db(A) re 1pw	42
Eletrical Information	Check Rating Label
Note: The manufacturer reserves the right to make future changes in specifications and technical parameters.

orima

Simple line drawing of a rectangular frame with a small cylindrical object on the left side (no text or symbols)

Diagram of a door handle assembly with a circular inset showing a device mounted on a wall (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical frame with a magnified inset showing a vertical component (no text or symbols)

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Technical line drawing of a mechanical assembly with a circular inset showing a vertical component (no text or symbols)

Simple line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a screwdriver inserted into a mechanical component (no text or symbols)

Simple line drawing of a rectangular box with three arrows pointing downward (no text or symbols)

INSTALACIÓN

Posicionamiento

SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

UBICACIÓN

Line drawing of a hand using a tool to clean or install a shelf (no text or symbols)

Diagram of a container with two upward-pointing arrows inside, no text or symbols present

Cubos de Hielo

Technical line drawing of a device with internal components and a separate exploded view (no text or symbols)

Note: The manufacturer reserves the right to make future changes in specifications and technical parameters.

Assistance Technique

Simple line drawing of a rectangular box with a lid and handle, no text or symbols present

Line drawing of a washing machine interior with no text or symbols

Pure mechanical diagram showing two vertical supports with circular features and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with pulleys and a circular component (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing a gear mechanism (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a dial indicator and a circular symbol (no text or labels)

Line drawing of a simple rectangular table with a handle and base (no text or symbols)

Installation

Espace nécessaire

Installation

Position

Illustration showing a hand installing or adjusting a shelf panel above a trash bin with two upward arrows (no text or symbols)

Fiche Technique

Simple line drawing of a hand holding an airplane inside a heart shape, with no text or symbols present.

Fiche Technique

Technical line drawing of a mechanical device with internal components (no text or symbols)

Fiche Technique
