Product Type	Electric Meat Grinder (Mincer)
Model	ST-FP1094
Brand	Saturn
Dimensions (approx.)	30 x 15 x 25 cm (11.8 x 5.9 x 9.8 in)
Weight (approx.)	3.5 kg (7.7 lbs)
Rated Power	500 W
Voltage	220-240 V
Frequency	50/60 Hz
Functions	Mincing, Sausage filling, Kubbe making, Reversing
Material	Stainless steel blade and cutting plate, plastic housing
Capacity	0.5 kg per minute (approx.)
Feeding Tray	Removable, large capacity
Safety Features	Overload protection, safety lock, non-slip feet
Cleaning	Detachable parts dishwasher safe (top rack only)
Spare Parts Included	3 cutting plates (coarse, medium, fine), sausage and kubbe attachments
Power Cord Length	1.2 m (approx.)
Warranty	2 years

Frequently Asked Questions - ST-FP1094 Saturn

How do I assemble the meat grinder?

First, ensure the unit is unplugged. Insert the auger into the housing, then attach the desired cutting plate and blade. Screw the ring nut firmly. Finally, attach the feeding tray and lock it into place. Refer to the manual for detailed diagrams.

Can I grind frozen meat?

No, the meat should be partially frozen or fully thawed for optimal performance. Cutting frozen meat can damage the blades and motor. Cut the meat into small cubes (approx. 2 cm) and remove any bones.

How do I clean the meat grinder?

Unplug the unit and disassemble all parts. Rinse parts under warm water and use a brush to remove residue. The metal parts and plastic attachments are dishwasher safe (top rack). Wipe the motor base with a damp cloth. Never immerse the motor base in water.

What do the different cutting plates do?

The grinding set includes three plates: coarse (8 mm) for coarse mince, medium (5 mm) for standard mince, and fine (3 mm) for fine mince. Choose the plate based on your recipe, e.g., coarse for burgers, fine for pâtés.

Why is the grinder reversing?

The reverse function helps clear jams. If the auger gets stuck, press the reverse button for a few seconds to dislodge the food. Do not use reverse while the grinder is running at full speed.

Can I grind bones?

No, this grinder is designed for boneless meat only. Bones can damage the blade and motor. For grinding poultry, ensure all bones are removed.

How do I use the sausage attachment?

Replace the cutting plate with the sausage nozzle. Slide the casing onto the nozzle and tie the end. Feed seasoned meat through the grinder while guiding the casing. Twist sausages at regular intervals.

The motor seems to slow down. What should I do?

This may indicate overloading or a jam. Turn off the unit and disconnect. Remove the stuck food and cut it into smaller pieces. Also check the voltage and ensure the appliance is not on a shared circuit.

Are spare parts available?

Yes, spare parts such as blades, cutting plates, and attachments are available through Saturn customer service or authorized dealers. Use only genuine parts to ensure safety and performance.

How long is the warranty?

The Saturn ST-FP1094 comes with a standard 2-year warranty covering manufacturing defects. Keep your receipt and register the product online for extended warranty options.

USER MANUAL ST-FP1094 Saturn

White Saturn Chicken feeder with green handle and metal blade (no text or symbols visible)

GB

Meat Grinder

Dear Buyer!

We congratulate you on having bought the device under trade name "Saturn". We are sure that our devices will become faithful and reliable assistance in your housekeeping.

Avoid extreme temperature

changes. Rapid temperature change (e.g. when the unit is moved from freezing temperature to a warm room) may cause condensation inside the unit and a malfunction when it is switched on. In this case leave the unit a room temperature for at least 1.5 hours before switching it on. If the unit has been in transit, leave it indoors for at least 1.5 hours before starting operation.

Please, read thoroughly for important safety and save these instructions.

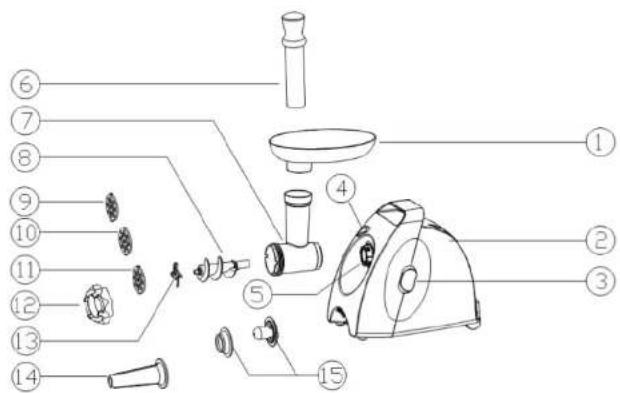

DESCRIPTION

1. Hopper plate	8. Feed screw
2. Motor housing	9. Cutting Plate(fine)
3. ON/0/R (ON/OFF/Reverse)	10. Cutting plate (medium)
4. Unlock Button	11. Cutting plane (coarse)
5. Head inlet	12. Fixing ring
6. Food pusher	13. Cutting blade
7. Head	14. Sausage attachment
	15. Kebbe attachment

IMPORTANT SAFEGUARDS

◆ Household use only. Do not use for industrial purpose.

◆ Unplug from outlet when assembling and disassembling the unit.

◆ Close supervision is necessary when any appliance is used near children.

When carrying the unit be sure to hold the motor housing with both hands. Do not carry the unit by holding only the hopper plate or head.

Do not fix the cutting blade and cutting plate when using kebbe attachment.

◆ Never feed food by hand. Always use food pusher.

◆ Do not grind hard food such as bones, nuts, etc.

◆ Do not grind ginger and other materials with hard fiber.

Continuous running of meat grinder should be not more than 10 minutes with the following 10 minutes interval for motor cooling.

◆ Reverse function is prohibited while the appliance is operating (For example switch "ON" knob to "R" knob or on the contrary), wait at least one minute until grinder has come to a complete stop, otherwise it may cause an abnormal noise, vibration or a transitory electric

spark in the appliance. It could result easily damage to appliance and make a user frightened.

After use, there would be a little food left in the grinder head. This is normal. There might be a bit of black metal powder adhering to the food ground in the end. Please pick them out and throw away, do not eat them.

◆ To avoid jamming, do not force to operate the unit with excessive pressure.

When the circuit breaker activates, do not switch on.

◆ Never try to replace the parts and repair the unit by yourself.

FOR THE FIRST TIME

◆ Check that voltage indicated on the rating label corresponds to the mains voltage in your home.

◆ Wash all parts (except body) in warm soapy water.

Before plugging in, ensure the "ON/0/ R" switch is turned to "O" position.

INSTRUCTION FOR USE

ASSEMBLING

◆ Holding the head, insert it in the

Inlet (fig.1). Rotate the head in the same direction as fig.2 until a small sound can be heard. The head has been placed in the inlet. Try to rock the head slightly to ensure it is placed well.

◆ Place the feed screw into the head, long end first, by turning the feed screw slightly until it is set into the motor housing (fig.3).

◆ Place the cutting blade onto the feed screw shaft with the blade facing the front as illustrated (fig.4). If it is not fitted properly, meat will not be ground.

◆ Place the desired cutting plate next to the cutting blade, fitting protrusions in the slots (fig.5).

◆ Support or press the centre of the cutting plate with one finger then screw the fixing ring until tight with another hand (fig.6). Do not over tighten.

◆ Place the hopper plate on the head and fix into position.

◆ Locate the unit on a firm place.

The air passage at the bottom and the side of the motor housing should be kept free and not blocked.

MINCING MEAT

◆ Cut all foods into pieces (Sinewless, boneless and fatless meat is recommended, approximate size: 20 mm x 20 mm x 60 mm) so that they fit easily into the hopper opening.

◆ Plug in and turn the "ON / R" switch to "ON" position, then turn the "ON/0/R" switch to "ON" position.

◆ Feed foods into the hopper plate. Use only the food pusher (fig.7).

◆ After use switch the unit off and unplug it from the power supply.

REVERSE FUNCTION

◆ In case of jamming switch the appliance off by turning the "ON/R" switch to
"R" position and "ON/0/ R" switch to "R" position.
◆ Feed screw will be rotating in the opposite direction, and the head will get empty.
◆ If it doesn't work, switch the unit off and clean it.

MAKING KEBBE

RECIPE

STUFFING

Mutton 100g

Olive oil 1 1/tablespoons

Onion (cut finely) 1 1/tablespoons

Spices to your taste

Salt to your taste

Flour 1 1/tablespoons

Mince mutton once or twice.
Fry onion until brown and add minced mutton, all spice, salt and flour.

OUTLET COVER

Lean meat 450g

Flour 150-200g

Spices to your taste

Nutmeg (cut finely) 1

Powdered red pepper to your taste

Pepper to your taste

Mince meat three times and mix all ingredients together in a bowl. More meat and less flour for outlet cover creates better consistency and taste.

Line drawing of a hand using a microscope to interact with a bowl (no text or symbols)

Grind the mixture three times.
➢ Disassemble by reversing the steps from 5-3 to remove the cutting plate and cutting blade.
Place kebbe attachments onto the feed screw shaft together, fitting

protrusions in the slots (fig.8).

Screw fixing ring into place until tight. Do not over tighten (fig.9).

Make the cylindrical outlet cover (fig.10).
Form kibbe as illustrated below and deep fry.

MAKING SAUSAGE

◆ Before starting please assemble sausage attachment as per following (fig.11)

Line drawing of a manual cutting machine with a handle and control panel (no text or symbols)

CLEANING AND MAINTENANCE

DISASSEMBLING

◆ Make sure that the motor has stopped completely.
◆ Disconnect the plug from the power outlet.
◆ Disassemble by reversing the steps from 6-1 pictures.

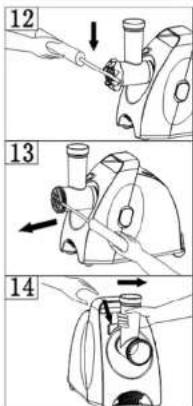

◆ If the fixing ring is not easily removed by hands, please use tools (fig.12).

◆ To remove the cutting plate easily, place a screwdriver between the cutting plate and the head as illustrated and lift it up (fig.13).
◆ Press the unlock button before removing the head. Holding the head,

rotate it in the same direction as fig.14. Then the head can be removed easily.

CLEANING

◆ Remove meat, etc. Wash each part in warm soapy water.
◆ A bleaching solution containing chlorine will discolor aluminum surfaces.
Do not immerse the motor housing in water, but only wipe it with a damp cloth.
- Thinners and petrol will crack or change the color of the unit.
◆ Wipe all the cutting parts by vegetable oil-wet cloth.

Specification

Rated Power: 450 W

Locked Power: 1200 W

Rated Voltage: 220-230 V

Rated Frequency: 50 Hz

Rated Current 2 A

Set

Meat Grinder 1

Instruction manual with

Warranty Book 1

Package 1

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

The manufacturer reserves the right to

change the specification and design of goods.

RU

Мясорубка

Line drawing of a manual hand presser or grinder machine (no text or symbols)

Заходи безпеки

The Warranty is provided for the period of 2 years or more if the Law on User Right of the country where the appliance was bought provides for a greater minimum warranty period.

All terms of warranty comply with to the Law on Protection of the Consumer Rights and are governed by the legislation of the country where the product was bought.

The warranty and free of charge repair are provided in any country where the product is delivered to by Saturn Home Appliances or authorized representative thereof, and where no restriction of import or other legal provisions interfere with rendering of warranty services and free of charge repair.

Cases uncovered by the warranty and free of charge repair:

1. Guarantee coupon is filled in improperly.
2. The product has become inoperable because of the Buyer's non-observance of the service regulations indicated in the instruction.
3. The product was used for professional, commercial or industrial purposes (except for the models, specially intended for this purpose that is indicated in the instruction).
4. The product has external mechanical damage or damage caused by penetration of the liquid inside, dust, insects and other foreign objects.
5. The product has damages caused by non-observance of the rules of power supply from batteries, mains or accumulators.
6. The product was exposed to opening, repair or modification of design by the persons, unauthorized to repair; independent cleaning of internal mechanisms etc. was made.
7. The product has natural wear of parts with limited service life, expendables etc.
8. The product has deposits of scale inside or outside of fire-bar elements, irrespective of used water quality.
9. The product has damages caused by effect of high (low) temperatures or fire on

non-heat resistant parts of the product.

1. The product has damages of accessories and nozzles which are included into the complete set of product shipment (filters, grids, bags, flasks, cups, covers, knives, sealing rings, graters, disks, plates, tubes, hoses, brushes, and also power cords, headphone cords etc.).

On the warranty service and repair, please contact the authorized service centers of Saturn Home Appliances.

CZ

MEZINÁRODNÍ ZÁRUKA

When purchasing the product, please require its checking before you;

BE SURE

that the goods sold to you, are functional and complete and that the warranty coupon is filled in correctly.

This warranty coupon confirms the absence of any defects in the product you purchased and provides for free of charge repair of the product failed through the fault of the manufacturer throughout the period of warranty service and free of charge repair.

Failing the presentation of this coupon, in case of its improper filling in, infringement of factory seals (if any), and also in cases indicated in the warranty obligations, the claims are not accepted, and no warranty service and free of charge repair is made!

The warranty coupon is valid only in the original copy with the stamp of trading organization, signature of the seller, date of sale and signature of the buyer.

CZ

ZÁRUČNÍ LIST

Při koupi výrobku

Buyer's Signature confirming the acquaintance and consent with conditions of free of charge maintenance service of the product, and absence of the complaints on appearance and color of the product.
