IS-HB44K03 - Blender Scarlett - Free user manual and instructions

Product Type	Food Processor Blender
Brand	Scarlett
Model	IS-HB44K03
Motor Unit	Yes, with speed selector and pulse mode
Pulse Mode	Yes, press and hold for operation
Speed Settings	Variable via rotating switch (modes I and II)
Attachments Included	Immersion blender, chopping blade, whisking attachment, dicer disc, slicing/chopping disc
Measuring Jar (Small)	600 ml
Measuring Jar (Large)	2000 ml
Bowl for Chopper/Dicer	Yes, with drive and shaft
Pusher	Yes, for safe feeding of ingredients
Continuous Operation Time	Maximum 1 minute, then 2 minutes rest
Maximum Ingredient Temperature	70 °C (do not process hot ingredients)
Blade Material	Stainless steel (sharp)
Safety Features	Motor unit non-submersible; blades sharp; automatic safety locks
Cleaning	Hand wash attachments; wipe motor unit with damp cloth
Dishwasher Safe	No (all accessories hand wash only)
Power Requirements	Check rating label (typical 220-240 V, 50/60 Hz)
Storage	Dry, clean place; unplugged
Usage	Domestic use only

Frequently Asked Questions - IS-HB44K03 Scarlett

How do I attach the immersion blender to the motor unit?

Align the arrows on the blender and motor unit, then rotate clockwise until it locks. To detach, rotate counter-clockwise.

Can I use the chopper for hard ingredients like ice or coffee beans?

No, the chopper is not suitable for crushing ice or chopping hard items like coffee grains or nutmegs. It is designed for greenery, vegetables, cheese, nuts, and dried fruits.

What is the maximum continuous operating time?

Do not operate the appliance for longer than 1 minute continuously. Allow at least 2 minutes rest between cycles.

How should I clean the motor unit?

Wipe the motor unit with a damp cloth. Never immerse it in water or any liquid, and do not wash it in a dishwasher.

Can I process hot liquids or ingredients?

No, never place ingredients hotter than 70 °C into the processor to avoid damage or injury.

How do I use the dicer disc?

Insert the dicer attachment into the disc slot, place the blade on top, install inside the bowl, and secure the drive. Use the pusher to feed ingredients gently.

What should I do if the appliance does not turn on?

Ensure all attachments are correctly assembled and locked. The appliance may have a safety interlock preventing operation if not properly assembled. Check the power cord and outlet.

Is the appliance dishwasher safe?

No, all removable parts should be washed by hand in warm soapy water. Do not use a dishwasher to prevent damage.

How do I safely remove the chopping blade?

Hold the blade by the top plastic area only, as it is extremely sharp. Remove carefully after detaching the drive.

Can I use the whisk for kneading dough?

No, the whisk is designed for creaming, eggbeating, and dessert blending. Do not use it for kneading.

USER MANUAL IS-HB44K03 Scarlett

A faint blue curved line against a dark blue gradient background, resembling a stylized airplane or jet trail (no text or symbols visible)

SCARLETT™

INDIGO

INNOVATIONPROGRESSIVETECHNOLOGYSELECTION

MODERN FASHIONSTYLE

Product photo of a kitchen blender with various kitchen utensils and accessories (no visible text or labels)

PIs add month and year of production e.g. 08.2010 at this place

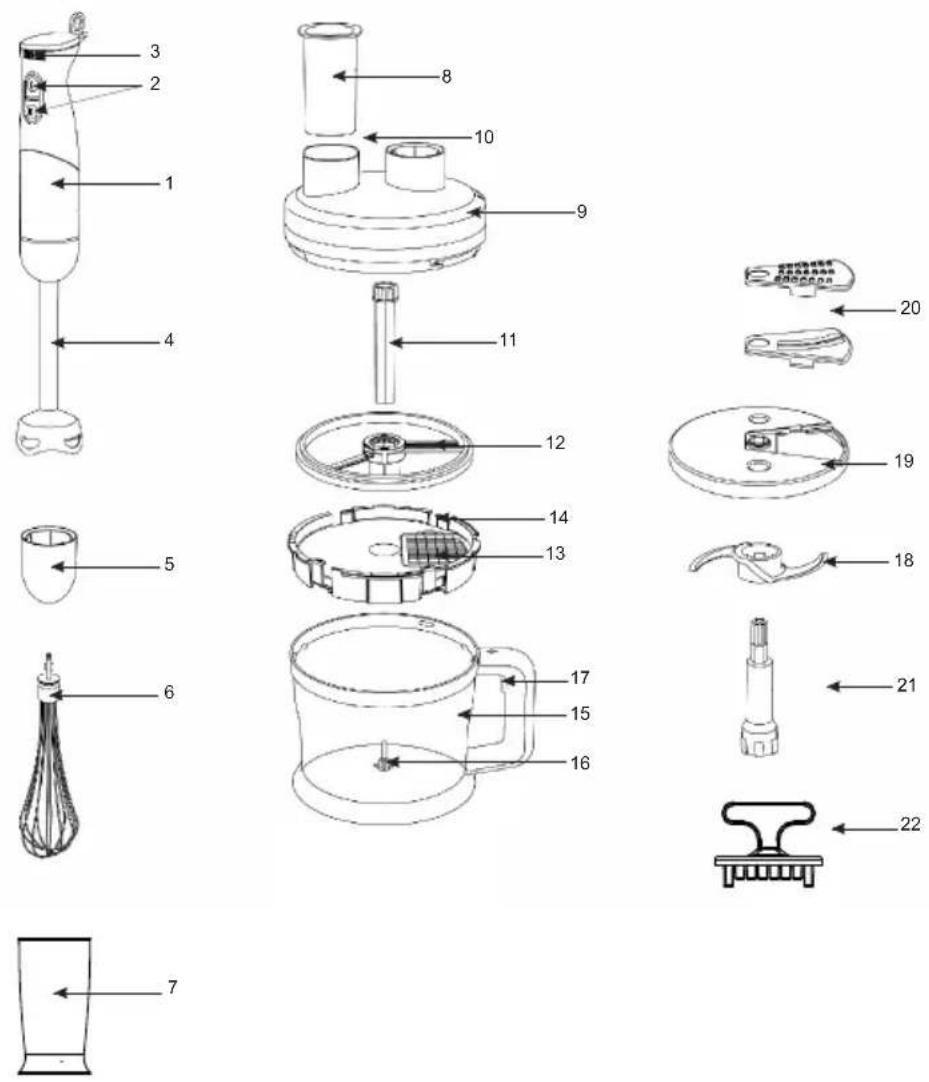

1. Motor unit

2. Pulse mode selection button

3. Speed selector

4. Submersible blender

5. Whisking attachment adapter

6. Whisking attachment

7. Measuring jar (600 ml)

8. Pusher

9. Bowl drive

10. Feeding funnel

11. Dicer disk axle

12. Blade attachment

13. Dicer attachment

14. Dicer disc

15. Measuring jar (2000 ml)

16. Bowl pin

17. Bowl drive lock button

18. Chopping blade

19. Slicing and chopping disc

20 Slicing and chopping attachments

1. Bowl shaft

2. Dicer attachment pusher

CZ POPIS

- Before connecting the appliance for the first time check that voltage indicated on the rating label corresponds to the mains voltage in your home.

- For home use only. Do not use for industrial purposes. Do not use the appliance for any other purposes than described in this instruction manual.

- Do not use outdoors.

- Always unplug the appliance from the power supply before cleaning and when not in use.

- To prevent risk of electric shock and fire, do not immerse the appliance in water or any other liquids. If it has happened DO NOT TOUCH the appliance, unplug it immediately and check in a service center.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- Do not leave the appliance switched on when not in use.

- If the power cord is damaged it should be replaced by the manufacturer or authorized servicing center or qualified professional for safety reasons.

- Do not attempt to repair, adjust or replace parts in the appliance. Check and repair the malfunctioning appliance in the nearest service center only.

- Keep the cord away from sharp edges and hot surfaces.

- Do not pull, twist, or wrap the power cord around the appliance.

- Do not immerse the motor unit in any liquid or wash in a dishwasher.

- WARNING: The blades are extremely sharp and therefore dangerous. Handle with caution!

- WARNING: it is prohibited to overfill the unit or use it without ingredients. Do not exceed the continuous operating time.

- Never place hot ingredients into the processor (> 70 °C).

- If the product has been exposed to temperatures below 0^ C for some time it should be kept at room temperature for at least 2 hours before turning it on.

- The manufacturer reserves the right to introduce minor changes into the product design without prior notice, unless such changes influence significantly the product safety, performance, and functions.

- Prior to initial use wash all removable parts with warm water with cleansing agent and dry up carefully. Wipe the outside of the motor base with moist tissue.

- It is strongly prohibited to immerse the motor base into any liquids and/or to clean it with water.

IMMERSION BLENDER

• This unit is ideal for making cream soups, sauces and dressings, baby food, and also for blending various cocktails.
• Attach the blender to the motor unit and rotate it clockwise.
• Fit the attachment to the motor unit against the stop matching corresponding arrows.
• Immerse the blades into mixture before switching on to avoid ingredients spilling.
  • To detach, rotate the blender counter-clockwise.

CHOPPING BLADE / CHOPPER

- Chopper is ideal for chopping greenery and vegetables, cheese, majority of nuts, dried fruits. Hard products, such as meat, onion, carrots, need to be cut before processing. Nutshells must be removed, meat must be separated from bones and tendons.

• The chopper is not suitable for crushing ice and chopping hard products, such as coffee grains, nutmegs.
• Caution! The chopping blade is very sharp! Hold the blade by the top plastic area only!
• Place shaft on the central axle of the bowl.
• Put the grinding blade on the shaft.
• Add ingredients into the jar.
  • Cover the jar with the drive.
• Turn the bowl drive aligning the lock with the handle slot. The bowl drive will secure.
• Rotate the bowl drive, so that the protrusion of the bowl handle matches the slot of the drive. The drive will lock.
• Insert the motor unit into the bowl drive and rotate it clockwise.
• When finished, remove the motor base first.
• After use, first detach the motor unit, turning it counterclockwise.
• Then remove the jar drive.
• Remove the blade carefully.
• At this point you may remove chopped ingredients from the jar.

DISC FOR SLICING AND CHOPPING

• This disc is designed for slicing and chopping vegetables, such as cucumbers, carrots, potatoes, leeks and onions, as well as some varieties of cheese.
• Place the bowl shaft on the bowl pin.
• Insert the slicing and chopping attachment into the disk.
• Place the slicing and chopping disc on the shaft.
• Put the drive on the bowl.
• Place the motor unit on the bowl drive.
• WARNING! Feed the food with pusher only, pressing it gently.

ACCESSORY FOR WHISKING / LIQUID PRODUCTS BLENDING

• Use the whisk for creaming, eggbeating, desserts blending. Never use this accessory for kneading.
• While turning the attachment slightly, insert it into the adapter until it locks.
• Put the adapter connected to the attachment on the motor unit, turning it clockwise.
• Prior to start processing, immerse the whisk into the jar with ingredients.
• NOTE: Should the assembly is incorrect or incomplete, the processor will not operate.

DICER DISC

• This disc is designed for dicing cheese, meat, vegetables and other food products.
• Insert the dicer attachment into the attachment slot of the disc.
• Place the blade attachment on the top.
• Install the disc inside the bowl, so that its lips match the bowl slots.
• Put the drive on the bowl.
• Place the motor unit on the bowl drive.
• WARNING! Feed the food with pusher only, pressing it gently.
• The attachment is very sharp! Be careful during removal of the attachment from the disc. To remove the attachment, press it with the supplied pusher.

FOOD PROCESSOR USING

• Please make sure accessories are at their places before switching on.
• Plug-in device.
• Press and hold the Pulse button – food processor will operate while this button is pressed.

• To process liquid and hard ingredients together, use II mode.

• By rotating speed switch you may select food processing speed.

• Do not remove any parts during operating.
• CAUTION: Do not operate continuously longer than 1 minute with less than 2 minutes intermission.

CLEANING AND CARE

• Switch off and unplug the appliance.
• Wash the accessories immediately and avoid soaking them in water for a long period; wash in warm sudsy water after each use. Dry all accessories with a clean soft cloth. Do not use a dishwashing machine.
• Wipe the housing with damp cloth.
• Do not use scouring pads, abrasive and harsh detergents.

STORAGE

• Be sure that the appliance is unplugged.
• Complete all requirements of Chapter CLEANING AND CARE.
• Keep the appliance in a dry clean place.

МЕРЫ БЕЗОПАСНОСТИ

NŮŽ NA MLETÍ / DRTIČ

GB FOOD PROCESSOR-BLENDER 5
