IS-VC82C01 - Vacuum Cleaner Scarlett - Free user manual and instructions

Product Type	Bagless Canister Vacuum Cleaner
Model	IS-VC82C01
Brand	Scarlett
Power Consumption	1800 W
Dust Capacity	2.5 L
Filter Type	HEPA Washable Filter
Filtration Stages	5-stage Filtration
Cord Length	6 m
Suction Power Control	Electronic Slider on Handle
Noise Level	78 dB(A)
Weight	5.2 kg
Dimensions (L x W x H)	430 x 280 x 320 mm
Dust Indicator	Yes, Full Dust Indicator
Automatic Cord Rewind	Yes
Accessories Included	Crevice Tool, Dusting Brush, Upholstery Tool, Floor Brush (Combination)
Wheels	4 Swivel Wheels
Parking System	Horizontal and Vertical Parking
Material	ABS Plastic with Chrome Accents
Color	Black/Red
Warranty	2 Years

Frequently Asked Questions - IS-VC82C01 Scarlett

How do I empty the dust container?

Press the release button on the dust container and lift it out. Hold over a trash bin, press the bottom lid release button to empty. Wash the container with water and let it dry completely before reattaching.

How often should I clean the HEPA filter?

Clean the HEPA filter every 3-4 months or when the dust indicator shows full. Tap gently or rinse under running water (if washable). Allow to dry for 24 hours before reinstalling.

The vacuum loses suction. What should I check?

First, empty the dust container. Check for blockages in the hose, wand, or floor head. Clean the filters. Ensure the dust container is properly seated and the seal is intact.

Can I use the vacuum on hardwood floors?

Yes, but use the combination floor brush without the rotating brush or switch to parquet mode if available. The included floor brush is suitable for both carpet and hard floors.

How do I replace the dust bag?

This model is bagless. There is no dust bag to replace. Simply empty and clean the dust container as described.

The power cord does not rewind fully. What to do?

Check if the cord is tangled or kinked. Gently pull out the cord a few centimeters and press the rewind button again. Ensure there are no obstructions.

What accessories are included with the Scarlett IS-VC82C01?

The package includes a crevice tool, dusting brush, upholstery tool, and a combination floor brush with a rotating brush for carpets and a retractable bristle for hard floors.

How do I attach the accessories?

Simply push the accessory onto the end of the wand or hose. For the floor brush, attach the wand to the brush and lock it with a click. Release by pressing the button on the wand.

The vacuum makes a strange noise. What could be wrong?

A rattling noise often indicates a blockage or a foreign object stuck in the brush or hose. Turn off and unplug, then inspect the hose, wand, and brush. A whining noise may mean the filter needs cleaning.

Where can I find replacement parts?

Replacement filters, brushes, and other parts are available at authorized Scarlett service centers or online through the Scarlett website. Use your model number IS-VC82C01 to find compatible parts.

USER MANUAL IS-VC82C01 Scarlett

PERFECTPROGRESSIVETECHNOLOGY

MODERNFASHIONSTYLE

ПО ЭКСПЛУАТАЦИИ

INSTRUCTION MANUA

ІНСТРУКЦІЯ З ЕКСПЛ

IS-VC82C

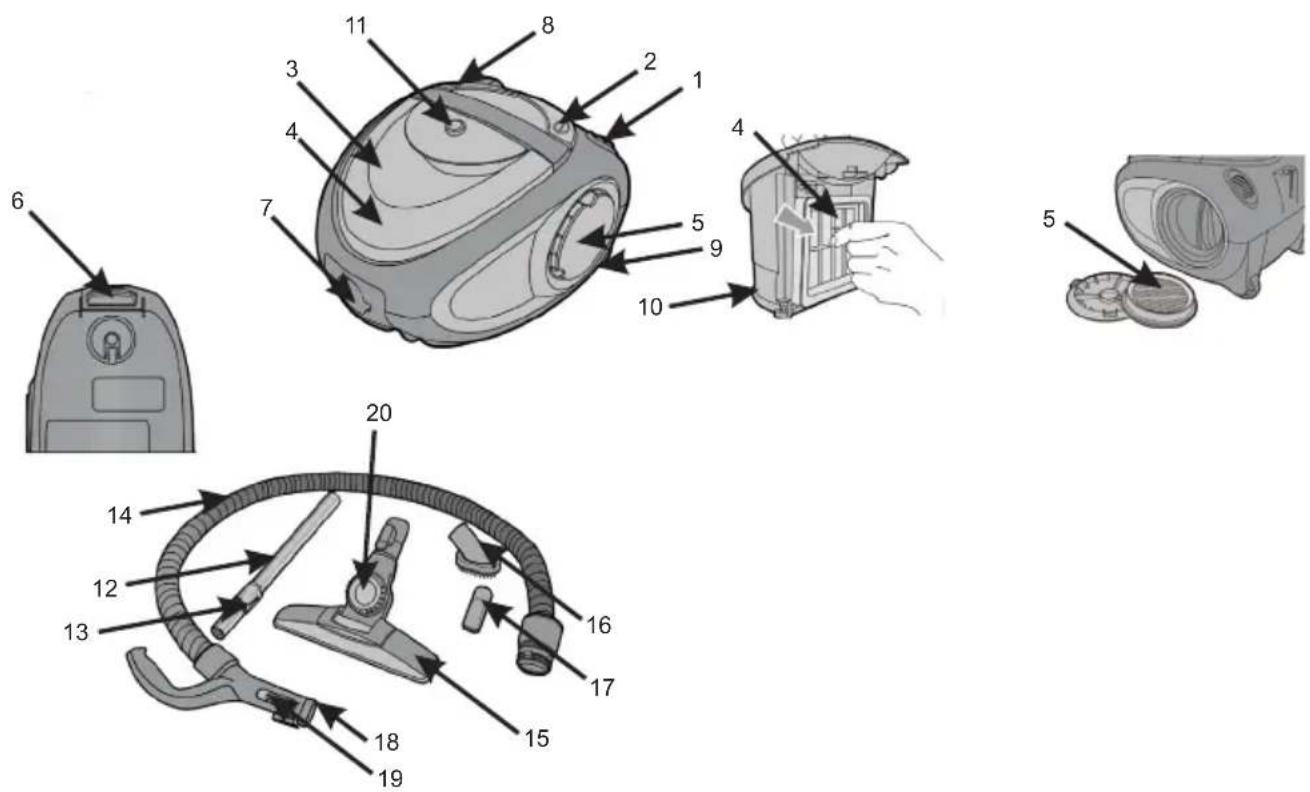

1. Power control
2. Power On/Off button
3. Dust bag
4. HEPA filter 1
5. HEPA filter 2
6. Carrying handle
7. Intake opening
8. Power cord winding button
9. Wheel
10. Dust bag open push button
11. Dust bag lock push button
12. Aluminum tube
13. Telescopic tube length adjuster
14. Hose
15. Innovative brush for surfaces of any kind
16. Furniture nozzle
17. Crevice nozzle
18. Hose handle junction pipe
19. Hose air flow regulator
20. Combined nozzle chamber

RUS

• When using this appliance, basic precautions should always be followed:
• Read this instruction manual carefully to prevent any unit damage or injure when using.
• Before the first use of the appliance check that the voltage indicated on the rating label corresponds to the mains voltage in your home.
• For home use only. Do not use for industrial purposes.
• To reduce the risk of electric shock, do not use outdoors or on wet surfaces. Do not immerse unit or cord in any liquids.
• Do not handle the plug with wet hands. Never switch off the appliance by pulling the cord.
• Do not let the cord hang over sharp edges or touch hot surfaces.
• Always unplug the appliance from the power supply when not in use and before servicing.
• Do not use appliance with damaged cord or other defects. Do not attempt to repair the appliance, adjust or replace any parts. In case of malfunction, contact the authorized service center for examination, repair, electrical or mechanical adjustment.
• To avoid deforming of plastic components of the appliance or fire accident, never leave the appliance exposed to direct sun light or near any heater.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• To avoid damage of the flexible hose, do not fold or pull it strongly.

• Do not put any object into air outlets. Do not use with outlet blocked. Keep free of dust, hair and anything that may reduce airflow.
• Be careful when cleaning on stairs.
  Before you start using the vacuum cleaner, please remove all burning, large or sharp objects from the floor in order to prevent damage of the unit.
• CAUTION: To avoid voltage overload do not plug the unit and other powerful electrical appliances to the power supply at the same time.
• Never use the vacuum cleaner without filters.
• Do not use the appliance on wet surfaces. This unit does not absorb water.
• If you have cleaned the carpet with liquid detergent, let the carpet dry up completely before vacuuming it.
• Never use the appliance without dust bin. Replace the dust bin without delay if it is damaged.
• Do not attempt to repair, adjust or replace parts in the appliance. Repair the malfunctioning appliance in the nearest service center.
• If the product has been exposed to temperatures below 0^ C for some time it should be kept at room temperature for at least 2 hours before turning it on.
• The manufacturer reserves the right to introduce minor changes into the product design without prior notice, unless such changes influence significantly the product safety, performance, and functions.

2. VACUUM CLEANER ASSEMBLING

• Remove all packing materials and stickers from the vacuum cleaner.

• In order to attach the hose to the vacuum cleaner, insert its base into the intake opening and turn.

• Extend the telescopic tube to the desired length. To do this, move the gate which is used to adjust the length of the extension tube and pull the end of the tube.

• Insert the hose into the tube.
• Attach a nozzle to the tube:
• Innovative brush for cleaning surfaces of any kind. Special chamber in the middle of the brush opens to allow the removal of foreign objects.
• The "FURNITURE" nozzle is designed for cleaning upholstered furniture, curtains and decorative surfaces.
• The "SLOT" nozzle is designed for cleaning in areas, which are not easily accessible, such as corners or narrow slots.

3. INSTRUCTION FOR USE

- Before starting, unwind the cord to sufficient length and insert the plug into the power supply. The yellow mark on the cord shows optimal cord length. Do not unwind the cord beyond the red mark.

• Press On/Off button to switch the unit on and press again to stop it.
• You can adjust the air flow using the air flow regulator on the flexible hose handle:
• Decrease flow for cleaning curtains, books, furniture, etc.
• Increase flow for cleaning bare floor.
• You can adjust the vacuum cleaner power using the power control on the housing.
• To rewind the cord, press the rewind button and guide the cord with hand to ensure that it does not whip causing damage.
• To prevent motor overheating do not work continuously longer than 30 minutes and obligatory stop the vacuum cleaner for no less than 15 min.

4. THE ADVANTAGES OF YOUR VACUUM CLEANER

• Your vacuum cleaner is equipped with a 6-step air filtration system.
• "Multicyclone" system ensures maximum power during cleaning.
• A unique filter system with two NERA filters for allergy sensitive people.

- The removable plastic container for collecting dust is much easier to clean. Due to the vortex cleaning system the dust settles in the reservoir.

• The vacuum cleaner is operated without dust bags.
• The NERA filter at the outlet of the vacuum cleaner catches micro-particles and facilitates additional air cleaning.

5. CARE AND CLEANING

- Switch off the appliance and pull the plug from the power supply.

Clean the appliance outside surface with soft cloth using mild non-abrasive detergent.

- Vacuum cleaner or cord should never be immersed into water or any liquids.

5.1.DUST COLLECTOR CLEANING

• Disconnect the vacuum cleaner from the mains.
• Detach the dust collector. For this purpose press the dust collector lock button.
• Empty the dust collector. For this purpose press the dust collector release button.

5.2. FILTER CLEANING

• Please clean the filters at least once a year. If you use the appliance frequently, wash the filters after 3-5 dust bag cleanings.

• Switch off the appliance and pull the plug from the power supply.

• Open the cover and remove motor filter.
  • Take off the back grid and remove the second filter.

• Wash the filter with warm water and dry on the air.
• Place the filter back.
• CAUTION: Never use the appliance without filters.
• Do not use a washing machine to rinse filters. Do not use a hair dryer to dry them.

6. STORAGE

- Place the appliance vertically.
