Product Type	Electric Shaver
Brand	Panasonic
Model	ES-RT74
Dimensions (approx)	160 x 70 x 50 mm
Weight (approx)	200 g
Power Source	Rechargeable battery (100-240V)
Charging Time	1 hour
Usage Time	Approx. 45 minutes
Wet/Dry Usage	Yes (washable)
Cutter System	Stainless steel foil and inner blade
Pop-up Trimmer	Yes
Pivot Action	Flexible floating head
Motor Speed	13,000 rpm (approx)
Cleaning	Rinse under running water
Oil Maintenance	Periodic oiling of blades
Water Resistance	IPX7 (fully washable)
Auto Power Off	Yes (after 5 minutes idle)
Replacement Foil	Model: WES9170 (approx)
Replacement Blade	Model: WES9171 (approx)
Included Accessories	Charger, cleaning brush, protective cap
Warranty	2 years (subject to region)

Frequently Asked Questions - ES-RT74 PANASONIC

How do I clean the Panasonic ES-RT74 shaver?

Rinse the shaver under running water after each use. Remove the foil and blade assembly and clean them separately. Let all parts air dry completely before reassembly.

Can I use the shaver in the shower?

Yes, the ES-RT74 is fully washable and can be used with shaving foam or gel. However, do not immerse the charging plug or adapter in water.

How long does the battery last?

A full charge provides approximately 45 minutes of cordless use. Charging time is about 1 hour.

How do I replace the blade and foil?

Press the release button to remove the outer foil, then lift out the inner blade. Replace with genuine Panasonic parts: WES9171 (blade) and WES9170 (foil). Align correctly and snap back into place.

How often should I replace the shaver head?

Replace the foil and blade every 12 months for optimal performance. The indicator on the foil may show wear.

What does the pop-up trimmer do?

Slide the trimmer lever up to extend the precision trimmer for detailing sideburns, mustache, or beard edges. It can be used dry.

Why does the shaver not turn on?

Ensure the shaver is charged. Press and hold the power button for 2 seconds. If still not working, check the lock function (if any) or contact support.

Is the shaver suitable for sensitive skin?

Yes, the stainless steel blades with lift technology cut hair below skin level for a comfortable shave. Use gentle strokes and avoid pressing too hard.

How do I oil the blades?

Apply a drop of light machine oil (e.g., sewing machine oil) to the inner blade surface before first use and periodically thereafter. Turn on for a few seconds to distribute.

What is the warranty on the ES-RT74?

Panasonic offers a 2-year limited warranty from the date of purchase covering manufacturing defects. Keep your receipt.

USER MANUAL ES-RT74 PANASONIC

Four Panasonic electric shaver units shown from different angles (no text or symbols visible)

2

Panasonic®

中文

使用说明书

(家用) 电动剃须刀

型号 ES-RT84 ES-RT74

目录

安全注意事项 4 清洁剃须刀 111

G

E

H

E

1

A 外刀部

环境保护与资源回收

本产品使用锂电池。

Operating Instructions

(Household) AC/Rechargeable Shaver

Model No. ES-RT84/ES-RT74

Contents

Safety precautions...... 20

Intended use ......25

Parts identification ......26

Using the protective cap .....27

Charge 27

Using the shaver....29

Clean 31

Troubleshooting 36

Battery life 40

Removing the built-in rechargeable battery....40

Specifications ....41

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

⚠️ DANGER	Denotes a potential hazard that will result in serious injury or death.
⚠️ WARNING	Denotes a potential hazard that could result in serious injury or death.
⚠️ CAUTION	Denotes a hazard that could result in minor injury.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

Always unplug the AC adaptor from a household outlet when cleaning. -Failure to do so may cause electric shock or injury.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor. Fully insert the power plug.

- Failure to do so may cause fire or electric shock.

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

- Failure to do so may cause fire due to insulation failure caused by humidity. Disconnect the adaptor and wipe with a dry cloth.

WARNING

Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Using it in such conditions may cause fire, electric shock, or injury.


• The main unit, self-cleaning recharger, adaptor or cord is deformed or abnormally hot.

• The main unit, self-cleaning recharger, adaptor or cord smells of burning.
• There is abnormal sound during use or charging of the main unit, self-cleaning recharger, adaptor or cord.

- Immediately contact the store where you purchased the unit or contact a service center authorized by Panasonic for repair.

If detergent contacts skin, wash immediately and thoroughly with soap.

If you experience skin irritation anywhere on the body, stop using immediately and contact a physician.
- Failure to follow these instructions may result in physical injury or injury to the skin.

If detergent is consumed accidentally, do not induce vomiting, drink a large amount of water, and contact a physician.

If detergent comes into contact with eyes, wash immediately and thoroughly with running water and contact a physician.
- Failure to follow these instructions may result in physical problems.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Failure to do so may cause an accident or injury.

The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.
- Failure to do so may cause an accident or injury.

Properly dispose the package of the appliance, keep the package away from infants.

- Failure to do so may cause suffocation of infants from happening.

WARNING

This shaver has a built-in rechargeable battery. Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.

- Doing so may cause overheating, ignition, or explosion.

Do not connect or disconnect the adaptor to a household outlet with a wet hand.

- Doing so may cause electric shock or injury.

Do not immerse the AC adaptor and the self-cleaning recharger in water or wash with water.

- Doing so may cause electric shock or fire due to a short circuit.

Never use the AC adaptor and the self-cleaning recharger in the bathroom or shower room.

- Doing so may cause electric shock or fire due to a short circuit.

Never disassemble except when disposing of the product.

- Doing so may cause fire, electric shock, or injury.

Do not use anything other than the supplied AC adaptor and the self-cleaning recharger. Also, do not charge any other product with the supplied AC adaptor and the self-cleaning recharger.

- Doing so may cause burn or fire due to a short circuit.

Do not modify or repair.

- Doing so may cause fire, electric shock, or injury. Contact the store where you purchased the unit or contact a service center authorized by Panasonic for repair (battery change etc).

Persons using an implanted medical electronic device, such as a pacemaker, should not allow this unit to touch the skin where the medical electronic device is implanted.

- Doing so may cause an accident or illness.

Do not store within reach of children or infants. Do not let them use it.

- Putting the inner blades and/or the cleaning brush in the mouth or drinking detergent may cause accidents and injury.

Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

- Doing so may cause electric shock or fire due to a short circuit.

Do not damage, modify, or forcibly bend, pull, or twist the cord.

Also, do not place anything heavy on or pinch the cord.

- Doing so may cause electric shock or fire due to a short circuit.

WARNING

Do not use in a way exceeding the rating of the household outlet or the wiring.

- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Do not shave with soap or clean it with water when operating with the AC adaptor.

- Doing so may cause electric shock or fire due to a short circuit.

CAUTION

Disconnect the adaptor from the household outlet when not using.

- Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Check the system outer foil for cracks or deformations before use.

- Failure to do so may cause injury to the skin.

Be sure to place the shaver in its protective cap when carrying around or storing.

- Failure to do so may cause injury to skin or reduce the life of the system outer foil.

Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord.

-Failure to do so may cause electric shock or injury.

Use caution when opening detergent as spout is sharp.

- Failure to do so may cause injury.

Do not allow pins or trash to adhere to the power plug or the appliance plug.

- Doing so may cause electric shock or fire due to a short circuit.

Do not use excessive pressure to apply the system outer foil to your lip or other part of your face. Do not apply the system outer foil directly to blemishes or injured skin.

- Doing so may cause injury to the skin.

Do not forcefully press the system outer foil. Also, do not touch the system outer foil with fingers or nails when in use.

- Doing so may cause injury to skin or reduce the life of the system outer foil.

Do not touch the blade section (metallic section) of the inner blade.

- Doing so may cause injury to your hands.

Do not use this product for hair on head or any other part of the body.

- Doing so may cause injury to skin or reduce the life of the system outer foil.

CAUTION

Do not share your shaver with your family or other people.

- Doing so may result in infection or inflammation.

Do not remove the shaver from the self-cleaning recharger while using the "AUTO" mode.

- Doing so may cause burn due to high temperatures around the blades.

Do not drop or subject to shock.

- Doing so may cause injury.

Do not wrap the cord around the adaptor when storing.

- Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.

Do not use the shaver with the foil frame removed.

- Doing so may cause injury to skin

Do not use detergent for any purpose other than washing the shaver blades.

- Using it with other products may cause discoloration or cracking.

▶ Disposing of the rechargeable battery

! DANGER

The rechargeable battery is exclusively for use with this shaver. Do not use the battery with other products.

Do not charge the battery after it has been removed from the product.

- Do not throw into fire or apply heat.

- Do not hit, disassemble, modify, or puncture with a nail.

- Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.

- Do not carry or store the battery together with metallic jewelry such as necklaces and hairpins.

- Do not charge, use, or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.

• Never peel off the tube.

- Doing so may cause overheating, ignition, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

- The battery will harm the body if accidentally swallowed.

If this happens, consult a physician immediately.

WARNING

If the battery fluid leaks out, take the following procedures. Do not touch the battery with your bare hands.

- The battery fluid may cause blindness if it comes in contact with your eyes.

Do not rub your eyes. Wash immediately with clean water and consult a physician.

- The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes.

Wash it off thoroughly with clean water and consult a physician.

Intended use

Notes

• Keep both the inner blades inserted. If only one of the inner blades is inserted, the shaver may be damaged.
• If you clean the shaver with water, do not use salt water or hot water. Do not soak the shaver in water for a long period of time.
• Clean the housing only with a soft cloth slightly dampened with tap water or soapy tap water. Do not use thinner, benzine, alcohol or other chemicals.
  • Store the shaver in a place with low humidity after use.
• Do not store the shaver or detergent where it will be exposed to direct sunlight or other heat sources.
• The self-cleaning recharger cleans the inner blades and the system outer foil. Brush or wash with water to remove beard trimmings in other areas.
• Depending on the environment, the shaver may not dry even if you select a mode that includes the "Dry" function. In this case, wipe off any drops of water with a dry cloth.

English
Parts identification

©

G

E

H

E

1

A Outer foil section

①Foil frame
②System outer foil
③ System outer foil release buttons

B Inner blades

© Main body

④Foil frame release buttons
⑤Finger rest
⑥Power switch
⑦ Soft shaving mode lamp
⑧Battery capacity lamp
⑨Charge status lamp
⑩Appliance socket
⑪ Trimmer
⑫ Trimmer handle

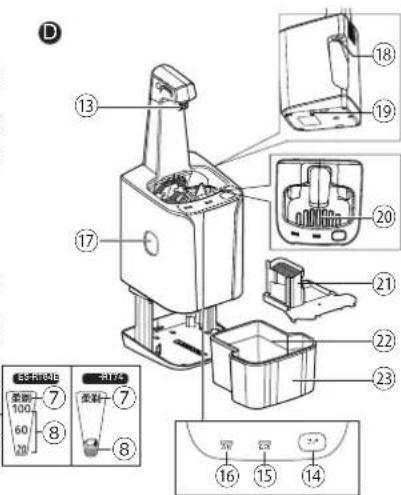

D Self-cleaning

recharger (RC9-16)
⑬ Charging terminal
⑭ SELECT button
⑮ AUTO lamp
⑯CHECK lamp
⑰ Cleaning liquid unit removal button
⑱ Self-cleaning recharger socket
⑲Lock release lever
⑳Cleaning tray
②1Cleaning liquid filter
②Water maximum line
②3Cleaning liquid unit

E Special detergent (Detergent)

F Protective cap

G AC adaptor (RE7-59)

②4 Power plug
⑲Cord
②6Appliance plug
⑳Adaptor

Accessories

H Travel case ES-RT84

① Cleaning brush

Using the protective cap

When carrying the shaver, the protective cap may be used to protect the outer foil and prevent switch misoperation. Clean the beard debris before installing the protective cap.

Attaching the protective cap

Attach the protective cap as illustrated.

- Securely attach the protective cap to the main unit.

Removing the protective cap

Remove the protective cap by pressing the both sides.

Charge

The charging time is approx. 1 hour.

A full charge will supply enough power for approx. 21 shaves of 3 minutes each. (This will differ depending on usage.)

Charging using the self-cleaning recharger

Thoroughly wipe off any drops of water on or around the self-cleaning recharger so that it is dry before charging the shaver.

1 Insert the appliance plug into the self-cleaning recharger.

2 Pull up the charging terminal until it clicks.
3 Remove the protective cap and then attach the shaver.

• Turn the shaver off before attaching.
- Check that the outer foil is not deformed or damaged when you are attaching the shaver.

4 Push down the charging terminal until it clicks.

5 Plug in the adaptor into a household outlet.

- The "Charge" mode starts when attaching the shaver.

- Check that the charge status lamp (red) glows.

The charging time may decrease depending on the charging capacity.

While charging
ES-RT84 B

The charge status lamp (red) glows. The number of the battery capacity lamp will increase as charging progresses.

The charge status lamp (red) glows.

After charging is completed
ES-RT84 E

The battery capacity lamp "100" will light up and then turn off after 5 seconds.

The charge status lamp will turn off.

- Recommended ambient temperature for charging is 10 – 35 °C. The battery may not charge properly or not at all under extreme low or high temperatures. The charge status lamp (red) will blink when there is a problem with charging.

- When charging the shaver for the first time or when it has not been in use for more than 6 months, the charge status lamp (red) may not glow. It will eventually glow if kept connected for several minutes.

6 Disconnect the adaptor after charging is completed.

- The appliance can be charged even with the cleaning liquid unit removed.

Charging without the self-cleaning recharger

1 Insert the appliance plug into the shaver.
2 Plug in the adaptor into a household outlet.

- Turn the shaver off before inserting.

3 Disconnect the adaptor after charging is completed. - Charging the battery for more than 1 hour will not affect battery performance.

Using the shaver

1 Press the power switch to select the desired shaving mode.

• Each time you press the power switch, the shaving mode changes from "Fast shaving mode" → "Soft shaving mode" → "OFF."

Shaving mode	Fast shaving mode	Soft shaving mode	OFF
Description	Suitable for users with thick beard	Suitable for users with thin beard or more sensitive skin	—
Operation
Soft shaving mode lamp	—No lighting indication	Soft shaving mode lamp turns on.	—Soft shaving mode lamp turns off.

2 Hold the shaver as illustrated and shave.

- Start shaving by applying gentle pressure to your face. Stretch your skin with your free hand and move the shaver back and forth in the direction of your beard. You may gently increase the amount of pressure as your skin becomes accustomed to this shaver. Applying excessive pressure does not provide a closer shave.

▶ Using alternating current for shaving

If you insert the appliance plug to the shaver and power plug in the adaptor into a household outlet, you can use it even if the battery capacity is low.

- If the shaver can not be normally used, please use after charging it for about 1 minute.

▶ Using the trimmer

Slide the trimmer handle up to open the trimmer. Place the trimmer at a right angle (90 degree) to your skin and move downwards to trim your sideburns.

Notes

- Place your finger on the finger rest while in use. Keeping your finger placed on the power switch during use may switch the mode or turn the shaver OFF.

• Do not use shaving creams or face cleansers containing scrubbing compounds as these may cause the outer foil to clog.
• We recommend using the shaver in an ambient temperature range of 5 – 35 °C. If used outside this range, the appliance may stop operating.

Reading lamps when using

While using

ES-RT84 B

-RT74

Approximate amount of battery charge is displayed as 20 - 100.

• It will turn off approximately 5 seconds after operating the switch.
- The charge status lamp (red) will glow when using the alternating current for shaving.

When the battery capacity is low

ES-RT84 B

-RT74

"20" blinks when operating the shaver.

• You can shave 2 to 3 times after "20" blinks. (This will differ depending on time of usage.)
• The charge status lamp (red) will glow when using the alternating current for shaving.
• You can shave 2 to 3 times after the battery capacity blinks. (This will differ depending on time of usage.)

The battery capacity lamp blinks when operating the shaver.

Clean

Cleaning using the self-cleaning recharger

▶ Preparing the self-cleaning recharger

Remove the shaver and the appliance plug from the self-cleaning recharger.

1 Place the self-cleaning recharger on a hard, flat surface.

- When the self-cleaning recharger is lifted, or on the soft surface such as carpets, the lock release lever will not fit in the recharger properly. In that case, the cleaning liquid unit cannot be removed.

2 Press the cleaning liquid unit removal button and remove the cleaning liquid unit.

3 Wash away the old cleaning liquid and beard trimmings and then rinse the cleaning liquid unit.

• After washing, be sure to attach the cleaning liquid filter.

4 Pour tap water and detergent into the cleaning liquid unit.

- Do not let the water rise above

the maximum water line. This may cause the cleaning liquid to spill.

5 Attach the cleaning liquid unit.

- Immediately wipe up any cleaning liquid that has been spilt.

Be careful not to drop cleaning liquid onto leather products or wooden floors as it may cause discoloration.

6 Press the top of the self-cleaning recharger down and securely attach until it clicks.

Notes

• The water and detergent will mix after cleaning begins, making cleaning liquid.
• If "AUTO" mode cannot be selected or the CHECK lamp glows for 5 seconds when the SELECT button is pressed, the cleaning liquid needs to be replaced. Replace the cleaning liquid.
• When replaced, the cleaning liquid will last for approximately 30 days if used once per day. (This will differ depending on beard thickness and the ambient temperature.)
• Use the detergent within approximately 6 months after opening the package. When 6 months have passed, discard the cleaning liquid, and then pour new water and detergent into the cleaning liquid unit.
• Replace the water and detergent at the same time. Otherwise the cleaning function may deteriorate.
• Only use self-cleaning recharger detergent for Panasonic shavers.

▶ Cleaning the shaver

Remove any soap or water on the shaver if it has been washed with hand soap or any other detergent.

1 Insert the appliance plug into the self-cleaning recharger.
2 Pull up the charging terminal until it clicks.
3 Remove the protective cap and then attach the shaver.
4 Push down the charging terminal until it clicks.
5 Plug in the adaptor into a household outlet.

• Turn the shaver off before attaching.
- Check that the outer foil is not deformed or damaged when you are attaching the shaver.

6 Press the SELECT button to select the mode.

• The "Charge" mode starts when attaching the shaver.
• Each time you press the SELECT button, the mode changes from "AUTO" "Charge".
• The modes start approximately 6 seconds after they are selected.
• The mode will be aborted if the power is cut off. In this case, perform the mode again from the beginning.
• Do not press the cleaning liquid unit removal button as the cleaning liquid may spill causing a malfunction.

Mode Time required (guide)
Charge	Charge0 to 60 min
AU
		It is not possible to change the mode after the “AUTO” mode has started.

• Use the self-cleaning recharger within the temperature range of 15 - 35^ .
• For 0 °C or less (extremely low temperatures), the self-cleaning recharger CHECK lamp glows for 5 seconds and “AUTO” mode stops.
• For 0 °C or less (extremely low temperatures), the charge status lamp (red) of the main body blinks quickly and “Charge” mode stops.

Cleaning the shaver without the self-cleaning recharger

1. Disconnect the cord from the shaver.
2. Apply some hand soap and some water to the system outer foil.
3. Turn the shaver on.
4. Turn off the shaver after 10 to 20 seconds.
5. Remove the outer foil section.
6. Clean the shaver and the outer foil section with running water.
7. Wipe off any drops of water with a dry cloth.
8. Dry the outer foil section and the shaver completely.
9. Attach the outer foil section to the shaver.

The mark on the left is for a washable shaver and indicates it can be cleaned with water.

Warning

Disconnect the cord from the shaver before cleaning it in water to prevent electric shock.

▶ Drying the shaver with the self-cleaning recharge

1. Attach the outer foil section to the shaver.
2. Dry the shaver with self-cleaning recharger using "AUTO" mode.

Cleaning with the brush

▶ Cleaning with the long brush

Clean the system outer foil (a), the shaver body (b) and the trimmer (c) using the long brush.

▶ Cleaning with the short brush

Clean the inner blades using the short brush by moving it in direction (A).

• Do not move the short brush in direction (B) as it will damage the inner blades and affect their sharpness.
• Do not use the short brush to clean the outer foils.

Replacing the system outer foil and the inner blades

system outer foil once every year

inner blades once every two years

▶ Removing the outer foil section 2

Press the foil frame release buttons and lift the outer foil section upwards.

▶ Attaching the outer foil section

Securely attach the outer foil section to the shaver until it clicks.

▶ Replacing the system outer foil

1. Press the system outer foil release buttons and pull down the system outer foil.
2. Align the front side of the foil frame with the system outer foil mark ( ) and insert them firmly together.
3. The system outer foil cannot be reversely attached.
   • Always insert the system outer foil to the foil frame when attaching to the shaver.

▶ Replacing the inner blades

1. Remove the inner blades one at a time.
2. Do not touch the edges (metal parts) of inner blades to prevent injury to your hand.
3. Insert the inner blades one at a time until they click.

▶ Replacement parts

Replacement parts are available at your dealer or Service Center.

Replacement parts for ES-RT84/ES-RT74	System outer foil WES9087
	Inner blades WES9068
Special Detergent for Shaver Cleaning & Charging System

Cleaning the self-cleaning recharger

Beard trimmings may become attached to the cleaning tray of the self-cleaning recharger. Follow the steps below to remove them. We recommend doing this each time you change the cleaning liquid.

1. Be sure to remove the cleaning liquid unit and the appliance plug from the self-cleaning recharger.

2. Be careful not to spill the cleaning liquid.
   • Some cleaning liquid components and skin oil may separate and adhere to the cleaning liquid unit and cleaning liquid filter. This does not indicate a problem.

3. Pour water as illustrated while tilting the cleaning liquid unit and shaking it gently.

• You can clean with the cleaning liquid filter removed.
• After washing, be sure to attach the cleaning liquid filter.

1. Gently wipe off any beard trimmings attached to the inside of the cleaning tray with a cloth or tissue paper dampened with water.

- Clean the corners and uneven parts of the cleaning tray with a cotton swab dampened with water.

▶ When the water does not drain from the cleaning tray

Beard trimmings may clog the drain at the bottom of the cleaning tray.

In this case, you cannot clean or dry the shaver.

Push the beard trimmings down through the drain with a toothpick etc.

English

Troubleshooting

▶ Self-cleaning recharger

Problem Action

The blade has not been thoroughly washed.

The CHECK lamp glows.

If the shaver is not cleaned for more than 2 weeks, first
▶ clean with the cleaning brush to remove beard trimmings. (See page 33.)
Do not add detergent and water except when replacing the cleaning liquid.
Doing so may deteriorate the cleaning function. (See page 31.)
After cleaning, oil-like droplets may remain on the outside of the foil frame.
This is the lubricating component of the cleaning liquid and does not indicate a problem. You may wipe it off with a soft cloth.
▶ See page 39.

Problem Action

The mode does not start.

Cleaning liquid has accumulated in the cleaning tray.

Check that the AC adaptor is connected to the self-
▶ cleaning recharger, and that the recharger is plugged in to a household outlet. (See page 33.)
Confirm that the shaver is properly attached to the
self-cleaning recharger. (See page 33.)
The Clean or Dry operation may not function under
▶ may not change under extreme low temperatures (approx. 0 °C or lower).
▶ Check if the CHECK lamp glows. (See page 39.)
Remove any waste, etc. that has accumulated in the
▶ drain at the bottom of the cleaning tray. (See page 35.)
If you use the self-cleaning recharger when the shaver is
▶ wet or when soap or shaving gel is on the shaver, cleaning liquid may accumulate in the cleaning tray.

Problem Action
The cleaning liquid unit cannot be removed.	Place the self-cleaning recharger on a hard, flat surface.When the self-cleaning recharger is lifted, or on the soft surface such as carpets, the lock release lever will not fit in the recharger properly. In that case, the cleaning liquid unit cannot be removed.

Problem Action
Makes a loud sound.	During cleaning:The self-cleaning recharger makes a loud sound due to clean the blades.This does not indicate a problem.
The shaver cannot be charged.	Gently wipe the charging terminal of the self-cleaning recharger with a cloth or tissue damped with water.
The blades are not dry or are sticky.	The blades may not dry quickly due to temperature conditions.Run the “AUTO” mode again or wipe with a soft cloth before shaving.
The blades crack or deform during cleaning.	Do not insert any foreign objects into the recharger.Replace the system outer foil and/or inner blades.(See page 34.)

English

Problem Action		▶ Shaver
		Problem Action
The cleaning liquid has foamed.	If you mix soapy water or hand soap with the detergent or use another detergent, the cleaning liquid will foam. Use the self-cleaning recharger after thoroughly washing and drying the shaver.	Trimmed hairs fly all over.	This can be improved by cleaning every time after shaving.
			Clean the inner blades with the brush.
	Replace the cleaning liquid.	System outer foil gets hot.	Replace the system outer foil if it is damaged or deformed. (See page 34.)
Cleaning liquid leaked from the cleaning liquid unit.	Do not press the cleaning liquid unit removal button during the mode.	The blades do not dry.	The blades may not dry quickly due to temperature conditions.
	Place the self-cleaning recharger horizontally.		The blades can be dried more easily by removing for drying.
	If you use the self-cleaning recharger when the shaver is wet or when soap or shaving gel is on the shaver, cleaning liquid may leak.	The odor is getting stronger.	This can be improved by cleaning every time after shaving.
The shaver cannot be charged with the self-cleaning recharger.	Use within the recommended temperature range of 15 – 35 °C.

Problem Action
You do not get as close a shave as before.	This can be improved by cleaning every time after shaving.
	Replace the system outer foil and/or inner blades. Expected life of system outer foil and inner blades: System outer foil: Approximately 1 year Inner blades: Approximately 2 years
Makes a loud sound.	Confirm that the blades are properly attached.
The power will not switch to OFF.	Press the power switch twice while using in the fast shaving mode.
The shaver cannot be charged.	The recommended temperature for charging is 10 – 35 °C. If charged at a temperature other than the recommended temperature, the shaver may take longer to charge or may not charge at all.

Problem Action
Operating time is short even after charging.	When the number of operations per charge starts to decrease, the battery is nearing the end of its life.	English
Shaver stopped functioning.	Recommended ambient temperature for operation is 5 – 35 °C. The shaver may stop functioning when out of recommended ambient temperature range.
	The battery has reached the end of its life.

▶ When the CHECK lamp glows for 5 seconds

Problem Action
It is time to replace the cleaning liquid.	Pour new water and detergent into the cleaning liquid unit.
The cleaning liquid unit is not properly attached.	Properly attach the cleaning liquid unit.
The self-cleaning recharger is tilted.	Place the self-cleaning recharger on a horizontal surface.

Problem Action

The "AUTO" mode runs outside the range of the recommended usage temperature.

Use within the recommended temperature range of 15 – 35 °C.

After performing the above operation, press the SELECT button and select a mode.

When all self-cleaning recharger's lamps bli

Problem Action

Device failure

▶ Contact an authorized service center.

If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorised by Panasonic for repair.

Battery life

The life of the battery is 3 years if charged approximately once every three weeks. The battery in this shaver is not intended to be replaced by consumers. Have the battery replaced by a service center authorized by Panasonic for repair.

Removing the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing the appliance.

Please make sure that the battery is disposed of at an officially designated location if there is one.

This figure must only be used when disposing the appliance, and must not be used to repair it. If you dismantle the shaver yourself, it will no longer be waterproof, which may cause it to malfunction.

• Remove the shaver from the AC adaptor.
• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform steps ① to ⑥ and lift the battery, and then remove it.
• Please take care not to short-circuit the battery.

For environmental protection and recycling of materials This shaver contains a Lithium-ion battery. Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Specifications

Product name Rechargeable Shaver
Product model ES	-RT84/ES-RT74
Rated input	100-240 V~ 50-60 Hz180 mA
Rated output	5.4 V--- 1.2 A
Charging time Approx.	1 hour
Place of origin China
Date of production	See engraving on the commodity.
Execution standard	Chinese standardGB4706.1 Annex BGB4706.9
	Company standardQ/SXWBMJ 6

This product is intended for household use only.

MEMO

MEMO

MEMO

Panasonic

保修证

保修条款

(Address): 33, Wanbao North Street, Wanbao Industry Zone, Zhongcun, Panyu District, Guangzhou City, Guangdong Province, China

电话 (Tel): [phone]

传真 (Fax): [phone]
