TT718PRO - AV Extender Epcom - Free user manual and instructions

Product Type	AV Extender
Brand	Epcom
Model	TT718PRO
Dimensions (approx.)	100 x 60 x 25 mm
Weight (approx.)	100 g
Power Supply	5V DC via USB or included adapter
Input Interface	HDMI (type A female)
Output Interface	RJ45 (for extension)
Max Transmission Distance	Up to 50 m over CAT5e/6 cable
Supported Resolutions	480p, 720p, 1080p @ 60 Hz
Bandwidth	10.2 Gbps (HDMI 1.4 compatible)
Audio Support	Stereo audio via HDMI, up to 7.1 channel
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 60°C
Humidity	10% to 85% non-condensing
Maintenance	Clean with dry cloth, avoid liquids
Safety Precautions	Do not expose to moisture; unplug during storms
Spare Parts Availability	Not applicable; non-user-serviceable
General Info	Use for extending HDMI signal over long distances

Frequently Asked Questions - TT718PRO Epcom

How do I set up the Epcom TT718PRO AV extender?

Connect the HDMI source to the transmitter unit, then connect an Ethernet cable (CAT5e or CAT6) from the transmitter's RJ45 port to the receiver's RJ45 port. Finally, connect the receiver to the display via HDMI. Power both units using the included USB cables or adapters.

What is the maximum distance the extender can transmit?

The TT718PRO can transmit HDMI signals up to 50 meters over a single CAT5e or CAT6 Ethernet cable.

Does it support 4K resolution?

No, the TT718PRO supports resolutions up to 1080p @ 60Hz. For 4K, please consider other models.

Can I use any Ethernet cable?

For best performance, use CAT5e or CAT6 cables. Shielded cables are recommended for long runs to reduce interference.

Why is my display showing no signal?

Check all connections: ensure HDMI cables are securely plugged, Ethernet cable is properly connected, and both transmitter and receiver are powered on. Try a different Ethernet cable or shorter distance.

Does the extender require separate power for both units?

Yes, both transmitter and receiver need 5V DC power. They can be powered via USB ports or the included power adapters.

Can I extend HDMI from a gaming console?

Yes, as long as the console outputs HDMI and the resolution is 1080p or lower. For example, PlayStation 4 and Xbox One are compatible.

Is the extender compatible with HDCP?

Yes, the TT718PRO supports HDCP 1.4 pass-through, allowing playback of protected content.

How do I clean and maintain the extender?

Use a soft, dry cloth to wipe the exterior. Do not use liquids or abrasive cleaners. Keep the device away from moisture and extreme temperatures.

What should I do if the extender gets hot?

The device may become warm during normal operation. Ensure proper ventilation and do not cover the vents. If overheating occurs, unplug and let it cool down.

USER MANUAL TT718PRO Epcom

• IMPORTANT SAFETY INSTRUCTIONS

1. Do not mix up the Transmitter and Receiver, and the IR blaster and IR receiver.
2. Do not plug-in/out the cables, when it is in using.
3. Use DC 12V power supply only. Make sure the specification matched if using 3rd party DC adapters.
4. Support power from transmitter to receiver unit over the CAT6 cable.

- INTRODUCTION

This HDMI extender splitter works with 8 HDMI CAT6 extender receivers to split and extend 1 HDMI source to 8 HDMI displays over single CAT6/6A/7 cable up to 40m/131ft. The highest resolution supported is 1920x1080@60Hz, and it supports IR passback, EDID pass through and only one power adapter for the transmitter is needed, the receivers are powered by the transmitter over CAT6 cable. Ideal solution for HDMI exhibition, video conference and show center, etc.

- PACKAGE CONTENTS

Transmitter unit ×1pcs

Receiver unit ×8pcs

User Manual ×1pcs

IR blaster extension cable x1pcs

IR receiver extension cable ×8pcs

DC12V/3A ×1pcs

- FEATURES

1. Distribute 1 HDMI source to 8 HDMI displays over network cable
   simultaneously.
2. Support one HDMI Loop-out.
3. Compatible with CAT6/6a/7 network cables.
4. The transmission distance is up to 40m/131ft
5. The highest resolution supported is .1920x1080@60Hz
6. Support 20\~60Hz IR pass back
7. Support EDID Setting function.
8. Support power from transmitter to receiver unit over the CAT6 cable.
9. Plug and play.
10. Wall-mounted function, easy installation.

• INSTALLATION REQUIREMENTS

1. HDMI source device(computer graphics card, DVD, PS3, HD
   monitoring equipment etc).
2. HDMI display device like SDTV, HDTV, and projector with HDMI port.
3. UTP/STP CAT6/6A/7 cable, follow standard IEEE-568B

• PANEL DESCRIPTION

1. Transmitter unit (TX)

① Power input ( DC12V )
② EDID switch
③ IR blaster extension cable
④ HDMI input

⑤ HDMI output
⑥ RJ45 signal output
⑦ Power/ signal indicator
⑧ Reset button

1. Receiver unit (RX)


① LENGTH: for adjusting to the length
of network cable
② RJ45 signal input
⑧ RJ45 indicator led: it lights on all the
time when HDMI signal transmission,
flashes when no signal transmission

④ DV5V power input (OPTIONAL)
⑤ HDMI signal output
⑥ IR receiver extension cable

[Non-Text]

[Non-Text]

[Non-Text]

Remarks:

Users can press button" Length" to adjust transmission distance of this device automatically or manually. If users do not press this button when power on, then the device will work like last time because of memory function. If users press this button after power, on the first two press will make the device adjust the distance according to the network cable length automatically. After this two press, if users continue to press this button, then will go to the mode of adjusting transmission distance (the 12 levels to tally and adding one more press means a new level. When users finish the 12 levels adjusting manually it will be back to adjust transmission distance automatically mode and into the new loop.

• INSTALLATION PROCEDURES

1. How to make a CAT5/5E/6 network cake

Follow the standard of IEEE-568B
1- Orange/white 2- Orange
3- Green/white 4- Blue
5- Blue/white 6- Green
7- Brown/white 8- Brown

1. Connection

Remarks: Please do not remote control two or more RX units' IR signal at the same time, which to avoid interference.

1. Connection instruction:
   1) Connect the HDMI signal source device to the transmitter HDMI
   input port with HDMI cable.
   2) Connect IR blaster to extender IR out.
   3) Connect the transmitter RJ45 port to HDMI extender RX's RJ45 input port by network cable.
   4) Connect HDMI extender RX's HDMI output port to HDMI display's HDMI input port by HDMI cable and set the HDMI display's signal source to be HDMI port.
   5) Supply the power (when power is on, if there is signal input, the power light is blue, otherwise, it is red), the product will work.
2. EDID Setting
   1) The Transmitter will read the HDMI display's EDID information, and then feed it back to the HDMI source device for outputting the best matched resolution.
   2) This set is built-in 8 EDID status, switch the Dial Dip to choose one. The detail setting information is shown as below:
   Switch UP: use the arabic numeral "1" to represent
   Switch DOWN: use the arabic numeral "0" to represent

Switch Status	SW1	SW2	SW3	EDID Mode
	0	0	0	720P@50Hz 2.1CH
	1	0	0	720P@50Hz 7.1CH
	0	1	0	1080p@60Hz 2.1CH
	1	1	0	1080p@60Hz 7.1CH
	0	0	1	1080P@60 2.1CH
	1	0	1	1080p@60Hz 7.1CH
	0	1	1	Read Loop-out(if not connect the loop-out show default)
	1	1	1	Default 720P@50Hz 2.1CH

• FAQ

Q: No image or audio output on display?
A: 1) Please check whether display on standby mode;
2) Please make sure the HDMI Port on the HDMI display is correctly connected with the HDMI cable.
3) Please check whether signal indicator * LINK * LED on RX side
keeps on, LED flash means RX does not receive signal from TX;
4) Please check whether signal indicator * LINK * LED on TX turns blue, LED on red means no input signal;
5) Please check whether input resolution is supported by this product.
Q: Image unstable
A: 1) Press the "LENGTH" button on receiver or "RESET" button on the transmitter to re-identify the signal;
2) Please re-connect the corresponding network cable and try again. Q: There is only some ports output signal?
A: 1) Please check and make sure CAT cable or HDMI cable connected

well;

2) Press the "LENGTH" button on receiver or "RESET" button on the transmitter to re-identify the signal;

3) Please re-connect the corresponding network cable and try again.

• SPECIFICATION

Items	Specifications
HDMI signal	HDMI1.3. Compatible with HDCP1.2
Input	1 x HDMI
Output	8 x HDMI
Support resolutions	480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz

Transmit distance	Full HD resolution 1080p@60Hz up to 40 meters via CATc cable
IR signal	Support 20~60kHz IR device
EDID	Support EDID manual setting function
Working temperature	0°C~60°C
Power supply	DC12V/3A
Power Consumption	<24W
Dimension	TX: 276(L) x 95.98(W) x 23(H) mm RX: 71.6x66.6x22.6mm
Weight	TX: 620g xLpcs RX: 80g x8pcs
	BlackColor

Disclaimer

The product name and brand name may be registered trademark of related manufacturers.TM and may be omitted on the user manual. The pictures on the user manual are just for reference, and there may be some slight difference with the real products. We reserve the rights to make changes without further notice to a product or system described herein to improve reliability, function or design.

1 8 HDMI Extender Splitter×
User manual

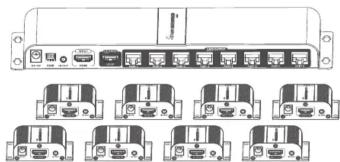

Front view of a network switch device with multiple ports and connectors (no visible text or labels)
