Product Type	Security Camera
Brand	Provision-ISR
Model	DI-390AHDU-MVF
Image Sensor	1/2.8" Progressive Scan CMOS
Resolution	2 MP (1920 x 1080)
Lens	2.8-12mm Motorized Varifocal
Night Vision	Up to 30m IR Distance
Day/Night Mode	ICR Auto Switch
WDR	True DWDR
Video Compression	H.265, H.264
Smart Features	Motion Detection, Tampering Alarm, Line Crossing, Intrusion
Audio	Built-in Microphone, 1-Ch Audio Input
Network	10/100M Ethernet, PoE (802.3af)
Power Supply	DC 12V or PoE
Power Consumption	≤12W
Dimensions	Φ130mm × 105mm
Weight	0.55kg
Operating Temperature	-40°C to 60°C
Protection Rating	IP67, IK10
Maintenance	Clean dome with soft, dry cloth; avoid solvents
Safety	Use only with approved power supply; follow local electrical codes
Spare Parts & Repairability	Contact authorized service center for parts; no user-serviceable parts
General Information	Outdoor dome camera designed for 24/7 surveillance

Frequently Asked Questions - DI-390AHDU-MVF Provision-ISR

What is the maximum resolution of the DI-390AHDU-MVF?

The camera supports 2 MP (1920 x 1080) resolution at up to 30 fps.

Does this camera support Power over Ethernet (PoE)?

Yes, it supports IEEE 802.3af PoE for both power and data transmission.

What is the IR range for night vision?

The built-in IR LEDs provide night vision up to 30 meters.

Can I use this camera outdoors?

Yes, it has an IP67 rating for weather resistance and IK10 vandal resistance.

What smart analytics features are available?

The camera includes motion detection, tampering alarm, line crossing, and intrusion detection.

How do I reset the camera to factory defaults?

Press and hold the reset button (located on the camera body) for 10 seconds while power is connected.

What video compression formats are supported?

It supports H.265 and H.264 compression for efficient bandwidth usage.

Can I connect an external microphone?

Yes, it has a built-in microphone and also supports one-channel audio input.

What type of lens does this camera have?

It features a motorized varifocal lens with 2.8-12mm focal length, allowing remote zoom and focus.

Is the camera compatible with NVRs from other brands?

It uses standard ONVIF Profile S and G protocols, so it is compatible with many third-party NVRs.

USER MANUAL DI-390AHDU-MVF Provision-ISR

Four technical line drawings of mechanical components, showing front, side, top, and side views (no text or symbols)

FCC

www.provision-ISR.com

Solid red rectangular shape with a curved white border on the right edge (no text or symbols)

PROVISION ISR

Now you can see!

USER MANUAL

■ 1080P Ultra-AHD Series

Contents

1) CAUTIONS
2) Product Introduction

2.1 Camera Introduction
2.2 Product Features

3) Menu Setup
4) Product Installation

4.1 General Notes
4.2 Installation Tools and Information
4.3 Installation Method
4.4 Connections
4.5 Lens Control
4.6 OSD Control
4.7 OSD Layout Scheme
4.8 Comments & Special Features

5) Technical Specification

1 CAUTIONS

1. To reduce the risk of electric shock, do not open the machine and maintain by yourself, please consult a professional service person.

2. To prevent fire or shock hazard, use the power after safety certification, the input voltage, current, voltage polarity and operating temperature must meet the requirements of this camera.

3. Please note the operating temperature and environmental requirements of the camera, avoid too low or too high temperature. General operating temperature range of -10^ +50^ (Fahrenheit temperature is 14^ 122^ ). Avoid flooding and rain, minimize dust and moisture erosion, otherwise camera would be damaged.

4. Cameras in use should avoid direct sunlight, glare, otherwise the sensor will be damaged.

5. Do not touch the sensor surface, if any foreign objects exits, a cotton swab or lens paper can be used to wipe, if it is difficult to remove, a neutral detergent diluted with water would be useful. Do not use corrosive solution.

6. In order to make the camera work smoothly and obtain asatisfactory image, the power cord and video connection can not be too long, otherwise the increase of line loss will lead to the inadequate magnitude of the operating voltage of the camera or video signal Inadequate.

7. In order to prevent the camera from falling, please do not place the camera on an unstable bracket, base or other unstable objects. Otherwise it will lead to injury, at the same time, the camera will be damaged.

8. The camera cannot be placed near the radiator or heating resistor.

2 Product Introduction

2.1 Camera Introduction

PROVISION-ISR's new series of cameras are adopted CMOS image sensor with high performance, which provides mega pixel resolution and supports HD video. Moreover, it supports monitoring signals coaxial transmission. Transmission distance can reach more than 300M based on 75-3 coaxial cable. The series can support both AHD/CVBS 960H output as well as realize high speed, long distance and real time video transmission.

2.2 Product Features

• Dual Coaxial cable with BNC connectors
  • AHD/CVBS Dual Output
• True WDR (Not Available for Analog Output)
• Motorized 2.8-12mm Vari-Focal Auto Focus Lens
  • Auto Day/Night (ICR)
• Defog, HBLC, BLC
  • 2D/3D Noise Reduction
• Motion Detection, Privacy Mask

3 Menu Setup

"Iris+" from DVR to call Menu.

4 Product Installation

4.1 General Notes

1. Make sure the unit is powered off before installation.
2. Check power supply voltage consistent with the electric voltage to prevent voltage unworthy, resulting in damage to the device.

3. Do not use in the environment beyond the boundaries of the temperature, and maintain good ventilation to prevent the rain in order to reduce the risk of fire or electric shock.

4. The installation and maintenance of this product should be professional, please do not in any way to remove or modify the equipment; can only use the required accessories of manufacturers. Problems caused by unauthorized repair are at your own risk.

4.2 Installation Tools and Information

Prepare the required engineering data and instructions. Before installation please prepare the following tools and instrumentation: A straight or a Phillips-head screwdriver, multi-meter, scissors, needle nose pliers, tape measure, pencil and so on.

4.3 Installation Method

1. Check the equipment whether it is damaged.

2. Mounting bracket or base.

① If the cement wall, install the expansion screws (expansion screw holes need stand or base hole), and then mount bracket or base.

② If the wooden wall, use self-tapping screws to mount.

1. Mounting the camera

a. Dome Camera

Adjust the lens position and make it aim at the monitoring points and present a clear picture, manually fix lens location and adjust the hemisphere cover. Re-examine the screen whether the character meets the requirement. Tighten the hemisphere cover.

b. Bullet Camera

Adjust the body so that the lens aims at the monitoring points and presents a clear picture. Tighten the screws, to ensure that it does not move.

Installation method above is for reference only, the specific installation, please be kind.

Note:

The wall needs to bear at least 3X weight of bracket (base) and camera.

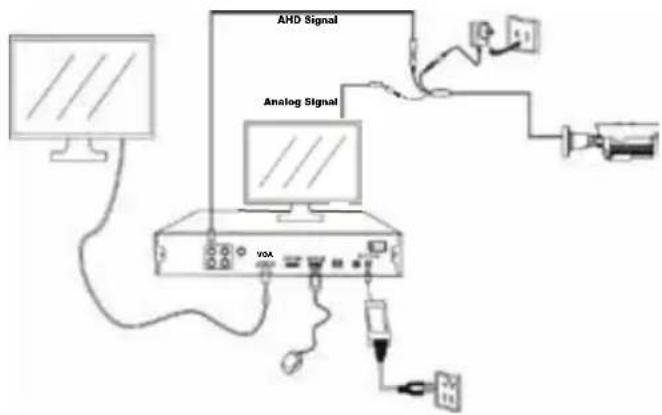

4.4 Connections

Connection as shown in the figure below

4.5 Lens Control

Use the DVR PTZ interface Zoom+/- to control the motorized lens.

4.6 OSD Control

The preferred control method is CoC (Control over Coax). If your AHD DVR supports this function*, Use the DVR's PTZ interface to call Preset 95 or press on "Iris+" to open the OSD menu. Navigate through the OSD menu by the PTZ direction arrows. "Iris+" performs as "Enter".

*All of Provision-ISR's DVRs support CoC Starting from version 3.4.4

4.7 OSD Layout Scheme

Main Menu Sub-Menu Third		Menu Fourth Menu Choices
LENS	ELC	NORMAL
		DEBLUR
	ALC	INDOOR
		OUTDOOR
		DEBLUR
EXPOSURE	BRIGHTNESS 1~20
	SHUTTER	AUTO
		MANUAL SPEED 1/25~1/60000
		FLICKER
	SENS-IP OFF / x2~x32
	AGC 1~20
WHITE BALANCE	AUTO
	AUTOext
	PRESET
	MANUAL	RGAIN 1~20
		BGAIN 1~20
BACKLIGHT	OFF
	HLC	MODE	ALL DAY
			NIGHT ONLY
		LEVEL 0~20
	BLC	H-POS 0~20
		V-POS 0~20
		H-SIZE 0~20
		V-SIZE 0~20
	WDR	WEIGHT	LOW
			MIDDLE
			HIGH
DNR	LOW
	MIDDLE
	HIGH

DAY & NIGHT	MODE	EXTERN
		AUTO
		COLOR
		B&W
	DELAY 0~20
	D->N LEVEL 0~20
	N->D LEVEL 0~20
	IR LED	ON
		OFF
	SMART IR LVL 0~20
	POLARITY	HIGH
		LOW
MAGE	SHARPNESS 0~20
	COLOR GAIN 0~20
	IREEZE	OFF
		ON
	RLIP	OFF
		H-INV
		V-INV
		HV-INV
	D-ZOOM X1.0~X70
	ACE	OFF
		LOW
		MIDDLE
		HIGH
	GAMMA 0.45~0.65
	DEFOG	OFF
		ON AUTO	MODE
				MANUAL
SPECIAL	SYSTEM	OUTPUT MODE	1080P
			720P (Not Available)
		COLOR SPACE	HD-CbCr
			YUV
			SD-CbCr
		FRAME RATE	25FPS
			30FPS
		CVBS (Do Not Change)	PAL
			NTSC
		BLACK LEVEL	COMP
			FULL
			USER	OFFSET 0~255
				GAIN 0~255
		VERSION

S PECIAL	COMM ADJ	CAM ID 1~255
		BAUD RATE 2400~9600
	LANGUAGE	ENG
		CHINESE
	ZOOM DISTANCE	OFF
		ON
	PRIVACY	OFF
		ON	ZONE NUM 0~20
			ZONE DISP	ON
				OFF
			H-POS 0~20
			V-POS 0~20
			H-SIZE 0~20
			V-SIZE 0~20
			Y LEVEL 0~20
			CR LEVEL	0~20
			CB LEVEL	0~20
	MOTION	OFF
		ON	SENSITIVITY	0~20
			WINDOW TONE 0~6
			WINDOW USE	0~3
			WINDOW ZONE	OFF
				ON
			DET H-POS	0~60
			DET V-POS 0~60
			DET H-SIZE	0~60
			DET V-SIZE	0~60
			ALARM	OFF
				ON
	SHADING	OFF
		ON	WEIGHT	0-100%
	ADJUST	FOCUS ADJ	OFF
			ON
		DEFECT DET	TRESHOLD 0~255
			DEFECT DET
		SHADING DET
		COLORBAR	OFF
			ON
RESET
EXIT

4.4 Comments & Special Features:

1) The Ultra AHD Series supports True WDR, which means that the camera will take two exposures with different settings and then process it into one.
2) While WDR is off, the two exposures will be used for AHD and Analog (One exposures for each), and the dual output (AHD/Analog) is automatically enabled
3) While WDR is on, the two exposures are used for AHD Output so the Analog output is disabled automatically.
4) While WDR is on the FPS of the camera drops to 15FPS.
5) Any change in the "Special/System" OSD menu might result with losing the camera's image and CoC control. Please do not make any changes without fully understanding the consequences.
6) In any case of losing picture/CoC control while the OSD Menu is still open - disconnect the camera from power and reconnect it to revert the changes.

5 Specifications: Ultra-AHD camera (1080P)

Model	DI-390AHDU-MVF	I4-390AHDU-MVF
Image Sensor	1/3" 2MP Sony Sensor
Effective Pixels	1984(H)×1105(V)
Scanning System	Progressive
Resolution	Digital:1920×1080P, Analog:960H*
Min. Illumination	0.1Lux / (0Lux IR On)
Day & Night	EXT, Color, B&W, AUTO
IR LED	3 LED Array (25m)	4 LED Array (40m)
OSD Menu	Available
CoC Support	Yes
Backlight Compensation	OFF/BLC/HLC/True WDR* (AHD Only)
S/N Ratio	≥60dB (AGC Off)
White Balance	AWB, Auto-Push, Manual
Noise Reduce	3D-DNR (For AHD), 2D-DNR (For Analog*)
Video Output	AHD / CVBS (Dual Output - With WDR off only)
Defog	Off/On
Privacy Mask	Off/On (4 Areas)
Motion Detection	Off/On (4 Areas)
D-Effect	Freeze, Mirror
Lens	2.8-12mm Motorized with Auto Focus
Power	DC12V±10%, ~400mA	DC12V±10%, ~480mA
Operation temp.	-10°C~+50°C (14°F~122°F)
Dimension	129.5*90*119mm	286*77*85.6mm
Net Weight	476g	836g

*Analog video output is not available while WDR is on
