TRH6-1-L - Range hood Tisira - Free user manual and instructions
Find the device manual for free TRH6-1-L Tisira in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Range Hood |
| Brand | Tisira |
| Model | TRH6-1-L |
| Installation Type | Wall-mounted |

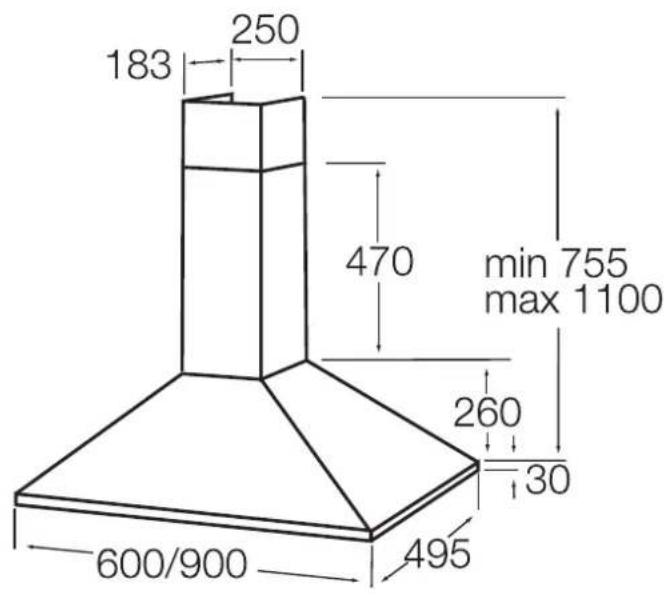

| Width | 600 mm |
| Depth | 500 mm |
| Height (Adjustable) | 750–1100 mm |
| Net Weight | 12 kg |
| Power Supply | 220–240 V, 50 Hz |
| Motor Power | 150 W |
| Extraction Capacity | 650 m³/h |
| Noise Level (Max Speed) | 65 dB(A) |
| Lighting | 2 x 1.5W LED |
| Controls | Push buttons |
| Speeds | 3 speeds |
| Grease Filter Type | Aluminum mesh |
| Charcoal Filter (Optional) | Yes, for recirculation mode |
| Ducting Diameter | 150 mm |
| Venting Mode | Ducted or recirculation |
| Maintenance | Clean grease filter every 2 months; replace charcoal filter every 4-6 months |
| Safety Features | Thermal cut-off protection |
| Compliance | CE, RoHS |
Frequently Asked Questions - TRH6-1-L Tisira
How often should I clean the grease filter?
The grease filter should be cleaned every 2 months for optimal performance. Wash it in warm soapy water or in the dishwasher.
Can this range hood be used in recirculation mode?
Yes, the TRH6-1-L can be used in recirculation mode with an optional charcoal filter. The filter traps odors and must be replaced every 4-6 months.
What is the ducting diameter required for installation?
The required ducting diameter is 150 mm. Use rigid or flexible ducts with the same diameter for efficient extraction.

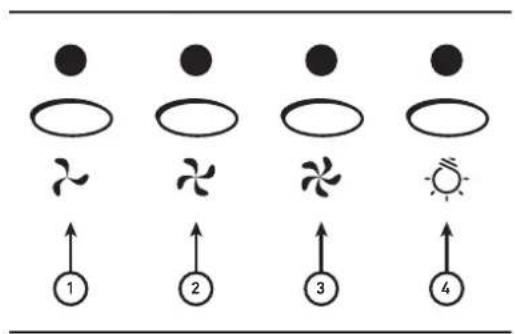

How do I adjust the speed settings?
Use the push buttons on the control panel to select one of three speeds. Low speed for quiet operation, high speed for strong extraction.
Is the lighting replaceable?
Yes, the hood uses 2 x 1.5W LED bulbs. To replace, remove the glass cover and unscrew the old bulb. Replace with a compatible G4 LED bulb.
What is the maximum noise level?
At maximum speed, the noise level is approximately 65 dB(A), comparable to a normal conversation.
Can I install the hood without ducting?
Yes, for recirculation mode you must install a charcoal filter. The air is filtered and recirculated back into the kitchen.
What safety features does the hood have?
It includes thermal cut-off protection that shuts off the motor if overheating is detected, preventing fire hazards.
How do I clean the stainless steel surface?
Use a soft cloth with mild detergent and water. Avoid abrasive cleaners to prevent scratching. Dry thoroughly to avoid water spots.
What is the recommended installation height above the cooktop?
For electric cooktops, install the hood at least 650 mm above; for gas cooktops, at least 700 mm. Check local codes.
