CRHC9S01-F - Range hood Bellini - Free user manual and instructions
Find the device manual for free CRHC9S01-F Bellini in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Range Hood |
| Brand | Bellini |
| Model | CRHC9S01-F |
| Width | 60 cm |
| Depth | 50 cm |
| Height | 15 cm |
| Weight | 10 kg |
| Power Supply | 220-240 V, 50 Hz |
| Maximum Extraction Rate | 600 m³/h |
| Number of Speeds | 3 |
| Lighting Type | LED |
| Grease Filter Type | Aluminium mesh |
| Charcoal Filter Type | Optional, reusable |
| Ducting Diameter | 150 mm |
| Noise Level (max speed) | 65 dB |
| Energy Efficiency Class | B |
| Mounting Type | Wall-mounted |
| Control Type | Push buttons |
| Anti-return Flap | Yes |
| Overheat Protection | Yes |
| Grease Filter Cleaning | Dishwasher safe |
| Charcoal Filter Replacement | Every 3-6 months |
| Bulb Replacement | LED module, replaceable |
Frequently Asked Questions - CRHC9S01-F Bellini
How do I install the Bellini CRHC9S01-F range hood?

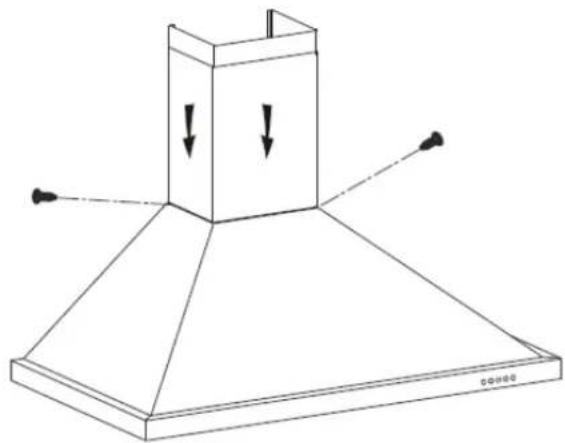

Installation must be carried out by a qualified professional. Ensure adequate clearance above your cooktop (minimum 65 cm for electric, 75 cm for gas). Follow the provided manual for wall mounting and duct connection.
Can I use the range hood in recirculation mode?
Yes, the hood can be used in recirculation mode by installing charcoal filters (sold separately). This filters odors and recirculates air back into the kitchen.

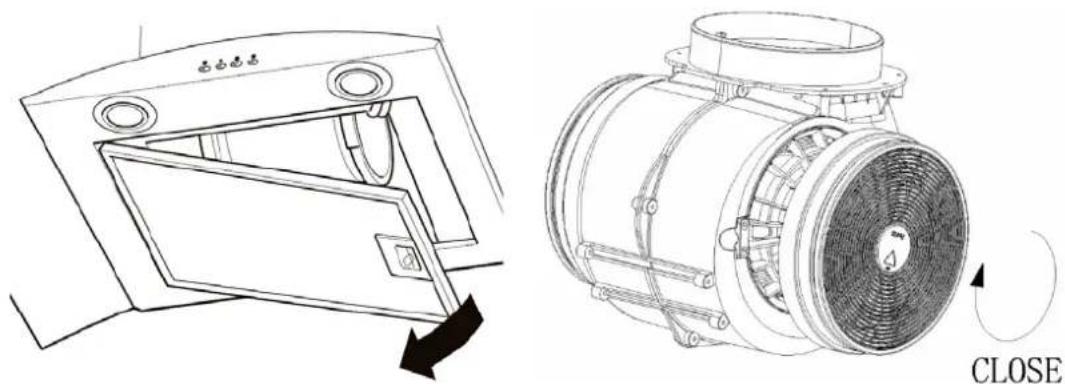

How often should I clean the grease filters?
Grease filters should be cleaned every 3 to 4 weeks. They are dishwasher safe. Clean them in warm water with mild detergent if washing by hand.
When should I replace the charcoal filter?
Charcoal filters typically need replacement every 3 to 6 months depending on usage. Signs of reduced odor removal indicate replacement is needed.
What is the noise level of the hood?
The noise level ranges from 45 dB on low speed to 65 dB on maximum speed. It is relatively quiet for a kitchen hood.
How do I replace the LED light bulb?
The LED module is integrated. If it fails, contact Bellini customer service for a replacement part. It is not a standard bulb.
What are the dimensions of the hood?
The hood measures approximately 60 cm wide, 50 cm deep, and 15 cm high. Always check the exact dimensions in the manual.
Does the hood have a remote control?
No, the Bellini CRHC9S01-F is controlled via push buttons on the front panel. It does not come with a remote.
What is the warranty period for this range hood?
Bellini typically offers a 2-year warranty for domestic use. Verify your local warranty terms with the retailer or Bellini.
Can I vent the hood outside?
Yes, the hood can be vented to the outside using a 150 mm duct. Ensure the duct is as short and straight as possible for maximum efficiency.
