USER MANUAL CZM Hochiki

The information contained in this installation instruction is to be used as quick reference guide. For detailed system information, refer to the panel's installation manual.

GENERAL DESCRIPTION

This instruction applies to the Conventional Zone Module (DCP-CZM), which is to be connected to a Signal Line Circuit (SLC). The module allows the analog panel to interface and monitor dry contacts such as pull stations and two-wire conventional smoke detectors. The "DCP-CZM" is addressed through the communication line of the system and transmits the status of one zone of devices to the panel. Status conditions are reported as normal, open or alarm. It supervises the external power supply as well as the entire zone of devices.

NOTE: Please reference the 2 wire detector compatibility matrix on the proceeding page for a complete list of devices approved for use with the "DCP-CZM"

MOUNTING REQUIREMENTS

The (DCP-CZM) Conventional Zone module is mounted as shown in Figure 2 on page 1 of this instruction.

WIRING

NOTE: All wiring must conform to local codes, ordinances and regulations.

1) Install module wiring in accordance with the job drawings and appropriate wiring diagram (see Fig.3).
2) Secure the module to a U.L. listed electrical box (supplied by installer), as shown in Figure 2.

CAUTION!

Install the modules in this instruction in accordance with applicable NFPA standards, local codes, and the authorities having jurisdiction. Failure to follow these instructions may result in failure of the system to operate as intended. Hochiki America is not responsible for modules that have been improperly installed, tested, or maintained.

Hochiki CZM - CAUTION! - 1

PLUG IS NON-POLARIZED TO PROGRAMMER

FIGURE 1

EXPLODED VIEW OF ADDRESS PROGRAMMING PLUG AND CONNECTOR

CAUTION!

To ensure proper operation connect this module to a compatible Fire Control Panel only. Refer to panel instructions for proper connection and compatibility.

CAUTION!

If this module will be installed in an existing operation system, inform the operator and local authority that the system will be temporarily out of service. Disconnect power to the control panel before installing the module

SPECIFICATIONS

SLC Applied VoltageRated Range 25.3 - 39 VDC
SLC Current ConsumptionAlarm 4.8mANormal Standby 320μA
Auxiliary Applied VoltageMaximum 27.2VDCNominal 1B.8VDC
2-Wire Detector LoopCurrent (Auxiliary Supply)Standby Detector Load - 1mA MaxAlarm (Short across detector line) - 60mA Max
Maximum Output Current(OUT+/OUT-, IN+/IN-)2A @ 30VDC
EOL Device for OUT+ & OUT-HOCHIKI AMERICA CORP. EOL Part No. 0400-03190 4.7KΩ, 1/4watt, 1/4inch
Alarm threshold level<1.5KΩ
Wiring OK threshold level>2.5KΩ & <6KΩ
Open Circuit threshold level>10KΩ
Max. 2-wire ConventionalDetector Loop Resistance50Ω (for both legs)
Visual Indicator (Status LED)bi-color LED - Green & RedColor & Mode - Selected and Programmed by Control Panel's software
Operating Temperature Range0°C (32°F) ~ 49°C (120°F)
Storage Temperature Range-30°C (-22°F) ~ 60°C (140°F) (80% RH @ 60°C)
Maximum Relative Humidity10% - 85% RH non-condensing
EnvironmentIndoor dry use only
Dimensions4.2"W X 4.7"H X .65"D
WeightApproximately 3.0 ounces

NOTE: An average of 6.75mA (communication current) per loop of SLC devices, must be factored into the panel battery backup calculations.

NOTE: Maximum Ripple Voltage 2VDC P-P

Technical diagram showing a layered assembly with labeled components and mounting points

-STANDARD 4" SQ ELECTRICAL BOX

TYPICAL MOUNTING ARRANGEMENT

HOCHIKI AMERICA CORPORATION 7051 VILLAGE DRIVE, SUITE 100 BUENA PARK, CA 90621-2268

DWG.# HA-06-101 (PG 1 OF 2, 02/18) PART# 1700-10170

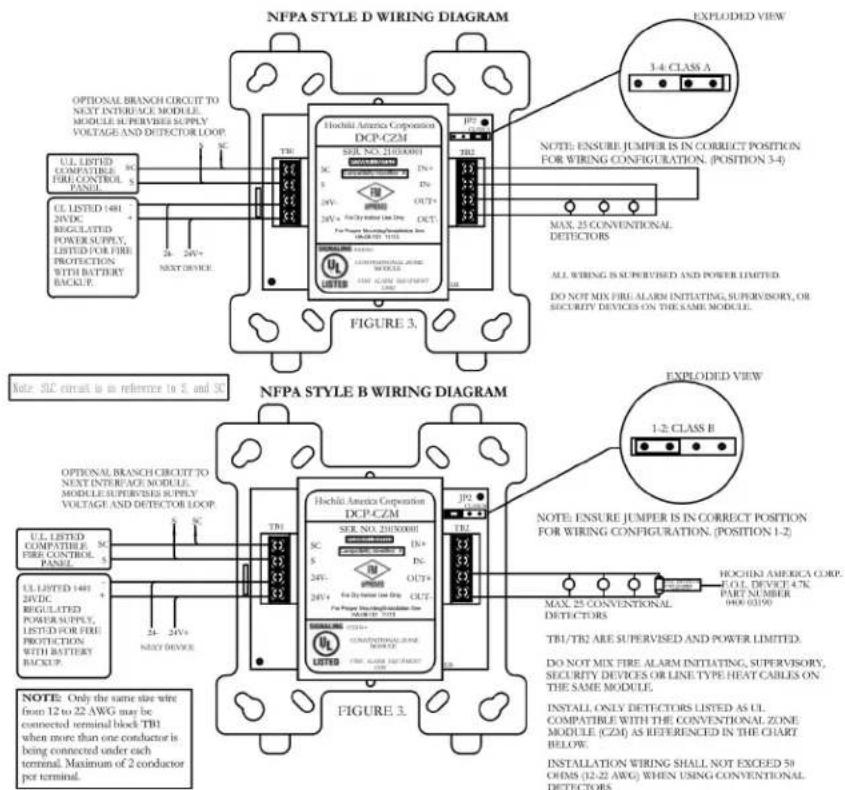

NFPA STYLE D WIRING DIAGRAM OPTIONAL BRANCH CIRCUIT TO NEXT ENTERANCE MODULE MODULE SUPERVIERE SUPPLY VOLTAGE AND DETECTOR LOOP U.L. LISTED CONVEITABLE SIC FIRE CONTROL PANEL U.L. LISTED 1481 24VDC REGULATED POWER SUPPLY, LISTED FOR FIRE PROTECTION WITH BATTERY RACCUP. NEXT DEVICE TBI Hochili America Corporation DCPC-ZCM SER. NO.: 210300001 WATERMELON S 24V+ OUT+ OUT- FOR POWER RESOURCES ON THE SAME MODULE. MAX: 25 CONVENTIONAL DETECTORS FIGURE 3. NOTE: ENSURE JUMPER IS IN CORRECT POSITION FOR WIRING CONFIGURATION. (POSITION 3-4) EXPLODED VIEW 3-4 CLASS A NOTE: ENSURE JUMPER IS IN CORRECT POSITION FOR WIRING CONFIGURATION. (POSITION 3-4) MAX. 25 CONVENTIONAL DETECTORS ALL WIRING IS SUPERVISED AND POWER LIMITED. DO NOT MIX FIRE-ALARM INITIATING, SUPERVISORY, OR SECURITY DEVICES ON THE SAME MODULE. NFPA STYLE B WIRING DIAGRAM OPTIONAL BRANCH CIRCUIT TO NEXT ENTERANCE MODULE MODULE SUPERVIERE SUPPLY VOLTAGE AND DETECTOR LOOP U.L. LISTED COMPATIBLE SIC FIRE CONTROL PANEL U.L. LISTED 1481 24VDC REGULATED POWER SUPPLY, LISTED FOR FIRE PROTECTION WITH BATTERY RACCUP. NEXT DEVICE TBI Hochili America Corporation DCPC-ZCM SER. NO.: 210300001 WATERMELON S 24V+ OUT+ OUT- FOR POWER RESOURCES ON THE SAME MAX: 25 CONVENTIONAL DETECTORS MAX. 25 CONVENTIONAL DETECTORS Hochili America Corp. E.O.L. DEVICE 4TK PART NUMBER 000-03390 TBI/TB2 ARE SUPERVISED AND POWER LIMITED. DO NOT MIX FIRE ALARM INITIATING, SUPERVISORY, SECURITY DEVICES OR LINE TYPE HEAT CABLES ON THE SAME MODULE. INSTALL ONLY DETECTORS LISTED AS UL COMPATIBLE WITH THE CONVENTIONAL ZONE MODULE (CZM) AS REFERENCED IN THE CHART BELOW. INSTALLATION WIRING SHALL NOT EXCEED 50 OHMS (12-22 AWG) WHEN USING CONVENTIONAL DETECTORS NOTE: ONLY the same wire wire from 12 to 22 AWG may be connected terminal block TBI when more than one conductor is being connected under each terminal. Maximum of 2 conductor per terminal. FIGURE 3.

Compatible Two Wire Detectors for use with the CZM with zone identifier A:

Detector ModelDetector IdentifierDetector TypeBase ModelBase IndetifierMax Detectors
SLK-24FHD-3PhotoelectricHSB-224HB-5325
SLK-24FHD-3PhotoelectricHSB-220HB-5625
SIH-24FHD-3IonizationHSB-224HB-5325
SIH-24FHD-3IonizationHSB-220HB-5625
SLR-24HHD-3Photoelectric w/heatNS4-224, NS6-224HB-525
SLR-24HHD-3Photoelectric w/heatNS4-220, NS6-220HB-325
SLR-24VHD-3PhotoelectricNS4-224, NS6-224HB-525
SLR-24VHD-3PhotoelectricNS4-220, NS6-220HB-325
SLR-835/-835WHD-3Photoelectric (8-35V)NS4-224, NS6-224 NS4-224W, NS6-224WHB-518
SLR-835/-835WHD-3Photoelectric (8-35V)NS4-220, NS6-220 NS4-220W, NS6-220WHB-318
SLR-835H/-835HWHD-5Photoelectric (8-35V) w/thermalNS4-224, NS6-224 NS4-224W, NS6-224WHB-518
SLR-835H/-835HWHD-5Photoelectric (8-35V) w/thermalNS4-220, NS6-220 NS4-220W, NS6-220WHB-318
SLR-835B-2/-2WHD-6Photoelectric (8-35V) (baseless)N/AN/A18
SLR-835BH-2/-2WHD-6Photoelectric (8-35V) w/thermal (baseless)N/AN/A18
DCD-135/-190HD-3Heat Fixed Temp/Rate of RiseNS4-224, NS6-224HB-525
DCD-135/-190HD-3Heat Fixed Temp/Rate of RiseNS4-220, NS6-220HB-325
DFE-135/-190N/AHeat Fixed TempHSC-224LHB-6225
DFE-135/-190N/AHeat Fixed TempHSC-220LHB-6425
SLV-24/-24N/-24VHD-3PhotoelectricNS4-224, NS6-224 NS4-224W, NS6-224WHB-525
SLV-24/-24N/-24VHD-3PhotoelectricNS4-220, NS6-220 NS4-220W, NS6-220WHB-325

Compatible Linear Heat Detection Cable for use with the CZM:

ManufacturerModelDescriptionMaximum Lenght
Proline Protection SystemsTH 68Fixed Temp. line type heat detector cable 155^ F( 68^ C) 8,000ft. (2,438m)
Proline Protection SystemsTH 88Fixed Temp. line type heat detector cable 190^ F( 88^ C) 8,000ft. (2,438m)
Proline Protection SystemsTH 105Fixed Temp. line type heat detector cable 221^ F( 105^ C) 8,000ft. (2,438m)

One Year Limited Warranty

Hochiki America (HA) warrants its digital communication modules to be in conformance with it's own plans and specifications and to be free from defects in materials and workmanship under normal use and service for a period of one (1) year from date of delivery. All warranties are void and HA is not obligated to repair or replace equipment which has been repaired by others, abused, improperly installed, altered or otherwise misused or damaged or exposed to conditions outside the products specifications in any way. HA will not be responsible for any dismantling, reassembling or re-installation charges. Please contact HA's Sales department for proper procedure for claims and return of merchandise. This warranty is in lieu of all other warranties expressed or implied.
