Brand	CDA
Model	KA82
Product Type	Kitchen Sink
Material	Stainless Steel, brushed finish
Overall Dimensions (W x D x H)	860 mm x 500 mm x 190 mm
Bowl Dimensions (W x D)	400 mm x 400 mm (main bowl)
Bowl Depth	190 mm
Number of Bowls	1
Mounting Type	Top-mount / Drop-in
Cutout Dimensions (W x D)	840 mm x 480 mm
Drain Hole Diameter	90 mm
Included Accessories	Drain kit, fixing clips
Weight	12 kg
Guarantee	5 years
Cleaning Instructions	Clean with mild soap and water; avoid abrasive cleaners
Installation Requirements	Standard kitchen cabinet, minimum 600 mm width
Soundproofing	Sound-absorbing pads included
Compliance	EN 13310
Package Contents	Sink, drain kit, fixing clips, installation template

Frequently Asked Questions - KA82 CDA

What are the exact dimensions of the CDA KA82 sink?

The overall dimensions are 860 mm width, 500 mm depth, and 190 mm height. The main bowl measures 400 mm x 400 mm with a depth of 190 mm.

What material is the sink made from?

The CDA KA82 sink is made from high-quality stainless steel with a brushed finish for durability and easy cleaning.

How do I install the sink?

The sink is designed for top-mount (drop-in) installation. Cut a 840 mm x 480 mm hole in your countertop, apply sealant around the edge, lower the sink into place, and secure it using the provided fixing clips.

Does it come with a drain kit?

Yes, the sink includes a complete drain kit with a 90 mm drain hole and all necessary fittings.

How do I clean the sink?

Clean the sink regularly with a soft cloth and mild soapy water. Avoid abrasive cleaners or scouring pads that could scratch the brushed finish.

What is the weight of the sink?

The CDA KA82 sink weighs approximately 12 kg, making it manageable for a two-person installation.

Is the sink soundproofed?

Yes, the sink comes with sound-absorbing pads that reduce noise from water and dishes.

What is the warranty period?

CDA offers a 5-year guarantee against manufacturing defects for the KA82 sink.

Can the sink be installed in a bathroom?

While designed for kitchen use, the dimensions and material make it suitable for large bathroom installations if the countertop cutout matches.

What is the cutout size required?

The required cutout dimensions are 840 mm width x 480 mm depth. Always verify with the included template before cutting.

USER MANUAL KA82 CDA

ka30, ka32, ka80 and ka82 Stainless Steel Sinks

Installation

Installation

Before Installation

Offer up the sink to the worktop and/or the cabinets to confirm that the external dimensions of the bowls are compatible with the cabinets themselves.

Confirm that with the sink in position:

• There is adequate space to install any taps or other required accessories.
• There is adequate space to install the waste pipework and that any necessary modification to internal shelves to accommodate the waste (and trap) is acceptable.
• Access to any water stop-cock or other services will still be adequate after the installation.

Installation

• Refer to the cut-out sizes on the back of this manual and use them to mark out where the worktop needs to be cut. Double-check the dimensions before cutting the worktop aperture.
• After cutting out the worktop aperture, we recommend you seal the cut edges with silicone (or similar) sealant to help prevent ingress of water.

- Position the supplied gasket around the perimeter of the hole (Fig. 1).

- It is often easier to mount the taps, waste-fitting and overflow onto the sink prior to fitting the sink to the worktop.

- Ensure that the external edge of the sink is positioned on the gasket, to

Line drawing of hands performing a repair or cleaning task on a wall (no text or symbols)

create a barrier to the ingress of water and other items between sink and worktop.

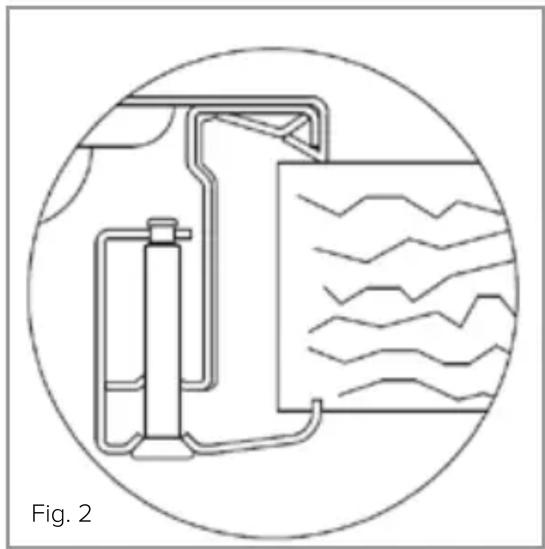

• After positioning the sink on the worktop, position the fixing brackets as shown in Fig. 2, then tighten their screws.
• Do not use a power tool to tighten the screws; by using a hand tool it is easier to ensure that they are tightened just enough to clamp down more.

• After fixing, remove any excess gasket material with a suitable cutter.
• We recommend a thin bead of silicone sealer is applied around the perimeter as added protection against water ingress.
- The taps, waste-fitting and overflow can now be mounted onto the sink (if not already done) and fully connected to their respective services.
- To check the waste for leaks, close the plug/basket of the waste fitting, open the tap and fill the sink to the level of the overflow; turn off the tap and wait several minutes to verify that the water doesn’t drain away.
• Empty the sink.

After fitting, ensure that the enclosed “Stainless Steel Sinks Use and Maintenance” guide is retained for the customer and/or user of the sink.

E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice.

Technical line drawing of a mechanical component inside a circular frame, showing internal structure and wavy lines (no text or symbols)

Cut-Out Dimensions

Please contact our Customer Care Department for Service on the details below

Customer Care Department

The ICD Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY

T : 01949 862 012 F : 01949 862 003 E : [e-mail]
