TWLFZ-80 - Freezer Aspira - Free user manual and instructions

Brand	Aspira
Model	TWLFZ-80
Product Type	Upright Freezer
Total Capacity	200 L
Energy Class	A+
Voltage	220-240 V
Frequency	50 Hz
Power Consumption	250 kWh/year
Temperature Range	-18°C to -24°C
Noise Level	42 dB
Refrigerant	R600a
Dimensions (H x W x D)	1450 x 550 x 600 mm
Weight	45 kg
Number of Shelves	4
Fast Freeze Function	Yes
Door Alarm	No
Frost Free System	Manual Defrost
Defrost Method	Drip Tray
Control Type	Mechanical Thermostat
Climate Class	SN-T
Warranty	2 Years

Frequently Asked Questions - TWLFZ-80 Aspira

How do I set the temperature on the Aspira TWLFZ-80 freezer?

To set the temperature, rotate the thermostat dial located inside the freezer. A higher number indicates a colder temperature. For normal operation, set it to medium. Adjust as needed based on the amount of food stored.

How often should I defrost the freezer?

Defrost the freezer when the frost is about 5 mm thick. Unplug the unit, remove all food, and let the ice melt. Clean the interior with a mild detergent. Do not use sharp objects to remove frost.

What should I do if the freezer is not freezing properly?

Check that the power cord is plugged in and the thermostat is set correctly. Ensure the door seals tightly. Avoid overloading the freezer. If the problem persists, contact a qualified technician.

How do I clean the freezer?

Unplug the freezer and remove all food. Wash the interior with a solution of warm water and mild detergent. Rinse with clean water and dry thoroughly. Clean the condenser coils at least once a year.

What is the recommended clearance for installation?

Leave at least 10 cm of space behind and above the freezer for proper ventilation. Place it on a level surface away from direct sunlight and heat sources.

The door does not close properly. How can I fix it?

Check if the freezer is level. Adjust the front leveling feet if necessary. Inspect the door gasket for dirt or damage. Clean the gasket with warm water. If damaged, replace the gasket.

Can I store hot food directly in the freezer?

No, allow hot food to cool to room temperature before placing it in the freezer. Hot food raises the internal temperature and consumes more energy.

What is the maximum capacity of this freezer?

The Aspira TWLFZ-80 has a total capacity of 200 liters. Do not exceed the maximum load indicated on the rating plate to ensure proper airflow and efficiency.

How do I change the fuse?

The freezer uses a 10-amp fuse (UK) or a 16-amp fuse (EU). Unplug the unit, open the plug cover, and replace the fuse with one of the same rating. If unsure, consult a qualified electrician.

What should I do during a power failure?

Keep the freezer door closed. Food will stay frozen for about 24 hours if the freezer is full. Avoid opening the door. When power returns, check food temperature. Do not refreeze thawed food.

USER MANUAL TWLFZ-80 Aspira

Simple line drawing of a rectangular container or shelf with a curved top and side supports (no text or symbols)

USER'S INSTRUCTIONS

CONTENTS

Parts and Features 2

Instructions for Installation 3

Cautions for Safety 4

Operation 5

Cleaning and Maintenance 6

Reversing the Door 7

Troubleshooting 9

Warnings 10

Important Disposal Instructions .... 10

R600a Refrigerant 11

Please read this users operation manual before using.

Because of product improvement, your refrigerator may vary from this user manual

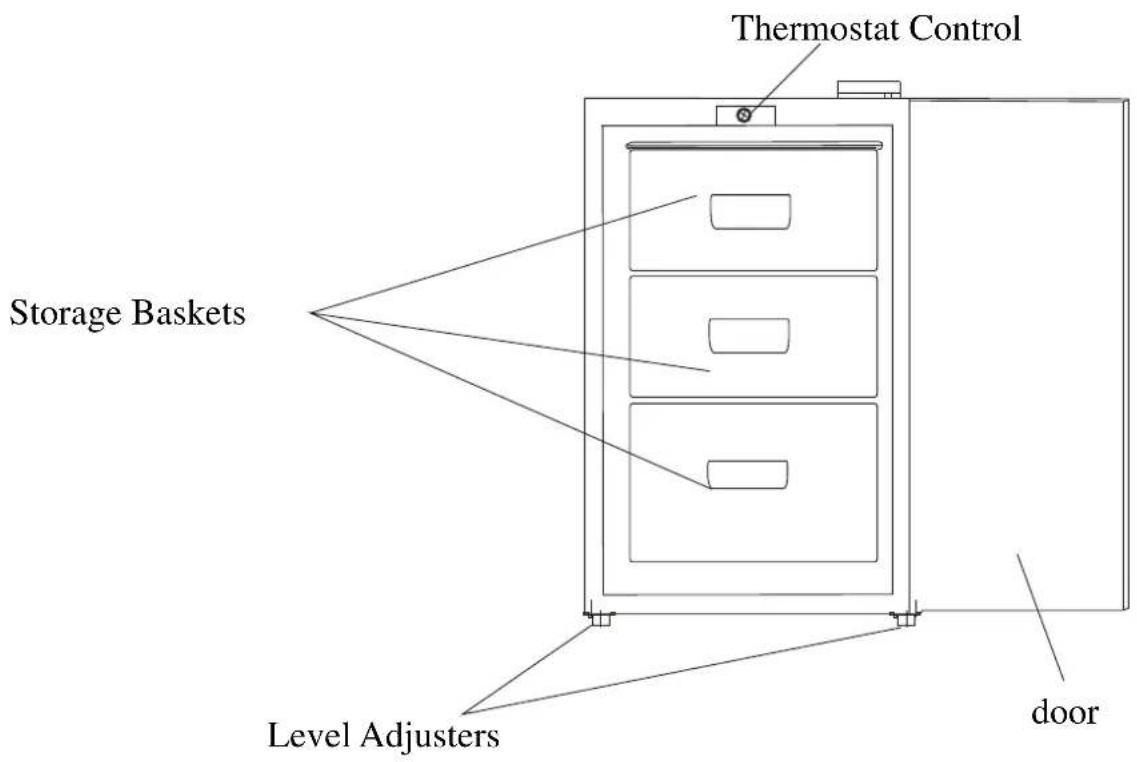

Parts and Features Parts and Features

Thermostat Control

Instructions for Installation Instructions for Installation

1. Do not tilt the appliance more than 45.

Cartoon illustration of a sad, anthropomorphic paper character with arms and legs, holding a stick (no text or symbols)

1. To ensure the cabinet does not become damaged, do not apply force to any part of the appliance such as the condenser, the door and its handle. Damage to the cabinet will result in poor performance.

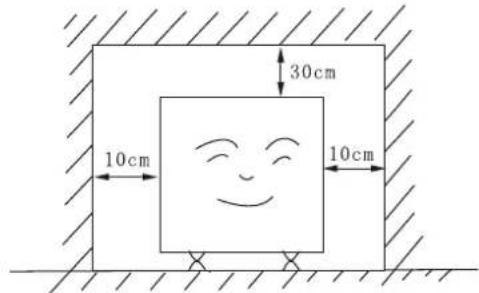

1. For optimum performance ensure correct ventilation space around the appliance.

1. Avoid direct sunlight, heat sources and very moist or humid places. Do not install this appliance near flammable, combustible or explosive materials.

Cartoon illustration of two anthropomorphic blocks with angry faces and expressive gestures, standing near a window with sun and water (no text or symbols)

1. Install the appliance on a strong, level floor. Do not install on soft materials such as foam or plastic.

2. The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

3. Avoid installing the appliance in very cold conditions as the performance of the appliance will be impaired.

Cautions for Safety Cautions for Safety

1. Ensure the voltage in the power socket is the same as the rated voltage of this appliance.

2. The power plug should have its own separate outlet socket in order to prevent the outlet socket from being overloaded by other plugs.

1. Do not splash water on to the appliance, this may cause a malfunction or electric shock.

2. Do not store flammable materials such as petrol, LP gas and glue etc, inside the appliance.

1. If the power supply cord is damaged, it must only be replaced by the manufacturer, its service agent or similarly qualified persons.

2. Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre.

OperationOperation

1. When operating the appliance for the first time, set the thermostat dial at normal, connect to the electricity and turn it on without loading any food. Wait for the appliance to become cold, usually this takes 2 or 3 hours. Then set the thermostat dial to the desired setting and place foods into the appliance.

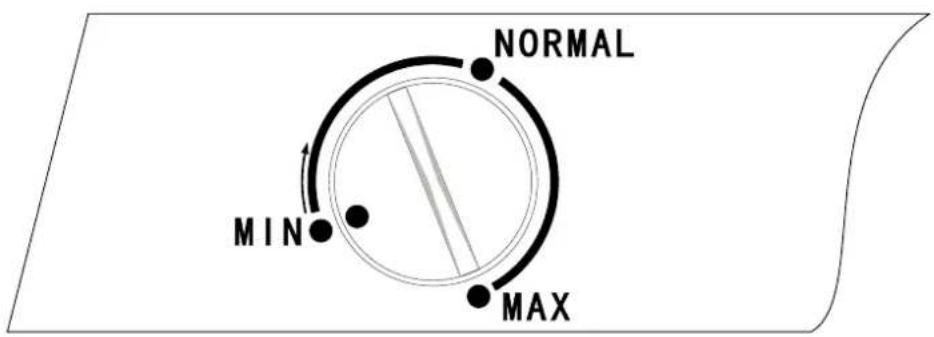

2. The temperature of the appliance can be adjusted by turning the thermostatic dial. Setting of the thermostat dial at normal is the most suitable for general operation. Max is the coldest setting.

3. Do not overload the appliance. Where possible open the door less often in order to maintain the temperature of the appliance and save electricity.

Cartoon illustration of a sad, anthropomorphic character with arms and legs, standing in front of a rectangular block (no text or symbols)

1. Defrost the freezer compartment whenever the layer of frost on the surface reaches 3 or 4 mm. When defrosting, remove all foods, unplug the appliance and open the door. After the frost has melted, discard the water and dry the interior of the appliance. The appliance can then be restarted.

CautionsCautions

• When defrosting, never use any sharp or metallic objects to remove the frost / ice on the surface of the evaporator as this will damage the evaporator.
• Do not store bottled beverages in the freezer as liquids may expand during freezing causing the bottle to break and damage the appliance.
• If the power supply is turned off for any reason, wait ten minutes before switching the appliance on again.

Cleaning and Maintenance: Cleaning and Maintenance:

1. When cleaning the appliance, first disconnect the appliance from the power supply by removing the plug. Wipe the appliance carefully with a cloth and neutral cleaning agent, then wipe it clean with fresh water.

Cartoon illustration of a person washing hands in a basin next to a smiling square character holding a power tool (no text or symbols)

1. Never use acids, chemical solutions, thinners or the like to clean the appliance because they may damage the paint work and plastic components of the appliance.

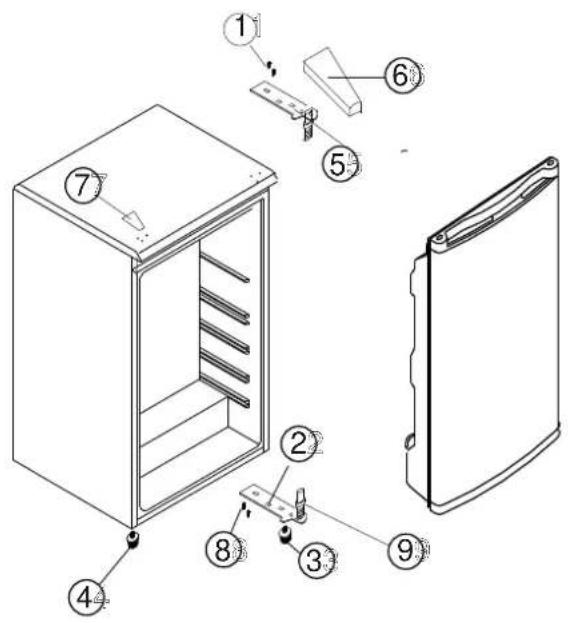

Reversing the Door:

The appliance has the capability of opening the door from either the left or the right side. The unit is delivered to you with the door opening from the left side. To change the opening direction, please follow these instructions.

Note: Before reversing the door, unplug the appliance from the mains or disconnect the electrical power supply.

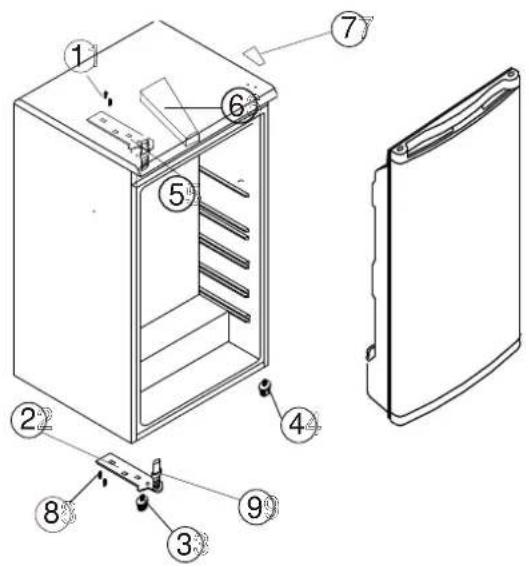

1. Remove the upper hinge cover (6) first.

2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the frame. Take away the upper hinge (5).

3. Lift the door and place it on a padded surface to prevent scratching it.

4. Remove the two screws (8) that hold the lower hinge (2) and then remove the hinges (2).

5. Remove the left front leg (4) and transfer it to the right side.

6. Remove the hole cover plate(7) to the right side.

7. Before placing this lower hinge (2), remove the bolt-pin (9) and reverse the direction of the lower hinge (2). Then install the lower hinge (2) onto the left side of the lower frame with two screws (8).

8. Insert the bolt-pin (9) to the lower hinge (2).

9. Set the door into place making sure the door seals at the lower hinge (2).

10. Hold the door in the closed position and secure the top hinges (5) to the top frame of the left side with the two screws (1). Do not over tighten the two screws. Only tighten until the top of the door is levelled with the counter top.

11. Install the upper hinge cover (6) on the upper hinge.

FIGURE 1
Door opening from left side

FIGURE 2
Door opening from right side

Troubleshooting:

1. When the appliance does not operate ensure that:

2. The electric power is supplied and the voltage is normal.

3. The fuse or circuit breaker is not blown nor tripped.

4. The power plug is plugged in firmly in the outlet socket.

5. If the appliance is not cool enough ensure that:

6. The thermostat is at the correct setting.

7. There is enough space around the appliance.
8. The doors are not opened too frequently and for too long.
9. The appliance is not overloaded and hot food has not been placed in the appliance.

10. The appliance is not in direct sunlight or placed near a heat source.

11. When the appliance operates too noisily ensure that:

• The appliance is properly leveled.
- The appliance is not touching objects around it.
- The containers or solid packages stored inside are not touching each other.

Note: Note:

• During periods of high humidity, moisture may form on the surfaces of the appliance. This is not a fault and maybe wiped away.
• If after checking the above suggestions your appliance is still not functioning properly, please contact Customer Services without delay.

Warnings:

* This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
* Children should be supervised to ensure that they do not play with the appliance.
* If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
* Keep ventilation openings, in the appliance enclosure or in the built-in structure clear of obstruction.
* Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
* Do not damage the refrigerant circuit.
* Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Important Disposal Instructions:

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for your product and packaging materials, this will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this product and its packaging according to local laws and regulations. Because this product contains electronic components and sometimes batteries, the product and its accessories must be disposed of separately from household waste when the product reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The product should be taken to your local collection point for recycling. Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

R600a Refrigerant:

This appliance may contain a small quantity of environmentally friendly, but flammable, non-synthetic R600a refrigerant:

* Upon opening and installing your product, check that the tubing of the refrigerant circuit is not damaged during transportation.
* Leaking refrigerant may cause eye injuries or ignite.
* The room for installing appliance must be at least 1m per 8g of refrigerant. The amount of refrigerant in the appliance can be found on the rating plate the back of the unit.
* Keep ventilation openings in the appliance enclosure or in the built-in structure clearer of obstruction.
* Do not damage the refrigeration circuit.

If you are unsure of the refrigerant type check the rating plate on the back of the unit.
