Product Type	Refrigerator with Freezer Compartment
Model	TWRZ-58
Brand	Aspira
Total Capacity	58 Liters (approx.)
Refrigerator Capacity	45 Liters (approx.)
Freezer Capacity	13 Liters (approx.)
Energy Efficiency Class	F (EU 2019/2016)
Annual Energy Consumption	120 kWh (approx.)
Noise Level	40 dB (approx.)
Climate Class	N-ST (16°C to 38°C)
Defrosting Method	Manual (freezer), Auto (fridge)
Control Type	Mechanical Thermostat
Interior Lighting	LED
Shelves Material	Glass (adjustable)
Door Storage	2 balcony shelves
Freezer Drawers	1
Refrigerant	R600a
Power Source	220-240 V, 50 Hz
Power Consumption	60 W (approx.)
Dimensions (W x D x H)	47 x 44 x 85 cm (approx.)
Weight	18 kg (approx.)
Installation Type	Freestanding
Reversible Door	Yes (user adjustable)
Warranty	2 years (manufacturer)

Frequently Asked Questions - TWLRZ-58 Aspira

How do I adjust the temperature on my Aspira TWLRZ-58 fridge?

Turn the thermostat dial inside the refrigerator compartment. Higher numbers indicate colder temperatures. Start at a medium setting and adjust as needed.

How often should I defrost the freezer?

Defrost the freezer when the ice layer reaches about 5 mm thickness. Use the manual defrost procedure: unplug the fridge, remove food, and let ice melt naturally.

What is the recommended temperature for the refrigerator?

The ideal refrigerator temperature is between 3°C and 5°C. For the freezer, keep it at -18°C or lower.

Can I change the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to move the hinges and handle to the opposite side.

How do I clean the interior of my fridge?

Unplug the fridge and remove all food. Clean interior surfaces with a soft cloth and mild detergent in warm water. Rinse and dry thoroughly before restarting.

Why is my fridge making unusual noises?

Normal sounds include the compressor humming, refrigerant flowing, and occasional clicks. If noises are loud or persistent, check if the fridge is level and not touching walls or cabinets.

What should I do if my fridge is not cooling enough?

Check the temperature setting, ensure the door closes properly, and clean the condenser coils at the back. Avoid overloading and keep adequate ventilation around the fridge.

How do I replace the LED interior light?

The LED light is not user-serviceable. Contact Aspira customer support or a qualified technician for replacement.

What is the energy efficiency of the Aspira TWLRZ-58?

It is rated F under EU energy labeling. Annual energy consumption is approximately 120 kWh, depending on usage and ambient temperature.

Can I store hot food inside the fridge?

No, allow hot food to cool to room temperature before placing it in the fridge to avoid raising the internal temperature and spoiling other items.

USER MANUAL TWLRZ-58 Aspira

Line drawing of a rectangular container with a curved top and side supports at both ends (no text or symbols)

USER'S INSTRUCTIONS

CONTENTS

Parts and Features 2

Instructions for Installation 3

Cautions for Safety 4

Operation 5

Cleaning and Maintenance 6

Reversing the Door 7

Troubleshooting 9

Warnings 10

Important Disposal Instructions 10

R600a Refrigerant 11

Please read this users operation manual before using.
Because of product improvement, your refrigerator may vary from this user manual

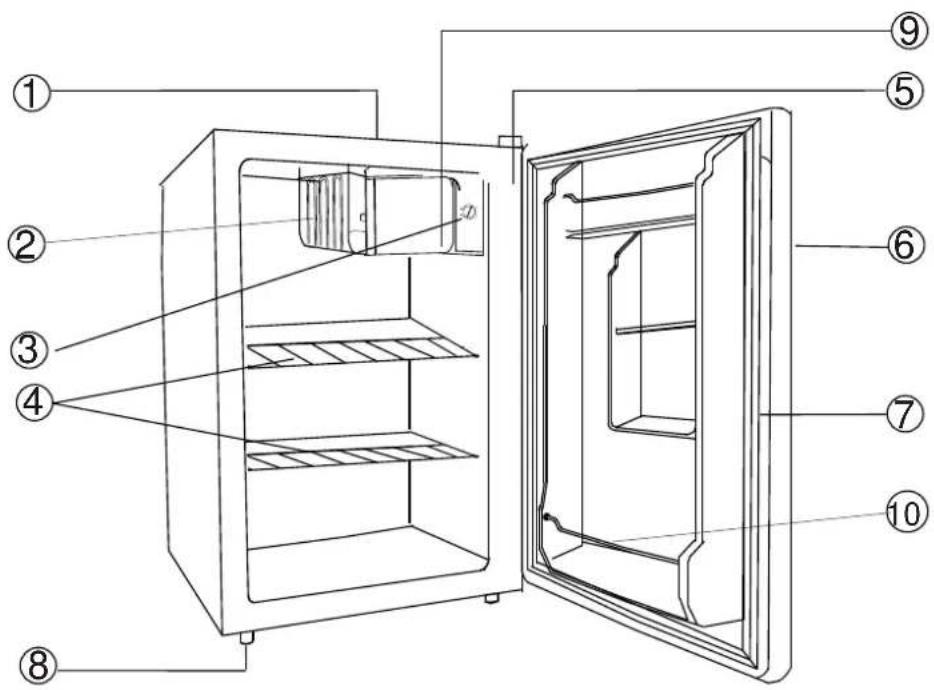

Parts and Features Parts and Features

① Cabinet
② Cool Zone
③ Thermostat Knob (at the rear)
④ Shelf
⑤ Hinge Cover
⑥ Door
⑦ Gasket
⑧ Adjustable Foot
⑨ Cool Zone Door
⑩ Door Bar

Instructions for Installation Instructions for Installation

1. Do not tilt the refrigerator more than 45.

Cartoon illustration of a sad, anthropomorphic paper character with arms and legs, holding a stick (no text or symbols)

1. To ensure the cabinet does not become damaged,

do not apply force to any part of the refrigerator such as the condenser, the door and its handle.

Damage to the cabinet will result in poor refrigeration performance.

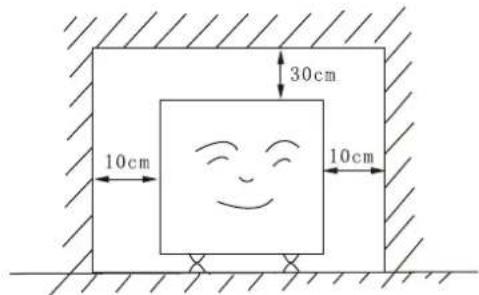

1. For optimum performance ensure correct ventilation space around the refrigerator.

1. Avoid direct sunlight, heat sources and very moist or humid places. Do not install this refrigerator near flammable, combustible or explosive materials.

Cartoon illustration of two anthropomorphic blocks with angry faces and expressive gestures, one standing on a fireline and the other on a sun (no text or symbols)

1. Install the refrigerator on a strong, level floor. Do not install on soft materials such as foam or plastic.

2. The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

3. Avoid installing the appliance in very cold conditions as the performance of the appliance will be impaired.

Cautions for Safety Cautions for Safety

1. Ensure the voltage in the power socket is the same as the rated voltage of this appliance.

2. The power plug should have its own separate outlet socket in order to prevent the outlet socket from being overloaded by other plugs.

1. Do not splash water on to the refrigerator, this may cause a malfunction or electric shock.

2. Do not store flammable materials such as petrol, LP gas and glue etc, inside the refrigerator.

1. If the power supply cord is damaged, it must only be replaced by the manufacturer, its service agent or similarly qualified persons.

2. Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre.

OperationOperation

1. When operating the refrigerator for the first time, set the thermostat dial at 3, connect to the electricity and turn it on without loading any food. Wait for the appliance to become cold, usually this takes 2 or 3 hours. Then set the thermostat dial to the desired setting and place foods into the refrigerator.

2. The temperature of the refrigerator can be adjusted by turning the thermostatic dial. Setting of the thermostat dial at 3\~4 is the most suitable for general operation. The higher the number, the colder the temperature.

3. Do not overload the refrigerator. Where possible open the door less often in order to maintain the temperature of the refrigerator and save electricity.

Cartoon illustration of a sad, anthropomorphic character resembling a book or document with arms and legs (no text or symbols)

CautionsCautions

- If the power supply is turned off for any reason, wait ten minutes before switching the appliance on again.

Cleaning and Maintenance: Cleaning and Maintenance

1. When cleaning the refrigerator, first disconnect the appliance from the power supply by removing the plug. Wipe the appliance carefully with a cloth and neutral cleaning agent, then wipe it clean with fresh water.

Cartoon illustration of a person washing hands in a bowl while a smiling square character is holding a tool, with no text or symbols present.

1. Never use acids, chemical solutions, thinners or the like to clean the refrigerator because they may damage the paint work and plastic components of the refrigerator.

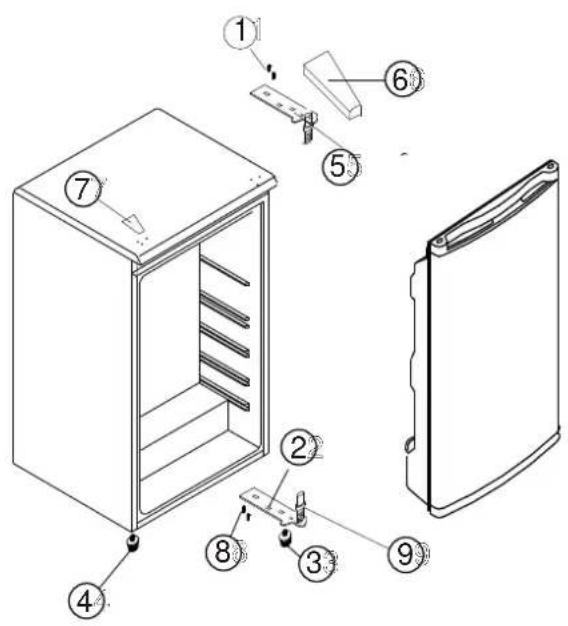

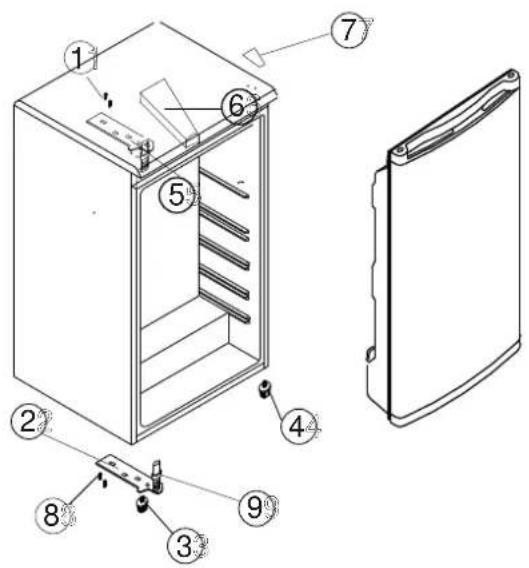

Reversing the Door:

The refrigerator has the capability of opening the door from either the left or the right side. The unit is delivered to you with the door opening from the left side. To change the opening direction, please follow these instructions.

Note: Before reversing the door, unplug the appliance from the mains or disconnect the electrical power supply.

1. Remove the upper hinge cover (6) first.
2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the frame. Take away the upper hinge (5).
3. Lift the door and place it on a padded surface to prevent scratching it.
4. Remove the two screws (8) that hold the lower hinge (2) and then remove the hinges (2).
5. Remove the left front leg (4) and transfer it to the right side.
6. Remove the hole cover plate(7) to the right side.
7. Before placing this lower hinge (2), remove the bolt-pin (9) and reverse the direction of the lower hinge (2). Then install the lower hinge (2) onto the left side of the lower frame with two screws (8).
8. Insert the bolt-pin (9) to the lower hinge (2).
9. Set the door into place making sure the door seals at the lower hinge (2).
10. Hold the door in the closed position and secure the top hinges (5) to the top frame of the left side with the two screws (1). Do not over tighten the two screws. Only tighten until the top of the door is levelled with the counter top.
11. Install the upper hinge cover (6) on the upper hinge.

FIGURE 1
Door opening from left side

FIGURE 2
Door opening from right side

Troubleshooting:

1. When the refrigerator does not operate ensure that:

2. The electric power is supplied and the voltage is normal.

3. The fuse or circuit breaker is not blown nor tripped.

4. The power plug is plugged in firmly in the outlet socket.

5. If the refrigerator is not cool enough ensure that:

6. The thermostat is at the correct setting.

7. There is enough space around the refrigerator.
8. The doors are not opened too frequently and for too long.
9. The refrigerator is not overloaded and hot food has not been placed in the refrigerator.

10. The refrigerator is not in direct sunlight or placed near a heat source.

11. If the food in the refrigerator is freezing ensure that:

12. The thermostat is at the correct setting.

13. There is not too much food in the refrigerator.

14. When the refrigerator operates too noisily ensure that:

15. The refrigerator is properly leveled.

16. The refrigerator is not touching objects around it.
17. The containers or solid packages stored inside are not touching each other.

Note: Note:

• During periods of high humidity, moisture may form on the surfaces of the refrigerator. This is not a fault and maybe wiped away.
• If after checking the above suggestions your refrigerator is still not functioning properly, please contact Customer Services without delay.

Warnings:

* This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
* Children should be supervised to ensure that they do not play with the appliance.
* If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
* Keep ventilation openings, in the appliance enclosure or in the built-in structure clear of obstruction.
* Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
* Do not damage the refrigerant circuit.
* Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Important Disposal Instructions:

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for your product and packaging materials, this will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this product and its packaging according to local laws and regulations. Because this product contains electronic components and sometimes batteries, the product and its accessories must be disposed of separately from household waste when the product reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The product should be taken to your local collection point for recycling. Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

R600a Refrigerant:

This appliance may contain a small quantity of environmentally friendly, but flammable, non-synthetic R600a refrigerant:

Upon opening and installing your product, check that the tubing of the refrigerant circuit is not damaged during transportation.

Leaking refrigerant may cause eye injuries or ignite.

The room for installing appliance must be at least 1m per 8g of refrigerant.

The amount of refrigerant in the appliance can be found on the rating plate the back of the unit.

Keep ventilation openings in the appliance enclosure or in the built-in structure clearer of obstruction.

Do not damage the refrigeration circuit.

If you are unsure of the refrigerant type check the rating plate on the back of the unit.
