1915 - Dishwasher Cylinda - Free user manual and instructions

Product Type	Dishwasher
Brand	Cylinda
Model	1915
Height (adjustable)	820-890 mm
Width	596 mm
Depth	550 mm
Weight (without/with water softener)	48 kg / 51 kg
Place Settings	12
Water Pressure Range	0.03-1.0 MPa (0.3-10 kp/cm²)
Electrical Connection	1-phase, 230 V, 50 Hz, 10/16A
Maximum Power Consumption	2000 W
Accessories Included	Worktop, side panels, tip-over guard, decorative frames
Washing System	Super Cleaning System™ (SCS)
Lower Basket	Standard lower basket
Cutlery Basket	Cutlery basket with adjustable and foldable lid
Knife Tray	Knife tray (top rack)
Adjustable Shelf	Adjustable shelf for wine glasses
Foldable Shelves	Adjustable and foldable shelves
Removable Plate Rack Insert	Removable insert for plates in lower basket
Detergent Compartment	Main detergent and pre-wash detergent compartments
Rinse Aid Dispenser	Rinse aid dispenser with control window
Child Lock	Child safety lock (likely)
No Pre-Rinsing Required	No need to rinse dishes before loading
Spray Arm Cleaning	Spray arms are removable for cleaning

Frequently Asked Questions - 1915 Cylinda

How do I adjust the height of the dishwasher?

The adjustable feet allow you to set the height between 820 and 890 mm. Turn the feet to raise or lower the unit until it is level.

What is the Super Cleaning System (SCS)?

The Super Cleaning System™ is a feature that ensures thorough cleaning by optimizing water pressure and spray coverage.

How many place settings does this dishwasher hold?

It holds up to 12 place settings.

Can I use a worktop with this dishwasher?

Yes, a worktop is included as an accessory. You can also install side panels and decorative frames.

What electrical requirements does the dishwasher have?

It requires a 230 V, 50 Hz, single-phase connection, with a fuse rating of 10/16 A. The maximum power is 2000 W.

How do I clean the spray arms?

The spray arms are removable. Unscrew them (if applicable) and rinse under running water. Use a toothpick to clear clogged nozzles.

Is pre-rinsing necessary before loading dishes?

No, the dishwasher is designed to handle food residues. Simply scrape off large leftovers before loading.

What is the knife tray used for?

The knife tray is a separate compartment in the upper rack for safely holding knives and other long utensils.

How do I activate the child lock?

The child lock is likely activated by pressing and holding a specific button combination (refer to the manual). It prevents accidental changes to the program.

What should I do if the dishwasher does not start?

Check that the door is closed properly, the power is connected, and the water supply is turned on. Also ensure the child lock is not engaged.

USER MANUAL 1915 Cylinda

Line drawing of a rectangular box with a side panel and cutout, no text or symbols present

Bruksanvisning

Cylinda 1915

MASKIN MED BARNSÄKERHETSLÅS?

Hand holding a mechanical component with a curved arrow indicating force or direction (no text or symbols)

BARNSÄKER DISK

TEKNISKA UPPGIFTER

HÖJD	820-890 MM
BREDD	596 MM
DJUP	550 MM****
VIKT	48 KG/51 KG MED AVHÄRDARE*
KAPACITET**	12 KUVERT
VATTENTRYCK	0,03-1,0 MPA (0,3-10 KP/CM2)
ANSLUTNING	1-FAS, 230 V, 50HZ 10/16A***
MAX ANSLUTNINGSEFFEKT	2 000 W***
TILLBEHÖR	ARBETSSKIVA, SIDOPLÄTAR,TIPPSKYDD, DEKORRAMAR

Technical line drawing of a mechanical assembly with components, no visible text or symbols

Underkorg

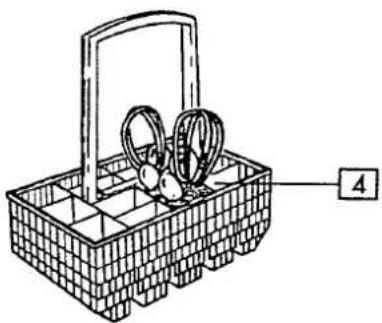

Bestickkorg

Line drawing of a woven basket with handles and a handle, labeled with number 4 (no text or symbols on the basket itself)

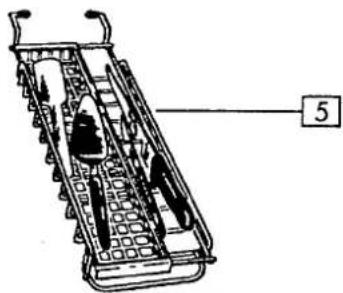

Knivlāda

Technical diagram of a mechanical device with internal components and labeled part '5' (no text or symbols beyond label)

1. JUSTERBAR HYLLA AVSEDD FÖR VINGLAS
2. JUSTERBARA OCH UPPFÄLLBARA HYLLOR.

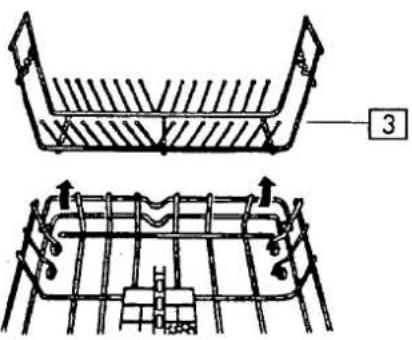

3. LÖSTAGBAR KORGINSATS FÖR TALLRIKAR.
4. BESTICKKORG MED JUSTERBAR OCH FÄLLBAR LUCKA.
   5.KNIVLÁDA

1. FACK FÖR HUVUDDISKMEDEL
2. FACK FÖR FÖRDISKMEDEL
3. KONTROLLÖGA FÖR SPOLGLANSMEDEL
4. LOCK FÖR SPOLGLANSMEDEL
5. LUCKA FÖR DISKMEDELSFACK

INNAN DU DISKAR FÖRSTA GÅNGEN:

LÄS IGENOM BRUKSANVISNINGEN

Line drawing of a mechanical assembly with multiple cylindrical components and a central housing (no text or symbols)

Line drawing of a basket filled with various vegetables (no text or symbols)

* SCS = Super Cleaning System™.

SKÖLJ INTE INNAN DU DISKAR

Line drawing of a hand using a tool to adjust or install a component on a gas stove (no text or symbols present)

RENGÖRING

Cross-sectional diagram of an open refrigerator showing internal components and casing (no text or labels)

Spolarmarna

Line drawing of a kitchen sink with a downward arrow indicating a component (no text or symbols)

\*OBS!

Line drawing of a woven basket filled with various items including jars, bowls, and containers (no text or symbols)

Line drawing of a basket filled with various fruits and vegetables (no text or symbols)

TEKNISKA UPPGIFTER
