CX 656 - Washing machine ZEROWATT - Free user manual and instructions

Product Type	Washing Machine
Brand	Zerowatt
Model	CX 656
Capacity	6 kg
Spin Speed	1000 RPM
Energy Efficiency Class	A++
Dimensions (H x W x D)	85 cm x 60 cm x 54 cm
Weight	62 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W
Water Connection	Cold water only
Noise Level (Wash/Spin)	58 dB / 76 dB
Number of Programs	15
Key Functions	Delay start, Quick wash, Eco wash, Rinse hold
Display	LED digital display
Material	White coated steel
Door Opening	180 degrees
Child Lock	Yes
Overflow Protection	Yes
Unbalanced Load Control	Yes
Self-Cleaning	Drum clean program
Accessories Included	Inlet hose, drain hose, user manual

Frequently Asked Questions - CX 656 ZEROWATT

How do I start a wash cycle on the Zerowatt CX 656?

Load the laundry, add detergent, close the door, select a program using the dial, adjust options if needed, and press the Start/Pause button.

What should I do if the washing machine does not drain?

Check the drain hose for kinks or blockages. Clean the drain pump filter located at the bottom front of the machine. Ensure the drain hose is not too high.

How can I clean the detergent drawer?

Remove the drawer by pressing the release lever. Wash it under warm running water with a soft brush. Wipe dry and reinsert.

What does the 'Rinse Hold' function do?

It stops the cycle after the final rinse, leaving the laundry in water to prevent wrinkles. To finish, press Start/Pause to drain and spin.

Why is the machine vibrating excessively?

Ensure the machine is level by adjusting the feet. Remove transit bolts if still present. Do not overload and distribute laundry evenly.

How do I enable the child lock?

Press and hold the Child Lock button for 3 seconds. A key symbol will appear on the display. Repeat to disable.

Can I use liquid detergent?

Yes, use the appropriate compartment (usually marked with II or a liquid symbol). For liquid, do not overfill and use the provided dosing aid if supplied.

What is the maximum load for cotton?

The maximum load for cotton is 6 kg. Do not exceed to ensure proper washing and rinsing.

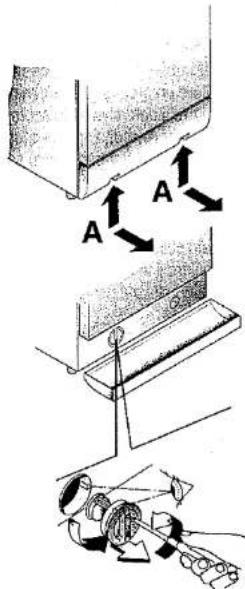

How often should I clean the filter?

Clean the drain pump filter every 2-3 months or when the 'Clean Filter' indicator appears. Also clean the inlet hose filter periodically.

The display shows an error code 'E10'. What does it mean?

Error E10 indicates a water supply issue. Check that the water tap is fully open and the inlet hose is not kinked. Also check the inlet filter for blockages.

USER MANUAL CX 656 ZEROWATT

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

Line drawing of a front-loading washing machine with control panel and door (no text or symbols)

Cod. 90489306/A

Prefazione

Contents	Page
Preface	24
General delivery notes	25
Notes on safety	25
Quick start (quick reference)	26
Useful advice for the user	27
Super Silent	27
Description of controls	28
Detergent drawer	30
Programme selector	30
The main wash	31
Programme Table	34
Detergents, washing aids and amounts to use	36
Cleaning and routine maintenance	38
Investigating malfunctions	40
Technical data	42

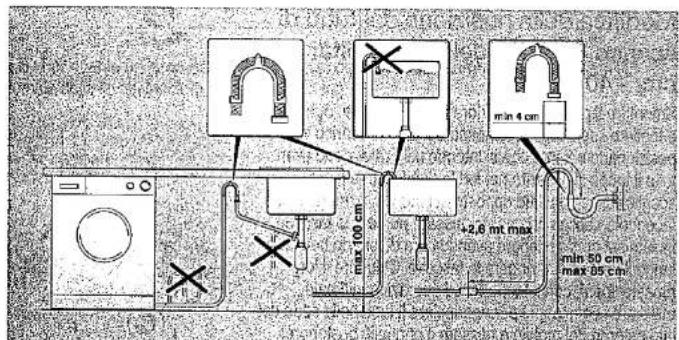

Setting up, installation	43

Isometric line drawing of a mechanical housing or enclosure with internal components and mounting brackets (no text or symbols)

Illustration of a washing machine with a bag and accessories (no text or symbols)

Technical illustration of a bolt and nut assembly (no text or symbols)

CARICO DETERSIVO
I	II	△	✿
●	●	●	●
	●	●	●
	●	●	●
●	●	●	●
	●	●	●
	●	●	●
	●		●
	●		●
		●
			●
			●
●	●		●
	●		●
	●		●
	●		●
			●
			●
●	●		●
	●		●
			●

Note da considerare

Illustration of hands using a pipette to test a test tube in a rack (no text or symbols visible)

Ricerca guasti

Illustration of a hand holding a tool above a door with a handle, no text or symbols present
