Product Type	Multimedia DVD/CD/MP3 Receiver with Built-in 4.3" TFT Display and TV Tuner
Brand / Model	Hyundai H-CMD4001
Dimensions (L x W x H)	202 x 188 x 71 mm
Weight	2 kg
Power Supply	12 V DC (negative ground), max. 15 A fuse
Maximum Power Output	50 W x 4 channels
Display	4.3" TFT, 480x272 pixels, aspect ratio 4:3/16:9, contrast 1000:1, brightness 500 cd/m²
Playable Discs	DVD, DVD±R/±RW, SVCD, VCD, HDCD, CD, CD-R/RW, MP3, WMA, CDDA, Picture-CD, JPEG
Supported Media	USB flash drive (up to 2 GB, FAT12/16/32), SD/MMC card (up to 2 GB)
Radio Tuner	FM (65-74/87.5-108 MHz) with RDS, AM (522-1620 kHz); 18 FM + 6 AM presets
TV Tuner	Built-in external TV tuner (PAL/SECAM/NTSC) with auto/manual programming
Audio Outputs	4-channel RCA line-out (2V), 1 subwoofer pre-out
DSP Sound Effects	Flat, Classic, Rock, Pop
Functions	Detachable faceplate, anti-theft, rear view camera input, TEL mute, dual zone (DVD+Radio), A-B repeat, zoom, angle, subtitle, audio language selection
Remote Control	Yes, with CR2025 battery
Safety	Disconnect battery before installation; use correct fuse; avoid water, moisture, high temperature; laser safety; do not disassemble
Care and Cleaning	Wipe with soft dry cloth; use isopropyl alcohol for panel contacts; clean discs from center outward
Accessories Included	Instruction manual, warranty card, remote control, panel case, AV cable, TV tuner, TV antenna, TV cable, 2-side tape, ISO cable, mounting parts
Operating Temperature	-10°C to +60°C
Manual Pages	93 (English)

Frequently Asked Questions - H-CMD4001 HYUNDAI

How do I reset the Hyundai H-CMD4001 to factory settings?

Press the EJECT button on the front panel to flip it down, then use a pointed object to press the RESET button located under the panel. This restores original factory settings.

How do I detach the control panel?

Turn the power off, press the OPEN button to release the panel, then pull it out. To reattach, insert the left side first and press the right side until you hear a click.

What disc formats are supported?

The unit supports DVD, DVD±R/±RW, SVCD, VCD, HDCD, CD, CD-R/RW, MP3, WMA, CDDA, Picture-CD, and JPEG. It also plays MP4 video (DIVX, XVID), MPEG2, and MPEG1.

What are the USB and SD/MMC capacity limits?

USB flash drives up to 2 GB (FAT12/16/32) are supported. SD/MMC cards up to 2 GB are supported. Multi-card readers are not supported.

How many radio stations can I store?

You can store up to 24 stations: 18 FM (6 per band FM1/FM2/FM3) and 6 AM. To store, tune to a station then press and hold a preset button (1-6) for 2 seconds.

How do I set up the TV tuner?

Connect the external TV tuner box using the supplied TV cable and antenna. Press MODE to select TV, then press MENU to enter TV menu. Choose Auto program to automatically search and store channels.

What is the dual zone function?

The DUAL function allows simultaneous playback of DVD (via video output) and Radio (via speakers/line-out). Press MENU, select DUAL, and set it to ON. Press the DUAL button on the remote to switch between sources.

How do I connect the parking brake wire?

Connect the brown parking wire to the car's parking brake signal. When the parking brake is engaged, video playback is enabled on the display. This is a safety feature.

What should I do if there is no sound?

First check that the volume is not muted or set to minimum. Ensure the wiring is correctly connected. If the issue persists, press RESET to restore factory settings. Also verify speaker wires are not shorted.

How do I clean the unit and discs?

For the cabinet, wipe with a soft cloth slightly dampened with mild soapy water. For discs, wipe from the center outward with a soft cloth. Use a cotton swab with isopropyl alcohol to clean the control panel socket.

USER MANUAL H-CMD4001 HYUNDAI

MULTIMEDIA DVD/CD/MP3 RECEIVER WITH BUILT-IN 4.3" TFT DISPLAY AND TV TUNER

Instruction manual

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents

Table of contents ......2
Important safeguards ....3
Installation/ connection....4
Panel controls....10
General operation 15
Digital tuner 20
SD/MMC cards/ USB operations....24
Discs operations 26
MP3 overview 31
DVD setup....33
TV....37
Other functions....37
Anti-theft system....40
Handling discs....41
Cleaning 41
Troubleshooting guide 42
Specification....43

Important safeguards

• Using the device at temperature below -10°C may cause the breakage of the device. BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE RECOMMENDED TEMPERATURE!
• Read carefully through this manual to familiarize yourself with this high-quality sound system.
• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
  • DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
• Do not use the unit in places where it can be exposed to water, moisture and dust.
• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.
• If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
  • DO NOT open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a qualified technician check the system.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please confirm it before installation.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.
• Do not install the detachable panel before connecting the wire.
• Don't remove the detachable panel when encoding.

Комплект поставки

• Instruction Manual X 1
• Consumer information X 1
- Warranty card X1
- Remote Control X 1
- Panel Case X 1
• AV Cable X1
• TV Tuner X 1
• TV Antenna X I
• TV cable X1
• 2 side tape (for fixing the external TV tuner box) X 1
• ISO Cable X1

Mounting parts

• Release Keys X 2
• Mount Strap X 1
• Nut M5 X 1
• Flat washer X 1
• Spring washer X1
• Screw X1
• Bolts X 4
• Rubber X1

Installation/ connection

First complete the electrical connections, and then check them for correctness.

Installation opening

This unit can be installed in any dashboard having an opening as shown on the picture. The dashboard should be 4.75 – 5.56 mm thick in order to be able to support the unit.

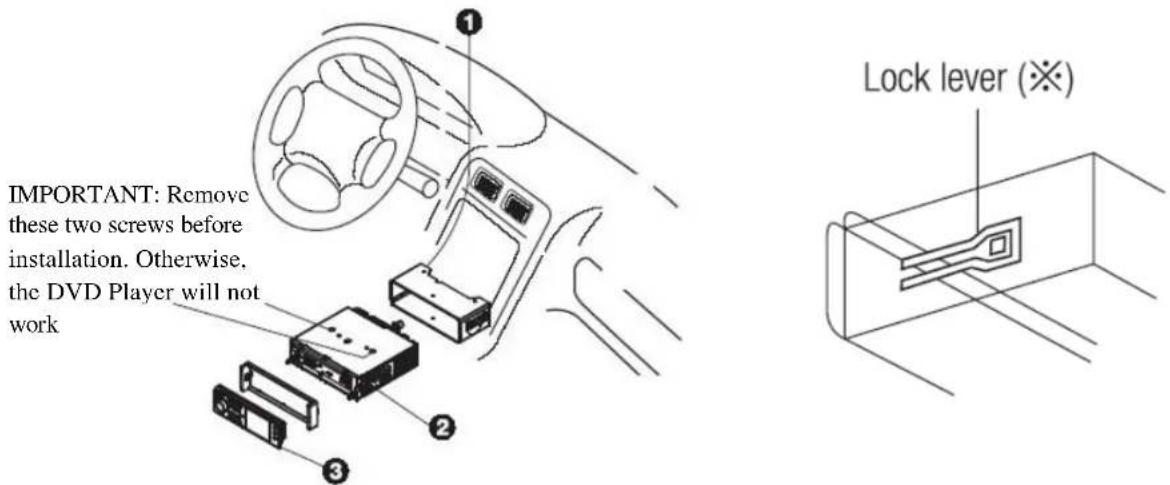

1. Insert mounting collar into the dashboard, and bend the mounting tabs out with a screwdriver.

Make sure that lock lever (*)s flush with the mounting collar (not projecting outward).

1. Secure the rear of the unit.

After fixing mounting bolt and power connector, fix the rear of the unit to the car body by rubber cushion.

1. Insert trim plate.

When you prepare to insert trim plate, please check it's direction. Once it was up side down, it cannot be fixed.

Detachable control panel

Detaching the control panel

• Turn the Power off.
• Press OPEN button release the panel.
• Pull the panel out.

Attaching the control panel

• Insert the left side of the control panel into the main unit.
• Press the control panel right side until the "click" sound is heard.

Caution:

DO NOT insert the control panel from the right side. It can damage the control panel.

The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks.

The rear connector that connects the main unit and the control panel is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

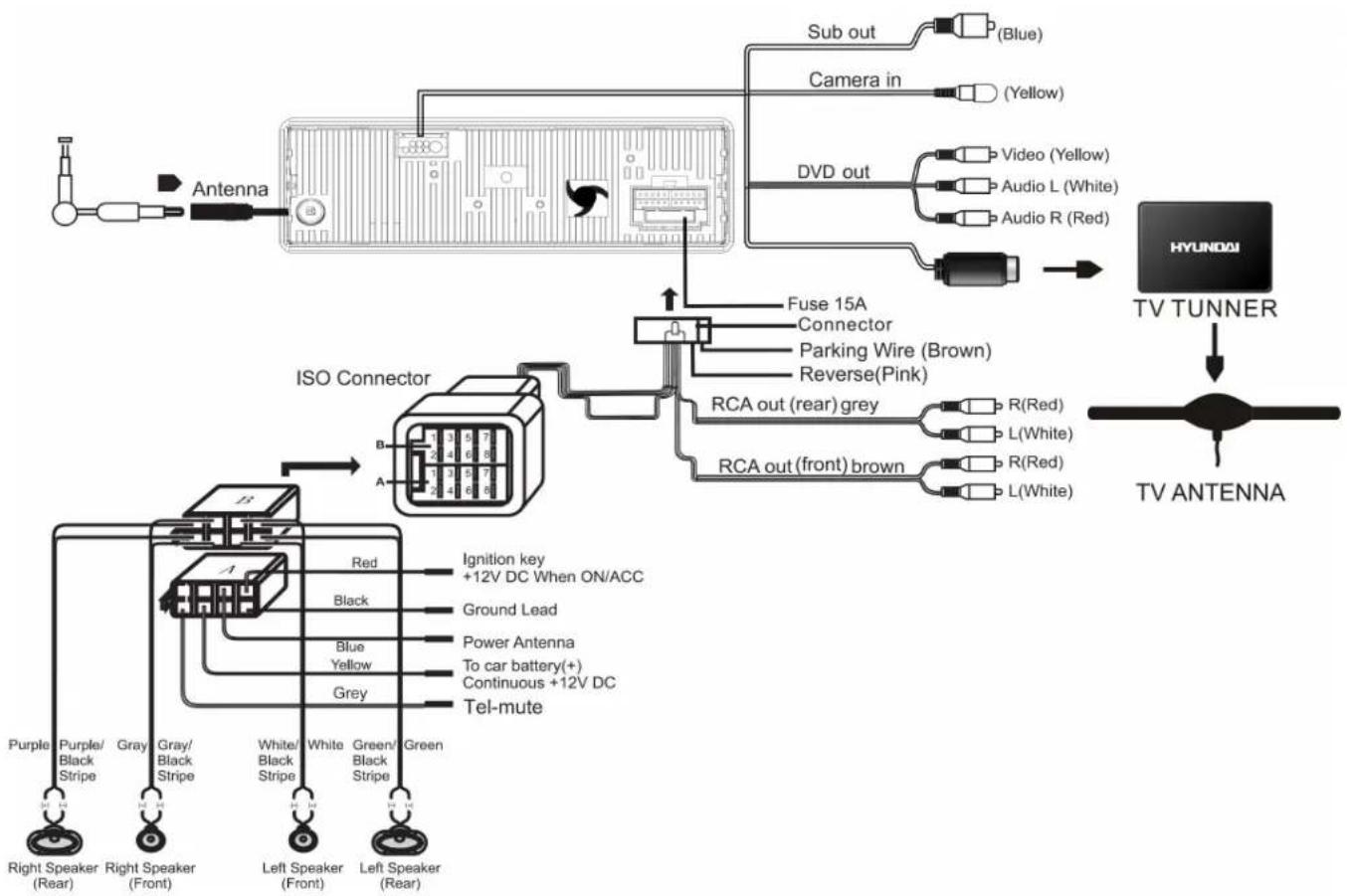

Electrical connection

Caution: Do not interchange the connection of the wiring!!!

For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car dealer before installing this unit.

Using the ISO Connector

Diagram showing two mechanical components with arrows indicating assembly or connection (no text or symbols)

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

3. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the color code table below for speaker and power cable connections.

Location	Function
	Connector A Connector B
1 Rear	Right(+)---Purple
2 Tel-mute (gray)	Rear Right(-)---Purple/Black Stripe
3 Front	Right(+)---Grey
4 Battery	12V (+)/yellow Front	Right(-)---Grey/Black Stripe
5 Auto	Antenna/blue Front Left(+)---White
6 Front	Left((-)---White/Black Stripe
7 ACC+/red	Rear	Left(+)---Green
8	Ground/black	Rear Left(-)---Green/Black Stripe

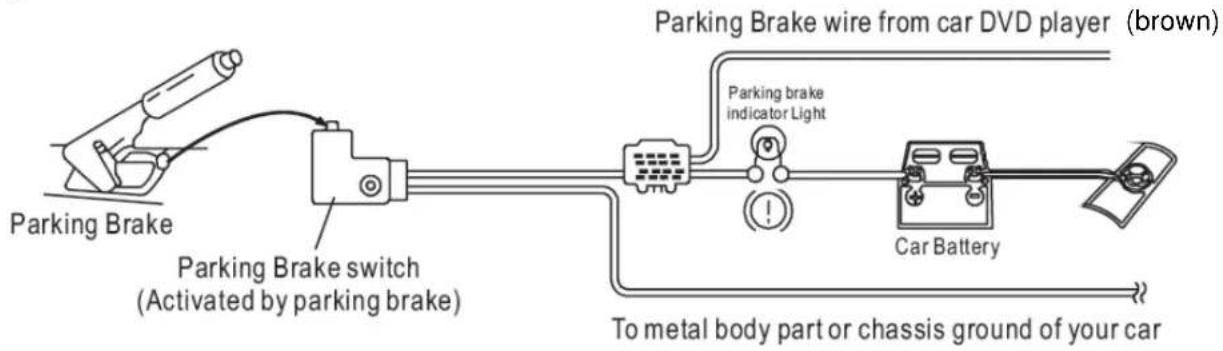

Parking wire

Note: The parking wire is connected with brake signal; for safety, the programs can be seen on the monitor after braking the car.


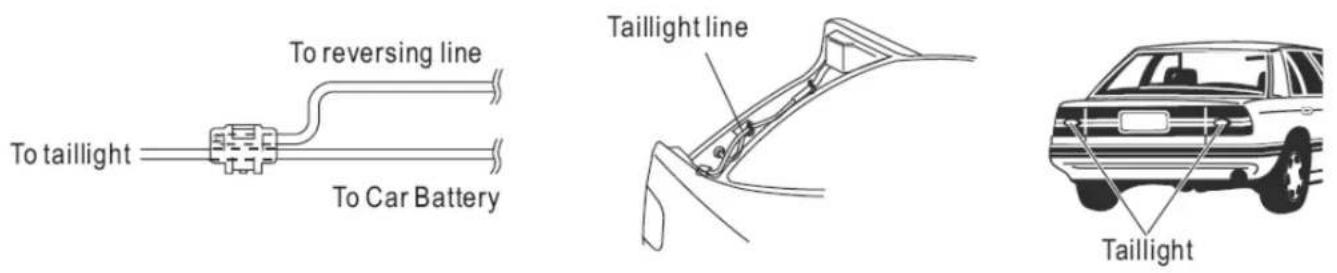

Connecting the reversing line to taillight on the car

After connecting, when you start up the reverse gear, the unit will receive the picture from car rear view camera.

Panel controls

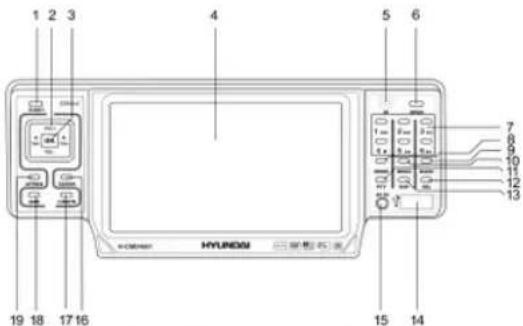

Front panel

1. EJECT button: press it to flip down the front panel and eject the CD.
2. VOL+/- buttons: press to increase/decrease volume step by step. TUN-/TUN+ buttons: use these buttons to enter the manual tuning mode/ seek tuning mode.
3. OK button: press it in the menu to confirm settings.
4. TFT display
5. IR sensor
6. OPEN button: press it when power is off to release the front panel.
7. PRESET STATION [1-6] buttons ◀/▶ buttons: use these buttons to search for the beginning of the previous/ next track/ chapter. PLAY/PAUSE button

STOP button

«/» buttons: use these buttons for backward/ forward track scanning.

1. MODE button: Press it to select the RADIO, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), CARD (if there is a SD/MMC card in unit), TV, AV IN mode.

2. BAND button: press it repeatedly to select your desired radio band during RADIO mode.

3. MENU button: press it to open the settings menu.

4. PTY button. In Radio mode press it to activate the PTY function.

5. SEL button press this button repeatedly to select the audio setting: BASS => TREBLE => BALANCE => FADER => EQ.

6. DSP button, press it for audio setting: FLAT => CALSSICS => POP => ROCK => DSP OFF.

7. USB slot

8. AV in

9. TA/EON button: press it to select TA (traffic announcement) function ON or OFF. Press and hold for 2 seconds to turn TA EON function ON or OFF.

10. POWER/MUTE button: press POWER button to turn the power on, press and hold for 2 seconds to turn the power off. When the power is on press it to cut down the volume output, press it again to resume volume.

11. AMS button. Press and hold the button to set radio stations automatically. By pressing digit buttons (1-6) shortly you make the unit memorizes the stations under corresponding number.

12. AF/REG button: press it to select AF (alternative frequency) function ON or OFF. Press and hold for 2 seconds to turn the Regional mode ON or OFF.

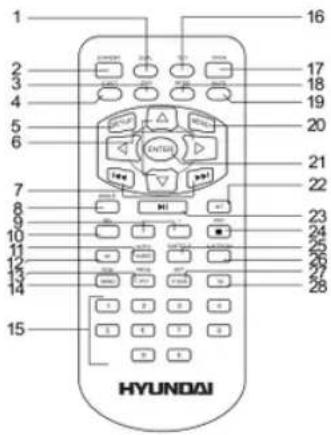

Remote control

1. DUAL button - press it to enter the Dual zone mode for playing DVD and Radio at the same time.
2. STANDBY button - press it to turn the power on/off.
3. OSD button - Press the OSD button to show the current mode information on the display.
4. EJECT button - press it to eject the disc.
5. SETUP button – in DVD mode press it to open the setup menu.
6. Cursor ▲/▼/◄/► buttons

Use the ▲/▼/◀/▶ buttons to select the menu item. Use the ▲/▼ buttons to select the title, track. Use the ◀/▶ buttons to show next frame;

1. 📋/▶ buttons: press them to start manual/automatic radio/TV station search, in DVD mode go to previous/next track/chapter/title
2. ANGLE button - press it repeatedly to change the viewing angle.
3. VOL+/- buttons - press these buttons to adjust volume level.
4. SEL button - press it repeatedly to select the audio modes: BASS => TREBLE => BALANCE => FADER => EQ.
5. AUDIO/GOTO button - in DVD mode press it to select the audio language. In VCD mode press it to select the channel: Mono left => Mono right => Mix mono => Stereo. Go to: in DVD mode press and hold for 2 seconds, go into the set chapter/track/time directly.
6. AF button - in Radio mode press it to activate the AF function.

1. PROG/PTY button – press this button to enter the title/chapter search function. In Radio mode press it to activate the PTY function.
2. RDM/BAND button – in DVD mode press it to start random playing. In Radio mode press it to select the desired band.
3. Digit 0-6- in radio mode, select the desired band; digit 0-9 in mode in DVD mode, select track.
4. TILT button - press it to adjust monitor tilt angle.
5. OPEN button - press it to open the monitor.
6. MODE button - press it to select the mode: RADIO, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), CARD (if there is a SD/MMC card in unit), TV, AV IN mode.
7. MUTE button - press it to cut down the volume output, press it again to resume volume.
8. MENU button - in DVD mode press this button to show the disc menu.
9. ENTER button – press it to confirm setting.
10. INT button - press it to activate the intro function.
11. PLAY/PAUSE button - in DVD mode press it to start playback. Press during playback to pause it. Press again to resume.
12. STOP/PBC button - press it to stop playback, in VCD mode, press it and hold for 2 seconds to set PBC on/off.
13. SUBTITLE button – press it to select the subtitle language.
14. A-B/ ZOOM button - press it to start repeating of the A-B fragment. Press it and hold for 2 seconds to zoom the image in or out.
15. RPT/P.SCN button - in DVD mode press it to start repeat playing. In Radio mode press it to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds.
16. TA button Press it to activate the TA function.

Changing the battery

1. Press the catch and at the same time pull out the battery tray.

2. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control.

Warning: Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

Do not recharge, short, disassemble or heat the battery or dispose it in a fire.

Do not expose or bring into contact the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.

When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give off heat, crack or start a fire.

Inner panel

Press EJECT button on the front panel to flip it down. On the inner panel there are the CD slot and RESET button.

Press OPEN button on the front panel to release it. On the inner panel there are the SD/MMC card slot and LED indicator.

General operation

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit.

Press EJECT button and then press RESET button under the panel to restore the unit to the original factory settings.

Power button

Press any button to turn on the unit. Long press POWER button to turn off the unit.

Monitor tilt angle

Press TILT button to enter the monitor tilt angle adjustment mode.

Press ◀/▶ buttons to select the position: 0 => 1 => 2 => 3 => 4 => 5 => 6.

The monitor will flip down accordingly.

Volume control

Press VOL. + button to increase the volume level.

Press VOL - button to decrease the volume level.

Turning the sound off

When the power is on press the POWER/MUTE button on the panel or MUTE button on the RC to turn the sound off. Press it again to turn the sound on.

Setting the sound characteristics

Press shortly and repeatedly the SEL button to select the audio setting: BASS => TREBLE => BALANCE => FADER => EQ.

Press ▲/▼ buttons on the RC to select the setting.

Press ◀/▶ buttons to adjust the setting.

Press SEL again to confirm and return to current mode.

Notes: If turning off the power all the settings of each mode will be saved.

- If turning off the ACC power all the settings will become as they were set on the plant as current.

- If you don't adjust setting within 10 seconds after selecting the desired setting, the unit will automatically return to the current mode.

Setting other characteristics

During FM or DVD mode press the MENU button to enter the setting mode. In TV mode press the MENU button once to enter TV menu setting and twice to enter menu setting mode.

Press ▲/▼ buttons on the RC to select the setting.

Press ◀/▶ buttons to adjust the setting.

Press OK again to confirm, press MENU to return to settings list.

• In Radio mode select AUDIO => DUAL => RDS SETUP => EXPERT => CLOCK => TILT

• In DVD mode select AUDIO => PICTURE => DUAL => RDS SETUP => EXPERT => CLOCK => TILT.

- In TV mode select AUDIO => PICTURE => DUAL => RDS SETUP => EXPERT => CLOCK => TILT.

AUDIO MENU

MENU	DESCRIPTION(tuning by left or right arrow)
BASS	Support 10 levels. Default level is 0.
TREBLE	Support 10 levels. Default level is 0.
BALANCE	Support 10 levels for each left and right channel. Default is left equal to right.
FADER	Support 10 levels for each front and rear channel. Default is front equal to rear.
EQ	DSP OFF→FLAT→CLASSICS→POP→ROCK→DSP OFF

• PICTURE MENU

MENU	DESCRIPTION
RED	Adjust level of red color. Support 50 levels. Default level is 25.
GREEN	Adjust level of green color. Support 50 levels. Default level is 25
BLUE	Adjust level of blue color. Support 50 levels. Default level is 25.
BRIGHTNESS	Adjust level of screen brightness. Support 50 levels. Default level is 25
CONTRAST	Adjust level of screen contrast. Support 50 levels. Default level is 25.
SHARPNESS	Adjust level of screen sharpness. Support 15 levels. Default level is 10
SCREEN	Adjust screen size: 16 : 9 4 : 3 FULL
COLOR RESET	Resume color default status. (Only select YES or NO by navigation keys, but no need to press OK or ENTER key)

• DUAL MENU

MENU	DESCRIPTION
DUAL	Set DUAL Zone function on / off.
KEY	Use keys at CURRENT or DVD
VOL	Adjust level of DVD volume, Support 50 levels.Default level is 15

• RDS SETUP MENU

MENU	DESCRIPTION
TA	SEEK→ALARM
PI	MUTE→SOUND
RETUNE	LONG→SHORT
MASK	DPI→ALL
EON TA	DX→LOCAL
REG	OFF-ON
TA VOL	Adjust level of TA volume, Support 50 levels. Default level is 15

• EXPERT MENU

MENU	DESCRIPTION
DX	Set search radio station by DX or LOCAL mode. DX LOCAL
STEREO	Set radio audio at STEREO or MONO mode, STEREO MONO
BEEP	Set press keys's sound. 2ND ALL OFF
LOUD	Set loudness on or off. OFF ON
SUB WOOFER	Set Sub Woofer output on or off. OFF ON
BACKLIGHT	Set OSD BACKLIGHT:MID→HIGH→LOW
OSD COLOR	Set OSD COLOR: DARK BLUE VIOLET LIGHT BLUE

• CLOCK MENU

MENU	DESCRIPTION
CLOCK	Set CLOCK display time or not. Off/ on.
CLOCK ADJUST	Set CLOCK ADJUST time

Dual zone function

DUAL ---DUAL ZONE function, DVD and RADIO output by the same time.

Short press MEUN button, go into DUAL select. Press ON/OFF button to select.. When press ON, in DVD mode, DVD/DUAL will be displayed. When connect to one more monitor, DVD OUT play DVD, and AMP, LINE OUT and Sub woofer play Radio.

When you select OFF, DUAL function does not work. If locked to Radio function, all buttons on front panel or remote control are only used to select Radio function. If locked to DVD function, all buttons on front panel or remote control are only used to select DVD.

TILT function

Short press MENU button go into Item TILT function select. This function is used to adjust monitor angel.

Mode setting

Change playing mode in a sequence of: RADIO => DVD => USB => SD/MMC => TV => AV IN => RADIO

On-screen display (OSD)

Press the OSD button to show the current mode information on the display.

Digital tuner

Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either.

Band selection

Press MODE button to select the RADIO mode. Press the BAND button to select the desired band: FM1, FM2, FM3, AM (MW).

Manual/ automatic tuning

• Manual tuning: press the ⌘/ ➕ buttons and hold for 2 seconds to enter the manual tuning mode. Press the ⌘/ ➕ buttons on the panel or on the RC repeatedly to select a station downward or upward step by step. Press and hold for 2 seconds the 1-6 preset buttons to store the station found.
• Automatic tuning: press the ⌘/⌘ buttons on the panel or on the RC repeatedly, the automatic search will start. It will play when finds the station. Press and hold for 2 seconds the 1-6 preset buttons to store the station found.

Programming tuner stations

You can store up to a total of 24 radio stations in the memory (18 FM, 6 AM), manually or automatically.

• To store a station
- Select a band (if needed)
- Select a station by 🎨/ ➕ buttons
- Hold a Preset button (1-6) which you want store the station for at least 2 seconds.
• To recall a station:
- Select a band (if needed)
- Press a Preset button (1-6) briefly to recall the stored station

Preset scan

Press the RPT/P.SCN button on the RC to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds. To stop preset scan, press this button again.

AF (Alternative Frequencies) function

When the radio signal strength is poor, enable or disable AF function, press more than 2 seconds to enable or disable REG mode. (Default setting is On for AF and Off for REG)

1. Press ON to enable AF with current station.
2. AF icon is on LCD display. AF icon blinks if AF is not available.

TA (Traffic Alarm) function

Press the TA/EON button on the panel or TA button on the RC to enable or disable TA mode.

PTY (Program Type)

1. Press PTY button to activate the PTY function. The previous PTY type is shown.
2. Press PTY once again to enter the MUSIC type or press twice to enter the SPEECH type, then use buttons 1 - 6 to select the desired program type (see the following table).

BUTTON NUMBER MUSIC GROUP SPEECH GROUP
1 POP, NEWS,	JAZZ, CULTURE ,SOCIAL
2 ROCK		RELIGION, COUNTRY, AFFAIRS SCIENCE
3 EASY, NATION VARIED, INFO, PHONE IN
4 LIGHT		WEATHER, OLDIE, SPORT, TRAVEL
5 CLASSICS ,FOLK EDUCATE, FINANCE, LEISURE
6 OTHER DOCUMENT, DRAMA ,CHILDREN

1. When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.

If there are no keys entered for 2 seconds, previously selected PTY is searched. During 1 loop, if desired PTY is not found, PTY NONE is flashed, then return to previous normal radio and PTY word disappears.

1. Press PTY button for the ^rd time to switch the PTY function off.

REG function

Press for more than 2 seconds the AF/REG button to enable or disable REG mode.

• When REG is enable (On), the receiver accepts regional variants of the tuned station with icon on LCD display.
• When REG is disable (Off), the receiver ignores regional variants.

EON (Enhanced Other Networks)

Press for more than 2 seconds the TA/EON button to enable or disable EON mode. When EON data is received, the EON indicator lights and the TA and AF functions are enhanced.

This unit is equipped with the latest technology of EON control, so that when you are listening to Radio or CD, if there is any travel announcement from a nearby local station, the radio will already know the frequency of that radio station. Then it will receive the station, turn up the volume, or interrupt the playback for the duration of the announcement. At the end of the announcement the radio will return to its previous state ready for the next announcement.

SD/MMC cards/ USB operations

Please note: the MMC and USB modes are optional.

Inserting the SD/MMC card/ USB device

1. Turn the power on.
2. Insert the USB device into the USB slot on the front panel. The playing mode will be changed into USB mode automatically. The unit will read the files automatically.
3. To insert the SD/MMC card into the proper slot press the OPEN button on the panel to detach it and insert the SD/MMC card into SD/MMC slot. The playing mode will be changed into Card mode automatically. The unit will read the files automatically.
4. To enter the SD/MMC mode or USB mode press the MODE button.

USB/SD/MMC notes

USB functions (flash memory type) MP3 music play.

1. SD/MMC card support, 2in1 (SD/MMC) support.
2. USB flash memory.
3. FAT 12/ FAT 16/ FAT 32 is possible
4. FAT 12/16 (dir: 200 support, file: 500 support),
5. FAT 32 (dir: 200 support, file: 500 support).
6. Filename: 32 byte/ Dir name: 32 byte.
7. Multi card reader not support.
8. USB 2.0 support.

Note:

USB format supports 2.0.

Capacity: up to 2 GB.

SD cards brands: Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc.

Capacity: up to 2 GB.

MMC cards brands: Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, etc.

Capacity: up to 2 GB.

Functions

The Play/pause, Previous/next track/ FR/FF functions are same as for Discs (see the Discs operations chapter of this instruction manual).

Discs operations

Glossary

PBC (Playback Control)

Playback Control is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.

Title

The title is the important part of DVD disc. The memory volume of the disc is rather big, that makes possible to record several films on one disc. For example, if a disc contains three films, they may be divided into Title 1, Title 2 and Title 3. You can easy use the functions of looking-for.

Chapter

A title can be divided into several blocks, so that every block can be operated as a unit, the unit is called chapter. The chapter contains a unit at least.

Track

It is the biggest component of VCD. Generally, every song of karaoke disc is a track.

Discs for playback

• This unit can play: DVD/SVCD/VCD/HDCD/MP3/MP4/WMA/CDDA/Picture-CD/JPEG/CD-R/-RW/DVD±R/±RW.
  • The following file types are supported:
  Audio files: MP3 (*.mp3)
  WMA (*.wma)
  Video files: MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 and XVID)
  MPEG 2(*.vob)
  MPEG 1(*.dat)

Picture file: JPEG (*.jpg)

• ISO 9660 or ISO 9660 +Joliet format - Max. 30 characters
• Max. Track number is 448
• Max. nested directory is 8 levels
• The max. album number is 99
• The max. length of each track is 99 minutes 59 seconds
• Supported sampling frequency for MP3 disc: 8 KHz to 48 (44.1 KHz preferably) KHz
• Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably).
- Following formats are NOT supported *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, files with DRM.
• Open session discs are NOT supported.

Loading a disc

1. Turn the power on.
2. Press EJECT button on the front panel to flip it down.
3. Insert the disc with the printed side facing upward into the slot. The panel will be closed automatically. The DVD mode will be turned on automatically. The monitor will show the disc content.
4. Press EJECT button on the panel to eject the disc.

If the disc is not removed for about 10 seconds after reject, the disc is reinserted automatically. When disc in/out, put front panel at 0 degree to avoid distortion of disc.

5 You may also choose the operating mode using the MODE button.

Playing/pausing

To ensure good system performance, wait until the unit finishes reading the disc information before proceeding. Press the PLAY/ PAUSE button to start/ pause the playback. In pause mode press it again to resume the playback.

Stop

During playback press the STOP button on the RC. Playback will be stopped. Press the PLAY/PAUSE button to start playback.

If the PLAY/ PAUSE button is pressed, playback will start from the position at which it was stopped. If the disc is removed, the resume function is cancelled.

Press the STOP button again to finally stop the playback.

Playing the previous/ next track/ chapter

1. During playback press the ⏻ button to start playback of the previous track/chapter.
2. Press the ▶ to start playing of the next track/chapter.
3. Press the digital buttons (1-9, 0) buttons to enter the desired track/chapter number.

Speed forward and backward

Press the «/» buttons on the panel to select the speed of fast playing in backward or forward direction: X2, X4, X8, X16, X32. Press the PLAY/PAUSE button to return to normal playback.

Note: During the disc playback when Fast/ Reverse Playback gets to the beginning of the playing another track, it resumes normal playback.

Repeat playback

Press the RPT button on the RC once or more to repeat the playback:

• For VCD/CD: display appears Repeat Track => Repeat Disc => Off (Some discs do not support this functions).
  • For DVD: display appears Repeat Chapter => Repeat Title => Off
• For File disc: display appears File => Folder => All => Off
  Note: to choose FOLDER repeating and TITLE repeating press and hold RPT button.

Repeat A-B function

1. During playback, press A-B button on the remote control at the starting point of the section you want to repeat (point A).
2. Press A-B button again at the ending point of the section you want to repeat (point B). Section A-B repeating starts.
3. Press A-B button again to cancel the A-B repeat function.

Random playback (for CD/VCD/MP3 discs)

During disc playback, press the RDM button on the RC to start random playback of the disc. Press again to cancel.

Intro playback (for CD/VCD discs)

You can play the beginning of every track for 10 seconds in sequence. Press the INT button on the front panel to start intro play of whole disc. Press again to cancel.

PBC (Playback Control) function (for VCD only)

If you insert a VCD with PBC, playback starts from the beginning of the 1st track automatically.

1. Press PBC button to activate interactive menu on screen during playback.
2. If the menu consists a list of titles, you can select a desired one using the ⏻/▶ buttons or the digit buttons.
3. The VCD starts playing the selected title automatically or press PLAY/ PAUSE button to confirm the selected track for playback.
4. Press STOP button to return to menu.
5. Press PBC again to exit menu.

Programming the playback

1. Press PROG button on the RC to enter program list.
2. Use◀, ▶, ▲, ▼ buttons and digit buttons to enter the number of the desired track to be on selected position. For DVD and File disc, select title and chapter number. For VCD and CD, select track number.
3. Press PLAY/ PAUSE button to play, or move the cursor to select PLAY and press ENTER to play.
4. If you want to delete the list, move the cursor to CLEAR, press ENTER to delete all the list set before.
5. Press PROG again to exit program play.

Selecting different audio modes

• For DVD disc: press AUDIO on the RC repeatedly to select the audio language to listen (if the disc supports multi-language mode).
• For VCD disc: press AUDIO on the RC repeatedly to select the following modes: L mono → R mono → Mix mono → Stereo (Channel left => Channel right => LR mono => Stereo).

Changing the subtitle language (for DVD only)

Press SUBTITLE button on the RC to select the preferred language for the disc menu. When the selected language is recorded on the disc then this language will automatically be selected. If not, the first language recorded on the disc is displayed.

Changing size

Press and hold for 2 seconds the A-B/ZOOM on the RC. The picture will be enlarged accordingly: X2 => X3 => X4 => Normal.

Changing angle (for DVD only)

If DVD discs support multi-angle playback, press ANGLE on the RC button to playback images in different camera angles. If discs doesn't support multi-angle playback, this function will not work. If no operation within 1 second, angle description will disappear.

MP3 overview

Notes on MP3:

• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
• This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs.
- The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
- The unit can not read an MP3 file that has a file extension other than ".mp3".
- If you play a non-MP3 file that has the ".mp3" extension, you may hear some noise.
- In this manual, we refer to what are called "MP3 file" and "folder" in PC terminology as "track" and "album", respectively.
- Maximum number of directory level is 8, including the root directory. Maximum number of files and folders per disc is 448.
• The unit may not play tracks in the order of Track numbers.
• The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.
- When playing a disc of 8 kbps or "VBR", the elapsed playing time in the display window will not be correct and also the intro play may not function properly. "VBR": Variable Bit Rate.

Notes on creating your own CD-R or CD-RW containing MP3 files:

• To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate of 128 kbps.
  • DO NOT store more than 448 MP3 files per disc.
• For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).
• When CD-R disc is used, playback is possible only for discs, which have been finalized.
• Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc.
• You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.
• With some CD-R or CD-RW media, data may not be properly written depending on its manufacturing quality. In this case, data may not be reproduced correctly. High quality CD-R or CD-RW disc is recommended.
  • Note that the unit may not play Tracks in the order that you wrote them to the disc.

DVD setup

Press this setup button to enter the DVD player setup menu to setup the DVD player operation setting. Press SETUP button to enter into the system settings main menu; press the left or right arrow buttons to move to the highlighted menu item and select one of the Setup Pages:

Language
◇ Display
Audio
Parental

1. Language setup:

Press SETUP and then ENTER to enter into LANGUAGE setup menu.

[1] OSD language setting:

With this option you can select the language for your On Screen Display (OSD).

This menu item has 6 languages available.

[2] Subtitle setting:

With this option you can select the preferred language for the subtitles. When the selected language is recorded on the disc then this language will automatically be shown. If not, the first language recorded on the disc is displayed.

[3] Audio setting:

With this option you can select the preferred language for the audio output. When the selected language is recorded on the disc (not all discs have multiple languages recorded) then this language will automatically be played. If not, the first language recorded on the disc is played.

[4] Disc menu setting:

With this option you can select the preferred language for the disc menu. When the selected language is recorded on the disc then this language will automatically be selected. If not, the first language recorded on the disc is displayed.

[5] Version display:

With this option you can know the version about the unit.

2. Display setup:

[1] TV Display setup:

Set TFT screen mode to the correct ratio: Three screen ratio modes are available, Normal/PS (4:3 Pan Scan), Normal/LB (4:3 Letterbox) and Wide (16:9). Different disc formats will display different images depending this setting and the screen size used.

[2] TV Type setup:

Select this menu item to set up your preferred video output format. PAL is commonly used in Europe. NTSC is commonly used in the USA and Japan. Auto is commonly used automatically.

[3] Angle mark setup:

When playing a DVD disc and you have selected ON, then the screen will show the angle mark. This will give you the possibility to view multi angle DVD's.

[4] Screen Saver setup:

When playing a DVD disc and you have selected ON, the screen will enter Screen Saver function if you stop played about 3 minutes.

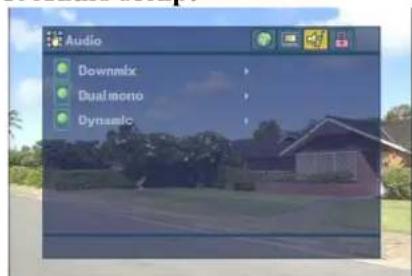

3. Audio setup:

[1] Down Mix setup:

Press the DOWN arrow to enter the sub-menu. If you want analog stereo signals, set the sound mode to "STEREO".

If you want to have Dolby Pro Logic stereo (the decoded signal will create a 2ch reality simulating effect), select "LT/RT"

[2] Dual Mono setup:

Select the type of output of the Left and Right audio output connectors. Stereo is normal Stereo, L-Mono is all sound on the Left Audio output, R-Mono is all sound on the Right channel. The “Mix-Mono” function only works when a DVD is being played in DTS 5.1 mode.

[3] Dynamic setup:

This function is to adjust the linear compression rate to obtain the different compression results of the signals. Standard set to “OFF”

4. Parental setup:

[1] Change setup:

With this option you can change your password protection. The default password is 0000

[2] Parent setup:

For DVD discs, which support this system, parents can prohibit watching content that might be inadvisable for children.

[3] Default setup:

With this option you can clear all your setup and resume default setup.

Code Description

1 kid safe

1. G General Audiences - All ages admitted

2. PG PARENTAL GUIDANCE SUGGESTED - Some material may not be suitable for children

3. PG-13 PARENTS STRONGLY CAUTIONED - Some material may be inappropriate for children under 13

4. PG-R Restricted, under 17 requires accompanying parent or adult guardian.

5. R RESTRICTED - Under 17 requires accompanying parent or adult guardian

6. NC-17 NO ONE 17 AND UNDER ADMITTED

7. Adult Above 17 Admitted

TV

1. Connect TV BOX, and then press MODE button to select TV mode.

2. In TV mode, press the MENU button once to enter TV menu setting.

3. Press the ▲/▼ buttons to select one of the setup pages: Auto program => Manual program

4. Press the OK button to enter the page.

5. Press the ▲/▼ buttons to select the setting.

6. Press OK again to confirm, press MENU to return to settings list.

Note: This function is available when TV tuner is connected.

TV MENU

Auto program (Auto seek mode)

- System

Select this menu item to set TV video system: PAL=>SECAM1=> SECAM2, press OK button to select.

- Audio

Select this menu item to set the TV sound system: AUDIO1 => AUDIO2 => AUDIO3, press OK button to select.

- Search

Select this menu item is to start searching and storing stations automatically.

Manual program (manual seek mode)

- Storage

Select this menu item to set the storage number.

- System

Select this menu item to set TV video system: PAL=>SECAM1=> SECAM1, press OK button to select.

- Audio

Select this menu item to set the TV sound system: AUDIO1 => AUDIO2 => AUDIO3, press OK button to select.

Notes:

1. There is a 2-side tape in the accessories, you can use it to fix the TV box to your car.
2. TV cannot be displayed on the additional monitor.

- Channel

Select this menu item is to set your desired searching channel, press ◀/▶ buttons to select one.

- Fine

Select this menu item is to fine TV picture and sound until it achieves the best quality, press ◀/▶ buttons to adjust

- Memory

Select memory on or off is to set whether memory the searched station or not, press OK button to select.

Other functions

Back view camera

This unit is equipped with back view camera output. The camera is used to observe the situation behind the vehicle when you are backing the car.

Please connect your back view camera with the back car video input. And connect the reverse wire for back a car with the rear gear light. Rear view camera picture will be enabled when you are backing the car.

TEL mute

The audio system automatically mutes whenever a call comes in.

Note: This function will not work if a cable is not connected to the car phone.

1. When a call is received, all the unit functions are temporarily interrupted.

2. When the call ends hang up the phone. The original source (used before the phone call) is returned automatically and the volume restored.

Subwoofer

Connect the subwoofer to the unit using sub output (see electrical diagram). Press MENU button, choose expert and set subwoofer ON to enable subwoofer.

Anti-theft system

Remove the panel

1. Press the POWER button to turn the power off.
2. Press OPEN button to detach the panel.
3. Pull the panel out.
4. Place the panel into the case and take it with you when you leave the car.

Remove the unit

1. Remove the panel and the trim plate.
2. Insert both T-Keys into hole on the front of the set until they lock.
3. Pull out the unit.

Handling discs

• Dirty, scratched or warped discs may cause skip ping or noise.
• Handle the disc only by the edges. To keep clean do not touch its surface.
  • Discs should be stored in their cases after use to avoid scratches.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature can wrap the disc (such as leaving the discs in your car during summertime).
• Do not stick or write anything on either side of disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage its surface.
• DO NOT touch the unlabeled side. DO NOT attach any seal, label or data protection sheet to either side of a disc.

Cleaning

Cleaning the cabinet

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth

should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Troubleshooting guide

Symptom	Cause Solution
GeneralNo power	The car ignition is not on.The fuse is blown.	If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.Replace the fuse.
DiscDisc cannot be loaded.	Presence of disc inside the player. Remove the disc in the player then put a new upward.
Disc cannot be read. Inserting	the disc in upside down.Compact disc is extremely dirty or defective.Temperature inside the car is too high.	Insert the compact disc with the label facing upward.Clean the disc or try to play a new one.Cool off until the ambient temperature returns to normal.
No sound Volume is in minimum.	Wiring is not properly connected.	Adjust volume to a desired level.Check wiring connection.
The operation keys do not work.	The built-in microcomputer is not operating properly due to noise.Front panel is not properly fix into its place.	Press the RESET button.Reinstall the front panel.
Sound skips. The installation angle is more than 30 degrees.The disc is extremely dirty or defective.	The disc is extremely dirty or defective.	Adjust the installation angle to less than 30 degrees.Clean the compact disc/try to play a new one.
The radio does not work, the radio station automatic selection does not work.	The antenna cable is not connected the signals are too weak.	Insert the antenna cable firmly select a station manually.

Specification

General
Power supply:	12 V DC
Current consumption:	max. 15 A
Maximum power output:	50 W x 4 channels
Compatible storage devices	DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/USB/SD/MMC
Compatible formats:	DVD/SVCD/VCD/HDCD/MP3/WMA/CDDA/Picture-CD/JPEG playback
Dimensions (L x W x H) / weight:	202 x 188 x 71 mm / 2 kg
Working temperature range:	-10°C - +60°C
ESP function:	40 sec. for Audio CD, 120 sec. for MP3
TFT display
Screen size:	4.3 inch
Resolution:	480x272 dpi
Aspect ratio:	4:3/16:9
Contrast ratio:	1000:1
Brightness:	500 cd/m2
FM Stereo Radio
Frequency range:	65.0 – 74.0/87.5 – 108.0 MHz
Usable sensitivity:	≤ 1 mV
Preset memory stations:	18
AM section
Frequency range:	522 kHz - 1620 kHz
Preset memory stations:	6

Audio specification
Maximum output:	2 Vrms (+/- 3 dB)
Frequency response:	30 Hz - 18 KHz
S/N ratio(A-vtd):	68 dB
DSP sound effect:	Classic, Rock, Pop, Flat
Color system	PAL/SECAM/NTSC
Sensitivity	65 dB
Line out
Line outs:	4 channel RCA line-out (2V)1 channel Subwoofer pre-out
Output:	CD max 2000 mV

Specifications are subject to change without notice. Mass and dimension are approximate.

Съемная панель

[1] Микширование:

[1] Изменение:
