USER MANUAL DS-PAN-212-2 PANASONIC

Owner's Manual Havis Rugged Mobile Docking Station For Panasonic CF-19 Toughbook

DS-PAN-210 Series/220 Series

DS-PAN-211

DS-PAN-212

DS-PAN-213DS-PAN-214

DS-PAN-221

DS-PAN-211-2

DS-PAN-212-2

DS-PAN-214-2

DS-PAN-221-2

Havis is pleased to provide this Owner's Manual to aid in the proper installation and use of the DS-PAN-210 Series/220 Series Docking Station for the Panasonic CF-19 laptop computer.

For questions regarding the set-up of your DS-PAN-210 Series/220 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.

This Owner's Manual applies to the following Part Numbers:

Black-and-white photo of a laptop with open lid and visible circuitry (no text or symbols)

MARK 4 & HIGHER

DS-PAN-210 SERIES

- DS-PAN-211

• DS-PAN-211-2

- DS-PAN-212

- DS-PAN-212-2

• DS-PAN-214

'NOTICE in upper left corner

Exterior view of a silver hard drive with a highlighted orange circle and 'H1/15' label (no readable text beyond branding)

Black-and-white photo of a laptop with open lid and visible keyboard (no text or symbols)

ALL MARK LEVELS

DS-PAN-220 SERIES

- DS-PAN-221

• DS-PAN-221-2

Exterior view of a Huawei HU/HS electronic device with a highlighted sensor (no readable text or symbols beyond branding)

LABEL in upper left corner

Table of Contents

Specifications 3

Parts Included 4

Port Replication Capability 4

Installation 5

Cable Management 6

Operation - Docking 8

Operation - Undoing 9

Precautions

• Do not place metal objects or containers of liquid on top of the Docking Station
• If a malfunction occurs, immediately unplug the Power Supply and remove the laptop
• Use only the specified Power Supply with this Docking Station (Recommended Part # LPS-101)
• Do not store the Docking Station where water, moisture, steam, dust, etc. are present
• Do not connect cables into ports other than what they are specified for
• Do not leave the Docking Station in a high temperature environment (greater than 60^, 140^ ) for a long period of time

Specifications

Power Supply Input 15.6V DC-In

Dimensions* 10.9” (27.7 cm) W x 11.1” (28.1 cm) D x 3.25” (8.2 cm) H

Weight* 3.8 lbs (1.7 kg)

Operating Environment 5°C to 35°C (41°F to 95°F)

Storage Environment -20°C to 60°C (-4°F to 140°F)

* DS-PAN-211

DECLARATION OF CONFORMITY FOR CE MARKING

Havis, Inc. declares that their DS-PAN-210 SERIES/DS-PAN-220 DOCKING STATIONS:

Are classified within the following EU Directives:

EU Electromagnetic Compatibility Directive 2004/108/EC

And further conform with the following EU Harmonized Standards:

EN 55022 (2006) + A1 2007, EN 55024 (1998) + A2: 2003

EN 50498: 2010

Clause 7.1 Broadband Radiated Disturbances - Quasi-Peak

Clause 7.2 Narrowband Radiated Disturbances - Average

Clause 7.3 Conducted Radiated Disturbances - Severity Level 2

Dated: August 19, 2010

Position of signatory: Chief Information Officer / Chief Financial Officer

Name of signatory: Steve Ferraro

Signed:

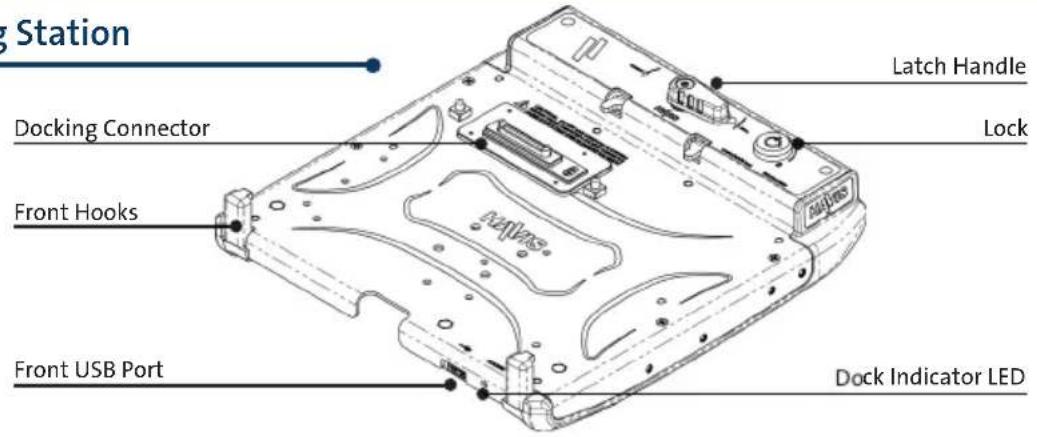

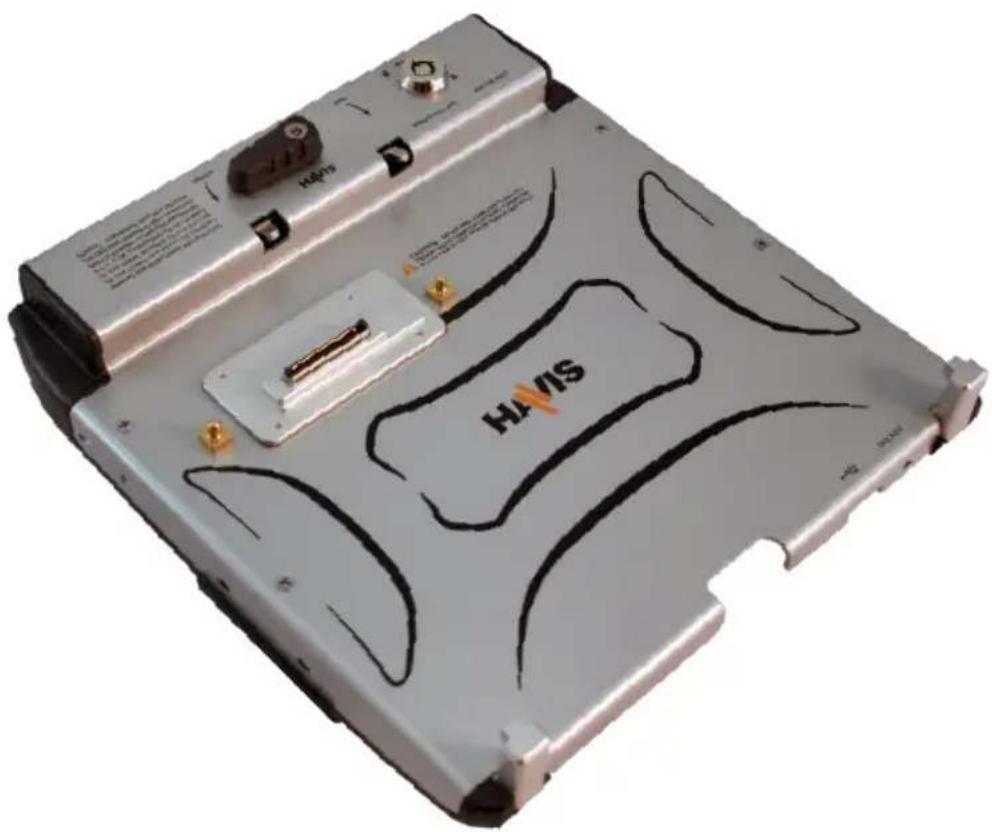

Docking Station

Mounting Bracket

Technical line drawing of a metal bracket with circular holes and mounting flanges (no text or symbols)

Hardware Kit

This Hardware Kit includes:

1. Zip Ties (4)
2. Keys (2)
3. 1/4"-20 x 5/8" long Button Head Screws (3)
4. 1/4"-20 x 3/8" long Pan Head Screws (4)

Four identical metal rods with triangular tips, arranged diagonally (no text or symbols)

②

3

④

Tools required for installation:

- #3 Phillips Drive (For attaching Mounting Bracket to Docking Station with Pan Head 1/4"-20 Screws)

- 5/32" Hex Drive (For attaching Mounting Bracket to Motion Device with Button Head 1/4"-20 Screws)

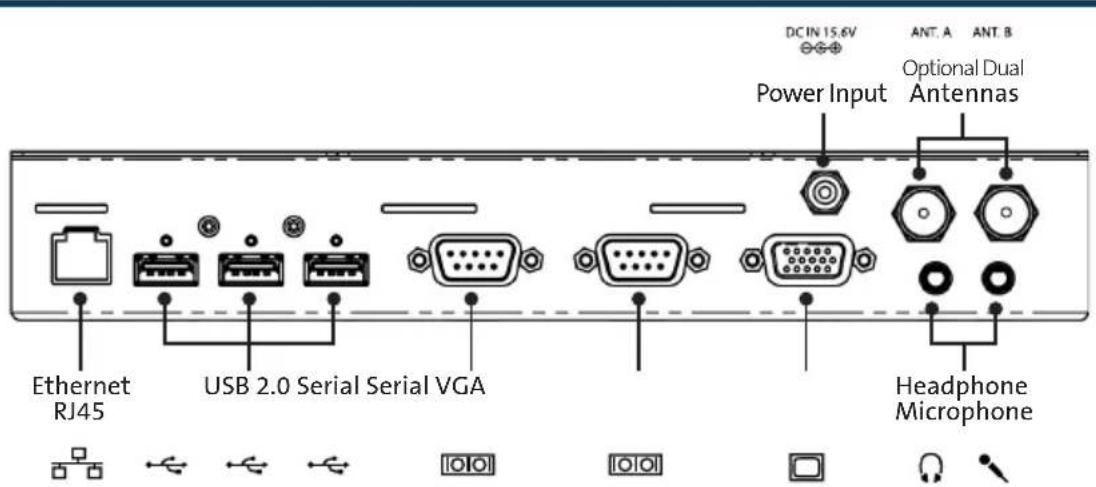

Port Replication Capability

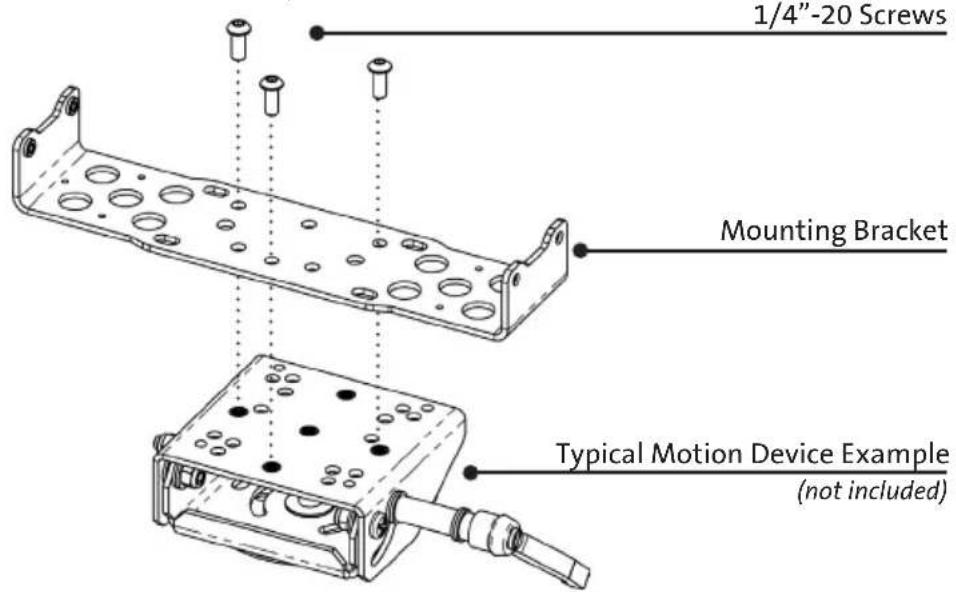

1) Remove the Mounting Bracket from the Docking Station. Install the Mounting Bracket to the Motion Device using (3) 1/4"-20 x 5/8" long screws (Hardware Kit Item 3). Torque screws to 120 in-lbs (13.4Nm) ± 10%.

NOTE: Numerous hole patterns present in Mounting Bracket will accommodate Havis Motion Devices as well as most competitors'.

NOTE: We recommend applying a drop of medium strength (blue) thread locking adhesive to the threads of all fasteners.

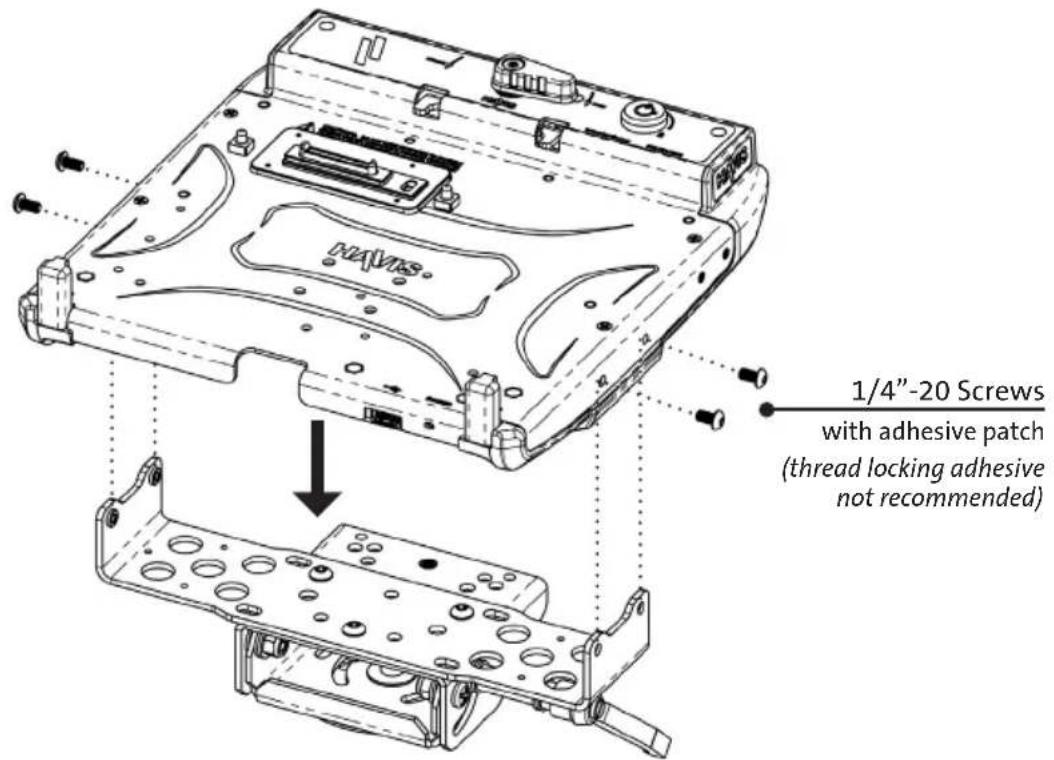

2) Lower the Docking Station to the Mounting Bracket as shown and secure with (4) 1/4"-20 x 3/8" long screws (Hardware Kit Item 4). Torque screws to 120 in-lbs (13.4 Nm) ± 10%.

NOTE: If mounting Power Supply to Docking Station, go to Page 10 before completing Step 2.

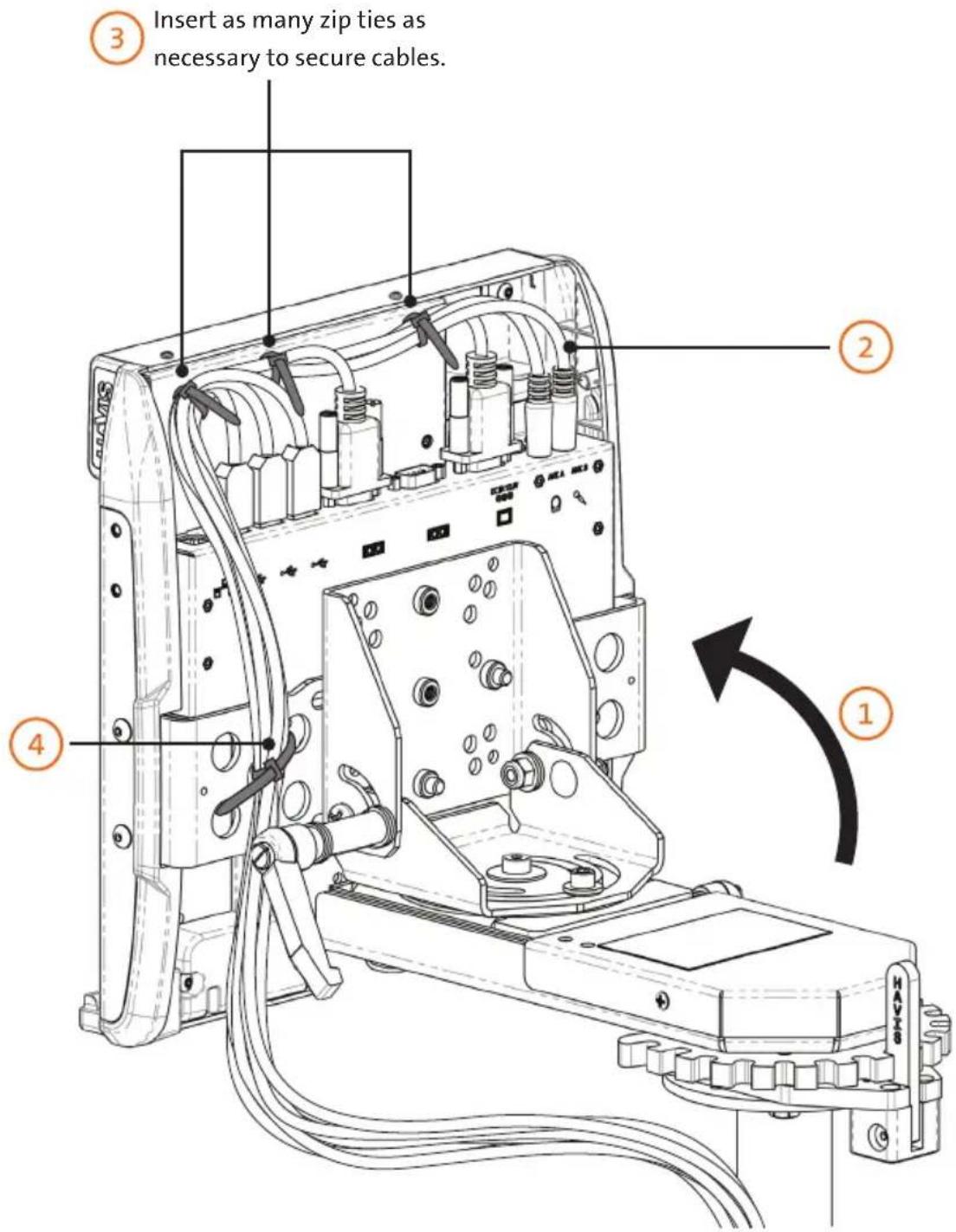

1) Tip the Docking Station to a position that is comfortable to work with.
2) Install all cables that are necessary for computing needs.
3) Use Zip Ties (Hardware Kit Item 1) to strain relieve cables at rear of Docking Station.
4) Gather all cables to one side and tie off to unused holes on underside of Docking Station.

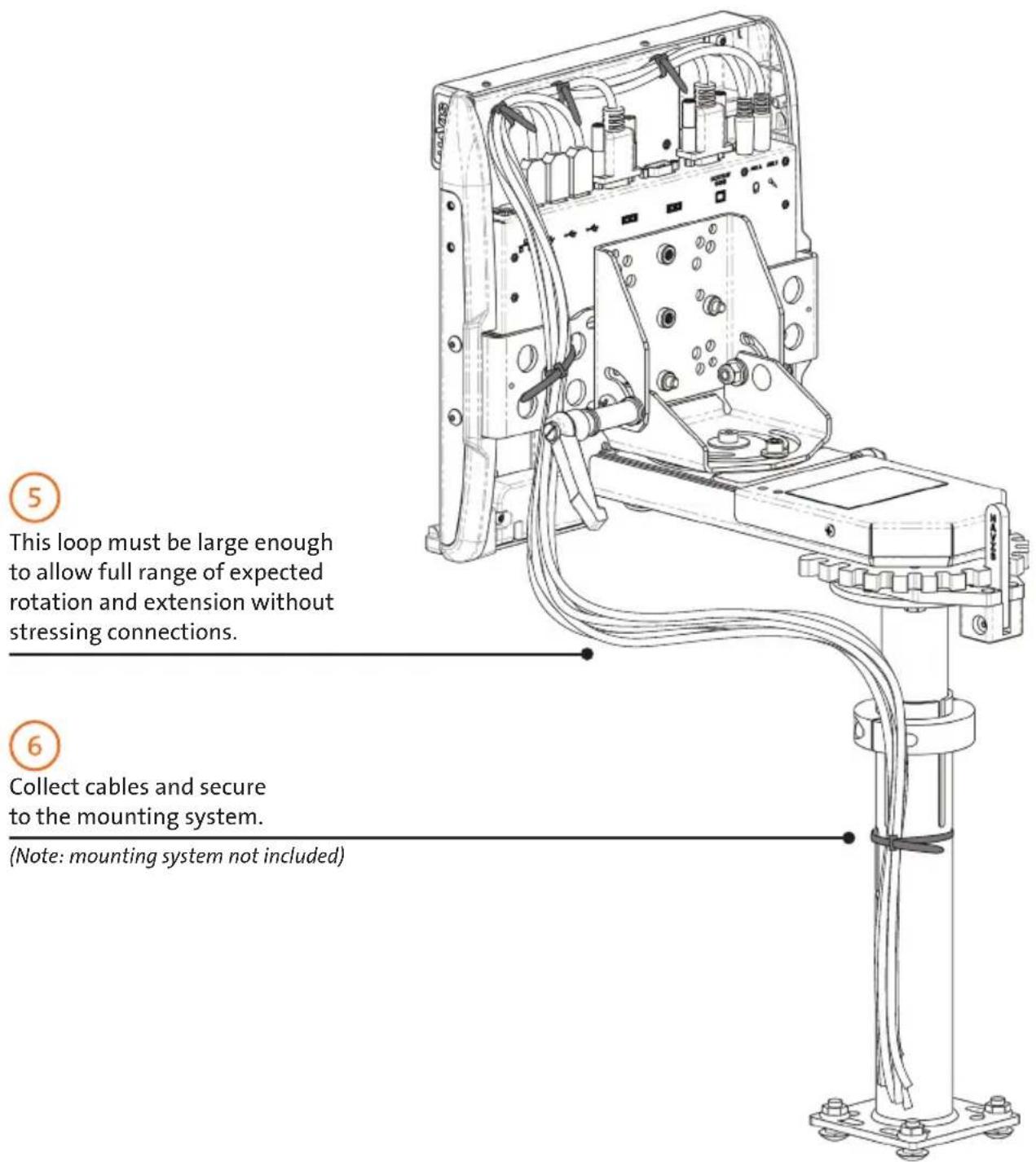

5) Create a service loop with cables to ensure that no tension is on the connectors and to enable intended motion.
6) Tie off cables onto a stationary part of the mounting system.

CAUTION

• DO NOT MATE COMPUTER TO DOCKING STATION UNLESS COMPUTER'S DOCKING CONNECTOR ACCESS DOOR IS FULLY OPEN OR DAMAGE MAY RESULT.
  • DO NOT FORCE LAPTOP ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK ALIGNMENT OF COMPUTER ON DOCKING STATION.

1) Ensure Docking Station is unlatched by positioning the Latch Handle to the “UNDOCK” position.

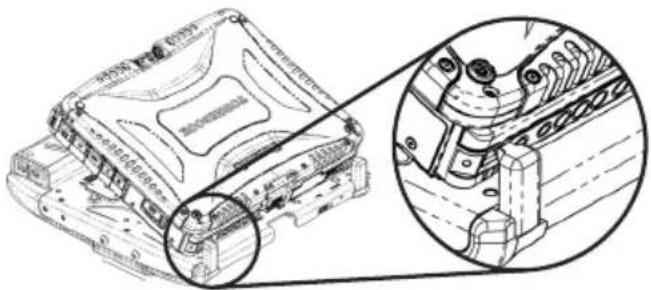

2) With rear of computer elevated, load front of computer into Docking Station by aligning Front Hooks with the appropriate recesses in the computer case.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

3) Lower back of computer onto Docking Connector.

Technical line drawing of a mechanical or electronic component with no visible text or symbols

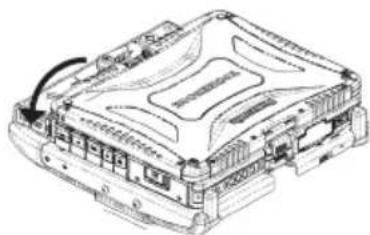

4) With computer seated on Docking Station, rotate Latch Handle clockwise to the "DOCK" position.

5) For theft deterrence, secure computer by locking Docking Station with supplied key (Hardware Kit Item 2).

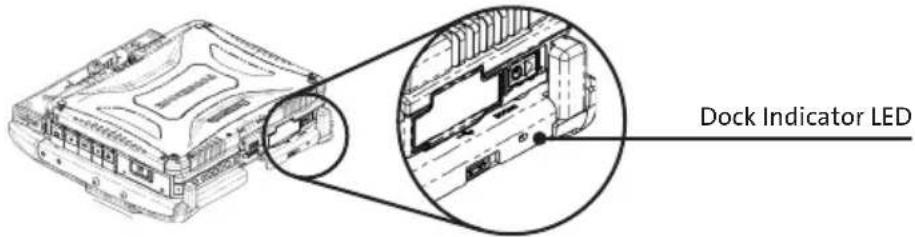

6) Power on computer. The Dock Indicator LED will light up green to indicate proper system function.

DOCK INDICATOR LED DIAGNOSTICS:

GREEN: Computer docked, all ports ready for use.

ORANGE: USB and LAN ports are not functioning.

RED: Computer is not supported or a connection is not made.

RED (Blinking): Firmware error has occurred.

NOT LIT: Computer is not installed, is turned off, or in standby or sleep mode.

Operation - Undocking

1) If previously locked, unlock Docking Station using supplied key.

2) Rotate Latch Handle counter-clockwise to the "UNDOCK" position.

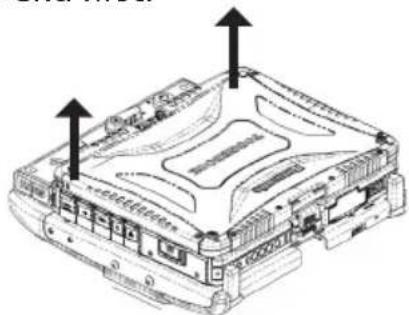

3) Once unlatched grab both sides of computer and carefully lift out of Docking Station, rear end first.

Technical line drawing of a computer chassis with two upward arrows indicating orientation or movement (no text or symbols present)

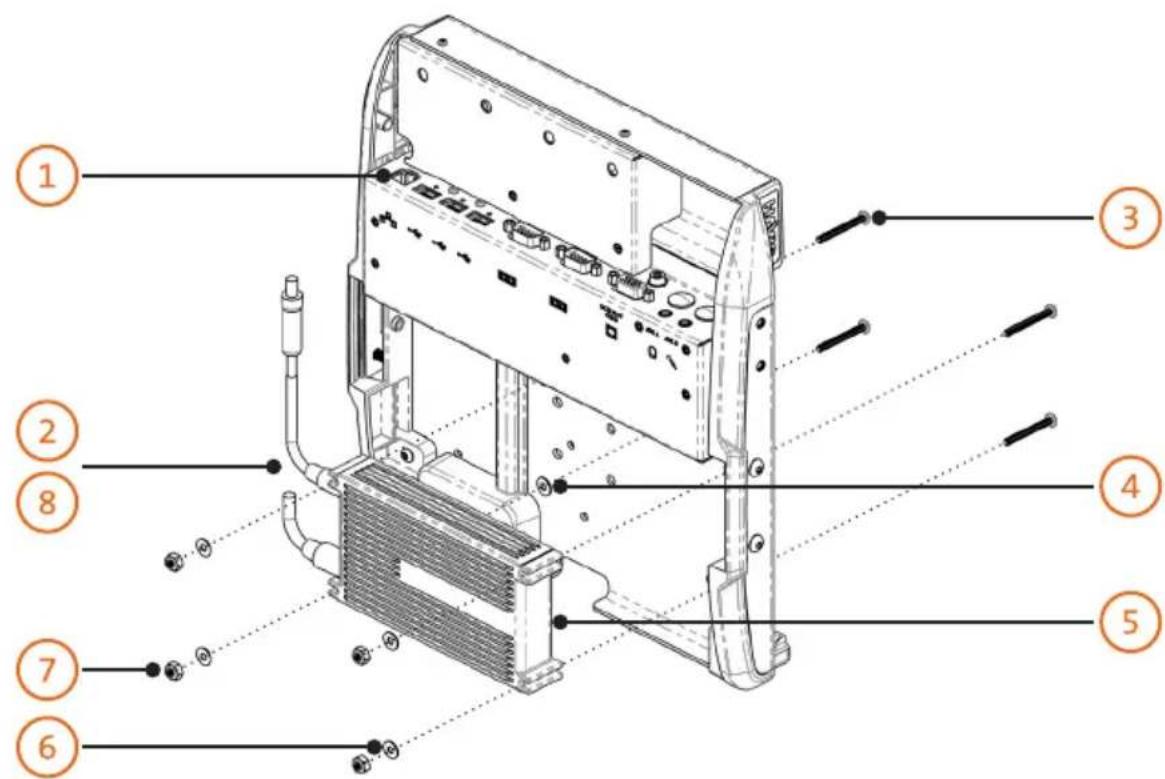

1) Power off computer and ensure all cables are disconnected from computer.
2) Plug in both input and output cables (supplied with LPS-101) into the Power Supply brick.
3) With the Docking Station right side up, drop (4) #6-32 screws (supplied with LPS-101) through the holes in Docking Station.
4) While supporting the (4) #6-32 screws, flip the Docking Station upside down and place (1) flat washer over each of the (4) #6-32 screws (4 places).
5) Place the Power Supply brick over the (4) #6-32 screws ensuring that the screws pass through all of the bosses on the Power Supply brick and the cables are pointing in the direction shown.
6) Place the remaining (4) flat washers over each of the #6-32 screws and hand start a #6-32 locking nut onto each of the screws.
7) Torque all (4) #6-32 locking nuts to 8.0 in-lbs (0.9 Nm) ±10% ensuring that the #6-32 screws stayed properly aligned with the bosses of the Power Supply brick.
8) Route the Power Supply output cable as shown and secure connector to power input port on Docking Station.
9) Return to Installation Step #2 on Page 5.

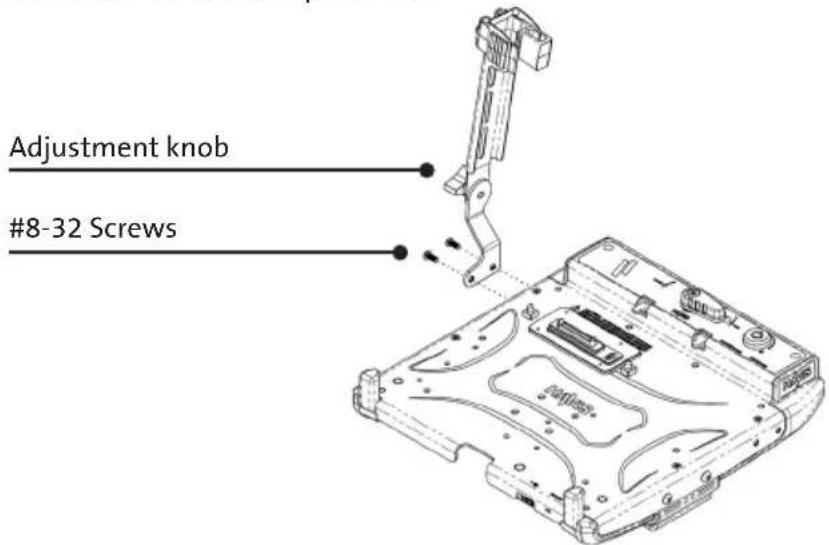

1) Align holes in Screen Stiffener bracket with the mounting holes on the left side of Docking Station.
2) Insert the (2) #8-32 Screws and torque to 16.0in-lbs (1.8Nm) ± 10%.
3) Loosen Adjustment Knob to set the desired position of the LCD and tighten Adjustment Knob to secure position.

Installation of USB Laptop Lighting (DS-DA-101 - Optional)

NOTE: A Screen Stiffener (DS-DA-405) is required to install Laptop Lighting (DS-DA-101) to Docking Station.

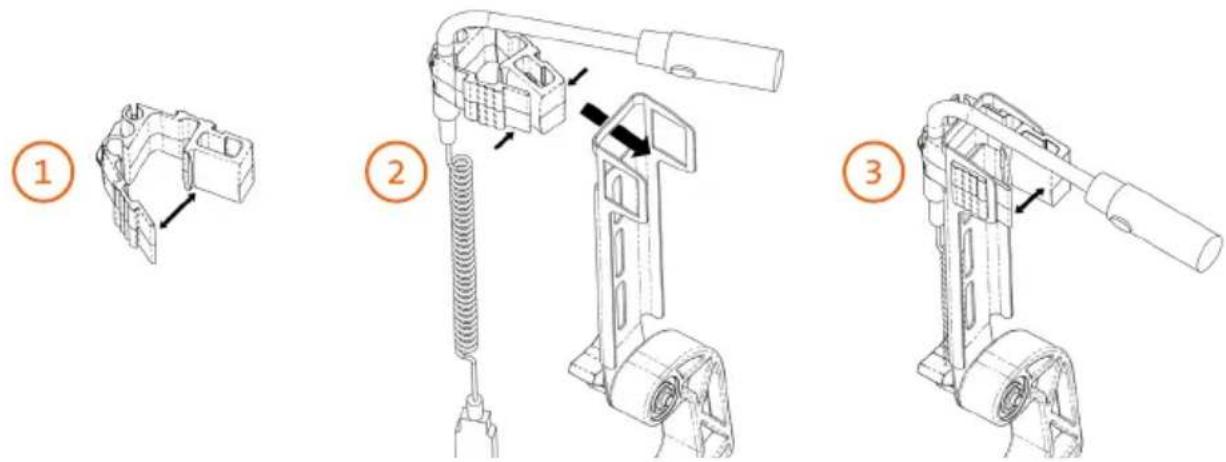

1) Remove Screen Stiffener Clip from Upper Bracket and spread open tabs to allow insertion of USB Laptop Light cable into accessory retaining hole.
2) Snap USB Powered Light into Screen Stiffener Clip so that top surface of Bulb is flush with bottom surface of Clip and insert assembly into Upper Bracket.
3) Work tabs outward so that retaining features on both sides of Clip fit through positioning window on the Screen Stiffener Upper Bracket.
4) Plug the Laptop Lighting USB connector into one of the USB ports in your computer or Docking Station.

Related Products

Havis offers a wide variety of accessory products specifically for use with the DS-PAN-210 Series and DS-PAN-220 Series Docking Station. For more information or to order please visit www.havis.com.

Simple black silhouette of a firearm (no text or symbols)

DS-DA-405

Screen Stiffener

Secure your laptop screen to prevent excess wear and reduce vibration while in use.

Black electronic device with two cables and a rectangular connector (no visible text or symbols)

LPS-101

90W Power Supply

External power supply and cable for Panasonic CF-19 Toughbooks with cigarette lighter adaptor.

Black handheld electronic device with coiled cable (no visible text or symbols)

DS-DA-102

USB Powered Light

Soft red LED light illuminates the laptop keyboard for night viewing.

3D rendering of a black metal bracket with two cutouts, shown in isometric view (no text or symbols)

DS-DA-210

Cable Cover Bracket

Protect cable connections at rear of Docking Station.

3D rendering of a black metal bracket with mounting holes (no text or symbols)

DS-DA-213

Card Reader Mounting Bracket

Mount an E-Seek Model 250 card reader to the side of the Docking Station. (Bracket can be customized for other Card Reader Models)

Two black plastic components with rounded edges, no visible text or symbols

DS-DA-214

Side Cover Brackets

Strong steel and tamper-proof screws provide additional security to prevent hard drive theft.
