EN-FR4020 - Car speaker Fusion - Free user manual and instructions

Product Type	Car Speaker
Brand	Fusion
Model	EN-FR4020
Speaker Size	4 inches (100 mm)
Speaker Type	2-Way Coaxial
Woofer Cone Material	Polypropylene
Tweeter Type	Piezo
Impedance	4 ohms
Power Handling (RMS)	30 watts
Power Handling (Peak)	60 watts
Frequency Response	80 Hz - 20 kHz
Sensitivity	88 dB
Dimensions (Diameter)	4.2 inches (107 mm)
Mounting Depth	1.8 inches (46 mm)
Weight per Speaker	0.55 lbs (0.25 kg)
Operating Power Source	12V DC from car electrical system
Key Features	Water-resistant cone, included mounting hardware, spring-loaded terminals
Maintenance	Clean with dry cloth; avoid moisture and solvents
Safety	Disconnect battery before installation; ensure secure mounting
Spare Parts & Repairability	Non-serviceable; replace entire unit

Frequently Asked Questions - EN-FR4020 Fusion

What is the size of the Fusion EN-FR4020 speaker?

The speaker is a 4-inch (100 mm) coaxial speaker, with a mounting depth of 1.8 inches.

What is the power handling of this speaker?

It handles 30 watts RMS and 60 watts peak power.

Is the Fusion EN-FR4020 compatible with my car?

It fits most vehicles with standard 4-inch speaker openings. Always check mounting depth and diameter before purchase.

Does it come with mounting hardware?

Yes, the package includes screws and brackets for easy installation.

What is the impedance of the speaker?

The impedance is 4 ohms, standard for most car audio systems.

Can I use these speakers in a boat or marine environment?

The cone is water-resistant, but the speaker is not fully marine-rated. Avoid prolonged exposure to moisture.

How do I clean the speakers?

Gently wipe with a dry, soft cloth. Do not use harsh chemicals or water directly on the speaker.

What type of tweeter does it have?

It features a piezo tweeter for clear high-frequency response.

What is the frequency response range?

The frequency response is 80 Hz to 20 kHz, covering bass to treble.

Are there any safety precautions for installation?

Always disconnect the car battery negative terminal before installation to avoid short circuits. Ensure the speaker is securely mounted.

USER MANUAL EN-FR4020 Fusion

Rated Power (Watts) 35 40 45 75

Frequency Response 42Hz - 25kHz 35Hz - 25kHz 29Hz - 25kHz 25Hz - 30kHz

Impedance 4 Ohms 4 Ohms 4 Ohms 4 Ohms

Sensitivity 86dB 88dB 89dB 90dB

Cone Material	IMPP	IMPP	IMPP	IMPP
Tweeter	Silk Dome	Silk Dome	Silk Dome	Silk Dome
Mounting Depth	52mm (2-1/32")	57mm (2-1/4")	65mm (2 9/16")	84mm (3 5/16")
Mounting Diameter	103mm(4-1/16")	121mm(4-13/16")	131mm(5-5/32")	156 x 222mm(6-3/16 x 8-24/32")

Simple line drawing of a circular object with two small protrusions and a central dark area (no text or symbols)

Technical line drawing of a speaker component with mounting holes and a circular base (no text or symbols)

INSTALLATION GUIDELINES

Ensure the audio system is turned off before making any connections to the amplifier, speakers or source unit. Failure to do so could result in permanent damage to the audio system.

When wiring the speakers ensure that the wire is protected from sharp objects and always use rubber grommets when wiring through metal panels. Ensure all terminals and connections are protected from the vehicle chassis and from each other as failure to do so could result in permanent damage to the audio system.

When connecting the source unit and speakers ensure you connect the positive and negative output wire from the source unit to the corresponding crossover terminals. This will ensure the audio system will be in phase.

1) Ensure there is adequate clearance and depth for the speaker to be mounted
2) Use the supplied template to mark out & cut the correct diameter hole
3) Drill four holes for the mounting screws

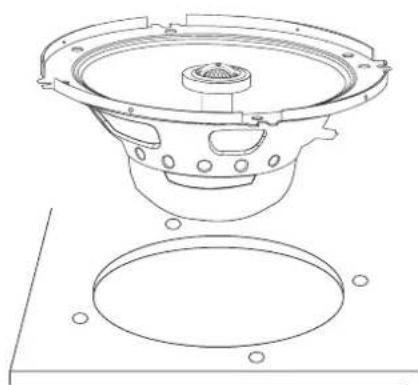

4) Insert the speaker and grille frame and affix with the screws provided

WARNING: Do not drill mounting holes with speaker in place as this could allow drill shavings to damage the voice coil and void your warranty.

FUSON®

RECORD YOUR PURCHASE DETAILS HERE:

SERIAL NUMBER

DATE OF PURCHASE

AFFIX RECEIPT HERE

For further product and installation information, please visit www.fusionelectronics.com

WARNING: Audio Systems can produce sound levels over 135dB. Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss! Please watch for emergency vehicles as warning signals may not be heard. USE COMMON SENSE!
