USER MANUAL PMM-401 DAP-Audio
ENGLISH
PMM-401
V1
Ordercode: D1531
PMM-401
Table of contents
Warning 2
Safety Instructions....2
Operating Determinations....3
Connection with the mains 4
Return Procedure 4
Claims 4
Description of the device....5
Frontside 5
Backside....6
Installation....6
Set Up and Operation....6
Connection examples....7
1 x IN/4 x OUT....7
4 x IN/1 x OUT....7
Connection Cables 8
Maintenance....8
Troubleshooting 9
Product Specifications....9
Notes 10
Warning
For your own safety, please read this user manual carefully before your initial start-up!
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. Save the carton and all packing materials. In the event that a device must be returned to the factory, it is important that the device is returned in the original factory box and packing.
Your shipment includes:
• DAP PMM-401
- User manual
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
Safety Instructions
Every person involved with the installation, operation and maintenance of this system has to:
- be qualified
• follow the instructions of this manual
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!
Before the initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the system.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the system are not subject to warranty.
This system contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system.
• Make sure you do not use the wrong kind of cables or defective cables.
- Never remove warning or informative labels from the unit.
- Never use anything to cover the ground contact.
- Never leave any cables lying around.
- Do not connect this system to a dimmerpack.
- Do not switch the system on and off in short intervals, as this would reduce the system's life.
- Do not open the device and do not modify the device.
- Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output.
- Do not plug mics into the console (or stage box) while Phantom Power is on. Also mute the monitor / Pa system when turning Phantom Power on or off. Allow the system to adjust for a couple of seconds, before setting the input gains.
• Only use system indoors, avoid contact with water or other liquids.
- Avoid flames and do not put close to flammable liquids or gases.
• Make sure that the signals into the mixer are balanced, otherwise hum could be created.
• Make sure you use DI boxes to balance unbalanced signals; All incoming signals should be clear.
- Avoid ground loops! Always be sure to connect the power amps and the mixing console to the same electrical circuit to ensure the same phase!
- If system is dropped or struck, disconnect the power adapter immediately. Have a qualified engineer inspect for safety before operating.
- If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your system. Leave the system switched off until it has reached room temperature.
- If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Dap Audio dealer for service.
• Repairs, servicing and electric connection must be carried out by a qualified technician.
- WARRANTY: Till one year after date of purchase.
Operating Determinations
This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects.
If this system is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
You endanger your own safety and the safety of others!
Improper installation can cause serious damage to people and property!
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
| International | EU Cable | UK Cable | US Cable | Pin |
| L | BROWN | RED | YELLOW/COPPER | FASE |
| N | BLUE | BLACK | SILVER | NULL |
| YELLOW/GREEN | GREEN | GREEN | EARTH |
Make sure that the device is always connected properly to the earth!
Improper installation can cause serious damage to people and property!
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the customer's responsibility. Highlite reserves the right to use its own discretion to repair or replace product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is damaged due to shipping. Transportation damage has to be reported to us within one day after receipt of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement of which the obligation is resulting.
Description of the device
The PMM-401 is a 4-channel passive mixer for expanding a mixer with extra line signals. It requires no batteries or other power sources. The device can be used as a 1 x IN/4 x OUT or 4 x IN/1 x OUT box.
Features
• No power supply needed
- 4-in, 1-out mixer
• Frequency response: 20Hz-20kHz
- Inputs: 4 x 6,3 mm TRS jack
• Outputs: 4 x 6,3 mm TRS jack
- Input impedance line: 1Meg
- Input impedance: 50 kOhm
• Output impedance: 12 kOhm
• Dimensions: 154 x 135 x 53 mm (LxWxH)
- Weight: 0,7 kg

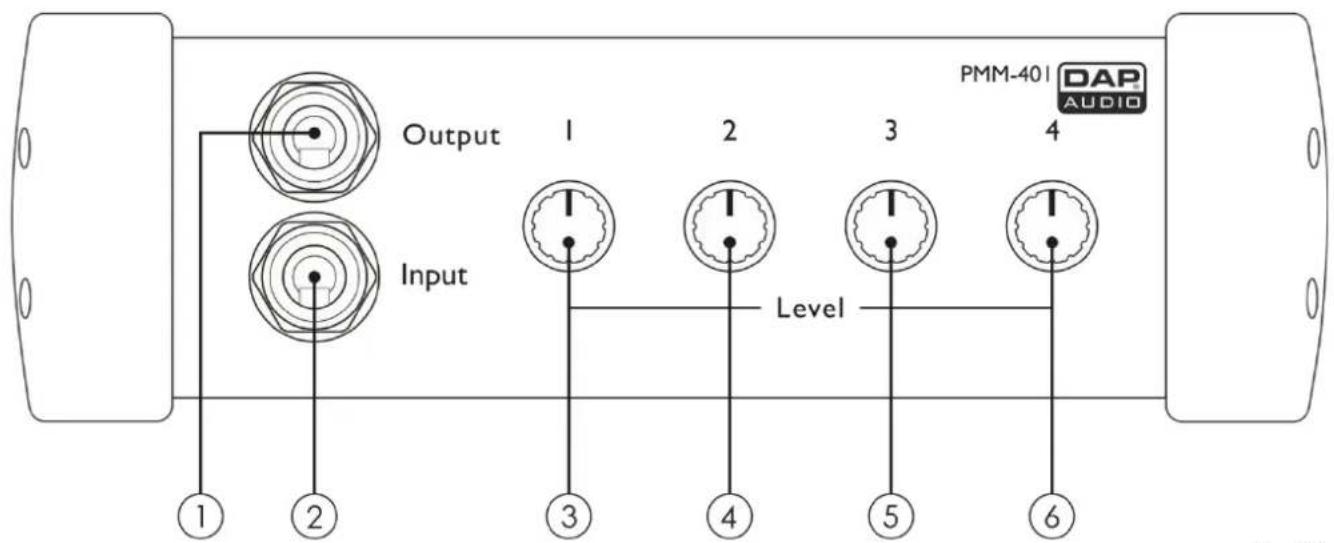

Frontside
Fig. 01
① Master balanced/stereo output, 1/4" TRS jack
② Master balanced/stereo input, 1/4" TRS jack
③ The volume control adjusts the level of the channel 1 signal
④ The volume control adjusts the level of the channel 2 signal
⑤ The volume control adjusts the level of the channel 3 signal
⑥ The volume control adjusts the level of the channel 4 signal

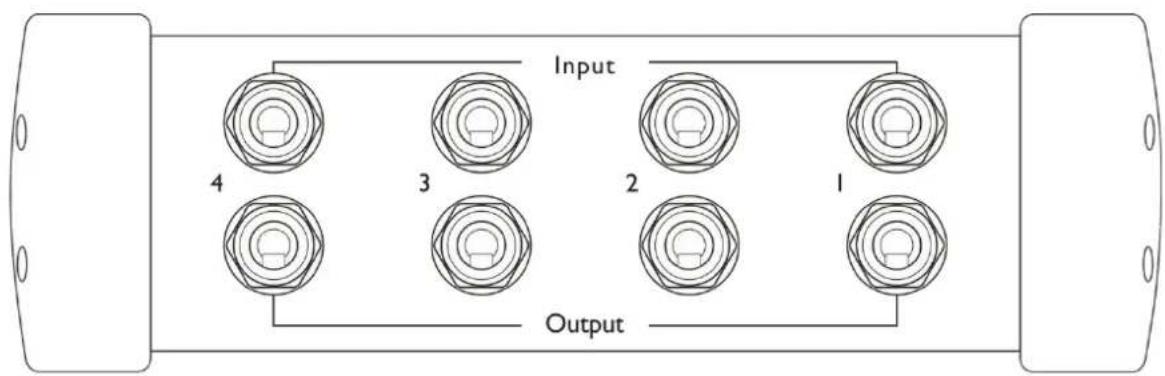

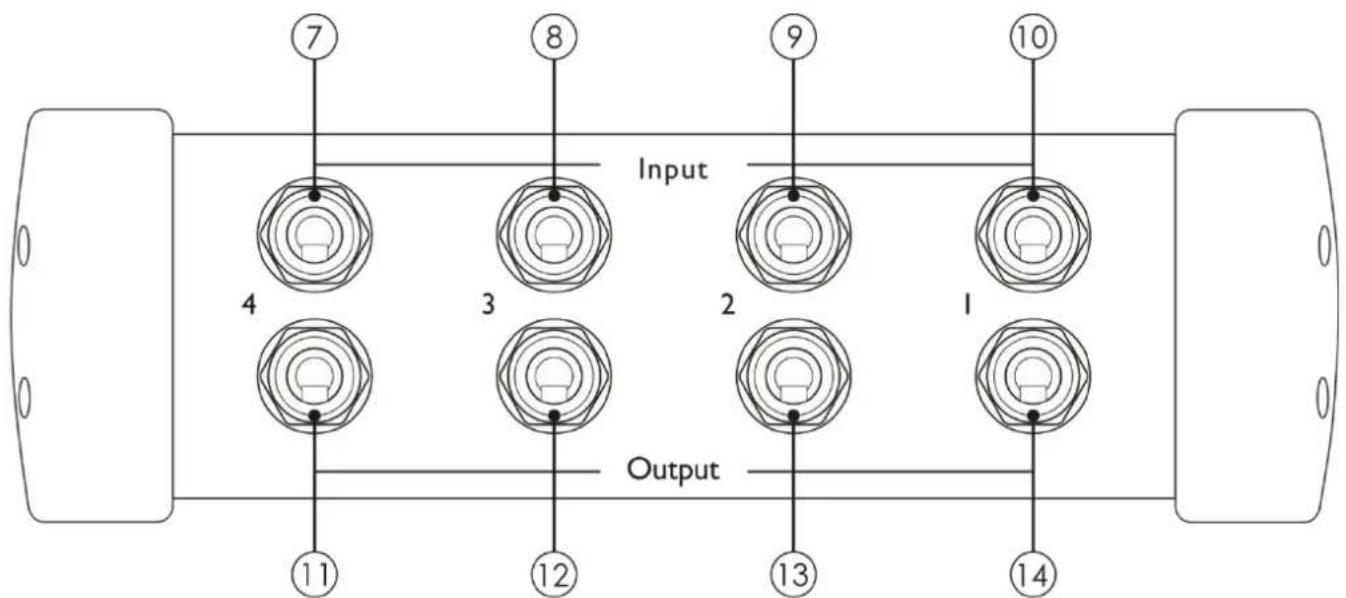

Backside
Fig. 02
⑦ Balanced input 1/4" TRS jack, channel 4
⑧ Balanced input 1/4" TRS jack, channel 3
⑨ Balanced input 1/4" TRS jack, channel 2
⑩ Balanced input 1/4" TRS jack, channel 1
⑪ Balanced output 1/4" TRS jack, channel 4
⑫ Balanced output 1/4" TRS jack, channel 3
⑬ Balanced output 1/4" TRS jack, channel 2
⑭ Balanced output 1/4" TRS jack, channel 1
Installation
Remove all packing materials from the PMM-401. Check that all foam and plastic padding is removed. Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Install this device only on a flat surface.
Do not supply power before all components of the system are set up and connected properly. Make sure to power-up your PMM-401 before your power amplifiers are switched on in order to avoid loud transients, which could damage your speakers or annoy your audience.
Connection examples

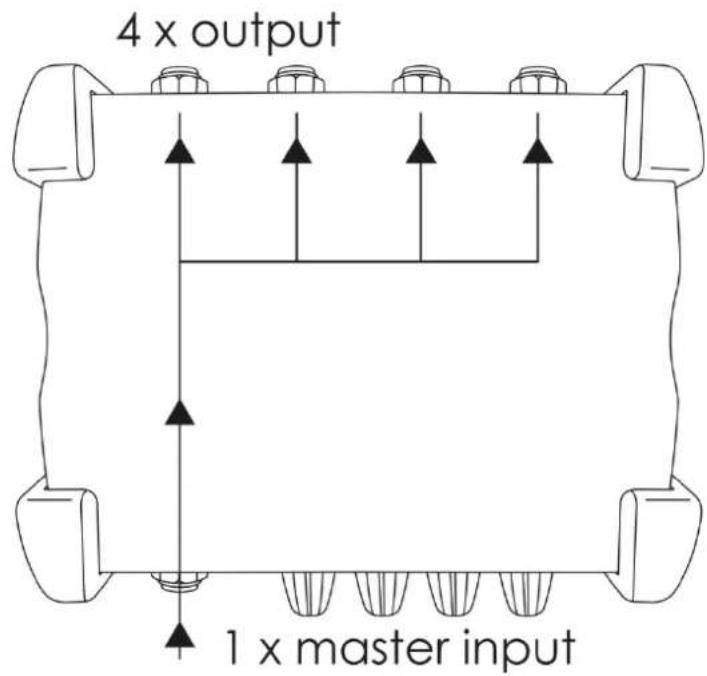

1 x IN/4 x OUT
Fig. 03

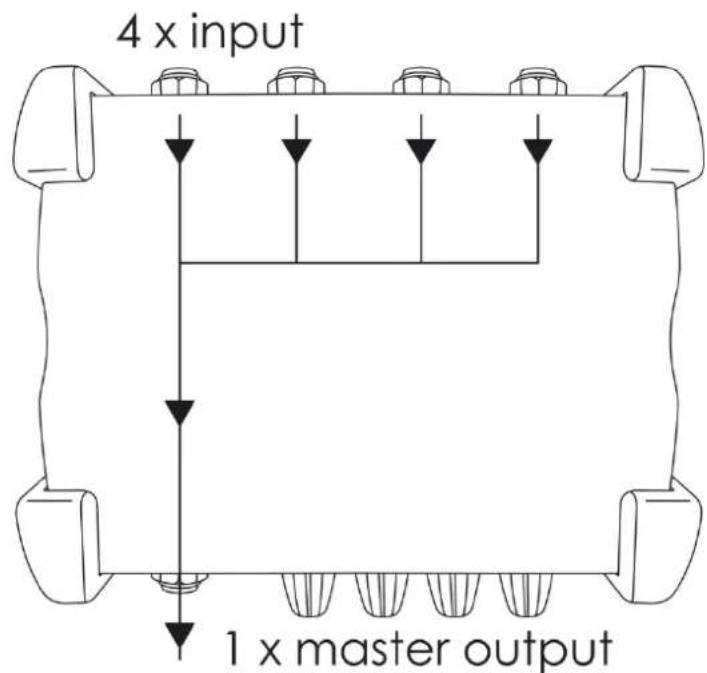

4 x IN/1 x OUT
Fig. 04
Connection Cables
Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables.

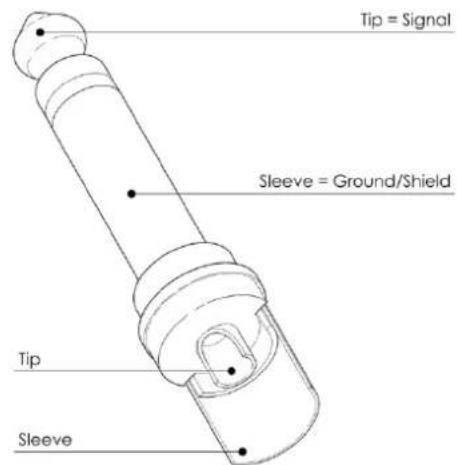

Unbalanced

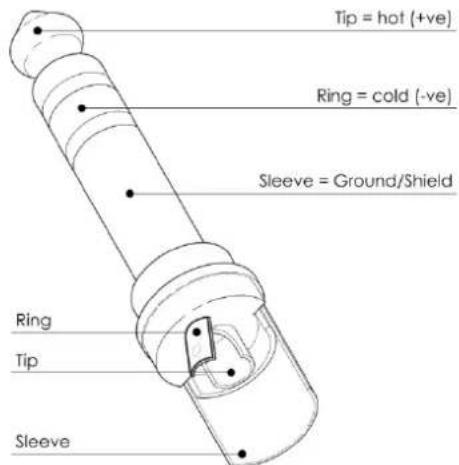

Balanced

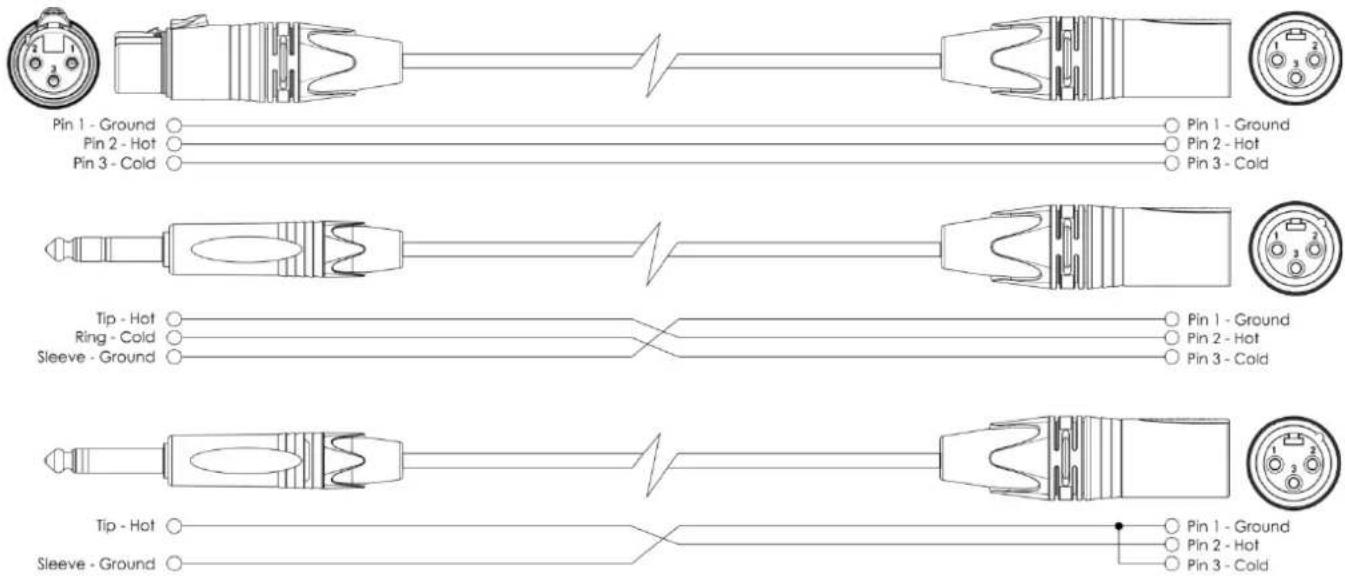

For these applications the unit provides 1/4" TRS and XLR connectors to easily interface with most professional audio devices. Follow the configuration examples below for your particular connection.
Maintenance
The DAP PMM-401 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.
Troubleshooting
DAP PMM-401
This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps.
01) If the device does not operate properly, unplug the device.
02) Check power from the wall, all cables, connections, etc.
03) If all of the above appears to be O.K., plug the unit in again.
04) If nothing happens after 30 seconds, unplug the device.
05) Return the device to your DAP Audio dealer.
Product Specifications
| Frequency response: | 20Hz-20kHz |
| Inputs: | 6,3 TRS jack |
| Outputs: | 6,3 TRS jack |
| Input impedance line: | 1Meg |
| Input impedance: | 50 kOhm |
| Output impedance: | 12 kOhm |

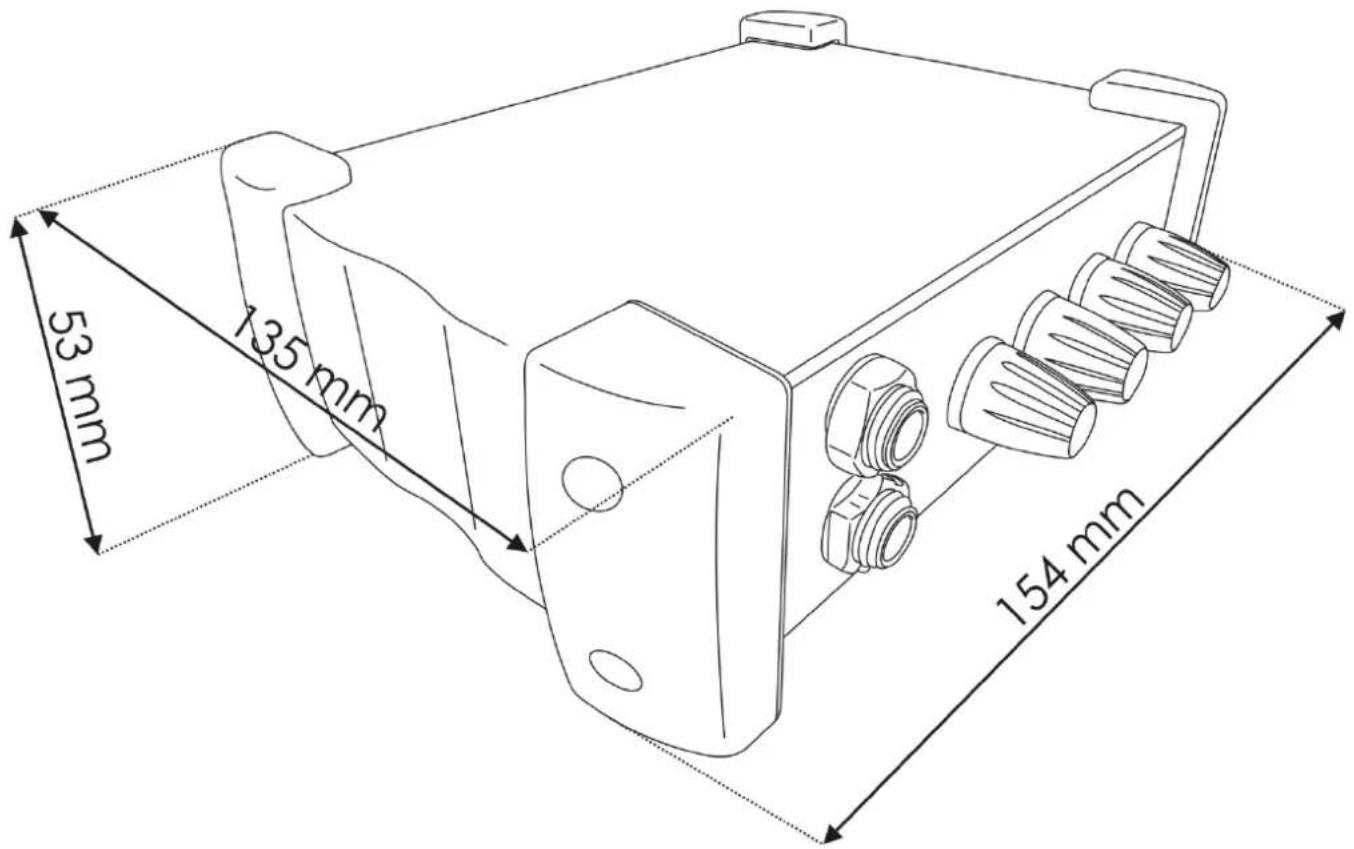

| Dimensions: | 154 x 135 x 53 mm (LxWxH) |
| Weight: | 0,7 kg |
Design and product specifications are subject to change without prior notice.
CE
Website: www.Dap-audio.info
Email: service@highlite.nl
