AKF 595 IX - Cooker IGNIS - Free user manual and instructions

Product Type	Freestanding Electric Cooker
Brand	IGNIS
Model	AKF 595 IX
Energy Source	Electric
Dimensions (H x W x D)	85 x 50 x 60 cm
Weight	Approximately 45 kg
Power Supply	230 V ~ 50 Hz
Power Consumption	Max 10.5 kW
Hob Type	Ceramic Glass (4 cooking zones)
Hob Features	Rapid heating, residual heat indicators, child lock
Oven Type	Electric Fan-Assisted (Multifunction)
Oven Capacity	65 liters
Oven Functions	Top heat, bottom heat, grill, fan, defrost, pizza mode
Oven Temperature Range	50°C – 250°C
Oven Cleaning	Easy-clean enamel interior, removable door glass
Safety Features	Child lock, auto shut-off, cool door, overheating protection
Control Type	Knobs and buttons (push-to-turn)
Display	Analog timer with alarm
Energy Efficiency Class (Oven)	A
Spare Parts Availability	Through IGNIS service centers for up to 10 years
Installation Requirements	Flush or built-in installation, requires 10 mm² supply cable
Warranty	2 years (subject to terms)

Frequently Asked Questions - AKF 595 IX IGNIS

How do I install the IGNIS AKF 595 IX cooker?

The cooker must be installed by a qualified electrician. Ensure the supply voltage matches 230 V ~ 50 Hz and the electrical circuit is rated for at least 10.5 kW. Level the appliance using the adjustable feet and secure it with the anti-tilt bracket provided. Refer to the installation manual for detailed steps.

How do I use the oven functions?

Turn the oven function selector knob to choose between top heat, bottom heat, grill, fan, or a combination. Set the desired temperature using the thermostat knob (50°C to 250°C). Preheating is recommended for most functions. The timer can be set for up to 60 minutes with an audible alarm.

Why is the hob not heating?

Check if the child lock is activated (press and hold the lock button for 3 seconds). Ensure the cooking zone is switched on and the knob is turned to a power level. If the residual heat indicator is still lit, the zone may be too hot; wait until it cools. If the problem persists, contact IGNIS support.

How do I clean the ceramic hob?

Allow the hob to cool completely. Wipe with a soft cloth dampened with water and mild detergent. For burnt-on residues, use a ceramic hob scraper and specialized cleaner. Avoid abrasive sponges or harsh chemicals.

How do I clean the oven?

The oven interior has an easy-clean enamel coating. For light cleaning, wipe with a damp cloth. For heavier soil, use a non-abrasive oven cleaner. The door glass can be removed for thorough cleaning. Avoid using steam cleaners.

What should I do if the oven does not heat?

Check that the power supply is on and the function knob is set correctly. Verify the oven door is fully closed. If the problem continues, the heating element or thermostat may be faulty. Contact IGNIS service for replacement.

Can I replace the oven light myself?

Yes. Disconnect the appliance from the power supply. Remove the glass cover and replace the bulb with a new one of the same type (usually 25 W, 300°C resistant). Reattach the cover and reconnect the power.

How do I enable the child lock on the hob?

Press and hold the child lock button (usually marked with a key symbol) for 3 seconds. The lock indicator will light. Repeat the same action to deactivate. The lock prevents accidental activation of the cooking zones.

What spare parts are available for this model?

IGNIS offers a full range of spare parts including heating elements, oven door glass, knobs, thermostats, and control boards. Use the model number AKF 595 IX to order from authorized service centers or online.

What is the energy efficiency class of the oven?

The oven is rated energy efficiency class A according to EU regulations. This ensures lower energy consumption compared to lower classes. Using the fan-assisted mode can further reduce energy use.

USER MANUAL AKF 595 IX IGNIS

WAARSCHUWINGEN EN ALGEMENE WENKEN

Blz. 22

ALMESTON BOOK PER CHESPARING

第28

REPRODUITEN EN THE EQUITY OF KONOMPLAAT

21.23

OPSPOREN VAN STORINGEN

Blz 24

Simple black-and-white sketch of a tree with four rounded leaves and a curved trunk (no text or symbols)

WAARSCHUWINGEN EN ALGEMENE WENKEN

Line drawing of a hand placing a tray with circular indentations into a tray (no text or symbols)

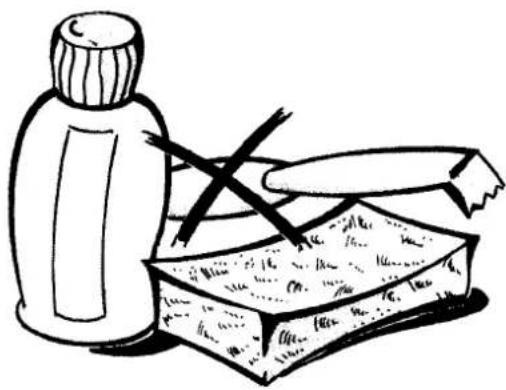

Illustration of a bottle and a rectangular block with chopsticks, no text or symbols present

Line drawing of two hands holding a blank rectangular object (no text or symbols)

INSTALLATIE

Line drawing of a hand turning a valve on a circular component, with a separate view of the same device (no text or symbols present)

Simple line drawing of a screwdriver with four circular base holes (no text or symbols)
