Product Type	Monitor
Model	CS270CNL
Brand	EIZO
Screen Size	27 inches
Resolution	2560 x 1440 (WQHD)
Panel Type	IPS
Brightness	350 cd/m²
Contrast Ratio	1000:1
Response Time	5 ms (gray-to-gray)
Color Gamut	99% Adobe RGB
Connectivity	DisplayPort, HDMI, USB-C (with 60W power delivery), USB Hub (3.1 Gen1)
Power Consumption	Typical 22 W, maximum 105 W
Dimensions (W x H x D)	611 x 367 x 55 mm (without stand)
Weight	6.8 kg (without stand)
Ergonomics	Height adjustable, tilt, swivel, pivot
Special Features	Built-in calibration sensor, uniformity correction, color temperature presets
Cleaning	Use a soft, dry cloth. Do not use abrasive cleaners.
Safety	Complies with TCO, EnergyStar, ErP. Do not block ventilation slots.
Spare Parts / Repairability	Replaceable stand, power supply; service through authorized EIZO dealers.
General Information	Designed for color-critical applications; 5-year warranty (including LCD panel) subject to terms.

Frequently Asked Questions - CS270CNL EIZO

How do I calibrate the EIZO CS270CNL monitor?

The monitor has a built-in calibration sensor. Use the included ColorNavigator software to set target color values. The sensor will automatically adjust the monitor to match.

What is the optimal resolution for this monitor?

The native resolution is 2560 x 1440 (WQHD). For best image quality, set your computer to output this resolution.

Can I connect multiple monitors to my computer?

Yes, if your graphics card supports multiple outputs. Use DisplayPort, HDMI, or USB-C to connect up to two monitors. Daisy-chaining is available via DisplayPort MST.

How to clean the screen safely?

Turn off the monitor and unplug it. Use a soft, lint-free cloth slightly dampened with water. Do not use alcohol, ammonia, or abrasive cleaners.

What is the warranty period for the CS270CNL?

EIZO offers a 5-year warranty, including the LCD panel. Conditions apply; register your product on the EIZO website to activate.

How to enable power saving mode?

Go to the monitor's OSD menu under 'Power Management' and select 'Eco Mode'. You can also enable automatic power saving through driver settings.

Does the monitor support HDR?

No, the CS270CNL is designed for sRGB/Adobe RGB workflows and does not support HDR. It focuses on color accuracy rather than high dynamic range.

How to adjust brightness or contrast?

Use the buttons on the front bezel to access the OSD menu. Navigate to 'Brightness' and 'Contrast' to adjust. For precise calibration, use the ColorNavigator software.

Is the monitor VESA mount compatible?

Yes, it supports VESA 100x100 mm mounting. Use the included stand or attach to a compatible arm.

Why does the screen appear yellowish?

This may be due to a warm color temperature preset. Go to OSD menu and select a cooler temperature like 6500K or use the calibration sensor to set white point.

USER MANUAL CS270CNL EIZO

Calibration Color LCD Monitor

Important

Please read PRECAUTIONS, this User's Manual, and the Setup Guide (separate volume) carefully to familiarize yourself with safe and effective usage.

• Please refer to the Setup Guide for basic information ranging from connection of the monitor to a PC or external device to using the monitor.
• The latest User's Manual is available for download from our web site: http://www.eizoglobal.com

Location of Caution Statement

CAUTION

Risk of electric shock, Do not open.

ATTENTION

This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside this region, the product may not perform as stated in the specifications..

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation's receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

Notice for this monitor

Aside from general purposes like creating documents, viewing multimedia content, this product is also suited to applications such as graphics creation and digital photo processing, where accurate color reproduction is a priority.

This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications.

This product may not be covered by warranty for uses other than those described in this manual.

The specifications noted in this manual are only applicable when the following are used:

- Power cords provided with the product

- Signal cables specified by us

Only use optional products manufactured or specified by us with this product.

If you place this product on a lacquer-coated desk, the color may adhere to the bottom of the stand due to the composition of the rubber. Check the desk surface before use.

It takes about 30 minutes for the performance of electrical parts to stabilize. Please wait 30 minutes or more after the monitor power has been turned on, and then adjust the monitor.

Monitors should be set to a lower brightness to reduce changes in luminosity caused by long-term use and maintain a stable display.

When the screen image is changed after displaying the same image for extended periods of time, an afterimage may appear. Use the screen saver or power save function to avoid displaying the same image for extended periods of time.

If the monitor displays continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.

Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime (refer to “Cleaning” (page 4)).

The LCD panel is manufactured using high-precision technology. Although, missing pixels or lit pixels may appear on the LCD panel, this is not a malfunction. Percentage of effective dots: 99.9994% or higher.

The backlight of the LCD panel has a fixed lifetime. When the screen becomes dark or begins to flicker, please contact your local EIZO representative.

Do not press on the panel or edge of the frame strongly, as this may result in display malfunctions, such as interference patterns, etc. If pressure is continually applied to the panel, it may deteriorate or damage your panel. (If the pressure marks remain on the panel, leave the monitor with a black or white screen. The symptom may disappear.)

Do not scratch or press on the panel with any sharp objects, as this may result in damage to the panel. Do not attempt to brush with tissues as this may scratch the panel.

When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur on the interior and exterior surfaces of the monitor. In that case, do not turn the monitor on. Instead wait until the dew condensation disappears, otherwise it may cause some damage to the monitor.

Cleaning

Attention

• Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet or panel, and also quality deterioration of the image.
• Never use any thinner, benzene, wax, and abrasive cleaner, which may damage the cabinet or panel.

Note

- The optional ScreenCleaner is recommended for cleaning the cabinet and panel surface.

The stains on the cabinet and panel surface can be removed by moistening part of a soft cloth with water.

To use the monitor comfortably

• An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor according to the environmental conditions.
• Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.

CONTENTS

Notice for this monitor .... 3

Cleaning 4

To use the monitor comfortably....4

CONTENTS....5

Chapter 1 Introduction......6

1-1. Features 6

1-2. Controls and Functions 7

Font 7

Fear 8

Disk contents and software overview ..... 9

use ColorNavigator 6 9

1-4. Basic Operations and Functions .....10

Basic Adjustment menu operations ...... 10

Showing Button Guide 11

Functions....12

Chapter 2 Adjusting Screens .... 13

2-1. Setting Resolution....13

Compatible Resolutions/Formats ...... 13

switch signal formats 14

set the display resolution for the OS .....14

select screen size 15

2-2. To select the display mode (color mode)..17

2-3. Adjusting Color....18

adjust brightness 18

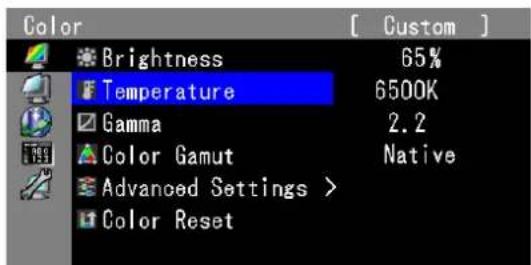

adjust the temperature 19

adjust gamma 19

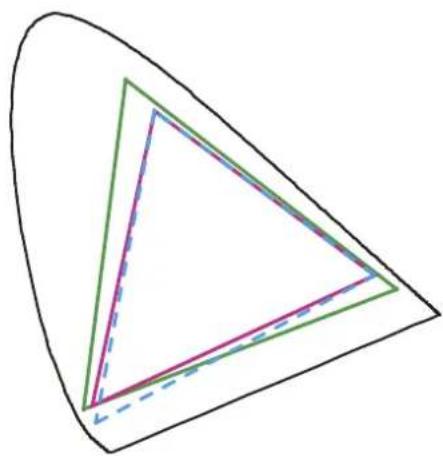

set color gamut 20

perform advanced adjustments 20

2-4. Specifying Color Space 24

2-5. Expanding Signal Output Range 25

extend the output range 25

select the range of signals to extend ..... 25

2-6. Setting HDMI.... 26

reduce noise.... 26

Chapter 3 Setting Monitor 27

3-1. Setting Adjustment Menu 27

Selecting the Language 27

Setting Orientation 27

● To change adjustment menu display position ...27

3-2. Skipping Unused Display Modes 28

3-3. Showing and Hiding the EIZO Logo ..... 28

3-4. Locking Operation Buttons 28

3-5. Changing DUE (Digital Uniformity Equalizer) Setting 29

3-6. Setting Signal Bandwidth 29

3-7. Reset to default 30

reset the color adjustments 30

- reset all adjustments to the default settings.... 30

Chapter 4 Connecting Multiple External Devices .... 31

4-1. To switch among input signals 32

4-2. To set input signal selection.... 32

4-3. Skipping Unused Input Signals....32

4-4. Switching USB Port Automatically ..... 33

Chapter 5 Power Saving Functions ...... 34

5-1. Setting Power Save.... 34

5-2. Adjusting the Brightness of Indicator.....35

5-3. Checking the Power Saving Level 35

5-4. Setting DisplayPort Power Save 35

Chapter 6 Troubleshooting....36

6-1. No picture 36

6-2. Imaging problems....37

6-3. Other problems 38

Chapter 7 Reference ...... 39

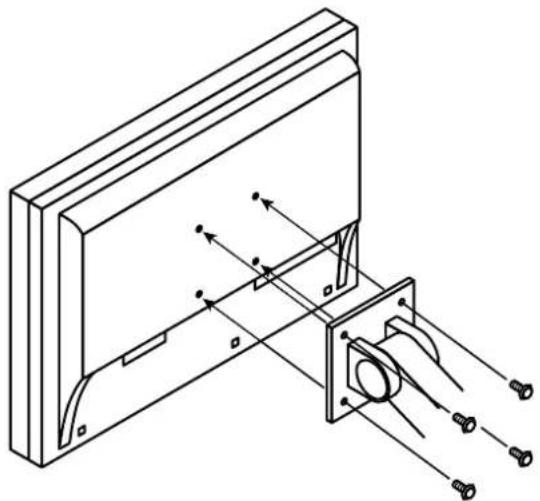

7-1. Attaching the Arm.... 39

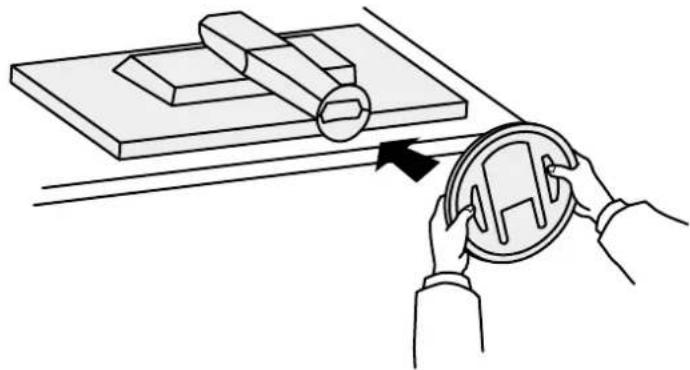

7-2. Detaching/Attaching Stand Base......40

7-3. Attaching/Detaching Cable Holder......43

7-4. Making Use of USB (Universal Serial Bus).... 44

System Requirement 44

●Connection Procedure 45

7-5. Showing Monitor Information...... 45

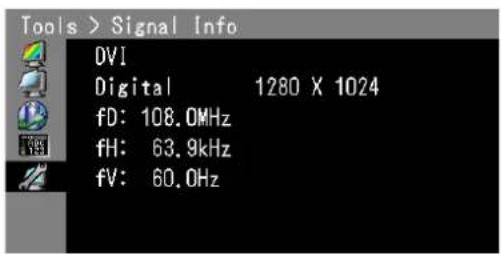

Displaying signal information 45

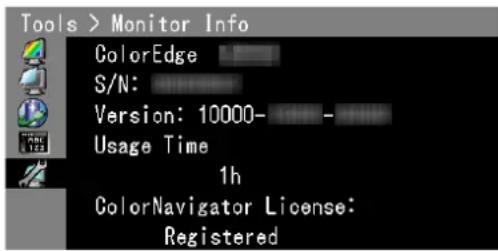

Displaying Monitor Information 46

7-6. Specifications .....47

Accessories 49

Chapter 8 Glossary .... 50

Appendix 52

Trademark 52

License / Copyright 52

FCC Declaration of Conformity 53

China Measures for RoHS Compliance in

ChinaRoHS 68

Chapter 1 Introduction

1-1. Features

• 27.0" wide format LCD
• Wide color gamut (Adobe®RGB coverage: 99%)
  • Supports a resolution of 2560 × 1440 .
• IPS panel with 178^ horizontal and vertical viewing angles
  • Frame synchronization mode supported (23.75 - 30.5Hz, 47.5 - 61.0Hz)

- 3 signal input terminals (DVI-D × 1, HDMI × 1, DisplayPort × 1)

• DisplayPort connector (applicable to 8 bit and 10 bit) ^4
• HDMI connector (applicable to 8 bit, 10 bit, and 12 bit) ^1,2
  Can handle PC signals in HDMI input

*1 Not applicable to audio signals.
*2 The maximum screen display is 10 bits.

• Color Mode function

Reproduces a color temperature, gamma, and gamut compliant with the following standard.

- Adobe ^® RGB / sRGB

- Stand with wide range of movement

The monitor can be adjusted to a position where it provides you with a comfortable and less tiring work environment.

(Tilt: up 35°/down 5°, Swivel: 344°, Adjustable height: 141 mm (Tilt: 35°), 148 mm (Tilt: 0°))

• Supports portrait format

- The “ColorNavigator 6” Color Management Software enables you to calibrate monitor characteristics and generate color profiles

See "1-3. EIZO LCD Utility Disk" (page 9).

- Displays HDCP (High-bandwidth Digital Protection) protected contents.

Note

• This monitor supports portrait format. You can change the orientation of the Setting menu when using the monitor screen in vertical display position. (see “Setting Orientation” (page 27))
• When using the monitor screen in a portrait position, the graphics board supporting portrait display is required. When placing the monitor in a portrait position, the settings of your graphics board need to be changed. Refer to the User's Manual of the graphics board for details.

1-2. Controls and Functions

Font

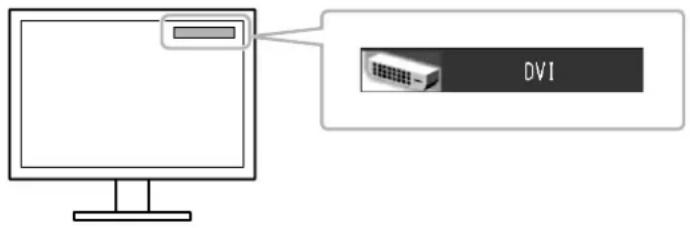

1. SIGNAL button	Switches input signals for display (page 32).

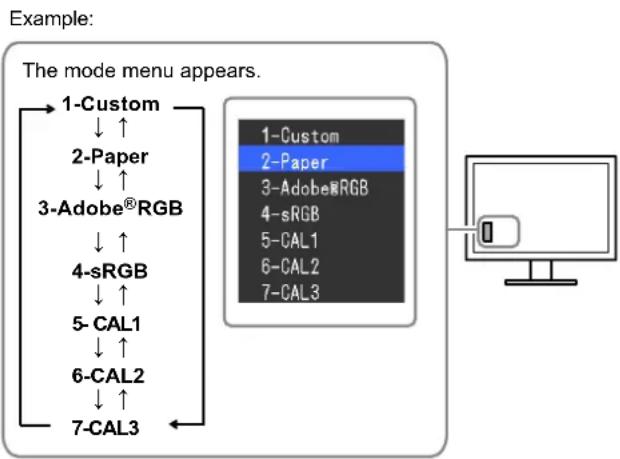

2. MODE button	Changes Color Mode (page 17).
3. RETURN button Cancels the setting/adjustment and exits the Adjustment menu.
4. ▲▼button	• Provides the menu selection as well as the adjustment and setting of a function.• Displays the Brightness menu (page 18).
5. ENTER button	Displays the Adjustment menu, determines an item on the menu screen, and saves values adjusted (page 10).
6. ⏻ button Turns the power on or off.
7. Power Indicator	Indicates the monitor's operation status.Blue: OperatingOrange: Power saving modeOFF: Main power/Power off

*1 For details, see "1-4. Basic Operations and Functions" (page 10).

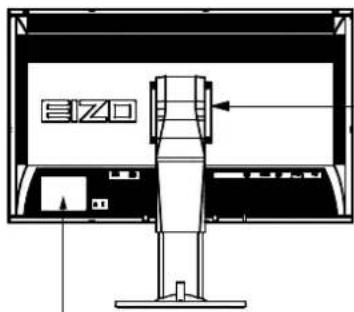

Roar

8. Main power switch Turns the main power on or off.
9. Power connector Connects the power cord.
10. Input signal connectors	Left: DVI-D connector / Center: HDMI connector / Right: DisplayPort connector
11. USB upstream port	Connects the USB cable to use the software that needs USB connection, or to use USB hub function (page 44).
12. USB downstream port Connects a peripheral USB device.
13. Stand ^2	Used to adjust the height and angle of the monitor screen.
14. Security lock slot	Complies with Kensington's MicroSaver security system.
15. Cable holder	Covers the monitor cables.

*2 This monitor can be installed with another compatible arm or stand by removing the standard stand section. (see "7-1. Attaching the Arm" (page 39)).

1-3. EIZO LCD Utility Disk

An “EIZO LCD Utility Disk” (CD-ROM) is supplied with this product. The following table shows the disk contents and the overview of the software programs.

Disk contents and software overview

The disk includes application software programs for adjustment, and User's Manual. Refer to "Readme.txt" or the "read me" file on the disk for software startup procedures or file access procedures.

Contents Overview
A “Readme.txt” or “read me” file
ColorNavigator 6 Software for calibrating monitor characteristics and generating ICC profiles (for Windows) and Apple ColorSync profiles (for Macintosh). (The monitor and PC must be connected using the USB cable.)
User's Manual of this monitor (PDF file)

T● use ColorNavigator 6

Refer to the corresponding User's Manual on the CD-ROM disk in order to install and use the software. When using this software, you will need to connect a PC to the monitor with the supplied USB cable. For details of the USB cable connection, see "7-4. Making Use of USB (Universal Serial Bus)" (page 44).

1-4. Basic Operations and Functions

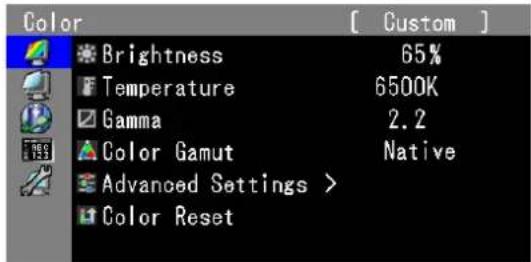

Basic Adjustment menu operations

1. Displaying Adjustment Menu

1. Press ENTER adjustment menu appears.

2. Adjusting/Setting

1. Choose a menu to adjust/set with ▲, and then press . ENTER

1. Choose an item to adjust/set with ▲, and then press . ENTER

1. Adjust/set the selected item with ▲, and then press . ENTER

3. Exiting

1. Press RETURNS. The Adjustment menu finishes.

Sowing Button Guide

When you press the front buttons (except the button), the button guide appears next to the button.

Note

• The button guide will continue to appear while the Adjustment menu or Mode menu is showing.
• The button guide is displayed differently depending on the selected menu or status.
• In CAL mode, the brightness cannot be adjusted even though the button guide is displayed above the ▲ and ▼ buttons.

Fonctions

The following table shows the menus for adjustment and setting items of each menu.

Main Menu Item Reference

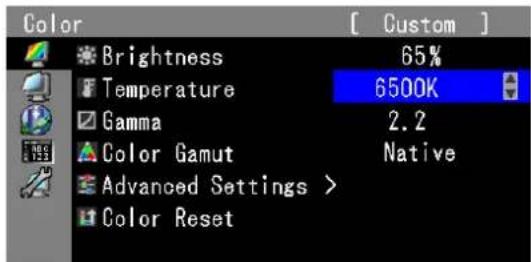

Color*1	[W41]	“2-3. Adjusting Color” (page 18)
	Color Reset	“3-7. Reset to default” (page 30)
Screen		“To select screen size” (page 15)
		“2-4. Specifying Color Space” (page 24)
		“2-5. Expanding Signal Output Range” (page 25)
		“2-6. Setting HDMI” (page 26)
Power Manager		“5-1. Setting Power Save” (page 34)
		“5-2. Adjusting the Brightness of Indicator” (page 35)
		“5-3. Checking the Power Saving Level” (page 35)
Menu SettingsABC123		“Selecting the Language” (page 27)
		“Setting Orientation” (page 27)
		“To change adjustment menu display position” (page 27)

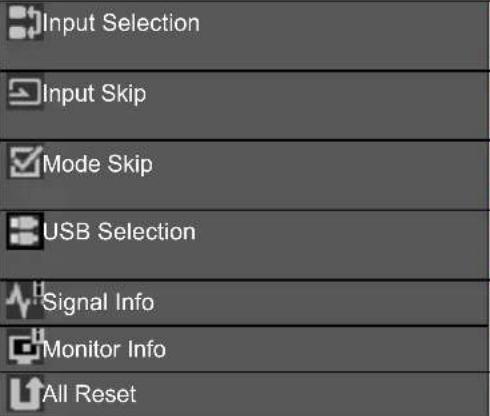

Tools		“4-2. To set input signal selection” (page 32)
		“4-3. Skipping Unused Input Signals” (page 32)
		“3-2. Skipping Unused Display Modes” (page 28)
		“4-4. Switching USB Port Automatically” (page 33)
		“7-5. Showing Monitor Information” (page 45)
		“3-7. Reset to default” (page 30)

*1 Functions available for adjustment and setting in Standard Mode (page 17) are displayed.
*2 This function is available with HDMI signal input.

Chapter 2 Adjusting Screens

2-1. Setting Resolution

Compatible Resolutions/Formats

The monitor supports the following resolutions and signal format.

Digital Input (DVI-D, DisplayPort, HDMI: PC signal ^*1 )

Resolution	Vertical scan frequency	DVI-D (Single Link)	DVI-D (Dual Link)	DisplayPort H	DMI
640x480 60 Hz
720x400 70 Hz
800x600 60 Hz
1024x768 60 Hz
1280x960 60 Hz
1280x1024 60 Hz
1600x1200	60 Hz
1920x1080	60 Hz
1920x1200	60 Hz
2560x1440	30 Hz	*2	-	-
2560x1440 *3	60 Hz	-		-

Digital Input (HDMI: video signal ^4 )

Format	Vertical scan frequency
	24Hz	25Hz	30Hz	50Hz	60Hz
640 x 480	-	-	-	-	√
480i	-	-	-	-	√
480p	-	-	-	-	√
576i	-	-	-	√	-
576p	-	-	-	√	-
720p	-	-	-	√	√
1080i	-	-	-	√	√
1080p	√	√	√	√	√

*1 When displaying PC signals by HDMI signal input, change the monitor's setting in advance (see "To switch signal formats" (page 14)).

*2 When displaying in this resolution or vertical scan frequency, change the monitor's setting in advance (see "To switch signal formats" (page 14)).

*3 Recommended resolution

T● switch signal formats

The monitor's displayable resolution can be changed. Use this function in the following cases.

• DVI: When displaying a dedicated resolution and vertical scan frequency for Single Link.
  • HDMI: When displaying PC signals.

Adjustable Range

• DVI: Dual Link / Single Link
- HDMI: Video / PC

Procedure

1. Press ⏻ to turn off the monitor.
2. Holding MODE down, press for at least two seconds to turn on the monitor. The "Optional Settings" menu appears.
3. Choose "Signal Selection" from "Optional Settings", and press ENTER.
4. Choose the input signal to set with ▲ or ▼ and press .ENTER
5. Select "Signal Format" with the selected input signal and press ENTER.
6. Switch the signal format with ▲ or ▼.
7. Select "Finish" with ▲ or ▼
8. Press ENTER.

TO set the display resolution for the OS

When you connect the monitor to the PC and find that the resolution is improper, or when you want to change the resolution, follow the procedure below.

Windows

1. For Windows 8.1 / Windows 8, click the "Desktop" tile on the Start Screen to display the desktop.
2. Right-click the mouse anywhere on the desktop except for icons.
3. From the displayed menu, click "Screen resolution".
4. On the "Screen Resolution" dialog box, select the monitor.
5. Click "Resolution" to select the desired resolution.
6. Click the "OK" button.
7. When a confirmation dialog box is displayed, click "Keep changes".

Mac OS X 10.8 or later

1. Select "System Preferences" from the Apple menu.
2. When the "System Preferences" dialog box is displayed, click "Displays". (If using Mac OS X 10.8, click "Displays" in "Hardware".)
3. In the displayed dialog box, select the "Display" tab and select "Change" in the "Resolutions" field.
4. Select the resolution you want to change from the list of possible resolution settings.
5. Your selection will be reflected immediately. If you are satisfied with the selected resolution, close the window.

Mac OS X 10.7

1. Select "System Preferences" from the Apple menu.
2. When the "System Preferences" dialog box is displayed, click "Displays" for "Hardware".
3. On the displayed dialog box, select the "Display" tab and select desired resolution in the "Resolutions" field.
4. Your selection will be reflected immediately. When you are satisfied with the selected resolution, close the window.

To select screen size

The image with the resolution other than the recommended resolution is displayed in full screen automatically. You can change the screen size by using the “Screen Size” function from “Screen”.

DVI, DisplayPort HDMI (PC signal) input

Settings Function
Full	Displays an image in full screen. Images are distorted in some cases because the vertical rate is not equal to the horizontal rate.
Enlarged	Displays an image in full screen. In some cases, a blank horizontal or vertical border appears to equalize the vertical rate and the horizontal rate.
Normal Displays images with the specified resolution.

Example: Image size 1280 × 1024

Full Enlarged Normal

2560 × 1400 1800 × 1440 1280 × 1024

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "Screen Size" from "Screen", and press ENTER.
3. Select "Full", "Enlarged", or "Normal" with ▲ or ▼
4. Press ENTER to exit.

HDMI (720p, 1080i, 1080p) input

Settings Function
Enlarged	Displays an image in full screen. In some cases, a blank horizontal or vertical border appears to equalize the vertical rate and the horizontal rate.
Dot by Dot Displays	images with the specified resolution.

Example: 720p

Enlarged Dot by Dot

Simple geometric diagram with a circle and three smaller circles inside a rectangle (no text or symbols)

Simple geometric diagram with a circle and two side circles inside a rectangle (no text or symbols)

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "Screen Size" from "Screen", and press ENTER.
3. Select "Enlarged", or "Dot by Dot" with ▲ or ▼
4. Press ENTER to exit.

HDMI (640x480, 480i, 480p, 576i, 576p) input

Settings Function
Auto	The monitor automatically changes the screen size according to the aspect ratio sent from the auto input signal.
4:3 Displays images	in a 4:3 format screen.Black bars appear on both sides of the screen.16:9 images are horizontally compressed.
Letter Box Displays	16:9 letterboxed images in full screen.Images other than the letterboxed ones are partly cut on top and bottom.
16:9	Displays the entire 16:9 image in full screen. Black bars appear on the top and bottom of the screen.4:3 images are horizontally expanded.

Example: 480i/480p (16:9)

Auto

4:3

Letter Box

Pure geometric diagram with concentric circles and a central oval, no text or symbols present

16:9

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "Screen Size" from "Screen", and press ENTER.
3. Select "Auto", "4:3", "Letter Box", or "16:9" with ▲ or ▼
4. Press ENTER to exit.

2-2. To select the display mode (color mode)

This function allows easy selection of a desired mode according to monitor application.

Display Modes

Mode Purpose
Standard Mode Adjust color using the monitor's Adjustment menu.
1-Custom Available for the color settings according to your preference.
2-Paper Produces a printed paper effect by decreasing contrast and color temperature.
3-Adobe®RGB Suitable for color matching with Adobe ®RGB compatible peripherals.
4-sRGB Suitable for color matching with sRGB compatible peripherals.
CAL Mode Adjust the monitor's color using software.
5-CAL16-CAL27-CAL3	Displays the screen adjusted by the Color Management Software “ColorNavigator 6”.

Attention

- Avoid operating any function of the monitor while using ColorNavigator 6.

Procedure

1. Press MODE
   The mode menu appears at the bottom left of the screen.
2. The mode among the list is highlighted in turn each time MODE is pressed.

You can switch the mode with ▲r while the mode menu is displayed.

Note

• The Adjustment menu and the Mode menu cannot be displayed at the same time.
• You can disable a specific mode to be selected. For more information, see “3-2. Skipping Unused Display Modes” (page 28).

2-3. Adjusting Color

When displaying in Standard Mode, the “Color” menu of the Adjustment menu allows you to set and save independent color adjustments for each mode.

Attention

• It takes about 30 minutes (under our measurement conditions) for the performance of electrical parts to stabilize. Please wait 30 minutes or more after the monitor power has been turned on, and then adjust the monitor.
• The same image may be seen in different colors on multiple monitors due to their monitor-specific characteristics. Make fine color adjustment visually when matching colors on multiple monitors.

Note

- The values shown in “K” or “%” are available only as reference.

T● adjust brightness

The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel).

Setting Range

0 to 100%

Procedure

1. Press ▲ or ▼
   The Brightness menu appears.
2. Use ▲ or ▼ for adjustment.
3. Press ENTER to exit.

Attention

• If the entered value cannot be set, the value will appear in magenta. In such a case, change the value.
• Alternatively, you can use "Brightness" under "Color" in the Adjustment menu to adjust it.

Note

To adjust the temperature

The color temperature can be adjusted.

The color temperature is normally used to express the color of “White” and/or “Black” by a numerical value. The value is expressed in degrees “K” (Kelvin).

The screen becomes reddish at a low color temperature, and bluish at a high color temperature, like the flame temperature. The gain preset values are set for each color temperature setting value.

Setting Range

Settings Purpose

4000K to 10000K Specify color temperature in units of 100 K

Native The image is displayed in the preset color of the monitor (Gain: 100% for each RGB).

Adobe®RGB Change to color temperature in conformance with Adobe ®RGB.

sRGB Change to color temperature in conformance with sRGB.

User Displayed when gain is changed.

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Temperature" from "Color", and press ENTER.
3. Use ▲ or ▼ for adjustment.
4. Press ENTER to exit.

Note

- “Gain” allows you to perform more advanced adjustment (see “To adjust gain” (page 23)).

T● adjust gamma

Gamma can be adjusted. The brightness of the monitor varies depending on the input signal, however, the variation rate is not proportional to the input signal. To keep the balance between the input signal and the brightness of the monitor is called as “Gamma correction”.

Setting Range

Settings Purpose
1.6 to 2.7	Set the gamma value.
Adobe®RGB	Set the gamma curve defined by Adobe®RGB.
sRGB	Set the gamma curve defined by sRGB.
Paper	Display image look like it is printed on paper.

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Gamma" from "Color", and press ENTER.
3. Use ▲ or ▼ for adjustment.
4. Press ENTER to exit.

T● set color gamut

Set the color reproduction area (color gamut). “Color gamut” is the range of colors that devices such as monitors, digital cameras and printers can express. Various standards are defined.

Settings Purpose

Native Display images in the monitor's original color gamut.

Adobe®RGB Display images in the color gamut defined by Adobe ®RGB.

sRGB Display images in the color gamut defined by sRGB.

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Color Gamut" from "Color", and press ENTER.
3. Use ▲ or ▼ for adjustment.
4. Press ENTER to exit.

Note

- The method of displaying the defined color gamut outside the normal gamut of the monitor can be set. For more information, see “To set clipping” (page 22).

TO perform advanced adjustments

Make further advanced color adjustments.

To adjust hue

This function allows you to adjust the hue.

Setting Range

-100 to 100

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Advanced Settings" from "Color", and press ENTER.
3. Choose "Hue", and press ENTER.
4. Use ▲ or ▼ for adjustment.
5. Press ENTER to exit.

Attention

- Using this function may make some color gradations unavailable for display.

To adjust saturation

This function allows you to adjust color saturation.

Setting Range

-100 to 100

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Advanced Settings" from "Color", and press ENTER.
3. Choose "Saturation", and press ENTER.
4. Use ▲ or ▼ for adjustment.
5. Press ENTER to exit.

Attention

• Using this function may make some color gradations unavailable for display.
• The minimum value (-100) changes the screen to monochrome.

Note

To set clipping

This function allows you to display the monitor with the colors based on the standard values of the defined color gamut (such as sRGB). The method of displaying the defined color gamut outside the normal gamut of the monitor can be set.

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Advanced Settings" from "Color", and press ENTER.
3. Choose "Clipping", and press ENTER.
4. Select "On" or "Off" with ▲ or ▼

Geometric diagram of a triangle with internal lines and a dashed line, no text or symbols present

On: Off:

Displays colors based on the standard values. The colors outside the gamut of the monitor are clipped.

Geometric diagram of a triangle with internal lines and dashed segments (no text or symbols)

Displays colors with priority on the color gradation rather than the color accuracy. The primary colors outside the gamut of the monitor (blue in the diagram) are adjusted to the colors most similar to those that can be displayed by the monitor.

	Color gamut of monitor
	Color gamut defined by standard
	Color gamut displayed on screen

Attention

- This is a conceptual diagram, and does not display the actual color gamut of the monitor.

5. Press ENTER

Attention

- This function will be disabled if "Native" is selected at "To set color gamut" (page 20).

To adjust gain

The brightness of each color component red, green, and blue is called Gain. You can change the hue of “white” by adjusting gain.

Setting Range

0 to 100%

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Advanced Settings" from "Color", and press ENTER.
3. Choose "Gain", and press ENTER.
4. Choose the color for adjustment from "Red", "Green", and "Blue", and press ENTER
5. Use ▲ or ▼ for adjustment.
6. Press ENTER to exit.

Attention

- Using this function may make some color gradations unavailable for display.

Note

• The "Temperature" setting invalidates this setting.
• The value of gain changes with that of color temperature.
• When gain is changed, the color temperature is changed to "User".

To adjust 6 Colors

The hue, saturation and lightness can be adjusted for each of six colors: Magenta, Red, Yellow, Green, Cyan, and Blue.

Adjustable Range

-100 to 100

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Advanced Settings" from "Color", and press ENTER.
3. Choose "6 Colors", and press ENTER.
4. Choose the color for adjustment from "Magenta", "Red", "Yellow", "Green", "Cyan", and "Blue", and press ENTER.
5. Select "Hue", "Saturation" or "Lightness", and press ENTER.
6. Use ▲ or ▼ for adjustment.
7. Press ENTER to exit.

2-4. Specifying Color Space

The color space of the input signal can be specified. Set to other than “Auto” if this product cannot display correct color.

Settings Function
Auto Identifies the color space of the input signal automatically.
YUV 4:2:2 Converts	the color space of the input signal to a YUV 4:2:2 format.
YUV 4:4:4 Converts	the color space of the input signal to a YUV 4:4:4 format.
RGB Converts the color space of the input signal to an RGB format.

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "Color Space" from "Screen", and press ENTER.
3. Select "Auto", "YUV 4:2:2", "YUV 4:4:4", or "RGB" with ▲ or ▼
4. Press ENTER to exit.

Attention

• The setting is required when a DV1 device is connected to the monitor (at the HDMI connector port) using the DV1-HDMI conversion connector.
• Even if "Auto" is set, correct color might not be displayed.

Note

• The color space at the DVI input is converted to an RGB format.
• See"2-5. Expanding Signal Output Range" (page 25) to set the range of input signals.

2-5. Expanding Signal Output Range

Depending on the external device, the black and white levels in the video signal output to the monitor may be restricted. If the signal is displayed on the monitor in its restricted form, the blacks will be faint, the whites dull, and contrast will be reduced. To restore the monitor's original contrast ratio, the output range can be extended for this kind of signal.

Example:

Astronaut in full view inside a spacecraft, showing its dome and helmet (no visible text or symbols)

Astronaut in a white spacesuit with solar panels, captured in space against a dark space background (no visible text or symbols)

Restricted image Image with extended output range

TO extend the output range

The output range of the signal is extended to 0 - 255 for display. When images are displayed in black and white within the restricted range for purposes such as image creation, use this setting to improve the contrast of the images.

Settings Function
On The output range of the signal is extended to 0 - 255 for display.
Off The signal output range is not extended.
Auto	The monitor automatically recognizes the brightness range of input signals and displays images appropriately (recommended).

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.

2. Choose "Range Extension" from "Screen", and press ENTER.

3. Choose "Range Extension" from "Range Extension", and press ENTER.

4. Select "On", "Off", or "Auto" with ▲ or ▼.

Attention

- When the DVI signal is input, "Auto" cannot be selected.

1. Press ENTERto exit.

To select the range of signals to extend

The method for extending signals can be selected by turning the "Super white" setting "On" or "Off".

Settings	Function
On	The output range of the signal is extended from 16 - 254 to 0 - 255 for display.
Off	The output range of the signal is extended from 16 - 235 to 0 - 255 for display.

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.

2. Choose "Range Extension" from "Screen", and press ENTER.

3. Choose "Super White" from "Range Extension", and press ENTER.

4. Select "On" or "Off" with ▲ or ▼.

5. Press ENTER to exit.

Attention

- If "Range Extension" is turned "Off", the setting can be changed but the change will not be applied.

2-6. Setting HDMI

TO reduce noise

The small noises that occur in dark images are reduced. Use this function to reduce noise and roughness in images.

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "HDMI Settings" from "Screen", and press ENTER.
3. Choose "Noise Reduction", and press ENTER.
4. Select "On" or "Off" with ▲ or ▼
5. Press ENTER to exit.

Attention

- Using the Noise Reduction function may deteriorate fine images.

Chapter 3 Setting Monitor

3-1. Setting Adjustment Menu

The language, orientation, and display position of the Adjustment menu can be set.

Selecting the Language

This function allows you to select a language for the Adjustment menu and messages.

Selectable languages

English/German/French/Spanish/Italian/Swedish/Japanese/Simplified Chinese/Traditional Chinese

Procedure

1. Choose "Menu Settings" from the Adjustment menu, and press ENTER.
2. Choose "Language" from "Menu Settings", and press ENTER.
3. Select a language with ▲ or ▼
4. Press ENTER to exit.

Sotting Orientation

This function allows you to change the orientation of the Adjustment menu.

Procedure

1. Choose "Menu Settings" from the Adjustment menu, and press ENTER.
2. Choose "Orientation" from "Menu Settings", and press ENTER.
3. Select "Landscape" or "Portrait" with ▲ or ▼
4. Press ENTER to exit.
5. When selecting "Portrait", turn the monitor screen 90^ in clockwise direction.

Attention

• Be sure that the cables are correctly connected.
• Be sure to turn the monitor screen after pulling up the screen to the uppermost position of the stand and setting the screen tilted upward.

Note

- For using the monitor with “Portrait” position, the graphics board supporting portrait display is required. When placing the monitor in a “Portrait” position, settings of your graphics board need to be changed. Refer to the User’s Manual of the graphics board for details.

● change adjustment menu display position

You can change the display position of the Adjustment menu.

Procedure

1. Choose "Menu Settings" from the Adjustment menu, and press ENTER.
2. Choose "Menu Position" from "Menu Settings", and press ENTER.
3. Choose the position with ▲ or ▼
4. Press ENTER to exit.

3-2. Skipping Unused Display Modes

This function selects / deselects modes that should be skipped. Please use this function if you would like to prevent a mode from being used.

Procedure

1. Choose "Tools" from the Adjustment menu, and press ENTER.
2. Choose "Mode Skip" from "Tools", and press ENTER.
3. Use ▲ or ▼ to select the mode to change, and press .ENTER
4. Select “-” or “Skip” with ▲ or ▼
5. Press ENTER to exit.

Attention

- You cannot set all the modes "Skip". Set at least one mode to “-”.

Note

• Available CAL modes differ depending on each input signal by factory settings.

3-3. Showing and Hiding the EIZO Logo

When the monitor is turned on, the EIZO logo appears on the screen. You can choose to show or hide the display of the EIZO logo.

Procedure

1. Press ⏻ to turn off the monitor.
2. Holding MODE down, press for at least two seconds to turn on the monitor. The "Optional Settings" menu appears.
3. Choose "Logo" from "Optional Settings", and press ENTER
4. Select "On" or "Off" with ▲ or ▼ and press .ENTER
5. Select "Finish" with ▲ or ▼
6. Press ENTER.

3-4. Locking Operation Buttons

This function allows you to lock the settings to prevent them being changed.

Procedure

1. Press ⏻ to turn off the monitor.
2. Holding MODE down, press for at least two seconds to turn on the monitor. The "Optional Settings" menu appears.
3. Choose "Key Lock" from "Optional Settings", and press .ENTER
4. Choose "Off", "Menu", or "All" with ▲ or ▼ and press .ENTER

Settings Buttons that can be locked
Off (Default setting)	None (All buttons are enabled)
Menu	ENTER button
All	All buttons excluding ⏻

1. Select "Finish" with ▲ or .▼

2. Press ENTER.

3-5. Changing DUE (Digital Uniformity Equalizer) Setting

The DUE setting can be changed.

Settings Function
Brightness	Makes the brightness and color of the whole screen uniform without changing the maximum brightness and contrast ratio. The brightness of a high gradation area is not corrected. Select this setting to prioritize the levels of the brightness and contrast over the uniformity in the high gradation area.
Uniformity	Makes the brightness and color of the whole screen uniform. The brightness of a high graduation area is also corrected so it is uniform. Select this setting to prioritize the uniformity over the levels of the brightness and contrast in the high gradation area.

Attention

- To change the DUE setting, the adjusted monitor display must be readjusted. Perform target adjustment again using ColorNavigator 6. For details, refer to the ColorNavigator 6 User's Manual (on the CD-ROM).

Procedure

1. Press ⏻ to turn off the monitor.
2. Holding MODE down, press for at least two seconds to turn on the monitor.
   The "Optional Settings" menu appears.
3. Choose "DUE Priority" from "Optional Settings", and press .ENTER
4. Select "Uniformity" or "Brightness" with ▲ or ▼ and press .ENTER
5. Select "Finish" with ▲ or ▼
6. Press ENTER.

3-6. Setting Signal Bandwidth

The range of frequency and detection sensitivity of the change in signal can be switched.

Attention

- This function cannot be used with HDMI input.

Procedure

1. Press ⏻ to turn off the monitor.
2. Holding MODE down, press for at least two seconds to turn on the monitor. The "Optional Settings" menu appears.
3. Choose "Signal Selection" from "Optional Settings", and press ENTER.
4. Choose the input signal to set with ▲ or ▼ and press .ENTER
5. Choose "Signal Bandwidth", and press ENTER.
6. Select "Normal" or "Wide" with ▲ or ▼ and press .ENTER
7. Select "Finish" with ▲ or ▼
8. Press ENTER.

3-7. Reset to default

The setting values are reset to the default settings.

Attention

• After resetting, you cannot undo the operation.

Note

- Regarding the default setting, see "Main Default Settings" (page 48).

To reset the color adjustments

The setting values are reset to the default settings.

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Color Reset" from "Color", and press ENTER.
3. Select "Execute" with ▲ or ▼
4. Press ENTER.

To reset all adjustments to the default settings

This function resets all adjustments to the default settings (except the “Optional Settings” menu and “USB Selection”).

Procedure

1. Choose "Tools" from the Adjustment menu, and press ENTER.
2. Choose "All Reset" from "Tools", and press ENTER.
3. Select "Execute" with ▲ or ▼
4. Press ENTER.

Chapter 4 Connecting Multiple External Devices

The product has multiple connections to external devices and allows you to switch to one of the connections for display.

Connection examples

4-1. To switch among input signals

The input signal switches each time SIGNALised.

When the signal is switched, the active input port name appears at the top right corner of the screen.

4-2. To set input signal selection

Settings Function
Auto The monitor re	cognizes the connector through which signals are input.When an external device enters the power saving mode, the monitor automatically displays another signal.
Manual	The monitor displays the signal from the selected connector despite the signal input. Select the input signal for display using the SIGNAL operation button.

Procedure

1. Choose "Tools" from the Adjustment menu, and press ENTER.
2. Choose "Input Selection" from "Tools", and press ENTER.
3. Select "Auto" or "Manual" with ▲ or ▼
4. Press ENTER to exit.

Note

- When “Auto” is selected for “Input Selection”, the monitor’s power saving function works only when all external devices are in the power saving mode.

4-3. Skipping Unused Input Signals

This function allows skipping of the set input signals when the input signals are switched.

Procedure

1. Choose "Tools" from the Adjustment menu, and press ENTER.
2. Choose "Mode Skip" from "Tools", and press ENTER.
3. Use ▲ or ▼ to select the mode to change, and press ENTER
4. Select “-” or “Skip” with ▲ or ▼
5. Press ENTER to exit.

Attention

- You cannot set all the modes "Skip". Set at least one mode to “-”.

4-4. Switching USB Port Automatically

This function allows the input signal to link the USB upstream port when one monitor is connected to two PCs. This can switch the USB port automatically according to the switch of the input signal. To calibrate one monitor using two PCs, the USB cables do not need to be connected again. USB devices such as the mouse and keyboard connected to one monitor can be used with two PCs.

Attention

• A cap is attached to USB-2 at shipment. Remove the cap when using USB-2.
• To switch the USB port to be used, two USB cables are required. Prepare cables.
• If a storage device such as a USB memory is connected to the monitor, remove the device before changing the setting. Otherwise, data may be lost or damaged.
• The key arrangement of the keyboard cannot be changed.

Note

• When the “Input Selection” function is set to “Auto”, the USB port automatically switches according to the switch of the input signal.
• The USB downstream port can be operated using the currently monitored PC.

Procedure

1. Choose "Tools" from the Adjustment menu, and press ENTER.
2. Choose "USB Selection" from "Tools", and press ENTER.
3. Choose the input signal to set with ▲ or ▼ and press .ENTER
4. Select "USB-1" or "USB-2" with ▲ or ▼
5. Press ENTER to exit.

Chapter 5 Power Saving Functions

5-1. Setting Power Save

This function allows you to specify whether to set the monitor in the power saving mode, depending on the state of an external device connected to it. When the monitor has shifted to the power saving mode, the images on the screen are not displayed.

Attention

• Turning off the main power switch or unplugging the power cord completely shuts off power supply to the monitor.
• Devices connected to the USB downstream port work when the monitor is in power saving mode or when the power button of the monitor is Off. Therefore, power consumption of the monitor varies with connected devices even in the power saving mode.
• Five seconds before the monitor enters the power saving mode, it displays a preliminary message.

Procedure

1. Choose "PowerManager" from the Adjustment menu, and press ENTER
2. Choose "Power Save" from "PowerManager", and press ENTER.
3. Select "On" or "Off" with ▲ or ▼
4. Press ENTER to exit.

Power Saving System

When the external device connected is a PC

At DVI signal input

This monitor complies with the "DVI DMPM" standard.

At DisplayPort signal input

This monitor complies with the "DisplayPort Standard V1.1a".

PC Monitor Power Indicator
On Operating mode	Blue
Power saving mode	Power saving mode	Orange

When the external device connected is not a PC

Ext. Device	Monitor Power Indicator
On Operating mode Blue
Power saving mode	Power saving mode Orange

Exiting the power saving mode

If the monitor receives input, it automatically exits the power saving mode and returns to the normal display mode.

5-2. Adjusting the Brightness of Indicator

The brightness of the power indicator (blue) can be adjusted. (Default setting: 4)

Procedure

1. Choose "PowerManager" from the Adjustment menu, and press ENTER.
2. Choose "Indicator" from "PowerManager", and press ENTER.
3. Select the indicator brightness "Off" or in the range from 1 to 7 with ▲ or ▼ as desired.
4. Press ENTER to exit.

5-3. Checking the Power Saving Level

The EcoView menu allows you to check Power Reduction, CO_2 Reduction, and Eco Performance Level. The more indicators light up representing the Eco Performance Level, the higher the power saving level attained.

Procedure

1. Choose "PowerManager" from the Adjustment menu, and press ENTER.
2. Choose "EcoView Index" from "PowerManager", and press ENTER. The "EcoView Index" appears.

Note

• Power reduction: the backlight's reduction of power consumption as a result of the adjusted brightness value.
  CO 2 reduction: converted from the “Power reduction” value, this is an estimate of the quantity of CO 2 emissions reduced when using the monitor for 1 hour.
  * The numeric value is a result of a calculation based on a default setting (0.000555 t -CO2/kWh) determined by a Japanese ministerial ordinance (2006, Ministry of Economy, Trade and Industry, Ministry of Environment, civil code article 3) and may differ depending on country and year.

5-4. Setting DisplayPort Power Save

This function allows you to change the power setting of the DisplayPort of the monitor.

Attention

- For the “On” setting, the position of the window may be changed when the signal is switched. In such a case, turn the setting to “Off”.

Procedure

1. Press ⏻ to turn off the monitor.
2. Holding MODE down, press for at least two seconds to turn on the monitor.
   The "Optional Settings" menu appears.
3. Choose "DP Power Save" from "Optional Settings", and press ENTER
4. Select "On" or "Off" with ▲ or ▼ and press .ENTER
5. Select "Finish" with ▲ or ▼
6. Press ENTER.

Chapter 6 Troubleshooting

If a problem still remains after applying the suggested remedies, contact your local EIZO representative.

6-1. No picture

Problem Possible cause and remedy
1. No picturePower indicator does not light.	Check whether the power cord is connected properly.PressTurn the main power switch on.Turn off the main power, and then turn it on again a few minutes later.
Power indicator is lighting blue.	Increase “Brightness” and/or “Gain” in the Adjustment menu (see “2-3. Adjusting Color” (page 18)).
Power indicator is lighting orange.	Switch the input signal with SIGNAL.Operate the mouse or keyboard.Check whether the PC is turned on.
Power indicator is flashing orange and blue.	The device that is connected using DisplayPort / HDMI have a problem. Solve the problem, turn off the monitor, and then turn it on again. Refer to the User’s Manual of the output device for further details.
2. The message below appears.	This message appears when the signal is not input correctly even when the monitor functions properly.
This message appears when no signal is input.Example:	The message shown left may appear, because some PCs do not output the signal soon after power-on.Check whether the PC is turned on.Check whether the signal cable is connected properly.Switch the input signal with SIGNAL.
The message shows that the input signal is out of the specified frequency range. (Such signal frequency is displayed in magenta.)Example:fD: Dot ClockfH: Horizontal Scan FrequencyfV: Vertical scan frequency	Check whether the PC is configured to meet the resolution and vertical scan frequency requirements of the monitor (see “2-1. Setting Resolution” (page 13)).Reboot the PC.Select an appropriate setting using the graphics boards utility. Refer to the User’s Manual of the graphics board for details.

6-2. Imaging problems

Problem Possible cause and remedy
1. The screen is too bright or too dark.	·Use “Brightness” in the Adjustment menu to adjust it. (The LCD monitor backlight has a limited life span.) When the screen becomes dark or begins to flicker, contact your local EIZO representative.)
2. Characters are blurred.	·Check whether the PC is configured to meet the resolution and vertical scan frequency requirements of the monitor (see “2-1. Setting Resolution” (page 13)).
3. Afterimages appear.	·Afterimages are particular to LCD monitors. Avoid displaying the same image for a long time.·Use the screen saver or power saving function to avoid displaying the same image for extended periods of time.
4. Green/red/blue/white dots or defective dots remain on the screen.	·This is due to LCD panel characteristics and is not a failure.
5. Interference patterns or pressure marks remain on the screen.	·Leave the monitor with a white or black screen. The symptom may disappear.
6. Noise appears on the screen.	·When entering the signals of HDCP, the normal images may not be displayed immediately.
7. (DisplayPort input) Display position of the windows changes.	·When the signal is switched, the position of the window may be changed. In the Adjustment menu, set “DP Power Save” to “Off” (see “5-4. Setting DisplayPort Power Save” (page 35)).
8. (DisplayPort or HDMI input) The color shown on the display is not correct.	·Use “Screen” - "Color Space" under the Adjustment menu to adjust it.·For HDMI signal input, change the “Signal Format” setting (see “To switch signal formats” (page 14)).
9. An image does not display on the entire screen.	·Change the “Screen Size” setting (see “To select screen size” (page 15)).

6-3. Other problems

Problem Possible cause and remedy
1. The adjustment menu does not appear.	Check whether the operation lock function works (see “3-4. Locking Operation Buttons” (page 28)).Operation buttons are locked when ColorNavigator 6 is running. Exit the software.
2. No mode menu is displayed.	Check whether the operation lock function works (see “3-4. Locking Operation Buttons” (page 28)).Operation buttons are locked when ColorNavigator 6 is running. Exit the software.
3. The monitor connected with the USB cable is not detected. / USB devices connected to the monitor does not work.	Check whether the USB cable is connected correctly (see “7-4. Making Use of USB (Universal Serial Bus)” (page 44)).Check the “USB Selection” settings under the Setting menu (see “4-4. Switching USB Port Automatically” (page 33)).Change the USB port to another one. If the PC or peripheral devices works correctly by changing the USB port, contact your local EIZO representative. (Refer to the manual of the PC for details.)Reboot the PC.If the peripheral devices work correctly when the PC and peripheral devices are connected directly, please contact your local EIZO representative.Check whether the PC and OS are USB compliant. (For USB compliance of the respective devices, consult their manufacturers.)Check the PC’s BIOS setting for USB when using Windows. (Refer to the manual of the PC for details.)
4. Audio is not output.	This monitor is not equipped with speakers. Output audio signals from the speakers on your computer.

Chapter 7 Reference

7-1. Attaching the Arm

This monitor can be installed with another compatible arm or stand by removing the standard stand section. Please refer to our web site for corresponding arms (or stands). http://www.eizoglobal.com

Attention

• When attaching an arm or stand, follow the instructions of their User's Manual.
• When using another manufacturer's arm or stand, confirm the following in advance and select one conforming to the VESA standard.
• Clearance between the screw holes: 100 mm × 100 mm
• Thickness of plate: 2.6 mm
• Strong enough to support weight of the monitor unit (except the stand) and attachments such as cables.
• When using another manufacturer's arm or stand, use the following screws to secure it.
• Screws fixing the stand to the monitor.
• When using an arm or stand, attach it to meet the following tilt angles of the monitor.
• Up 45°, down 45°
• Connect the cables after attaching an arm or stand.
• Do not move the removed stand up and down. Doing so may result in injury or device damage.
• The monitor and arm or stand are heavy. Dropping them may result in injury or equipment damage.
• When setting the monitor to the portrait style, turn the monitor screen 90^ in clockwise direction.

Procedure

1. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down.
2. Remove the stand.

Prepare a screwdriver. Loosen the screws (four) securing the unit and the stand with the screwdriver.

1. Attach the arm or stand to the monitor.

Secure the monitor to the arm or stand using the screws fixing the stand to the monitor.

Technical line drawing of a mechanical assembly with mounting bracket and mounting holes (no text or symbols)

7-2. Detaching/Attaching Stand Base

Detaching procedure

The stand base that was attached during setup can be detached using the following procedures.

1. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down.

2. Raise the lever on the bottom of the stand base.

Technical line drawing of a circular mechanical component with internal components and a directional arrow (no text or symbols)

1. Turn the stand base in the counterclockwise direction to detach it.

Technical diagram showing a circular component with internal components and an inset view of a medical device (no text or symbols present)

Attaching procedure

The once removed the stand base can be attached to the monitor again with the following procedures.

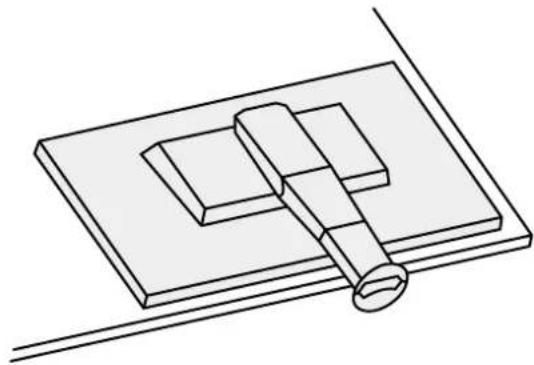

1. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down.

Pure technical line drawing of a mechanical component with no text or symbols

1. Attach the stand base onto the stand brace.

Illustration of hands holding a circular object with a ring, interacting with a mechanical component (no text or symbols)

1. Turn the stand base in the clockwise direction until it clicks.

7-3. Attaching/Detaching Cable Holder

A cable holder is supplied with this product. Use the holder to organize the cables connected to the monitor.

Attaching procedure

1. Pass the cables through the cable holder.
2. Close the opening in the cable holder.

Diagram of a cable being twisted with arrows indicating rotation (no text or symbols)

1. While holding the cable holder closed, attach it onto the stand.

Illustration showing a mechanical component being inserted into a circular basin, with no visible text or symbols.

Note

- The cable holder can be inserted either perpendicular or parallel to the stand. Change the direction of the cable holder according to the conditions of the cables.

Two diagrams showing cable installation on a circular base, no text or symbols present

Detaching procedure

1. Close the opening in the cable holder.
2. While holding the cable holder closed, remove it from the stand.

Diagram showing cable routing between two monitors, one with directional arrows and the other with wires (no text or symbols)

7-4. Making Use of USB (Universal Serial Bus)

This monitor has a USB hub. It works as a USB hub when connected to a USB-compatible PC, allowing the connection of peripheral USB devices.

System Requirement

• A PC (including devices with a USB host function) and OS in conformance with USB Specification Revision 2.0
• USB cable

Attention

• This monitor may not work depending on PC, OS or peripheral devices. For USB compatibility of peripheral devices, contact their manufactures.
  • Devices connected to the USB upstream port and USB downstream port work when the monitor is in power saving mode or when the power button of the monitor is Off. Therefore, power consumption of the monitor varies with connected devices even in the power saving mode.
• When the main power of the monitor is Off, device connected to the USB downstream port does not operate.

Connection Procedure

1. Connect the signal cable between a PC and the monitor, and turn on the PC.
2. Using the USB cable, connect the computer's downstream port and the monitor's upstream port 1.
3. Connect the peripheral USB device to the USB downstream port of the monitor.

Note

- By default, USB upstream port 1 is enabled. To connect two PCs, see "4-4. Switching USB Port Automatically" (page 33).

7-5. Showing Monitor Information

Displaying signal information

This function displays the information about the current input signals displayed.

Procedure

1. Choose "Tools" from the Adjustment menu, and press ENTER.
2. Choose "Signal Info" from "Tools", and press ENTER.

The "Signal Info" appears.

Example:

Displaying Monitor Information

This function displays the information about the monitor.

Procedure

1. Choose "Tools" from the Adjustment menu, and press ENTER.
2. Choose "Monitor Info" from "Tools", and press ENTER.

The "Monitor Info" appears.

This function displays the model name, serial number, firmware version, usage time, and ColorNavigator 6 license status.

Attention

- When you turn on the monitor for the first time, the usage time may be more than 0 due to a factory inspection.

7-6. Specifications

LCD Panel Size 68cm (27) format

USB Input Terminals Upstream port × 2, Downstream port × 2
Standard USB Specification Revision 2.0
Supply current Max. 500mA / 1 port

Main Default Settings

Color Mode 1-Custom
Screen Size DVI / HDMI(P)	C signal) / DisplayPort Full
	HDMI(video: HD signal) Enlarged
	HDMI(video: SD signal) Auto
Color Space Auto
Range Extension DVI Off
	DisplayPort / HDMI Auto
Super White		Off
Noise Reduction		Off
Power Save		On
Language		English
Menu Position		Center
Input Selection		Manual
USB Selection		USB-1
Signal Format	DVI Dual Link
	HDMI	Video

Outside Dimensions

A●accessories

Cleaning Kit EIZO “ScreenCleaner”
Signal cable	HH200HS (HDMI)
	PP200 (DisplayPort)

For the latest information about the accessories, refer to our web site.

http://www.eizoglobal.com

Chapter 8 Glossary

Adobe®RGB

This is a definition of the practical RGB color space proposed by Adobe Systems in 1998. The color reproduction range (color gamut) is broader than sRGB, and is highly adaptable to such fields as printing etc.

Color Space

YUV and RGB, etc. are available. YUV expresses the color by using the luminance (Y), the color difference of Blue (U), and the color difference of Red (V). RGB does this by using the gradation of the 3 colors, Red (R), Green (G), and Blue (B).

DisplayPort

This is the interface standard for image signals standardized in accordance with VESA. It was developed with the aim of replacing the conventional DVI and analog interfaces, and it can transmit high resolution signals and sound signals, which DVI does not support. It also supports 10-bit color, copyright protection technology, long cables, etc. The standard size and mini size connectors have been standardized.

DVI (Digital Visual Interface)

DVI is a digital interface standard. DVI allows direct transmission of the PC's digital data without loss. This adopts the TMDS transmission system and DVI connectors. There are two types of DVI connectors. One is a DVI-D connector for digital signal input only. The other is a DVI-I connector for both digital and analog signal inputs.

DVI DMPM (DVI Digital Monitor Power Management)

DVI DMPM is a digital interface power saving function. The “Monitor ON (operating mode)” and “Active Off (power saving mode)” are indispensable for DVI DMPM as the monitor’s power mode.

Gain

This is used to adjust each color parameter for red, green and blue. An LCD monitor displays the color by the light passing through the panel color filter. Red, green and blue are the three primary colors. All the colors on the screen are displayed by combining these three colors. The color tone can be changed by adjusting the light intensity (volume) passing through each color's filter.

Gamma

Generally, the monitor brightness varies nonlinearly with the input signal level, which is called “Gamma Characteristic”. When the gamma value is low, the middle tone area is displayed brighter, and darker when high. Changes to the gamma value will not affect contrast. A gamma value appropriate for the display content should be selected.

HDCP (High-bandwidth Digital Content Protection)

Digital signal coding system developed to copy-protect the digital contents, such as video, music, etc. This helps to transmit the digital contents safely by coding the digital contents sent via the DVI or HDMI connector on the output side and decoding them on the input side.

Any digital contents cannot be reproduced if both of the equipments on the output and input sides are not applicable to HDCP system.

HDMI (High-Definition Multimedia Interface)

HDMI is a digital interface standard, developed for consumer electrical appliance or AV device. This standard is issued on the basis of the DVI standard which is one of an interface specification for the connection between a PC and a monitor. The projected image, sound and control signal without compressed enable to be transmitted with one cable.

Overdrive

This technology enhances response speed by increasing the potential difference at the time of motion of liquid-crystal pixels, and it is used for liquid-crystal TV sets and others in general. It provides clear-cut three-dimensional display with little afterimage, by improving response speed of the intermediate graduation range that frequently appears in moving images.

Resolution

The LCD panel consists of numerous pixels of specified size, which are illuminated to form images. This monitor consists of horizontal 2560 pixels and 1440 vertical pixels. At a resolution of 2560 × 1440 , all pixels are illuminated as a full screen (1:1).

sRGB (Standard RGB)

International standard for color reproduction and color space among peripheral devices (such as monitors, printers, digital cameras, scanners). As a form of simple color matching for the Internet, colors can be displayed using tones close to those of the transmission and reception devices.

Temperature

Color temperature is a method to measure the white color tone, generally indicated in degrees Kelvin. The screen becomes reddish at a low temperature, and bluish at a high temperature, like the flame temperature.

5000 K: Slightly reddish white

6500 K: White referred to as daylight-balanced color

9300 K: Slightly bluish white

Appendix

Trademark

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

The DisplayPort Compliance Logo and VESA are registered trademarks of the Video Electronics Standards Association.

Acrobat, Adobe, Adobe AIR, and Photoshop are registered trademarks of Adobe Systems Incorporated in the United States and other countries.

AMD Athlon and AMD Opteron are trademarks of Advanced Micro Devices, Inc.

Apple, ColorSync, eMac, iBook, iMac, iPad, Mac, MacBook, Macintosh, Mac OS, PowerBook, and QuickTime are registered trademarks of Apple Inc.

ColorMunki, Eye-One, and X-Rite are registered trademarks or trademarks of X-Rite Incorporated in the United States and/or other countries.

ColorVision and ColorVision Spyder2 are registered trademarks of DataColor Holding AG in the United States.

Spyder3 and Spyder4 are trademarks of DataColor Holding AG.

ENERGY STAR is a registered trademark of the United States Environmental Protection Agency in the United States and other countries.

GRACoL and IDEAlliance are registered trademarks of International Digital Enterprise Alliance.

NEC is a registered trademark of NEC Corporation.

PC-9801 and PC-9821 are trademarks of NEC Corporation.

NextWindow is a trademark of NextWindow Ltd.

Intel, Intel Core, Pentium, and Thunderbolt are trademarks of Intel Corporation in the U.S. and/or other countries.

PowerPC is a registered trademark of International Business Machines Corporation.

PlayStation is a registered trademark of Sony Computer Entertainment Inc.

PSP and PS3 are trademarks of Sony Computer Entertainment Inc.

RealPlayer is a registered trademark of RealNetworks, Inc.

TouchWare is a trademark of 3M Touch Systems, Inc.

Windows, Windows Media, Windows Vista, SQL Server, Xbox 360, and Internet Explorer are registered trademarks of Microsoft Corporation in the United States and other countries.

YouTube is a registered trademark of Google Inc.

Firefox is a registered trademark of the Mozilla Foundation.

Kensington and MicroSaver are registered trademarks of ACCO Brands Corporation.

EIZO, the EIZO Logo, ColorEdge, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor, and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries.

ColorNavigator 6, EcoView NET, EIZO EasyPIX, EIZO Monitor Configurator, EIZO ScreenSlicer, G-Ignition, i • Sound, Re/Vue, Screen Administrator, and UniColor Pro are trademarks of EIZO Corporation.

All other company and product names are trademarks or registered trademarks of their respective owners.

License / Copyright

A round gothic bold bit map font designed by Ricoh is used for the characters displayed on this product.

FCC Declaration of Conformity

For U.S.A., Canada, etc. (rated 100-120 Vac) Only

FCC Declaration of Conformity

We, the Responsible Party EIZO Inc.

5710 Warland Drive, Cypress, CA 90630

Phone: [phone]

declare that the product Trade name: EIZO

Model: ColorEdge CS270

is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note

Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device.

- AC Cord

- Shielded Signal Cable (enclosed)

Canadian Notice

This Class B digital apparatus complies with Canadian ICES-003.

EIZO Corporation (hereinafter referred to as “ EIZO”) and distributors authorized by EIZO (hereinafter referred to as the “Distributors”) warrant, subject to and in accordance with the terms of this limited warranty (hereinafter referred to as the “Warranty”), to the original purchaser (hereinafter referred to as the “Original Purchaser”) who purchased the product specified in this document (hereinafter referred to as the “Product”) from EIZO or Distributors, that EIZO and Distributors shall, at their sole discretion, either repair or replace the Product at no charge if the Original Purchaser becomes aware within the Warranty Period (defined below) that the Product malfunctions or is damaged in the course of normal use of the Product in accordance with the description in the instruction manual attached to the Product (hereinafter referred to as the “User’s Manual”).

The period of this Warranty is limited to (i) five (5) years from the date of purchase of the Product; or, limited to the expiration of (ii) 30,000 hours of its use of the Product (hereinafter referred to as the “Warranty Period”). EIZO and Distributors shall bear no liability or obligation with regard to the Product in relation to the Original Purchaser or any third parties other than as provided under this Warranty.

EIZO and Distributors will cease to hold or store any parts of the Product upon expiration of seven (7) years after the production of such parts is discontinued. In repairing the monitor, EIZO and Distributors will use renewal parts which comply with our QC standards.

The Warranty is valid only in the countries or territories where the Distributors are located. The Warranty does not restrict any legal rights of the Original Purchaser.

Notwithstanding any other provision of this Warranty, EIZO and Distributors shall have no obligation under this Warranty whatsoever in any of the cases as set forth below:

(a) Any defect of the Product caused by freight damage, modification, alteration, abuse, misuse, accident, incorrect installation, disaster, faulty maintenance and/or improper repair by third party other than EIZO and Distributors;
(b) Any incompatibility of the Product due to possible technical innovations and/or regulations;
(c) Any deterioration of the sensor;
(d) Any deterioration of display performance caused by the deterioration of expendable parts such as the LCD panel and/or backlight, etc. (e.g. changes in brightness, changes in brightness uniformity, changes in color, changes in color uniformity, defects in pixels including burnt pixels, etc.);
(e) Any defect of the Product caused by external equipment;
(f) Any defect of the Product on which the original serial number has been altered or removed;
(g) Any normal deterioration of the product, particularly that of consumables, accessories, and/or attachments (e.g. buttons, rotating parts, cables, User's Manual, etc.); and
(h) Any deformation, discoloration, and/or warp of the exterior of the product including that of the surface of the LCD panel.

To obtain service under the Warranty, the Original Purchaser must deliver the Product, freight prepaid, in its original package or other adequate package affording an equal degree of protection, assuming the risk of damage and/or loss in transit, to the local Distributor. The Original Purchaser must present proof of purchase of the Product and the date of such purchase when requesting services under the Warranty.

The Warranty Period for any replaced and/or repaired product under this Warranty shall expire at the end of the original Warranty Period.

EIZO OR DISTRIBUTORS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO, OR LOSS OF, DATA OR OTHER INFORMATION STORED IN ANY MEDIA OR ANY PART OF ANY PRODUCT RETURNED TO EIZO OR DISTRIBUTORS FOR REPAIR.

EIZO AND DISTRIBUTORS MAKE NO FURTHER WARRANTIES, EXPRESSED OR IMPLIED, WITH RESPECT TO THE PRODUCT AND ITS QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR USE. IN NO EVENT SHALL EIZO OR DISTRIBUTORS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, CONSEQUENTIAL OR OTHER DAMAGE WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFIT, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT OR IN ANY CONNECTION WITH THE PRODUCT, WHETHER BASED ON CONTRACT, TORT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE, EVEN IF EIZO OR DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THIS EXCLUSION ALSO INCLUDES ANY LIABILITY WHICH MAY ARISE OUT OF THIRD PARTY CLAIMS AGAINST THE ORIGINAL PURCHASER. THE ESSENCE OF THIS PROVISION IS TO LIMIT THE POTENTIAL LIABILITY OF EIZO AND DISTRIBUTORS ARISING OUT OF THIS LIMITED WARRANTY AND/OR SALES.

BEGRENZTE GARANTIE

This product, when disposed of, is supposed to be collected and recycled according to your country's legislation to reduce environmental burden. When you dispose of this product, please contact a distributor or an affiliate in your country.

The contact addressees are listed on the EIZO website below.

http://www.eizoglobal.com

For recycling information for customers in Switzerland, please refer to the following website.

http://www.swico.ch

China Measures for RoHS Compliance in ChinaRoHS

关于电子信息产品污染控制标识
