Product Type	Portable projection screen
Brand	Draper
Model	Cinefold
Frame Material	Aluminum
Viewing Surface Material	Fabric with snaps
Assembly Method	Manual with Handy Cranks; color-coded markings
Width Options	Up to 25 ft (truss-style)
Height Adjustment	6-inch increments
Keystone Elimination	Adjustable leg angle via adjustment knob
Stabilization	Anti-Sway stabilizers (optional accessory)
Leg Types	Standard and Heavy-Duty legs (optional)
Dress-Up Kit	Optional; includes valance, drapes, skirt
Operating Temperature Range	68°-78°F (20°-26°C) for assembly
Cleaning Instructions	Mild soap and water; no solvents; dry completely before folding
Storage	Fold snaps face-to-face; store in provided pouch
Safety Precautions	Level surface; locked hinges before raising; avoid pinch points
Warranty	Void if assembled below recommended temperatures
Country of Origin	USA
Manual Included	Yes

Frequently Asked Questions - Cinefold Draper

What is the ideal temperature for assembling the Cinefold screen?

The ideal temperature range is 68°-78°F (20°-26°C). Assembling outside this range may damage the surface and void the warranty.

How do I attach the viewing surface to the frame?

Place the surface with male snaps at the bottom, start in one corner, and snap around the frame. Ensure snaps are secure.

Can I adjust the screen height?

Yes, height can be adjusted in 6-inch increments by matching color-coded tapes on the legs.

What are Handy Cranks and why are they important?

Handy Cranks are the fasteners provided for assembly. They must be used to avoid screen damage; do not substitute with other tools.

How do I eliminate keystone effect?

Adjust the leg angle using the adjustment knob. Use the lower hole for keystone elimination and the upper for vertical screen position.

How should I clean the viewing surface?

Clean with mild soap and water only. Do not use solvents. Ensure the surface is completely dry before folding.

What is the proper way to fold the screen for storage?

Always fold with snaps face-to-face. Do not allow fabric to contact border material or snaps. Store in the provided pouch.

Are anti-sway stabilizers necessary?

Anti-sway stabilizers are optional but recommended for added stability, especially in larger screens.

Can I add a dress-up kit?

Yes, an optional Dress-Up Kit is available, including valance, drapes, and skirt that attach via bayonet-style mounting.

What should I do if the screen won't stay level?

Ensure the screen is on a level surface and all hinges are locked. Use the adjustment knobs on the legs to fine-tune.

USER MANUAL Cinefold Draper

Assembly Instructions

Cinefold Portable Projection Screen by Draper

Caution

① Read instructions through completely before proceeding; retain for future reference.
② Handle viewing surface with care; do not allow it to come in contact with sharp or dirty objects.
③ Use Handy Cranks provided; failure to do so may lead to screen damage.
④ Make sure screen is level.
⑤ Do not write on viewing surface.
⑥ The ideal temperature range for assembling folding screens to prevent damaging the surface is 68^-78^ F ( 20^-26^ C). Assembling below recommended temperatures may damage surface and void warranty.

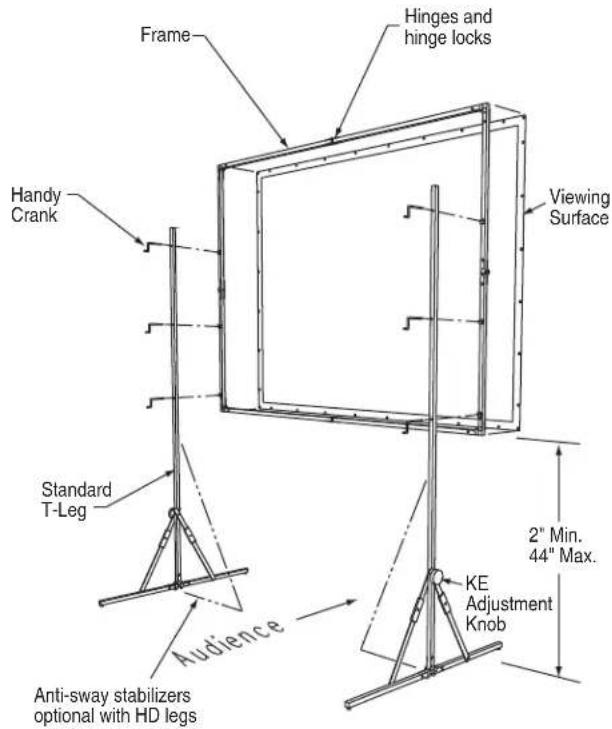

Frame/Screen Assembly

① Open carrying case and remove pouch containing screen surface, and three aluminum assemblies. The largest package is the frame. Unwrap and unfold it completely in one direction only, locking all hinges. Frame should lie with snaps facing up.

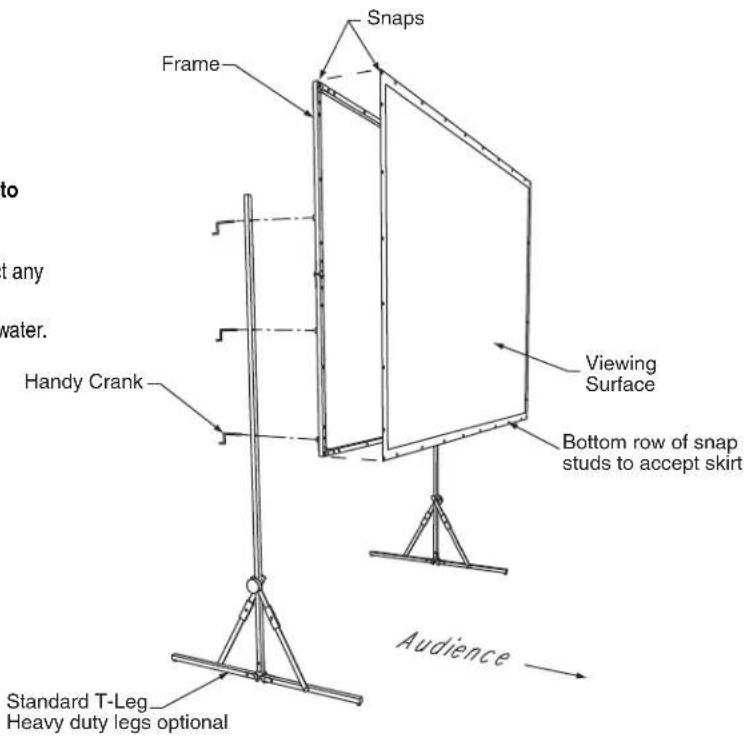

① Remove surface from its envelope. With male snaps at bottom, snap surface to frame. For easier surface attachment, start in one corner, then work your way around the frame. Make sure snaps are secure.
Please note: For steps 3-5, screen should remain on floor or table, with surface facing up. Carefully lift screen from floor or table to complete each step.
③ Lock corner braces.
④ Unfold leg assemblies and lock hinges. Check that ad just ment knob is in the hole desired (upper for vertical screen position, lower for keystone elimination). DO NOT unfold feet at this time.
⑤ Attach legs to back side of vertical frame sections, as indicated by the color coded markings, using Handy Cranks. For standard screen height, match colored tapes exactly. Height is adjustable in 6" increments.
⑥ Raise Cinefold to a vertical position and unfold feet. Tighten ad just ment knobs to maintain legs at desired angle. If your screen includes Heavy-Duty Legs, unfold and lock the extensions on the backs of the feet, hinge up to the backs of the leg, and attach with Handy Crank.
⑦ If Anti-Sway stabilizers are supplied with your screen, refer to illustration and attach with Handy Cranks.

Caution: Beware of pinch points.

A Note About Surfaces

① Always fold with snaps face-to-face. Do not permit screen fabric to contact border material or snaps when folded. Store in pouch provided.
② Take care at all times not to permit Cinefold viewing surface to contact any dusty or dirty area, nor any varnished or painted object.
③ When necessary, clean Cinefold viewing surface with mild soap and water. USE NO SOLVENTS! Surface must be completely dry before folding.

Caution: Make sure all hinges and joints are locked before raising screen to standing position.

Caution: Make sure screen is placed on level surface.

DRAPER®

411 S. Pearl St., Spiceland, IN 47385 USA ■ 765-987-7999

www.draperinc.com ■ fax [phone]

Copyright © 2011 Draper Inc. Form Cinefold_Inst11 Printed in U.S.A.

Assembly Instructions

Truss-Style Cinefold Portable Projection Screen by Draper

Caution

① Read instructions through completely before proceeding; retain for future reference.
② Handle viewing surface with care; do not allow it to come in contact with sharp or dirty objects.
③ Use Handy Cranks provided; failure to do so may lead to screen damage
④ Make sure screen is level.
⑤ Do not write on viewing surface.
⑥ The ideal temperature range for assembling folding screens to prevent damaging the surface is 68^-78^ F ( 20^-26^ C). Assembling below recommended temperatures may damage surface and void warranty.

Truss Assembly

① Remove pouch containing viewing surface from case and set aside. Remove all aluminum assemblies.
② Unfold all folded aluminum assemblies completely, noting labels and color-coded marks. Lock all hinges. Position Stage Right and Stage Left sections in appropriate positions with snaps facing up. Top and Bottom sections should be set with snaps facing down.

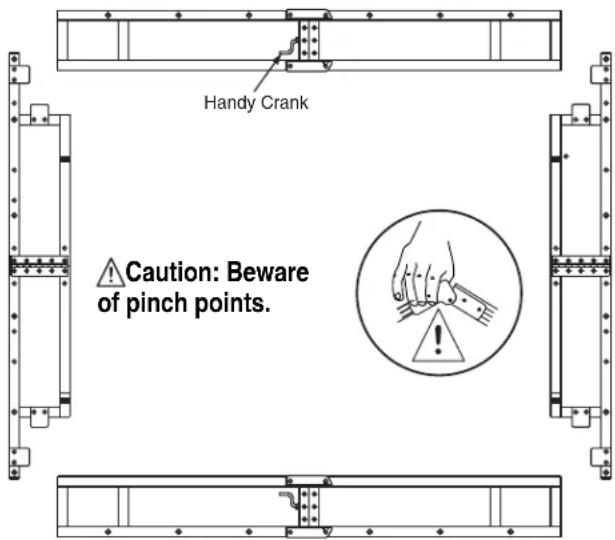

③ To increase frame rigidity, hinges on top and bottom frame sections have rivnuts marked with red and green. Insert a Handy Crank through the threadless rivnut (red) and tighten into the threaded rivnut (green).
④ Apply small sections marked "Stiffener Bars" to back of Bottom frame section, using eight Handy Cranks each. Failure to use all Handy Cranks may result in damage to screen frame. Turn Bottom frame section over so snaps face up.
⑤ If your screen frame is less than 25' wide, repeat step 4 for Top frame section. Frames 25' wide and over are equipped with a special full-width Stiffener for the top frame section. To attach it, place Stiffener fl at with green rivnuts face down. Place top frame section on top of and at right angles to Stiffener, over the green rivnuts. Insert and tighten standard Handy Cranks. Install 45° angle braces to the Top frame section and Stiffener with short Handy Cranks. Turn Top frame so snaps face up.

Caution: Make sure all hinges and joints are locked before raising screen to standing position.

DRAPER®

411 S. Pearl St., Spiceland, IN 47385 USA ■ 765-987-7999

www.draperinc.com ■ fax [phone]

Copyright © 2010 Draper Inc. Form Cinefold_Inst11 Printed in U.S.A.

⑥ Join Top and Bottom to Stage Right and Stage Left, using two Handy Cranks on each of the four corners. Match numbers on white labels, and keep in mind that no Handy Crank should protrude outside screen frame.
⑦ Remove surface from pouch. With the row of male snaps at bottom, position screen surface over frame. Snap each of the four corners, then snap across bottom, up sides, and across top.
⑧ Attach feet to inner side of legs with Handy Cranks, matching color-coded markings. Attach legs to Stage Right and Stage Left with Handy Cranks, matching colored tapes.

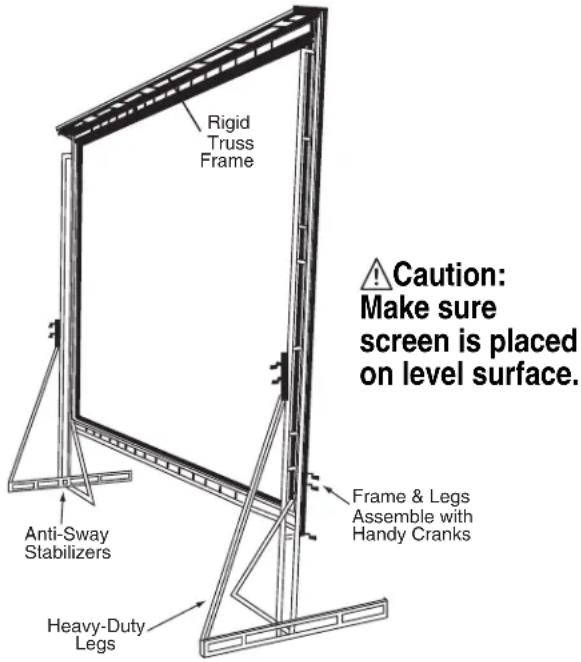

⑨ Raise screen to a vertical position. Add Heavy-Duty Legs and Anti-Sway Stabilizers with Handy Cranks in the positions indicated below.

A Note About Surfaces

① Always fold with snaps face-to-face. Do not permit screen fabric to contact border material or snaps when folded. Store in pouch provided.
② Take care at all times not to permit Cinefold viewing surface to contact any dusty or dirty area, nor any varnished or painted object.
③ When necessary, clean Cinefold viewing surface with mild soap and water. USE NO SOLVENTS! Surface must be completely dry before folding.

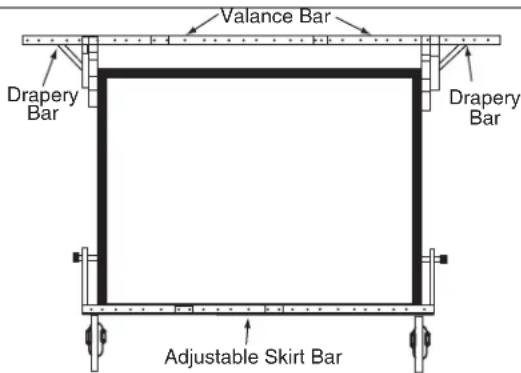

Dress-Up Kit Assembly

PLEASE NOTE: All components are labeled and color coded to facilitate assembly.

A. Valance Bar attaches to frame with simple bayonet-style mounting.
B. Draper Bars mount to Valance Bar, bayonet-style.
C. Optional adjustable Skirt Bar is secured to frame at desired level with positive-locking plunger mechanism. If Skirt Bar is not used, Skirt may be snapped to bottom of viewing surface.
D. Valance, Drapes, and Skirt snap onto Mounting Bars.
E. Gaps between the frame and the valance can be easily removed by pulling the bottom edge of the valance to close the gap.
F. Pulling and smoothing the edges of the panels will remove any wrinkles or puckers that might be present when product is unfolded.
