RMS-4301 - Styler Redmond - Free user manual and instructions

Product Type	Hair Styler / Straightener
Brand	Redmond
Model	RMS-4301
Dimensions (approx)	30 cm (length) x 3 cm (width) x 3 cm (height)
Weight	Approximately 300 g
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	50 W
Heating Technology	Ceramic plates for even heat distribution
Temperature Settings	Adjustable temperature (approx 140-230°C)
Heat-Up Time	Approximately 30 seconds
Auto Shut-Off	Yes, after 1 hour of inactivity
Swivel Cord	Yes, 360-degree swivel cord (approx 2 m)
Plate Material	Ceramic-coated floating plates
Additional Features	Ion conditioning, LED display, lockable temperature control
Cleaning	Wipe with a damp cloth after unplugging and cooling
Safety	Do not use near water; unplug when not in use; allow to cool before storage
Spare Parts	Replacement pads available; contact Redmond customer service
Repair	Only authorized service centers can repair; do not disassemble
General Information	Intended for domestic use; perfect for straightening or curling hair

Frequently Asked Questions - RMS-4301 Redmond

What type of hair can this styler be used on?

The Redmond RMS-4301 can be used on all hair types, including fine, thick, curly, and straight hair. Use lower temperatures for fine hair.

How long does it take to heat up?

The styler heats up in approximately 30 seconds to the selected temperature.

Is there an automatic shut-off feature?

Yes, the RMS-4301 has an auto shut-off function that turns off the device after 1 hour of inactivity for safety.

Can I use this styler on wet hair?

No, never use on wet or damp hair to avoid damage and electric shock. Always dry hair completely before styling.

What temperature range does it offer?

The temperature is adjustable between 140°C and 230°C, with a digital display for precise control.

How do I clean the plates?

Unplug the device, let it cool fully, then wipe the plates with a damp cloth. Do not use abrasive cleaners.

Does it have a swivel cord?

Yes, the cord is 360-degree swivel to prevent tangling during styling.

Are replacement plates available?

Replacement pads or plates can be ordered through Redmond customer service. Contact them for compatible parts.

What is the warranty period?

The Redmond RMS-4301 typically comes with a 2-year warranty. Keep your receipt for validation.

Can I take it on a flight?

Yes, it is safe for air travel. Ensure it is cooled down and packed in your carry-on or checked luggage.

USER MANUAL RMS-4301 Redmond

Black-and-white photo of a hair styling tool with four different designs (no text or symbols visible)

EN: For your own safety read these instructions carefully before using the appliance.

Product specification....4

Model arrangement....6

I. BEFORE OPERATING......8

Safety measures....8

Prior to the first use....9

II. OPERATING OF A MULTISTYLER....9

III. CLEANING AND MAINTENANCE....11

IV. BEFORE CONSULTING THE SERVICE CENTER....11

V. GUARANTEE....12

РУССКИЙ

Комплектация....5

Control type mechanical

«Cool air» mode +

Overheat protection +

Hanging loop +

Articulate cord fastening +

Cord length 2.0 m

THE MANUFACTURER HAS THE RIGHT OF MAKING MODIFICATIONS TO DESIGN, DELIVERED SET AND TECHNICAL DATA OF THE DEVICE IN THE COURSE OF IMPROVEMENT OF THE PRODUCTS WITHOUT ADDITIONAL NOTIFYING OF SUCH MODIFICATIONS.

КОМПЛЕКТАЦИЯ

Thank you for preferring the domestic appliance manufactured by REDMOND.

REDMOND means quality, reliability and thoughtful attitude towards our clients. We hope that in future you will also select products of our company.

Every woman dreams to be on top of the fashion, fashion changes so fast that one can hardly follow it. In close cooperation with professionals in the line of beauty REDMOND developed series of appliances for haircare, which allow to get an excellent result quickly and easy.

«Coole air» function excludes probability of hair overdrying and allows to fix the hairdo for a long time.

Experiment with REDMOND and create Your unique style!

I. BEFORE OPERATING

SAFETY MEASURES

WHILE OPERATING THE APPLIANCE, FOLLOW THE INSTRUCTIONS GIVEN BELOW. IF USED PROPERLY, IT WILL SERVE YOU FOR MANY YEARS.

- Before connecting the appliance to electric outlet, check that the mains voltage coincides with supply voltage of the appliance. The later can be found in technical data or on the factory nameplate of the appliance.

- If you want to use an extension cord, make sure that it suits the power consumed by the appliance. Different voltage can lead to a short-circuit failure or to the cable ignition.

- If you want to disconnect the appliance from electric outlet, pull the power cord while holding the plug with your dry hands, but not the cord. Otherwise, the cord rupture or an electric shock may follow.

- Do not use the appliance for hairdo making near the water (tub with water, wash-bowl, swimming-pool, douche, for example). If you use the appliance in bathroom it is necessary to take out the plug from the mains after operating to avoid an accident. Avoid getting water to the appliance!

- The appliance shuts off automatically when overheat. In that case, switch off the appliance, disconnect it and let the appliance cool down for several minutes. Before recurring turn on the appliance, make sure that vent holes does not blocked up with dust, hair and etc.

- Turn off the appliance when you finished the work even for a shor period of time.

● Always disconnect the appliance from mains after operating.

- Do not wind power cord round the appliance. Regulatory check the power cord on damage. If you have some doubt about appliance state, it is necessary to apply to authorized service center, where full check-up or maintenance will be done.

- Unassisted repair or modification of appliance is prohibited. All works related to maintenance and repair should be carried out by an authorized service center. The work carried out non-professionally can cause breakage, injuries and property damaging.

- The nozzles are heat up during the operate. Avoid contact them with a skin. Keep the appliance away from children.

IS PROHIBITED TO USE AN APPLIANCE IN CASE OF ANY MALFUNCTIONS. THE MANUFACURER HAS NO RESPONSABILITY FOR ANY DAMAGE CAUSED BY VIOLATION OF SAFETY RULES AND OPERATING INSTRUCTIONS.

NOTICE! KEEP THE INSTRUCTIONS MANUAL FOR FURTHER USAGE.

PRIOR TO THE FIRST USE

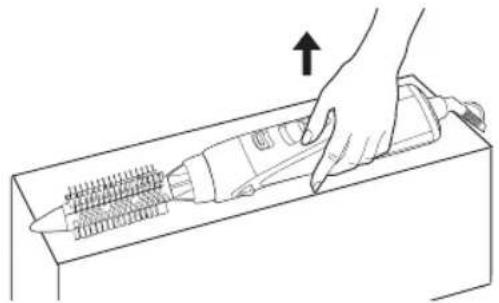

1. Remove all packing and advertising stickers carefully. Completely unwind power cord.
2. Wipe appliance with damp cloth, then wipe it dry.

Line drawing of a hand using a handheld tool to press or install a component, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a hand holding a cylindrical tool with a threaded handle (no text or symbols)

II. OPERATION OF THE MULTISTYLER

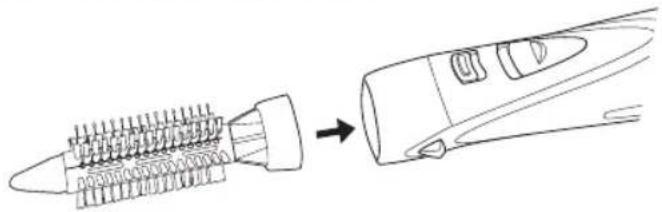

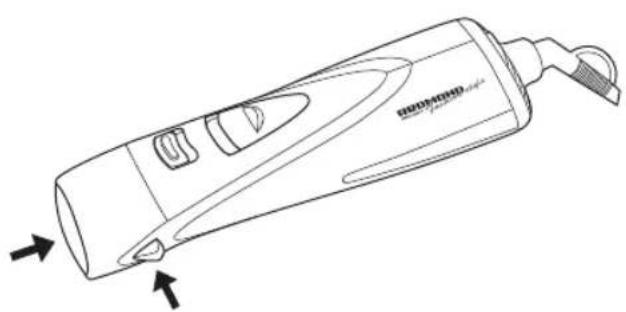

1. Choose the necessary nozzle and fix it on multistyler. To take the nozzle out of multistyler press (3) button and extract the nozzle.

Line drawing of a hairdryer with multiple designs and a close-up of its tip, showing no text or symbols.

1. Connect the appliance to the outlet, using switch mode to select the necessary working mode of appliance.

HAIR STYLING WITH BRISTLE BRUSH

Diagram showing hair styling process: top-down view of a car being combined with a hairdryer (no text or symbols)

Use bristle brush to create a volume hair-do.

1. Place bristle brush on the appliance.
2. Place the brush into the hair.
3. Set the switcher on 1 or 2 position to switch on the appliance.
4. Comb the hair against their growth so that brush pins touch the hair skin slightly.
5. Rotate the brush lifting up the hair slightly. It will allow to give the hair volume.
6. Cool air fixes the shape of hair good, press the «Care» button for that.
7. Switch off the appliance by switcher mode moving on 0 position after finishing Your hair styling.

HAIR STYLING WITH POINT ROLL BRUSH

Line drawing showing a hairpin being inserted into a body of water, with no text or symbols present.

Use point roll brush to create a volume hair-do

1. Place point roll brush on the appliance.
2. Place the brush into the hair.
3. Set the switcher on 1 or 2 position to switch on the appliance.
4. Comb the hair in direction from top to bottom of hair, slightly direct the end of hairc inside or outside, depending on desirable result.
5. Cool air fixes the shape of hair good, press the «Care» button for that.
6. Switch off the appliance by switcher mode moving on 0 position after finishing Your hair styling.

HAIR STYLING WITH CURLING IRON

Technical line drawing of a hairpin and a cable connector (no text or symbols)

Use curling iron to create a beautifull and elastic lock.

1. Place curling iron on the appliance.

2. Hair should be combed carefully before styling. We recommend to heat each lock at base for about 5-6 seconds by setting switcher mode on 1 or 2 position.

3. Twist the hair on curling iron to all length.

4. Press «Care» button to fix the hair with cool air. Long hair can be untwisted under own weight, fix each lock with a clamp and let them to get used to that set of form.

ATTENTION: USE THE TABLE TO CHOOSE WORKING MODE:

WORKING MODES USAGE
«Care» – «Cool air». for fixing hairdo for	a long time,exclude hair overdry.
1 – low power of blow and medium temperature of air-steam.	for fine hair drying and modelling
2 – high power of blow and temperature of air-steam.	for fast hair drying and modelling
0-switching off appliance is switched off

III. CLEANING AND MAINTENANCE

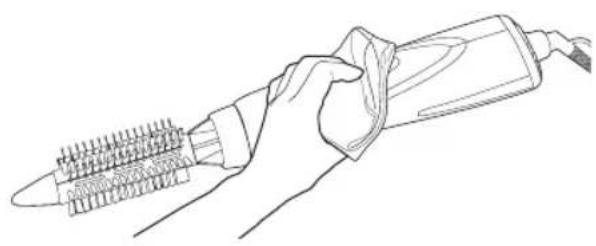

1. Make sure the appliance is switched off and disconnected from outlet.
2. Wait until the appliance cools down completely.
3. Clean the appliance with wet soap fabric.
4. Use soft washing liquids to clean the appliance, do not use abrasive cleaners.
5. It is prohibited to clean the appliance with spray of water and plunge into the water.
6. Prior to the first use make it dry.
7. It is prohibited to wind the cord round the appliance during the storage.

IV. BEFORE CONSULTING THE SERVICE CENTER

Trouble Probable cause	Remedy
The appliance does not work	Power cord is disconnected. In	Insert plug into the outlet
	The regime of work of the appliance does not correspond with the working.	Put the switcher on one of the working position.
	Cord or plug is damaged. Apply to service-centre
There is an extraneous smell during the work.	Some elements of the device are covered with protective coating, therefore, there can be an extraneous smell.	Turn off the appliance, wait until it cools down. Wipe the nozzles with moist fabric. If necessary, repeat the procedure.

V. GUARANTEE

The period of guarantee for the product is 25 months from the selling date.

The guarantee covers defects of material and workmanship.

Under the present guarantee, the manufacturer undertakes to repair or replace any part recognized as faulty on condition that the product is sent to the seller.

The present guarantee shall be valid only in case the product was used in compliance with this instruction, no modifications were made to it, it was not repaired or disassembled by unauthorized persons, or was not damaged due to improper handling. The complete set of the product must be retained also.

This guarantee does not cover natural deterioration of the product as well as brittle objects such as ceramic components, lamps, etc.

The guarantee shall not become effective unless the date of purchase is confirmed by the seller's signature and seal on the guarantee coupon.

Any repair under this guarantee shall not extend the period of guarantee and shall not initiate the beginning of a new guarantee.

In compliance with paragraph 2, article 5 of the Federal Law of the RF «On protection of consumers' rights», the manufacturer has established a minimum service life for this product, which is 2 years from the date of manufacture on condition that the product is used in strict compliance with this manual and technical requirements.

Line drawing of a hand using a handheld tool to interact with a device (no text or symbols present)

Line drawing of a hand holding a handheld electric shaver tool (no text or symbols)

Three technical line drawings of a hairpin tool, showing different designs and features (no text or symbols present)

Line drawing of a handheld electric shaver with two arrows indicating force or movement (no text or symbols)

Diagram showing hair styling process: hair brush drops from a cylindrical object to a flat tool (no text or symbols)

Line drawing of a hairdryer being combined with a secondhand, showing internal structure and tip alignment (no text or symbols)
