Product Type Wireless Access Point Ceiling 300Mbps
Wireless Standards IEEE 802.11b/g/n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, SNMP
Data Rate Up to 300 Mbps (download and upload)
Network Port 1 x RJ45 10/100/1000 Mbps with Auto-Negotiation and Auto MDI/MDIX
Power Supply External power adapter (included) or PoE (Power over Ethernet)
Wireless Security WEP 64/128-bit, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES encryption)
WPS Support Yes
Operating Modes Access Point (AP), Bridge (WDS) including Point-to-Point (P2P), Point-to-Multipoint (P2MP), Wireless Repeater
Default IP Address 192.168.0.254
Default SSID KRAUN_ followed by last 6 characters of MAC address (e.g., KRAUN_123456)
Default Username admin
Default Password admin
Subnet Mask 255.255.255.0
Wi-Fi Encryption TKIP+AES
Default WPA Key KRAUN_KR.KZ
Certifications ENERGY STAR qualified external power supply (v2.0); ISO 9001 and ISO 14001 certified manufacturer
Country Restrictions France: outdoor use limited to channels 1-6 (10 mW EIRP); Italy: 5.15-5.35 GHz and 5.47-5.725 GHz for indoor only; Norway: not allowed within 20 km of Ny-Ålesund, Svalbard

Frequently Asked Questions - KR.KZ Kraun

How do I set up the Kraun KR.KZ Access Point for the first time?
Connect the device to a switch/router via Ethernet cable and power it using the included adapter or PoE. Then, connect your computer to the same network and set your PC's IP to 192.168.0.x (subnet 255.255.255.0). Open a browser, go to 192.168.0.254, login with username admin and password admin. The default SSID is KRAUN_ followed by the last 6 MAC characters.
What are the default login credentials?
Default username and password are both admin. Default IP address is 192.168.0.254.
How can I change the SSID and wireless password?
Log into the web interface (192.168.0.254), go to wireless settings, and change the SSID and pre-shared key. The default key is KRAUN_KR.KZ. It is recommended to customize both for security.
How do I configure the device in Bridge (WDS) mode?
Log into the web interface, select Bridge (WDS) mode, then choose Point-to-Point (P2P), Point-to-Multipoint (P2MP), or Repeater. In P2MP, the root AP must be set to P2MP, and remote APs to P2P. Note that wireless clients are not allowed in P2P and P2MP modes.
What wireless security options are supported?
The device supports WEP 64/128-bit, WPA/WPA2, and WPA-PSK/WPA2-PSK with encryption types TKIP and AES. The default is WPA-PSK/WPA2-PSK with TKIP+AES.
Can I power the KR.KZ using PoE?
Yes, the device supports both external power adapter and PoE (Power over Ethernet). You can use a PoE switch or a PoE injector to power it.
What is the default IP address and how do I access the web interface?
The default IP address is 192.168.0.254. Set your computer to a static IP in the same subnet (e.g., 192.168.0.100, subnet mask 255.255.255.0), then open a browser and enter the IP address. Login with username and password both admin.
How do I reset the device to factory defaults?
While not explicitly stated in the manual, most wireless access points have a physical reset button. Press and hold the reset button (often located on the device) for about 10 seconds until the LEDs flash, then release. This will restore default settings including IP, username, and password.
What is the maximum wireless speed of this access point?
The device supports up to 300 Mbps both download and upload, using IEEE 802.11n standard.
Are there any country-specific restrictions for using this device?
Yes. In France, outdoor use is limited to channels 1-6 with maximum 10 mW EIRP. In Italy, the 5 GHz bands (5.15-5.35 GHz and 5.47-5.725 GHz) are for indoor use only. In Norway, use is prohibited within 20 km of Ny-Ålesund, Svalbard.

User questions about KR.KZ Kraun

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Access Point in PDF format for free! Find your manual KR.KZ - Kraun and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KR.KZ by Kraun.

USER MANUAL KR.KZ Kraun

Wireless Access Point Ceiling 300Mbps

White circular device with 'KRAUN' logo on top, no visible text or symbols beyond branding

For other languages visit www.kraun.it

Guide Rapide

Kurzanleitung

Guía Rápida

Guia Rápido

Instrukcja

obstugi

Gyors útmutató

Ghid rapid

Guida Rapida

GB Quick Guide

Cod. KR.KZ

GB As specified below, there are restrictive conditions valid in France, Italy and Norway for using the equipment outdoors when using the standard IEEE 802.11b/g/n wireless LAN.

In FRANCE, when the product is used outdoors, only channels 1 through 6 are allowed. Thus, in "Infrastructure Mode", using the equipment outside, only the authorised channels, between 1 and 6, are allowed to be configured and the access point must be configured to these channels before establishing the connection.

In ITALY: the use of the RLAN network is governed by Legislative Decree No. 259 dated 01 Aug 2003, Articles 104 (activities subject to general authorisation) and 105 (free use) for private use; Legislative Decree dated 28 May 2003 and subsequent modifications for the provision of public and private access to networks and telecommunication service; and the updates contained in Legislative Decree dated 12 July 2007.

The channels in the frequency interval between 5.15 GHz-5.35 GHz and between 5.47 GHz-5.725 GHz are only available for interior use.

In NORWAY: Use of the apparatus is not permitted within a 20 km range of the centre of Ny-Ålesund, Svalbard.

In some situations and areas, the use of wireless technology can be limited those responsible for the organisation, for example on board aircraft, inside hospitals or where there is a risk of interference with other devices. Consult your doctor or the manufacturer of any personal medical devices (pacemaker, hearing aids and so forth) regarding any limitations in using wireless technology.

Kraun KR.KZ - Wireless Access Point Ceiling 300Mbps - 2

Short Declaration of conformity:

We hereby declare that this product is compliant with the current regulations and meets the essential requirements of Directive 1999/5/CE (Radio & Telecommunication Terminal Equipments – R&TTE).

This device must be used in strict accordance with the regulation. Use in France is allowed with the following restriction: Outdoor use limited to 10 mW (EIRP) with the band 2454-2483,5 MHz.

The original declaration of conformity can be requested to the Technical Support on www.kraun.it

GB WArnIng: The manufacturer is under no circumstances liable for any unauthorised modifications made to the product by the user or any other parties which may compromise its conformity and safety.

PreCAuTlonS For uSe: Supply the product using exclusively the external power-pack supplied with the kit. Should it be necessary to replace the power-pack without knowing the type of power source required, contact the authorised support service or the dealer. Never pull the power cable out to disconnect the power-pack from the power outlet. Disconnect the plug instead. If the power-pack or its cable are damaged, even if only slightly, you must not use it again and replace it.

Kraun KR.KZ - Short Declaration of conformity: - 1

Kraun products with this icon meet the ecodesign requirements with ENERGY STAR qualified external power supply (version 2.0), which saves energy compared to previous generation power supplies.

CArATTerISTIChe DeL ProDoTTo

2. MODALITÀ BRIDGE (WDS)

PUNTO A PUNTO P2P

• Standards: IEEE802.11b/g/n, IEEE802.3, IEEE802.3u, 802.3, 802.3x,802.1p,SNMP
• Supports AP and WDS working modes
• 1 port RJ45 a 10/100/1000 Mbps with Auto-Negotiation and Auto MDI/MDIX
- PoE and external power supported
- Wireless data rate: up to 300 Mbps download and Upload
- Advanced security wi-fi: WEP 64/12B-bit, WPA/WPA2, WPA-PSK/WPA2-PSK (encryption security TKIP/AES)
• Supports WPS (Wi-Fi Protected Setup)

ProDuCT InSTALLATION

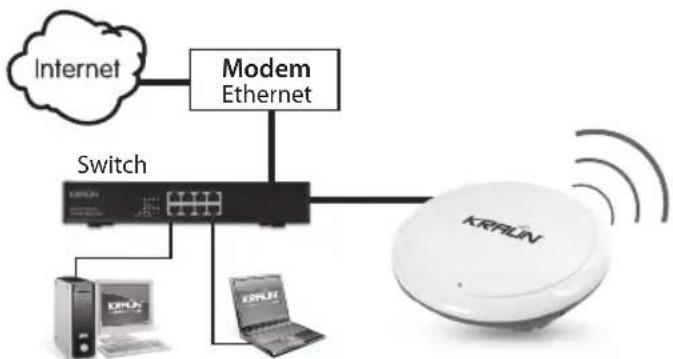

The default mode setting of this device is AP (Access Point): This mode can convert the wired transmission into wireless signals.

  1. Use the included power adapter to power on the AP. You can also use POE power supply or POE switch to power on the AP.
  2. Connect the LAN port of the AP to a switch/router/modem by an Ethernet cable.

  1. Then you can connect a desktop PC or laptop to your network (make sure your computer or laptop is equipped with a Wireless Adapter).

  2. Right-click the wireless connection icon "S") on the screen of the PC and then select View Available Wireless Networks.

Change Windows Firewall settings Open Network Connections Repair View Available Wireless Networks

  1. Select the default wireless network name (SSID) of this device is "KRAUN_the last 6 characters of MAC address", for example, "KRAUN_123456

Wireless Network Connection 10 Network Tasks Retiree# network list Set up a wireless network for a home or small office Related Tasks Learn about wireless networking Change the order of preferred networks Change advanced settings Choose a wireless network Click an less in the list below to connect t…

  1. Enter the required network key.

Wireless Network Connection The network 'KRAUN_123456' requires a network key (also called a WEP key or WPA key). A network key helps prevent unknown intruders from connecting to this network. Type the key, and then click Connect. Network key: ************ Confirm network key: ************ Connect C…

The default Key is: KRAUN_KR.KZ

We suggest you change SSID and the network key.

For more information please check the user manual.

ConFigurATlon gulDe

In order to change the configuration of your device or the wireless working mode from Access Point to Bridge (WDS) see the following Instruction.

1. Web LogIn

Connect the device via wired cable to your PC. Your PC's IP address must be in the same IP Address range of your AP.

a) Enter "My Network Places", right click "Local Area Connection" and select "Properties".
b) 2. Select "Internet Protocol (TCP/IP)" on the appearing window and click the "Properties" button

Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: 1…

noTe: Note: Please remind the current parameters of your PC's IP address which it must be restored when you have completed the amend of the configuration of the AP.

Manually configure the IP address as 192.168.0.* (* is any integer between 1 to 253), the Subnet mask as 255.255.255.0.

Launch Internet Explorer. In the address bar, enter the AP's default IP address, 192.168.0.254. Press Enter key and the login screen will appear. Enter admin both in the user name and password field.

Connect to 192.168.0.254 Wireless-N Access Point User name: admin Password: ****** Remember my password OK Cancel

Click OK to enter the welcome page of the device.

This device supports two working modes:

wireless AP (AP), Bridge (WDS). Select a working mode to configure the settings.

Bridge (WDS). Select a working mode to configure the settings. On this page, you can select wireless AP or Bridge to adapt different wireless access environment.

System Status Setup Wizard LAN Settings Wireless Settings SNMP configuration System Tools Logout -More Products>> ©2009 Tenda Setup Wizard Please select wireless working mode: ○ Wireless AP (AP) ○ Bridge(WDS) Next

2. BRIDGE (WDS) MODE Bridge (WDS) mode includes P2P, P2MP, Wireless Repeater.

POINT TO POINT BRIDGE

P2P bridge mode can connect with two wired network via wireless access points, which communicate by wireless signals and not by cables.

KRAUN Switch

P2MP BRIDGE MODE

P2MP Bridge mode can connect multiple wireless access point together without cabling. If "Root AP" is configured as P2MP bridge mode, other remote access points should select P2P bridge modes. Support up to 4 remote access point connection. In this mode, wireless clients are not allowed to connect.

WIRELESS REPEATER MODE

Repeater Mode can repeat and amplify wireless signals to extend wireless network coverage. In this mode, wireless clients are allowed to connect.

DEFAULT SETTINGS

The default mode setting of this device is AP (Access Point):

Item Default Value
Common Default Settings
Username admin
Password admin
IP Address 192.168.0.254
Subnet Mask 255.255.255.0
Wireless
SSIDKRAUN_the last 6 characters of MAC address (example KRAUN_123456)
Wireless Security Enable
Security Type WPA-PSK/WPA2-PSK
Criptazione (Encryption) TKIP+AES
WPA KEY KRAUN_KR.KZ
DHCP Server Disable

Kraun KR.KZ - DEFAULT SETTINGS - 1

Produced and distributed by a company with Quality and Environmental System certified ISO 9001 and ISO 14001

The original declaration of conformity can be requested to the Technical Support on www.kraun.it
