Product Type	Car Stereo with DVD/CD/MP3 Receiver, TFT Display, GPS Navigation, TV Tuner
Dimensions (D x W x H)	172 mm x 178 mm x 100 mm
Weight	3.5 kg
Power Supply	12 V DC
Maximum Power Output	50 W x 4 channels
Compatible Disc Types	DVD, DVD±R, DVD±RW, CD, CD-R, CD-RW
Compatible Formats	DVD, SVCD, VCD, MP3, WMA, HDCD, CDDA, MPEG4 (DivX), Picture-CD, JPEG
Display Size	6.5 inches
Display Resolution	480 x 234 pixels
Display Aspect Ratio	16:9
FM Tuner Frequency Range	65.0 – 74.0 / 87.5 – 108.0 MHz
FM Preset Memory Stations	18
AM Tuner Frequency Range	522 kHz – 1620 kHz
AM Preset Memory Stations	12
TV Tuner Signal System	SECAM, NTSC, PAL
TV Tuner Frequency Range	48.25 – 863.25 MHz
GPS Satellite Acquisition Sensitivity	-149 dBm
GPS Cold Start Time	<60 s (Open sky)
GPS Warm Start Time	<35 s (Open sky)
GPS Hot Start Time	<10 s (Open sky)
Navigation Software	Autosputnik (Russian maps)
Remote Control	Yes, with CR2025 battery
Safety Precautions	Disconnect battery before installation; use correct fuse; avoid extreme temperatures; do not disassemble unit
Cleaning Instructions	Wipe with soft cloth; for discs, wipe from center to edge
Package Contents	Mounting sleeve, outer trim frame, screws, keys, harness, wire, remote control

Frequently Asked Questions - H-CMDN6000 HYUNDAI

How do I reset the Hyundai H-CMDN6000?

Remove the front panel, then use a pointed object (like a ballpoint pen) to press the RESET button on the unit. This restores initial settings and may erase clock and memorized functions.

What disc types and formats are supported?

The unit supports DVD, DVD±R/RW, CD, CD-R/RW discs. Compatible formats include DVD, SVCD, VCD, MP3, WMA, HDCD, CDDA, MPEG4 (DivX), Picture-CD, and JPEG.

How do I activate GPS navigation?

Press and hold the REL/NAV button on the unit to activate GPS. For detailed operation, refer to the separate Navigation System User's Manual (included).

Why is there no sound from the speakers?

Check that the volume is not set to minimum. Also verify that the wiring connections are secure and the mute function (MUTE button) is not enabled.

How do I clean a disc?

Wipe the disc gently with a soft cloth in a straight motion from the center to the edge. Never use benzene, record cleaner, or anti-static spray.

Can I play music from an SD card?

Yes. Press REL to tilt the monitor, then insert an SD card into the SD slot. The unit will automatically play MP3 files from the card.

How do I set the clock?

Press and hold SETUP or SEL/MENU to enter the main menu. Select SYSTEM then CLOCK ADJ. Use the on-screen controls to set the time.

What type of battery does the remote control use?

The remote requires one CR2025 (3V) lithium battery. Insert it with the (+) mark facing upward.

What is the maximum power output?

The unit delivers a maximum power output of 50 W x 4 channels.

How do I change the subtitle language on a DVD?

During DVD playback, press the LOC/SUB-T button on the remote repeatedly to cycle through available subtitle languages or turn subtitles off.

USER MANUAL H-CMDN6000 HYUNDAI

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents

Table of contents 2

Important safeguards ....4

Accessories....5

Installation/connection....6

Electrical Connection....8

Unit controls....9

Front panel 9

Inner panel....10

Remote control 11

Changing the battery....12

General operations....13

Main menu 16

Digital tuner operations 21

RDS Setup....24

Disc operations....26

DVD operations....27

VCD/CD operations....35

MP4 Disc operations....39

MP3/SD operations....41

MP3 overview 43

AUX/TV operations (optional) 44

GPS operations....46

Handling and cleaning discs 47

Troubleshooting guide 48

Specification....49

Important safeguards

• Using the device at temperature below -10°C may cause the breakage of the device.
Before using, please, heat up the passenger compartment to the recommended temperature!
- Read carefully through this manual to familiarize yourself with this high-quality car stereo system.
- Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
- When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
- Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.
- If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
• DO NOT open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
- Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
- Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a qualified technician check the system.
- The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please confirm it before installation.
- Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.
- Install the unit horizontally. Install the unit more than 30 degree vertically may result in worse performance.
- Do not block the cooling fan exit to ensure sufficient heating dissipation of this unit, failure to do this may result in damage to this unit.

Main Parts List

①

Mounting Sleeve x1

⑤

Outer Trim Frame x 2

②

Rear Mounting Bolt x1

6

Keys x 2

③

Harness Rubber x1
⑦

Connecting Wire x1

④

M 5×5

4 Screws

M 5 × 20

5 Screws

Steel Bar x 1

Installation/connection

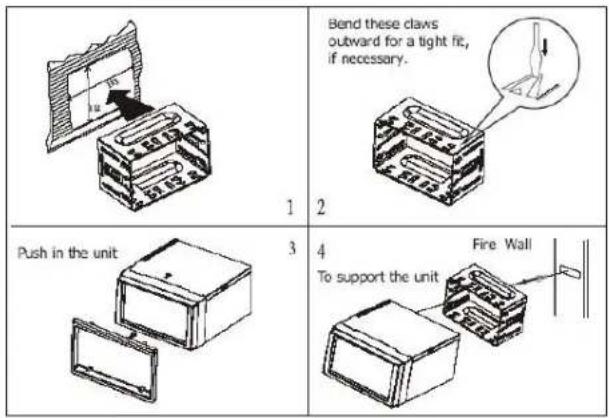

Installation method 1: DIN Front-mount

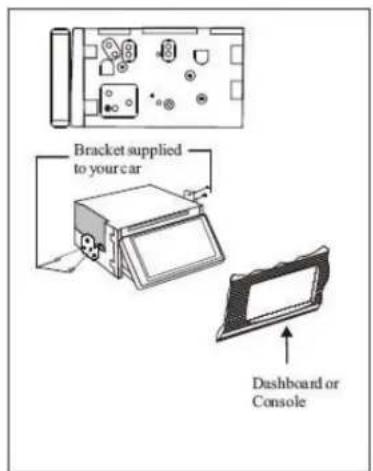

Installation method 2:

Installation using the screw holes at the sides of the unit.

Select a position where the screw holes of the mounting bracket supplied with the car and the screw holes of the main unit become aligned (are fitted), and tighten the screws (see at 2 places on each side). And then fasten them to the car.

Detach the unit

Detach the front panel before disassembling the unit. Take out the Outer trim frame.

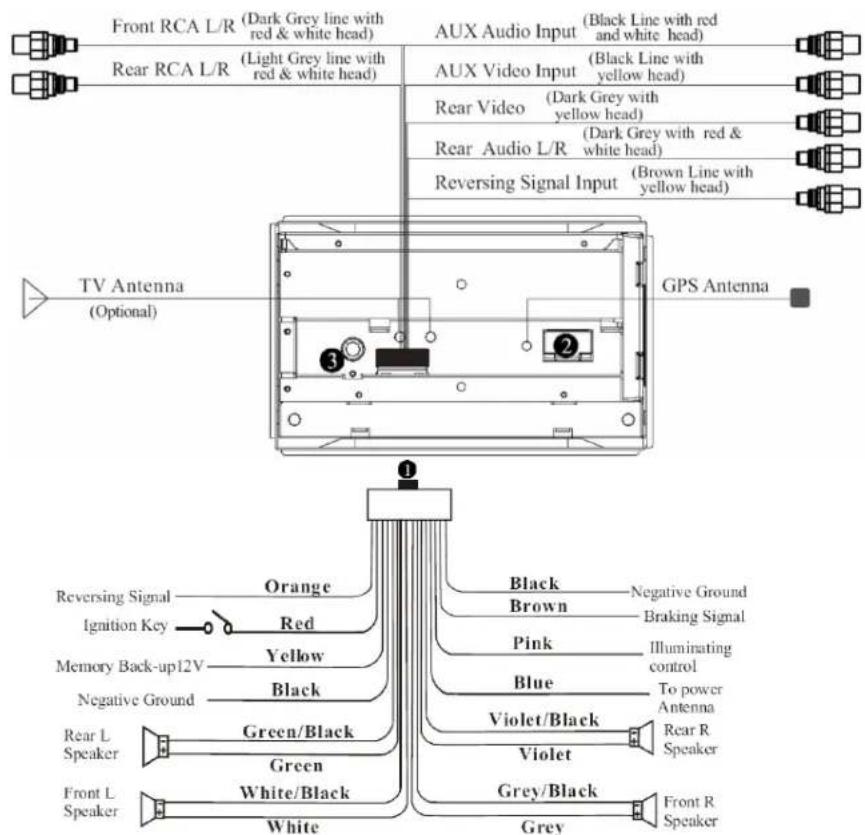

Electrical Connection

1. Output plug
2. Output socket
3. Tuner reception

Note: The brown wire is connected with brake signal; for safety, the programs can be seen on the monitor after braking the car, but the menu and RCA outputs are free of it. If you do not want to use this function, connect it with the negative pole. Do not connect the pink wire to the battery, otherwise it will use up the power of battery.

Unit controls

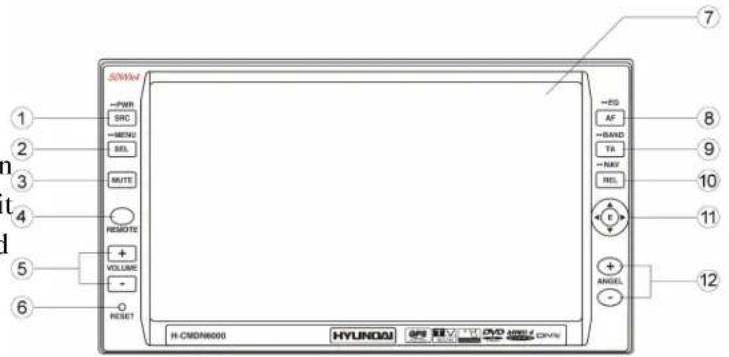

Front panel

1. SRC/PWR button

During waiting mode, briefly press it to turn on the unit; during working status, briefly press it to select radio mode or playback mode, hold and press it to turn the unit on or off.

1. SEL/MENU button

Briefly press it to select the function; keep pressing it to display the main menu.

1. MUTE button

Briefly press it to mute; keep pressing it to switch to the night mode.

1. REMOTE Infrared Sensor

2. VOLUME+/VOLUME-

Press VOLUME+/VOLUME- to increase or decrease the volume, and press them to adjust functions of the SEL button.

1. RESET button

Press it to restore the unit to initial status.

1. Touchable TFT display

2. AF/EQ button

Briefly press it to select the different frequency; press and hold it to select the corresponding preset modes to adjust the sound quality.

1. TA/BAND button

Briefly press it to activate the traffic alarm function; press and hold it to select the bands.

1. REL/NAV button

Press it to slide down the front panel, then you can insert or eject a disc or a SD card. Press and hold it to activate GPS function.

1. Cursor buttons

Left/Right/Up/Down/F.REW/F.F/Next track/Previous Track;

1. ANGLE+/ANGLE- Button

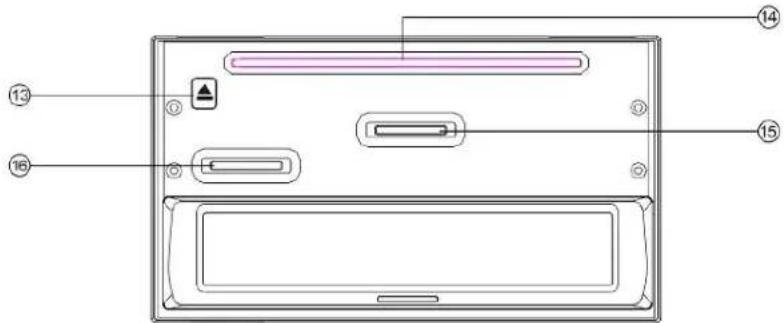

Inner panel

1. Eject button

Press it to eject a disc.

1. Disc Loading Slot

Press REL first before you load the disc.

1. SD Card Slot

2. Navigation SD card slot

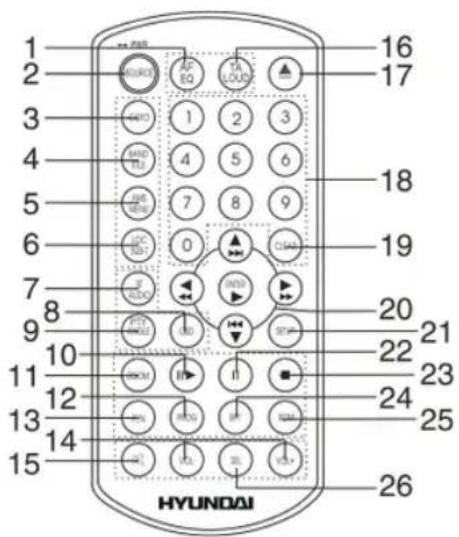

Remote control

1. AF/EQ button

2. SOURCE button

3. GOTO button

4. BND/TITLE button

5. AMS/MENU button

6. LOC/SUB-T button

7. ST/AUDIO button

8. OSD button

9. PTY/ANGLE button

10. ▶ SLOW button

11. ZOOM button

12. PROG button

13. P/N button

14. VOL+/VOL-buttons

15. MUTE button

16. TA/LOUD button

17. EJECT button

18. 0\~9 NUMBER buttons

19. CLEAR button

20. ENTER button / CURSOR ◀/▶/▲/▼ buttons / ◀/▶ FAST REWIND/ FAST FORWARD BUTTONS / ◀/▶ PREVIOUS/ NEXT TRACK BUTTONS

21. SETUP button

1. II PAUSE button
2. ■ STOP button
3. RPT button
4. RDM button
5. SEL button

Changing the battery

1. Press the catch and at the same time pull out the battery tray (pic. 1).
2. Insert the 1 lithium battery, type CR2025 (3V) battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control (pic.2).

Pic. 1

Pic. 2

Warning:

• Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.
• Do not recharge, short, disassemble or heat the battery or dispose it in a fire.
• Do not expose or bring into contact the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.
• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give off heat, crack or start a fire.

General operations

Reset the Unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit. Remove the front panel at first, and then press RESET button on the unit with a pointed object, (such as a ballpoint pen) to set the unit to initial state.

Note: When some errors occur on the display, you can also press RESET button to resume to normal, and it will erase the clock setting and some memorized functions. This function can only be operated by the head unit.

Turning the Unit On/Off

Press SOURCE button on the RC or SRC/PWR button on the unit to turn on the unit, press it again, the unit is still in the waiting status. After inserting a disc, the unit will automatically start playing. Keep pressing it more than 2 seconds to turn off the unit completely.

Note: During playback mode, the unit will play automatically after inserting a disc.

Setting the Sound Characteristics

Repeatedly press SEL button on the RC or SEL/MENU button on the unit to select the desire following order: BALAN => FADE => BASS => TREBL => VOLUME. After selecting the desired mode, you can adjust the current level by pressing VOL buttons on the RC or on the unit.

EQ Setting

While listening to the popular music, classic music or rock music, you can select the corresponding preset modes to adjust the sound quality perfectly by using AF/EQ button on the RC or on the unit. Press the button to choose the following modes in turn: POP => CLAS => ROCK => OFF. The default setting is OFF.

Volume Control

Press VOL+/VOL- button on the RC or on the unit to increase/decrease the sound level.

Turning Loudness On/Off

Press and hold TA/LOUD button on the RC to activate loud function. You can press this button to increase the low frequency, which can improve sensitivity for your ears. Keep pressing it again to quit this function.

Eject a Disc

Press EJECT button on the RC or on the unit to eject or insert a disc.

Open the Monitor

Press REL button on the unit to slant the monitor, press and hold it again, the monitor will return to initial state.

Angle Setting

Press ANGLE+/- buttons on the unit to adjust the best position of the monitor.

Mute Function

Press MUTE button on the RC or on the unit to turn off the sound. The corresponding icon appears on the TFT. Press it again to resume the previous volume level.

Night Mode

Press and hold MUTE button to enter the night mode, press it again to switch to the normal mode. This function is operated by the head unit only.

Insert an SD Card

Press REL button after turning the unit on, then insert an SD card into SD slot when the TFT is slanted, and the contents of the card will be played.

Clear

After inputting something wrong, press CLEAR button to clear it.

Mode Selector

Repeatedly press SOURCE button on the RC or the SRC/PWR button on the unit to select rad mode or playback mode.

Infrared Sensor

Reception of the remote control signal.

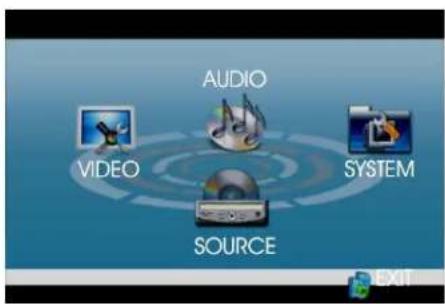

Main menu

Note: This unit can be operated by touching the screen buttons. Thus you can select the menus and change the parameters.

When the unit is on, the monitor will display main menu.

Press and hold SETUP button on the RC or SEL/MENU on the head unit, or press MENU on the monitor to enter the menu.

This menu includes AUDIO, VIDEO, SOURCE, SYSTEM, EXIT. Press them on the monitor to set the desired status.

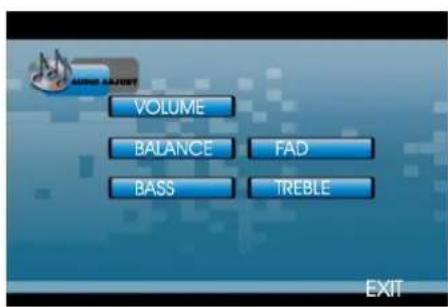

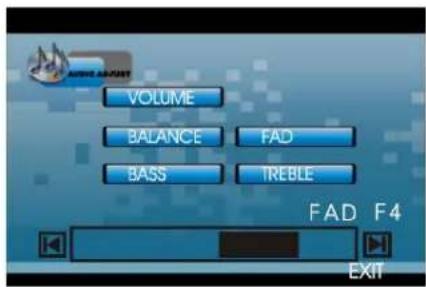

Audio Adjust

You can adjust VOLUME, BALANCE, FAD, BASS, TREBLE. For example, press FAD, the setting menu will appear.

Press 🔔 and 🔗 buttons to adjust the desired FAD level, press EXIT to exit this menu.

Note: When adjusting the other options perform the same operation.

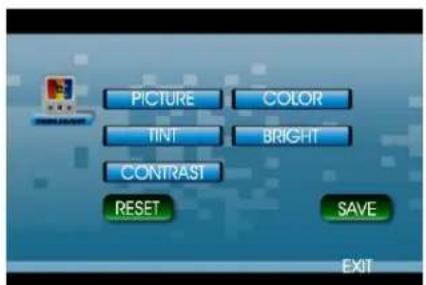

Video Adjust

In this menu you can adjust CONTRAST, COLOR, TINT, BRIGHT, PICTURE.

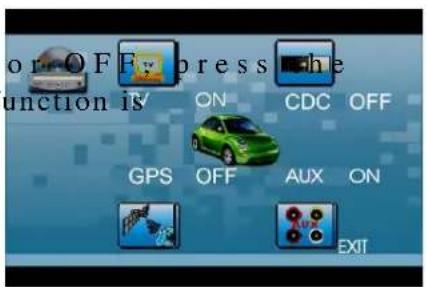

Source Adjust

You can adjust TV, CDC, GPS and AUX to ON or OFF corresponding button to set. If one of them was set OFF, that function not available.

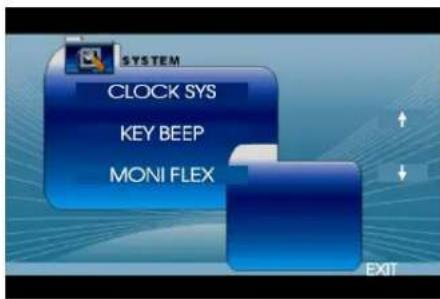

System Adjust

In this menu you can adjust CLOCK SYS (clock system), KEY BEEP, MONI FLEX (monitor flex), REVER POLA (reverse polarity), SUBWOOFER, AMS FULLUP, LOCAL AREA, LOCAL, GOTO FREQ, RT SCROLL, TA VOLUME, REGION, ADJ SCREEN, CLOCK ADJ.

Note: Press arrow buttons at the right side of the screen to display the next or previous menu.

Clock System

Press CLOCK SYSTEM in the monitor to set 12 HOUR or 24 HOUR in this menu.

Key Beep

In this menu you can adjust KEY BEEP, press it and select ON or OFF, the default setting is when you press the buttons, they are sounded.

Monitor Flex (optional)

In this menu you can adjust MONITOR FLEX, press it on the monitor and select MANUAL or default setting is AUTO, it means that when you turn the unit on the monitor will take a default position.

Rever Pola (Reverse Polarity)

You can reverse the polarity in this menu. The signal is +12V when you back a car, please press BATTERY in the monitor; if the signal is 0 V, please press GROUND.

Subwoofer

In this menu you can adjust SUBWOOFER settings, press it and select ON or OFF, the default setting is ON.

Note: This function is not available.

AMS Fullup

In this menu you can set the modes of AMS. When the setup is ON, the presettable stations are full, new one's are not allowed. When you select OFF, it will search continually.

Local Area

You can select EUROPE, USA, to search the stations quickly in your current area. You can select OIRT to receive stations quickly.

Local

In this menu you can search the LOCAL stations, when selected ON, the strong signal local stations can be received, when selected OFF, the week signal out-of-town stations may be received.

Goto Freq

Selecting ON, you can use GOTO button on the RC to select a station's frequency directly in radio mode.

RT Scroll

You can select SLOW, NORMAL or FAST scroll speed according to your preferences.

TA Volume

You can select LOW, NORMAL or HIGH TA volume according to your preferences.

Region

To set the AF searching region, the default setting is ON. You can also set it to OFF.

Adj Screen

Press ADJ SCREEN to display the above menu, there are a square button at the top left corner and a tip: please press the button. Press the square button at place 1, then the button will move to place 2, press it at place 2, it will move to place 3, then place 4, press SAVE at last.

Clock Adjust

Press CLOCK ADJ to adjust the time.

Digital tuner operations

Mode selecting

Press the SRC/PWR button on the unit or SOURCE button on the RC repeatedly to switch to RADIO mode.

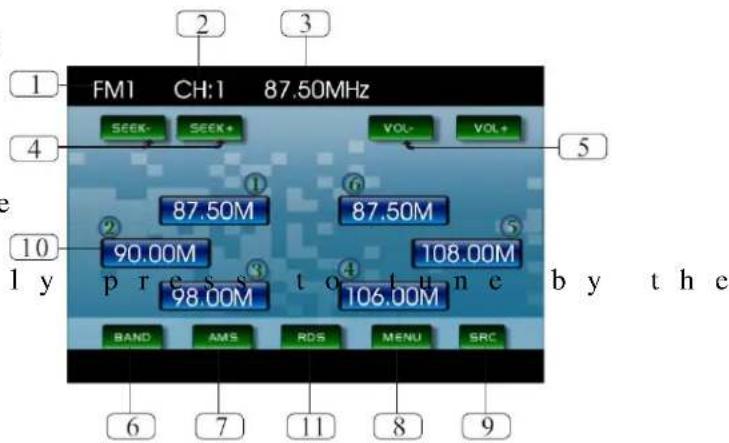

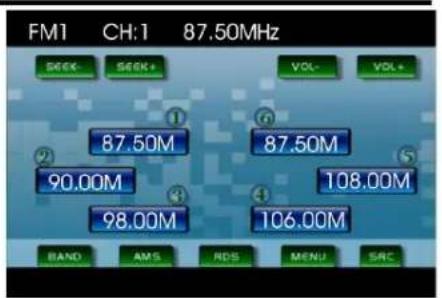

User interface (UI) of Radio mode

When the unit is switched to Radio mode, the following user interface will be displayed on the display:

1. Band indicator. Shows which band the radio is tuned to.
2. Preset number indicator. Shows what preset has been selected.
3. Frequency indicator. Shows which frequency the tuner is tuned to.

4. S E E K + / S E E K - . B r i e f l y presettable range, hold and press to tune automatically.

5. VOL+/VOL-. To increase or decrease the volume.

6. BAND. To select bands.

7. AMS. Briefly press to scan the current station, hold and press to tune automatically.

8. MENU. Press to set the main menu.

9. SRC. Press to select the signal source.

10. The 6 stations of the current band. Briefly press to select station, press and hold to save the current station to one of the 6 stations.

11. RDS. Press it to enter RDS SETUP.

Band selection

Press the BND/TITLE button on the RC or on the touch screen to switch to the bands in the following order: FM1 - FM2 - FM3 - AM1 - AM2 (for two bands); FM1 - FM2 - FM3 - MW - LW (for three bands).

Manual/automatic tuning

• Manual tuning: Press «/» buttons on the RC repeatedly to select a station upward or downward step by step.
• Automatic tuning: Press and hold for more than 3 seconds // buttons on the RC or cursor buttons on the head unit to start automatic seeking for an available radio station downward or upward. After being found the station will be played.

DX/LOC Selector

During radio mode, press LOC/SUB-T button on the RC to select strong or weak station reception. LOC appears on the display and only local stations are available. When you turn it off both distance and local stations can be received.

Note: The function is invalid in AM tuning.

Selecting the Stored Station

During radio mode, press ▲/▼ buttons on the RC or correspondent cursor buttons on the unit to select the stored station upward/downward.

MO/ST Selector

During radio mode, you can press ST/AUDIO button on the RC to select mono mode or stereo mode. Stereo reception is on when MONO disappears on the display. It is switched to mono mode when MONO appears.

Note: The function is available only in FM tuning.

Scanning/Memorizing Stations Automatically

During radio mode, you can press AMS/MENU button on the RC or AMS button on the monitor to scan each stored station for 5 seconds respectively which stored with number buttons (1 - 6).

You can press the corresponding Number Buttons, AMS/MENU button on the RC or AMS button on the monitor when your desired station is on. And it starts playing that station.

When you press and hold AMS/MENU button on the RC or AMS button on the monitor for more than 2 seconds, it will activate automatically memory-storing function. The tuner automatically selects a station and stores it by any one of the number buttons (1 - 6).

To store the station press and hold number button for more than 2 seconds when listening.

Note: The unit can be stored up to 6 stations for each band.

On Screen Display

During radio mode, keep pressing OSD button on the RC to display the current mode.

Goto FREQ

Press GOTO button, and the monitor shows FREQ. Then press number buttons to input the valid frequency.

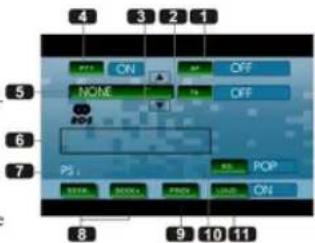

RDS Setup

1. AF. Press it to activate AF function.
2. TA. Press it to activate TA function.
3. ▲/▼. Press it to select PTY code.
4. PTY. Press it to activate PTY function.
5. During PTY ON, press this button to search the playing track type.
6. Displays the RADIO TEXT of the RDS station.
7. PS: Display the current RDS station programs information.
8. SEEK+/SEEK-. Press it to tune automatically.
9. PREV. Press it to turn to "listening to the radio".
10. EQ. Press it to select the corresponding preset modes to adjust the sound quality.
11. LOUD. Press it to activate the LOUD function.

Alternative Frequencies

Briefly press AF/EQ button to activate the auto searching station function. When AF is on, the RDS signal is week or there is no it at all, it will be found in the presetted frequencies and the whole bands.

Traffic Alarm

Briefly press TA/LOUD button activate the traffic alarm function. When AF is on, the TA displays on TFT, or else, if there is no TP information, the mode will search TP station automatically.

The TA is green when it is played by a station, if not, it is white. When TA is playing, the volume will be adjusted to a TA level automatically. When other modes are activated (such as DVD, AUX), if a TA program is played the mode will skip to the RDS mode automatically. It will resume to the primary mode after the TA is over.

Program Type

Briefly press PTY/ANGLE button on the RC or PTY button on the monitor to activate PTY function.

When PTY is on, PTY ON appears on the monitor, you can press UP/DOWN to select the program type, and then press

PTY CODE to search the special program. And the monitor displays PTY SEARCH. If PTY is off, PTY OFF appears on the monitor, the searching is stopped.

Note: RDS service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. To activate this function enter RDS Menu by pressing TA/LOUD button on the RC.

Disc operations

Discs for playback

• This unit can play disc types: DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW.
- Compatible with formats: DVD/SVCD/VCD/MP3/WMA/HDCD/CDDA/MPEG4 (DivX)/Picture-CD/JPEG.
• The following file types are supported:
Audio files: MP3 (*.mp3)
WMA (*.wma)
Video files: MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 and XVID)
MPEG 2(*.vob)
MPEG 1(*.dat)

Picture file: JPEG (*.jpg)

• ISO 9660 or ISO 9660 +Joliet format - Max. 30 characters
• Max. Track number is 448
• Max. nested directory is 8 levels
• The max. album number is 99
• The max. length of each track is 99 minutes 59 seconds
• Supported sampling frequency for MP3 disc: 8 KHz – 48 KHz (44.1 KHz preferably)
• Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably).
- Following formats are NOT supported *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, files with DRM.
• Open session discs are NOT supported.

Note: Before performing any disc operations turn on the power of the unit.

DVD operations

Glossary

PBC (Play Back Control)

Play Back Control is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.

Title

The title is the important part of DVD disc. The memory volume of the disc is rather big, that makes possible to record several films on one disc. For example, if a disc contains three films, they may be divided into Title 1, Title 2 and Title 3. You can easy use the functions of looking-for.

Chapter

A title can be divided into several blocks, so that every block can be operated as a unit, the unit is called chapter. The chapter contains a unit at least.

Track

It is the biggest component of VCD. Generally, every song of karaoke disc is a track.

Playing a DVD

Insert a DVD disc into the disc slot, the unit will automatically switch on, if a DVD disc is loaded, press ENTER button to start the playback. To eject a DVD press EJECT button on the unit, on the RC.

Touch the screen at any place when DVD mode is on and the monitor will display the menu as follows:

Along with buttons of the RC and the unit you can use touch buttons of this menu to perform some of the following operations.

Stop the playback

Press STOP button, then press ENTER or PAUSE button on the RC or on the monitor to resume playing.

Previous/next track

Press ⌘/▶ buttons on the RC or on the monitor, ▲/▼ cursor buttons on the unit to play the previous/next track.

Fast rewind/forward

Press ◀/▶ buttons on RC or on the monitor, ◀/▶ cursor buttons on the unit to perform fast rewind or fast forward. → 2X → 4X → 8X → 16X —

Number Buttons

Press one of the number buttons (0-9) to select a track, it will be played automatically.

Repeat Playing

Press RPT button on the RC to perform replaying function as followings:

System Switch

During playback mode, Press P/N button on the RC to set the TV standard to PAL or NTSC or AUTO system.

Slow motion playback

Press ||► button to slow forward or slow backward.

Changing the size of the picture

Press ZOOM button to increase the picture in size. Each pressing increases the size until the maximum size is reached.

On Screen Display

Briefly press OSD button and the display will show:

Title elapsed => Title remain => Chapter elapsed => Chapter remain => Display off =>.

Press and hold OSD button to display the current setup.

DVD Playback Setting

Press GOTO button to set the playing time: title/chapter/audio/subtitle/angle/tt time/ch time/repeat/time disp.

Press ▲/▼ buttons to select the options, press ENTER to set the status. Then press Number Buttons or ◀/▶

buttons to set the current status. Press GOTO button to exit.

Changing the viewing angle (Multi-angle)

With DVDs featuring multi-angle (scenes shot from multiple angles) recordings, you can press PTY/ANGLE button to switch among viewing angles during playback.

Notes:

ANGLE 1— ANGLE 2 — ANGLE 3

• The 📄 mark on a DVD's package indicates that it supports multi-angle scenes.
• Number 3 in the mark indicates the number of angles from which scenes were shot.
• The function is invalid if ANGLE button is pressed during fast forward/reverse or pause.

Changing audio language (Multi-audio)

DVDs can support audio playback with different language. Press ST/AUDIO button to switch between language and audio systems during playback.

For example: AUDIO 1 => AUDIO 2 => AUDIO 3.

Note: This function is only valid with DVDs featuring multi-audio recordings.

Changing the subtitle language (Multi-subtitle)

If your DVD supports multi-subtitle recordings press LOC/SUB-T during playback to switch between subtitle languages.

For example: Subtitles 1 — Subtitles 2 — Subtitles OFF

Note: This function is only valid with DVDs featuring multi-subtitle recordings.

MENU function

1. Press AMS/MENU button to enter the root menu, all of the chapters will appear on the TFT. You can press ENTER button or number buttons to select your desired chapter.
2. Press BND/TITLE button to enter the title menu, all of the titles will appear on the TFT. You can press ENTER button or number buttons to select your desired title.

DVD Setup menu

1. Press SETUP button on the RC to enter the setup menu.
2. Use the ◀/▶ buttons to choose the setup page: General page, Dolby Digital setup, Preference page, Exit.
3. Press the ▼ button to enter the setup page selected.
4. Use ▲/▼ buttons to select the option you want to adjust.
5. Press ▶ button to enter the adjustment list. Use the ▲/▼ buttons to select the adjustment and press ENTER button or MENU button on the unit to confirm.
6. To return to setup page list press the ◀ button in the options list.
7. Press SETUP button again to quit the setup page.

General setup page

• TV DISPLAY

Normal/PS: When the unit connects to the normal TV set, the wide-screen image shows on the full screen, but some part is cut off (4:3).

Normal/LB: When the unit connects to the normal TV set, the wide-screen image shows and black bars appear on the top and bottom of screen (4:3).

Wide: Use this item when the unit is connected with the wide screen (16:9) TV set.

• ANGLE MARK
It will show the angle mark when playing DVD disc with multi-angle view if selecting On.
- OSD LANG
Select on-screen display language.
• CAPTIONS
This function doesn't work when the disc without caption. The default setup is On.
• SCREEN SAVER

If the Screen saver is set On and the unit is switched on without a disc playing for 3 minutes, a moving picture appears on the TFT.

Dolby digital setup

• DUAL MONO

Choose the mode of the audio output:

Stereo: choose this setting, when 5.1-channel sound playing, two channels of signals will be output from the left and right soundtrack; when 2-channel sound playing, stereo signal will be output.

L. Mono: the signal will be output from the left speaker.

R. Mono: the signal will be output from the right speaker.

Mix-mono: the signal from one channel will be output from left and right speakers.

• DYNAMIC

If adjusting to FULL, the audio signal peak value will be the minimum. While adjusting to OFF - maximum.

Use the ◀/▶ button to move the scroll and adjust the dynamic range.

Preference setup

• TV TYPE

This unit is suitable for all kinds of TV systems. You can select one of the PAL, NTSC or AUTO.

Auto: the TV system is auto switched according to the broadcasting system.

NTSC: this system is used in USA, Taiwan, Japan etc.

SECAM: Russia and former CIS countries.

PAL: this system is used in China, Europe, Hong Kong etc.

• AUDIO, SUBTITLE, DISC MENU

Set the desired languages for all the settings. If a setting is supported by disc content, it will work. Otherwise the disc default value works. You also can press the ST/AUDIO button on the RC to select the audio language. Press the LOC/SUB-T button on the RC to select the subtitle language.

- PARENTAL

The control level is for parental to control playing content and protect your children from violence and erotic. The disc, the level of which is higher than the setting level can not be played.

Set the control level:

(1) with the least limits when playing.

(8) with the most limits when playing.

Original setting: OFF.

Note: The rating can be selected only under the Password unlocked status, and the limits can be worked only under the password locked status.

- PASSWORD

The password option is initialized as locked, and you cannot set the ratings limit or change the password. In order to make the Parental feature works, the password mode must be turned on. If you want to set the ratings limit, you will need to enter the default password, which is 8888, then press ENTER to confirm. To change the password, enter the Password change submenu. Use the cursor buttons to select the desired field. In the Old password field insert the old password or 8888 (if you forget the old one). If you change the password, the default password 8888 will be void.

In New password field insert the new password.

Insert it again in Confirm password field.

Press ENTER to save the new password.

- DEFAULT

Reset to the initial factory setups.

Exit

Select the Exit page to exit the Setup menu.

VCD/CD operations

Along with buttons of the RC and the unit you can use touch buttons of this menu to perform some of the following operations.

Playing a VCD/CD

Insert a VCD/CD disc into the disc slot, the unit will automatically switch on, if a disc is loaded, press SOURCE button to start the playback.

To eject a VCD/CD press EJECT button.

Previous/next track

Press ⌘/▶ buttons on the RC or on the monitor, ▲/▼ cursor buttons on the unit to play the previous/next track.

Repeat Playing

Repeatedly press RPT button to perform replaying function, first press it to replay the current track, press it again resume normal playback.

Playing Tracks at Random

Press RDM button on the RC to play any track at random under the directory which you select. Press it again to return to normal playing.

Number Buttons

Press one of number buttons (0-9) to play a track you want.

Stop Playback

Press STOP button, then press ENTER or PAUSE button on the RC or on the monitor to resume playing.

Pause the Playback

Press PAUSE button on the RC or on the monitor to switch between play and pause.

Fast rewind/forward

Press ◀/▶ buttons on RC or on the monitor, ◀/▶ cursor buttons on the unit to perform fast rewind or fast forward.

System Switch

Press P/N button on the RC to set the TV standard to PAL or NTSC or AUTO system.

Slow motion playback

Press ||► button to slow the playback.

Changing the size of the picture

Press ZOOM button to increase the picture in size. Each pressing increases the size until the maximum size is reached.

On Screen Display

Briefly press OSD button and the display will show:

Single elapsed => Single remain => Total elapsed => Total remain => OFF.

Press and hold OSD button on the RC to display the current setup.

Setting the Playback Time

During CD playback, press GOTO button, there will be track : — : — on the display.

Enter your desired track for playback using number buttons.

Press ▼ cursor button, disk time appears on the TFT. also enter your desired time of the playback using number buttons.

During VCD mode, press ▼ cursor button to set the playing time: track/disc time/track time/repeat/time disp.

Press ▲/▼ cursor buttons to select the options, press ENTER to set the status. Then press number buttons or

◀ / ▶ cursor buttons to set the current status. Press GOTO to exit the menu.

Selecting Channel

Repeatedly press ST/AUDIO button to select the following channels:

PBC Selector

During VCD mode, press BND/TITLE button, the PBC playback starts and the menu of entire disc appears on TFT. And then you can select your desired track using cursor or number buttons. When a track is playing, you can press SEL/MENU button on the unit to return to the video file menu, if you would like to select others. To cancel PBC playing, press BND/TITLE button again.

Note: This function is only available if discs support PBC version 2.0 or above.

Program Playing

During VCD/CD mode, press PROG button, the monitor displays the program menu. Press number buttons to select the track number and then press cursor buttons to move the cursor to START, press ENTER button to start program playing; move the cursor to EXIT and press ENTER button to exit the program playing. Move the cursor to ≈ and press ENTER button to go to the last page; move the cursor to ≈ and press ENTER button to go to the next page. During this process, press STOP button or press PROG button to cancel the program playing.

Notes on creating your own CD-R or CD-RW containing MP3 files:

• To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate of 128 kbps.
  • DO NOT store more than 448 MP3 files per disc.
• For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).
• When CD-R disc is used, playback is possible only for discs, which have been finalized.
• Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc.
• You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.
• With some CD-R or CD-RW media, data may not be properly written depending on its manufacturing quality. In this case, data may not be reproduced correctly. High quality CD-R or CD-RW disc is recommended.
• Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required.
  • Note that the unit may not play Tracks in the order that you wrote them to the disc.

MP4 Disc operations

Playing tracks

Insert an MP4 (AVI, MPEG4) disc into the disc slot, the unit will automatically switch on, if a disc is loaded, press SOURCE button to start the playback.

Number buttons

You can select any tracks directly using number buttons (0-9). The track you selected will be played automatically.

Stop the playback

During MP4 (AVI, MPEG4) playback, press STOP button to pause playing, then press PAUSE button to play from the beginning of the disc.

Playing tracks at random

Press RDM button on the RC to play any track at random under the directory, which you select. Press it to return to normal playing.

Pause the Playback

During MP4 (AVI, MPEG4) playback, press PAUSE button to suspend the playback. Press it again to resume the normal playback.

Repeat Playing

During MP4 (AVI, MPEG4) playback, press RPT button to choose replaying function, first press it to replay the current track, press it again to cancel this function.

On Screen Display

Briefly press OSD button the display shows:

Press and hold OSD button on the RC to display the current setup.

Setting the Playback Time

Press GOTO button, and the monitor will show: —:—, enter your desired time of the playback using number buttons. and press ENTER to set the status. Press GOTO button one more time, and the monitor will show: —:—, enter your desired time, then press ENTER.

Previous/next track

Press ⌘/▶ buttons on the RC or on the monitor, ▲/▼ cursor buttons on the unit to play the previous/next track.

Fast rewind/forward

Press ◀/▶ buttons on RC or on the monitor, ◀/▶ cursor buttons on the unit to perform fast rewind or fast forward. → 2X → 4X → 8X → 16X —

Changing the size of the picture

Press ZOOM button to increase the picture in size. Each pressing increases the size until the maximum size is reached.

MP3/SD operations

Along with buttons of the RC and the unit you can use touch buttons of this menu to perform some of the following operations.

Playing an MP3/SD

Insert an MP3 disc into the disc slot, the unit will automatically switch on, if an MP3 disc is loaded, press SOURCE to start the playback. During MP3/SD playback, the track information displays on TFT. When playing a disc included PIC file or SD card, press STOP button, then press ▲/▼ to select the option.

Note: Press EJECT button to eject the disc. During other mode insert the SD card and its contents will be played.

Previous/next track

Press ▲/▼ buttons on the RC or on the unit to play the previous/next track.

Repeat Playing

Press RPT button to replay the current track, press it again to resume the normal playback.

Number buttons

Press one of number buttons (0-9) to select a track you want.

Stop Playing

Press STOP button to stop the playback.

Selecting the MP3/SD Track

Press GOTO button and the monitor will show: ---. Then press Number Buttons to enter the Mp3 track number and press then ENTER button to play; secondly press GOTO button, and the monitor will shows: ---, now enter the desired number to play the current track at this point. If there are some mistakes, press CLEAR button to clear them.

Pause the Playback

During MP3 playback, press PAUSE button to switch between play and pause.

Fast rewind/forward

Press ◀/▶ buttons on RC or ◀/▶ cursor buttons on the unit to perform fast rewind or fast forward.

Playing tracks at random

Press RDM button on the RC to play any track at random under the directory, which you select. Press it again to return to normal playing.

Eject the SD card

Push SD card to exit it.

MP3 overview

• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
• This product allows playback of MP3 files on DVD-R/-RW, DVD+R/+RW, CD-ROM, CD-R/-RW discs.
- The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
- The unit can not read an MP3 file that has a file extension other than ".mp3".
- If you play a non-MP3 file that has the ".mp3" extension, you may hear some noise.
- In this manual, we refer to what are called "MP3 file" and "folder" in PC terminology as "track" and "album", respectively.
- Maximum number of directory level is 8, including the root directory. Maximum number of files and folders per disc is 448.
• The unit may not play tracks in the order of Track numbers.
• The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.
- When playing a disc of 8 kbps or "VBR", the elapsed playing time in the display window will not be correct and also the intro play may not function properly. "VBR": Variable Bit Rate.

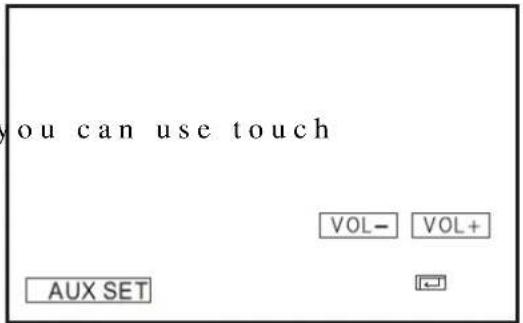

AUX/TV operations (optional)

Press SRC button to switch to AUX mode.

Along with buttons of the RC and the unit y buttons of this menu to perform some of the following operations.

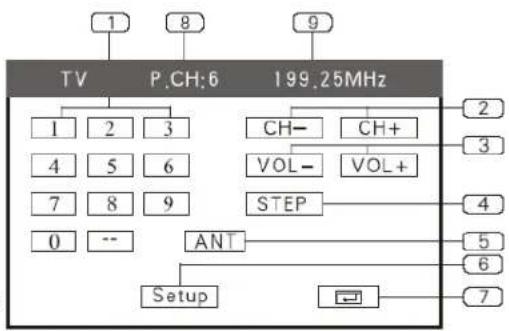

TV touch screen menu

Press SRC button to switch to the TV mode.

1. Station selector. To select 1 to 10 stations, touch the number in the monitor to select 1-9 stations directly. Press -- at first, then press the corresponding number button to select more than 10-30.

2. CH-/CH+. To select the station upward or downward by steps.

3. VOL+/VOL-. To regulate the volume.

4. STEP. To adjust clearer image.

5. ANT. Press it to select the left or right antenna.

6. SETUP. The following menu:

You can adjust the following items:

SOUND: M/N, B/G, D/K.

BAND: V-I, V-H, UHF

MODE: SECAM/NTSC/PAL

1. Mode selector
2. Preset stations. To show all of stations in item 1.
3. Frequency. To show the TV frequency.

TV Station Selection

Press number buttons or ▲/▼ buttons on the RC to select the TV stations, press 1 to 9 number buttons to select the stations directly; press GOTO button to select more than 10 stations, then press the corresponding number.

Frequency Searching

Keep pressing «/» buttons on the RC or ◀ / ▶ cursor buttons on the unit to select the frequency upwards and downwards.

Seek station automatically

Press AMS/MENU button to seek stations automatically.

GPS operations

Press and hold the REL/NAV button on the unit to activate the GPS function.

For details of operating the in-built GPS navigation system see the Navigation System User's Manual (in Russian only) included in the accessories package.

Handling and cleaning discs

• Dirty, scratched or warped discs may cause skip ping or noise.
• Handle the disc only by the edges. To keep clean do not touch its surface.
  • Discs should be stored in their cases after use to avoid scratches.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature can wrap the disc (such as leaving the discs in your car during summertime).
• Do not stick or write anything on either side of disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage its surface.
• Do not touch the unlabeled side. Do not attach any seal, label or data protection sheet to either side of a disc.

Cleaning

Cleaning the cabinet

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Troubleshooting guide

Symptom	Cause Solution
No power.	The car ignition is not on.The fuse is blown.	If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.Replace the fuse.
Disc cannot be loaded.	Presence of disc inside the player.	Remove the disc in the player then put a new upward.
Disc cannot be read. Inserting	the disc in upside down.Compact disc is extremely dirty or defective.Temperature inside the car is too high.	Insert the compact disc with the label facing upward.Clean the disc or try to play a new one.Cool off until the ambient temperature returns to normal.
No sound. Volume is in minimum.	Wiring is not properly connected.	Adjust volume to a desired level.Check wiring connection.
The operation buttons do not work.	The built-in microcomputer is not operating properly due to noise.Front panel is not properly fix into its place.	Press the RESET button.Reinstall the front panel.
Sound skips. The disc	is extremely die defective.	Clean the compact disc/try to play a new one.
The radio does not work.The radio station automatic selection does not work.	The antenna cable is not connected.The signals are too weak.	Insert the antenna cable firmly.Select a station manually.

Specification
DVD/CD/MP3 RECEIVER

General
Power supply:	12 V DC
Maximum power output:	50 W x 4 channels
Compatible disk types:	DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW
Compatible formats:	DVD/SVCD/VCD/MP3/WMA/HDCD/CDDA/MPEG4(DivX)/Picture-CD/JPEG
Dimensions/weight:	D x W x H: 172 x 178 x 100 mm / 3.5 kg
ESP function:	40 sec. for Audio CD, 120 sec. for MP3
TFT display
Screen size:	6.5 inches
Resolution:	480 x 234
Aspect ratio:	16:9
Contrast ratio:	300:1
Brightness:	350 cd/m2
Color system	PAL/AUTO/NTSC
FM Stereo Radio
Frequency range:	65.0 – 74.0/87.5 – 108.0 MHz
Usable sensitivity:	10 dB μV
Preset memory stations:	18
AM section
Frequency range:	522 kHz - 1620 kHz
Preset memory stations:	12
TV Tuner
Signal System	SECAM/NTSC/PAL
Tuning Range	48.25 – 863.25 (MHz)

GPS

TEMP	25 °C
Satellite Acquisition Sensitivity	-149dBm
Cold Start Time	<60S (Open sky)
Warm Start Time	<35S (Open sky)
Hot Start	<10S (Open sky)
1st Positioning Time	<100s (Open sky)
Signal Format	NMEA0183 format output signal
Language of map	Russian
MAP Display	2D and 3D Display
Voice	Voice Prompt
Navigation Software	Autosputnik
Processor	SAMSUNG 2SC2440A-40Arm9 400Mhz with DSP
OS	Microsoft Windows CE.NET 4.2 CORE (or 5.0)
Antenna	External Active Antenna
GPS Module	Build-in SIRF3 GPS RF Module Used (20ch)
SDRAM	64MB(100Mhz)
Flash ROM	64MB NAND Flash ROM
Slot Input Method	SD Card

Specifications are subject to change without notice. Mass and dimensions are approximate.

SOUND (3ayk): M/N, B/G, D/K.
