USER MANUAL H-CMD4013 HYUNDAI

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents

Table of contents ......2
Important safeguards ....3
Accessories....4
Installation/connection....5
Controls....8
General operations....11
Radio operations....14
TV tuner operations....18
Disc/USB/MMC/SD operations....20
MP3 overview 27
System setup....29
Handling discs....33
Cleaning 33
Troubleshooting guide ....34
Specification....35

Important safeguards

• Using the device at temperature below -10^ may cause the breakage of the device. Before using please heat up the passenger compartment to the recommended temperature!
• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• Do not attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
• Do not use the unit in places where it can be exposed to water, moisture and dust.
• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.
• If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
• Do not open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a qualified technician check the system.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please confirm it before installation.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.

Accessories

Receiver 1 pc

Front panel 1 pc

Mounting Bracket (Half Sleeve) 1 pc

Mounting Screw M5 1 pc

Rubber 1 pc

Removable Trim Ring equipped on the unit 1 pc

Remote Control 1 pc

Release key 2 pcs

Mounting strap 1 pc

Connector 1 pc

Protective case 1 pc

Customer information 1 pc

Warranty card 1 pc

Instruction manual 1 pc

Installation/connection

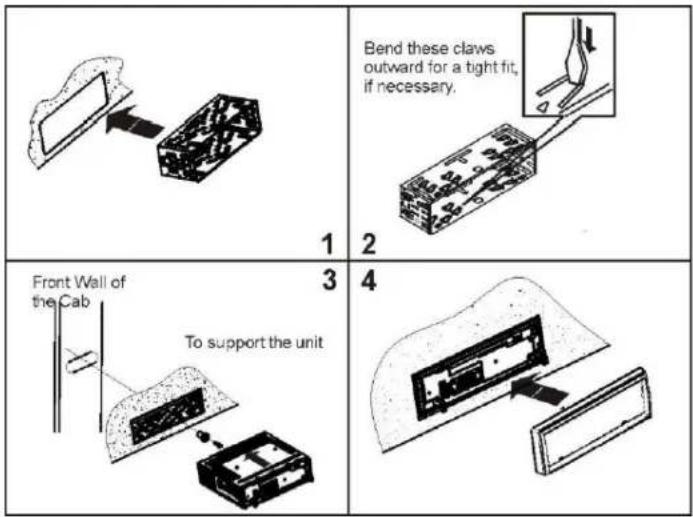

Installation of the unit

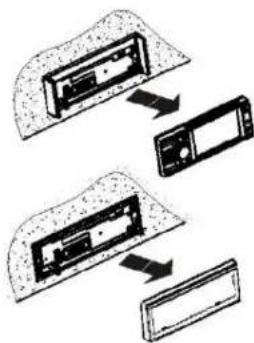

Detach the unit

1. Take out the Outer Trim Frame

1. Insert the keys supplied to the unit at both sides of the unit until they click. Pulling the keys makes it possible to remove the unit from dashboard.


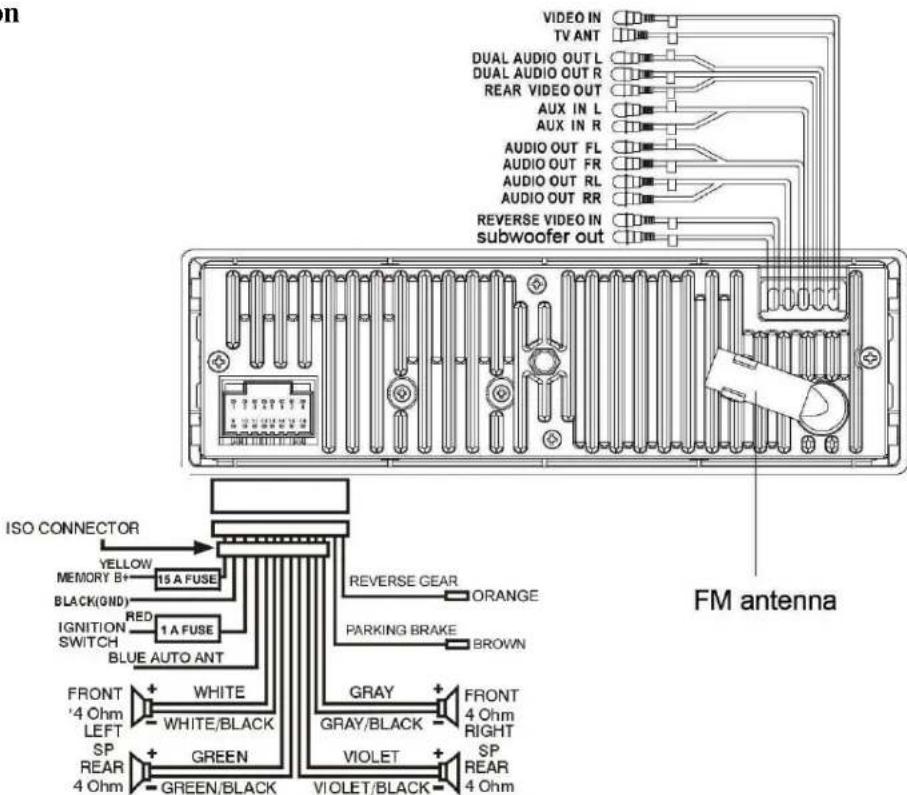

Electrical connection

Caution: Do not interchange the connection of the wiring!

For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car dealer before installing this unit.

Note: For your driving safety, please link your parking wire with low power level, and keep it controlled by manual brake switch. Wire should be high power level and the unit cannot play videodisc.

Using the ISO Connector

Illustration of two steps to cut or wire a component, showing mechanical assembly (no text or symbols)

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

3. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the color code table below for speaker and power cable connections.

Controls

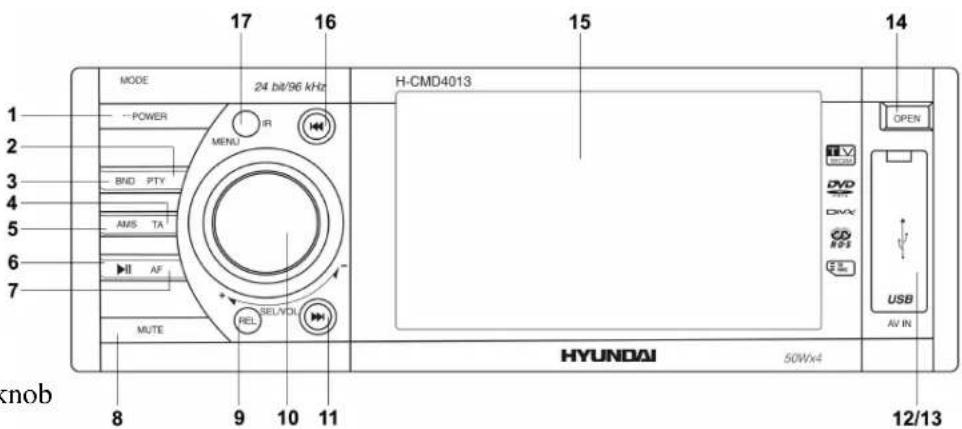

Front panel

1. POWER/MODE button
2. PTY button
3. BND button
4. TA button
5. AMS button
6. PLAY/PAUSE button
7. AF button
8. MUTE button
9. REL button
10. MENU/SEL button/VOL knob
11. NEXT button
12. AV IN jack (under rubber cover)
13. USB slot
14. OPEN button
15. TFT display
16. PREVIOUS button
17. Remote control sensor

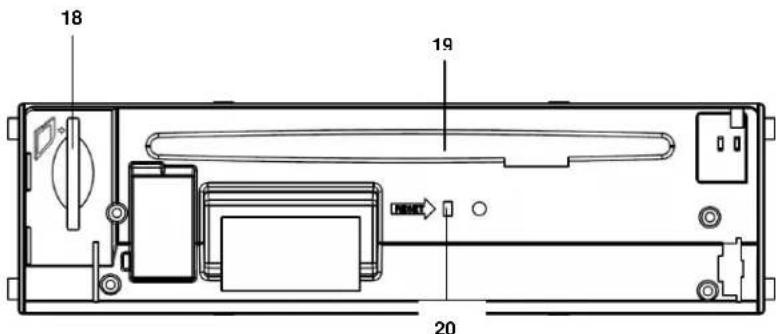

Inner panel

1. SD/MMC slot
2. Disc loading slot
3. RESET button

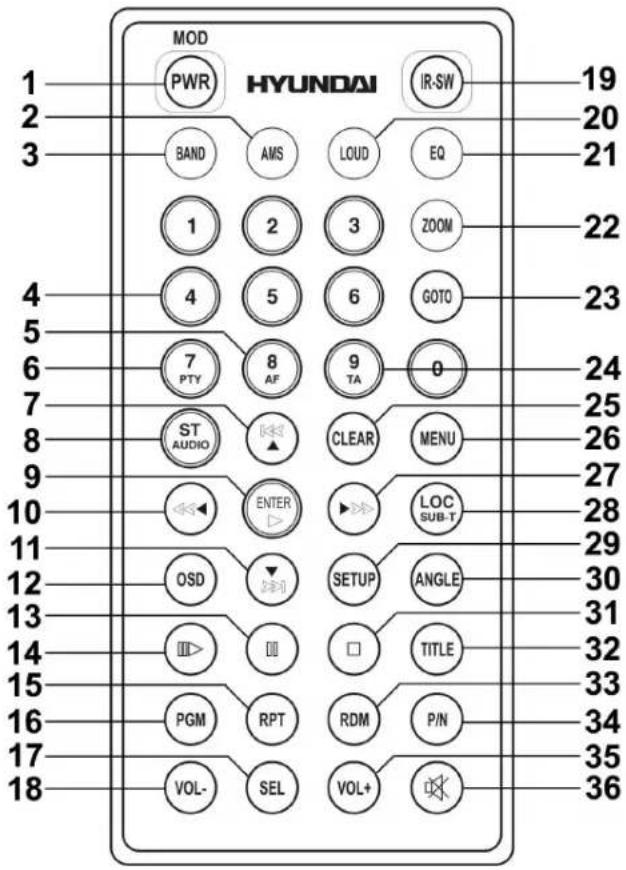

Remote control

1. PWR/MOD button
2. AMS button
3. BAND button
4. Number buttons
5. AF button
6. PTY button
7. REW/UP cursor button
8. ST/AUDIO button
9. ENTER/PLAY button
10. PREVIOUS/LEFT cursor button
11. FWD/DOWN cursor button
12. OSD button
13. PAUSE button
14. SLOW button
15. RPT button
16. PGM button
17. SEL button
18. VOL- button
19. IR-SW button
20. LOUD button
21. EQ button
22. ZOOM button
23. GOTO button
24. TA button
25. CLEAR button

1. MENU button 32. TITLE button
2. NEXT/RIGHT cursor button 33. RDM button
3. LOC/SUB-T button 34. P/N button
4. SETUP button 35. VOL+ button
5. ANGLE button 36. MUTE button
6. STOP button

Note: The top surface of the front panel is equipped with an optional slot. It is not functional and cannot be used for any operation.

Changing the battery

1. Pull out the battery tray.

1. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control.

Warning:

• Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.
• Do not recharge, short, disassemble or heat the battery or dispose it in a fire.
• Do not expose or bring into contact the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.
• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give off heat, crack or start a fire.

General operations

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit.

Press OPEN button to open the front panel. Using a ballpoint pen or other pointed object, press RESET button to complete the initialization procedure.

Power on/off

Press POWER/MODE button on the panel or PWR/MOD button on the RC to turn the unit on. Press and hold these buttons to turn the unit off.

Note: After the unit is off, the volume level is memorized between 6 and 30. If it is set to less than 6, it will resume to 6; if the set volume level is higher than 30, it will resume to 30; if it is between 6 and 30, it still stores in the status which you set.

Volume control

Rotate VOL knob on the panel clockwise or press VOL+ button on the RC to increase the volume level. Rotate VOL knob on the panel anticlockwise or press VOL- button on the RC to decrease the volume level.

Mute function

Press MUTE button to turn off the sound. Press the button again to resume the volume.

Mode selecting

Press PWR/MOD button on the RC or POWER/MODE button on the unit to select a mode: RADIO => DVD-VIDEO (if the disc is inside the unit) => SD (if the SD/MMC card is inside the unit) => USB (if the USB driver is inside the unit) => TV => AV1 => AV2.

Setting audio characteristics

Press MENU/SEL button on the panel or on the RC to select the needed sound parameter: L-Front => R-Front => L-rear => R-rear => Subwoof => Bass => Middle => Treble => Vol.

The selected parameter can be adjusted by rotating VOL knob or pressing VOL+/- buttons on the RC. If you don't adjust a setting within 5 seconds after selecting the desired setting, the unit will automatically return to the current mode being displayed.

LOUD function

Press LOUD button on the RC or on the touchable screen to activate the function of bass amplification. Press the button again to turn LOUD function off.

Equalizer setting

Press EQ button on the RC or on the touchable screen to select a preset equalizer mode: POP => CLASSIC => ROCK => EQ OFF.

General setup

General Setup menu is displayed as follows, when the mode icon (next to the mode name) is touchable screen:

Front

To display the source selection screen. Press the needed item on the screen to select the corresponding source sound output through the front speaker.

Rear

To display the source selection screen. Press the needed item on the screen to select the corresponding source sound output through the DUAL-R. If another monitor (rear monitor) is connected to the unit, image/audio of the rear monitor can be changed from the unit, so you can enjoy separate image/audio in the rear seats. Press IR-SW button on the RC to change the IR to control front or rear source, and you can control from the rear monitor.

Audio

To display the audio control screen. Press and buttons on the screen to select a parameter page, then

press < or > buttons to adjust the selected parameter.

Video

To display the video control screen. Operation is the same as in audio page above.

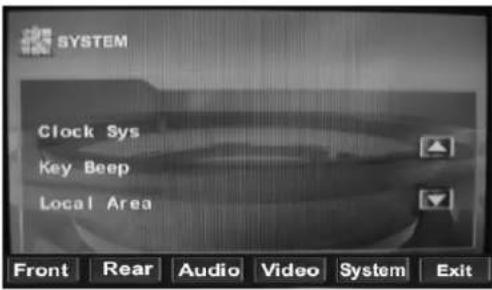

System (in any mode, press and hold MENU/SEL button on the front panel to enter the System setup menu) To display the system setup screen containing following options:

Clock Sys: set the time display mode (12H/24H).

Key Beep: Turn on/off the button pressing beep signal.

Local Area: Press the needed option to change the radio frequency range region.

Clock Adjust: Select the item (hours, minutes, seconds) pressing LEFT/RIGHT arrow buttons o then adjust the selected item pressing UP/DOWN arrow buttons on the screen.

Touch Adjust: when the touch screen does not work properly, or when operating the unit at first time, the adjustment is necessary. Accurately touch the mark provided in the screen for more than 2 seconds until “adjustment succeed” is displayed.

Bass, subwoofer, treble frequency: adjust the corresponding frequency.

Exit

To return to the current mode screen.

Radio operations

Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in your area, the following service is not available, either.

Band selection

Press BAND button on the RC or on the touchable screen or BND button on the panel to select a band: FM1, FM2, FM3, MW1 (AM1), MW2 (AM2). Display will show the wave band and frequency.

Automatic/Manual tuning

Automatic tuning: Press PREVIOUS or NEXT buttons on the panel, PREVIOUS or NEXT buttons or the RC or SEEK+/SEEK- buttons on the touchable screen to start auto searching the station downward or upward.

Manual tuning: Press and hold repeatedly PREVIOUS or NEXT buttons on the panel, PREVIOUS or NEXT buttons or the RC or SEEK+/SEEK- buttons on the touchable screen, to start manual search of a station downward or upward.

Automatic/Manual store

You can store up to a total of 30 radio stations in the memory (18 FM, 12 MW (AM)), manually or automatically.

• To store a station manually:

- Select a band (if needed)

- Select a station.

- Press and hold a number button (1-6), under which you want to store the station.

• To store a station automatically:

- Select a band (if needed)

- Press and hold AMS button on the panel, on the RC or on the touchable screen. The stations with good reception are stored automatically.

Note: If you store a station in a preset memory, which already has a station, the current station will be cleared and replaced with the new one.

• To recall a station:

- Select a band (if needed)

- Press a number button (1-6) on the RC or the correspondent station number on the touchable screen to recall a stored station.

Or:

- Select a band (if needed)

- Press REW/FWD buttons on the RC to select the stored station.

Preset scan function

Press AMS button on the panel, on the RC or on the touchable screen to scan all preset stations in the memory of the current band and stay on each memory stations for several seconds. To stop preset scan, press this button again.

Stereo/Mono reception

In FM band press ST/AUDIO button on the RC to select Stereo or Mono reception mode.

Local/Distant reception mode

Press LOC/SUB-T button on the RC or LOC button on the touchable screen to turn the LOCAL function ON or OFF. When the LOCAL function is on the local stations (stations with strong radio signal) can be played. When the LOCAL function is off both local and distant stations (stations with weak radio signal) can be played. Press the button again to turn it of.

Other touch screen operations

Press this button to turn on/off the screen backlight. The function can be used to change the screen

brightness while traveling at night.

Press this button to display the General Setup menu.

RDS function

There are the PI, PS, TP, PTY, TA, AF.

PI: Program Identification Code – for identifying code.

PS: Program Service Name Broadcast – station name data expressed in alphanumerically character.

TP: Traffic Program Identification – for traffic information broadcasting station.

TA: Traffic Announcement Identification – showing traffic information is being transmitted or not.

AF: Alternative frequencies – frequency list of broadcasting station transmitting the same program.

AF function

Press AF button on the RC, the front panel or on the touchable screen (in page 2 mode) to switch on/off mode.

Symbol "AF" will appear on the display. Press the button again to switch off the AF mode.

Note: The tuner will return to Alternative Frequencies whenever the reception signals getting worse.

"Alarm" will be displayed when an emergency broadcasting is received.

PTY function

Press PTY button on touchable screen or panel or RC to activate the PTY function.

1. Press NONE button on the touchable screen or press PREVIOUS/NEXT buttons on the panel or RC to select the needed program type: NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP, ROCK, EASY M, LIGHT M, CLASSIC, OTHER M, WEATHER, FINANCE,

CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M, OLDIES, FOLK M, DOCUMENT, TEST, ALARM.

After selecting program type for 3 seconds, the unit will search for a station in the selected program type automatically.

1. The radio starts to search corresponding PTY information and stops of the corresponding PTY information is detected. If corresponding PTY information is not found, normal radio reception is resumed.
2. Press PTY button on the RC, the front panel or on the touchable screen to switch off the PTY function.

TA function

Press TA button on the RC, the front panel or on the touchable screen (in page 2 mode) to select the TA mode on/off. Traffic announcement interrupts the source sound output when broadcast. To interrupt traffic announcement press TA button short without switching off the TA mode. The set will return to the previous operating mode. Press the button again to switch off the TA mode.

Note: The page 2 mode is activated by pressing OSD button on the RC or PAGE1 button on the touchable screen.

TV tuner operations

Automatic/Manual tuning

Automatic tuning: Press PREVIOUS or NEXT buttons on the panel, PREVIOUS or NEXT buttons or the RC or SEEK+/SEEK- buttons on the touchable screen to start auto searching the channel downward or upward.

Manual tuning: Press and hold repeatedly PREVIOUS or NEXT buttons on the panel, PREVIOUS or NEXT buttons or the RC or SEEK+/SEEK- buttons on the touchable screen, to start manual search of a channel downward or upward.

Automatic/Manual store

• To store a station manually:

Find a channel you want to store. Press a preset number button on the touch screen, under which you want to store the channel.

• To store a station automatically:

Press and hold AMS button on the unit, on the RC or on the touchable screen for 2 seconds. The unit will search for channels and store them under preset numbers in order of signal strength.

Selecting channel

1. Press REW/FWD buttons on the RC to select previous or next stored channel.

2. You can press 1-9 number buttons on the RC to select a corresponding preset channel. To select more than 10 channel number, firstly press GOTO button, then press the corresponding number buttons.

3. Press the needed channel number on the touchable screen. To select a page containing the needed channel number, press CH+/CH- buttons on the screen.

Selecting TV system

Press repeatedly SECAM-DK button on the touchable screen (above the channel number), BND button on the RC or BAND button on the panel to select a TV system.

Note: When the TV channel picture is being broadcasted, touch the screen to return to the TV mode menu.

Disc/USB/MMC/SD operations

Disc glossary

PBC (Playback Control)

PBC is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.

Title

The title is the important part of DVD disc. The memory volume of the disc is rather big, that makes possible to record several films on one disc. For example, if a disc contains three films, they may be divided into Title 1, Title 2 and Title 3. You can easy use the functions of looking-for.

Chapter

A title can be divided into several blocks, so that every block can be operated as a unit, the unit is called chapter. The chapter contains a unit at least.

Track

It is the biggest component of VCD. Generally, every song of karaoke disc is a track.

Discs for playback

• This unit can play disc types: DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW.
• Compatible with formats: DVD/SVCD/VCD/HDCD/MP3/WMA/CDDA/Picture-CD/Photo CD/JPEG.
• The following file types are supported:
Audio files: MP3 (*.mp3)
WMA (*.wma)
Video files: MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 and XVID)
MPEG 2(*.vob)
MPEG 1(*.dat)
Picture file: JPEG (*.jpg)
• ISO 9660 or ISO 9660 +Joliet format - Max. 30 characters
• Max. Track number is 448
• Max. nested directory is 8 levels
• The max. album number is 99
• The max. length of each track is 99 minutes 59 seconds
• Supported sampling frequency for MP3 disc: 8 KHz – 48 KHz (44.1 KHz preferably)
• Supported bit-rates of MP3 disc are: 32 - 320 kbps (128 kbps preferably).
- Following formats are NOT supported *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, files with DRM.
• Open session discs are NOT supported.

Loading a disc

Turn the power on, Press OPEN button on the panel to open the front panel. Insert the disc with the printed side facing upward into the slot. Close the front panel. The disc will play automatically.

To eject the disc, first press OPEN button to open the front panel. Press EJECT (▲) button on the base to eject the disc. Close the front panel.

Note: If a disc is left in the ejected position for several seconds, the disc is automatically reloaded. If you force a disc into before auto reloading, this can damage disc.

Inserting the SD/MMC card and USB device

Insert an SD/MMC card or USB device into SD/MMC compartment (when the front panel is socket respectively. Then the playing mode will be changed into SD/MMC or USB mode automatically. The first card/USB device track playback will start.

When SD/MMC card and USB device are both inserted into their compartment or socket, the playing mode will be changed into the mode of the later one. You can select the source using PWR/MOD button or POWER/MODE button on the panel.

To eject the SD/MMC card from the slot, press it, then take it out.

Note: This unit supports USB drivers and memory cards with up to 2 Gb.

Playing/pausing

To ensure good system performance, wait until the unit finishes reading the disc information before proceeding. After inserting the disc, playback will start automatically. Or press PLAY/PAUSE button on the panel or ENTER/PLAY button on the RC to start playback. Press PLAY/PAUSE button on the panel or PAUSE button on the RC to go into pause mode. In pause mode press it again or press PLAY/PAUSE button on the panel or ENTER/PLAY button on the RC to resume the playback.

Stop playback

During playback press STOP button on the RC to stop playback. Press PLAY/PAUSE button on the panel or ENTER/PLAY button on the RC to start playback for the place where it was stopped. Press STOP button twice to completely stop playback. Now playback will be started from the beginning of the disc.

Playing the previous/next track

During playback press DOWN and UP buttons on the RC or NEXT and PREVIOUS buttons on the panel to start next or previous track/chapter/title playback.

Fast-forward/ fast-backward playing

Press and hold PREVIOUS and NEXT buttons on the panel or press LEFT and RIGHT buttons on the RC to select the speed of fast playing in backward or forward direction: 2X=>4X=>8X=>16X=>32X.

Slow playback

During DVD/VCD playback press SLOW button on the RC repeatedly to start slow playback. The speed will change the following way:

For VCD: 1/2 => 1/4 => 1/8 => 1/16 (slow forward).

For DVD: 1/2 => 1/4 => 1/8 => 1/16 (slow forward) => 1/2 => 1/4 => 1/8 => 1/16 (slow reward).

Note: During the disc playback, when slow playback gets to the beginning of the playing another track, it resumes normal playback.

Repeat playback

During playback press RPT button on the RC to select the repeat mode. For various types of discs repeat playback of track/chapter/title/disc can be selected.

Random playback (for CD/VCD/MP3 only)

During disc playback press RDM button on the RC to select random playback. Press it again to cancel.

Changing picture size (for DVD/VCD)

During playback press ZOOM button on the RC. The picture will be zoomed accordingly: 2X, 3X, 4X, 1/2X, 1/3X, 1/4X, normal size. In enlarged picture mode press cursor buttons of the RC to move the picture.

TV type select

Press P/N button on the RC to select the TV type: NTSC, PAL, AUTO.

Changing angle (for DVD only)

If DVD disc supports multi-angle playback, press ANGLE button on the RC to playback images at different camera angles. If discs doesn't support multi-angle playback, this function will not work.

Selecting audio languages (for DVD only)

During DVD disc playback press ST/AUDIO button on the RC repeatedly to select the audio language to listen (if the disc supports multi-language mode).

Selecting the channel (for VCD only)

During VCD disc playback press ST/AUDIO button on the RC repeatedly to select the channel mode in the following order: Mono left => Mono right => Mix mono => Stereo.

Selecting subtitle language (for DVD only)

Subtitle language is in disc initiation setting during playback. Press LOC/SUB-T button on the RC repeatedly to switch among disc-supported languages.

Menu navigation (for DVD only)

Press TITLE button on the RC to activate the disc title list on the screen. Press UP/DOWN cursor b select the desired title. Press ENTER/PLAY button to confirm the selected item and start playing.

Program playing (for CD/VCD/DVD)

Press PGM button on the RC to open the program menu. Insert the track/chapter number to be played first into the first position. Press ENTER/PLAY button to confirm. Insert the track/chapter number to be played second into the second position. Press ENTER/PLAY button to confirm. Repeat step 2 until all desired tracks/chapters are inserted. If you input a wrong number, press CLEAR button to delete it. Press UP/DOWN cursor buttons to select START to play the program. While programming, you can select NEXT to go to the next program page, or PREV to return to the previous program page. If you want to exit, select EXIT and press EN' button, or press PGM button again.

Menu selection (for DVD only)

Press MENU button to select root menu, then use cursor buttons and ENTER/PLAY button to select and enter submenus.

GOTO function (for DVD/VCD discs)

During playback press GOTO button, the goto menu will appear on the display. Use UP/DOWN cursor buttons to move to the needed menu item; press ENTER/PLAY button. Use number buttons to input the needed number of chapter/title and the needed time or select audio language, subtitle language, angle, or repeat mode. The unit will go to playback the disc according to the input data.

On screen display

During playback press OSD button on the RC repeatedly to turn on/off the playback information display. This information varies depending on the type of disc and can include following data: the number of the playing

title, the number of the playing current chapter/track, the elapsed time of the playing chapter/track, the remained time of the playing chapter/track, the elapsed time of the playing title, the remained time of the playing title, etc.

Auto switch to video

When playing DVD in driving car, “YOU CANNOT USE THIS FUNCTION WHILE DRIVING” displays in TFT. This message warns you that you must stop the car and activate the hand break in order video mode.

Auto switch when reversing the car

When reversing the car, the screen of the unit will show reversing view automatically if a reversing camera is connected, and the sound will be shut off. The rear camera output has standard direct view and supports PAL and NTSC TV systems.

MP3 folder playback

If the inserted MP3 disc, memory card or USB device contains folders, during playback press STOP but the RC, then press UP or DOWN buttons to select the required folder upwards or downwards, then select the needed track in the folder and press ENTER/PLAY button to start play.

MP3 overview

Notes on MP3:

• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
• This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs.
- The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
- The unit can not read an MP3 file that has a file extension other than ".mp3".
- If you play a non-MP3 file that has the ".mp3" extension, you may hear some noise.
- In this manual, we refer to what are called "MP3 file" and "folder" in PC terminology as "track" and "album", respectively.
- Maximum number of directory level is 8, including the root directory. Maximum number of files and folders per disc is 448.
• The unit may not play tracks in the order of Track numbers.
• The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.
- When playing a disc of 8 kbps or "VBR", the elapsed playing time in the display window will not be correct and also the intro play may not function properly. "VBR": Variable Bit Rate.
- The unit supports the playback of WMA files. The playback of ID3 tags for WMA format is not guaranteed, it depends on versions and availability of Cyrillic alphabet.
- WMA (Windows Media Audio) – music data compression format, created by Microsoft Corporation. This format uses coding algorithm for compression of initial audio-record, greatly decreasing the file size, but, saving the good sound quality even when the bit rate is low (for example, 64 Kbit/s).
- Remember that the unit may not play the tracks in order they are written on disc.

Notes on creating your own CD-R or CD-RW containing MP3 files:

- To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate of 128 kbps.

• DO NOT store more than 448 MP3 files per disc.
- For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).
- When CD-R disc is used, playback is possible only for discs, which have been finalized.
- Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc.
- You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.
- With some CD-R or CD-RW media, data may not be properly written depending on its manufacturing quality. In this case, data may not be reproduced correctly. High quality CD-R or CD-RW disc is recommended.
- Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required.
• Note that the unit may not play Tracks in the order that you wrote them to the disc.

System setup

1.- Press SETUP button on the RC to display the setup screen.
2. - Use LEFT/RIGHT cursor buttons to select the desired menu: General setup, Audio setup, Preference setup, Password setup, Exit the menu.
3.- Press DOWN button to enter the menu.
4. - Use UP/DOWN cursor buttons to select the desired setting.
5. - Press RIGHT button to enter the setting adjustment window.
6.- Press UP/DOWN cursor buttons to select the option of the setting and press ENTER/PLAY to confirm it.
7.- Press LEFT cursor button to return to the menu list.
8. - To exit Setup menu press SETUP button.
Note: Touching the item on the screen also performs same operation.

General setup page

• TV DISPLAY

4:3 Pan Scan: When the unit connects to the normal TV set, the wide-screen image shows on the full screen, but some part is cut off.

4:3 Letter box: When the unit connects to the normal TV set, the wide-screen image shows and black bars appear on the top and bottom of screen.

16:9 Wide: Use this item when the unit is connected with the wide screen TV set.

Note: No matter which display format is selected a picture recorded in standard 4:3 format always displays in the 4:3 aspect ratio. The display format of DVD titles may vary; refer to the information that accompanies your specific DVD title. If the DVD title is recorded in 16:9 wide display format while the TV is a standard 4:3 screen, horizontal compression of the image will result.

Some DVD titles may be recorded in special formats. In such cases, the DVD titles will always appear on the screen in their original format, regardless of which TV display selected format.

- OSD LANGUAGE

Select on-screen display language.

Audio setup page

You can set up the Dolby digital function.

• DOLBY DIGITAL SETUP

- DUAL MONO

Users can switch the binaural mode among STEREO, L-MONO, R-MONO and MIX-MONO.

- DYNAMIC

Select the provided option to change the Dynamic range setting.

Preference page

When playing a disc, this page can possibly be not available.

• AUDIO, SUBTITLE, DISC MENU language setup

These are the initial settings by your preference. If a setting is supported by disc content, it will work. Otherwise the disc default value works.

- PARENTAL

The control level is for parental to control playing content and protect your children from violence and erotic.

The disc, the level of which is higher than the setting level cannot be played. There are up to 8 censorship classes for DVDs.

- DEFAULT

Reset to the initial factory setups.

Password setup page

• PASSWORD MODE

Set the password function to On or Off.

On: the parental control can be changed in the PARENTAL submenu (Preference page).

Off: you cannot change the parental control in Parental submenu.

- PASSWORD

When the password mode is ON you can change the password. Select PASSWORD => CHANGE. Use the cursor buttons to select the desired field. In the OLD PASSWORD field insert the old password or 136900 (if you forget the old one).

In NEW PASSWORD field insert the new password. Insert it again in CONFIRM PWD field. Press OK to save the new password.

Exit setup menu

Select this item to exit the setup menu.

Handling discs

• Dirty, scratched or warped discs may cause skip ping or noise.
• Handle the disc only by the edges. To keep clean do not touch its surface.
  • Discs should be stored in their cases after use to avoid scratches.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature can wrap the disc (such as leaving the discs in your car during summertime).
• Do not stick or write anything on either side of disc. Sharp writing instruments, or the inks used in some felt-tip pens, may damage its surface.
• Do not touch the unlabeled side. Do not attach any seal, label or data protection sheet to either side of a disc.

Cleaning

Cleaning the cabinet and panel

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth

should remove must panicles. Wipe in a straight motion from the center to the edge. Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Troubleshooting guide

Symptom Cause Solution
No power The car ignition is not on.The fuse is blown.		If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.Replace the fuse.
Disc cannot be loaded.	Presence of disc inside the player. Remove the disc in the player then put a new upward.
Disc cannot be read.	Inserting the disc in upside down.Compact disc is extremely dirty or defective.Temperature inside the car is too high.	Insert the compact disc with the label facing upward.Clean the disc or try to play a new one.Cool off until the ambient temperature returns to normal.
No sound Volume is in minimum.Wiring is not properly connected.		Adjust volume to a desired level.Check wiring connection.
The operation keys do not work.	The built-in microcomputer is not operating properly due to noise.Front panel is not properly fix into its place.	Press the power button for about 10 seconds to reset the unit
Sound skips. The installation angle is more than 30 degrees.The disc is extremely dirty or defective.		Adjust the installation angle to less than 30 degrees.Clean the compact disc/try to play a new one.
The radio does not work,the radio station automatic selection does not work.	The antenna cable is not connected the signals are too weak.	Insert the antenna cable firmly select a station manually.

Specification

General
Power supply:	12 V DC
Current consumption:	max. 15 A
Maximum power output:	50 W x 4
Compatible formats:	DVD/SVCD/VCD/HDCD/MP3/WMA/CDDA/Picture-CD/Photo CD/JPEG playback
Disc support:	DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW/USB/SD/MMC
USB/SD/MMC support:	Up to 2 Gb
Dimensions (L x W x H)/weight:	183 x 187 x 50 mm/1.8 kg
ESP function:	40 sec. for Audio CD, 120 sec. for MP3
TFT display
Screen size:	4 inches
Resolution:	480 x 272dpi
Aspect ratio:	16:9
Contrast ratio:	500:1
Brightness:	400 cd/m2
Color system:	PAL/NTSC/SECAM
View angle:	V: 120°, H: 120°
FM Stereo Radio
Frequency range:	65.0 – 74.0 / 87.5 – 108.0 MHz
Usable sensitivity:	10 dB
Preset memory stations:	18
S/N ratio:	55 dB (mono)
Separation:	30 dB (65 dB, 1 KHz)
MW (AM) section
Frequency range:	522 kHz - 1620 kHz
Preset memory stations:	12
DVD player

S/N ratio: More than 70 dB (1 kHz)
Dynamic range: More than 70 dB (1 kHz)
Distortion: Less than 0.2%
Line out
Output: 4 channel RCA line-out (2V)

Specifications are subject to change without notice. Mass and dimension are approximate.

Front

Обращение с дисками
