Product Type	Car Stereo
Brand	Hyundai
Model	H-CDM8026
Dimensions (W x H x D)	178 x 50 x 160 mm (Standard DIN)
Weight	Approx. 1.0 kg
Power Supply	12 V DC (negative ground)
Power Output	4 x 50 W max
Playback Formats	CD, CD-R/RW, MP3, WMA
Tuner Bands	FM (87.5-108 MHz), AM (531-1620 kHz)
Preset Stations	30 (18 FM + 12 AM)
Inputs	USB (front), AUX (3.5mm front)
Audio Features	EQ presets (Rock, Pop, Classic, Flat), Bass/Treble control
Display	LCD with white/blue backlight
Clock	24-hour display with adjustable time
Remote Control	Included (IR)
Steering Wheel Control Compatible	Yes (adapter may be required)
Fuse Rating	10 A (blade type)
Detachable Faceplate	No
Dimensions (Chassis)	178 x 50 x 160 mm

Frequently Asked Questions - H-CDM8026 HYUNDAI

How do I set the clock on the Hyundai H-CDM8026?

Press and hold the DISP button until the hour flashes. Rotate the volume knob to adjust hour, press DISP again to adjust minutes, then wait 5 seconds to save.

What audio formats are supported via USB?

The USB port supports MP3 and WMA files. For best performance, use a FAT32-formatted USB drive with files not exceeding 320 kbps bitrate.

Why is there no sound from the speakers?

First check if the unit is powered on and volume is not muted. Verify speaker connections and fuses. Ensure the FAD or BAL settings are centered. If still no sound, test with another source.

Can I connect my smartphone via Bluetooth?

The H-CDM8026 does not have built-in Bluetooth. Use the AUX input (3.5mm cable) for audio streaming from your phone.

How do I reset the unit to factory settings?

Press the RESET button (small hole near the front panel) using a paperclip. This clears all settings and stored stations.

What is the correct wiring for the ISO connectors?

The ISO connector colors: yellow = battery constant 12V, red = ACC (switched 12V), black = ground. Speaker wires: white/white-black = front left, gray/gray-black = front right, green/green-black = rear left, purple/purple-black = rear right.

How to clean the CD lens?

Use a CD lens cleaning disc available at electronics stores. Do not use liquids or cotton swabs inside the CD slot.

The radio reception is poor. What can I do?

Ensure the antenna is fully extended and properly connected. If using an aftermarket antenna adapter, check its compatibility. In weak signal areas, try switching to MONO mode via the menu to reduce noise.

How do I adjust the equalizer?

Press the EQ button repeatedly to cycle through presets (Rock, Pop, Classic, Flat). For manual adjustment, enter the audio menu and set bass/treble levels from -7 to +7.

What are the dimensions of the H-CDM8026?

The unit follows the standard DIN size: 178 mm width, 50 mm height, and 160 mm depth. Ensure your dashboard opening is at least 182 x 53 mm for installation.

USER MANUAL H-CDM8026 HYUNDAI

Two glossy spheres with reflections, no text or symbols present

CD/MP3/WMA-РЕСИВЕРСД/MP3/W

Table of contents

Dear customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents 2

Before you start 3

Utilization of the product 3

Important safeguards 3

Installation/Connection 4

Installation 4

General notes 4

Din Front/Rear-Mount 4

1. DIN front-mount (Method A) 4

Dismantling the unit 4

Trim frame installation 5

1. DIN rear-mount (Method B) 5

Detachable control panel 5

Anti-theft system 5

Connection 6

Connection diagram 6

Using the ISO Connector 6

Operation 8

Control elements 8

Front panel 8

Inner panel 8

Remote controller 9

LCD layout 10

General operations 10

Turning on/off 10

Mode selection 10

Volume control 10

Mute function 10

Audio parameter setting 11

Beep 11

Equalizer modes 11

Loudness 11

Color (option) 11

Clock setting 11

Subwoofer control 11

AUX in jack 11

Radio operations 12

Band select 12

Auto/Manual tuning 12

Programming tuner stations 12

Auto memory store/preset scan 12

Mono/Stereo control 12

Local radio station search 12

RDS function 12

AF (Alternative Frequencies) function ... 12

TA (Traffic Alarm) function 12

PTY (Program Type) 13

Other parameter setting 13

RDS-EON control 13

Disc/USB/SD/MMC operations 13

USB/SD/MMC notes 13

Insert/Eject disc 14

Inserting an SD/MMC card/

USB device 14

USB/SD/MMC folder playback 14

MP3/WMA track search 14

Play/pause 14

Fast forward/rewind 15

Scanning tracks 15

Repeat 15

Random playback 15

Multi-session disc reading 15

Notes on MP3 and WMA 15

General information 16

Handling compact discs 16

Cleaning discs 16

Cleaning the unit body 16

Accessories 16

Troubleshooting guide 17

Specification 18

Utilization of the product

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important safeguards

• Read carefully through the manual to familiarize yourself with this unit.
• Keep this manual handy as a reference for operating procedures and precautions. Do not allow persons who have not read through this manual to use this unit.

- "CLASS 1 LASER PRODUCT"

This product contains a laser diode of higher class than 1. Laser beams from the optical pickup are dangerous to the eyes. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

- Do not allow this unit to come into contact with liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids or dust. Protect this unit from moisture.

- Make sure that foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.

- The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature.

• Using the unit with the temperature that goes beyond the operation temperature greatly

decreases the operation resource of the screen and other components of the unit and can result in an outage.

• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please ensure it before installation.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Let a qualified technician check the system.
  • Always keep the volume low enough so that you can hear sounds from outside the vehicle.
• Should this product fail to operate properly, contact your dealer or nearest service center.

Installation

General notes

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
• Before finally installing the unit, connect the wiring and make sure that the unit works properly.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
• If installation angle exceeds 30^ from horizontal, the unit may not perform properly.
• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

Din Front/Rear-Mount

This unit can be properly installed either from 'Front' (conventional DIN Front-mount) or 'Rear' (DIN Rear-mount installation, utilizing threaded screw Holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

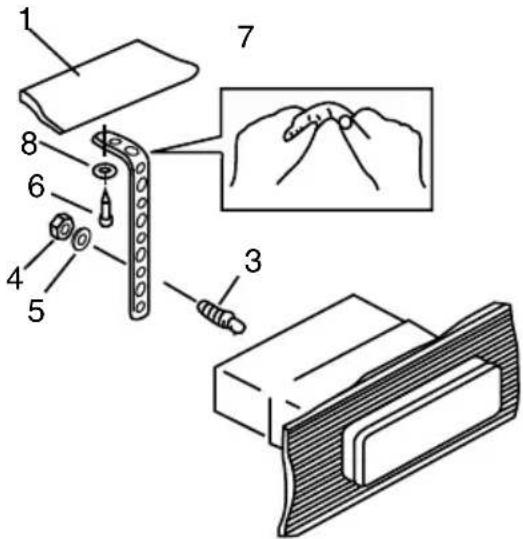

1. DIN front-mount (Method A)

1. Car dashboard
2. Sleeve
3. Screw
4. Nut (5 mm)
5. Spring washer
6. Screw (5 x 25 mm)
7. Metal strap
8. Flat washer

1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation.
2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture. You can bend the strap to the needed angle with your hands.
4. Make the necessary wire connections. Ensure the connections are correct.
5. Install the unit into the sleeve until the side locks are fixed.

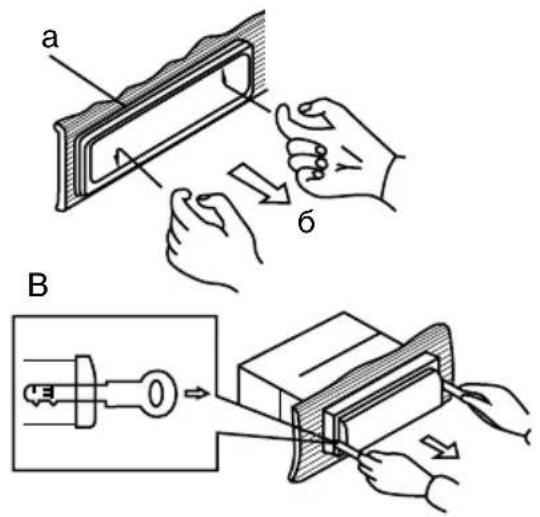

Dismantling the unit

a - Trim frame

b – Frame uninstall direction c – Release key insertion

1. Switch off the unit and detach the front panel.
2. Insert your fingers into the groove in the front side of the trim frame (apply some effort to detach the frame). Pull the frame to detach it.
3. Insert the supplied release keys into the both sides of the unit body to click, as shown in the picture. To extract the unit from the dashboard, pull the release keys or the unit body to pull it out. Before detaching the unit, ensure it is not fixed with the metal strap.

Trim frame installation

To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being installed, the side with the groove should face down and fixed first.

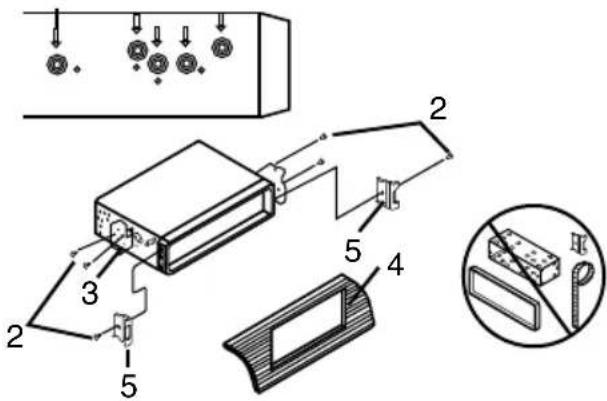

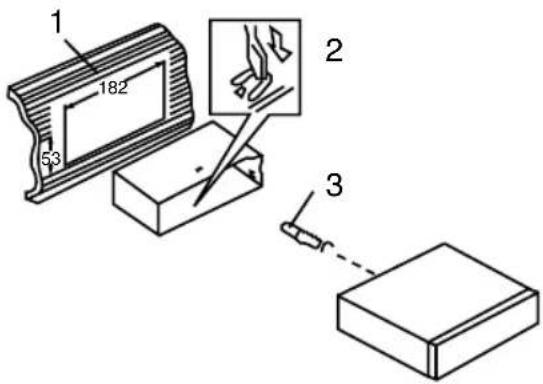

2. DIN rear-mount (Method B)

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets.

1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.

2. Screw.

3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).

The outer trim frame and mounting sleeve are not used for method of installation.

Detachable control panel

Insert the left side of the panel, and then press on the right side until the click. To detach the front panel, press REL button.

The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks. The rear connector that connects the main unit and the control panel is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

Anti-theft system

The front panel of this unit can be stored in the included protective case when not in used and carried away when you leave the vehicle to deter theft.

Switch off the power of the unit. Detach the front panel, then put it to the protective case and take it with you.

Connection

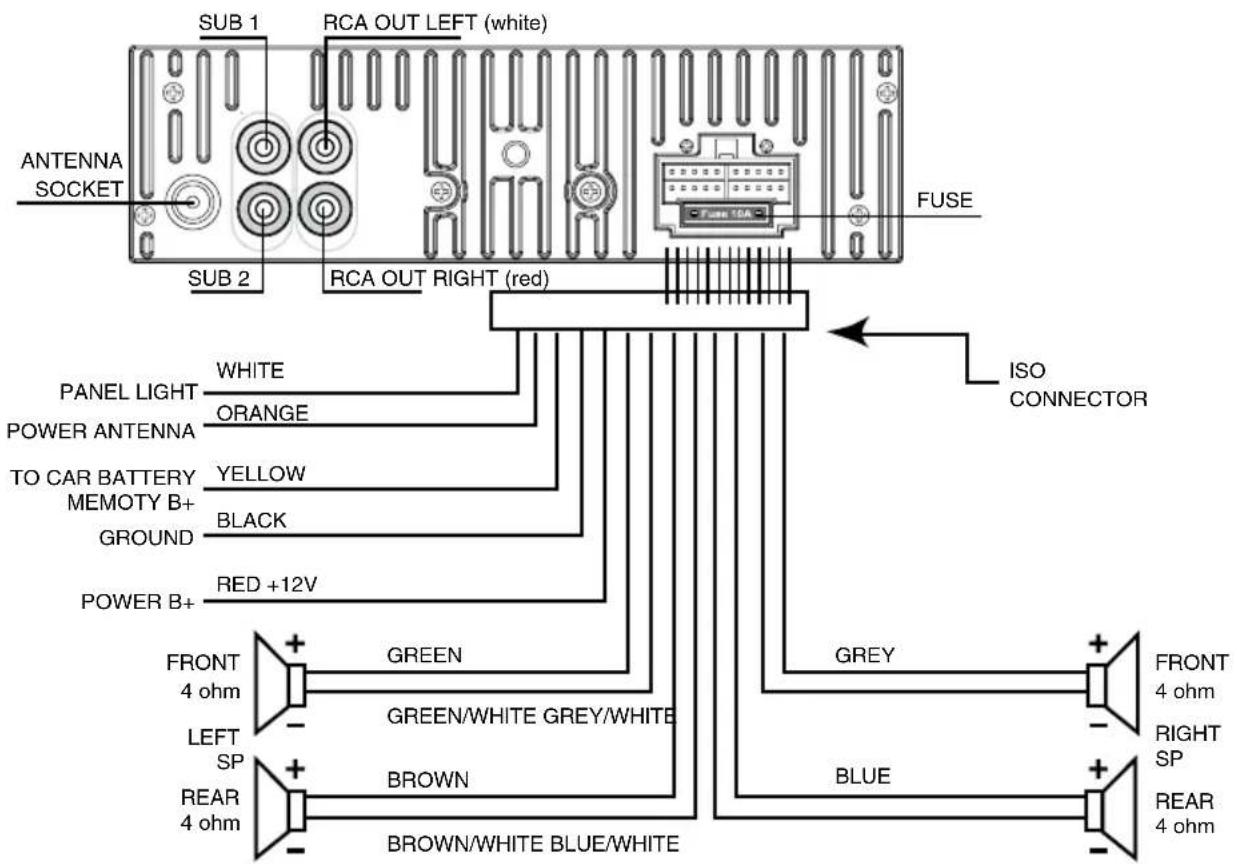

Connection diagram

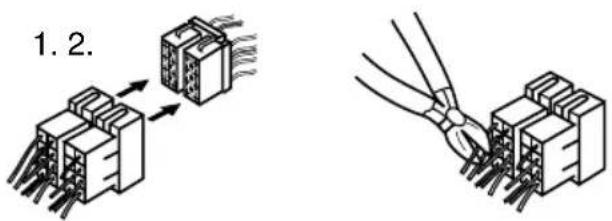

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

1. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.

Location	Function
	Connector A Connector B
1 - Rear right (+) - Blue
2 - Rear right (-) - Blue/White
3 - Front right (+) - Grey
4 Battery +12V/Yellow Front right (-) - Grey/White
5 Power antenna/Orange Front left (+) - Green
6 Panel light/White Front left (-) - Green/White
7 Ignition/Red Rear left (+) - Brown
8 Ground/Black Rear left (-) - Brown/White

Panel light wire should be connected to “+” of the side parking lights wire. Power antenna wire is intended for power supply of the antenna and for remote control of an additional amplifier.

Control elements

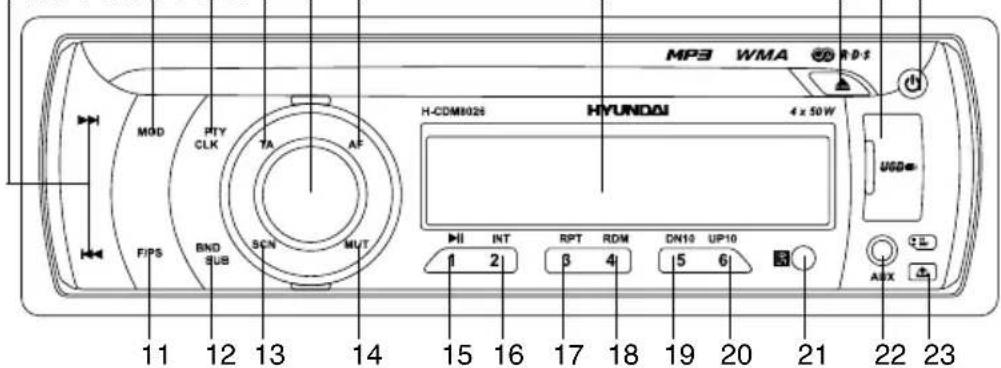

Front panel

1. PREVIOUS/NEXT buttons
2. MOD button
3. PTY/CLK button
4. TA button
5. VOLUME knob/SEL button
6. AF button
7. Display
8. EJECT button
9. USB port
10. POWER button

11. F/PS button

12. BND/SUB button

13. SCN button
14. MUT button
15. 1/PLAY/PAUSE button
16. 2/INT button
17. 3/RPT button
18. 4/RDM button
19. 5/DN10 button
20. 6/UP10 button
21. IR sensor
22. AUX in jack
23. REL button

1 2 3 4 5 6 7 8 9 10

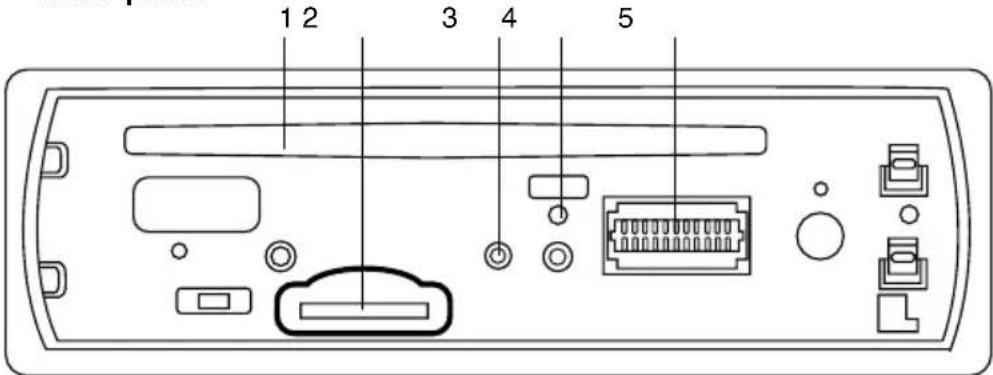

Inner panel

1. Disc slot
2. SD/MMC memory card slot
3. Panel status indicator
4. RESET button (hole)
5. Connector

Pressing RESET hole will erase the

clock setting and stored stations.

Panel status indicator lights up when you slide the panel down, flashes when you remove the panel.

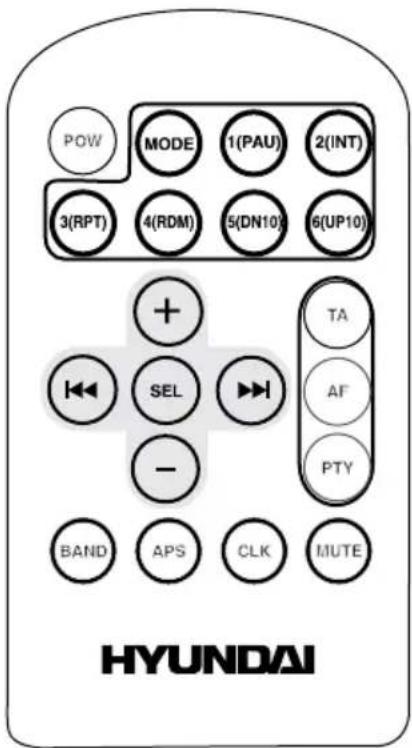

Remote controller

Next program/track button

Previous program/track button

SEL Selection button

TA function button

AF AF function button

PTY PTY function button

BAND Band selection button

APS APS button

CLK Clock operation button

MUTE Sound muting button

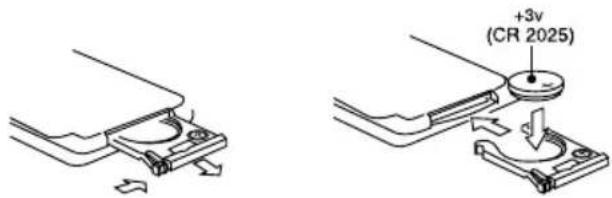

Changing the battery

Press the catch and at the same time pull out the battery tray. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control.

POW Power on/off button

MODE Mode selection button

1(PAU) 1 preset button/play/pause

2(INT) 2 preset button/intro

3 preset button/repeat playback

4ROM) 4 preset button/random playback

5 preset button/10 tracks down

5(UP10) 6 preset button/10 tracks up

+ Volume up button

- Volume down button

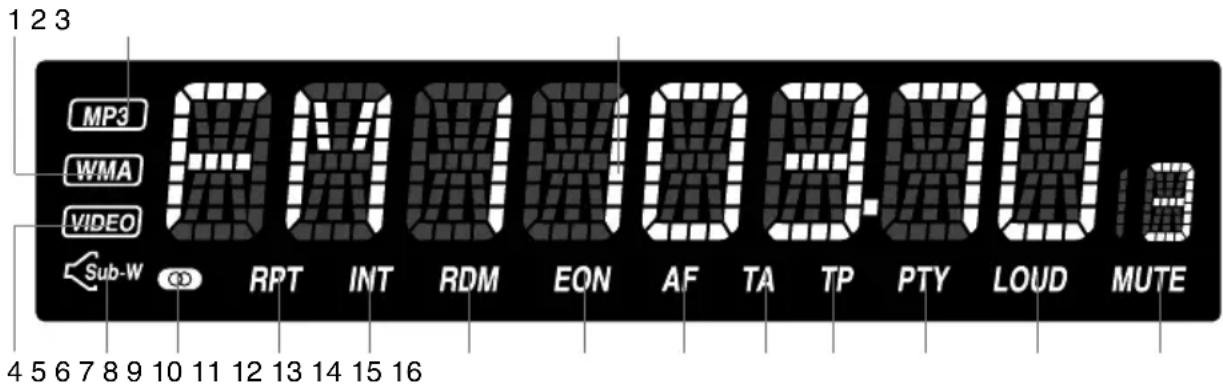

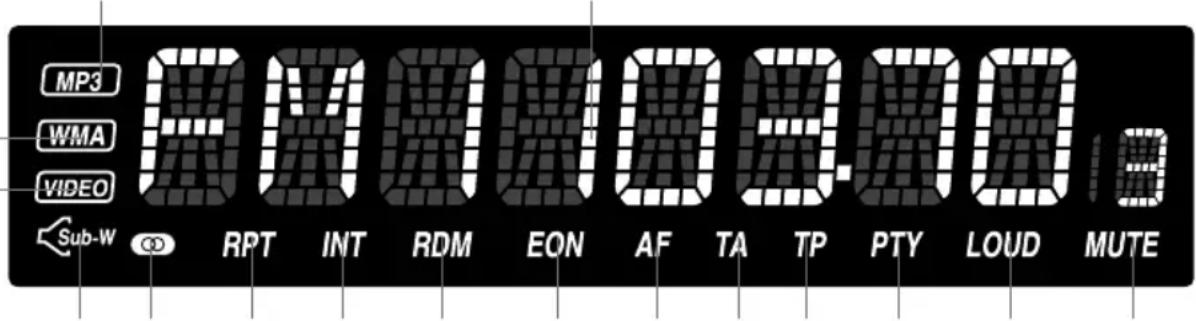

LCD layout

123

4 5 6 7 8 9 10 11 12 13 14 15 16

1. WMA playback
2. MP3 playback
3. Digit display (radio frequency, track name/number, etc.)
4. Video playback indicator (not active)
5. Subwoofer indicator
6. Stereo signal reception indicator
7. Repeat playback indicator

8. Intro playback indicator

9. Random playback indicator

10. EON function indicator
11. AF function indicator
12. TA function indicator
13. TP function indicator
14. PTY function indicator
15. Loudness function indicator
16. Mute function indicator

General operations

Turning on/off

Press any button on the RC or on the unit (except REL and EJECT buttons) to switch the unit on. The display will show a message WELCOME to indicate it is ready to use. Press and hold POWER button on the unit or button on the RC to turn the unit off.

After the unit is off, volume level and radio current settings will be memorized, and when you turn the unit on it will resume the stored status you set.

Mode selecting

Press MOD/ button to select between

unit operation modes: AUX => RADIO => DISC => USB => SD.

USB, DISC and SD modes will only show on the display when correspondent storage is inserted into the unit.

Volume control

The volume level can be adjusted at any time by rotating VOLUME knob or pressing

+ / buttons on the RC.

Mute function

Press MUT/ button to cancel the sound. Press it again or change the volume level to resume the sound.

Audio parameter setting

Press repeatedly SEL/ button to select bass, treble, balance or fader mode. The corresponding word appears on the display. Rotate VOLUME knob or press (+)/(-) buttons on the RC to adjust the selected parameter. When EQ is on, treble and bass control is not available. Balance is to adjust the balance between the left and right speakers. Fader is to adjust the balance between the rear and front speakers.

In each mode, the waiting time is several seconds, and the waiting time is over, it returns to the last display mode of radio or disc playback mode.

Beep

Press repeatedly SEL/ button to select BEEP ON; rotate VOLUME knob or press + / - buttons on the RC to toggle between BEEP ON (beep sound will be heard when buttons are pressed) and BEEP OFF, then leave the unit idle for the new setting to take effect.

Equalizer modes

Press repeatedly SEL/ button to select EQ. Rotate VOLUME knob or press +/ - buttons on the RC to choose an equalizer effect: CLASS => ROCK => POP => FLAT => OFF. After you have reached the desired effect, leave the unit idle in order for the new setting to take effect.

Loudness

Press repeatedly SEL/ button to select LOUD ON (LOUD OFF). Rotate VOLUME knob or press + / buttons on the RC to select between LOUD ON/LOUD OFF. LOUD function is to emphasize the bass output; the word LOUD ON indicates that the LOUD mode is on.

Color

Press repeatedly SEL/ button to select COLOR1 (COLOR2). Rotate VOLUME knob or press +/ buttons on the RC to select between COLOR1 (red panel backlight) or COLOR2 (green color backlight).

Clock setting

The clock can be set anytime when the power is on. Press three times CLK button on the RC or press PTY/CLK button on the unit, then press and hold the button for 3 seconds; the time indication will blink on the display. Rotate VOLUME knob or press + / - buttons on the RC to adjust hours. Press SEL/SEL button to go to setting minutes. Rotate VOLUME knob or press + / buttons on the RC to adjust minutes. Press CLK button on the RC or PTY/CLK button on the unit for the new setting to take effect.

Press CLK button on the RC or PTY/CLK button on the unit anytime to view the time display.

Subwoofer control

Press and hold BND/SUB button to turn the subwoofer output ON. An external amplifier is required to operate a subwoofer.

AUX in jack

AUX-in jack is intended for connecting an external audio or video equipment to amplify the sound. If connection is made correctly, the audio signal from the external source will be translated through the acoustics of the head unit. This enables to adjust the volume and quality of the sounding. For example, you can connect an MP3-player to listen to tracks using the car acoustic system.

Radio operations

Band select

Press repeatedly BND/SUB button on the panel or BAND button on the RC to select your desired radio band during RADIO mode: FM1, FM2, FM3, AM1 (MW1), AM2 (MW2). In each set of the bands you can store up to 6 preset stations, making total 30 preset memory stations.

Auto/Manual tuning

Press and hold PREVIOUS/NEXT buttons on the panel or /buttons on the RC to automatically adjust the radio frequency. The radio will seek to the next up or down strong and clear frequency station. Repeat this action to seek for other desired stations. To adjust the needed frequency manually, press repeatedly PREVIOUS/NEXT buttons on the panel or /buttons on the RC.

Programming tuner stations

There are six numbered preset buttons, under which you can store and recall stations for each band. Select the needed station, then press and hold a preset button. The station will be saved in the memory under the corresponding number. To recall a stored station, press the corresponding preset button.

Automatic store/preset scan

Automatic store

Press and hold F/PS button on the panel or APS button on the RC. The radio will automatically store the 6 strongest available stations to the 6 preset memories of the 3 FM bands or the 2 AM bands (depending on which one is current). To stop auto store, press this button again.

Preset scan

Press F/PS button on the panel or APS button on the RC, the receiver will scan the saved stations in the current band.

Mono/Stereo control (in FM radio mode)

Press SEL button until the display shows ST ON (ST OFF). Turn VOLUME knob or press +/buttons on the RC to switch between ON (stereo reception) or OFF (mono reception).

Improvement of reception of distant stations can be done by selecting mono mode, which may cut down some reception noise.

RDS function

RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either.

AF (alternative frequencies) function

Press AF/ button to turn the AF function on or off.

When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (Program Identification) as the current station but with stronger signal strength, so that you do not have to retune the stations when driving between different transmitter coverage areas. When AF symbol is on, it means RDS information is received; when AF symbol is flashing, it means RDS information is not yet received.

PS (Program Service name): the name of station will be display instead of frequency.

If RDS service is not available in your area, turn off the AF mode. Default setting is ON.

TA (Traffic Alarm) function

Press TA/ button to turn TA function on or off.

In TA mode traffic program will be automatically searched, until the program is received. When traffic announcement is received the unit will temporarily switch to the tuner mode (regardless of the current mode) and begin broadcasting the announcement. After the traffic announcement is over, it will return to the previous mode and volume level.

To interrupt traffic announcement press TA/TA button shortly; it will not switch off the TA mode.

PTY (Program Type)

This radio will allow you to select the type of program required, and will search for a station broadcasting that type of program.

Press PTY/CLK button on the panel or button on the RC to show the music type. Then press 1 - 6 number buttons to choose different music programs available.

Press PTY/CLK button on the panel or button on the RC twice to show the speech type program. Then press 1 - 6 number buttons to choose different speech programs. Each number button will show 3 different speech programs for you to choose (see table below).

Button	Music group	Speech group
1 Pop	Rock News, Affairs, Info
2 Easy	Light Sport, Educate, Drama
3 Classics, Other		Culture, Science, Varied
4 Jazz	Country Weather, Finance, Children
5 Natlon	Oldies Social, Religion, Phone IN
6 Folk	Travel, Leisure, Document

When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected. If no buttons are pressed within several seconds, previously selected PTY is searched. During 1 loop, if desired PTY is not found, the unit will return to previous mode. Press PTY/CLK button on the panel or button on the RC for the 3rd time to switch the PTY function off.

Other parameter setting

To choose the corresponding parameter, press and hold SEL/SEL button for 2 seconds, then press it repeatedly until the display shows the needed parameter. Turn VOLUME knob or press +/buttons on the RC to choose the needed value. After choosing, please leave the unit idle to activate.

TA SEEK/TA ALARM

In TA SEEK mode, the unit will seek for traffic announcement program when TA button is pressed; in TA ALARM the unit does not return to TA information.

MASK DPI/MASK ALL

During MASK DPI mode, the unit will mask only the AF which has different PI, this is the default mode; during MASK ALL mode, the unit will mask the AF which has different PI and no RDS signal with high field strength.

RETUNE S/L - SHORT/LONG

"RETUNE" refers to the time period the unit allows for radio scan when reception is interrupted. "S" represents a long time period, and "L" represents a short time period.

RDS-EON control

This unit is equipped with the latest technology of EON control, so that when you are listening to Radio or CD, if there is any travel announcement from a nearby local station, the radio will already know the frequency of that radio station. Then it will receive the station, turn up the volume, or interrupt the playback of the music for the duration of the announcement. At the end of the announcement the radio will return to its previous state ready for the next announcement.

Disc/USB/SD/MMC operations

USB/SD/MMC notes

USB format supports 2.0. Capacity: up to 8 GB.

For correct and satisfactory operation,

licensed SD/MMC memory cards of famous brands should be used with this unit. Avoid using memory cards of unknown brands. Capacity: up to 8 Gb.

Insert/Eject discs

• Open the front panel and insert a disc into the disc slot with label side up. The disc will be automatically loaded into the unit, even when it is off or in radio mode. For MP3/WMA discs, the first file in the root folder will be played. If an MP3 file has ID3 Tag information in the supported ID3 format, such information will be displayed on the LCD while playback.
• Open the front panel and press EJECT button to eject the disc from the slot. If the disc is not removed from the slot within several seconds, it will be automatically loaded into the slot again. When the disc is ejected and removed, the unit will automatically switch to radio mode.

Inserting the SD/MMC card/USB device

Insert the MMC/SD card or USB device into MMC/SD slot or USB socket. Then the playing mode will be changed into SD or USB mode automatically. The first card/USB device track playback will start.

When MMC/SD card and USB device are both inserted into their compartment or socket, the playing mode will be changed into the mode of the later one.

USB/SD/MMC folder playback

• If the MP3/WMA files are stored in folders on the USB drive or a memory card, the unit will start by playing the first song in the first folder.
• After playing all the files sequentially in the first folder, the unit will play sequentially all of the files in the next folder. The unit will continue playing through all of the folders on the USB drive or memory card in this manner.
• In the USB drive or memory card has loose files and folders containing files, it will play the loose files sequentially, then it will play

the files in the folders sequentially.

MP3/WMA track search

The search modes only works with MP3/WMA CDs and USB flash memory with MP3/WMA files. Cancel Random, Repeat and Intro features before searching.

Ordinary search

Press PREVIOUS/NEXT buttons on the panel or 🏠/ 🏠/ buttons on the RC to go to the next or previous track. Press 5/DN10 and 6/UP10 buttons on the panel or 📄/ 🏠/ and 6/UP10 buttons on the RC to advance to 10 songs up or down.

Track search

Press F/PS button, then use VOLUME knob or press +/buttons on the RC to select the track number. Switch between the track number digit by pressing SEL/SEL button.

Press SEL SEL button, the selected track will start to play.

File search

Press twice F/PS button on the panel or button on the RC; the display will show the current file name and "F" symbol. Rotate VOLUME knob or press + / buttons on the RC to select the needed file name. Press SEL/SEL button, the chosen file will start to play. Folder search

Press thrice F/PS button on the panel or APS button on the RC; the display will show the current folder name and "D" symbol. Rotate VOLUME knob or press + / buttons on the RC to select the needed folder name. Press SEL/ button, the chosen folder will start to play.

It is recommended to record files in the root folder and do not use the complicated folder system to allow this type of search to function properly.

Play/pause

To ensure good system performance, wait until the unit finishes reading the disc

information before proceeding.

Press 1/PLAY/PAUSE button on the panel or 1(PAU) button on the RC to pause the disc playback. Press this button again to resume playback.

Fast Forward/rewind

Press and hold NEXT button on the panel or 🏠 button on the RC to fast forward. Press and hold PREVIOUS button on the panel or ⏻ button on the RC to fast reverse. Release the button when the desired location is found.

Scanning tracks

Press 2/INT button on the unit or button on the RC to play the first 10 seconds of each track. Press this button again to cancel intro playback playback.

Repeat

Press 3/RPT button on the unit or 3(RPT) button on the RC to repeat the same track continuously. Press this button again to stop repeating.

During playback the MP3/WMA format press 3/RPT button to choose track repeat, folder repeat or repeat off.

Random playback

Press 4/RDM on the panel or button on the RC to play all the tracks in random order. Press the button again to stop random play.

Multi-session disc reading

The multi-session reading will be activated automatically if the player detects a file that is written in multi-session format.

Notes on MP3 and WMA

• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
  • This product allows playback of MP3 files

on CD-ROM, CD-R or CD-RW discs.

• The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
• The unit can not read an MP3 file that has a file extension other than “.mp3”.
• If you play a non-MP3 file that has the ".mp3" extension, you may hear some noise.
• In this manual, we refer to what are called "MP3 file" and "folder" in PC terminology as "track" and "album", respectively.
  • Maximum number of directory level is 8, including the root directory. Maximum number of files and folders per disc is 256.
• The unit may not play tracks in the order of Track numbers.
• The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files.
• When playing a disc of 8 kbps or "VBR", the elapsed playing time in the display window will not be correct and also the intro play may not function properly. "VBR": Variable Bit Rate.
• The unit supports the playback of WMA files. The playback of ID3 tags for WMA format is not guaranteed, it depends on versions and availability of Cyrillic alphabet.
• WMA (Windows Media Audio) – music data compression format, created by Microsoft Corporation. This format uses coding algorithm for compression of initial audio-record, greatly decreasing the file size, but, saving the good sound quality even when the bit rate is low (for example, 64 Kbit/s).
• Remember that the unit may not play the tracks in order they are written on disc.

Handling compact discs

• Do not insert anything other than a CD into the CD loading slot.
• Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player.
• Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface.
• Store discs in their cases when not in use.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature (such as leaving the discs in your car during summertime) can wrap a disc.
• Do not attach labels, write on or apply chemicals to the surface of the discs.
• Do not touch the recorded surface of the discs.
• Use 12-cm CDs. Use only conventional, fully circular discs. Do not use shaped discs.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Cleaning the unit body

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Accessories

1. Receiver 1 pc
2. Front panel 1 pc
3. Protective case 1 pc
4. ISO connector 1 pc
5. Remote controller 1 pc
6. Mounting parts: Nut 5 mm 1 pc

Spring washer 2 pcs

Plain washer 2 pcs

Screw M5x25 mm 1 pc

Screw.... 1 pc

Metal strap 1 pc

Release key 2 pcs

Mounting collar 1 pc

Trim frame 1 pc

1. Instruction manual 1 pc
2. Warranty card 1 pc
3. Consumer information 1 pc

Troubleshooting

Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer.

Symptom Cause Solution
No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.
No sound Volume is in minimum. Adjust volume to a desired level.
Bad sound quality The installation angle is more than 30 degrees.		Adjust the installation angle to less than 30 degrees.
Disc cannot be loaded or ejected	The unit already contains a disc.	Remove the disc in the player then put a new one.
	Moisture condensation. Leave the unit idle for an hour, then retry.
Disc cannot be read	The disc is inserted upside down.	Insert the compact disc with the label side facing upward.
	Compact disc is extremely dirty or defective.	Clean the disc or try to play a new one.
	Temperature inside the car is too high.	Cool off until the ambient temperature returns to normal.
Buttons do not work	The built-in microcomputer is not operating properly.	Reset the unit with the help of RESET button.
	Front panel is not properly fix into its place.	Install the front panel properly.
The radio does not work	The antenna cable is not connected.	Insert the antenna cable properly.
The radio station automatic tuning does not work	The signals are too weak. Select stations manually.
The display shows an error message (ERROR 1 – 11) one time.	Possible disc error. Reset the unit by pressing RESET hole.Ensure the disc is inserted correctly into the slot.Clean or change the disc.
The display shows an error message (ERROR 1 – 11) repeatedly.	Unit operation error. Turn to a service center.

Specifications

General

Power supply 12 V DC

Current consumption/Fuse 10 A

Maximum power output 50 W x 4

Dimensions (L x W x H) 178 x 50 x 150 mm

Temperature range -20

^0 C - +60 ^0 C

FM stereo radio

Frequency range 87.5 - 108.0 MHz

Presettable stations 18

Sensitivity 12 uV

MW Section

Frequency range 522 kHz-1620 kHz

Presetable stations 12

Sensitivity 30 dB

Disc player

System Compact disc audio system

Storage support CD/CD-R/CD-RW/USB/SD/MMC

Format support CDDA/MP3/WMA

Frequency characteristics 20 Hz-20 kHz

Signal to noise CD >80 dB

ESP 40 sec. for CD/120 sec. for MP3/300

sec. for WMA

Mounting angle 0 - +/-30

0

Line out

Output: 2 channel RCA line-out (2V)

Specifications are subject to change without notice. Dimensions are approximate.

Снятие устройства

Diagram of two connected electrical connectors with wires, no text or symbols present

Illustration of a hand inserting pins into a connector block (no text or symbols)

Символы ЖК дисплея

Button M	Music group Speech group
1 Pop	Rock News, Affairs, Info
2 Easy	Light Sport, Educate, Drama
3 Classics, Others		Culture, Science, Varied
4 Jazz	Country Weather, Finance, Children
5 Nation	Oldies Social, Religion, Phone IN
6 Folk	Travel, Leisure, Document

Illustration of two hands performing a manual manipulation or disassembly task (no text or symbols present)
