USER MANUAL 524988 Intellinet

WIRELESS 450N DUAL-BAND GIGABIT ROUTER USER MANUAL

MODEL 524988

Exterior view of a wireless 450N dual-band Gigabit Bluetooth device (no visible text or symbols on the device body)

INTELLINET™

NETWORK SOLUTIONS

INT-524988-UM-0811-02

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS™ Wireless 450N Dual-Band Gigabit Router, Model 524988.

The latest in wireless networking, this Wireless Router serves multiple purposes — an access point that provides both 2.4 GHz and 5 GHz wireless simultaneously, a wireless bridge, a wireless repeater, a WDS repeater, a four-port Gigabit router for your hard-wired Ethernet devices, a firewall, and access and content control — and brings it all together to maximize your high-speed Internet access.

Additional features:

• Dual-band operation that provides twice the bandwidth and less interference
• Up to 450 Mbps network link speed
  • Supports advanced 3T3R MIMO technology, significantly enhancing throughput and coverage range
• Four Gigabit Ethernet ports for super-fast wired connections
  • Supports WMM function to meet the multi-media data bandwidth requirement
  • Supports Wi-Fi Protected Setup (WPS)
  • Supports WEP and WPA/WPA2 (TKIP and AES) data encryption
• Supports Access Point, Station Infrastructure, Bridge Point-to-Point, Bridge Point-to-Multi-Point, WDS and Universal Repeater modes
  • DHCP server assigns IP addresses for all LAN users
  • DHCP Server supports static lease management
  • Supports virtual server, port forwarding and DMZ (demilitarized zone)
  • Supports DDNS (dynamic DNS)
  • Supports UPNP (Universal Plug and Play)
• Integrated anti-DOS firewall
  • QoS (Quality of Service) bandwidth management
  • VPN Pass Through (PPTP, IPSec, L2TP)
• Easy Internet setup through WAN connection wizard
• Easy installation through Web-based user interface
• System status
• Security log
• Firmware upgradeable
• Complies with 5 GHz IEEE 802.11a/n standards and 2.4 GHz IEEE 802.11b/g/n standards
• Three-Year Warranty

Package Contents

• Wireless 450N Dual-Band Gigabit Router
- Quick install guide, plus user manual on CD
• Power adapter and Ethernet Cat5 RJ45 cable: 1.0 m (3 ft.)

NOTE: Some screen images have been modified to fit the format of this manual.

TABLE OF CONTENTS

section page section page

1 HARDWARE....5

1.1 Front Panel Display....5

1.2 Back Panel Display 5

2 SYSTEM & NETWORK SETUP ......6

2.1 Connecting the Router....6

2.2 Obtaining an IP Address....6

2.2.1 Windows XP Setup....7

2.2.2 Windows Vista/7 Setup......9

2.2.3 Router IP Address Lookup...... 10

2.3 Quick Setup 13

2.3.1 Cable Modem (Dynamic IP)..... 14

2.3.2 Fixed IP xDSL (Static IP) ..... 15

2.3.3 PPPoE xDSL 16

2.3.4 PPPTP xDSL 16

2.3.5 L2TP xDSL 18

2.3.6 Telstra BigPond 18

2.4 Basic Setup....19

2.4.1 Time Zone / Auto-Synch......20

2.4.2 Changing Mngmt. Password....20

2.4.3 Remote Management ...... 21

2.5 WAN Setup 22

2.5.1 Dynamic IP 23

2.5.2 Static IP 23

2.5.3 PPPoE 24

2.5.4 PPPTP 24

2.5.5 L2TP 25

2.5.6 Telstra BigPond 26

2.5.7 DNS 26

2.5.8 DDNS 27

2.5.9 WISP 28

2.6 LAN Configuration 29

2.6.1 LAN IP 30

2.6.2 DHCP Server....30

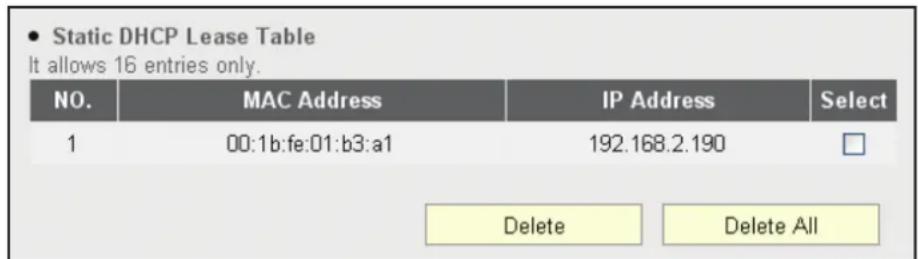

2.6.3 Static DHCP Leases Table ..... 31

2.7 WLAN Configuration....32

2.7.1 Basic Wireless Settings ...... 32

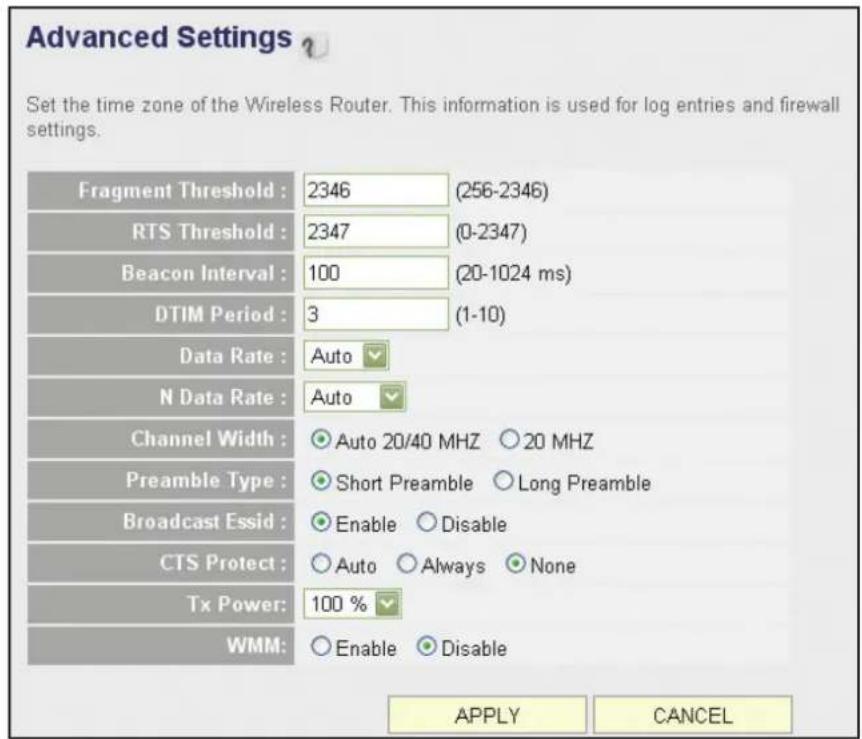

2.7.2 Advanced Wireless Settings....34

2.7.3 Wireless Security......36

2.7.4 Wireless Access Control.....39

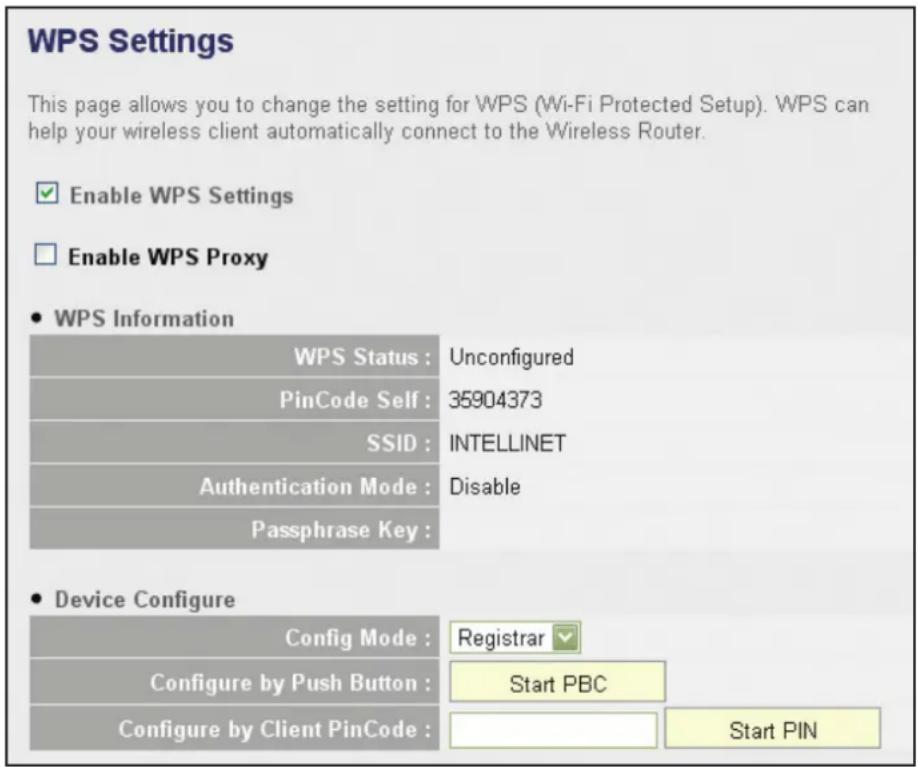

2.7.5 WPS 40

2.7.6 Security Tips......41

3 ADVANCED FUNCTIONS....43

3.1 QoS....43

3.1.1 Basic QoS Settings......43

3.1.2 Adding a new QoS Rule .....44

3.2 NAT....45

3.2.1 Port Forwarding 46

3.2.2 Virtual Server....47

3.2.3 Port Mapping 48

3.2.4 UPnP 49

3.2.5 ALG 50

3.3 Firewall....50

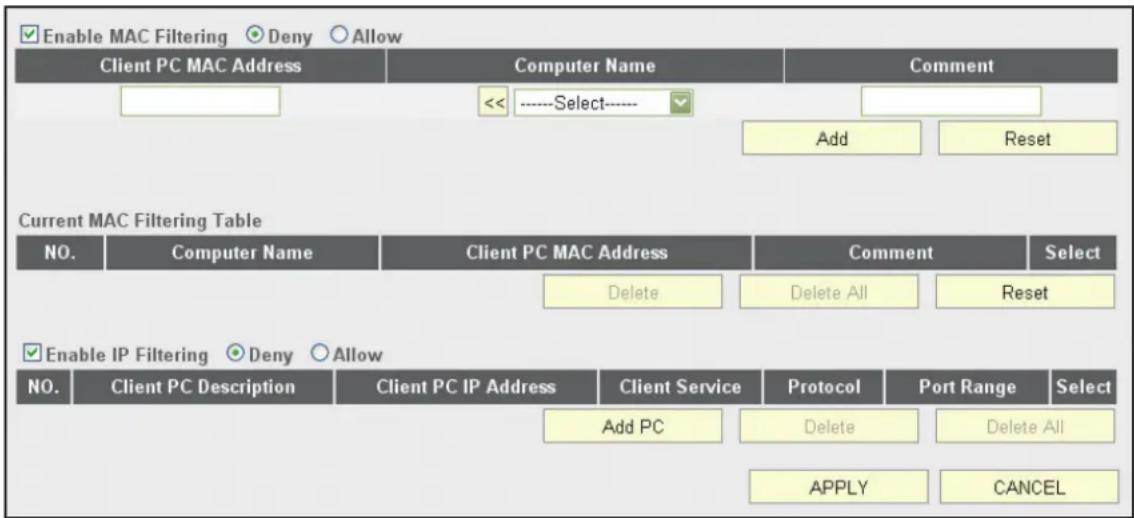

3.3.1 Access Control 50

3.3.2 Add PC 52

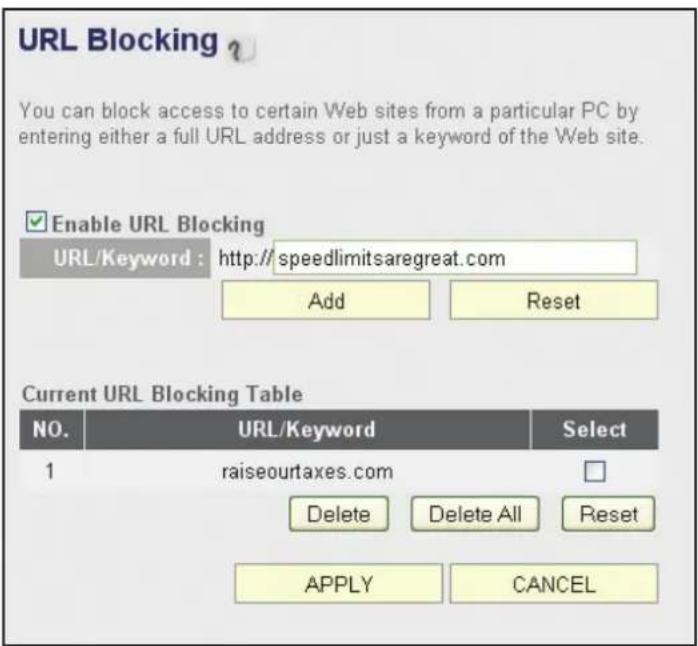

3.3.3 URL Blocking....53

3.3.4 DoS Attack Prevention......54

3.3.5 DMZ....55

4 ADDITIONAL FUNCTIONS....57

4.1 Status....57

4.1.1 Internet Connections .....57

4.1.2 Device Status 58

4.1.3 System Log....58

4.1.4 Security Log 59

4.1.5 Active DHCP Client 59

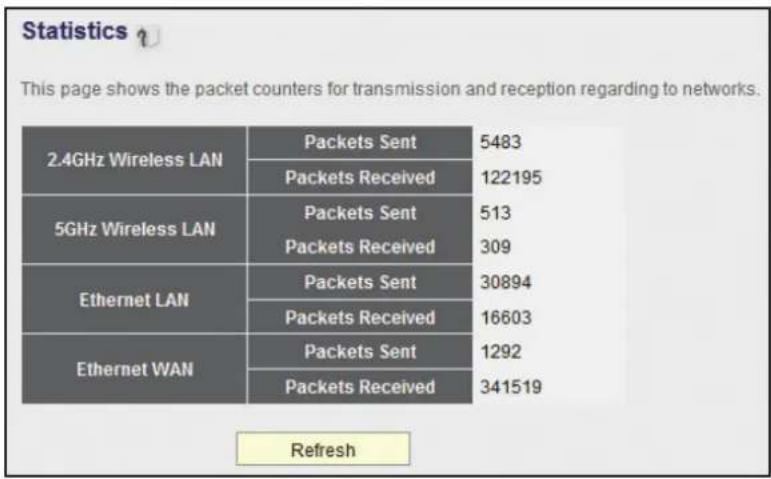

4.1.6 Statistics 59

4.2 Tools 60

4.2.1 Configuration Tools....60

4.2.2 Firmware Upgrade 61

4.2.3 Reset 62

5 TROUBLESHOOTING....63

6 GLOSSARY 65

7 SPECIFICATIONS....67

SAFETY GUIDELINES

For the protection of equipment users and connected devices, follow these safety guidelines:

1. This router is designed for indoor use only; do not place this router outdoors.
2. Do not place this router in hot or humid environments.
3. Do not yank any connected cables.
4. Firmly secure this device if it's placed at any significant height.
5. Router accessories such as the antenna and power supply should be considered dangerous when handled by children under the age of 3. Keep this device out of the reach of children.
6. The router will become hot when used for long time. This is normal and is not a malfunction, but keep the router away from paper, cloth and other flammable materials.
7. There are no user-serviceable parts inside the router. If the router is not working properly, contact your dealer (place of purchase) and ask for help. Do not disassemble the router, as doing so will void the warranty.
8. If the router falls into water while it's powered on, do not pick it up with your hands. Disconnect the power before you do anything, or contact an experienced technician for help.
9. If you smell something strange, or if you see some smoke coming from the router or power supply, remove the power supply or switch the electrical power off immediately and call the dealer for help.

1 HARDWARE

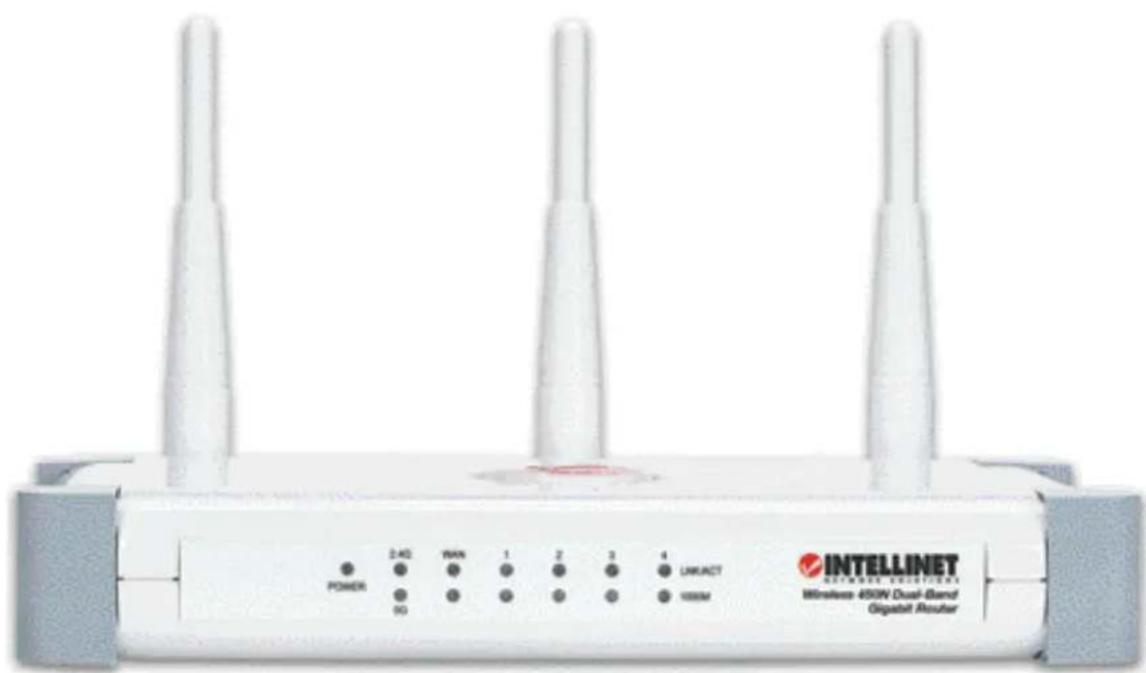

1.1 Front Panel Display

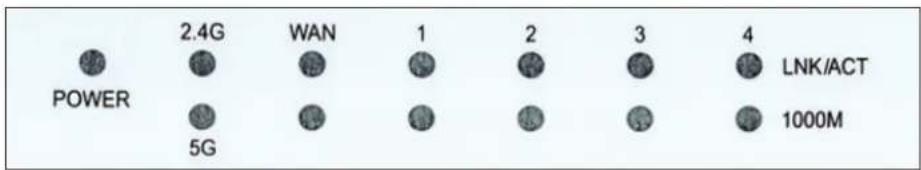

POWER 2.4G WAN 1 2 3 4 LNK/ACT 5G 1000M

LED Status Description

POWER On Router is switched on and correctly powered.

2.4G / 5G On Indicates that the particular WLAN mode is active.

Off The WLAN mode is not active.

Flashing Wireless data is being received and/or transmitted.

WAN On The WAN port is connected to a cable or DSL modem.

Off No device is connected to the WAN port.

Flashing Data traffic on WAN port.

LNK/ACT On A device is connected to the LAN port.

(1-4) Off No device is connected to the LAN port.

Flashing Data traffic on LAN port.

1000M On A device is connected at Gigabit speed

Off A device is connected at either 10 or 100 Mbps.

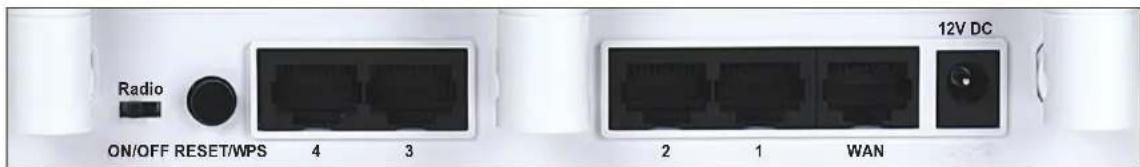

1.2 Back Panel Display

Radio ON/OFF RESET/WPS 4 3 12V DC 2 1 WAN

Feature Description

Antennas All 3 antennas are fixed-dipole with 3 dBi of gain each.

Radio Activate or deactivate the wireless functions with this ON/OFF switch.

Reset/ Reset the router to factory default settings (clear all settings) or start the

WPS WPS function. Press and hold for 10 seconds to restore all settings to factory defaults; press once for less than 5 seconds to start the 2.4GHz WPS function; press twice for less than 5 seconds to start the 5GHz WPS.

1-4 Local Area Network (LAN) ports 1 to 4.

WAN Wide Area Network (WAN/Internet) port.

12VDC Connects the A/C power adapter (12V DC).

2 SYSTEM & NETWORK SETUP

2.1 Connecting the Router

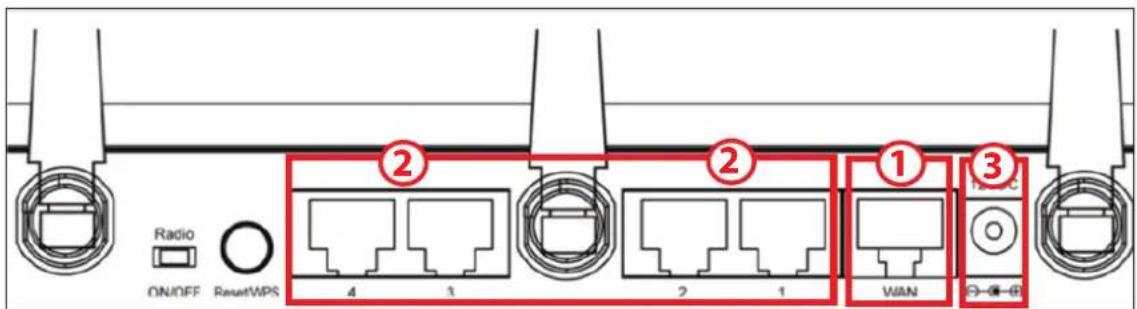

1. Connect your DSL or cable modem to the WAN port of the router using the provided RJ45 Ethernet cable. NOTE: Standard modems provided by Internet service providers come with at least one LAN/Ethernet port, which connects to the WAN port of the router.

Radio ON/OFF Reset/WPS ② ② ① ③ 4 1 2 1 WAN

1. Connect all your computers and network devices (network-enabled components like game consoles, network media players, network storage units or LAN switches) to the LAN ports (1-4) of the router.
2. Connect the A/C power adapter to the wall socket, and then connect it to the power jack of the router.
3. Check all LEDs on the front panel. The PWR LED should be on, and the WAN and LAN LEDs should be on if the computer or network device connected to the corresponding router port(s) is powered on and correctly connected.

2.2 Obtaining an IP Address

Before you can connect to the router and start configuration procedures, your computer must be able to obtain an IP address automatically (that is, to use a

dynamic IP address). This is the default setup for any standard Windows computer, and it normally is not required to make any changes.

1. With your computer connected to a LAN port on the router, activate the network connection. Start your Web browser and open http://192.168.2.1 to display a login window (right).

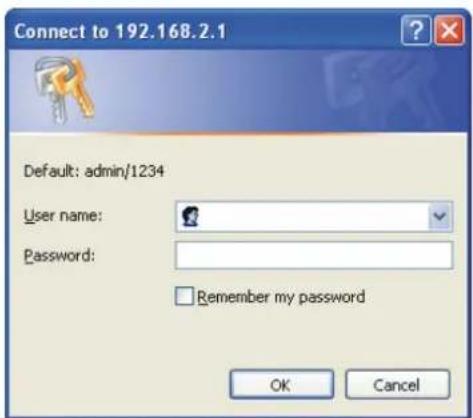

2. Enter "admin" as the username and "1234" as the password, then click "OK."

Connect to 192.168.2.1 Default: admin/1234 User name: Password: Remember my password OK Cancel

NOTE: If this procedure is successful, skip the following subsections and proceed to 2.3 Using Quick Setup. If the above procedure doesn't result in your obtaining an IP address, or if you know that your computer has a static IP address setup, follow the steps in the appropriate subsection below.

2.2.1 Windows XP IP Address Setup

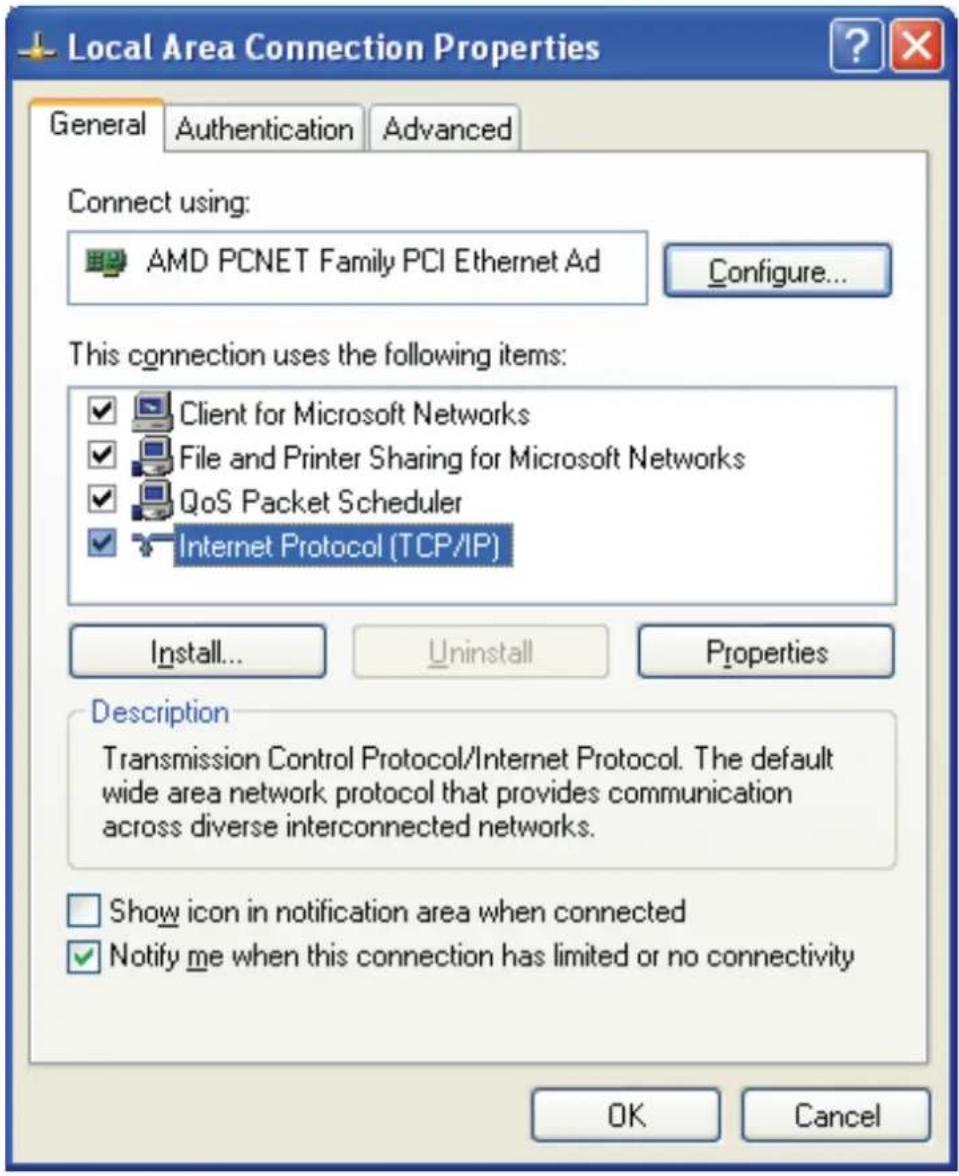

1. Click "Start," then go to the control panel. Double-click the Network & Internet Connections icon, then click "Network Connections" and double-click "Local Area Connection" to display the Local Area Connection Status window. Click "Properties."

Local Area Connection Properties General Authentication Advanced Connect using: AMD PCNET Family PCI Ethernet Ad Configure... This connection uses the following items: ✓ Client for Microsoft Networks ✓ File and Printer Sharing for Microsoft Networks ✓ QoS Packet Scheduler ✓ Internet Protocol (TCP/IP) Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in notification area when connected ✓ Notify me when this connection has limited or no connectivity OK Cancel

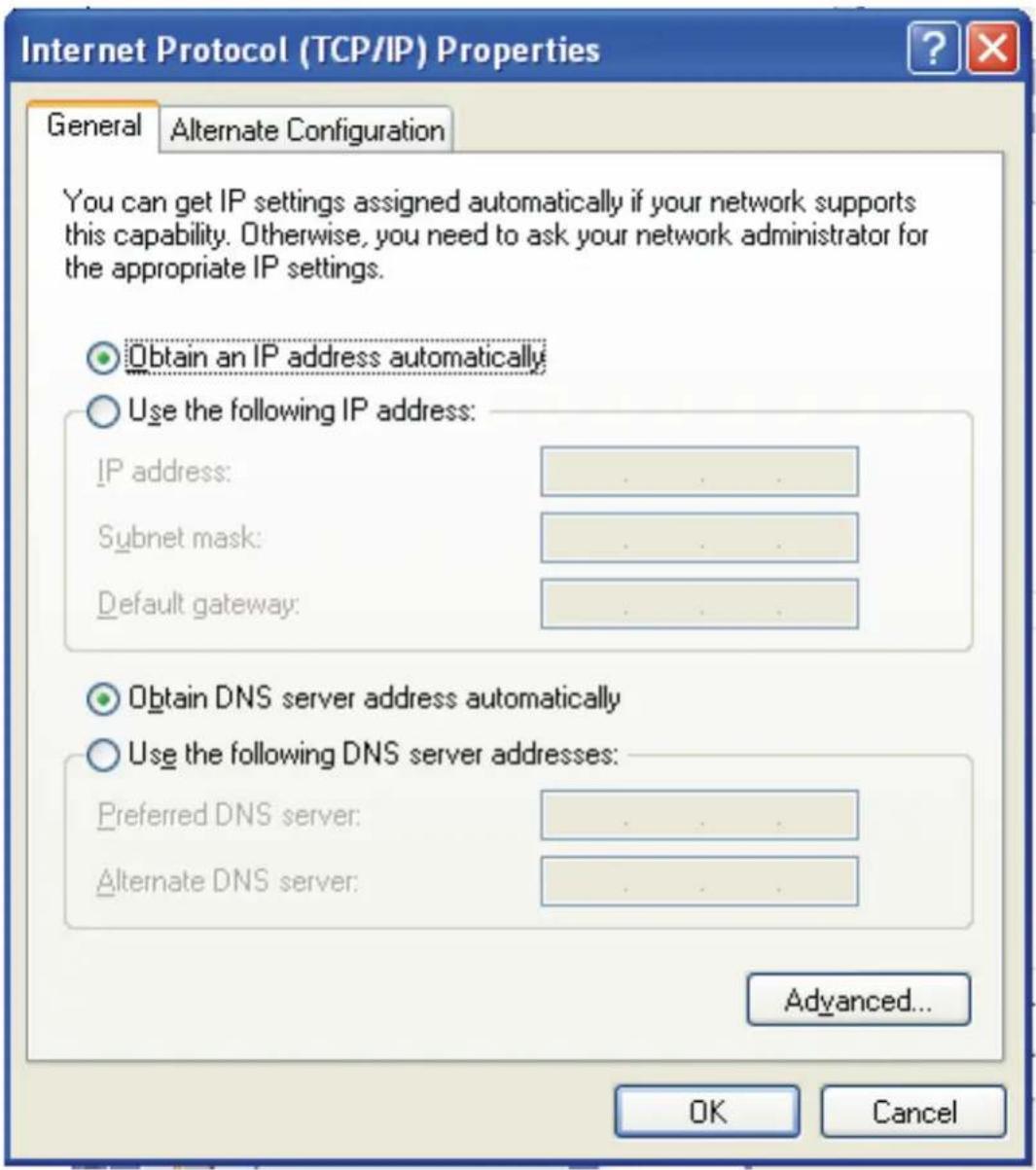

1. Select "Obtain an IP address automatically" and "Obtain DNS server address automatically," then click "OK."

Internet Protocol (TCP/IP) Properties General Alternate Configuration You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: ...... Subnet mask: ...... Default gateway: ...... Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: ...... Alternate DNS server: ...... Advanced... OK Cancel

2.2.2 Windows Vista/7 IP Address Setup

1. Click "Start," then go to the control panel. Click "View Network Status and Tasks," then click "Manage Network Connections." Right-click "Local Area Network," then select "Properties." With the Local Area Connection Properties window displayed, select "Internet Protocol Version 4 (TCP / IPv4)," and click "Properties."

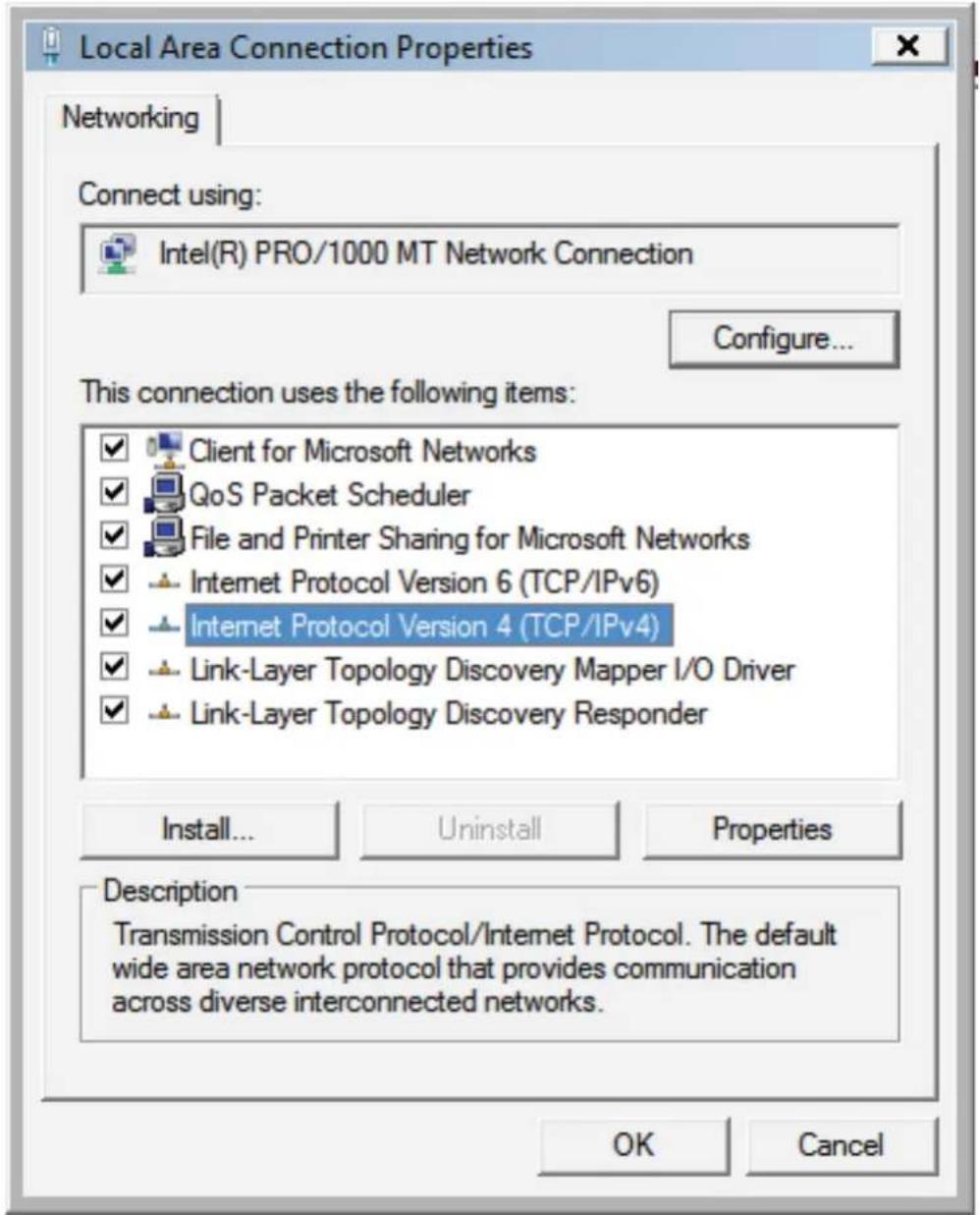

Local Area Connection Properties Networking Connect using: Intel(R) PRO/1000 MT Network Connection Configure... This connection uses the following items: ✓ Client for Microsoft Networks ✓ QoS Packet Scheduler ✓ File and Printer Sharing for Microsoft Networks ✓ Internet Protocol Version 6 (TCP/IPv6) ✓ Internet Protocol Version 4 (TCP/IPv4) ✓ Link-Layer Topology Discovery Mapper I/O Driver ✓ Link-Layer Topology Discovery Responder Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. OK Cancel

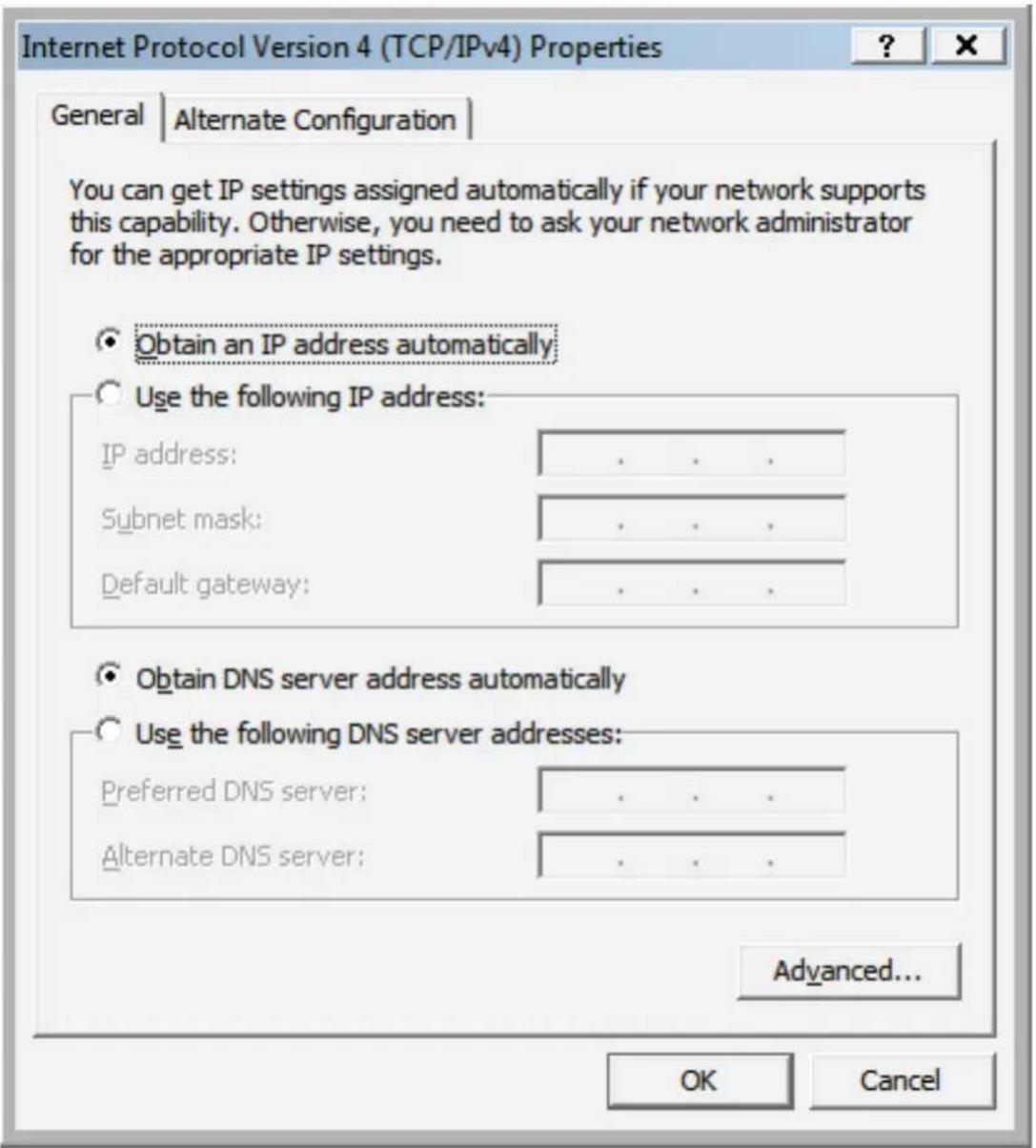

1. Select "Obtain an IP address automatically" and "Obtain DNS server address automatically," then click "OK."

Internet Protocol Version 4 (TCP/IPv4) Properties General | Alternate Configuration | You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: .... Subnet mask: .... Default gateway: .... Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: .... Alternate DNS server: .... Advanced... OK Cancel

2.2.3 Router IP Address Lookup

1. After the IP address is set up, click "Start" at the bottom-left of the desktop, then click "Run."

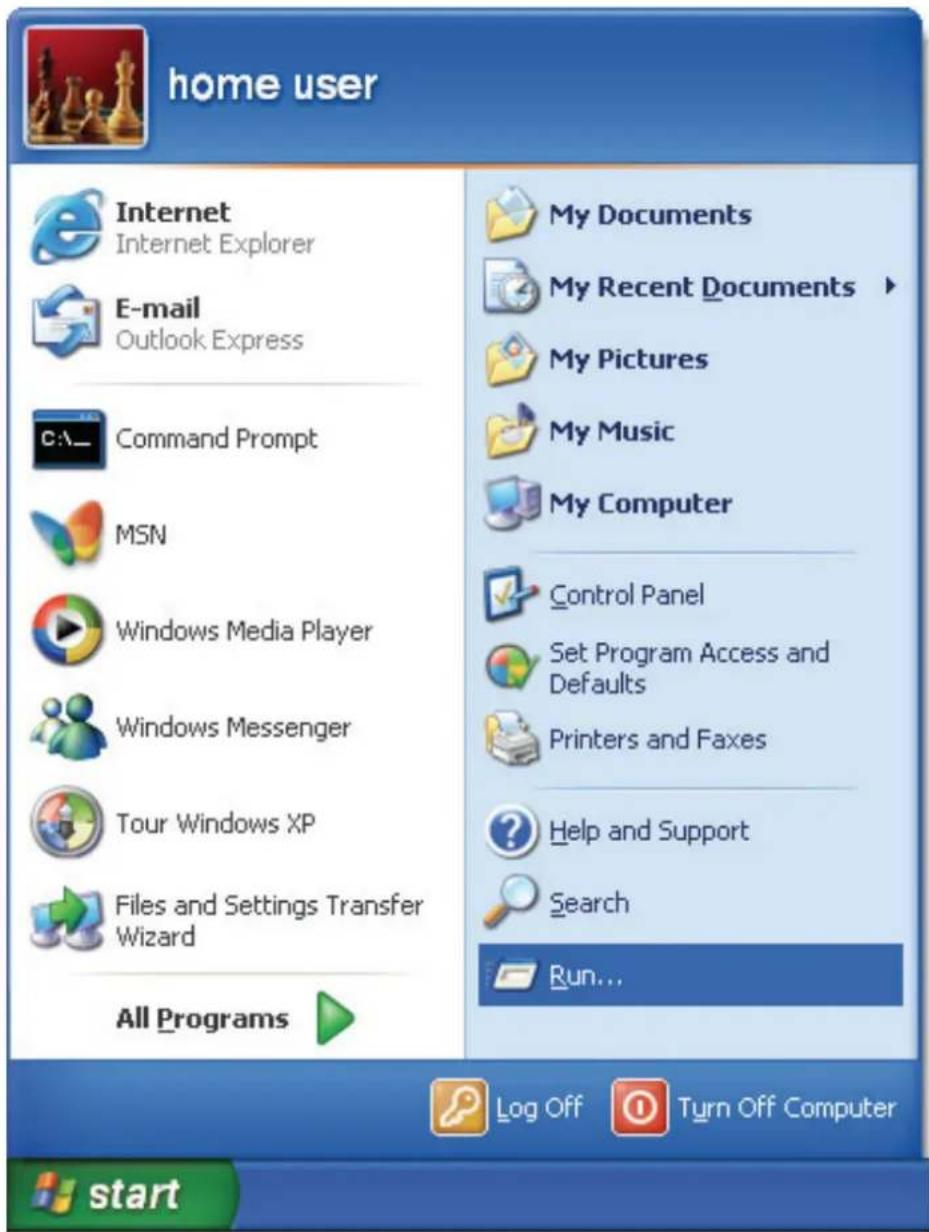

home user Internet Internet Explorer E-mail Outlook Express Command Prompt MSN Windows Media Player Windows Messenger Tour Windows XP Files and Settings Transfer Wizard All Programs My Documents My Recent Documents ▶ My Pictures My Music My Computer Control Panel Set Program Access and Defaults Printers and Faxes Help and Support Search Run... Log Off Turn Off Computer start

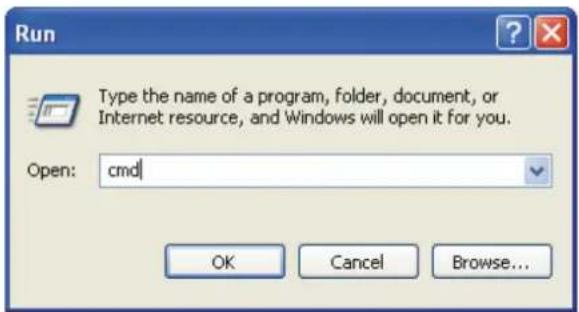

1. With the Run window displayed, enter "cmd" in the "Open:" text field, then click "OK."

Run Type the name of a program, folder, document, or Internet resource, and Windows will open it for you. Open: cmd OK Cancel Browse...

1. Enter "ipconfig," then press . The IP address displays, followed by the default gateway. In the example below, the IP address of the router is 19 2.168. 2.1.

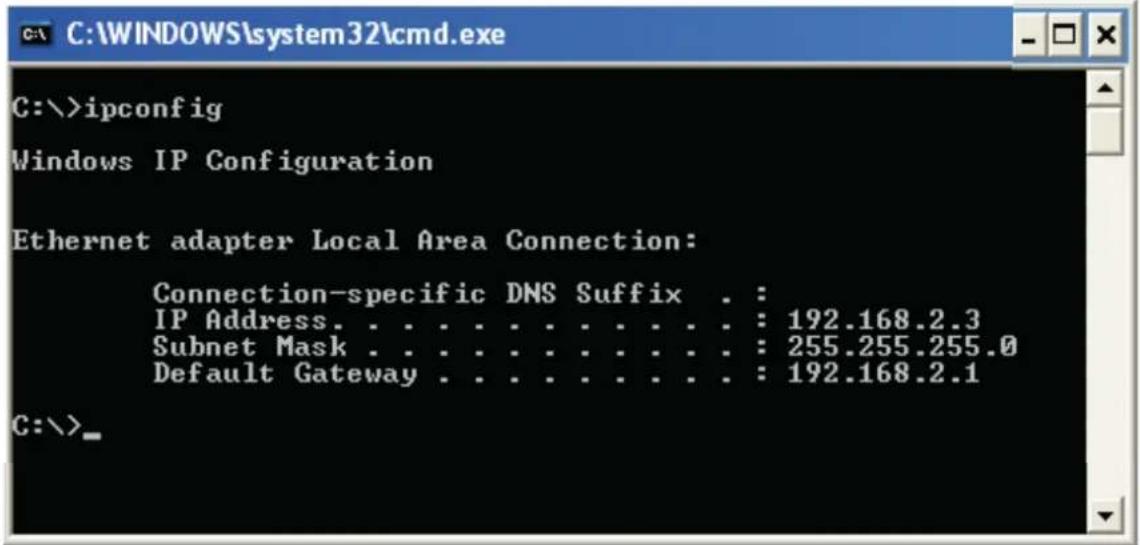

C:\>ipconfig Windows IP Configuration Ethernet adapter Local Area Connection: Connection-specific DNS Suffix . : IP Address. . . . . . . . . . . . . : 192.168.2.3 Subnet Mask . . . . . . . . . . . . : 255.255.255.0 Default Gateway . . . . . . . . . . : 192.168.2.1 C:\>

NOTE: If the IP address of the gateway is not displayed, or if the address begins with 169, recheck the network connection between your computer and the router, and re-check each step of the network setup procedure.

1. Once your computer has obtained an IP address from the router, open your Web browser and enter the IP address of the router into the address bar. When the login window displays (see 2.2 above), enter the username ("admin") and the password ("1234"). Press "OK" to display the router's Web management interface.

NOTE: If you can't see the Web management interface and you're being prompted to enter the user name and password again, it means you didn't enter the correct username and password. Re-type the username and password. If you're certain that the username and password are correct, refer to 4-2 Troubleshooting to perform a factory reset to set the password back to the default value.

TIP: This page (see 2.3 Quick Setup below) shows the four primary setting categories: QuickSetup, General Setup, Status and Tools. You can jump to another menu category directly by clicking the link at the top-right of each screen.

2.3 Quick Setup

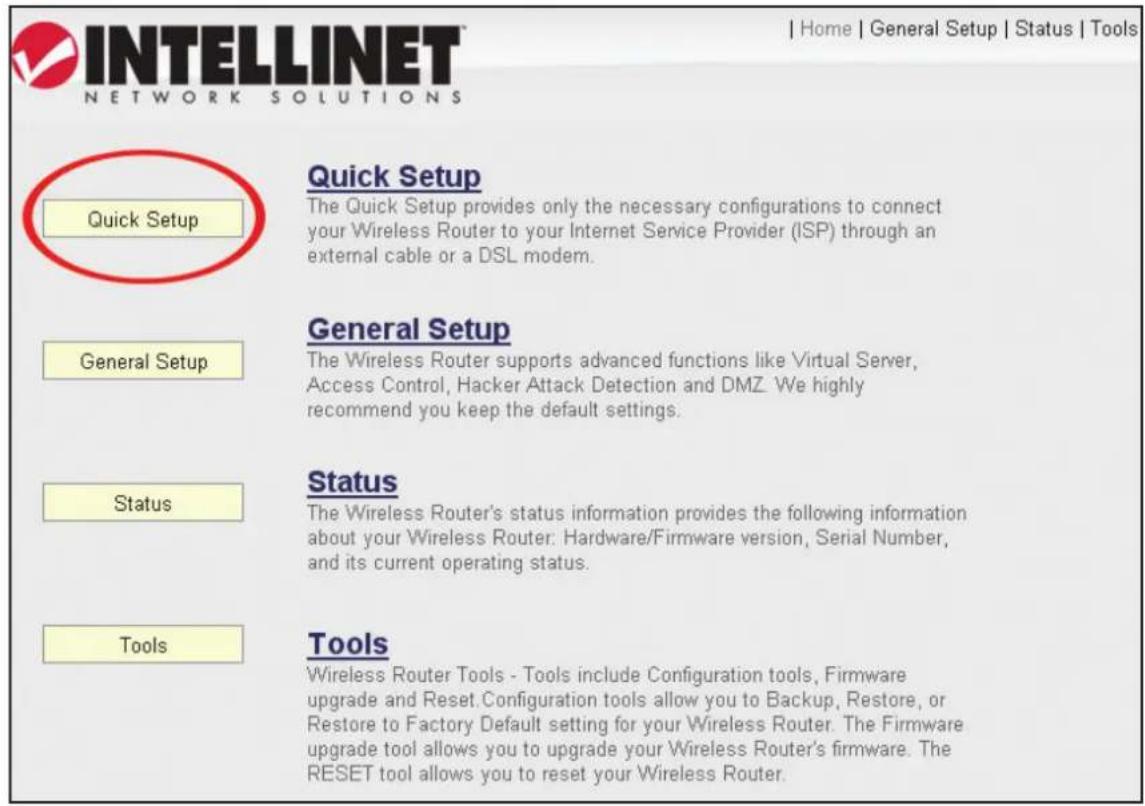

The Quick Setup procedure lets you configure all the settings required for quick Internet access.

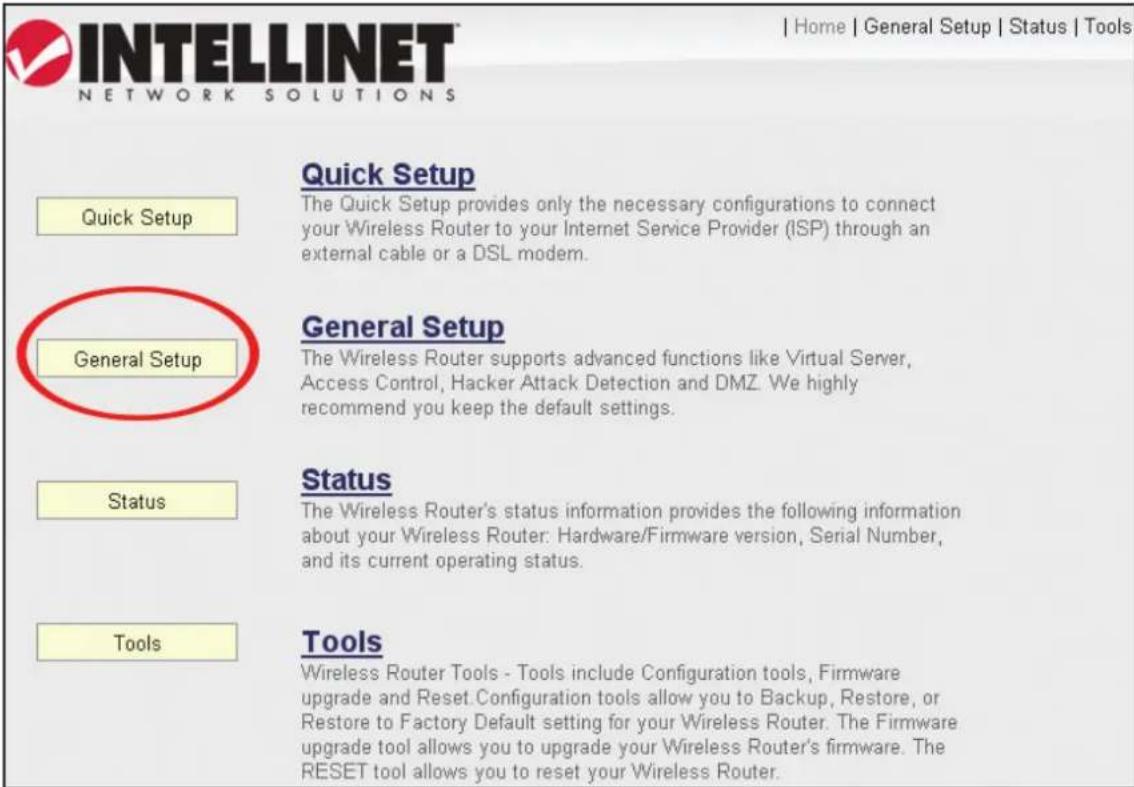

INTELLINET NETWORK SOLUTIONS | Home | General Setup | Status | Tools Quick Setup The Quick Setup provides only the necessary configurations to connect your Wireless Router to your Internet Service Provider (ISP) through an external cable or a DSL modem. General Setup The Wireless Router supports advanced functions like Virtual Server, Access Control, Hacker Attack Detection and DMZ. We highly recommend you keep the default settings. Status The Wireless Router's status information provides the following information about your Wireless Router: Hardware/Firmware version, Serial Number, and its current operating status. Tools Tools Wireless Router Tools - Tools include Configuration tools, Firmware upgrade and Reset. Configuration tools allow you to Backup, Restore, or Restore to Factory Default setting for your Wireless Router. The Firmware upgrade tool allows you to upgrade your Wireless Router's firmware. The RESET tool allows you to reset your Wireless Router.

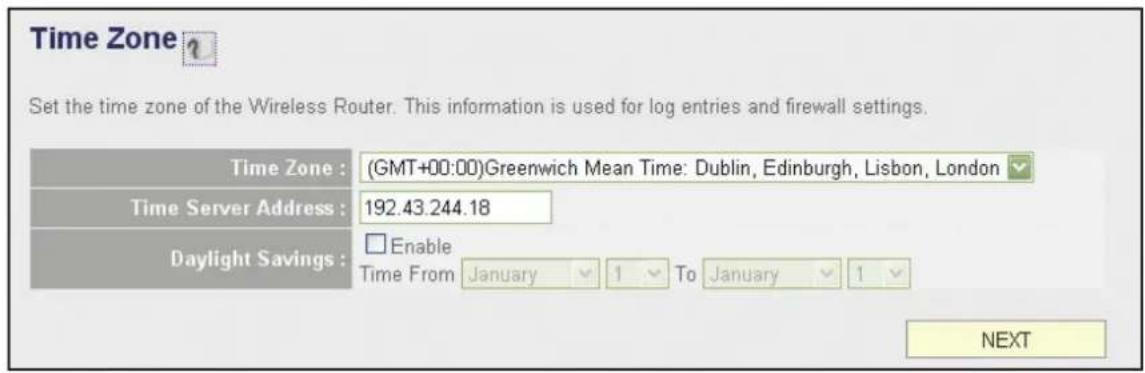

The initial Quick Setup screen presents time settings.

Time Zone Set the time zone of the Wireless Router. This information is used for log entries and firewall settings. Time Zone : (GMT+00:00)Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London Time Server Address : 192.43.244.18 Daylight Savings : Enable Time From January 1 To January 1 NEXT

Set Time Zone — Use the drop-down menu to select your time zone.

Time Server Address — Enter the IP address/hostname of the time server. This isn't normally required, but if the default time server (NTP) should go offline, you can obtain a new NTP server from the list at http://www.ntp.org.

Daylight Savings — If your locale uses Daylight Saving, activate “Enable Function” and select the duration using the drop-down menus.

Click "Next" to continue to the next screen of the Quick Setup procedure, where you select the broadband (Internet connection) type you use.

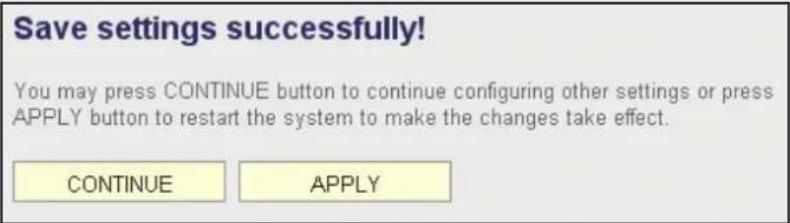

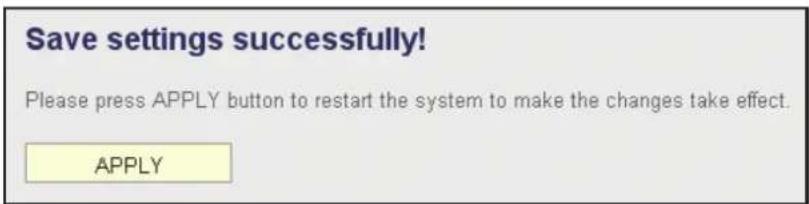

On all screens, click "Apply" (if such button appears at the bottom) to submit any option or configuration changes. Click "Back" to return to the previous screen.

Click "Cancel" to undo any changes you've made on that screen. Click "Next" or "OK" to proceed to the next screen.

Cable Modem

A connection through a cable modem requires minimal configuration. When you set up an account with your Cable provider, the Cable provider and your Wireless Router will automatically establish a connection, so you probably do not need to enter anything more.

Fixed-IP xDSL

Some xDSL Internet Service Providers may assign a Fixed IP Address for your Wireless Router. If you have been provided with this information, choose this option and enter the assigned IP Address, Subnet Mask, Gateway IP Address and DNS IP Address for your Wireless Router.

PPPoE xDSL

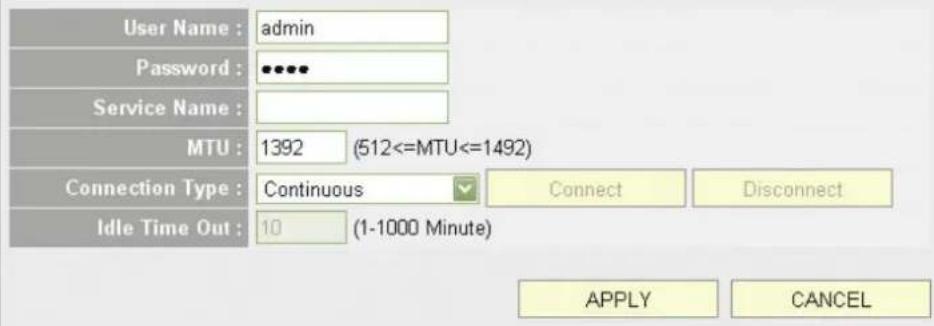

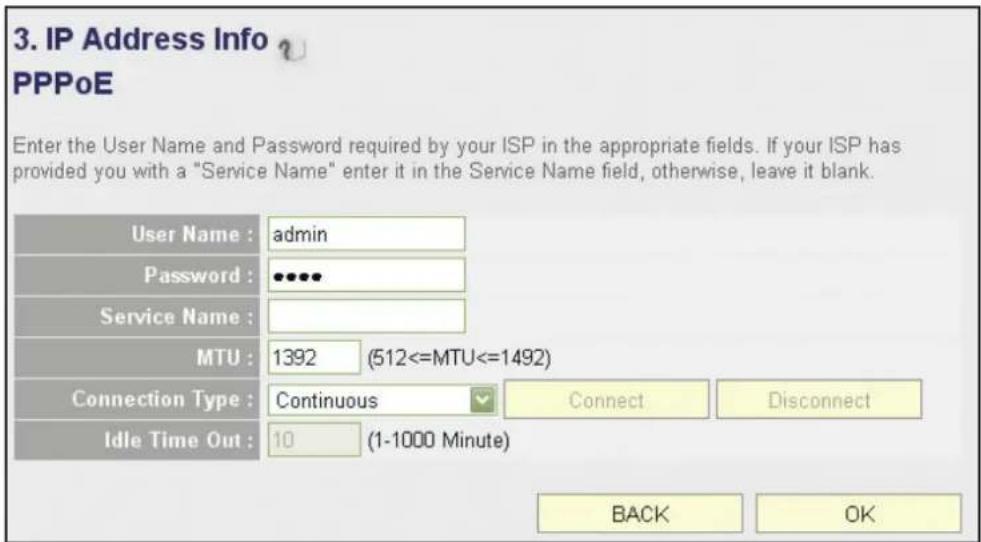

If you connect to the Internet using an xDSL Modem and your ISP has provided you with a Password and a Service Name, then your ISP uses PPPoE to establish a connection. You must choose this option and enter the required information

PPTP xDSL

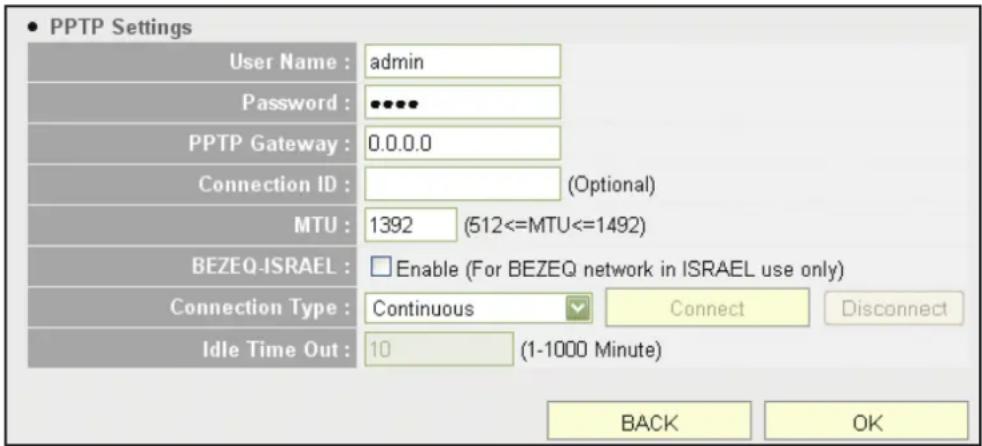

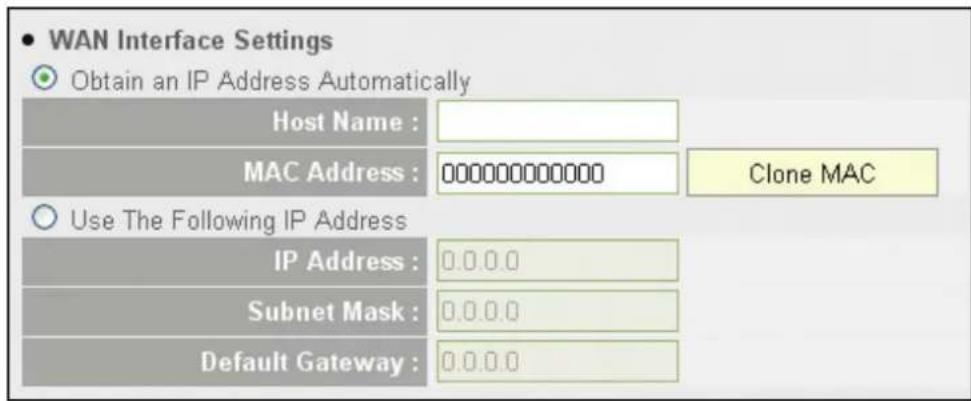

If you connect to the Internet using an xDSL Modem and your ISP has provided you with a Password, Local IP Address, Remote IP Address and a Connection ID, then your ISP uses PPTP to establish a connection. You must choose this option and enter the required information.

L2TP xDSL

Layer Two Tunneling Protocol is a common connection method used in xDSL connections.

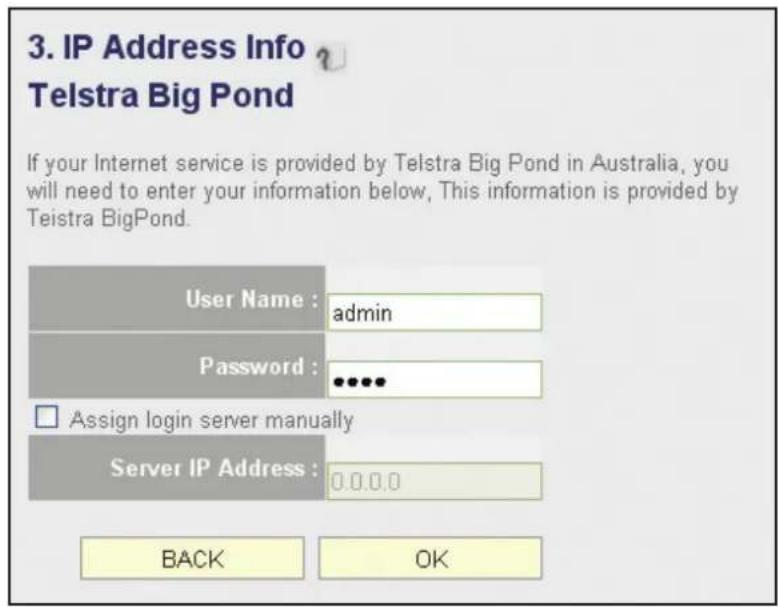

Telstra Big Pond

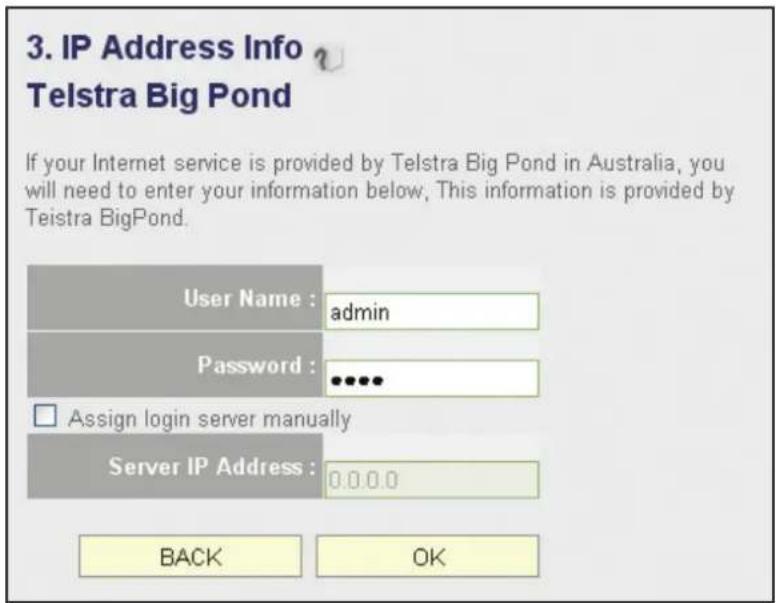

If your Internet service is provided by Telstra Big Pond in Australia, you will need to enter your information below. This information is provided by Teistra BigPond.

BACK

There are six types of Internet connections available, as explained below: Cable Modem, Fixed IP xDSL, PPPoE xDSL, PPTP xDSL, L2TP xDSL and Telstra BigPond. Cable Modem and PPPoE xDSL are the most common, but if you're not sure which type of service you have, simply contact your Internet service provider (ISP) to find out. You won't be able to connect to the Internet if you choose the wrong type during the router setup. NOTE: DSL Internet Service Providers normally operate using the PPPoE protocol; thus, PPPoE xDSL should be the broadband type. However, in recent years more DSL ISPs provide customers with DSL modems that handle the PPPoE portion of Internet access automatically. In such cases, you need to select Cable Modem as your broadband type even if you have a DSL service.

2.3.1 Setup Procedure for Cable Modem (Dynamic IP)

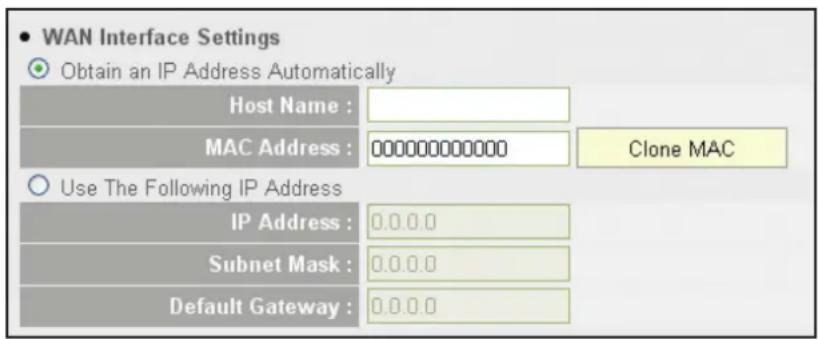

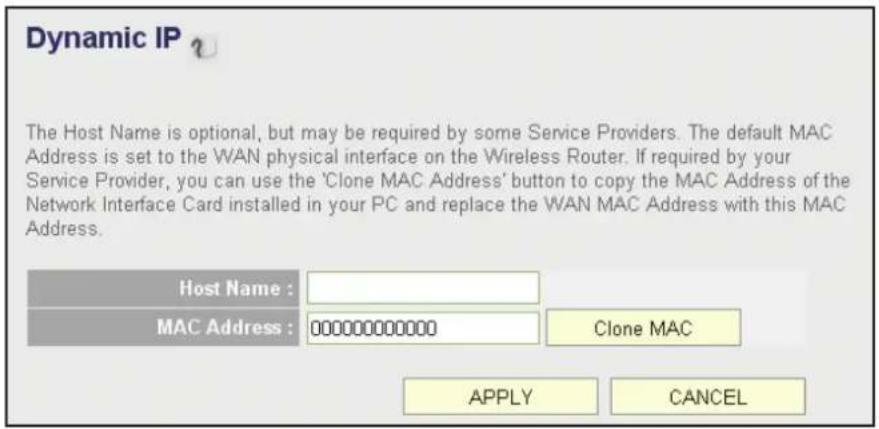

Host Name — Input the host name of your computer. This is optional, and is only required if your service provider asks you to do so.

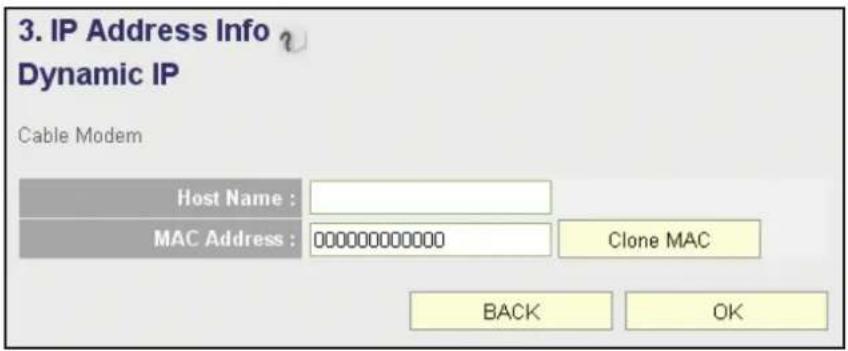

3. IP Address Info Dynamic IP Cable Modem Host Name : MAC Address : 0000000000000 Clone MAC BACK OK

MAC address — Enter the MAC address of your computer here if your service provider only permits a computer with a certain MAC address to access the Internet. If you're using a computer used to connect to the Internet via cable modem, you can simply click "Clone Mac address" to fill in the MAC address field with the MAC address of your computer.

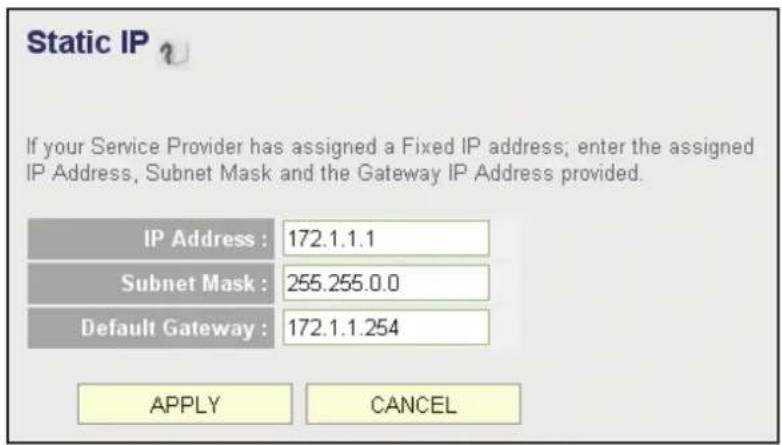

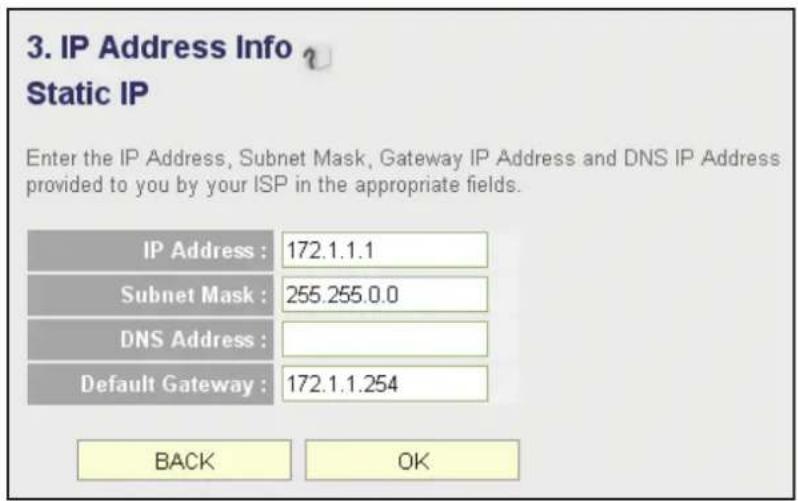

2.3.2 Setup Procedure for Fixed IP xDSL (Static IP)

3. IP Address Info v Static IP Enter the IP Address, Subnet Mask, Gateway IP Address and DNS IP Address provided to you by your ISP in the appropriate fields. IP Address : 172.1.1.1 Subnet Mask : 255.255.0.0 DNS Address : Default Gateway : 172.1.1.254 BACK OK

IP address — Enter the IP address assigned by your ISP.

Subnet Mask — Enter the subnet mask assigned by your ISP.

DNS address — Enter the IP address of the DNS server provided by your ISP.

Service Provider Gateway Address — Enter the gateway IP address provided by your ISP.

NOTE: You can choose this Internet connection method if your service provider assigns a fixed IP address (also know as a static address) to you, and doesn't use DHCP or PPPoE protocol. Contact your service provider for further information.

2.3.3 Setup Procedure for PPPoE xDSL

3. IP Address Info PPPoE Enter the User Name and Password required by your ISP in the appropriate fields. If your ISP has provided you with a "Service Name" enter it in the Service Name field, otherwise, leave it blank. User Name : admin Password : ••••• Service Name : MTU : 1392 (512<=MTU<=1492) Connection Type : Continuous Connect Disconnect Idle Time Out : 10 (1-1000 Minute) BACK OK

User Name — Enter the username assigned by your ISP.

Password — Enter the password assigned by your ISP.

Service Name — Provide a name for this Internet service. (optional)

MTU — Enter the MTU value of your network connection. NOTE: Use the default value unless your ISP specifies otherwise.

Connection Type — Select one of the three connection types in the drop-down menu:

• "Continuous" keeps the Internet connection alive and does not disconnect. This is the preferred choice for always-on / flat-rate Internet services.
• “Connect on Demand” only connects to the Internet when there’s a connect attempt. This is the preferred choice for all users who have paid-per-minute or per-transferred-data Internet service.
• “Manual” only connects to the Internet when “Connect” is selected, and disconnects when “Disconnect” is selected.

Idle Time Out — Specify the time to shut down the Internet connection after no Internet activity is detected. This option is only available when the connection type is Connect on Demand.

2.3.4 Setup Procedure for PPTP xDSL

PPTP xDSL requires two groups of settings: the WAN interface settings (to set up IP address) and PPTP settings (PPTP username and password).

In the WAN Interface Settings panel, select how you obtain an IP address from your service provider: "Obtain an IP address automatically" or "Use the following IP address" (i.e., a static IP address). The WAN interface settings must be

WAN Interface Settings Obtain an IP Address Automatically Host Name : MAC Address : 00000000000000 Clone MAC Use The Following IP Address IP Address : 0.0.0.0 Subnet Mask : 0.0.0.0 Default Gateway : 0.0.0.0

correctly entered; otherwise, the Internet connection will fail even if the PPTP settings are correct. Contact your ISP if you don't know how you should fill in these fields.

The PPTP Settings panel presents these options:

PPTP Settings User Name : admin Password : ••••• PPTP Gateway : 0.0.0.0 Connection ID : (Optional) MTU : 1392 (512<=MTU<=1492) BEZEQ-ISRAEL : □ Enable (For BEZEQ network in ISRAEL use only) Connection Type : Continuous Connect Disconnect Idle Time Out : 10 (1-1000 Minute) BACK OK

User Name — Enter the username assigned by your ISP.

Password — Enter the password provided by your ISP.

PPTP Gateway — Enter the IP address of PPTP gateway assigned by your ISP.

Connection ID — Enter the connection ID. (optional)

MTU — Enter the MTU value of your network connection. NOTE: Use the default value unless your ISP specifies otherwise.

Connection Type — Select one of the three connection types in the drop-down menu (see PPPoE above):

Idle Time Out — Specify the time to shut down the Internet connection after no Internet activity is detected. This option is only available when the connection type is Connect on Demand.

NOTE: Enable BEZEQ-ISRAEL only if you're using that network provider.

2.3.5 Setup Procedure for L2TP xDSL

L2TP is another popular connection method for xDSL and other Internet connection types, and all required setting items are the same as the PPTP connection (see section 2.3.4 above).

2.3.6 Setup Procedure for Telstra BigPond

This procedure is only for the Telstra BigPond network service in Australia.

3. IP Address Info Telstra Big Pond If your Internet service is provided by Telstra Big Pond in Australia, you will need to enter your information below. This information is provided by Teistra BigPond. User Name : admin Password : ****** Assign login server manually Server IP Address : 0.0.0.0 BACK OK

User Name — Enter the username assigned by Telstra.

Password — Enter the password assigned by Telstra.

Assign login server manually — Select to choose the login server by yourself.

Server IP Address — Enter the IP address of the login server.

When all settings are finished (and after you click "OK"), you'll see this message (right) on your Web browser.

Save settings successfully! Please press APPLY button to restart the system to make the changes take effect. APPLY

Click "Apply" to restart the router. You'll see a second restart message (right).

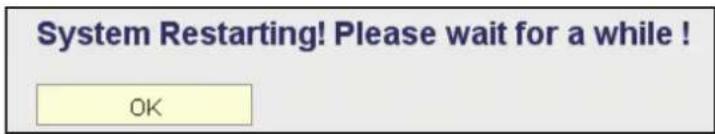

System Restarting! Please wait for a while! OK

Wait for about 30 seconds, then click "OK." You'll be forwarded to the router's Web management interface. The router is now running with the new settings, and, if all information entered is correct, you can now access the Internet.

NOTE TO DSL USERS

While PPPoE is the most common way to connect to DSL Internet service, it still may be necessary to enable “Cable Modem” in the Broadband settings. Below are examples for using Cable Modem instead of xDSL PPPoE, even if your Internet service is a DSL service.

• Your ISP has given you a so-called "modem-router" instead of a simple modem
• Your ISP has not given you a username and password for PPPoE login (implying that it is not required).
• When your computer is connected directly to the modem, the computer obtains an IP address which is in the private IP network range (192.168.xxx.yyy, 10.xxx.yyy, 172.16.xxx.yyy).
• You can connect to the Internet with your computer connected directly to the modem without using a dialer program asking for a username and password.
• If attempts to utilize PPPoE xDSL fail repeatedly, you should activate "Cable Modem" as a troubleshooting step.

2.4 Basic Setup

This section explains how to change the time zone, password and remote

INTELLINET NETWORK SOLUTIONS | Home | General Setup | Status | Tools Quick Setup The Quick Setup provides only the necessary configurations to connect your Wireless Router to your Internet Service Provider (ISP) through an external cable or a DSL modem. General Setup The Wireless Router supports advanced functions like Virtual Server, Access Control, Hacker Attack Detection and DMZ. We highly recommend you keep the default settings. Status The Wireless Router's status information provides the following information about your Wireless Router: Hardware/Firmware version, Serial Number, and its current operating status. Tools Tools Wireless Router Tools - Tools include Configuration tools, Firmware upgrade and Reset. Configuration tools allow you to Backup, Restore, or Restore to Factory Default setting for your Wireless Router. The Firmware upgrade tool allows you to upgrade your Wireless Router's firmware. The RESET tool allows you to reset your Wireless Router.

management settings. Start your Web browser and log on to the router's Web management interface by opening http://192.168.2.1, then click the "General Setup" button on the left.

2.4.1 Time Zone and Time Auto-Synchronization

Click the “System” menu on the left of the Web management interface, then click “Time Zone.” You’ll be prompted to select a time zone from the “Set time zone” drop-down menu and enter the IP address or host name of the time server. If you want to enable the Daylight Saving setting, check the “Enable Function” box and set the duration of Daylight Saving.

Click "Apply" and this message will display. Click "Continue" to save the settings and make additional changes; click "Apply" to save the

Save settings successfully! You may press CONTINUE button to continue configuring other settings or press APPLY button to restart the system to make the changes take effect. CONTINUE APPLY

settings and restart the router so the settings will take effect after it reboots.

2.4.2 Changing the Management Password

The default password of this router is 1234, and it's displayed on the login prompt when accessed from the Web browser. There's a security risk if you don't change the default password, since everyone can see it. This is very important when you have the wireless function enabled. To change the password, click the "System" menu on the left of the Web management interface, then click "Password Settings."

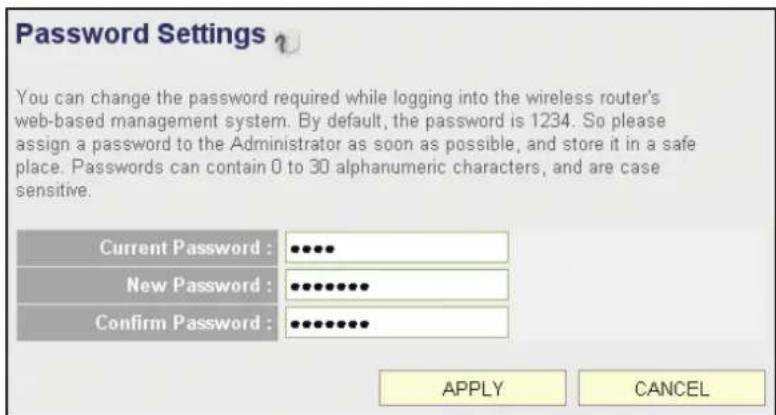

Password Settings ? You can change the password required while logging into the wireless router's web-based management system. By default, the password is 1234. So please assign a password to the Administrator as soon as possible, and store it in a safe place. Passwords can contain 0 to 30 alphanumeric characters, and are case sensitive. Current Password : ••••• New Password : •••••••• Confirm Password : •••••••• APPLY CANCEL

Current Password — Enter the current password (for example, 1234).

New Password — Enter the new password.

Confirm Password — Enter the new password again.

If the passwords entered in the "New Password" and "Confirmed Password" fields aren't the same, you'll see the message at right. Re-enter the new password.

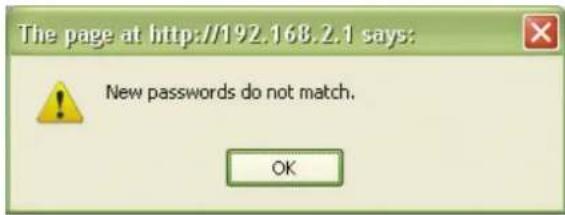

The page at http://192.168.2.1 says: New passwords do not match. OK

If you see the error message at right, it means the content in the "Current Password" field is wrong. Click "OK" to go back to the previous menu, and try entering the current password again. If the current and new passwords are correctly entered, click "Apply" and you'll be prompted to log in again. Enter the new password and enter "admin" for the username.

ERROR: Password is not matched ! OK

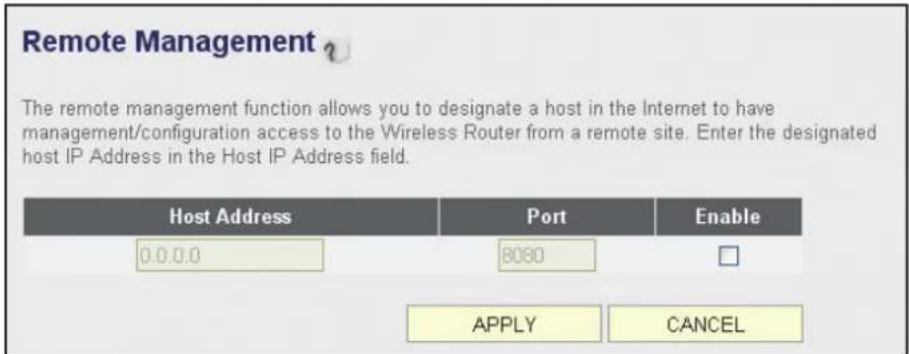

2.4.3 Remote Management

This router by default does not allow management access from the Internet to prevent possible security risks (especially when you have defined a weak password or didn't change the default password). However, you can still manage this router from a specific IP address by enabling the Remote Management function.

Click the "System" menu on the left of Web management interface, then click "Remote Management." The screen below will display on your Web browser.

Remote Management The remote management function allows you to designate a host in the Internet to have management/configuration access to the Wireless Router from a remote site. Enter the designated host IP Address in the Host IP Address field. Host Address Port Enable 0.0.0.0 8080 APPLY CANCEL

Host Address — Enter the IP address of the remote host you want to initiate management access..

Port — You can define the port number through which this router should expect an incoming request. If you're providing a Web service (default port number is 80), you should try to use another port number. You can use the default port setting (8080) or something like 32245 or 1429 (any integer between 1 and 65534)..

Enabled — Select the field to start the configuration.

Click "Apply," then either click "Continue" to save the settings and make additional changes or click "Apply" again to save the settings and restart the router so the settings will take effect after it reboots.

NOTE: To manage this router from another computer on the Internet, you need to input the IP address and port number of this router. If your Internet service provider assigns you a static IP address, it will not be a problem; but if the IP address your service provider assigns will vary every time you establish an Internet connection, this will be a problem. Either ask your ISP to give you a static IP address, or use a dynamic DNS service like DDNS. (See section 2.5.8 DDNS Client for details.)

NOTE: The default port number the Web browser will use is 80. If the "Port" setting on this page is not 80, you need to assign the port number in the address bar of the Web browser manually. For example, if the IP address of this router is 1.2.3.4, and the port number you set is 8888, you need to enter http://1.2.3.4:8888 in the address bar of the Web browser.

2.5 Setting Up an Internet Connection (WAN Setup)

The Internet connection setup can be done by using the Quick Setup menu described in section 2-3. However, you can set the WAN connections up by using the WAN configuration menu. You can also program advanced functions like DDNS (Dynamic DNS) here.

Click the "WAN" menu on the left of the Web management interface, then select an Internet connection method based on the type of connection you're using. You can either click the connection method in the left-side menu or select it from the main panel in the center (which requires that you then click "More Configuration" to continue).

System WAN
Dynamic IP The Wireless Router can connect to your Internet Service Provider with the following methods.
Static IP Static IP
PPPoE Dynamic IP Obtains an IP Address automatically from your Service Provider.
PPTP Static IP Uses a Static IP Address. Your Service Provider gives a Static IP Address to access Internet services.
L2TP
Telstra Big Pond
DNS	PPPoE PPP over Ethernet is a common connection method used in xDSL connections.
DDNS
WISP	PPTP Point-to-Point Tunneling Protocol is a common connection method used in xDSL connections.
LAN	L2TP Layer Two Tunneling Protocol is a common connection method used in xDSL connections.
Wireless
QoS	Telstra Big Pond Telstra Big Pond is a Internet service is provided in Australia.
NAT
Firewall

2.5.1 Setup Procedure for Dynamic IP

Dynamic IP The Host Name is optional, but may be required by some Service Providers. The default MAC Address is set to the WAN physical interface on the Wireless Router. If required by your Service Provider, you can use the 'Clone MAC Address' button to copy the MAC Address of the Network Interface Card installed in your PC and replace the WAN MAC Address with this MAC Address. Host Name : MAC Address : 0000000000000 Clone MAC APPLY CANCEL

Host Name — Enter the host name of your computer. (This is optional and is only required if your service provider asks you to do so.)

MAC Address — Enter the MAC address of your computer if your service provider only permits a computer with a certain MAC address to access the Internet. If you're using the computer to connect to the Internet via cable modem, you can simply click "Clone MAC" to fill the "MAC Address" field with the MAC address of your computer.

2.5.2 Setup Procedure for Static IP

Static IP If your Service Provider has assigned a Fixed IP address; enter the assigned IP Address, Subnet Mask and the Gateway IP Address provided. IP Address : 172.1.1.1 Subnet Mask : 255.255.0.0 Default Gateway : 172.1.1.254 APPLY CANCEL

IP Address — Enter the IP address assigned by your service provider. Subnet Mask — Enter the subnet mask assigned by your service provider. Default Gateway — Enter the IP address of the gateway server assigned by your service provider.

2.5.3 Setup Procedure for PPPoE

PPPoE

Enter the PPPoE User Name and Password assigned by your Service Provider. The Service Name is normally optional, but may be required by some Service Providers. Enter a Idle Time (in minutes) to define a maximum period of time for which the Internet connection is maintained during inactivity. If the connection is inactive for longer than the Maximum Idle Time, then the connection will be dropped. You can enable the Connect on Demand option to automatically re-establish the connection as soon as you attempt to access the Internet again. If your Internet Service Provider requires the use of PPPoE, enter the information below.

User Name : admin Password : ••••• Service Name : MTU : 1392 (512<=MTU<=1492) Connection Type : Continuous Connect Disconnect Idle Time Out : 10 (1-1000 Minute) APPLY CANCEL

User Name — Enter the user name assigned by your Internet service provider.

Password — Enter the password assigned by your Internet service provider.

Service Name — Enter a name for this Internet service. (optional)

MTU — Enter the MTU value of your network connection. NOTE: Use the default value unless your ISP specifies otherwise.

Connection Type — Select one of the three connection types in the drop-down menu:

• "Continuous" keeps the Internet connection alive and does not disconnect. This is the preferred choice for always-on / flat-rate Internet services.
• “Connect on Demand” only connects to the Internet when there’s a connect attempt. This is the preferred choice for all users who have paid-per-minute or per-transferred-data Internet service.
• “Manual” only connects to the Internet when “Connect” is selected, and disconnects when “Disconnect” is selected.

Idle Time Out — Specify the time to shut down the Internet connection after no Internet activity is detected. This option is only available when the connection type is Connect on Demand.

2.5.4 Setup Procedure for PPTP

PPTP requires two groups of settings: the WAN interface settings (to set up the IP address) and PPTP settings (PPTP username and password).

In the WAN Interface Settings panel, select how you obtain an IP address from your service provider: "Obtain an IP address automatically" or "Use the following IP address" (i.e., a static IP address). The WAN interface settings must be correctly

entered; otherwise, the Internet connection will fail even if the PPTP settings are correct. Contact your ISP if you don't know how you should fill in these fields.

WAN Interface Settings Obtain an IP Address Automatically Host Name : MAC Address : 000000000000 Clone MAC Use The Following IP Address IP Address : 0.0.0.0 Subnet Mask : 0.0.0.0 Default Gateway : 0.0.0.0

The PPTP Settings panel presents these options:

PPTP Settings User Name : admin Password : ••••• PPTP Gateway : 0.0.0.0 Connection ID : (Optional) MTU : 1392 (512<=MTU<=1492) BEZEQ-ISRAEL : □ Enable (For BEZEQ network in ISRAEL use only) Connection Type : Continuous Connect Disconnect Idle Time Out : 10 (1-1000 Minute) BACK OK

User Name — Enter the username assigned by your ISP.

Password — Enter the password provided by your ISP.

PPTP Gateway — Enter the IP address of PPTP gateway assigned by your ISP.

Connection ID — Enter the connection ID. (optional)

MTU — Enter the MTU value of your network connection. NOTE: Use the default value unless your ISP specifies otherwise.

Connection Type — Select one of the three connection types in the drop-down menu (see PPPoE above):

Idle Time Out — Specify the time to shut down the Internet connection after no Internet activity is detected. This option is only available when the connection type is Connect on Demand.

NOTE: Enable BEZEQ-ISRAEL only if you're using that network provider.

2.5.5 Setup Procedure for L2TP

L2TP settings are the same as the PPTP connection (see section 2.5.4 above).

2.5.6 Setup Procedure for Telstra BigPond

This procedure is only for the Telstra BigPond network service in Australia.

3. IP Address Info Telstra Big Pond If your Internet service is provided by Telstra Big Pond in Australia, you will need to enter your information below. This information is provided by Teistra BigPond. User Name : admin Password : **** Assign login server manually Server IP Address : 0.0.0.0 BACK OK

User Name — Enter the username assigned by Telstra.

Password — Enter the password assigned by Telstra.

Assign login server manually — Select to choose the login server by yourself.

Server IP Address — Enter the IP address of the login server.

2.5.7 Setup Procedure for DNS

If you select Dynamic IP or PPPoE as the Internet connection method, the ISP typically assigns the DNS server information to the router. However, if you have a

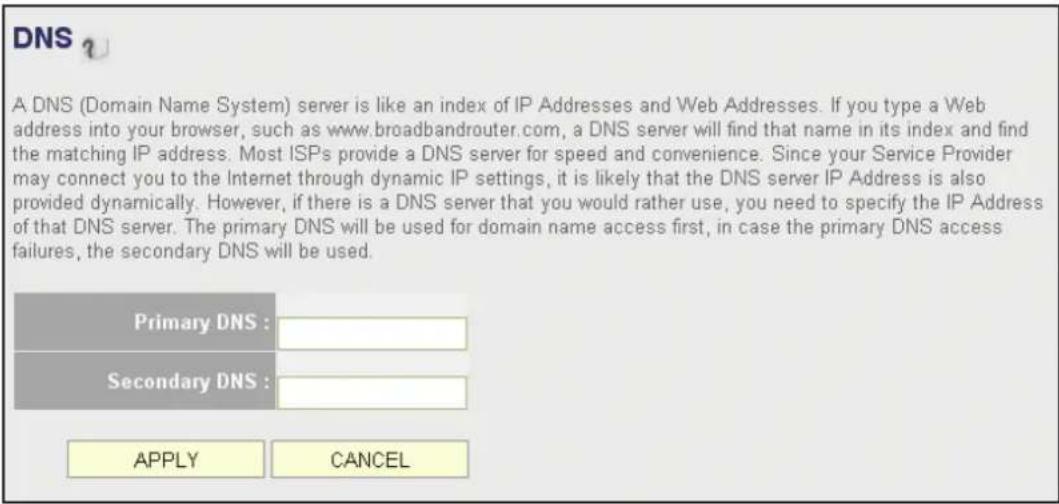

DNS A DNS (Domain Name System) server is like an index of IP Addresses and Web Addresses. If you type a Web address into your browser, such as www.broadbandrouter.com, a DNS server will find that name in its index and find the matching IP address. Most ISPs provide a DNS server for speed and convenience. Since your Service Provider may connect you to the Internet through dynamic IP settings, it is likely that the DNS server IP Address is also provided dynamically. However, if there is a DNS server that you would rather use, you need to specify the IP Address of that DNS server. The primary DNS will be used for domain name access first, in case the primary DNS access failures, the secondary DNS will be used. Primary DNS : Secondary DNS : APPLY CANCEL

preferred DNS server or use a static IP address, or if your service provider didn't assign the IP address of the DNS server for any reason, you can input the IP address of the DNS server here.

Primary DNS — Enter the IP address of the DNS server provided by your ISP.

Secondary DNS — Enter the IP address of the secondary DNS server provided by your ISP. (optional)

NOTE: Only an IP address can be entered here; do not use the hostname of the DNS server! (Only numeric characters and periods are accepted; for example, 10.20.30.40 would be acceptable, but dns.serviceprovider.com would not be.)

2.5.8 Setup Procedure for DDNS

DDNS (Dynamic DNS) is an IP-to-hostname mapping service for Internet users who don't have a static (fixed) IP address. It will be a problem when a user wants to provide services to other users on the Internet because their IP addresses will vary every time they connect, and they will not be able to know the IP address they're using at any certain time.

This router supports the DDNS service of several service providers; for example: DynDNS (http://www.dyndns.org) and TZO (http://www.tzo.com). You can go to one of these DDNS service provider's Web sites and get a free DDNS account by following their instructions.

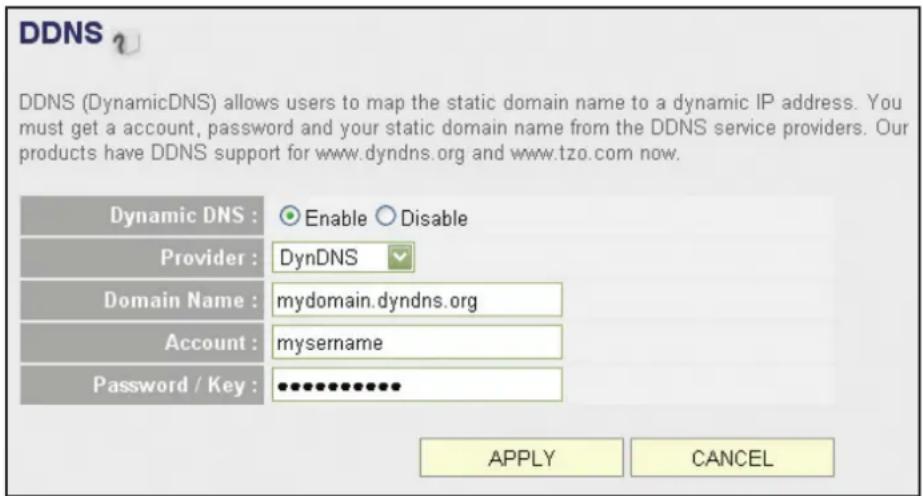

DDNS DDNS (DynamicDNS) allows users to map the static domain name to a dynamic IP address. You must get a account, password and your static domain name from the DDNS service providers. Our products have DDNS support for www.dyndns.org and www.tzo.com now. Dynamic DNS : Enable Disable Provider : DynDNS Domain Name : mydomain.dyndns.org Account : mysername Password / Key : •••••••••••• APPLY CANCEL

Dynamic DNS — Select "Enable" or "Disable."

Provider — Select your DDNS provider from the drop-down menu.

Domain Name — Enter the domain name you've obtained from the DDNS service provider.

Account — Enter the user account of your DDNS registration.

Password/Key — Enter the DDNS service password or key.

2.5.9 Setup Procedure for WISP (Wireless ISP)

Wireless Internet service providers (WISPs) are Internet service providers with networks built around wireless networking. Typically, WISPs are found in rural areas with small populations, where cable and digital subscriber lines are not available. The Intellinet Wireless 450N Dual-Band Router can receive a 2.4 or 5.0 GHz WiFi-based WISP signal and can share it among the clients, which are connected locally, pretty much the same way it does with cable or DSL connections. This function can also be used if a wireless signal (from a wireless router, for example) is already present in the location, but you want to create another network behind the Intellinet Dual-Band Router. NOTE: If you do not understand any of this or if you don't believe you need to take advantage of this feature, you can safely skip to the next chapter.

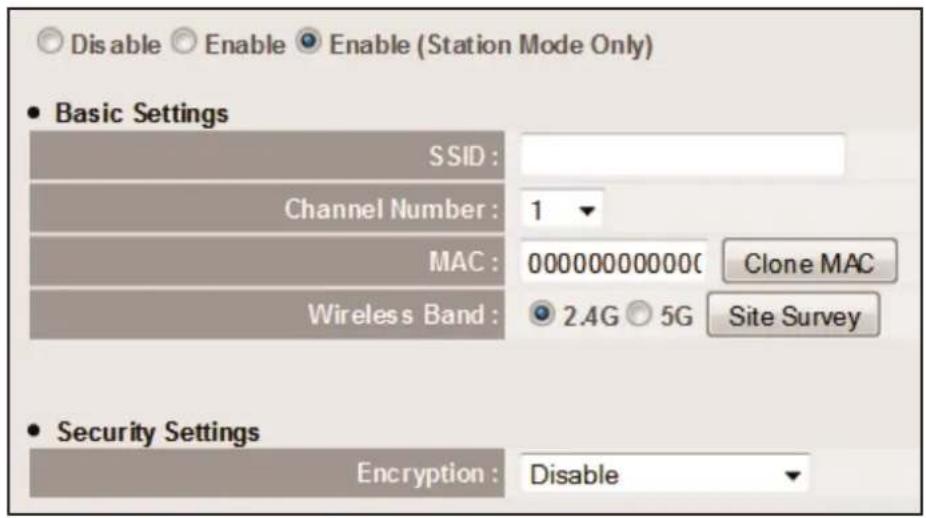

Disable Enable Enable (Station Mode Only) Basic Settings SSID : Channel Number : 1 MAC : 0000000000000 Clone MAC Wireless Band : 2.4G 5G Site Survey Security Settings Encryption : Disable

Disable — By default, the WISP mode is deactivated until you enable it. Enable — Click to enable the function. Select the wireless band and click “Site Survey” to search for wireless signals that offer Internet service. In this mode, the Intellinet Dual-Band Router uses its wireless function to pick up the wireless ISP signal and, at the same time, allow wireless clients to connect and go online. Enable (Station Mode Only) — This is similar to the “Enable” mode, with the difference being that in “Station Mode Only” no wireless client can connect to the Intellinet Dual-Band Router. The wireless function is used exclusively for the wireless broadband (WISP) signal. Only stations that are connected to one of the LAN ports can utilize the WISP connection. SSID — Enter the name of the wireless network that you want to connect to, or click “Site Survey” and let the router search all available networks for you and enter the SSID automatically. Channel Number — This is the radio frequency used to transmit and receive the wireless signal. Enter it manually or click “Site Survey” and let the router search

all available networks for you and enter the channel number automatically.

Wireless Band — Check whether the WISP signal is found in either the 2.4 GHz or 5 GHz frequency range.

Site Survey — Click to display a wireless site survey table (not shown). It will list all available access points nearby. Select the access point designated by your wireless ISP in the table and click “Done.”

Security Settings — If the WISP signal you are connecting to is protected by encryption, you need to enter the correct information here. Refer to section 2.7.3: Wireless Security for details.

2.6 LAN Configuration

This section explains the IP address settings of the local network. Normally, there is no need to make any changes here: The default values work fine for most applications, and you could just go directly to section 2.7 WLAN Configuration.

There are two ways to assign IP addresses to computers: static IP address (set the IP address for every computer manually) and dynamic IP address (the IP address of computers will be assigned by the router automatically). It's recommended for most of the computers to use a dynamic IP address, as it will save a lot of time when setting IP addresses for every computer, especially when there are a lot of computers in your network. For servers and network devices that will provide services to other computers and users that come from the Internet, a static IP address should be used so other computers can locate the server.

SUGGESTIONS FOR AN IP ADDRESS NUMBERING PLAN

To define an IP address plan for your network, here are some suggestions.

• A valid IP address has four fields: a.b.c.d. For most home and company users, it's suggested to use 192.168.c.d, where c is an integer between 0 and 254, and d is an integer between 1 and 254. This router is able to work with up to 253 clients, so you can set the "d" field of the router's IP address as 1 or 254 (or any number between 1 and 254), and pick a number between 0 and 254 for field "c."
• In most cases, you should use 255.255.255.0 as the subnet mask, which meets the router's capability of working with up to 253 clients.)
• For all servers and network devices that will provide services to other people (like Internet service, print service and file service), use a static IP address. Give each of them a unique number between 1 and 253, and maintain a list, so everyone can locate those servers easily.
• For computers not dedicated to providing specific service to others, use a dynamic IP address.
  NOTE: Recommended setup values are provided in the sections that follow.

Click the “LAN” menu on the left of the Web management interface. There are three setup groups presented (as explained below): LAN IP, DHCP Server and Static DHCP Leases Table.

2.6.1 LAN IP

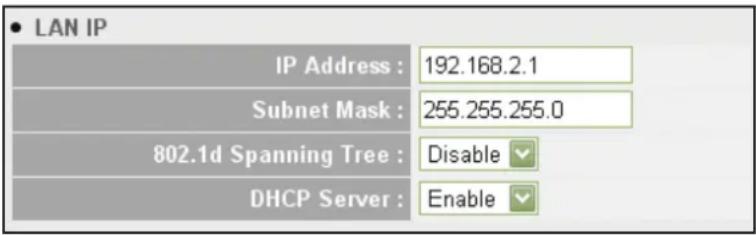

• LAN IP IP Address : 192.168.2.1 Subnet Mask : 255.255.255.0 802.1d Spanning Tree : Disable ✓ DHCP Server : Enable ✓

IP address — Enter the IP address of this router.

Subnet Mask — Enter the subnet mask for this network.

802.1d Spanning Tree — Select "Enable" or "Disable" from the drop-down menu. The Spanning Tree Protocol (STP) is a network protocol that ensures a loop-free topology for any bridged Ethernet local area network. The basic function of STP is to prevent bridge loops and ensuing broadcast radiation. Spanning tree also allows a network design to include spare (redundant) links to provide automatic backup paths if an active link fails, without the danger of bridge loops or the need for manual enabling/disabling of these backup links. In larger networks, this option should be enabled.

DHCP Server — Select "Enable" or "Disable" from the drop-down menu.

RECOMMENDED VALUES

IP Address: 192.168.2.1

802.1d Spanning Tree: Disabled

Subnet Mask: 255.255.255.0

DHCP Server: Enabled

2.6.2 DHCP Server

These settings are only available when “DHCP Server” in the LAN IP section is enabled, but will also affect wireless clients.

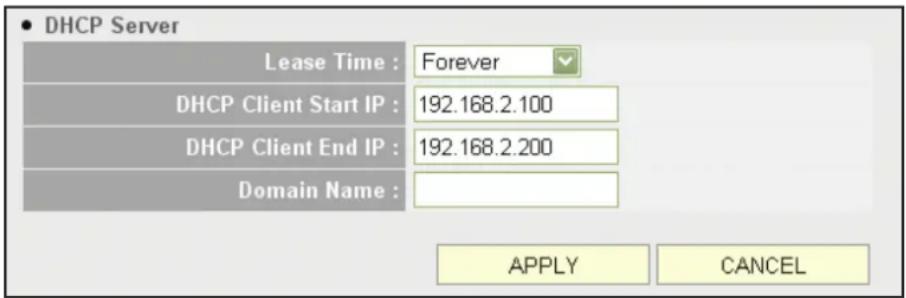

• DHCP Server Lease Time : Forever DHCP Client Start IP : 192.168.2.100 DHCP Client End IP : 192.168.2.200 Domain Name : APPLY CANCEL

Lease Time — Choose a lease time (the duration that every computer can keep a specific IP address) for every IP address assigned by this router.

Start IP — Enter the start IP address of the IP range.

End IP — Enter the end IP address of the IP range.

Domain Name— Enter a domain name for your network. (optional)

NOTE: The number of the last field (the "d" field) of "End IP" must be greater than

"Start IP" and can't be the same as the router's IP address. Also, the first three fields of the IP address of "Start IP," "End IP" and "IP Address" in the LAN IP section (the "a," "b" and "c" fields) should be the same.

RECOMMENDED VALUES

Lease Time: Two Weeks (or "Forever" if you have fewer than 20 computers)

End IP: 192.168.2.200

Domain Name: (leave it blank)

Start IP: 192.168.2.100

2.6.3 Static DHCP Leases Table

This function allows you to assign a static IP address to a specific computer forever, so you don't need to set the IP address for a computer to enjoy the benefit of using a DHCP server. A maximum of 16 static IP addresses can be assigned here.

NOTE: If you set "Lease Time" to "Forever" in the DHCP Server section, you can also assign an IP address to a specific computer permanently; however, you won't be able to assign a certain IP address to a specific computer, since IP addresses will be assigned in random order this way.

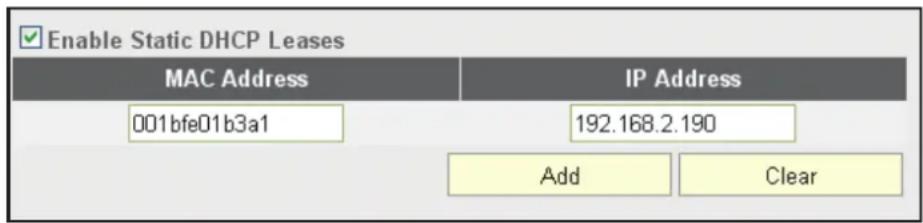

Enable Static DHCP Leases MAC Address IP Address 001bfe01b3a1 192.168.2.190 Add Clear

Enable Static DHCP Leases — Select to enable; de-select to disable.

MAC Address — Enter the MAC address of the computer or network device (a total of 12 characters, with numerals from 0 to 9 and characters from a to f, such as 001122aabbcc).

IP Address — Enter the IP address you want to assign to this computer or device.

Click "Add" to include a MAC address and IP address pair into the Static DHCP Leases table (below). Click "Clear" to remove characters entered in a text field.

• Static DHCP Lease Table It allows 16 entries only. NO. MAC Address IP Address Select 1 00:1b:fe:01:b3:a1 192.168.2.190 Delete Delete All

To delete a specific item, check the "Select" box of a MAC address and IP address mapping, then click "Delete Selected." To delete all mappings, click "Delete All." To deselect all mappings, click "Reset."

2.7 Wireless LAN Configuration

If your computer, PDA, game console or other network device is equipped with a wireless network interface, you can use the wireless function of this router to connect to the Internet and share resources with other computers on your network. This router contains two independently operating wireless units: one for the standard 2.4 GHz range; one for the 5 GHz range. Thus, you have two wireless configuration options. Since the options of the 5 GHz setup are identical to those of the 2.4 GHz setup, only the 2.4 GHz options are detailed here.

Furthermore, it's strongly recommended that you use the built-in security functions to protect your network from intruders. WPA/2 should be used whenever possible. Click the "Wireless" menu on the left of the Web management interface to open the wireless settings page. Remember to click "Apply" to save your settings.

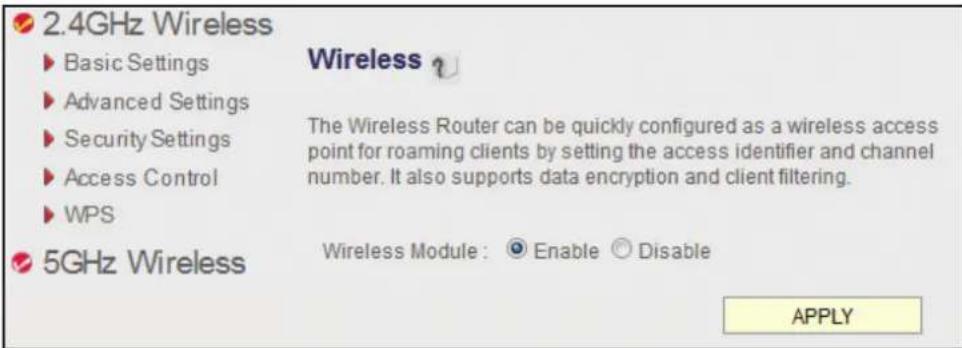

2.4GHz Wireless ► Basic Settings ► Advanced Settings ► Security Settings ► Access Control ► WPS 5GHz Wireless Wireless ? The Wireless Router can be quickly configured as a wireless access point for roaming clients by setting the access identifier and channel number. It also supports data encryption and client filtering. Wireless Module : ● Enable ○ Disable APPLY

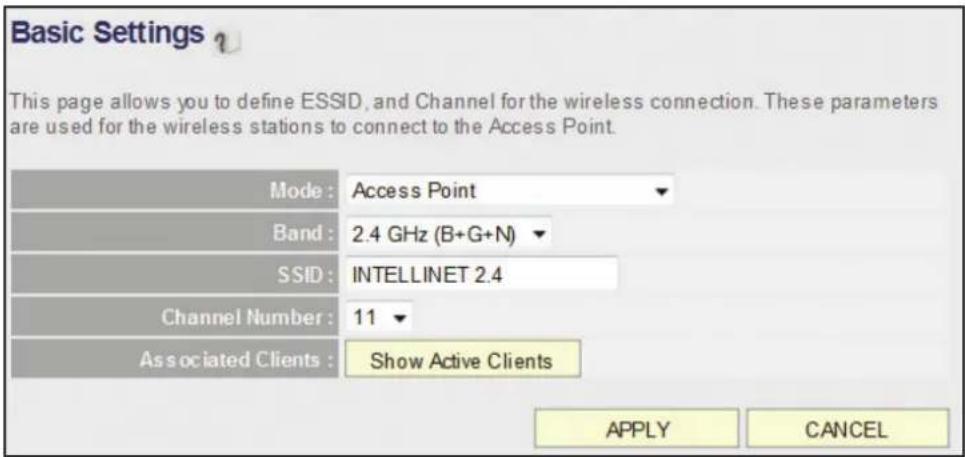

2.7.1 Basic Wireless Settings

Mode — Select one of six options for the operational mode of the wireless radio:

• “Access Point” is the most common mode, in which the wireless router acts as a bridge between 802.11b/g/n wireless devices and a wired Ethernet network, and exchanges data between them. This is the most common way to use the 450N wireless router.
• “Station (Infrastructure)” allows you to connect the router to an Ethernet device such as a TV and gaming console, effectively acting as the wireless network adapter of the device to connect a wired Ethernet device to a wireless network. Once Station mode is activated, the channel number selection disappears. Click “Site Survey” and select the wireless network you want the router to connect to. Click “Apply” to save the settings. NOTE: In Station mode, no wireless client will be able to wirelessly connect to the device. Activate the Universal Repeater mode (see below) to allow wireless clients to connect at the same time.
• “AP Bridge (Point to Point)” lets you connect two wired Ethernet networks; for example, if Network 1 and Network 2 are on opposite sides of a road, you can

Basic Settings ? This page allows you to define ESSID, and Channel for the wireless connection. These parameters are used for the wireless stations to connect to the Access Point. Mode : Access Point Band : 2.4 GHz (B+G+N) SSID : INTELLINET 2.4 Channel Number : 11 Associated Clients : Show Active Clients APPLY CANCEL

use two of these wireless routers to connect the two networks. Both routers need to be set to AP Bridge (Point to Point) mode: The screen will then display a MAC Address 1 field in which you enter the MAC address of the opposite router, which you can obtain by clicking "Status" (top right) and "Device Status." You also need to set both routers to the same wireless channel in the Channel Number field. Finally, click "Security Settings" and set both devices up the same way. NOTE: In Bridge mode, no wireless client will be able to wirelessly connect to the device.

- “AP Bridge (Point to Multi-Point)” mode is very similar to the above-mentioned Point-to-Point mode, except here you can have the router connecting up to four different devices. The setup is the same, but you need to provide MAC addresses for all other bridges you want to connect to (MAC Address 1 – 4).

NOTE: In Bridge mode, no wireless client will be able to wirelessly connect to the device.

- “AP Bridge (WDS)” mode is quite similar to the Point to Multi-Point described above in that it allows you to connect your wireless router to up to four other wireless routers. However, whereas in bridge mode you can only use this function to connect wired Ethernet networks (since in Bridge mode no wireless client can connect to the wireless router), in WDS mode this limitation no longer exists. WDS (Wireless Distribution System) is a system that enables the wireless interconnection of access points in an IEEE 802.11 network. It allows a wireless network to be expanded using multiple access points without the traditional requirement for a wired backbone to link them. The downside is two-fold: First, the performance of the wireless network suffers in WDS mode quite significantly; second, the setup is more complicated and interoperability with different access points and routers cannot be guaranteed. The setup is very much the same as the Point to Multi-Point Bridge mode; the only extra information that needs to be provided is the SSID of the wireless network.

- “Universal Repeater” combines the first two modes, Access Point and Station,

and increases the wireless coverage area by repeating an existing wireless signal. Concerning the setup, you need click “Site Survey” and select the SSID of the parent access point. (The SSID is the name of the wireless network the router will be broadcasting. The Root AP SSID is the name of the network the router is repeating.

Band — Select one of the options from the drop-down menu:

• “2.4 GHz (B)” only allows an 802.11b wireless network client to connect to this router (maximum transfer rate of 11 Mbps).
• “2.4 GHz (N)” only allows an 802.11n wireless network client to connect to this router (maximum transfer rate of 300 Mbps).
• “2.4 GHz (B+G)” only allows a802.11b and 802.11g wireless network clients to connect to this router (maximum transfer rate of 11 Mbps for 802.11b clients; maximum 54 Mbps for 802.11g clients).
• “2.4 GHz (G)” only allows an 802.11g wireless network client to connect to this router (maximum transfer rate of 54 Mbps).
• “2.4 GHz (B+G+N)” allows 802.11b, 802.11g and 802.11n wireless network clients to connect to this router (maximum transfer rate of 11 Mbps for 802.11b clients; 54 Mbps for 802.11g clients; 300 Mbps for 802.11n clients.

NOTE: For optimal compatibility with wireless clients, select "2.4 GHz (B+G+N)." ESSID — Enter the name for your wireless network. You may choose to use the default value, but you can adjust the value to make identification in areas with different wireless networks easier; e.g., to differentiate your wireless network from that of your neighbors.

Channel Number — Select a channel: 1-13 for Europe; 1-11 for the U.S.

Associated Clients — Click “Show Active Clients” to see the status of all active wireless stations connected to the access point.

You can try to change the channel number if you think the data transfer rate is too slow. There could be interference from other wireless networks in the area using the same channel, and the cross-talk between the two networks can reduce the wireless data transfer rate. Ideally, you want to set your channel to a value which leaves at least two channels spaced between the two networks.

Example: If your neighbor's wireless network runs on channel 3, set your channel to 6 or higher. Even a handheld phone in your household can cause interference with the wireless signal, and changing the channel by two or three numbers often resolves the problem.

2.7.2 Advanced Wireless Settings

Normally, there is no need to make any changes here. Unless you know that your network requires special settings, you can proceed to 2.7.3 Wireless Security.

Fragment Threshold — Set the fragment threshold of the wireless radio. NOTE: If

Advanced Settings ? Set the time zone of the Wireless Router. This information is used for log entries and firewall settings. Fragment Threshold : 2346 (256-2346) RTS Threshold : 2347 (0-2347) Beacon Interval : 100 (20-1024 ms) DTIM Period : 3 (1-10) Data Rate : Auto N Data Rate : Auto Channel Width : ● Auto 20/40 MHZ ○ 20 MHZ Preamble Type : ● Short Preamble ○ Long Preamble Broadcast Essid : ● Enable ○ Disable CTS Protect : ○ Auto ○ Always ○ None Tx Power: 100 % WMM: ○ Enable ○ Disable APPLY CANCEL

you aren't sure what this should be set to, leave it as the default value of 2346. RTS Threshold — Set the RTS (return to sender) threshold of the wireless radio.

NOTE: If unsure what this should be set to, leave it as the default value: 2347.

Beacon Interval — Set the beacon interval of the wireless radio. NOTE: If you aren't sure what this should be set to, leave it as the default value of 100.

DTIM Period — Set the DTIM (delivery traffic indication message) period of the wireless radio. NOTE: If you aren't sure what this should be set to, leave it as the default value of 3.

Data Rate — Set the wireless data transfer rate to a specific value. Since most wireless devices will negotiate with each other and pick a proper data transfer rate automatically, it's not necessary to change this value unless you know what will happen after modification.

N Data Rate — Same as above, but only for 802.11n clients.

Channel Width — Set the channel width of the wireless radio. NOTE: If you aren't sure what this should be set to, leave it as the default setting ("Auto 20/40 MHz").

Preamble Type — Set the preamble type. NOTE: If you aren't sure what this should be set to, leave it as the default setting ("Short Preamble").

Broadcast ESSID — Decide if the wireless router will broadcast its own ESSID. You can hide the ESSID of your wireless router (select "Disable") so only people who know the ESSID of your wireless router can connect to it.

CTS Protect — Enabling this function reduces the chance of radio signal collisions

between 802.11b and 802.11g/n wireless access points. NOTE: The recommended setting is either “Auto” or “Always.”

Tx Power — Set the output power of the wireless radio. Unless you're using this router in a really big space, you may not need to set this to “100%.”

WMM — Set WMM (Wi-Fi Multimedia, which enhances the data transfer performance of multimedia content sent over a wireless network) to “Enable” or leave it as the default (“Disable”).

2.7.3 Wireless Security

Unlike the Advanced Wireless Settings options, these settings are critical: If not done properly, freeloaders can use your Internet connection without your knowledge and hackers could gain access to your network and steal vital data such as credit card information or bank records. Click the “Security Settings” menu on the left of the Web management interface to select one of the four encryption methods from the drop-down menu (see image below).

2.7.3.1 Disable Wireless Security

When you select this mode, data encryption is disabled and every wireless device in proximity will be able to connect your wireless router if no other security measure is enabled (like using MAC address access control disabling ESSID broadcast).

NOTE: Only use this option when you want to allow everyone to use your wireless router and you don't care if someone reads the data you transfer over the network without your consent.

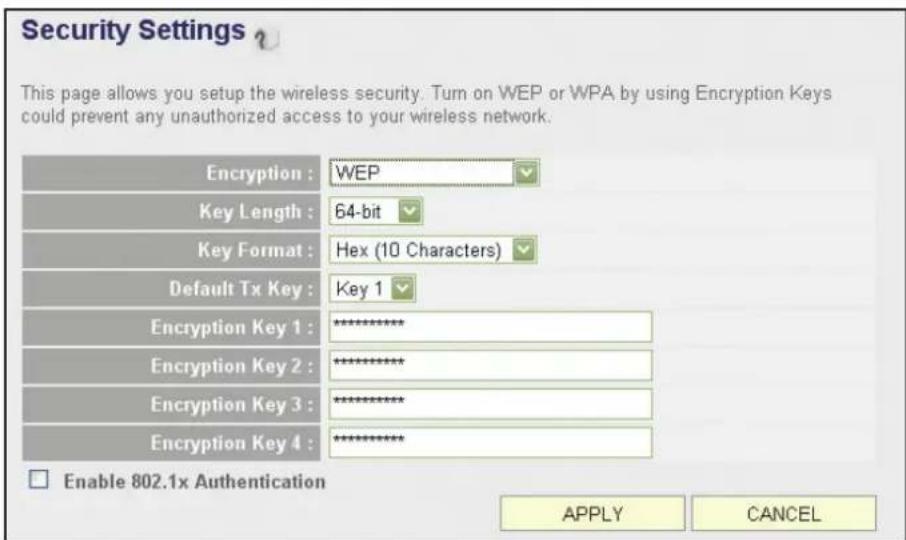

2.7.3.2 Wired Equivalent Privacy (WEP)

WEP encryption is an outdated method to secure your network, as it doesn't meet the security standards of modern data encryption. Thus, it's not recommended that you use WEP, unless you use WLAN adapters or WLAN networking devices that don't support WPA/WPA2 encryption. If your WLAN card supports WPA/WPA2, you can proceed to section 2.7.3.3 Wi-Fi Protected Access (WPA).

Key Length — There are two types of WEP key length: 64-bit and 128-bit. Selecting "128-bit" is safer than "64-bit," but will reduce some data transfer performance.

Key Format — There are two types of key format: ASCII and hexadecimal, or "hex."

To improve the security level, don't use words found in a dictionary or that are too easily remembered. Wireless clients will remember the WEP key, so you only need to input the WEP key for a wireless client once. It's worth using a complicated WEP key to improve the security level. Once you enter your WEP key and save the settings, all wireless clients will need to enter that identical character configuration in order to gain access to your wireless network. NOTE: 128-bit encryption and ASCII key format are recommended.

Security Settings ? This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Encryption : WEP Key Length : 64-bit Key Format : Hex (10 Characters) Default Tx Key : Key 1 Encryption Key 1 : ********** Encryption Key 2 : ********** Encryption Key 3 : ********** Encryption Key 4 : ********** Enable 802.1x Authentication APPLY CANCEL

When you select a key format, the number of characters in the key will be displayed. For example, if you select "64-bit" as the key length and "Hex" as the key format, you'll see the message to the right of "Key Format" is "Hex (10 characters)," which means the length of the WEP key is 10 characters.

Default Tx Key — You can set up to four sets of WEP keys, and designate one as the default here. NOTE: If unsure which one you should use, select "Key 1."

Encryption Key 1-4 — Enter WEP key characters here. The number of characters must be the same as the number displayed n the "Key Format" field. You can use any alphanumerical characters (0-9, a-z and A-Z) if you select "ASCII" for the key format. If you select "Hex" as key the format, you can use 0-9, a-f and A-F. You must enter at least one encryption key here; if you enter multiple WEP keys, they should not be same.

Enable 802.1x Authentication — IEEE 802.1x is an authentication protocol. Every user must use a valid account to log in to this router before accessing the wireless LAN. The authentication is processed by a RADIUS server. This mode authenticates the user by IEEE 802.1x, but it does not encrypt the data during communication. If there is a RADIUS server in your environment, enable this function. Check this box and another sub-menu will appear:

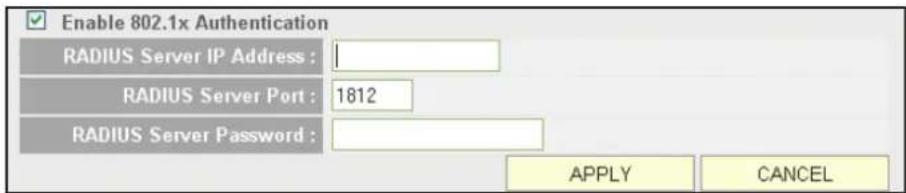

Enable 802.1x Authentication RADIUS Server IP Address : RADIUS Server Port : 1812 RADIUS Server Password : APPLY CANCEL

RADIUS Server IP address — Enter the IP address of the RADIUS server.
RADIUS Server Port — Enter the port number of the RADIUS server.
RADIUS Server Password — Enter the password of the RADIUS server.

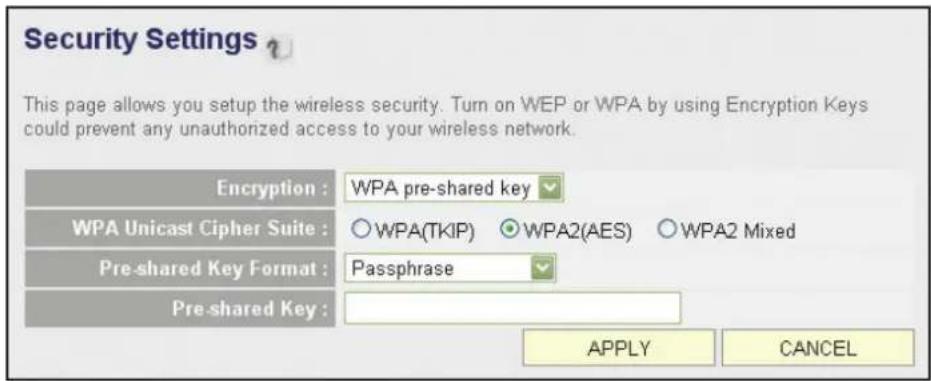

2.7.3.3 Wi-Fi Protected Access (WPA) Pre-Shared Key

Security Settings ? This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Encryption : WPA pre-shared key WPA Unicast Cipher Suite : ○WPA(TKIP) ○WPA2(AES) ○WPA2 Mixed Pre-shared Key Format : Passphrase Pre-shared Key : APPLY CANCEL

WPA Unicast Cipher Suite — Once you select one of the three cipher options — "WPA (TKIP)," "WPA2 (AES)" or "WPA2 Mixed" — make sure your wireless clients support it.

Pre-shared Key Format — Select the type of pre-shared key from the drop-down menu: "Passphrase" (8 or more alphanumeric characters, up to 63) or "Hex" (64 characters of 0-9 and a-f).

Pre-shared Key — Enter the WPA passphrase. NOTE: As mentioned earlier, try to avoid common terms or character combinations.

Some wireless devices (especially those manufactured before 2003) only support the WEP or WPA (TKIP) cipher. A driver upgrade would be needed for them to be able to use WPA and WPA2 encryption.

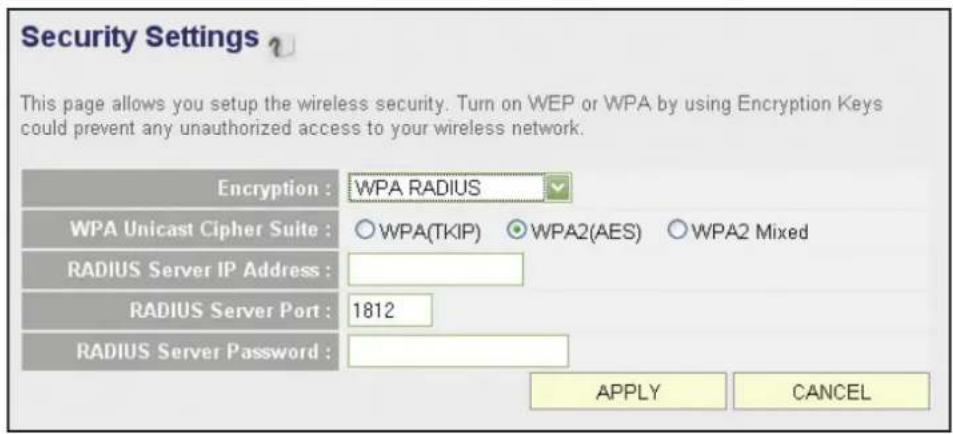

2.7.3.4 WPA RADIUS

If you have a RADIUS server, this router can work with it and provide even safer wireless authentication.

Security Settings This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Encryption : WPA RADIUS WPA Unicast Cipher Suite : ○WPA(TKIP) ○WPA2(AES) ○WPA2 Mixed RADIUS Server IP Address : RADIUS Server Port : 1812 RADIUS Server Password : APPLY CANCEL

WPA Unicast Cipher Suite — Once you select one of the three cipher options —

"WPA (TKIP)," "WPA2 (AES)" or "WPA2 Mixed" — make sure your wireless clients support it.

RADIUS Server IP address — Enter the IP address of the RADIUS server.

RADIUS Server Port — Enter the port number of the RADIUS server.

RADIUS Server Password — Enter the password of the RADIUS server.

2.7.4 Wireless Access Control

This function helps to prevent unauthorized users from connecting to your router: Only those wireless devices that have the MAC address you assign here can gain access. The MAC address is a unique hardware identification number that every network adapter carries. You can use this function in combination with data encryption (WPA, WPA2 or WEP) to create an additional layer of security for your wireless network.

Up to 20 MAC addresses can be assigned using this function. Click the "Wireless" menu on the left of the Web management interface, then click "Access Control."

NOTE: As explained below, all allowed MAC address will display in the MAC Address Filtering table.

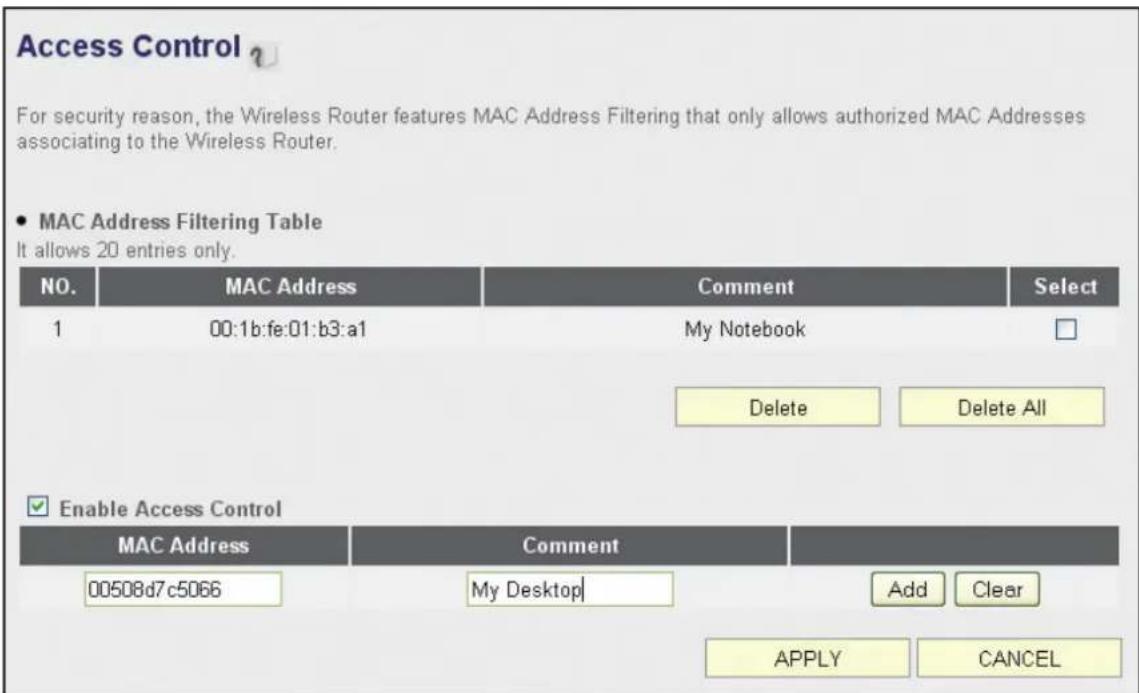

Access Control For security reason, the Wireless Router features MAC Address Filtering that only allows authorized MAC Addresses associating to the Wireless Router. • MAC Address Filtering Table It allows 20 entries only. NO. MAC Address Comment Select 1 00:1b:fe:01:b3:a1 My Notebook Delete Delete All Enable Access Control MAC Address Comment 00508d7c5066 My Desktop Add Clear APPLY CANCEL

Delete — To delete a specific MAC address entry, check the "Select" box of the MAC address you want to delete, then click "Delete Selected." (You can select more than one MAC address at a time.)

Delete All — Click to delete all MAC addresses listed.

Enable Access Control — Select to enforce MAC address filtering. The router will not filter the MAC addresses of wireless clients if this is left unchecked.

MAC Address — Enter the MAC addresses of your wireless devices here without special characters. If the MAC address label of your wireless device indicates "aa-bb-cc-dd-ee-ff" or "aa:bb:cc:dd:ee:ff," just enter "aabbccddeeff" (without the quote marks).

Comment — This is optional and can be left blank, but it's recommended that you enter something (such as "My Desktop," as shown) that will help you identify an address later.

Add — Click to add the MAC address and associated comment to the MAC Address Filtering table.

Clear — Click to remove whatever you entered in the "MAC Address" or "Comment" fields.

2.7.5 Wi-Fi Protected Setup (WPS)

Wi-Fi Protected Setup (WPS) is the simplest way to build a connection between wireless network clients and this router. You don't need to select an encryption mode and input a long encryption passphrase every time you need to set up a wireless client: You only need to press a button on a wireless device/client and this wireless router, and the WPS will do the rest for you.

WPS Settings This page allows you to change the setting for WPS (Wi-Fi Protected Setup). WPS can help your wireless client automatically connect to the Wireless Router. Enable WPS Settings Enable WPS Proxy • WPS Information WPS Status : Unconfigured PinCode Self : 35904373 SSID : INTELLINET Authentication Mode : Disable Passphrase Key : • Device Configure Config Mode : Registrar Configure by Push Button : Start PBC Configure by Client PinCode : Start PIN

This router supports two types of WPS: Push-Button Configuration (PBC) and PIN code. To use PBC, you need to push a specific button on the wireless client to start the WPS mode and switch this router to WPS mode. You can push the Reset/WPS button of this router, or click "Start PBC" in the Web configuration interface to do this. To use PIN code, you need to know the PIN code of the wireless client and switch it to WPS mode, then provide the PIN code of the wireless client you want to connect to this wireless router.

Click the "Wireless" menu on the left of the Web management interface, then click "WPS."

Enable WPS Settings — Check the box to enable the function; uncheck to disable.
Enable WPS Proxy — Check the box to enable the function; uncheck to disable.

When enabled, it allows another access point to serve as an “intermediary” device for the connection between wireless network clients and the router.

WPS Status — “Configured” is displayed if the wireless security (encryption) function of this wireless router is properly set. “Not configured” is shown if the WPS function has not been configured correctly.

PinCode Self — This is the WPS PIN code of this wireless router, which is useful when you need to build a wireless connection by WPS with other WPS-enabled wireless devices.

SSID — As it defines this router.

Authentication Mode — If you don't enable the security function of the router before WPS is activated, the router will auto-set the security to WPA (AES) and generate a set of passphrase keys for WPS connection.

Passphrase Key — As it was configured.

Config Mode — There are “Registrar” and “Enrollee” modes as options for the WPS connection. When “Registrar” is enabled, wireless clients will follow the router’s wireless settings for a WPS connection. When “Enrollee” mode is enabled, the router will follow the wireless settings of wireless client for a WPS connection.

Configure by Push Button — Click "Start PBC" to start a Push-Button-style WPS setup procedure. This wireless router will wait for WPS requests from wireless clients for two minutes. The WLAN LED on the wireless router will be on for two minutes when this wireless router is waiting for an incoming WPS request.

Configure by Client PinCode — Enter the PIN code of the wireless client you want to connect, and click "Start PIN." The WLAN LED on the wireless router will be on when this wireless router is waiting for an incoming WPS request.

2.7.6 Security Tips for Wireless Networks

Below are five reminders that will help you maintain a higher level of security for your wireless network.

- Never use simple words for the WPA/WEP encryption passphrase. A good

password cannot be found in the dictionary and consists of a combination of characters, symbols and numbers. You should also refrain from using passwords that carry a personal meaning — names of pets, names or birthdays of a spouse, and such — as these can easily be guessed by unauthorized users.

• Use WPA versus WEP whenever possible: WPA encryption and (even more so) WPA2 encryption are much stronger. If your wireless network adapters support WPA or WPA2, you should abandon WEP entirely.
• You can hide the ESSID of this router by setting the “Broadcast ESSID” option (refer to section 2.7.2.Advanced Wireless Settings) to “Disable.” Once this option is disabled, the router will no longer broadcast the SSID; thus, wireless clients in the area will not be able to see the wireless network in the list of available WLAN networks. Keep in mind that hiding the SSID will make it more difficult for wireless clients to join the network — and that is basically the idea. Instead of selecting the wireless network from the list, the user now must manually enter the wireless SSID, which will be difficult without knowing what it is. While this option offers additional protection, you should never rely on this mechanism as your only means of protection. A WPA encryption key is still highly recommended. Hiding the SSID of your access point is simply one additional step you can take.
• Use the Access Control function (section 2.7.4) so people who are not on your list will not be able to connect to your network. If you don't have guest traffic, you normally know which computers access your network, and you can specifically allow those computers and deny all the others.
• Utilizing all three mechanisms (encryption, no SSID broadcast and MAC address filtering) offers the best protection against unauthorized access.

3 ADVANCED FUNCTIONS

3.1 Quality of Service (QoS)

Quality of service provides an efficient way for computers on the network to share the Internet bandwidth with a promised quality of Internet service. Without QoS, all computers and devices on the network compete with each other to get Internet bandwidth, and some applications which require guaranteed bandwidth (like video streaming and network telephone) are affected negatively, resulting in an interruption of video/audio transfers. QoS allows you to limit the maximum bandwidth or grant a guaranteed bandwidth for a specific computer or network service port.

3.1.1 Basic QoS Settings

Click "QoS" on the left of the Web management interface.

QoS QoS (Quality of Service) refers to the capability of a network to provide better service to selected network traffic. The primary goal of QoS is to provide priority including dedicated bandwidth, controlled jitter and latency (required by some real-time and interactive traffic), and improved loss characteristics. Also important is making sure that providing priority for one or more flows does not make other flows fail. Enable QoS Total Download Bandwidth : —Select— >> 12000 kbits Total Upload Bandwidth : —Select— >> 1000 kbits Current QoS Table Priority Rule Name Upload Bandwidth Download Bandwidth Select 1 VoIP Phone 0 2024 Add Edit Delete Delete All Move Up Move Down APPLY CANCEL

Enable QoS— Check to enable the function; uncheck if you prefer not to enforce QoS bandwidth limitations.

Total Download Bandwidth — You can set the limit of total download bandwidth in kilobits. To disable the download bandwidth limitation, enter "0."

Total Upload Bandwidth — You can set the limit of total upload bandwidth in kilobits. To disable the upload bandwidth limitation, enter "0." NOTE: Both Total Download and Total Upload bandwidths should be specified according to the maximum

performance of your Internet service. If you're not sure about these numbers, contact your ISP. QoS can only be effective if accurate information is provided.

Current QoS Table — All existing QoS rules are shown here.

Add — Click to add new QoS rules (see section 3.1.2 Adding a New QoS Rule).

Edit — To modify the content of a specific rule, check the “Select” box of that rule, then click “Edit.” NOTE: Only one rule should be selected at a time. If you didn’t select a rule before clicking “Edit,” you’ll be prompted to add a new rule.

Delete — You can select one or more rules to delete by checking the "Select" box of the rule(s) you want to delete, then clicking "Delete." If the QoS table is empty, this button is inaccessible.

Delete All — Click to delete all rules in the QoS table. If the QoS table is empty, this button is inaccessible.

Move Up — Click to raise the priority of the selected QoS rule.

Move Down — Click to lower the priority of the selected QoS rule.

3.1.2 Adding a New QoS Rule

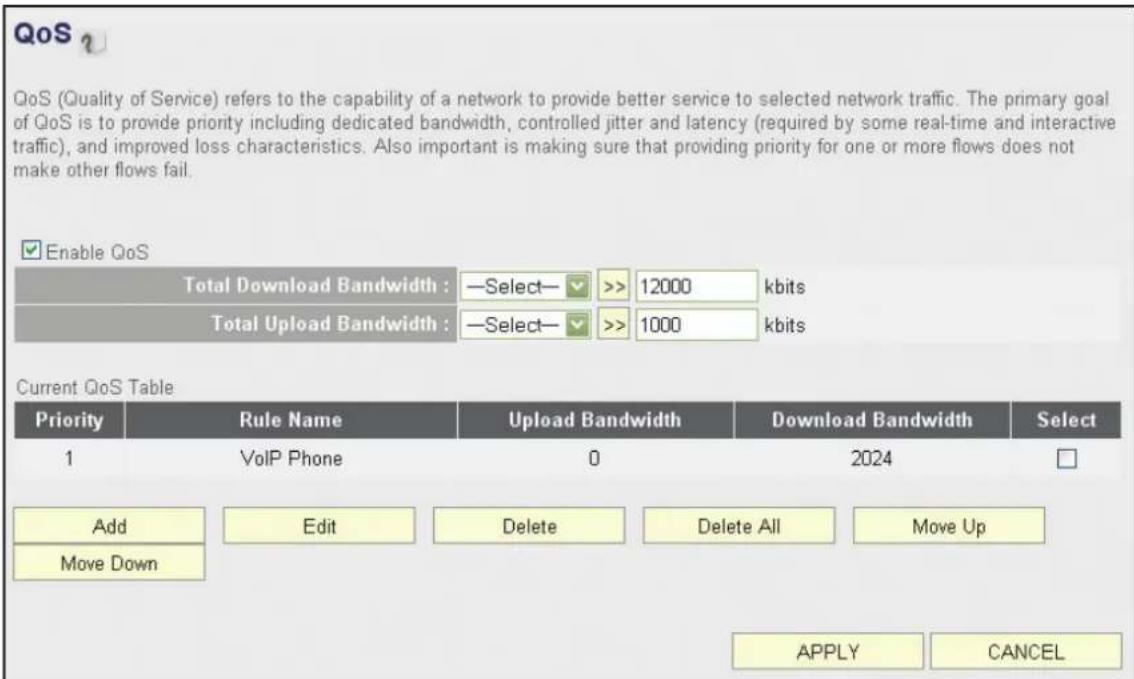

After you click "Add" on the QoS screen, you'll have these options.

QoS

This page allows users to add/modify the QoS rule's settings.

Rule Name :

VoIP Phone

Bandwidth :

Download

2024

Kbps

Guarantee

Local IP Address :

192.168.2.150

Local Port Range :

2-65535

Remote IP Address :

-

Remote Port Range :

2-65535

Traffic Type :

HTTP

Protocol :

TCP

Save

Reset

Rule Name — Enter a name for the QoS rule (up to 15 alphanumerical characters; e.g., "VoIP Phone").

Bandwidth — Set the bandwidth amount of the QoS rule. You need to select the data direction of this rule (Upload or Download) and the speed of the bandwidth limitation in kbps, then select the type of QoS: "Guarantee" (guaranteed usable bandwidth for this rule) or "Max" (set the maximum bandwidth for the application allowed by this rule).

Local IP Address — Specify the local (source) IP address that will be affected by this rule. Enter the starting IP address in the left field, and enter the end address in the right field to define a range of IP addresses; or just enter the IP address in the left field to define a single IP address.

Local Port Range — Enter the range of local (source) port numbers that should be affected by this rule. To apply this rule on ports 80 to 90, enter “80-90”; to apply this rule only to a single port, just enter the port number, such as “80.”

Remote IP Address — Specify the remote (destination) IP address that should be affected by this rule. Enter the starting IP address in the left field, and enter the end address in the right field to define a range of IP addresses; or just enter the IP address in the left field to define a single IP address.

Remote Port Range — Enter the range of remote (destination) port numbers that should be affected by this rule. To apply this rule on ports 80 to 90, enter "80-90"; to apply this rule only to a single port, just enter the port number, such as "80." If the remote (destination) IP address and/or port number is universal, just leave it blank.

Traffic Type — Select the traffic type of this rule from the drop-down menu: "None," "SMTP," "HTTP," "POP3" or "FTP." To make this rule an IP address-based rule (to apply the limitation on all traffic from/to the specified IP address or port number), select "None."

Protocol — Select the protocol type of this rule from the drop-down menu: "TCP" or "UDP." If you don't know what protocol your application uses, try "TCP" first and switch to "UDP" if this rule doesn't seem to work.

Click “Save” to add the new rule. It will appear in the current QoS table. Should an error message show up after you click “Save,” you can try again, but fixing the problem first and then clicking “Save” will have a better chance of working.

To erase all values you've entered, click "Reset."

3.2 Network Address Translation (NAT)

Network Address Translation (NAT, also known as Network Masquerading, Native Address Translation or IP Masquerading) is a technique of transceiving network traffic through a router that involves re-writing the source and/or destination IP addresses and usually the TCP/UDP port numbers of IP packets as they pass through. Checksums (both IP and TCP/UDP) must also be rewritten to take account of the changes. Most systems using NAT do so in order to enable multiple hosts on a private network to access the Internet using a single public IP address (see gateway). Many network administrators find NAT a convenient technique and use it widely. Simply put: The router's NAT function allows the connection of multiple computers to one Internet line.

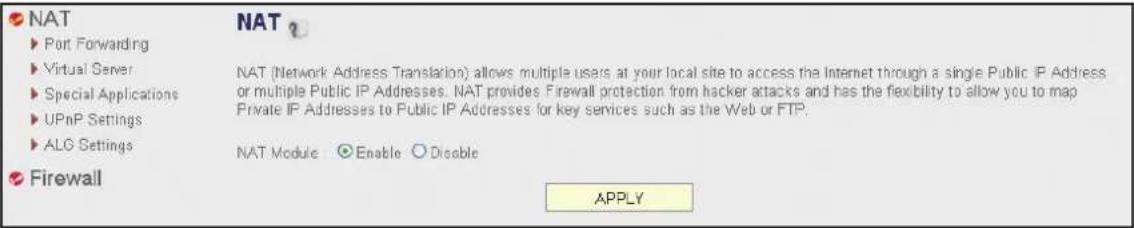

Click the "NAT" menu on the left of the Web management interface. NAT is enabled by default, and there is normally no need to change this.

NAT ► Port Forwarding ► Virtual Server ► Special Applications ► UPnP Settings ► ALG Settings NAT (Network Address Translation) allows multiple users at your local site to access the Internet through a single Public IP Address or multiple Public IP Addresses. NAT provides Firewall protection from hacker attacks and has the flexibility to allow you to map Private IP Addresses to Public IP Addresses for key services such as the Web or FTP. NAT Module Enable Disable APPLY

3.2.1 Port Forwarding

With this function, you can tell the router to forward incoming connections bound to a specific port or port range to an IP address on your local network. Many online games, game consoles with Internet service, remote access applications and special network devices such as network cameras require you to open and forward ports, often referred to as port mapping.

With port forwarding, the external and internal ports are always the same. If you need to redirect an incoming request on public port A to internal port B, you need to use the Virtual Server function (see section 3.2.2 Virtual Server).

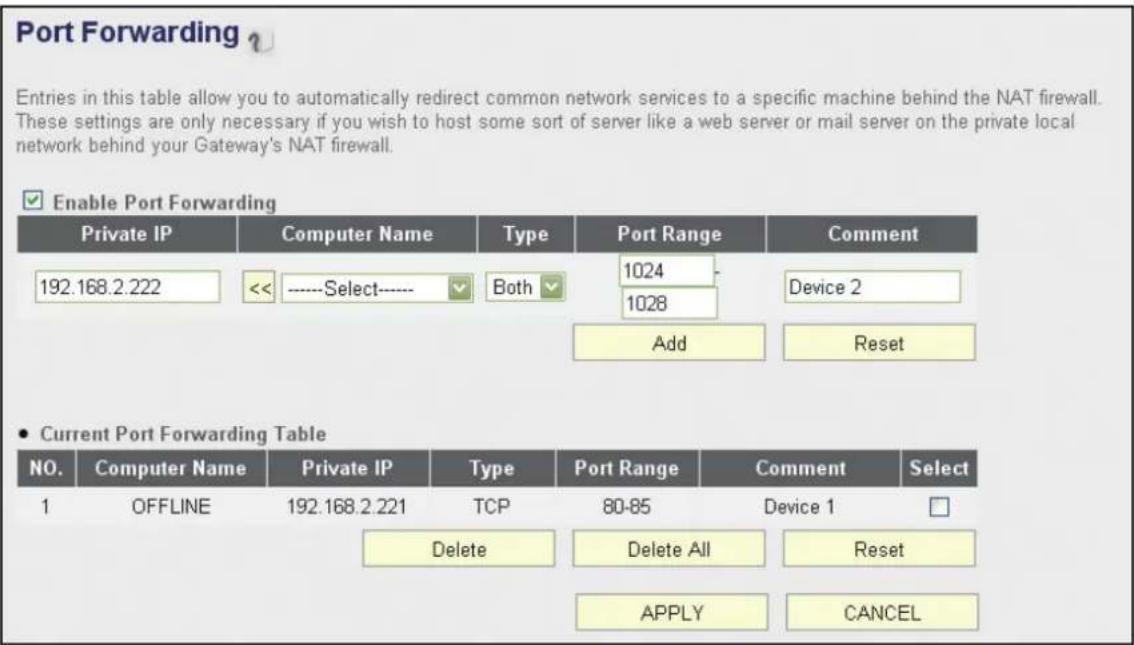

Port Forwarding Entries in this table allow you to automatically redirect common network services to a specific machine behind the NAT firewall. These settings are only necessary if you wish to host some sort of server like a web server or mail server on the private local network behind your Gateway's NAT firewall. Enable Port Forwarding Private IP Computer Name Type Port Range Comment 192.168.2.222 <<----Select-----Both 1024 Device 2 1028 Add Reset • Current Port Forwarding Table NO. Computer Name Private IP Type Port Range Comment Select 1 OFFLINE 192.168.2.221 TCP 80-85 Device 1 Delete Delete All Reset APPLY CANCEL

Enable Port Forwarding — Check to enable this function; uncheck to disable.

Private IP — Enter the IP address of the computer on the local network that provides Internet service.

Computer Name — With all the computers connected to the router listed in this drop-down menu, you can select a name without checking its IP address.

Type — Select the type of connection from the drop-down menu: "TCP," "UDP" or "Both." If you're not sure which to use, select "Both."

Port Range — Enter the starting port number in the left field and enter the ending port number in the right field. To redirect a single port number, just enter the port number in the left field.

Comment — Enter text to describe this mapping, using up to 16 alphanumeric characters; e.g., “camera web port.”

Add — Add the mapping to the Current Port Forwarding Table.

Reset — Click to remove all entries.

Current Port Forwarding Table — Shows all existing port forwarding rules (port mapping).

Delete — Select a port forwarding mapping by checking the “Select” box of the mapping, then clicking “Delete.” If there’s no existing mapping, this button will be grayed out.

Delete All — Click to delete all existing port mappings.

Reset — Click to unselect all mappings.

3.2.2 Virtual Server

This function is very similar to Port Forwarding. The difference is that Virtual Server only allows you to specify one port. On the other hand, it enables you to redirect a public port to a different private port (e.g., public port 80 redirects to private port 85). This makes Virtual Server the obvious choice for hosting public Web services (such as a Web server) on a computer connected to one of the LAN ports on the router.

Virtual Server

You can configure the Wireless Router as a Virtual Server so that remote users accessing services such as the Web or FTP at your local site via Public IP Addresses can be automatically redirected to local servers configured with Private IP Addresses. In other words, depending on the requested service (TCP/UDP) port number, the Wireless Router redirects the external service request to the appropriate internal server (located at one of your LAN's Private IP Address).

Enable Virtual Server

Private IP	Computer Name	Private Port	Type	Public Port	Comment
192.168.2.231	<<----Select----	21	Both	21	FTP Server
			Add		Reset

• Current Virtual Server Table

NO.	Computer Name	Private IP	Private Port	Type	Public Port	Comment	Select
1	OFFLINE	192.168.2.230	80	TCP+UDP	80	Web Server
			Delete		Delete All	Reset
					APPLY	CANCEL

Enable Virtual Server — Check to enable this function; uncheck to disable.

Private IP — Enter the IP address of the computer on the local network that provides Internet service.

Computer Name — With all the computers connected to the router listed in this drop-down menu, you can select a name without checking its IP address.

Private Port — Enter the port number of the IP address that provides Internet service.

Type — Select the type of connection from the drop-down menu: "TCP," "UDP" or "Both." If you're not sure which to use, select "Both."

Public Port — Select the port number of Internet IP address that will be redirected to the port number of the local IP address defined above.

Comment — Enter text to describe this mapping, using up to 16 alphanumeric characters; e.g., "FTP Server."

Add — Add the mapping to the Virtual Server Table.

Reset — Click to remove all entries.

Current Virtual Server Table — Shows all existing virtual server mappings.

Delete — Select a virtual server mapping by checking the “Select” box of the mapping, then clicking “Delete.” If there’s no existing mapping, this button will be grayed out.

Delete All — Click to delete all existing virtual server mappings.

Reset — Click to unselect all mappings.

3.2.3 Port Mapping for Special Applications

Some applications require more than one connection a time. This function allows these applications to work when they won't work with simple NAT rules.

Enable Special Applications — Check to enable this function; uncheck to disable.

IP Address — Enter the IP address of the computer where you want to open the ports.

Computer Name — With all the computers connected to the router listed in this drop-down menu, you can select a name without checking its IP address.

TCP Port to Open — This is the outgoing (outbound) range of TCP port numbers for this particular application.

UDP Port to Open — This is the outgoing (outbound) range of UDP port numbers for this particular application.

Comment — Enter a description for this setting.

Popular Applications — The drop-down menu lists some popular applications that require multiple connections. To save one to the Current Trigger-Port Table, select it and click "Add."

Add — Click to add a selection to the Current Trigger-Port Table.

Reset — Click to remove all entries.

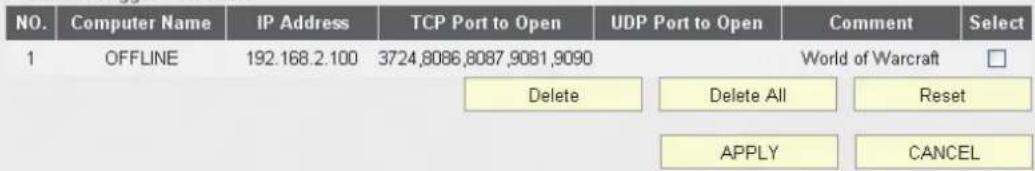

Special Applications

Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others. These applications cannot work when Network Address Translation (NAT) is enabled. If you need to run applications that require multiple connections, specify the port normally associated with an application in the "Trigger Port" field, select the protocol type as TCP or UDP, then enter the public ports associated with the trigger port to open them for inbound traffic. Note: The range of the Trigger Port is 1 to 65535.

√ Enable Special Applications

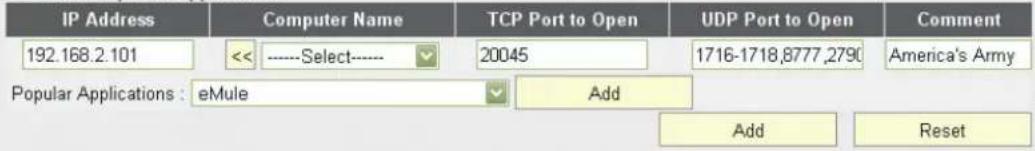

IP Address 192.168.2.101 << ----Select---- 20045 1716-1718,8777,2790 America's Army Popular Applications : eMule Add Add Reset

• Current Trigger-Port Table


NO. Computer Name IP Address TCP Port to Open UDP Port to Open Comment Select 1 OFFLINE 192.168.2.100 3724,8086,8087,9081,9090 World of Warcraft □ Delete Delete All Reset APPLY CANCEL

Current Trigger-Port Table — All the settings for the specifal applications are listed here.

Delete — To remove a Special Application setting from the Current Trigger-Port Table, select the setting and click "Delete."

Delete All — Click to delete all existing specifal application settings.

3.2.4 UPnP

This function enables network auto-configuration for peer-to-peer communications. With this function, network devices will be able to communicate with other UPnP-enabled devices directly and learn about other devices. Many network devices and applications rely on UPnP function nowadays.

UPnP Module : Enable Disable APPLY CANCEL

UPnP Module — There is nothing to configure for UPnP. Just select "Enable" or "Disable."

3.2.5 ALG

Application Layer Gateway (ALG) is a special function of this router. It includes many preset routing rules for numerous applications (as shown below) that require special support to work with the NAT architecture. Check "Enable" next to the listing and click "Apply."

Enable	Name	Comment
	Amanda	Support for Amanda backup tool protocol.
	Egg	Support for eggdrop bot networks.
	FTP	Support for FTP.
	H323	Support for H323/netmeeting.
	IRC	Allows DCC to work though NAT and connection tracking.
	MMS	Support for Microsoft Streaming Media Services protocol.
	Quake3	Support for Quake III Arena connection tracking and nat.
	Talk	Allows netfilter to track talk connections.
	TFTP	Support for TFTP.
	IPsec	Support for IPsec passthrough
	Starcraft	Support for Starcraft/Battle.net game protocol.
	MSN	Support for MSN file tranfer.
	PPTP Pass Through	Support for PPTP passthrough.

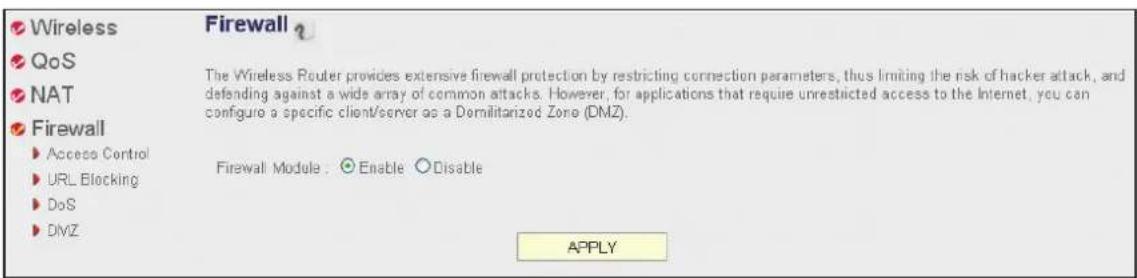

3.3 Firewall

In addition to the NAT feature, this router provides firewall functionality to block malicious intruders from accessing the computers on your local network. Click the "Firewall" menu on the left of the Web management interface.

Wireless QoS NAT Firewall Access Control URL Blocking DoS DMZ Firewall The Wireless Router provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attack, and defending against a wide array of common attacks. However, for applications that require unrestricted access to the Internet, you can configure a specific client/server as a Demilitarized Zone (DMZ). Firewall Module: Enable Disable APPLY

Firewall Module — Check to enable this function; uncheck to disable.

3.3.1 Access Control

This function allows or denies computers with a specific MAC address — or a specific IP address, protocol or port — access to the network.

Enable MAC Filtering — Check this box to enable MAC address-based filtering, and select "Deny" or "Allow" to determine the behavior of the MAC filtering table. If you select "Deny," all MAC addresses listed in the filtering table will be denied access to the network; if you select "Allow," only MAC addresses listed in the

Enable MAC Filtering Deny Allow Client PC MAC Address Computer Name Comment <<----Select---- Add Reset Current MAC Filtering Table NO. Computer Name Client PC MAC Address Comment Select Delete Delete All Reset Enable IP Filtering Deny Allow NO. Client PC Description Client PC IP Address Client Service Protocol Port Range Select Add PC Delete Delete All APPLY CANCEL

filtering table will be able to connect to the network, and all other network devices will be rejected.

Client PC MAC address — Enter the MAC address of the computer or network device. Dashes (−) or colons ( : ) are not required. For example, if the MAC address label of your device reads “aa-bb-cc-dd-ee-ff” or “aa:bb:cc:dd:ee:ff,” just enter “aabbccddeeff” (without the quote marks).

Computer Name — With all the computers connected to the router listed in this drop-down menu, you can select a name without checking its IP address.

Comment — Enter up to 16 alphanumeric characters to identify the MAC address, such as "Room 2A Computer." This is optional, and you can leave it blank.

Add — Click to add the MAC address and associated comment to the MAC address filtering table.

Reset — Click to remove all entries (in either panel).

Current MAC Filtering Table — All existing MAC addresses in the filtering table.

Delete — You can select one or more MAC addresses to delete by checking the "Select" box of those you want to delete, then clicking "Delete."

Delete All — Click to delete all MAC addresses listed.

Enable IP Filtering — Check this box to enable IP address-based filtering, and select “Deny” or “Allow” to determine the behavior of the IP filtering table. If you select “Deny,” all IP addresses listed in the filtering table will be denied access to the network; if you select “Allow,” only IP addresses listed in the filtering table will be able to connect to the network; all other network devices will be rejected.

Add PC — Click to add a new IP address to the IP filtering table. Up to 20 addresses can be added. (Refer to section 3.3.1.1 Add PC below.)

Delete — You can select one or more IP addresses to delete by checking the "Select" box of those you want to delete, then clicking "Delete."

Delete All — Click to delete all IP addresses listed.

3.3.2 Add PC

Clicking "Add PC" on the Access Control screen will display this page.

Access Control Add PC

This page allows users to define service limitation of client PC, including IP address and service type.

Client PC Description :

Client PC IP Address :

• Client Service :

Service Name	Detail Description	Select
WWW	HTTP, TCP Port 80, 3128, 8000, 8080, 8081
E-mail Sending	SMTP, TCP Port 25
News Forums	NNTP, TCP Port 119
E-mail Receiving	POP3, TCP Port 110
Secure HTTP	HTTPS, TCP Port 443
File Transfer	FTP, TCP Port 21
MSN Messenger	TCP Port 1863
Telnet Service	TCP Port 23
AIM	AOL Instant Messenger, TCP Port 5190
NetMeeting	H.323, TCP Port 389,522,1503,1720,1731
DNS	UDP Port 53
SNMP	UDP Port 161, 162
VPN-PPTP	TCP Port 1723
VPN-L2TP	UDP Port 1701
TCP	All TCP Port
UDP	All UDP Port

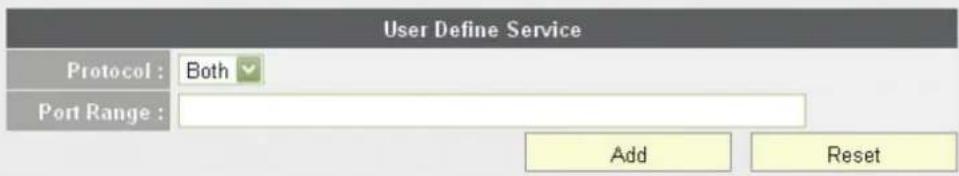

User Define Service Protocol : Both Port Range : Add Reset

Client PC Description — Enter up to 16 alphanumeric characters to describe this IP address.

Client PC IP Address — Enter the starting IP address in the left field and the end IP address in the right field to define a range of IP addresses, or just input the IP address in the left field to define a single IP address.

Client PC Service — Select all services you want to allow or deny through this IP address.

Protocol — If the service you need is not listed, you can create a new service yourself. Select "TCP" or "UDP" from the drop-down menu and follow the Port Range instructions below. If you're not sure which Protocol to use, select "Both."

Port Range — Enter the port range of the new service. To specify ports 80 to 90, enter "80-90"; to apply this rule to a single port, just enter the port number.

Add — Click to save the settings. You'll be re-directed to the previous menu, and the rule you just set will appear in the IP Filtering Table.

Reset — Click to remove all entries.

3.3.3 URL Blocking

To prevent computers in the local network from accessing certain Web sites, you can define the Web sites, IP addresses or keywords here. This function is useful for parents and company managers: The former can protect children from inappropriate contents on the Internet; the latter can protect employees from losing their jobs.

You can block full Web site URLs, such as "www.microsoft.com"; IP addresses, such as "207.46.232.182"; or just a part of a URL. For example, if you enter the keyword "downloads," the computer can connect to "www.microsoft.com" but not "www.microsoft.com/downloads."

URL Blocking You can block access to certain Web sites from a particular PC by entering either a full URL address or just a keyword of the Web site. Enable URL Blocking URL/Keyword : http://speedlimitsaregreat.com Add Reset Current URL Blocking Table NO. URL/Keyword Select 1 raiseourtaxes.com Delete Delete All Reset APPLY CANCEL

Enable URL Blocking — Check to enable this function; uncheck to disable.

URL/Keyword — Enter the URL (host name or IP address of a Web site, such as "http://www.blocked-site.com" or "http://11.22.33.44"), or a keyword contained in a URL (like "pornography," "sex," "banner advertisement," etc).

Add — Click to add the URL/keyword to the URL/Keyword Filtering Table.

Reset — Click to remove all entries in the "URL/Keyword" text field.

Current URL Blocking Table — All existing URL/keywords in the filtering table.

Delete — Select a URL/keyword by checking the “Select” box of the entry, then clicking “Delete.”

Delete All — Click to delete all existing URL/keyword entries.

3.3.4 DoS Attack Prevention

A denial-of-service (DoS) attack is an attempt to make a computer resource unavailable to its intended users. DoS attacks generally consist of the concerted, malevolent efforts of a person or persons to prevent an Internet site or service from functioning efficiently or at all, temporarily or indefinitely. One common method of attack involves saturating the target (victim) machine, in this case the router, with external communications requests, such that it cannot respond to legitimate traffic or responds so slowly as to be rendered effectively unavailable.

This router has a built-in DoS attack prevention mechanism to prevent DoS attacks from succeeding. Activating all options is recommended.

Ping of Death — Ping of Death is a special packet, and it will cause certain computers to stop responding. Check this box and the router will filter out this kind of packet.

Discard Ping From WAN — Ping is a common and useful tool for knowing the connection status of a specified remote network device, but some malicious

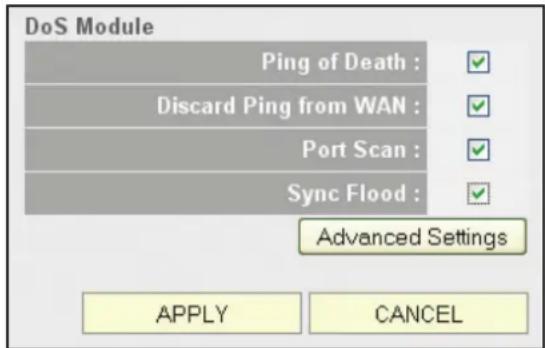

DoS Module Ping of Death : Discard Ping from WAN : Port Scan : Sync Flood : Advanced Settings APPLY CANCEL

intruder could try to fill your network bandwidth with a lot of PING request data packets to make your Internet connection become very slow — even unusable.

Check this box and the router will ignore all inbound PING requests. NOTE:

Unfortunately, when you activate this function, you will not be able to ping your own router from the Internet, either.

Port Scan — An intruder could try to use a port scanner to determine how many ports of your Internet IP address are open, through which they can collect a lot of valuable information. Check this box and the router will block all traffic that's involved in trying to scan your Internet IP address.

Sync Flood — Another kind of attack, this one uses a lot of fake connection requests to consume the memory of your server, rendering it unusable. Check this box and the router will filter this kind of traffic out.

Advanced Settings — Click to set advanced settings of the DoS prevention method listed above. (See section 3.3.4.1 DoS – Advanced Settings below.)

3.3.4.1 DoS - Advanced Settings

Clicking "Advanced Settings" on the first DoS Module screen will display this page.

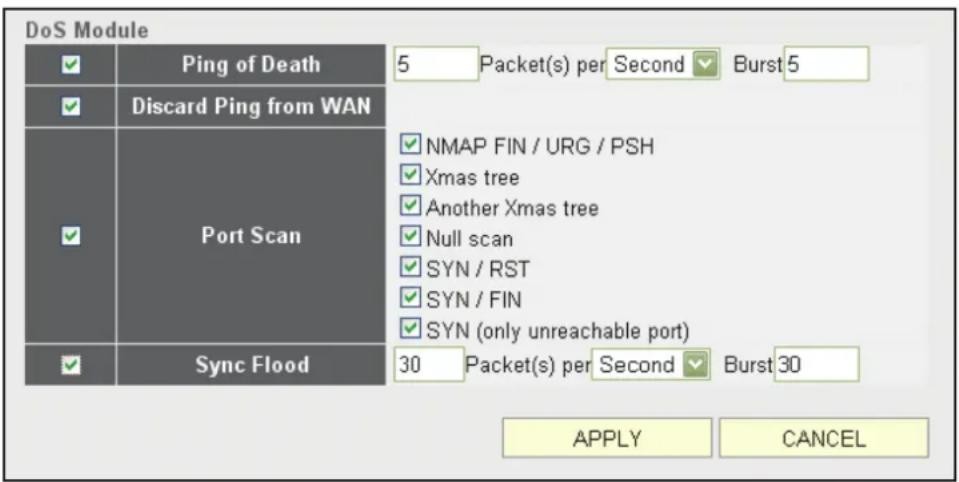

DoS Module ✓ Ping of Death 5 Packet(s) per Second Burst 5 ✓ Discard Ping from WAN ✓ Port Scan ✓ NMAP FIN / URG / PSH ✓ Xmas tree ✓ Another Xmas tree ✓ Null scan ✓ SYN / RST ✓ SYN / FIN ✓ SYN (only unreachable port) ✓ Sync Flood 30 Packet(s) per Second Burst 30 APPLY CANCEL

Ping of Death — Set the threshold of when this DoS prevention mechanism will be activated. Check the box for Ping of Death and enter the frequency of threshold (how many packets per second, minute or hour). You can also enter the “Burst” value: When this number of Ping of Death packets is received within a very short timeframe, this DoS prevention mechanism will be activated.

Discard Ping From WAN — Check the box to activate this mechanism.

Port Scan — A number of port scan methods are listed here. Check one or more DoS attack methods you want to prevent.

Sync Flood — As with Ping of Death, you can set the threshold for when this DoS prevention mechanism will be activated.

3.3.5 Demilitarized Zone (DMZ)

With NAT and the firewall, this router protects all connected computers in your local network. Sometimes, however, you may want to expose a computer or network device to the Internet intentionally for various reasons; e.g., troubleshooting of network problems. Placing a computer in the DMZ puts it at great risk because the protection mechanisms of the router no longer apply.

So, unless you know what you are doing, you should not use this function at all.

Enable DMZ — Check to enable this function; uncheck to disable.

Public IP — Select “Dynamic IP” or “Static IP.” If you select “Dynamic IP,” you need to select an Internet connection session from the drop-down menu; if you select “Static IP,” enter the IP address that you want to map to a specific private IP address.

Client PC IP Address — Enter the private IP address that the Internet IP address will be mapped to. That is the computer you want to bypass the firewall and NAT.

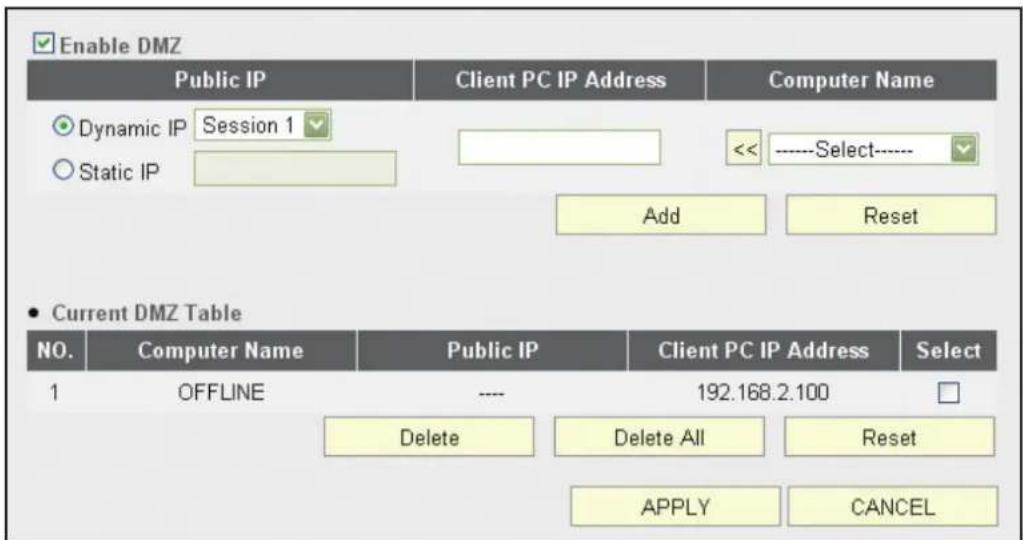

Enable DMZ Public IP Client PC IP Address Computer Name Dynamic IP Session 1 Static IP <<----Select---- Add Reset • Current DMZ Table NO. Computer Name Public IP Client PC IP Address Select 1 OFFLINE ---- 192.168.2.100 Delete Delete All Reset APPLY CANCEL

Computer Name — With all the computers connected to the router listed in this drop-down menu, you can select a name without checking its IP address.

Add — Click to add the public IP address and associated private IP address to the DMZ table.

Reset — Click to remove all entries (in either panel).

Current DMZ Table — All existing public/private IP address mappings.

Delete — Select one or more DMZ entries to delete by checking the "Select" box of those you want to delete, then clicking "Delete."

Delete All — Click to delete all DMZ entries.

4 ADDITIONAL FUNCTIONS/FEATURES

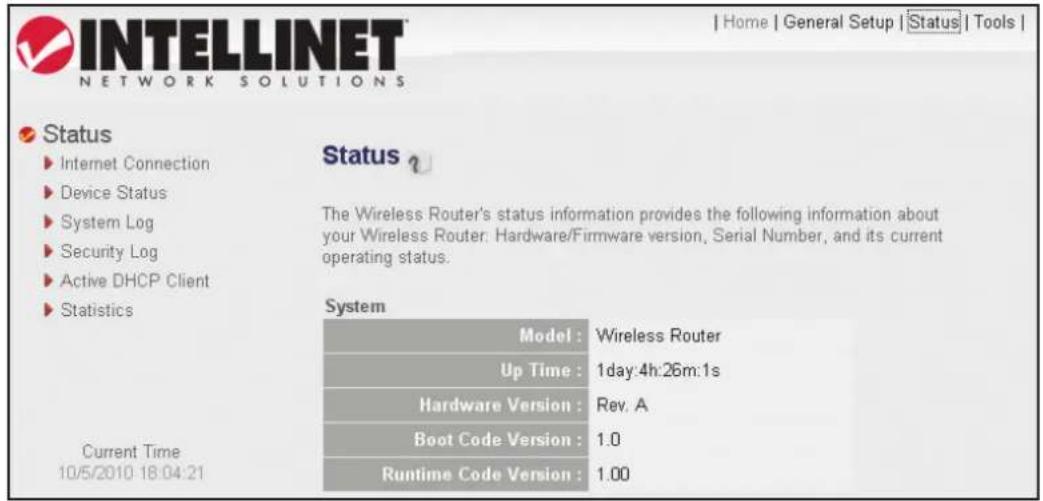

4.1 Status

This screen and the submenus that can be accessed from here show information about the firmware version of the router, the Internet connection, IP address information, log files and more. Click the "Status" link at the upper-right corner of the Web management interface.

INTELLINET NETWORK SOLUTIONS | Home | General Setup | Status | Tools | Status ► Internet Connection ► Device Status ► System Log ► Security Log ► Active DHCP Client ► Statistics Status ? The Wireless Router's status information provides the following information about your Wireless Router: Hardware/Firmware version, Serial Number, and its current operating status. System Model : Wireless Router Up Time : 1day.4h:26m:1s Hardware Version : Rev. A Boot Code Version : 1.0 Runtime Code Version : 1.00 Current Time 10/5/2010 18:04:21

In case you experience technical difficulties with the router and need to contact technical support, you should write down the Boot Code Version and Runtime Code Version shown on your screen (which may vary from the example shown here). It is very likely that you would be asked to provide these numbers by the technical support representative.

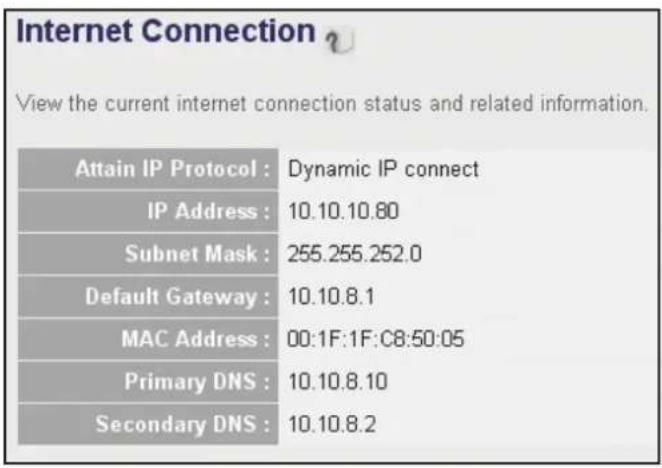

4.1.1 Internet Connection

Internet Connection View the current internet connection status and related information. Attain IP Protocol : Dynamic IP connect IP Address : 10.10.10.80 Subnet Mask : 255.255.252.0 Default Gateway : 10.10.8.1 MAC Address : 00:1F:1F:C8:50:05 Primary DNS : 10.10.8.10 Secondary DNS : 10.10.8.2

This screen shows IP address information the router has obtained. If you experience problems with your Internet connection, open this page and check the contents. Values for IP address, default gateway and primary DNS should always be filled. If they're missing, it indicates that there is a connection problem preventing the router from accessing the Internet.

4.1.2 Device Status

This screen shows information about the wireless configuration as well as the LAN configuration, including information about the encryption and IP address settings of the router.

Wireless Configuration		LAN Configuration
2.4GHz Wireless :	Enable	IP Address :	192.168.2.1
Mode :	Access Point	Subnet Mask :	255.255.255.0
ESSID :	INTELLINET 2.4	DHCP Server :	Enable
Channel Number :	2	MAC Address :	00:11:22:33:44:50
Security :	Disable
MAC Address :	00:11:22:33:44:50
5GHz Wireless :	Enable
Mode :	Access Point
ESSID :	INTELLINET 5.0
Channel Number :	120
Security :	Disable
MAC Address :	00:11:22:33:44:52

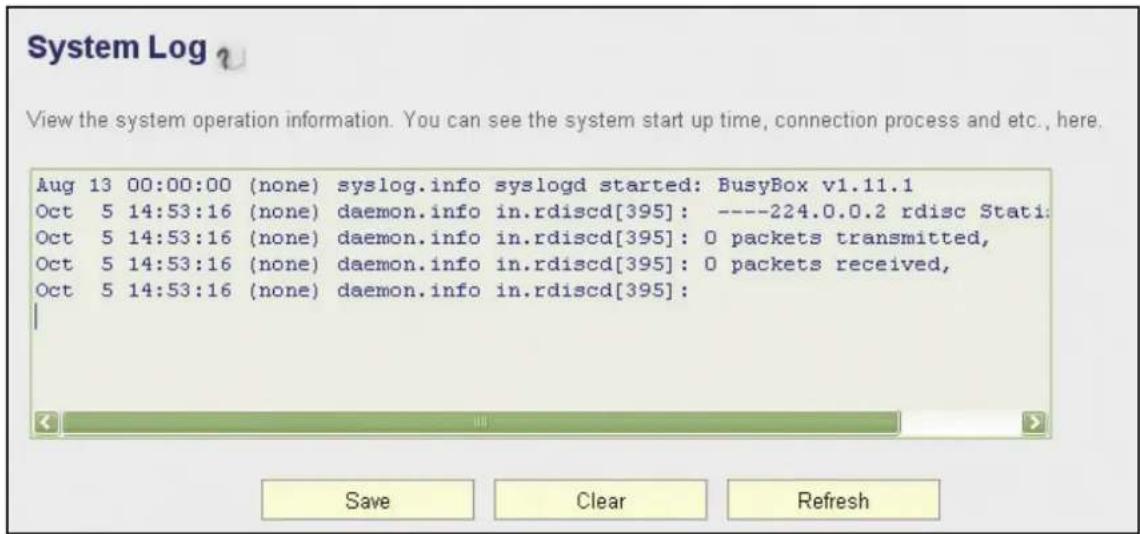

4.1.3 System Log

All important system events are logged here.

System Log View the system operation information. You can see the system start up time, connection process and etc., here. Aug 13 00:00:00 (none) syslog.info syslogd started: BusyBox v1.11.1 Oct 5 14:53:16 (none) daemon.info in.rdiscd[395]: ----224.0.0.2 rdisc Stati: Oct 5 14:53:16 (none) daemon.info in.rdiscd[395]: 0 packets transmitted, Oct 5 14:53:16 (none) daemon.info in.rdiscd[395]: 0 packets received, Oct 5 14:53:16 (none) daemon.info in.rdiscd[395]: Save Clear Refresh

Save — Click to save the current event log to a text file.

Clear — Click to delete all event log messages displayed.

Refresh — Click to refresh the view to display the most current event log messages.

4.1.4 Security Log

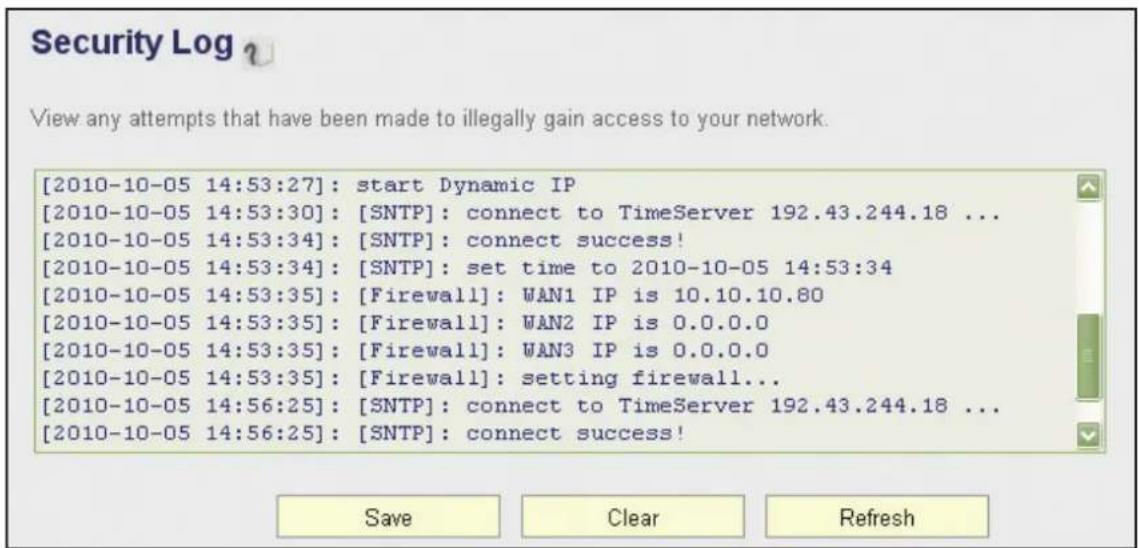

[2010-10-05 14:53:27]: start Dynamic IP [2010-10-05 14:53:30]: [SNTP]: connect to TimeServer 192.43.244.18 ... [2010-10-05 14:53:34]: [SNTP]: connect success! [2010-10-05 14:53:34]: [SNTP]: set time to 2010-10-05 14:53:34 [2010-10-05 14:53:35]: [Firewall]: WAN1 IP is 10.10.10.80 [2010-10-05 14:53:35]: [Firewall]: WAN2 IP is 0.0.0.0 [2010-10-05 14:53:35]: [Firewall]: WAN3 IP is 0.0.0.0 [2010-10-05 14:53:35]: [Firewall]: setting firewall... [2010-10-05 14:56:25]: [SNTP]: connect to TimeServer 192.43.244.18 ... [2010-10-05 14:56:25]: [SNTP]: connect success! Save Clear Refresh

Save — Click to save the current event log to a text file.

Clear — Click to delete all event log messages displayed.

Refresh — Click to refresh the view to display the most current event log messages.

4.1.5 Active DHCP Client

If you're using the DHCP server function of this router, you can use this function to check all active DHCP leases issued by this router.

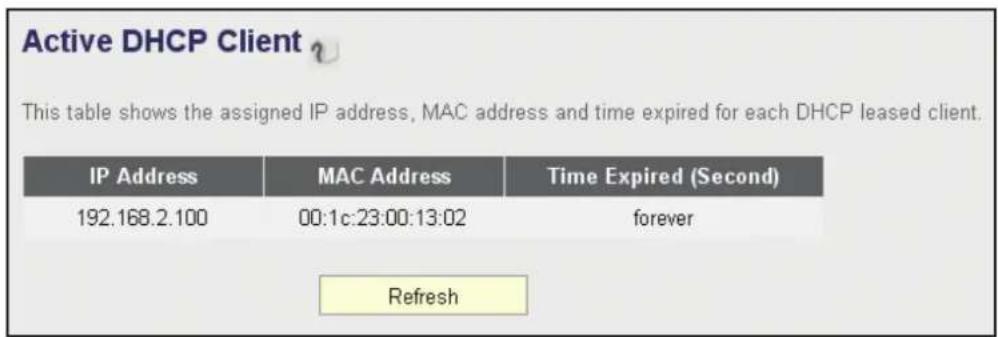

Active DHCP Client This table shows the assigned IP address, MAC address and time expired for each DHCP leased client. IP Address MAC Address Time Expired (Second) 192.168.2.100 00:1c:23:00:13:02 forever Refresh

4.1.6 Statistics

Statistics of the wireless LAN, wired LAN and WAN interface of the router are shown on this screen.

Refresh — Click to display the latest information. NOTE: The information is accumulative and is only reset after the router is restarted.

4.2 Tools

This screen and the submenus that can be accessed from here provide options and information helpful in managing files and router information. Click the "Tools" link at the upper-right corner of the Web management interface.

4.2.1 Configuration Tools

This screen lets you back up the configuration of the router to a file so you can reload it at a later time. You can save different configurations, each with unique settings, and reload them as needed.

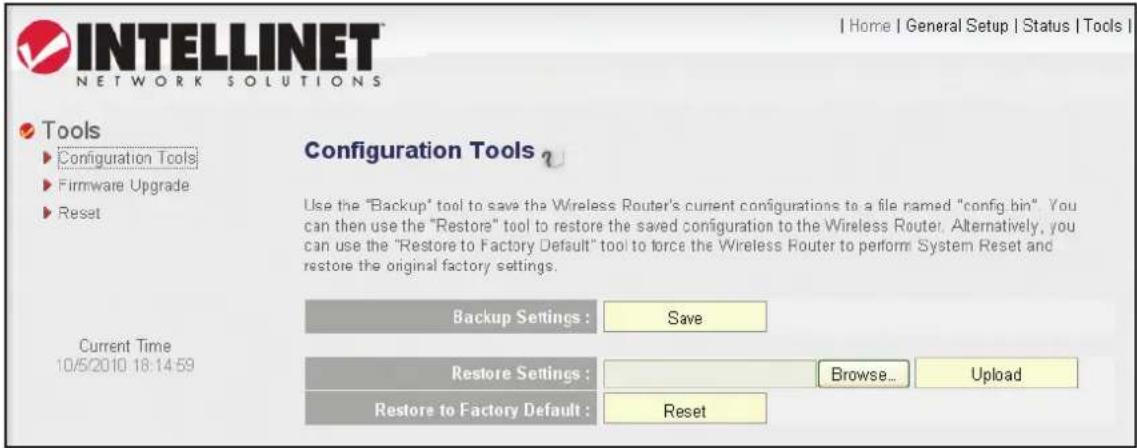

INTELLINET NETWORK SOLUTIONS Tools ► Configuration Tools ► Firmware Upgrade ► Reset Configuration Tools v Use the "Backup" tool to save the Wireless Router's current configurations to a file named "config bin". You can then use the "Restore" tool to restore the saved configuration to the Wireless Router. Alternatively, you can use the "Restore to Factory Default" tool to force the Wireless Router to perform System Reset and restore the original factory settings. Current Time 10/5/2010 18:14:59 Backup Settings : Save Restore Settings : Browse... Upload Restore to Factory Default : Reset

Backup Settings — Click "Save..." and you'll be prompted to download the configuration as a file (the default filename is "default.bin"). Remember to save it as another filename each time you back up for easier retrieval of information..

Restore Settings — Click "Browse..." to select a saved configuration file from your computer, then click "Upload" to transfer the configuration file to the router. After the configuration is uploaded, the router's current configuration will be replaced by the file you just uploaded.

Restore to Factory Default — Click to reset all settings of the router to the factory default values.

4.2.2 Firmware Upgrade

The firmware of the router is like the operating system on your computer. Firmware upgrades for this router may be available at www.intellinet-network.com. If you experience technical difficulties, you should first check if any updated firmware is available for the router and install it using this firmware upgrade function.

Firmware Upgrade

This tool allows you to upgrade the Wireless Router's system firmware. Enter the path and name of the upgrade file and then click the APPLY button below. You will be prompted to confirm the upgrade.

The system will automatically reboot the router after you finished the firmware upgrade process. If you don't complete the firmware upgrade process in the "next" step, you have to reboot the router.

NEXT

Next — Click to proceed to the upgrade procedure screen.

Firmware Upgrade

This tool allows you to upgrade the Wireless Router's system firmware. Enter the path and name of the upgrade file and then click the APPLY button below. You will be prompted to confirm the upgrade.

Browse.

APPLY

CANCEL

Browse — Click to locate the firmware file you've downloaded. If the file is in Zip (compressed archive) format, you need to uncompress it prior to the upgrade. Apply — Click to start the firmware upgrade process.

Never interrupt the upgrade process by closing the Web browser or by physically disconnecting your computer from the router. If the upgrade process is interrupted by a network problem or a power failure, the router will cease to function. Damages resulting from improperly performed firmware upgrades are excluded from the product warranty!

4.2.3 Reset

This screen lets you restart the router without disconnecting the power from the unit. A restart (or system reset) may be necessary if the router responds slowly, if your Internet connection speed has dropped or if the router behaves in an unusual manner.

Reset

In the event that the system stops responding correctly or stops functioning, you can perform a Reboot. Your settings will not be changed. To perform the reboot, click on the APPLY button below. You will be asked to confirm your decision. The Reboot will be complete when the LED Power light stops blinking.

APPLY

Apply — Click to reset the router. It will be operational again after a few minutes. NOTE: This function does not change any settings you have made. It simply restarts (reboots) the router — just as Start / Shut Down / Restart reboots your computer — freeing up memory and system resources for more stable operation.

5 TROUBLESHOOTING

This section helps you troubleshoot problems you may be experiencing with the router. Before you contact your dealer for help, you should perform the following troubleshooting steps as they apply to your situation.

The router is not responding when I want to access it with the Web browser.

• Check the power connection and the connection of the network cable. All cords and cables should be correctly and firmly inserted into the router.
• If all LEDs on the router are off, check the status of the A/C power adapter, and make sure it's correctly plugged into your power outlet.
• Verify the IP address you connect to. The router's default IP address is 192.168.2.1, but you may have changed it.
• Are you using a MAC or an IP address filter? Try to connect to the router with another computer and see if it works; if not, restore the router's factory default settings by pressing the Reset button on the back panel of the router for at least 10 seconds.
• Set your computer to obtain an IP address automatically (DHCP) and check if your computer gets an IP address.
• If you did a firmware upgrade before the problem started, contact your dealer for assistance.

I can't get connected to the Internet.

• Go to Status / Internet Connection and check the Internet connection status.
• Be patient — sometimes the Internet is just slow.
• Connect a computer directly to the DSL or cable modem to see if you can access the Internet that way. If you can, check the WAN connection settings of the router to make sure they are set up correctly.
• Check the PPPoE / L2TP / PPTP user ID and password again.
• Call your Internet service provider and ask if there's something wrong with their service.
• If you just can't connect to one or more Web sites but you can still use other Internet services, check the URL/keyword filter to make sure that you are not trying to access a blocked Web site.
• Restart your modem and the router.
• Reset the device provided by your Internet service provider.
• Try to use an IP address instead of a hostname. If you can use an IP address to communicate with a remote server but can't use a hostname, check the DNS settings.

My wireless notebook cannot see or connect to the wireless network.

- Check if Broadcast ESSID is off. Remember that you need to input the ESSID on your wireless client manually if the ESSID broadcast is disabled.

- Check that you've securely attached the antenna(s).

- Make sure that you're not too far away from the router.

I can't log on to the Web management interface: The password is wrong.

- Make sure you're connecting to the correct IP address of the router.

- The password is case-sensitive. Make sure the Caps Lock feature isn't on.

- If you've simply forgotten your password, do a hardware reset using the Reset button on the back panel of the router.

The router becomes hot.

- It's normal for the router to heat up during operation, and this is usually nothing to worry about. If, however, the router gets too hot to touch, or if you smell something burning or see smoke coming from the router or A/C power adapter, immediately disconnect the router and adapter from the utility power — making sure it's safe to do this — and call your dealer for help.

The date and time of all the event logs are wrong.

- Adjust the internal clock of the router.

6 GLOSSARY

Default Gateway (Router): Every non-router IP device needs to configure a default gateway's IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it out toward the destination.

DHCP: Dynamic Host Configuration Protocol. This protocol automatically gives every computer on your home network an IP address.

DNS Server IP Address: DNS stands for Domain Name System, which allows Internet servers to have a domain name (such as www.Broadbandrouter.com) and one or more IP addresses (such as 192.34.45.8). A DNS server keeps a database of Internet servers and their respective domain names and IP addresses, so that when a domain name is requested (as in typing "Broadbandrouter.com" into your Internet browser), the user is sent to the proper IP address. The DNS server IP address used by the computers on your home network is the location of the DNS server your ISP has assigned to you.

DSL Modem: DSL stands for Digital Subscriber Line. A DSL modem uses your existing phone lines to transmit data at high speeds.

Idle Timeout: Idle Timeout is designed so that after there is no traffic to the Internet for a pre-configured amount of time, the connection will be disconnected.

IP Address and Network (Subnet) Mask: An Internet Protocol address consists of a series of four numbers separated by periods, which identifies a single, unique Internet computer host in an IP network. Example: 192.168.2.1 consists of two portions: the IP network address and the host identifier. The IP address is a 32-bit binary pattern that can be represented as four cascaded decimal numbers separated by “.”: aaa.aaa.aaa.aaa, where each “aaa” can be anything from 000 to 255; or as four cascaded binary numbers separated by “.”: bbbbbbbb.bbbbbbbb.bbbbbbbb.bbbbbbbb, where each “b” can either be 0 or 1. A network mask is also a 32-bit binary pattern, and consists of consecutive leading 1’s followed by consecutive trailing 0’s, such as 1111111.1111111.1111111.0 00 0 0 00 0. Therefore, sometimes a network mask can also be described simply as “x” number of leading 1’s. When both are represented side by side in their binary forms, all bits in the IP address that correspond to 1’s in the network mask become part of the IP network address, and the remaining bits correspond to the host ID. For example, if the IP address for a device is, in its binary form, 11011001.10110000.10010000.00000111, and if its network mask is 1111111.1111111.11110 0 0 0.0 0 0 0 0 0 it means the device’s network address is 11011001.10110000.10010000.00000000, and its host ID is 00000000.00000000.00000000.00000111. This is a convenient and efficient method for routers to route IP packets to their destination.

ISP: Internet Service Provider. An ISP is a business that provides connectivity to the Internet for individuals and other businesses or organizations.

LAN: Local Area Network. A LAN is a group of computers and devices connected together in a relatively small area (such as a house or an office). Your home network is considered a LAN.

MAC Address: MAC stands for Media Access Control. A MAC address is the hardware address of a device connected to a network, and is a unique identifier for a device with an Ethernet interface. It is composed of two parts: three bytes of data that corresponds to the Manufacturer ID (unique for each manufacturer), and three bytes that are often used as the product's serial number.

NAT: Network Address Translation. This process allows all of the computers on your home network to use one IP address. Using the broadband router's NAT capability, you can access the Internet from any computer on your home network without having to purchase more IP addresses from your ISP.

PPPoE: Point-to-Point Protocol over Ethernet. Point-to-Point Protocol is a secure data transmission method originally created for dial-up connections; PPPoE is for Ethernet connections. PPPoE relies on two widely accepted standards, Ethernet and the Point-to-Point Protocol. It is a communications protocol for transmitting information over Ethernet between different manufacturers.

Protocol: A protocol is a set of rules for interaction agreed upon between multiple parties so that when they interface with each other based on such a protocol, the interpretation of their behavior is well-defined and can be made objectively, without confusion or misunderstanding.

Router: A router is an intelligent network device that forwards packets between different networks based on network layer address information such as IP addresses.

Subnet Mask: A subnet mask, which may be a part of the TCP/IP information provided by your ISP, is a set of four numbers (e.g., 255.255.255.0) configured like an IP address. It's used to create IP address numbers used only within a particular network (as opposed to valid IP address numbers recognized by the Internet, which must be assigned by InterNIC).

TCP/IP, UDP: Transmission Control Protocol/Internet Protocol and Unreliable Datagram Protocol are the standard protocols for data transmission over the Internet. Both TCP and UDP are transport layer protocols. TCP performs proper error detection and error recovery, and thus is reliable. UDP, on the other hand, is not reliable. They both run on top of the IP (Internet Protocol), a network layer protocol.

WAN: A Wide Area Network connects computers located in geographically separate areas (e.g., different buildings, cities, countries). The Internet is a wide area network.

7 SPECIFICATIONS

Standards

• IEEE 802.1d (Spanning Tree Protocol)
  • IEEE 802.11a (54 Mbps Wireless LAN)
  • IEEE 802.11b (11 Mbps Wireless LAN)
• IEEE 802.11g (54 Mbps Wireless LAN)
  • IEEE 802.11n (450 Mbps Wireless LAN)
  • IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)

General

• LAN ports: 4 RJ45 10/100/1000 Mbps data ports
• LAN ports with Auto MDI/MDI-X
• WAN port: 10/100/1000 Mbps RJ45 connector
• LAN to WAN throughput: 275 Mbps
- PPPoE throughput: 163 Mbps
• 500 MHz MIPS CPU
- Flash: 8 MB
• Memory: 64 MB DDR2 RAM
• Certifications: FCC Class B, CE, RoHS

Router

• Supported WAN connection types:
- Dynamic IP (DHCP for cable service)
- Static IP
- PPPoE (for DSL)
- PPTP
- BigPond (Australia)

- Protocols:

• CSMA/CA
• CSMA/CD
• TCP/IP
• UDP
• ICMP
• PPPoE
• NTP
• NAT (network address translation)
• DHCP
• DNS

• NAT:

• Virtual server
• Port forwarding
• Special applications (port trigger)

- Firewall:

- Access control based on MAC address

• URL filter
• DMZ (demilitarized zone)
  • Supports UPNP (Universal Plug and Play)
  • Supports DHCP (client/server)
  • Supports PPPoE (DSL), DHCP (cable) and static IP
  • VPN pass-through: PPTP, IPSec, L2TP

Wireless 5.0 GHz

• Chipset: Ralink RT3883
• Link Speed: up to 450 Mbps
• Modulation technologies:

- 802.11a/n: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM

- Channels:

- USA & Canada: 36, 40, 44, 48, 149, 153, 157, 161, 165

- Europe: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140

- Output power:

- 11n (450 Mbps): 20 MHz: 14 dBm; 40 MHz: 14 dBm (±1.5 dBm)

- 11a (54 Mbps): 14 dBm (± 1.5 dBm)

- Receiver sensitivity:

• 11n (450 Mbps): 20 MHz: -66 dBm; 40 MHz: -64 dBm (±2 dBm)
• 11a (54 Mbps): -68 dBm (±2 dBm)

Wireless 2.4 GHz

• Chipset: Ralink RT3092
• Link Speed: up to 300 Mbps
• Modulation technologies:

• 802.11g: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM
• 802.11n: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM

- Channels:

• USA & Canada: 11 channels
• Europe: 13 channels

- Output power:

• 11n (300 Mbps): 20 MHz: 17 dBm; 40 MHz: 16 dBm (±1.5 dBm)
• 11g (54 Mbps): 17 dBm (±1.5 dBm)
• 11b (11 Mbps): 18 dBm (±1.5 dBm)

- Receiver sensitivity:

• 11n (300 Mbps): 20 MHz: -66 dBm; 40 MHz: -64 dBm (±2 dBm)
• 11g (54 Mbps): -70 dBm (±2 dBm)
• 11b (11 Mbps): -84 dBm (±2 dBm)

Wireless 2.4 + 5.0 GHz

- Wireless security:

• WEP encryption (64/128 bit)
• WPA TKIP

- WPA2 AES

- WPA2 mixed

- WPA RADIUS

- Client access control through media access control (MAC) filter

- Antennas:

- 3 fixed-dipole antennas with 3 dBi gain each

- 2.4 GHz/300 Mbps: 2T2R MIMO mode (2 transmitter, 2 receiver)

- 5 GHz/450 Mbps: 3T3R MIMO mode (3 transmitter, 3 receiver)

LEDs

• Power
• WLAN Link/Act
• WAN Link/Act
• WAN 10/100 Mbps
  • LAN 1-4 Link/Act
  • LAN 1-4 10/100/1000 Mbps

Environmental

• Dimensions: 195 (W) x 127 (L) x 35 (H) mm (7.6 x 5.0 x 1.4 in.)
  • Weight: 1.0 kg (2.2 lbs.)
• Operating temperature: 0 - 50^ (32 - 122°F)
• Operating humidity: 10 – 90% RH, non-condensing
• Storage temperature: -20 - 60^ (4 - 149^ )

Power

• External power adapter: 12 V DC, 1.25 A
  • Power consumption: 10.5 Watts max.

WASTE ELECTRICAL & ELECTRONIC EQUIPMENT

Disposal of Electric and Electronic Equipment

(applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or its packaging indicates that this product shall not be treated as household waste. Instead, it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. If your equipment contains easily removable batteries or accumulators, dispose of these separately according to your local requirements. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, contact your local city office, your household waste disposal service or the shop where you purchased this product. In countries outside of the EU: If you wish to discard this product, contact your local authorities and ask for the correct manner of disposal.

COMPLIANCE STATEMENTS

FCC Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from the receiver.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. To avoid the possibility of exceeding FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. The antenna(s) used for this transmitter must not be co-

located or operating in conjunction with any other antenna or transmitter.

The equipment version marketed in the U.S. is restricted to usage of channels 1-11.

CE / R&TTE

This device complies with the requirements of R&TTE Directive 1999/5/EC.

The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden and the United Kingdom, and is also authorized for use in EFTA member states Iceland, Liechtenstein, Norway and Switzerland.

INTELLINET™

NETWORK SOLUTIONS

INTELLINET NETWORK SOLUTIONS™ offers a complete line of active and passive networking products.

Ask your local computer dealer for more information or visit

www.intellinet-network.com.
