Product Type	Surface-Mounted Paper Towel Dispenser
Brand	Bobrick
Model	B-6861
Material	Type 304 Stainless Steel
Dimensions (W x H x D)	11.5 in x 9 in x 4.5 in (292 mm x 229 mm x 114 mm)
Weight	3.5 lb (1.6 kg)
Capacity	500 C-fold or multifold paper towels
Paper Towel Fold Type	C-fold or multifold (e.g., 9.5 in x 9.5 in)
Mounting Type	Surface mount with concealed fasteners
Dispensing Mechanism	Pull and tear
Door Type	Hinged, key-locked
Finish	Satin finish
Included Hardware	Mounting screws and wall anchors
Key Type	Triangular key (included)
Compliance	ADA compliant when installed at proper height
Warranty	Limited lifetime against defects
Use Environment	Restroom, commercial, institutional
Cleaning Instructions	Wipe with damp cloth; do not use abrasive cleaners
Repairability	Replacement parts available (door, key, hinge, etc.)
Country of Origin	Made in USA

Frequently Asked Questions - B-6861 Bobrick

How do I install the Bobrick B-6861 paper towel dispenser?

Installation requires mounting on a solid wall at the recommended height (48 in from floor to bottom). Use the included screws and wall anchors. Drill pilot holes, secure the backplate, then attach the dispenser body. Ensure the unit is level. Refer to the installation template provided in the manual.

What type of paper towels are compatible with the B-6861?

The B-6861 is designed for C-fold or multifold paper towels, typically 9.5 in x 9.5 in. It holds up to 500 towels. Do not use roll towels or single-fold towels.

How do I refill the dispenser with paper towels?

Use the key to unlock the door. Open the door fully. Place a stack of C-fold towels onto the loading platform, ensuring the folded edges face outward. Close the door and lock it. The towels should dispense one at a time.

What are the dimensions of the Bobrick B-6861?

The dispenser dimensions are 11.5 in wide, 9 in high, and 4.5 in deep (292 mm x 229 mm x 114 mm). It requires a clearance of at least 6 in above for refilling.

Is the B-6861 ADA compliant?

Yes, when installed at the proper height (48 in from finished floor to bottom of dispenser), it meets ADA guidelines for reach range and operation. The pull force required to dispense towels is minimal.

How do I clean and maintain the dispenser?

Wipe the exterior with a soft, damp cloth and mild soap. Do not use abrasive cleaners, steel wool, or bleach, as they can damage the stainless steel finish. Periodically check hinges and lock for smooth operation.

What is the warranty on the Bobrick B-6861?

Bobrick offers a limited lifetime warranty against defects in materials and workmanship. It covers replacement parts but not damage from misuse or improper installation. See the manual for full terms.

Can I replace the lock or key if lost?

Yes, replacement locks and keys are available from Bobrick or authorized distributors. The standard key is a triangular key (Bobrick part number 600-XX). Contact Bobrick customer service for ordering.

What is the weight capacity of the B-6861?

The dispenser itself weighs 3.5 lb (1.6 kg). It is designed to hold up to 500 paper towels, typically adding about 5-7 lb when fully loaded. Ensure wall anchors can support at least 15 lb.

Is the Bobrick B-6861 suitable for outdoor use?

The B-6861 is made of Type 304 stainless steel, which is corrosion-resistant, but it is designed for indoor restroom use. Prolonged exposure to moisture or outdoor elements may cause tarnishing. For outdoor use, consider a weather-shielded model.

USER MANUAL B-6861 Bobrick

Technical Data	11⁄2" (38mm) DIAMETERSTAINLESS STEEL GRABBARS WITH SNAP FLANGE		B-6806SERIES
Specify Finish Required: □ Satin-finish, slip-resistant surface□ Peened surface; add suffix .99 to model number
HORIZONTAL	VERTICAL	TWO-WALL WHEELCHAIRCOMPARTMENT
B-6806 x 12, 18, 24, 30, 36, 42, 48		B-68137
HORIZONTAL TUB / SHOWERCOMPARTMENT BAR 24 x 36	HORIZONTAL TWO-WALL BARfor Shower Stall	TWO-WALLTOILET COMPARTMENT BAR 42 x 54
B-68616	B-6861	B-6897
continued...

1½" (38mm) DIAMETER STAINLESS STEEL GRAB BARS WITH SNAP FLANGE
B-6806 SERIES

MATERIALS:

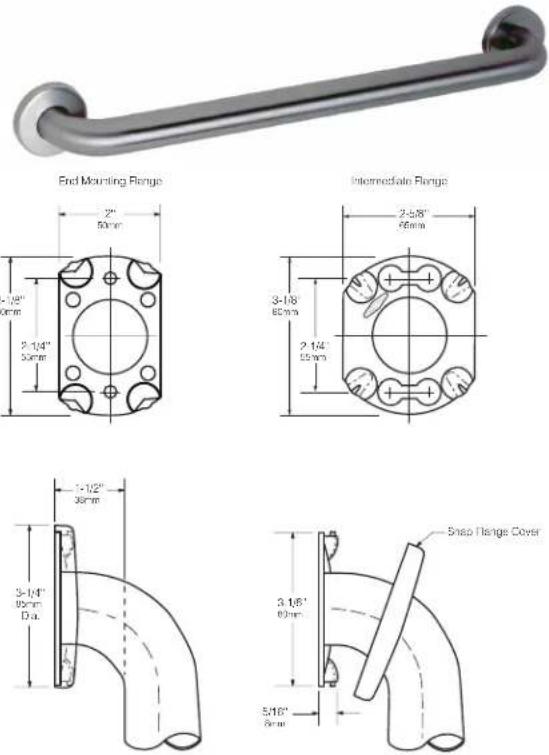

Grab Bar — 18-8 S, type-304, 18-gauge (1.2mm) stainless steel tubing with satin-finish, slip-resistant surface. 1-1/2" (38mm) outside diameter. Ends are heliarc welded to flanges. Clearance between the grab bar and wall is 1-1/2" (38mm).

Concealed Mounting Flanges — 18-8 S, type-304, 11-gauge (3.2mm) thick, stainless steel plate; end flanges 2" x 3-1/8" (50 x 80mm) with holes for attachment to wall. Intermediate flanges 2-5/8" x 3-1/8" (65 x 80mm) wide x 3-1/8" (80mm) diameter.

Snap Flange Covers — 18-8 S, type-304, 22-gauge (0.8mm) drawn stainless steel with satin-finish. 3-1/4" (85mm) diameter x 1/2" (13mm) deep. Each cover snaps over mounting flange to conceal mounting screws.

STRENGTH:

Bobrick grab bars that provide 1-1/2" (38mm) clearance from wall can support loads in excess of 900 pounds (408kg) if properly installed. Other grab bar configurations can support loads in excess of 250 pounds (113kg) if properly installed, complying with accessible design (including ADAAG in the U.S.A.) for structural strength

Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended. To avoid potential injury, the building owner or maintenance personnel should remove the grab bar from service if the grab bar is not adequately secured to wall or if there is any observed damage to the welds.

INSTALLATION:

Provide concealed anchor device or backing as specified or required in accordance with local building codes before wall is finished. Fasten concealed mounting flanges to anchor device or backing with at least two screws opposing each other in each flange. Snap flange covers over each mounting flange to conceal mounting screws. Concealed anchor devices and mounting screws are not included with Bobrick grab bars and must be specified as an accessory.

For Grab Bars with an Intermediate Flange(s), Pull Snap-Flange Covers away from mounting flanges. Place grab bar in desired mounting location. Use intermediate flange as a template to mark location of mounting screws at intermediate flange only. Mark screw locations at the center of the slot in the middle of the double-keyhole shaped mounting holes (2) in the intermediate flange. Remove grab bar from wall. Drive the intermediate flange mounting screws into wall at marked locations. Note: Make sure to leave a space of just over 1/8" (3.17mm) between the underside of the screw head and the wall. Install grab bar on the wall by placing the round ends of the intermediate flange double-keyhole shaped mounting holes over the mounting screws (2) are located in the middle of the flange slots. Install the mounting screws into the wall at the end flanges and secure tightly. Tighten the mounting screws at the intermediate flange. Press all snap-flange covers into place to conceal mounting flanges.

Note: Recommend use of 1/4" or #14 sheet metal or wood screws to install Intermediate Flange. #12 screws may also be used.

Important Notes:

1. Mounting Kits — Bobrick offers a mounting kit for installing grab bars; one Bobrick mounting kit is required for each flange.

Mounting Kit No.	Description
252-30	Consists of # (3) 14 x 2 12 " type-304 stainless steel, Phillips round-head, sheet-metal screws.

1. Grab Bar Fastener — Bobrick offers a grab bar fastening system that secures all Bobrick grab bar series; one Bobrick fastener is required for each flange. Install grab bar without backing in wall requires minimum 5/8" (16mm) thick painted or tiled drywall.

WingltTM Fastener No.	Description
251-4	Consists of 10–32 x 5/16" round-head, Phillips 18/8 stainless steel screws.(1) Winglt grab bar fastener.

1. Optional Anchor Device — Bobrick grab bar anchor device includes stainless steel machine screws to be used for attaching grab bars to anchors. one Bobrick concealed anchor device is required for each flange.

Optional Anchor No.	Description
2583	Anchor for 3/4" to 1" (19-25mm) panel1 anchor required for each flange.
2586	Anchor for 1/2" to 1" (13mm) panel1 anchor required for each flange.

SPECIFICATION:

Grab bar shall be type-304 stainless steel with satin-finish, slip-resistant surface. Grab bar shall have 18-gauge (1.2mm) wall thickness and 1-1/2" (38mm) outside diameter. Clearance between the grab bar and wall shall be 1-1/2" (38mm). Concealed mounting flanges shall be 11-gauge (3.2mm) thick stainless steel plate, 2" x 3-1/8" (50 x 80mm), and equipped with at least two screw holes for attachment to wall. Flange covers shall be 22 gauge (0.8mm), 3-1/4" (85mm) diameter x 1/2" (13mm) deep, and shall snap over mounting flange to conceal mounting screws and/or WingIt fasteners. Ends of grab bar shall pass through concealed mounting flanges and be heliarc welded to form one structural unit. Grab bar shall comply with accessible design (including ADAAG in the U.S.A.) for structural strength.

Grab Bar shall be Model ____ (insert model number) of Bobrick Washroom Equipment, Inc., Clifton Park, New York; Jackson, Tennessee; Los Angeles, California; Bobrick Washroom Equipment Company, Scarborough, Ontario; Bobrick Washroom Equipment Pty. Ltd., Australia; and Bobrick Washroom Equipment Limited, United Kingdom.
