Product Type	Recessed Waste Receptacle
Brand	Bobrick
Model	B-35643
Cabinet Material	18-8 Type 304 heavy-gauge stainless steel, all-welded construction, satin finish
Door Material	18-8 Type 304 18-gauge (1.2mm) stainless steel, satin finish
Waste Receptacle Material	Leak-proof rigid molded plastic, removable
Rough Wall Opening Width	15-3/4" (400mm)
Rough Wall Opening Height	38-1/2" (978mm)
Minimum Recess Depth	7-11/16" (195mm)
Waste Capacity	12 gallons (45.4 liters)
Door Hinge	Concealed full-length stainless steel piano hinge
Lock Type	Two tumbler locks, flush with door, keyed like other Bobrick washroom accessories
Door Swing Limiter	Cable type to prevent damage to walls and accessories
Installation Fasteners	(4) #10 x 1-1/4" (4.8 x 32mm) sheet-metal screws (not supplied)
Replacement Skirt Kit	Model 35649-53
Replacement Door Kit	Model 35649-173
Replacement Lock and Key	Model 38030-20
Replacement Waste Receptacle	Model 39003-31

Frequently Asked Questions - B-35643 Bobrick

What are the rough wall opening dimensions for the Bobrick B-35643?

The rough wall opening must be 15-3/4" (400mm) wide by 38-1/2" (978mm) high with a minimum recessed depth of 7-11/16" (195mm) from the finished wall face.

What material is the cabinet made of?

The cabinet is constructed from 18-8 Type 304 heavy-gauge stainless steel with all-welded construction and a satin finish.

What is the capacity of the waste receptacle?

The removable plastic waste receptacle has a capacity of 12 gallons (45.4 liters) and is leak-proof.

Are the locks keyed alike with other Bobrick accessories?

Yes, the two tumbler locks are keyed alike and are designed to match other Bobrick washroom accessories for convenience.

What replacement parts are available for the B-35643?

Replacement parts include: Skirt Kit 35649-53, Door Replacement Kit 35649-173, Lock and Key 38030-20, and Plastic Waste Receptacle 39003-31.

What screws are needed for installation?

The unit mounts with (4) #10 x 1-1/4" (4.8 x 32mm) sheet-metal screws (not supplied). Use shims between framing and cabinet at indicated points.

Does the door have a swing limiter?

Yes, a cable door-swing limiter is included to prevent damage to adjacent washroom accessories and walls.

Is the waste receptacle removable for servicing?

Yes, the waste receptacle is removable. Unlock the door with the provided key and lift out the container.

What is the gauge of the door stainless steel?

The door is made of 18-gauge (1.2mm) stainless steel, Type 304, with a satin finish.

How many locks are on the door?

The door has two tumbler locks that are flush with the door surface (no protrusion).

USER MANUAL B-35643 Bobrick

Exterior view of a modern office building (no signage)

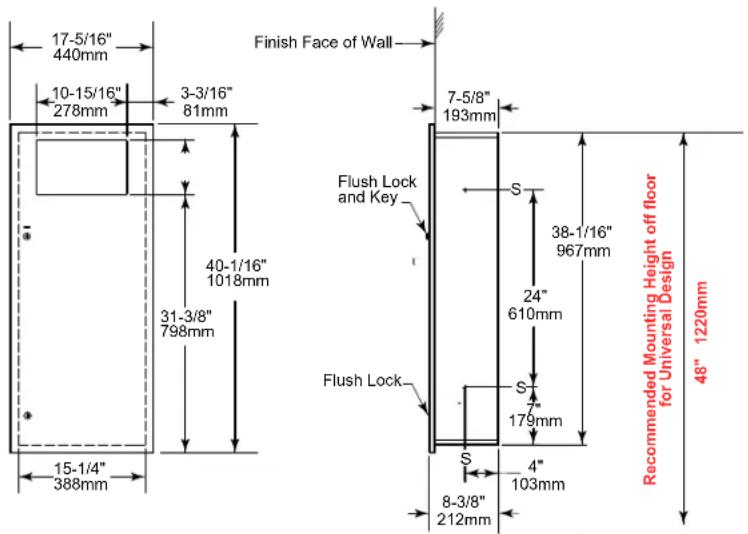

Rough Wall Opening 15-3/4" (400mm) wide 38-1/2" (978mm) high 7-11/16" (195mm) min depth

MATERIALS:

Cabinet — 18-8, Type-304, heavy-gauge stainless steel. All-welded construction. Exposed surfaces have satin-finish.

Door — 18-8, Type-304, 18-gauge (1.2mm) stainless steel with satin-finish. Secured to cabinet with a concealed, full-length stainless steel piano-hinge. Equipped with two tumbler locks keyed like other Bobrick washroom accessories. Tumbler locks flush with the door - no protrusion.

Waste Receptacle — Leak-proof, rigid molded plastic waste receptacle. Removable for servicing. Capacity: 12-gal. (45.4-L).

OPERATION:

To service waste receptacle, unlock door with key provided and remove waste container. Cable door-swing limiter prevents damage to washroom accessories and walls.

INSTALLATION:

Provide framed rough wall opening 15-3/4" wide x 38-1/2" high (400 x 978mm). Minimum recessed depth required from finish face of wall is 7-11/16" (195mm). Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with mechanical engineer to avoid pipes, vents, and conduits in wall. Mount cabinet with shims between framing and cabinet at all points indicated by an S, then secure unit with (4) #10 x 1-1/4" (4.8 x 32mm) sheet-metal screws (not furnished).

Replacement Parts:

Skirt Kit 35649-53

Door Replacement Kit 35649-173

Lock and Key 38030-20

Plastic Waste Receptacle 39003-31

SPECIFICATION:

Recessed waste receptacle shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Door shall be Type-304, 18 gauge (1.2mm) secured to cabinet with a concealed, full-length stainless steel piano-hinge, cable door-swing limiter and equipped with two tumbler locks keyed like other Bobrick washroom accessories. Tumbler locks flush with the door - no protrusion. Waste receptacle shall be furnished with a removable, leak-proof, rigid molded plastic waste-container with a minimum capacity of 12-gal. (45.4-L).

Recessed Waste Receptacle shall be Model B-35643 of Bobrick Washroom Equipment, Inc., Clifton Park, New York; Jackson, Tennessee; Los Angeles, California; Bobrick Washroom Equipment Company, Scarborough, Ontario; Bobrick Washroom Equipment Pty. Ltd., Australia; and Bobrick Washroom Equipment Limited, United Kingdom.
