MasterBox TD500 Mesh V2 - Computer Case CM Storm - Free user manual and instructions

Product Type	Mid-Tower Computer Case
Brand	CM Storm (Cooler Master)
Model	MasterBox TD500 Mesh V2
Motherboard Support	ATX, Micro-ATX, Mini-ITX
Dimensions (L x W x H)	500 x 210 x 480 mm
Weight	Approx. 7.5 kg
Material	Steel, Mesh, Tempered Glass
Expansion Slots	7
Drive Bays	2x 3.5", 2x 2.5"
Front I/O Ports	1x USB 3.0, 1x USB-C, 1x Audio Jack
Cooling Support (Front)	3x 120mm or 2x 140mm fans (not included)
Cooling Support (Top)	2x 120mm or 2x 140mm fans
Cooling Support (Rear)	1x 120mm fan
Radiator Support (Front)	Up to 360mm
Radiator Support (Top)	Up to 240mm
Maximum GPU Length	410 mm
Maximum CPU Cooler Height	165 mm
PSU Support	ATX PSU up to 180 mm
Warranty	2 years (limited hardware warranty)
Package Content	Screws, rubber grommets, ARGB hub, cable ties

Frequently Asked Questions - MasterBox TD500 Mesh V2 CM Storm

What is the maximum GPU length supported by MasterBox TD500 Mesh V2?

The case supports graphics cards up to 410 mm in length, allowing for most high-end GPUs.

Does the MasterBox TD500 Mesh V2 include fans?

No, the case does not come with pre-installed fans. You will need to purchase fans separately. It supports up to 3x 120mm or 2x 140mm fans at the front.

What type of motherboard does this case support?

It supports ATX, Micro-ATX, and Mini-ITX motherboards.

Does the MasterBox TD500 Mesh V2 have a tempered glass side panel?

Yes, it features a tempered glass side panel for showcasing your components.

How do I clean the mesh front panel?

The mesh front panel is removable and washable. You can remove it and clean with mild soap and water, then dry thoroughly before reattaching.

What is the warranty period for this case?

Cooler Master provides a 2-year limited hardware warranty for the MasterBox TD500 Mesh V2, covering defects in material and workmanship.

Can I install a 360mm radiator in the front?

Yes, the front panel supports radiators up to 360mm in size.

Are there any cable management features?

Yes, the case includes rubber grommets and cable tie-down points for a clean build, with up to 20mm of clearance behind the motherboard tray.

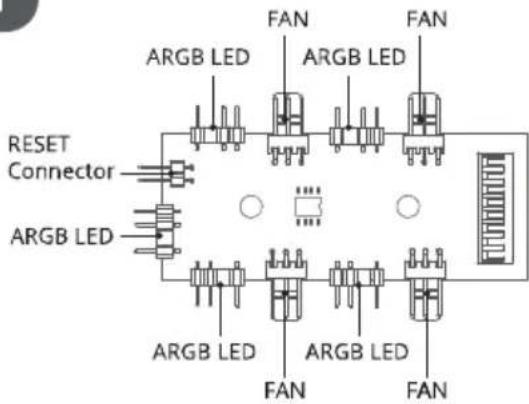

Does the MasterBox TD500 Mesh V2 come with an ARGB hub?

Yes, a 3-port ARGB hub is included to manage RGB lighting.

What is the maximum CPU cooler height?

The case allows for CPU coolers up to 165 mm in height.

USER MANUAL MasterBox TD500 Mesh V2 CM Storm

Make It Yours.

MASTERBOX TD500 MESH V2

A

x13

B

x12

C

x12

D

x1

E

x4

F

x10

512005770-GP V1.0 2022-11

EN	Package Content	HU	A csomag tartalma
AR	низمة المحتوى	ID	Isi Paket
BG	Съдържание на пакета	IT	Contenuto della scatola
CHS	零件包	JP	パッケージ内容物
CHT	零件包	KR	구성품
CS	Obsah balení	NL	Verpakkingsinhoud

DE	Verpackungsinhalt
EL	Περιεχόμενα Συσκευασίας
ES	Contenido Paquete
FR	Contenu de l'emballage
FA	محتويات

PL	Zawartość opakowania
PT	Conteúdo da embalagem
RU	Комплектация
SR	Saržaj pakovanja
TR	Paket içeriği

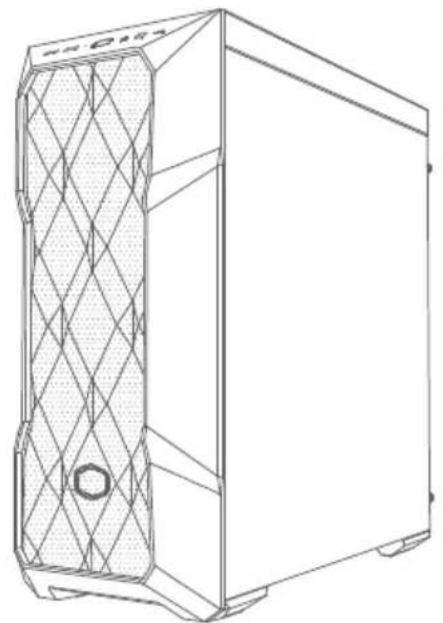

Line drawing of a computer tower case with mesh insulation and ventilation grilles (no text or symbols)

Technical line drawing of a rectangular device with diamond grid pattern and central circular hole (no text or symbols)

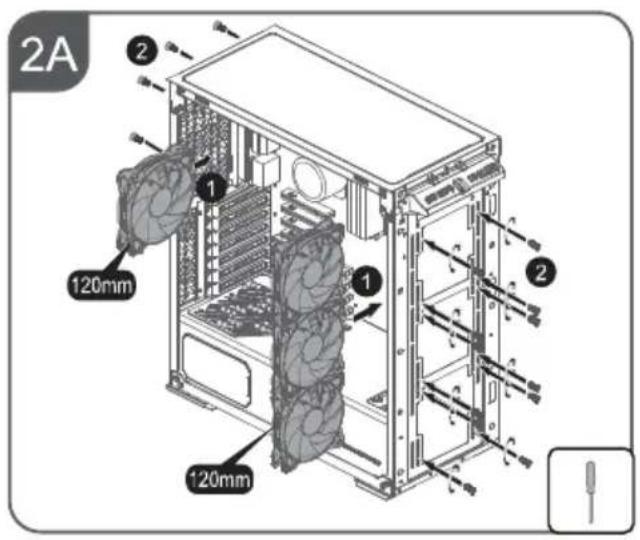

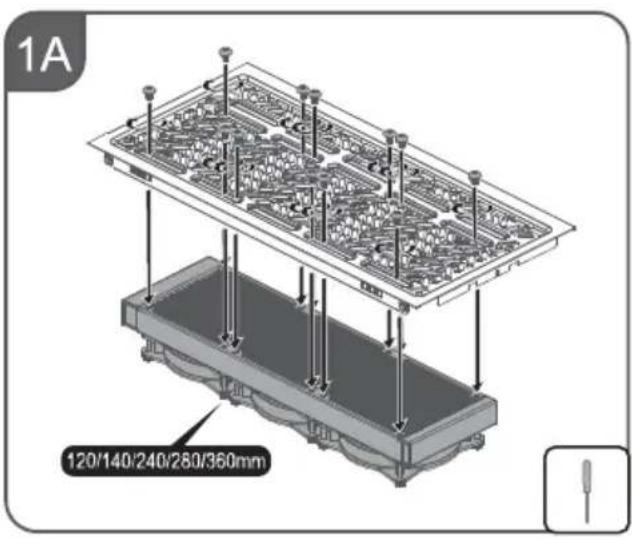

1

2

3

4

1

5

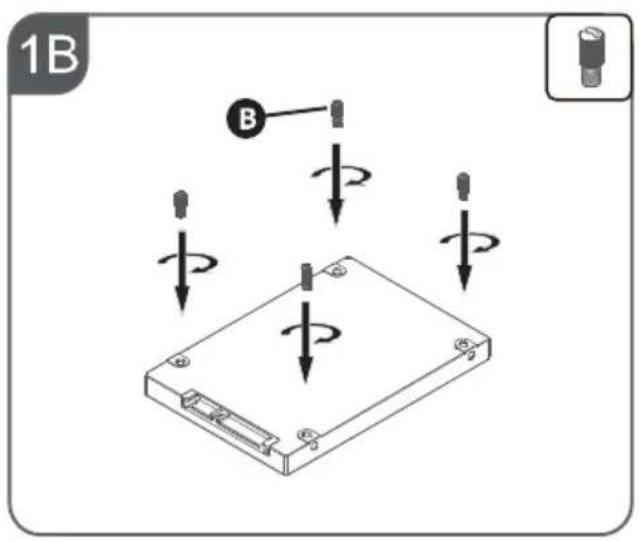

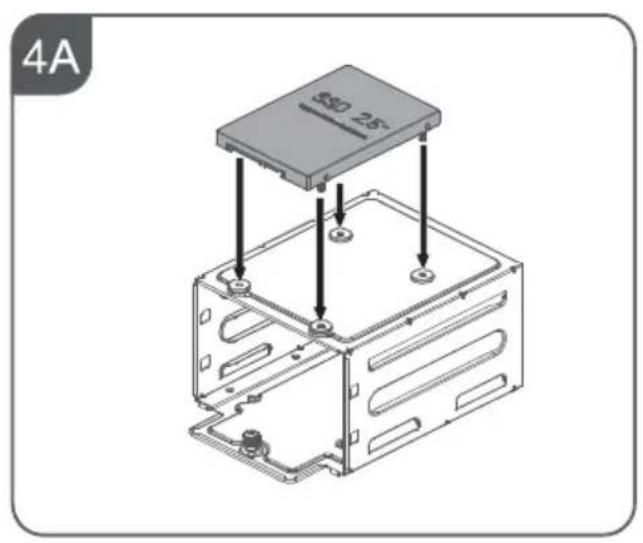

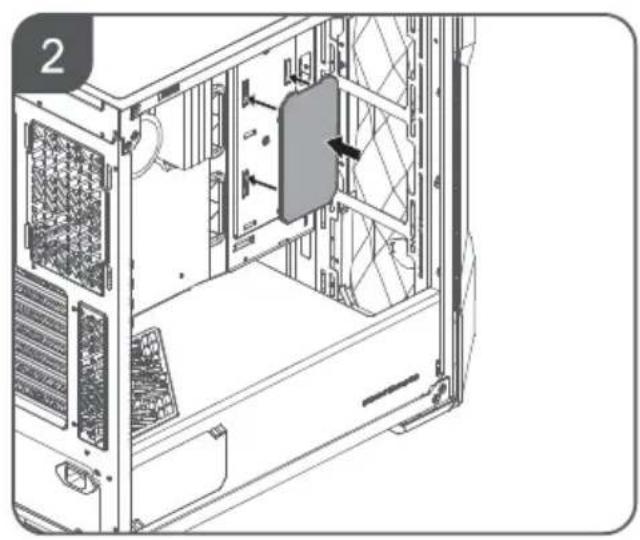

2.5"

Technical line drawing of a dual-chamber computer tower with visible internal components and mounting holes (no text or symbols)

OR

7

3.5"

OR

OR

Diagram of a device with an open lid and internal grid structure, no text or symbols present

OR

OR

OR

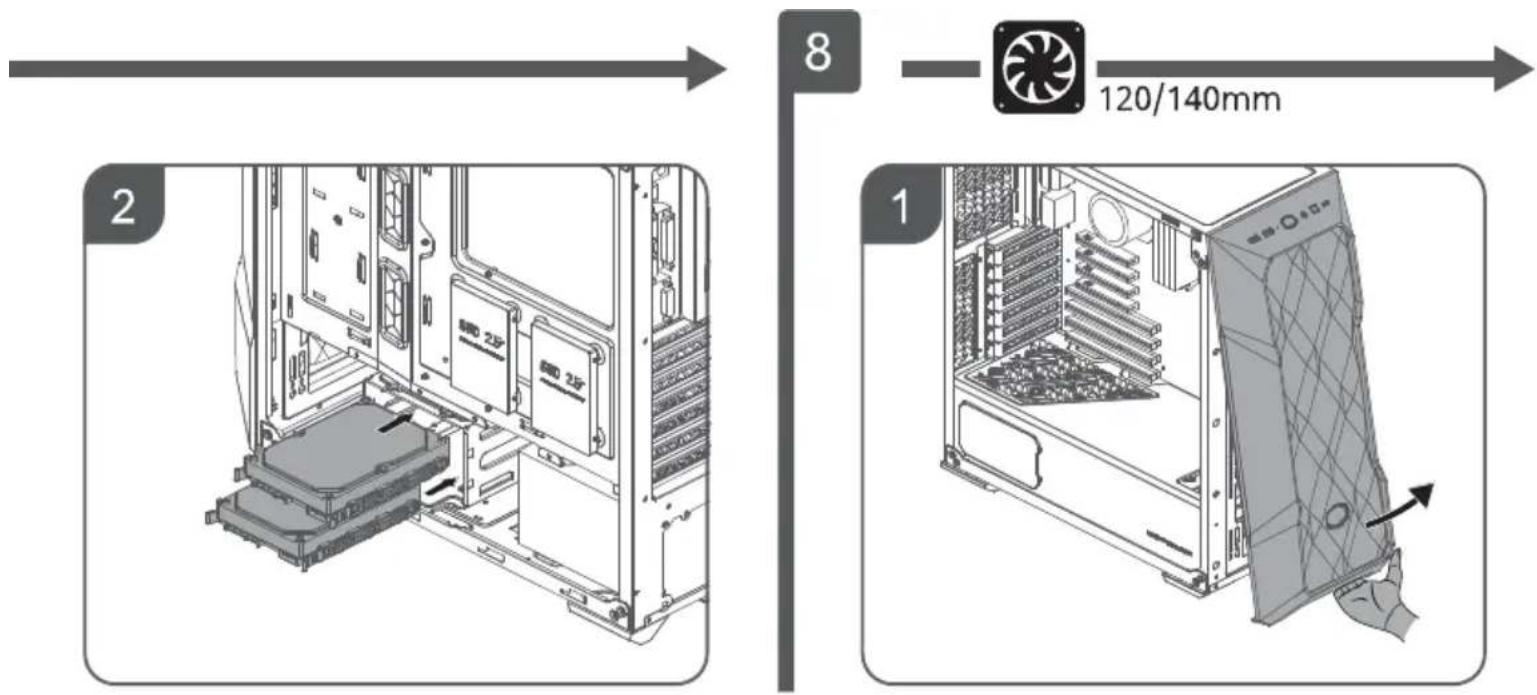

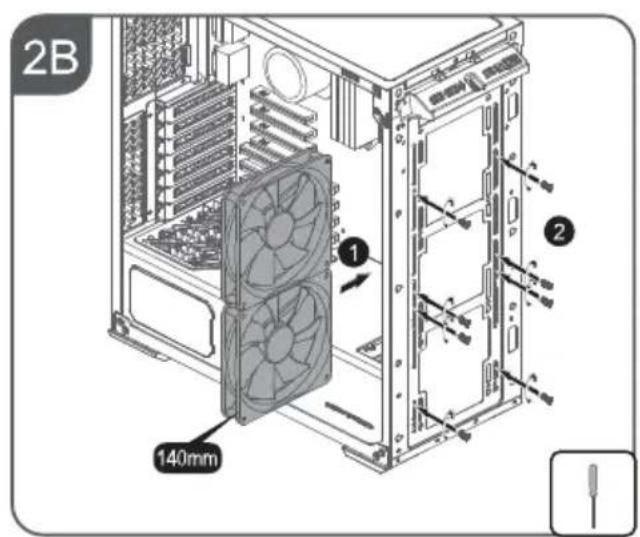

1

2

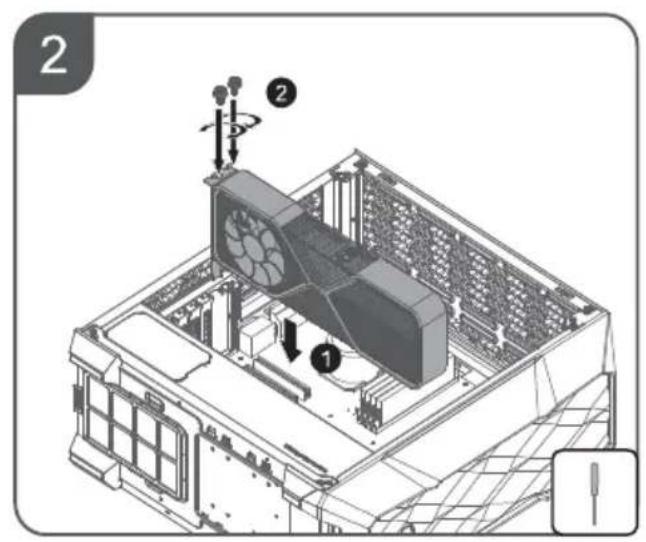

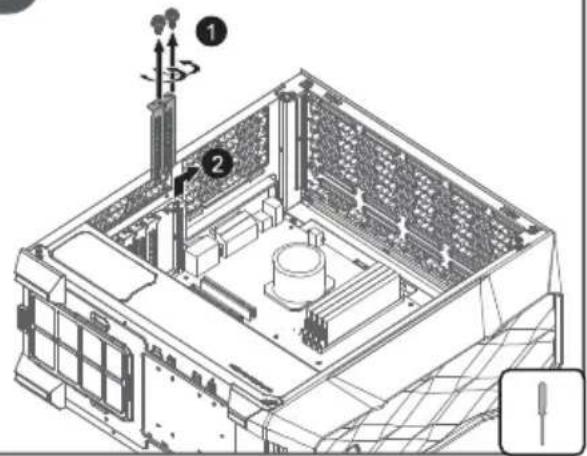

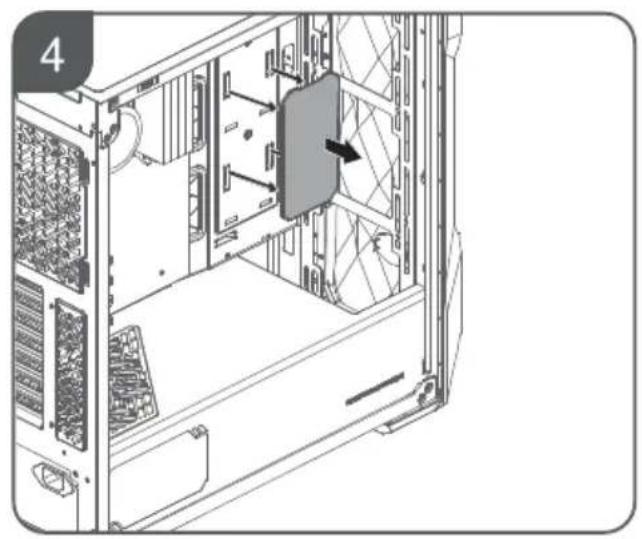

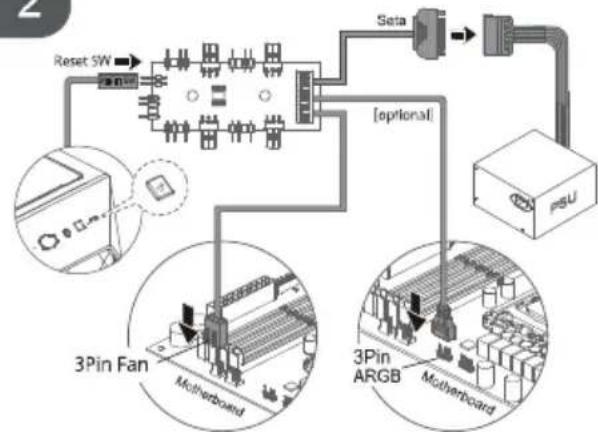


Technical line drawing of a server rack with internal components and a highlighted panel (no text or symbols)

Technical line drawing of a server rack with internal components and a highlighted panel (no text or symbols)
