USER MANUAL Emisor térmico UFESA

EM600/900/1200/1500/2000/2000 Connect

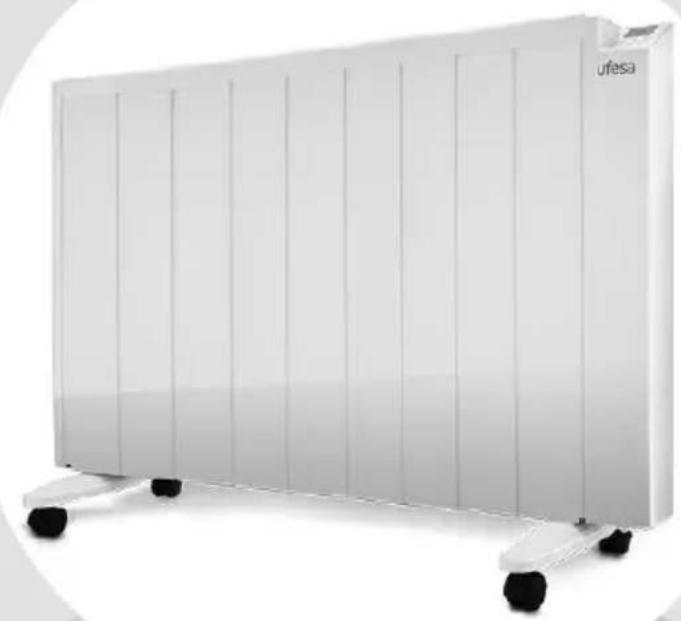

White rectangular solar heating unit with black wheels and a 'ufesa' logo on top (no text or symbols on the device itself)

This product is only suitable for well insulated spaces or occasional use

ESTRUCTURA Y PARTES:

Simple line drawing of a rectangular frame with vertical divisions and two identical cartoon-style wheels below (no text or symbols)

Simple line drawing of a rectangular frame with vertical bars and two identical cartoon-style wheels below (no text or symbols)

1) Painel de controle e display:

Em espera

WE WOULD LIKE TO THANKS YOUR FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

IMPORTANT WARNING

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT. KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1. Body
2. LCD screen
3. Control panel
4. Power switch
5. Out-let

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Heater must not be located immediately below a socket-outlet.

Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been

placedor installed in its intended normal operating position and they have been given supervision of instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION-Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

The heater is to be installed so that switches and other controls cannot be touched by a person in the bath or shower.

Proceed according to INSTALLATION section of this manual for installation instructions.

symbol means that the product should not be covered

WARNING: In order to avoid overheating, do not cover the heater.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

Do not pull on the connection cord in order to unplug it or use it as a handle

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

STRUCTURE AND PARTS:

Pls assembly the feet as above picture.

Simple line drawing of a vehicle with wheels and two supporting wheels (no text or symbols)

1) Button:

Power on / stand by

⊕ Increasing; Keep pressing for quick increasing; Forward the hour in 24 hour program setting.

- Decreasing; Keep pressing for quick decreasing; Backward the hour in 24 hour program setting.

M Select mode or program

Setting / OK

Open-window on/off

2) Quick start:

Press ⏻ to turn on the screen, the equipment will work under COMFORT mode, press ⚠ ⊖ to set the desired temperature.

3) Clock setting:

For first using of program, the clock will require setting before use the P1/P2/P3, only when the clock setting is finished, the program can work.

When in clock setting, the hour will twinkle first, press +/- to set the right time (0-23) and press 🔒 to get into minute setting, press +/- to set the right time (0-59) and press 🔒 to get into date setting, press +/- to set the date from 1-7, press 🔒 to finish the date setting.

Clock modification: Long press ⏻ 3 seconds to modify the clock.

4) Function setting:

1. Ⓜ→G→P1→P3→P2→ Press Ⓜ to choose the mode or the program;

2. Press ⊕ ⊖ to choose the temperature.

Comfort mode: Setting temp. from 5°C to 35°C

• ECO mode: Setting temp. from 1.5°C to 31.5°C; 3.5°C less than comfort mode, when you set up the temp. of comfort mode.

Anti-frost mode: Setting 7°C for room temp; Cannot change the temp.

1. Program modification:

It's with factory presetting of the program P IP2P3, this program can get modified according to the requirement of customer.

Press Ⓜ to choose the program, only when the program get selected, press ⏱ to modify the program.

When you're in P I, press ⓞ once, P I LOGO and the fist hour LOGO 0 start to twinkle.

Use Ⓜ to choose the mode for each hour and use ⊕ ⊖ to move the twinkle hour LOGO ⏻ till finish 24 hour mode setting. Press ⚙ to confirm the 24 hour setting and quit the setting status.

When you're in P2, press Ⓤ once, P2 LOGO and the fist hour LOGO * start to twinkle.

Use Ⓜ to choose the mode for each hour and use ⊕ ⊖ to move the twinkle hour LOGO ⚪ till finish 24 hour mode setting.

Press ☑ to confirm the 24 hour setting and turn from working days program 1 2 3 4 5 to weekend program 6 7 setting. When finish the setting press ☑ to confirm and quit.

When you're in P3, press ⓞ once, P3 LOGO and the fist hour LOGO * start to twinkle.

Use Ⓜ to choose the mode for each hour and use ⊕ ⊖ to move the twinkle hour LOGO till finish 24 hours mode setting. Press ⏱ to confirm the 24 hour setting and turn from Monday program to Tuesday program setting. When finish 7 days setting press ⏱ to confirm and quit.

means comfort mode;

means ECO mode;

means Anti-frost mode;

NOTE: the block against the clock will twinkle when the block corresponding the program is working.

5) Program factory presetting:

P1: Same program from Monday to Sunday, custom can modify the program.

1200 P.I 1 2 3 4 5 6 7 22.0°C + - 0 3 6 9 12 15 18 21 24

P2: Same program from Monday to Friday and same program from Saturday to Sunday, custom can modify the program.

1200 P2 1 2 3 4 5 18.5 °C 0 3 6 9 12 15 18 21 24h

Working day

1200 P2 6 7 18.5 °C 0 3 6 9 12 15 18 21 24h

Weekend

P3 : Can set different program for each day.

Factory presetting is with same program from Monday to Friday, same program from Saturday to Sunday.

1200 P3 1 18.5°C 0 3 6 9 12 15 18 21 24h

Working day

1200 P3 6 22.0°C 0 3 6 9 12 15 18 21 24h

Weekend

6) Windows detector function:

Press ☐ one time to turn on/off the windows function, when the logo display in the screen, it means window function is on.

When the function is active, a drop in temperature by 2^ C in less than 2 minutes, heater will stop working and the window logo 📋 is twinkling.

Press 📄, the heater will go back to former running program, then the windows logo stop twinkling.

7) Screen lock

No operation for 1 min, keyboard lock automatically.

Press ⊕ and ⊖ together unlock the keyboard.

will show only the unit is heating

8) Wifi connect

Press 📋 more than 3 seconds, the icon Ⓤ will flash quickly, open the APP and follow the instruction to connect it.

If the heater is not connected with APP in one minute after icon flashing, the wifi function would be in standby mode, the 📦 icon would go out. Press ⏻ button more than 3 seconds to restart the wifi function.

CLEANING & MAINTENANCE

• Switch off and unplug from the power supply before cleaning.
• Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface of the product.
• CAUTION: Allow the product to completely cool before handling or cleaning it.
• Do not allow water or other liquids to run into the interior of the product, as this could create a fire and/or electrical hazard.
• We also recommend the periodic cleaning of this appliance by lightly running a vacuum cleaner nozzle over the guards to remove any dust or dirt that may have accumulated inside or on the unit.
• CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the surface finish of the plastic components.

This product complies with European Directive 2012/19/EU on electrical and electronic devices, waste Electrical and Electronic Equipment), that provides the legal framework applicable in the Union for the disposal and reuse of waste electronic and electrical devices.

Do not dispose of this product in the rubbish. Go to the electrical and electronic waste collection is most to your home.
