Product Type	Blender
Brand	Panasonic
Model	MX-EP3101
Dimensions (H x W x D)	Approx. 38 x 18 x 18 cm
Weight	Approx. 1.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	300 W
Jar Capacity	1.0 L
Jar Material	Glass
Blade Material	Stainless steel
Number of Speeds	2 speeds + pulse
Main Functions	Blending, mixing, pureeing, grinding
Safety Features	Safety lock mechanism, non-slip feet
Cleaning	Removable blade assembly, hand wash recommended
Dishwasher Safe Parts	Jar and lid (top rack only)
Spare Parts Availability	Jar, lid, blade assembly, motor base
Repairability	Authorized service centers; limited user-replaceable parts
Warranty	2 years depending on region
Included Accessories	Blender jar, lid, recipe booklet
Country of Origin	China

Frequently Asked Questions - MX-EP3101 PANASONIC

How do I clean the blender jar and blades?

After unplugging, disassemble the jar from the base. Rinse immediately after use. For thorough cleaning, remove the blade assembly and wash with warm soapy water. The jar and lid are dishwasher safe (top rack only). Dry all parts before reassembling.

What is the maximum capacity of the blender jar?

The jar has a total capacity of 1.0 liter. For best results, do not fill beyond the 0.75 liter mark when blending hot liquids or ingredients that expand.

Can I blend hot liquids in this blender?

Yes, but exercise caution. Allow hot liquids to cool slightly before blending. Do not fill beyond the 0.75 liter mark. Remove the center cap of the lid to allow steam to escape and cover with a towel.

Why does the blender not start?

Ensure the jar is properly locked onto the base. The blender has a safety lock mechanism that prevents operation unless the jar is correctly positioned. Also verify the power cord is securely plugged in and the outlet is working.

How do I use the pulse function?

The pulse function provides short bursts of power. Press and hold the pulse button for short intervals to chop or mix ingredients without over-blending. Release to stop.

What can I blend with this blender?

This blender is suitable for making smoothies, purees, soups, sauces, grinding coffee beans or nuts (in small quantities), and crushing ice. For hard ingredients, always add some liquid first.

Is the blade assembly removable?

Yes, the blade assembly can be unscrewed from the jar for easy cleaning. Be careful when handling the sharp blades. Ensure the assembly is tightly secured before use.

What does the safety lock feature do?

The safety lock prevents the blender from operating if the jar is not correctly locked onto the motor base. This reduces the risk of accidents. Always ensure the jar is properly aligned and clicked into place.

How do I replace the blade assembly?

If the blades become dull or damaged, you can purchase a replacement blade assembly. Unlock the jar from the base, unscrew the old blade assembly, and screw on the new one. Ensure it is tight. Contact Panasonic service for genuine parts.

Can the blender be repaired by myself?

Basic parts like the jar, lid, and blade assembly are user-replaceable. For electrical issues or motor problems, it is recommended to contact an authorized Panasonic service center to ensure safety and warranty coverage.

USER MANUAL MX-EP3101 PANASONIC

Panasonic Manufacturing (Xiamen) Co., Ltd.

https://www.panasonic.com

© Panasonic Manufacturing (Xiamen) Co., Ltd. 2024

Printed in China

พิมพ์ในประเทศไทย

In tại Trung Quốc

VZ50V332

MX0724X0

RA.SN.SG

Panasonic®

Operating Instructions

คู่มือการใช้งาน

Hướng Dẫn Sử Dụng

Blender (Household Use)

Row of six different kitchen blender units in white and black, arranged in a row (no text or labels visible)

MX-EP3101MX-EP3111MX-EP3171

Thank you for purchasing this Panasonic product.

• Please read these instructions carefully to use the product correctly and safely.
• Before using this product please give your special attention to "Safety Precautions" and "Important Information" (P. EN2 - EN4).
• Please keep this Operating Instructions for future use.
• Panasonic will not accept any liability if the appliance is subject to improper use, failure to comply with these instructions.

Contents

Safety Precautions....EN2
Important Information ...... EN4
Parts Names and Instructions...... EN5
Before Use...... EN5
How to Use......EN6
Cleaning and Care......EN7
Safety Lock ...... EN7
Overload and Overheating Protection......EN7
Troubleshooting ...... EN8
Specifications ...... EN8

Safety Precautions

Please make sure to follow these instructions.

To reduce the risk of personal injury, electric shock or fire, please observe the following:

■ The following signals indicate the degree of harm and damage when the product is misused.

WARNING: Indicates potential hazard that could result in serious injury or death.

CAUTION: Indicates potential hazard that could result in minor injury or property damage.

■ The symbols are classified and explained as follows.

This symbol indicates prohibition.

This symbol indicates requirement that must be followed.

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, scalding or injury.

- Do not allow infants and children to play with packaging material.

(It may cause suffocation.)

- Do not disassemble, repair or modify this appliance.

→ Contact Service Centre for inspection or repair.

- Do not damage the power cord or power plug.

Following actions are strictly prohibited:

Modifying, touching on or placing near heating elements or hot surfaces, bending, twisting, pulling, hanging / pulling over sharp edges, putting heavy objects on top, bundling the power cord or carrying the appliance by the power cord.

EN2

WARNING

• Do not plug or unplug the power plug with wet hands.
• Do not use the appliance if the power cord or power plug is damaged or the power plug is loosely connected to the outlet.

→ If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

→ Insert the power plug firmly.

- Do not immerse the motor housing, power cord or power plug in water, or splash it with water and / or any liquid.

● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Keep the appliance and its power cord out of reach of children.
  ● Dust off the power plug regularly.

→ Unplug the power plug, and wipe with a dry cloth.

- Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

e.g. for abnormal occurrences or breaking down

- The power plug or the power cord become abnormally hot.

• The appliance power fails.

- The motor housing is deformed, has visible damage or is abnormally hot.

- There is crack on the blender jug or other parts.

• There is an unpleasant smell.

- There is abnormal turning noise while in use.

- There is another abnormality or failure.

→ Contact Service Centre for inspection or repair.

● Make sure the voltage indicated on the label of the appliance is the same as your local supply. Also avoid plugging other devices into the same outlet to prevent electric overheating. However, if you are connecting a number of power plugs, make sure the total wattage does not exceed the rated wattage of the outlet.
- Be careful if hot liquid is poured into the blender jug as it can be ejected out of the appliance due to a sudden steaming.

CAUTION

To avoid risk of electric leakage, electric shock, fire due to short circuit, scalding, injury or property damage.

● Do not use the appliance on the following places.

• Do not use the appliance for commercial purpose.
• On uneven surfaces, on carpets or tablecloths etc.
• Place where it may be splashed with water or near a heat source.
• Near any open water such as bathtubs, sinks, or other containers.
• Near a wall or furniture.
  → Place the appliance on a firm, dry, clean flat worktop.

Safety Precautions

Please make sure to follow these instructions.

CAUTION

• Do not blend or place over 60 °C ingredients into the blender jug.
• Do not put any liquids or wet ingredients into mill container. (MX-EP3111, MX-EP3171 only)
• Do not open the lid and put your fingers or utensils such as spoon or fork into the blender jug while the appliance is operating.
• Do not stretch the gasket to avoid deforming.
• Do not replace any parts of the appliance with non-genuine spare parts.
• Do not carry the appliance by holding the power cord, blender jug or mill container.
• Do not insert any object in the gaps of the appliance.
• Do not allow children to use the appliance without supervision.
• Do not blend more than the working capacity marked on the blender jug. For the mill container, do not place more than the maximum quantity (MX-EP3111, MX-EP3171 only). (P. EN8 "Specifications")
• Do not use prohibited ingredients as stated in this instructions. (P. EN5)
• Do not push the safety lock pin with any implement, such as thin stick etc. (P. EN7)
  ● Unplug the plug when the appliance is not in use.
  ● Make sure to hold the power plug when unplugging it. Never pull on the power cord.
  ● Beware not to trip over or get caught in the power cord while in use.
• In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
  ● Care shall be taken when handling the sharp blades, emptying the blender jug, mill container and during cleaning. Do not clean the blender blade or mill blade by bare hand.
  ● Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling, moving or cleaning.
• Switch off the appliance and disconnect from supply before changing attachments or approaching parts that move in use.
• Ensure to operate and rest the appliance as stated on specification table. (P. EN8 "Specifications")
• Ensure to clean the appliance especially surfaces in contact with food after use. (P. EN7 "Cleaning and Care")
  ● This product is intended for household use only.

Important Information

• Do not use the appliance outdoors.
• Do not use the appliance for commercial purpose.
• Do not drop the appliance or attachments to avoid damaging it.
• Do not wrap the power cord around the motor housing.
• Make sure the parts or attachments are set firmly before use.
• Do not operate the appliance without ingredients.

- Be sure the mill gasket is attached properly to prevent leakage. (MX-EP3111, MX-EP3171 only)

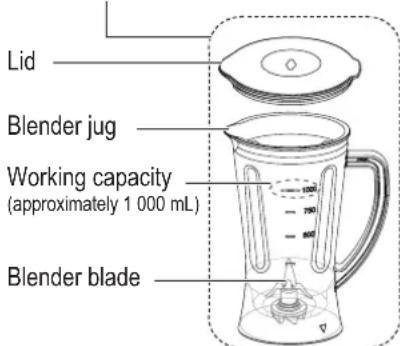

Parts Names and Instructions

Blender

MX-EP3101 / MX-EP3111: 1 set

MX-EP3171: 2 sets

Motor housing

Power plug*

Power cord

Dry mill (MX-EP3111, MX-EP3171 only)

Rotary switch

①

0

P

ON (continuous operation)

OFF

Pulse (the blade rotates only while the switch is being turned to "P" position)

- Repeatedly turn and release for intermittent rotation.

Accessory

Scraper

- During blending, use the scraper only through lid opening. Do not use with lid off.

*The shape of plug may be different from illustration.

Before Use

Clean all detachable parts before using the appliance for the first time or when you have not used it for a while, and then assemble them securely. (P. EN6 "How to Use" and P. EN7 "Cleaning and Care")

Blender

The blender is intended for

• Blending fluids
  e.g. fruit / vegetable juices, smoothie, soups, sauce.
  • Pureeing cooked ingredients
  e.g. for baby foods.

Prohibited Ingredients

• Meat
• Fish
  • Commercial ice cubes
• Hard ingredients (e.g. dried beans, turmeric, frozen food)
• Sticky ingredients (e.g. peanut butter)
• Ingredients with low water content (e.g. boiled potatoes)

Handling Precautions

• Dice food first (1 - 2 cm), remove the thick skin, core or seed from fruits and vegetables, then blend with liquid.
• Do not place ingredients with working capacity exceeding
  1 000 mL in the blender jug.
• Do not operate more than 3 minutes at one time, rest about 1 minute before use again.

Dry mill (MX-EP3111, MX-EP3171 only)

The dry mill is intended for

• Grinding dry ingredients;
  e.g. pepper, dried chilies, coffee beans, dried soy beans, dried peas, sesame seeds, rice, wheat, nuts (shelled), breadcrumbs.

Note: Do not put any liquids or wet ingredients into mill container.

Guidelines of Maximum Quantity to be Placed in Mill Container

Foods Maximum Quantity Time
Pepper	20 g	60 - 90 seconds
Dried chilies	20 g	60 - 90 seconds
Coffee beans	50 g	15 - 30 seconds

Handling Precautions

• Do not place any ingredients more than 50 g in the mill container.
• Do not operate more than 1 minute, rest about 2 minutes before use again.

How to Use

Blender

1 Place the ingredients into blender jug, and then close the lid.

- Pour liquid first, followed by soft ingredients and then others. (i) Liquid (ii) Soft ingredients (iii) Hard ingredients (iv) Ice cubes

2 Attach blender jug to the motor housing.

① Align the △ on the motor housing with the ▽ on the blender jug.

② Twist blender jug clockwise until you hear a click sound.

- Blender jug only can be attached by above steps.

3 Plug in. Hold the blender jug, and then turn the rotary switch to "1" position to start.

- If the appliance stops during operation. (P. EN8)

4 When blending is completed, turn the rotary switch to "0" position to switch off.

Unplug. Turn the blender jug anticlockwise to remove it, open the lid and take out the ingredients.

Dry mill (MX-EP3111, MX-EP3171 only)

To disassemble

Turn anticlockwise

To assemble

Turn clockwise

Make sure the mill gasket is not damaged and placed properly before assemble.

1 Turn the mill container upside down and place the ingredients in it. Twist the mill container base clockwise until you hear a click sound.

2 Attach the mill container to the motor housing.

① Align the △ on the motor housing with the ∇ on the mill container.

② Twist mill container clockwise until you hear a click sound.

- Mill container only can be attached by above steps.

3 Plug in. Hold the mill container, and then turn the rotary switch to "1" position to start.

- If the appliance stops during operation. (P. EN8)

4 When grinding is completed, turn the rotary switch to "0" position to switch off. Unplug.

Turn the mill container anticlockwise to remove it, open the mill container, and take out the ingredients.

How to use the scraper

• It can be inserted through the lid opening while blending without interfering with the blender blade.
• Slide the scraper through the lid opening and scrape to remove food sticking to blender jug sides.
• To avoid ingredients splattering, it is recommended to insert the scraper from the lid opening when using blender jug.

Scraper is useful when

- too little liquid makes ingredients hard to blend. (e.g. for dips, sauces, curry dishes)

- ingredients stick to the inner side of container. (e.g. garlic, chile pepper)

- too little liquid makes ingredients hard to blend. (e.g. for dips, sauces, curry dishes) - ingredients stick to the inner side of container. (e.g. garlic, chile pepper)

Illustration of two laboratory glassware steps: adding liquid into a beaker with a thermometer and dropping funnel (no text or symbols)

Cleaning and Care

• Unplug before cleaning.
• Clean the parts thoroughly after every use. Keep all parts clean and dry always.
• Do not wash any part of the appliance in the dishwasher.
• Do not use benzine, thinner, bleach, alcohol, nylon face of sponge, metal brushes or polish powder etc.
• Some discoloration of the plastic parts may occur upon usage but it does not affect usage.

Blender jug prewash

Add 400 mL clean water into the blender jug, plug in and blend for about 1 minute.

Containers and other parts

Wash each part in cold or lukewarm water with a soft sponge. Carefully clean blades with a brush.

Rinse and dry thoroughly.

(Brush is not provided.)

- Remove the mill gasket before washing.

Storing

• Assemble the mill container base with the mill container (MX-EP3111, MX-EP3171 only)
• Dry the lid thoroughly, then keep it separately.

Mill blade

Carefully clean blades with a brush. Do not use water. (Brush is not provided.)

Motor housing

Wipe motor housing with a damp cloth.

Safety Lock

The safety lock has been designed to prevent the blender from switching on when blender jug or mill container is not properly in place.

Safety lock pin

Technical diagram showing a mechanical assembly with a component inserted into a housing (no text or labels visible)

Overload and Overheating Protection

In case of overload and overheating, the protection device is triggered to stop operation and it is not abnormal. After rotation stops, follow the below steps:

- Do not use the appliance repeatedly without any countermeasure.

1 Turn the rotary switch to "0" position, unplug the appliance.

2 Remove blender jug or mill container from motor housing. Reduce the ingredients to less than half. (For blender jug, it also can add liquid.)

- Remove the prohibited ingredient if used.

3 Reset the blender jug or mill container, start blending again. (P. EN6)

If the appliance still does not operate after performing the above, overheating protection has been activated.

Turn the rotary switch to "0" position, unplug and rest the appliance for about 15 minutes or more (until motor housing returns to a normal temperature) to release overheating protection before using again.

(If appliance still does not operate, contact Panasonic Service Centre for inspection or repair.)

Troubleshooting

Check following points before calling or arranging for repair.

	Problem Cause action
Blender & Dry mill	Even turn to "1" position, the appliance does not start blending.	The blender jug / mill container is not set properly.Make sure to align the marks on blender jug / mill container and motor housing, then twist it firmly until you hear a "click" sound.The mill container base is not assembled tightly. (MX-EP3111, MX-EP3171 only)→ Assemble it tightly. (P. EN6)The protection device of overload or overheating is activated.Refer to "Overload and Overheating Protection" for inspection. (P. EN7)The power plug is disconnected.Insert the power plug into outlet firmly.
	Rotation stops abruptly.	The protection device of overload or overheating is activated.Refer to "Overload and Overheating Protection" for inspection. (P. EN7)
	There is abnormal noise or vibration increases.	Too much ingredients.Reduce ingredient amount.The mill container base is not assembled tightly. (MX-EP3111, MX-EP3171 only)→ Assemble it tightly. (P. EN6)
Dry mill	The ingredient is leaking.(MX-EP3111, MX-EP3171 only)	The mill container base is not assembled tightly.Assemble it tightly. (P. EN6)The mill gasket is not attached or attached loosely.Attach it properly.Foreign matters are attached to the mill gasket.Remove them.The mill gasket is damaged.Contact Panasonic Service Centre to replace it.
Blender	The blade is idling.	The liquid amount is not enough.Add more liquid.Too much ice cubes. (e.g. juice with a lot of ice)① Remove blender jug after rotation stops completely.Shake the blender jug gently.

Specifications

		When the blender is used	When the dry mill is used (MX-EP3111, MX-EP3171 only)
Power supply 220 - 240 V 50 - 60 Hz ~
Power consumption 230 - 280 W
Rated time		Continuous operation (Repeat the cycle of 3 minutes ON and then 1 minute OFF)	Continuous operation (Repeat the cycle of 1 minute ON and then 2 minutes OFF)
Working capacity (approximately)		1 000 mL	50 g
Dimensions (approximately)	W	19.0cm	16.4 cm
	D	7.9 cm 17.9 cm
	H	6.5 cm 25.9 cm
Mass (approximately)		1.5 kg	1.3 kg

วิธีการใช้ต้ามคน

Illustration of two laboratory glassware steps: adding liquid into a beaker with a pipette (no text or symbols)

Technical diagram showing mechanical assembly with no visible text or symbols

Illustration of two hands pouring liquid from a beaker into a glass (no text or symbols)

Technical line drawings of mechanical components including a saw, conical cup, washer, and screwdriver (no text or labels)

Technical diagram of a mechanical component with no visible text or symbols
