Allura SLC76221.2 - Faucet Symmons - Free user manual and instructions

Product Type	Faucet
Brand	Symmons
Model	Allura SLC76221.2
Finish	Chrome (typical)
Handle Type	Single Lever
Spray Type	Pull-Down Spray
Number of Holes	1 (for single hole installation)
Flow Rate	1.5 GPM (5.7 L/min) maximum
Material	Brass construction
Valve Type	Ceramic disc
Height (Overall)	Approximately 16.5 inches (419 mm)
Spout Reach	Approximately 9 inches (229 mm)
Spout Height	Approximately 8.5 inches (216 mm)
Weight	Approximately 5.5 lbs (2.5 kg)
Magnetic Docking	Yes, for secure spray head storage
Hose Length	Approximately 22 inches (559 mm)
Warranty	Lifetime limited warranty
Care Instructions	Clean with mild soap and water; avoid abrasive cleaners
Safety Notes	Ensure hot water temperature does not exceed 120°F (49°C) to prevent scalding
Repair Parts	Replaceable cartridge, o-rings, and spray head assembly

Frequently Asked Questions - Allura SLC76221.2 Symmons

How do I install the Allura SLC76221.2 faucet?

Installation is straightforward. First, turn off water supply. Mount the faucet through the sink hole, tighten the mounting nuts, and connect the supply lines. For detailed steps, refer to the installation manual included.

Is this faucet compatible with a standard 3-hole sink?

The Allura SLC76221.2 is designed for single-hole installation. For 3-hole sinks, a deck plate (escutcheon) may be required, which is typically sold separately.

How do I clean the faucet?

Use a soft cloth dampened with mild soap and water. Rinse and dry thoroughly. Avoid abrasive cleaners, steel wool, or harsh chemicals that may damage the finish.

What should I do if the water flow is low?

Check the aerator for debris. Unscrew the aerator from the spout and clean it. Also ensure the supply valves are fully open. If issue persists, inspect the cartridge for blockage.

How do I replace the cartridge?

Turn off water supply. Remove the handle by loosening the set screw. Unscrew the cartridge retainer nut and pull out the old cartridge. Install the new one, reassemble, and test. Refer to the manual for cartridge part number.

Does the spray head detach for use?

Yes, the Allura features a pull-down spray head. Simply pull the spray head from the spout; the hose extends for flexible use. It retracts automatically with magnetic docking.

What is the warranty coverage?

Symmons offers a lifetime limited warranty against defects in materials and workmanship. This covers replacement parts, but not labor or damage from misuse.

Can I install this faucet on a stainless steel sink?

Yes, it is suitable for stainless steel, granite, and most sink materials. Ensure the mounting surface is flat and the hole diameter is at least 1.375 inches (35 mm).

How do I adjust the water temperature?

The single lever controls both temperature and flow. Move the lever left for hot, right for cold, and up/down for flow rate. Some models have a temperature limit stop under the handle.

What if the spray head does not retract fully?

Check the hose weight under the sink; it may be stuck or improperly positioned. Ensure the hose is not kinked. Clean the magnetic docking area of debris.

USER MANUAL Allura SLC76221.2 Symmons

Centerset Lavatory Faucet SLC76221.2 Installation and Service Instructions

Model Number

SLC76221.2 Lavatory faucet with lift rod and pop-up drain assembly

Decorative Finish Code

append to part numbers when applicable

-STN Satin Nickel

-- Chrome (standard)

Tools & Materials

Need Help?

Symmons customer service:

[phone], [phone]

Email: [e-mail]

Mon - Fri 7:30 am - 7:00 pm EST

For California Residents

WARNING: This product contains

chemicals known to the State of

California to cause cancer, birth defects, or other reproductive harm.

Quick Install Guide Allura Lavatory Faucet, SLC76221.2

Part No. LN-02042

8

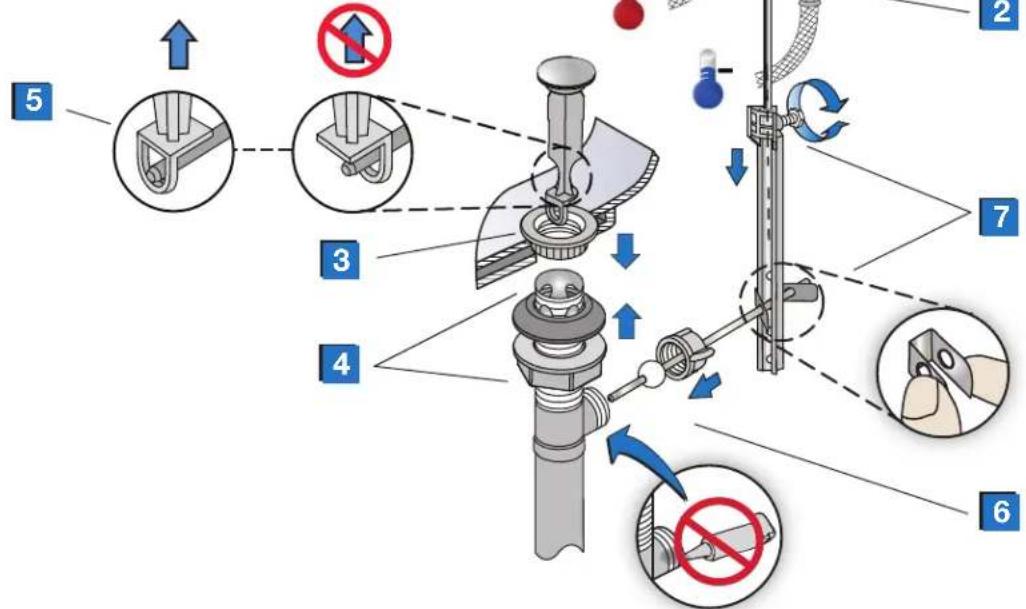

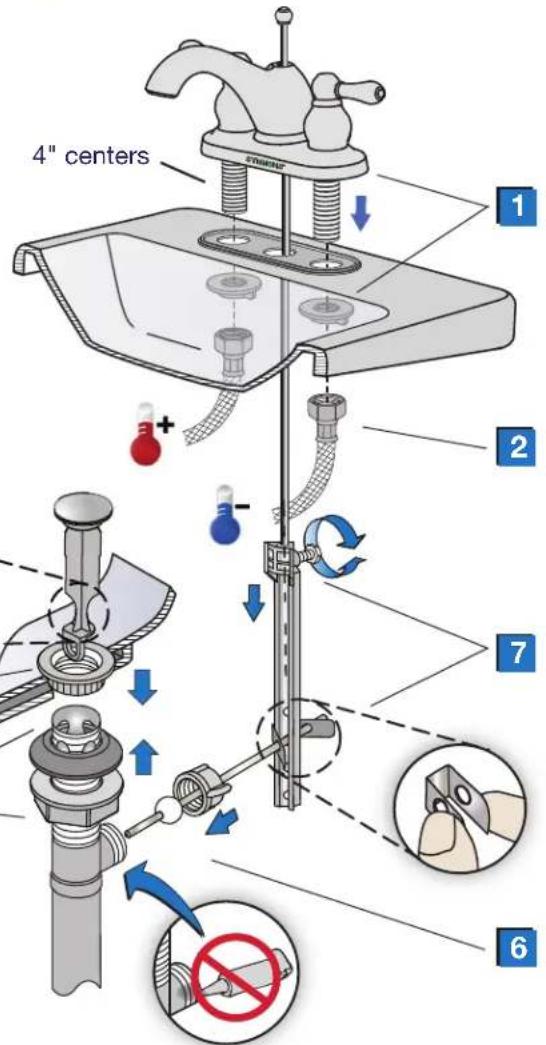

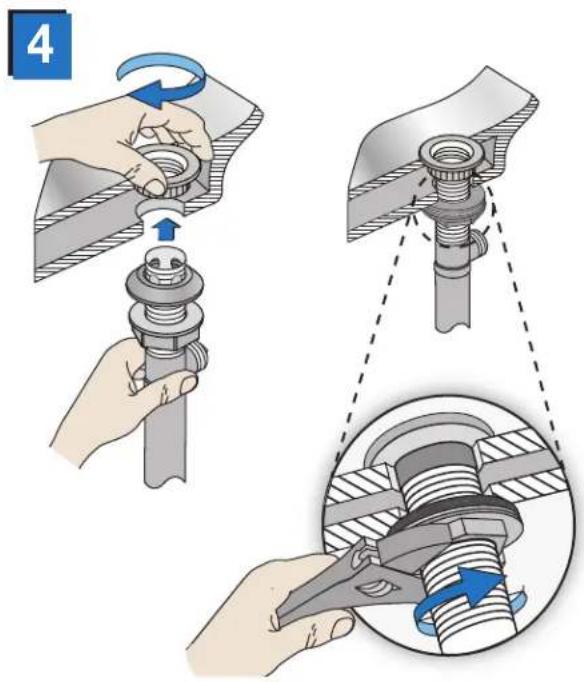

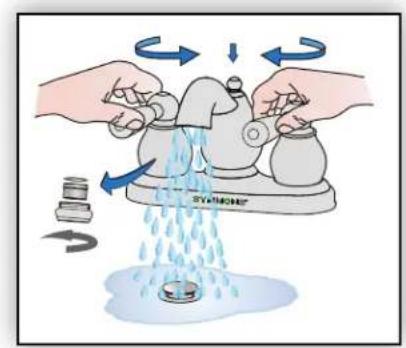

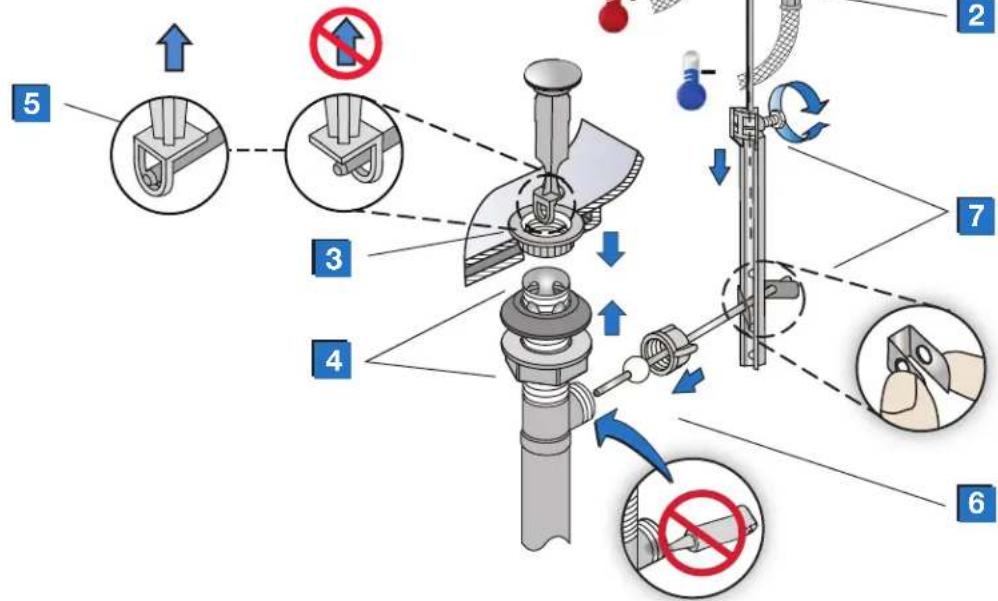

Installation Instructions

If replacing an older faucet ensure water supply is turned OFF before removing, then turn faucet control valves ON to relieve water pressure.

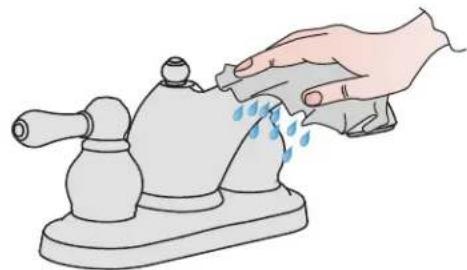

Care of faucet finish

Clean finish area by using mild soap and water or non-abrasive cleaners and then rinse immediately. A non-abrasive wax may be used to preserve finish area.

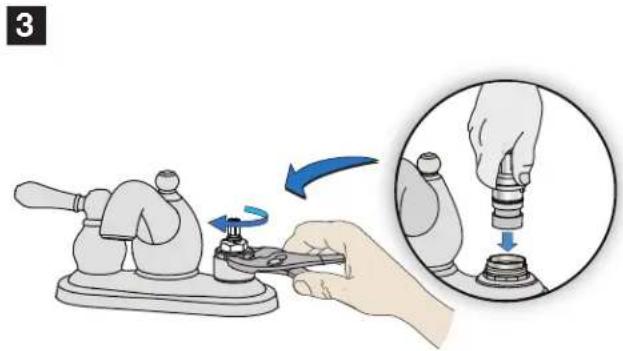

Faucet cartridge replacement

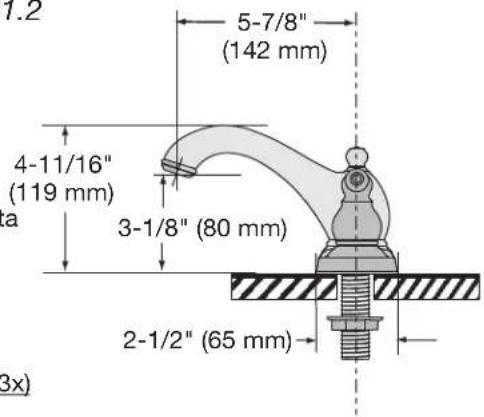

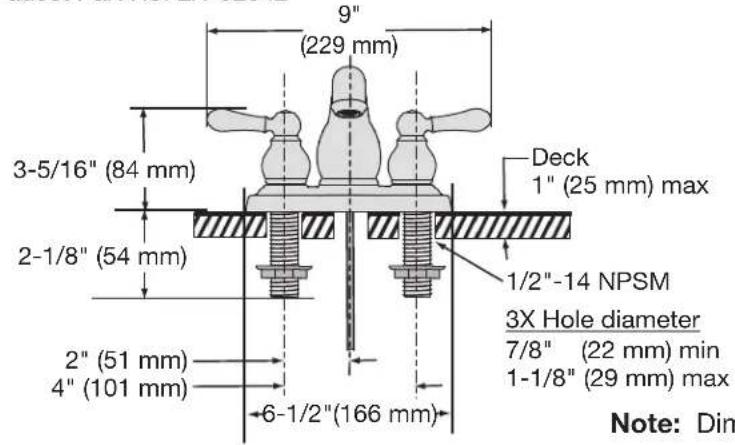

Dimensions Allura Lavatory Faucet, SLC76221.2
Faucet Part No. LN-02042

Note: Dimensions subject to change without notice.

Parts Assembly Allura Lavatory Faucet, SLC76221.2

Faucet Part No. LN-02042

Faucet includes 1.2 gpm (4.5 L/min) aerator

Replacement Parts

Symmons Part Number	Item
RL-114*	HOT & COLD handle assembly (qty 2 handle)
RL-113	Flange nuts & gasket kitgasket flange nuts
RL-120-1.2*RL-120*RL-120-2.2*	Aerator & retainer kit1.2 gpm (4.5L/min) washer1.5 gpm (5.7L/min) aerator 2.2 gpm (8.3L/min) retainer
RL-075 (hot)RL-076 (cold)	Valve cartridgeHOT (OFF = CW) COLD (OFF = CCW)
RL-118*	Lift rod

Ordering replacement parts:

Call Symmons customer service at [phone], [phone] M-F 7:30 am - 7:00 pm EST or check our website at www.symmons.com for a list of Symmons distributors.

Note: When ordering parts for products with an optional decorative finish, append appropriate three letter finish suffix code to part numbers marked with an asterisk (*).

Números de modelo

¿Necesita ayuda?

Servicio al cliente de Symmons: [phone], [phone] [e-mail] Lun - Vie 7:30 am - 7:00 pm EST

www.symmons.com/service

8

Installation Instructions

Dimensiones Llave para lavamanos Allura, SLC76221.2
Número de parte, LN-02042
