KAMN27F10CVA - Monitor Kogan - Free user manual and instructions

Product Type	Monitor
Brand	Kogan
Model	KAMN27F10CVA
Screen Size	27 inches
Resolution	1920 x 1080 (Full HD)
Aspect Ratio	16:9
Refresh Rate	60Hz
Panel Type	IPS
Brightness	250 cd/m²
Contrast Ratio	1000:1 (typical)
Response Time	5ms
Connectivity	1 x HDMI, 1 x VGA, Audio Out
VESA Mount Compatible	100 x 100mm
Power Consumption	25W (typical)
Tilt Adjustment	-5° to 15°
Dimensions (W x H x D) with Stand	615 x 450 x 200 mm
Weight with Stand	4.5 kg
Color	Black
Cleaning Instructions	Wipe gently with a dry microfiber cloth. Do not use harsh chemicals.
Safety Precautions	Do not block ventilation openings. Avoid exposure to rain or moisture.
Spare Parts Availability	Contact Kogan customer support for replacement parts.
General Information	Energy Star certified. Suitable for home and office use.

Frequently Asked Questions - KAMN27F10CVA Kogan

How do I set up the Kogan KAMN27F10CVA monitor?

Connect the HDMI or VGA cable from your computer to the monitor. Plug the power adapter into the monitor and a wall outlet. Press the power button on the monitor or remote control (if included) to turn it on.

How do I clean the monitor screen?

Use a dry microfiber cloth to gently wipe the screen. For stubborn stains, slightly dampen the cloth with distilled water. Never use alcohol, ammonia, or abrasive cleaners.

What should I do if the monitor shows no signal?

Ensure the video cable is securely connected to both the monitor and the computer. Check that the computer is powered on and outputting to the correct input. Try switching between HDMI and VGA inputs using the monitor's menu.

How do I adjust brightness and contrast?

Press the menu button on the monitor to access the on-screen display (OSD). Navigate to the Picture settings using the control buttons, then adjust Brightness and Contrast to your preference.

Can I mount this monitor on a wall?

Yes, the monitor is VESA compatible with a 100x100mm pattern. You will need a VESA mount kit (not included). Ensure the mount can support the monitor's weight (4.5 kg).

What cables are included with the monitor?

Typically, the package includes a power adapter and an HDMI cable. Some variants may also include a VGA cable. Check the box contents upon purchase.

The screen flickers. What should I do?

Flickering can be caused by a loose cable or incorrect refresh rate. Ensure the video cable is fully inserted. In your computer's display settings, set the refresh rate to 60Hz (the monitor's native rate). Also try a different cable.

Does Kogan cover dead pixels under warranty?

Kogan's warranty policy typically covers dead pixels if there are more than a certain number (e.g., 5) on the screen. Check your warranty terms or contact Kogan support for the exact policy.

The monitor won't turn on. How do I fix it?

First, ensure the power cable is securely connected to the monitor and a working outlet. Try a different outlet. If the LED indicator does not light up, the power adapter may be faulty. Contact Kogan support for a replacement.

How do I adjust the monitor's tilt?

Hold the base of the stand firmly and gently tilt the screen forward or backward. The tilt range is -5° to 15°. Do not force beyond the limit to avoid damage.

USER MANUAL KAMN27F10CVA Kogan

Large black-and-white monitor displaying a fantasy, dynamic battle scene with glowing blue and purple waves against a cosmic cityscape background (no text or symbols visible)

27" CURVED FULL HD 100HZ FREESYNC MONITOR

(1920 X 1080)

KAMN27F10CVA

Safety & Warnings 3

Components 4

Overview 5

Assembly 7

Operation 9

Cleaning & Care 16

Specifications 17

Notes 18

SAFETY & WARNINGS

• Read all instructions and warnings in this user guide before using the monitor. Keep this guide for future reference.
• This monitor has ventilation openings on the back. Do not cover or obstruct them.
• Keep the monitor away from heaters, stoves, fireplaces, or other sources of heat.
• Ensure the monitor is placed in a well-ventilated area.
• Do not insert objects or spray liquids into the ventilation openings.
• Place the monitor in a stable location to prevent falls that could result in damage or injury.
• Avoid placing heavy objects on the monitor, its power adaptor, or any connected cables.
• Do not attempt to open the monitor's back panel, as high-voltage currents remain even when unplugged.
• Unplug the monitor if it will not be used for an extended period.
  • Always unplug the monitor before cleaning.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

COMPONENTS

Verify that all items are included in your monitor set. If anything is missing, visit help.Kogan.com for assistance.

Blank white rectangle with a thin gray border (no text or symbols)

Monitor

Line drawing of a handheld device with control buttons and a flat base (no text or symbols)

Stand Stem

Line drawing of a mechanical component with a central cylindrical top and flanged base (no text or symbols)

Stand Base

Line drawing of a power plug connected to a cable (no text or symbols)

Power Adaptor

Two connected USB cable connectors with I/O labels (no text or symbols beyond branding)

HDMI Cable

User Guide

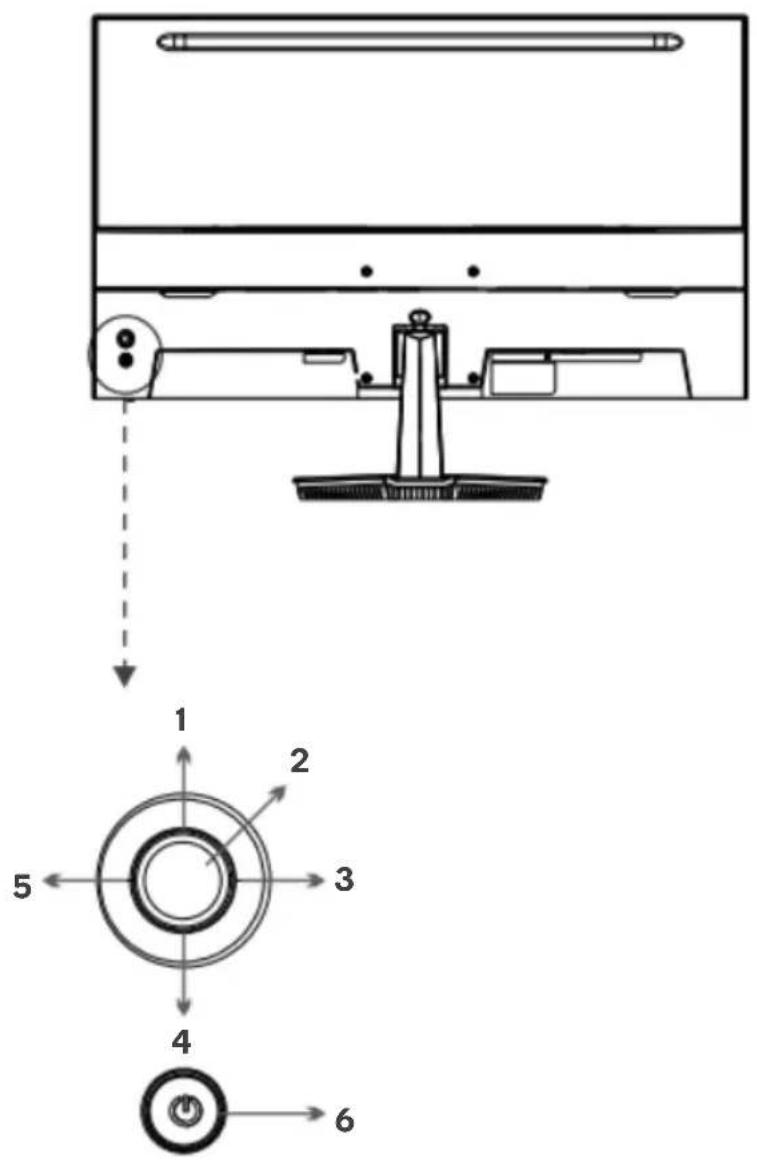

1 Up Up/Brightness

2 Centre Menu/Confirm

3 Right Increase/Contrast

4 Down Down/Volume

5 Left Decrease/Return/Exit/Input Source

6 Power Power On/Off/Standby

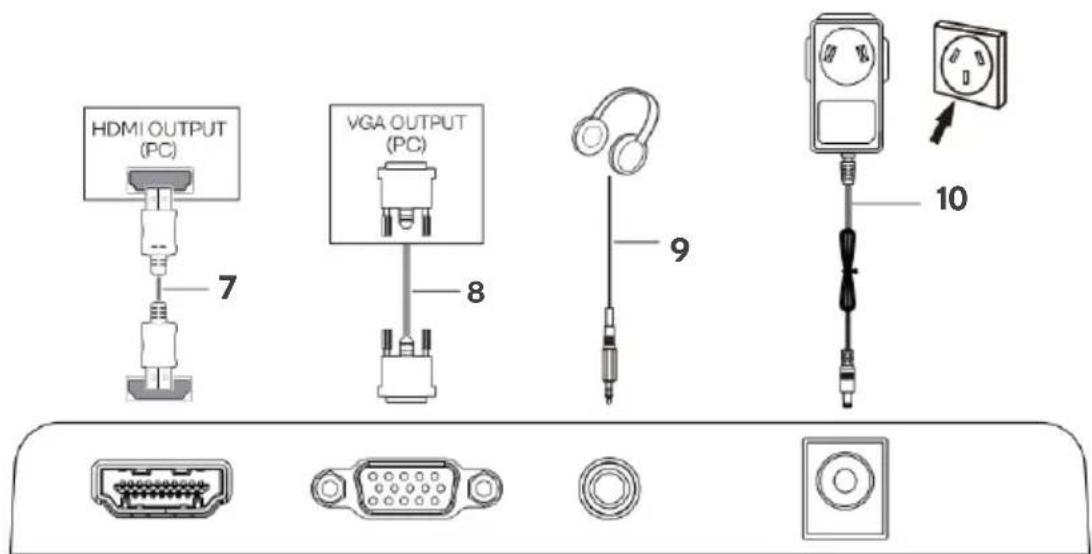

7 HDMI Cable
8 VGA Cable
9 Earphones
10 Power Adaptor

ASSEMBLY

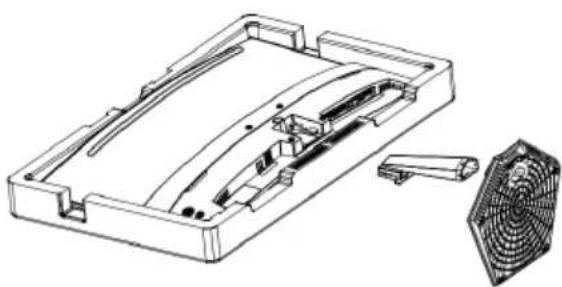

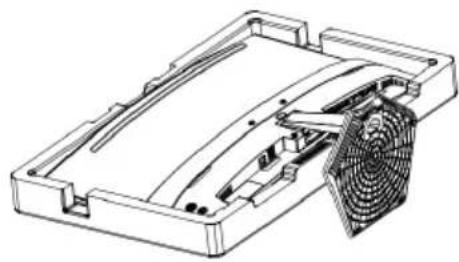

1. Gently lay the monitor on the cloth with the screen facing down.

2. Align the stand base with the stand stem, then clip the stand base into the stand stem.

Technical line drawing of a mechanical housing with internal components and a fan base (no text or symbols)

Diagram showing a mechanical component and its fan structure (no text or symbols)

Technical line drawing of a mechanical fan or blade assembly (no text or symbols)

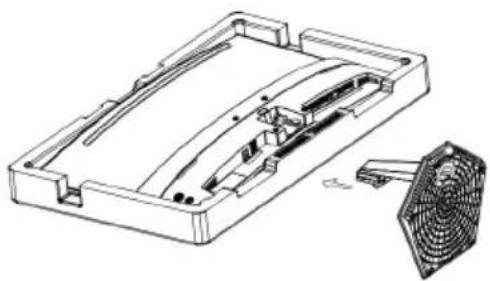

1. Attach the assembled stand to the rear of the monitor.

Technical line drawing of a mechanical housing with a fan base (no text or symbols)

Technical line drawing of a mechanical component with internal structure and fan-like pattern (no text or symbols)

Adjusting the Angle of the Monitor

• The screen can be tilted forwards up to 5^ or backwards up to 15^ .
• To adjust the angle, hold the edges of the screen with both hands and tilt.

Line drawing of two identical mechanical devices with vertical supports and base mount (no text or symbols)

Line drawing of two hands holding a blank board with a circular symbol above (no text or symbols present)

Note:

Do not touch or press on the screen when tilting.

WARNING: If you are not confident in wall mounting this product, consult a licensed trade professional.

1. Ensure the stand base and stand stem are detached from the monitor.
2. Place the monitor face down on a soft cloth to avoid damage.
3. Locate the x4 wall mounting screws on the back of the monitor.
4. Follow the instructions provided with your VESA mount to securely mount the monitor.

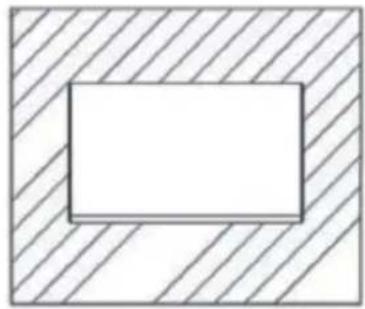

Simple geometric diagram with a rectangle inside a square, surrounded by diagonal hatching (no text or symbols)

Notes:

• Ensure there is at least a 10cm clearance away from all sides of the monitor.
  • The distance between the mounting holes on this monitor is 100mm x 100mm.
  • The VESA mount and mounting accessories are not included.
  • Images are for reference only.

OPERATION

Note:

Ensure the monitor is powered off before connecting any cables.

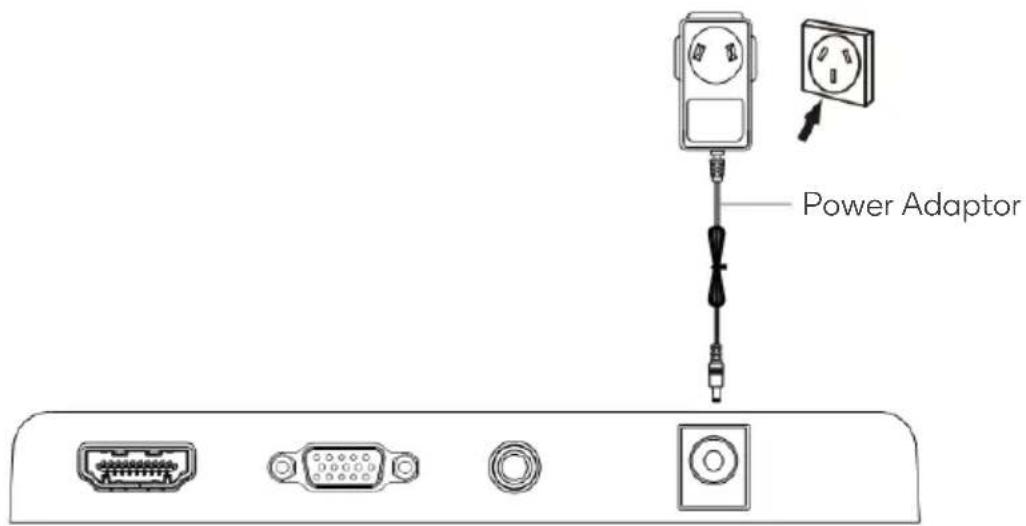

Powering the Monitor

1. Insert the connector into the monitor's power port. Then connect the power adapter to an electrical outlet. Turn the outlet on.
2. Connect the monitor to your computer using an HDMI or DP cable.
3. Press the 'Power' button to turn the monitor on.

Note:

It is recommended to use a surge protector with adequate voltage if the monitor cannot be directly connected to an outlet.

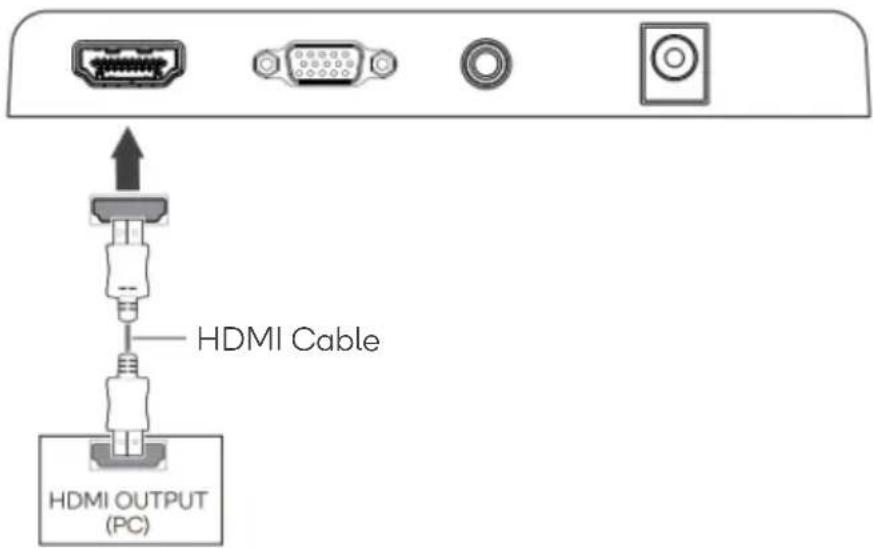

HDMI

1. For the monitor to receive HDMI signals to your computer, connect one end of a HDMI cable into the HDMI port on the monitor.
2. Connect the other end into the HDMI port on your computer.

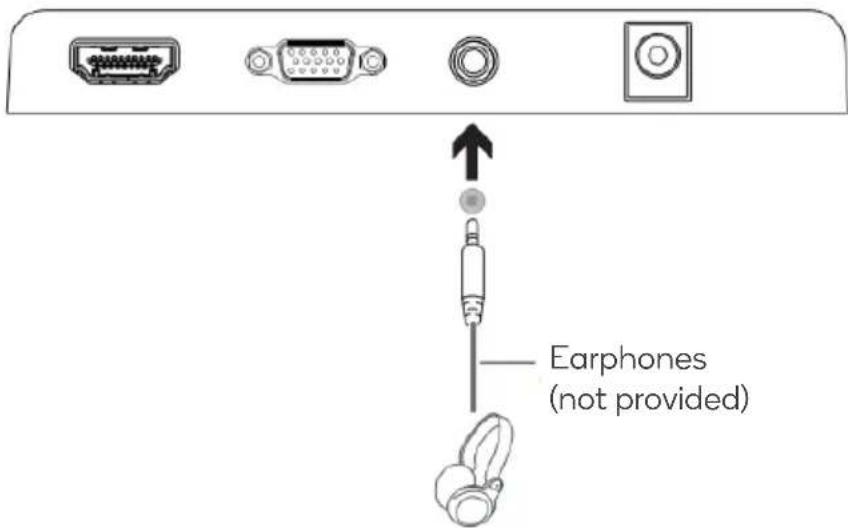

Audio Port (3.5mm)

• To receive audio signals to your computer, plug your earphones, headphones or other audio device (not provided) into the 3.5mm audio port on the monitor.
• If any audio device is connected to the computer at the same time, it will not produce sound.

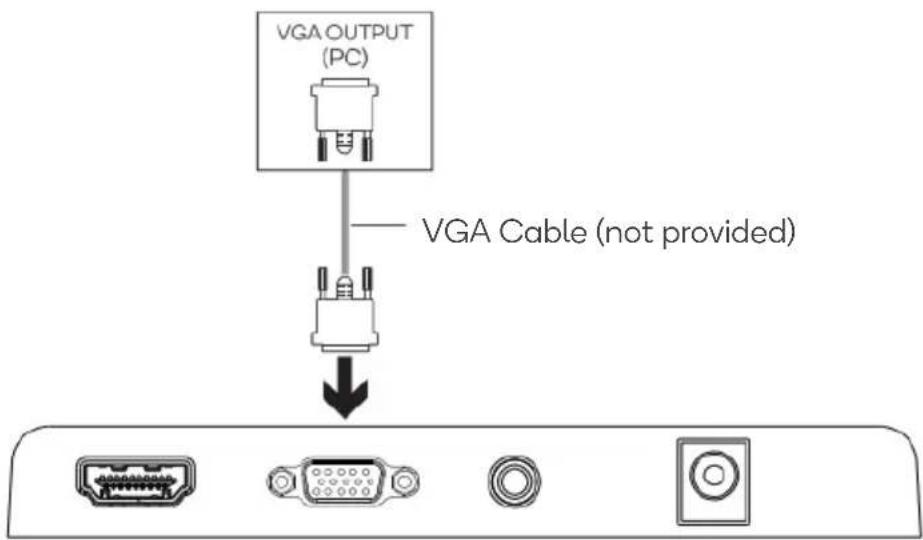

DisplayPort (VGA)

1. For the monitor to receive VGA signals to your computer, connect one end of a VGA cable (not provided) into the VGA port on the monitor.
2. Connect the other end into the VGA port on your computer.

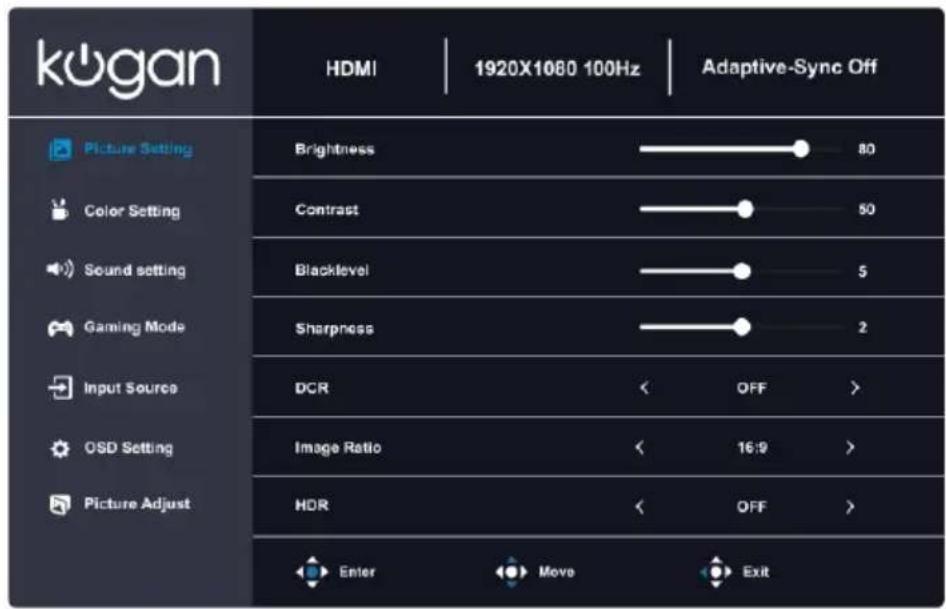

On-Screen Display (OSD) Menu

The OSD menu allows you to adjust various monitor settings.

• Press the 'Centre' button to open the OSD menu.
• Press the joystick up/down to navigate through the menu and submenus.
• Press the 'Centre' button to select.
• Adjust the settings by pressing the joystick to the left/right.
• Press the 'Centre' button to confirm.
• Press the joystick to the left to return to the previous menu.
  • Repeatedly press the joystick to the left to exit the OSD menu.

OSD menu settings:

Below is a list of the settings available that can be adjusted through the OSD menu.

Main Menu	Sub-Menu	Options	Description
Picture Setting	Brightness 0-100	Adjust display brightness
	Contrast	0-100	Adjust display contrast
	Black level 0-10 /
	Sharpness 0-4 /
	DCR Off/On Turn	DCR function off/on
	Image Ratio	Auto, 16:9, 4:3	Set aspect ratio
	HDR	Off/On	Turn HDR function off/on
Colour Setting	Picture Mode	Standard/Movie/Office/FPS/RTS/RACING/SRGB	Select picture mode
	Gamma Off/1.8/2.0	0/2.2/2.4
	Low blue light	Off/Weak/Middle/Strong	Adjust display low Blue
	Colour temperature	Warm/User/Cool/Normal	Adjust colour temperature
	Red	0-100	Customise RGB components
	Green	0-100
	Blue	0-100
Sound setting	Volume	0-100 Adjust audio volume
	Mute	Off/On /
Gaming Mode	Adaptive-Sync	Off/On	/
	Response Time	Off/Fast/Extreme	/
	MPRT	Off/On /
	Cross Hair	Off/Icon1/Icon2/Icon3/Icon4	/
	Timer	Off/15:00/30:00/45:00/60:00	/
	Refresh Rate	Off/Left Top/ Left Bottom/ Right Top/ Right Bottom	/
Input Source	Auto Off/On /
	Input Select	HDMI/VGA	Display the input select
OSD Setting	Language	English/François Español/Deutsch Italiano	Set OSD language
	H.Position 0-100		Adjust the horizontal position
	V.Position 0-100		Adjust the vertical position
	Timeout 0-60		Set how long the OSD remains
	Transparency 0-100		Adjust the OSD transparency value
	DDC/CI Off/On /
	Auto shutdown Off/On /
	Reset N/A		Reset monitor configurations
Picture Adjust	Auto Configuration	/	Using this feature automatically adjusts the horizontal/vertical position, focus and clock of the display
	Auto Colour /		Using this feature will reset the colour settings to default
	H.Position 0-100		/
	V.Position 0-100
	Clock 0-100
	Phase 0-100

FreeSync

• To use FreeSync, ensure your hardware supports the feature and that your graphics drivers are fully updated.
• After connecting the monitor, you may be prompted to enable FreeSync on your computer. If no prompt appears, you may need to enable it manually through your graphics card settings.
• Refer to your graphics card manufacturer's documentation for instructions on how to activate FreeSync.

Note:

FreeSync is enabled by default when the refresh rate is set to 100Hz.

Input Menu Shortcut

To quickly switch between HDMI and VGA input sources:

1. Press the joystick to the right to open the input menu.
2. Press the joystick up/down to select the desired input source.
3. Press the 'Centre' button to confirm.

Brightness Shortcut

To adjust the brightness when outside the OSD menu, press the joystick up to open the brightness menu, and then press the joystick left/right to adjust.

ECO Modes

This monitor offers several pre-set colour modes optimised for different uses. These modes can be accessed through the ECO modes menu:

• Standard: Suitable for most activities.
• Movie: Optimised for watching movies.
  • RTS: Best for real-time strategy games.
  • FPS: Ideal for first-person shooter games.
  • Game: General gaming mode.
  • Text: Optimised for reading text.

CLEANING & CARE

• Ensure the monitor is turned off and unplugged before cleaning.
• Wipe the body with a slightly damp, clean cloth.
• Wipe the screen with a dry microfibre cloth.

Note:

Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.

SPECIFICATIONS

Screen size 27"
Aspect ratio 16:9
Backlight E-LED
Brightness 300cd/m	2
Panel VA
Resolution 1920 × 1080
Refresh rate 100Hz
Response time 14ms
Viewing angle 178° (H) / 178° (V) (typical)
Contrast ratio 4000:1
VESA mounting 100 x 100mm
Colours 16.7M
FreeSync Yes
Signal input HDMI x 1.4, VGA
Power DC12V, 3A
Audio
Audio out Yes
Speakers	No
Accessories
HDMI cable Yes
Adapter	Yes
Additional functions
Low blue light	Yes
Flicker free	Yes
Physical dimensions
Dimensions (with stand)	612.4 x 211.1 x 453.6mm
Dimensions (without stand)	612.4 x 69.0 x 359.2mm
Net weight	3.50 kg
Gross weight	5.10 kg

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
