Product Type	Soundbar
Brand	Pyle
Model	PATVSB3700
Dimensions (W x H x D)	37 x 3 x 2.5 inches
Weight	5.5 lbs
Power Source	AC 100-240V, 50/60Hz
Wireless Connectivity	Bluetooth 5.0
Audio Output	120W total power
Drivers	2 x 3 inch full-range speakers
Frequency Response	60Hz - 20kHz
Inputs	HDMI ARC, Optical, AUX 3.5mm, USB
Remote Control	Included (battery not included)
Mounting Options	Wall-mountable with included brackets
Material	Plastic and metal grille
Color	Black
Warranty	1 year limited
Cleaning Instructions	Wipe with dry cloth, avoid liquids
Safety Features	Overheat protection, CE/RoHS compliant
Spare Parts Availability	Remote control and power adapter available from manufacturer

Frequently Asked Questions - PATVSB3700 Pyle

How do I connect my soundbar via Bluetooth?

Press the Source button on the remote or soundbar until you see BT on the display. Then enable Bluetooth on your device and select PATVSB3700 from the list.

Why is there no sound coming from my soundbar?

Check that the soundbar is powered on and the volume is not muted. Ensure the correct input source is selected. Verify that the audio cable is securely connected. If using Bluetooth, make sure your device is paired and playing audio.

How can I reset my Pyle soundbar?

With the soundbar on, press and hold the Power button for about 10 seconds until the display flashes. This will restore factory settings.

Can I mount the soundbar on the wall?

Yes, the PATVSB3700 comes with wall-mount brackets. Use the included screws and anchors to attach it securely to the wall. Ensure the wall can support the weight.

What is the maximum power output?

The soundbar delivers a total of 120 watts peak power, providing clear and immersive audio for your home entertainment.

How do I use the optical input?

Connect an optical cable from your TV to the Optical input on the soundbar. Press the Source button until OPT appears on the display. Ensure your TV audio output is set to PCM or Bitstream.

Does the soundbar come with a subwoofer?

No, the PATVSB3700 is a standalone soundbar without a separate subwoofer. However, it features built-in bass enhancement for richer low-end sound.

Why is my remote control not working?

First, replace the battery (CR2032) and ensure the remote is pointed at the soundbar. Try resetting the remote by removing the battery for 30 seconds. If still not working, the remote may need replacement.

Can I use the USB port to play music?

Yes, insert a USB flash drive with MP3 files into the USB port. Press the Source button until USB is selected. The soundbar will automatically play the audio files.

What should I do if the soundbar turns off automatically?

The soundbar has an auto power-off feature to save energy. If no audio signal is detected for 10 minutes, it will shut down. Press the Power button to turn it back on. You can disable this in the settings if available.

USER MANUAL PATVSB3700 Pyle

Questions or Comments?

We are here to help!

Phone: [phone]

PyleUSA.com/ContactUs

PYLE®

PyleUSA.com

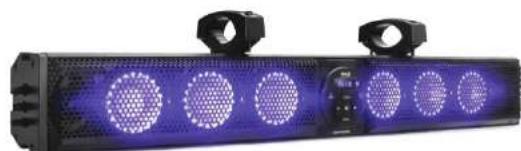

Exterior view of a modern LED array light fixture with circular LED patterns (no text or symbols visible)

PATVSB3700

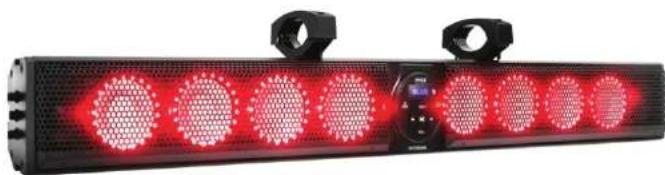

Black industrial LED array with six circular LED patterns and a digital display (no text or symbols visible)

PATVSB4700

PATVSB4700 - PATVSB3700

Aluminum Alloy Sound Bar Speaker System

USER GUIDE

READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. RETAIN THIS OWNER'S MANUAL FOR FUTURE REFERENCE.

Features:

• Marine/UTV/ATV Waterproof Soundbar Speaker
• Available in 36" or 46" Sound Bar sizes with a stylish design
• Built-in USB Playback
• Built-in 6/8 x 4-inch woofers and 2 x 1-inch tweeters
- DC 12V input
- Colorful RGB lights
- Lighting, Easily turn On/Off the Light or Change the Color Mode
• Front Panel Control Center
- 3.5mm Auxiliary Input
• Marine Rated with Rugged Weatherproof Exterior
• IPX5 Waterproofing/Weatherproofing
• Weather Resistant Grill and Hardware

Bluetooth Wireless Streaming:

• Wireless music streaming capability
• Quick and hassle-free device pairing
• Compatible with all BT-enabled devices (smartphones, tablets, laptops, computers, etc.)
  • Wireless BT Version 5.3
• Wireless BT network name: PATVSB3700 / PATVSB4700'

WHAT'S IN THE BOX:

• Sound bar speaker
• Remote control
  • Car cigarette lighter cable
• Bracket and screws
• USB cable
• 3.5mm audio cable

California Prop 65 Warning

!WARNING:

This product may expose you to chemicals, which is known to the state of California to cause cancer, birth defects and other reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov

Technical Specs:

• Power Supply:

• PATVSB3700: 180 Watts RMS/270 Watts Peak
• PATVSB4700: 240 Watts RMS/360 Watts Peak

• Construction Materials: Aluminum alloy sound bar with silicone buttons
  • BT Range: Up to 82 ft.
  • Aluminum Clamp System: Fits 1.5" - 2" bars
  • Frequency Response: 20Hz - 20kHz
• Remote Control Battery: Requires 2x 'AAA' batteries (not included)
• Tweeters: 1 inch
  • Product Dimensions (L x W x H):

• PATVSB3700: 34.72" x 4.84" x4.05'-inches
• PATVSB4700: 43.23" x 4.84" x4.05'-inches

FCC INFORMATION

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This unit generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION

IMPORTANT SAFETY INSTRUCTIONS:

• Do not operate mobile equipment while driving a motorized vehicle.
  Safe driving and consideration for the safety of others should always be your highest priority.
• If you notice smoke, strange noises, odor from this product, or any other abnormal signs, immediately turn off the power and consult your dealer or the nearest authorized PyleUSA Service Center. Using this product in such a condition may result in permanent system damage.
• Set your volume control at a low setting, then slowly increase the sound until you can hear it comfortably without distortion or discomfort to your ears.

BE SURE TO OBSERVE THE FOLLOWING GUIDELINES

• Do not turn up the volume so high that you cannot hear what's around you.
• Use caution or temporarily discontinue use in potentially hazardous situations.

INSTALLATION PRECAUTIONS

WARNING - Always consult a professional installer:

• Do not attempt to install or service this product by yourself. Installation or servicing by persons without professional training and experience in electronic equipment and motorized vehicle accessories may be dangerous and could expose you to electric shock, injury, or other hazards.
• This product can be powered from a vehicle's cigarette lighter/auxiliary power port or hardwired directly to the battery through an optional relay/accessory switch.
• While this product has a weather-resistant design, it should not be submerged in or under water.
• Use only the installation parts provided with the product.
• Clean with mild soap or detergent and lukewarm water using a clean sponge or soft cloth. Rinse well with clean water.

"DON'T" - VERY IMPORTANT

• DON'T clean in hot sun or on very hot days.
• DON'T use abrasive or highly alkaline cleaners on the main body.
• DON'T scrape the main body with razor blades or other sharp instruments.
• DON'T use gasoline, acetone, or carbon tetrachloride.

WIRELESS BT OPERATION INSTRUCTIONS

External devices with built-in BT functions can be connected to this sound bar. When your device is connected to the sound bar, you will hear audible tones to assist with the connection process.

1. First, ensure the sound bar is powered on and the volume is set to low.
2. Press the "MODE" button on the front panel and select BT mode.
3. Turn on BT on your external device.
4. Search for available BT devices. Make sure you are within range of the sound bar and select "PATVSB2600," "PATVSB3600," or "PATVSB4600" on your device.
5. You can now play music from your external device through the sound bar.

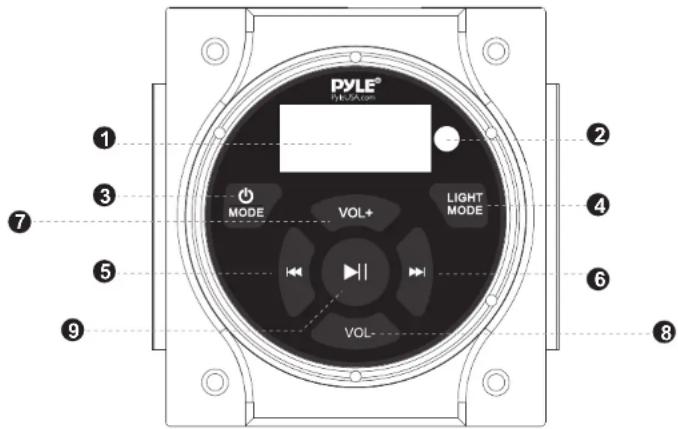

FRONT CONTROL PANEL:

PYLE® AIR chamber MODE VOL+ LIGHT MODE VOL- ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

1. Display screen
2. Remote Control Receiver
3. MODE: Press this button to select the input source.
4. Light Mode: Press this button to turn the light on/off or change the light color.
5. Previous Track: Press this button to select the previous track.
6. Next Track▶: Press this button to select the next track.
7. Vol+: Press this button to increase the volume.
8. Vol-: Press this button to decrease the volume.
9. Play/Pause ▶: Press this button to play or pause the audio track.

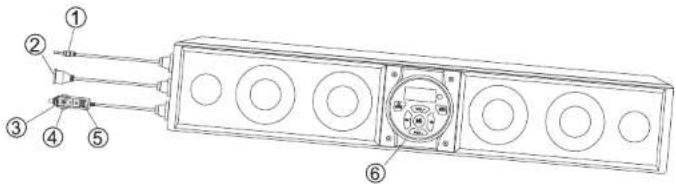

SIDE PANEL FUNCTIONS

Technical diagram of an electronic device with numbered components and labeled parts

1.3.5mm AUX Input
2. USB Jack
3. Cigarette Power Cable Adapter
4. Fuse (15A)
5. LED Power Indicator
6. Control Panel

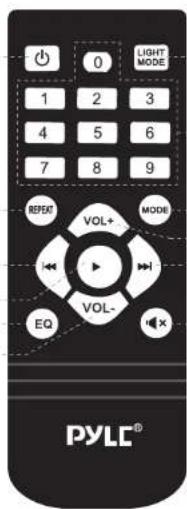

REMOTE CONTROL

1. Power Switch
2. Light Mode: Press this button to turn the light on/off or change the light color.
3. Number Pad
4. Repeat: Press to repeat the current song.
5. Mode: Press to select the input source.
6. Vol+: Press this button to increase the volume.
7. Previous Track ◀: Press this button to select the previous track.
8. Next Track ▶I: Press this button to select the next track.
9. EQ: Press to toggle between preset EQ curves.
10. Mute
11. Vol:- Press this button to decrease the volume.
12. Play/Pause ▶I: Press this button to play or pause the audio track.

1

0 LIGHT MODE 1 2 3 4 5 6 7 8 9 RESET VOL+ MODE VOL- EQ X PYLC®

②
3
5
8
10

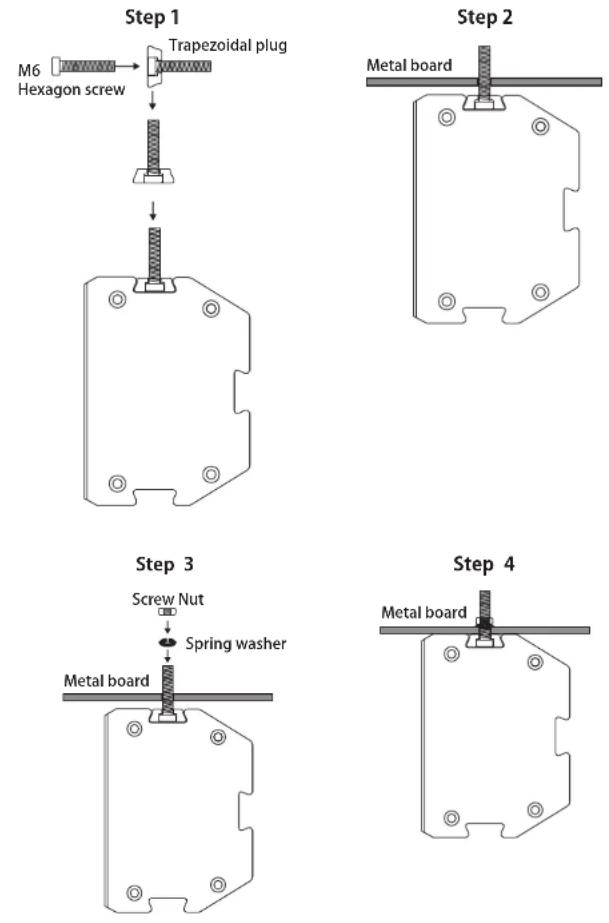

INSTALLATION METHOD

1. Take the bracket and screws out of the package.


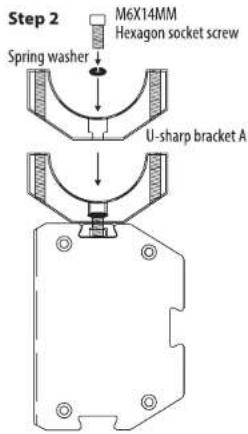

Step 2 M6X14MM Hexagon socket screw Spring washer ↓ U-sharp bracket A

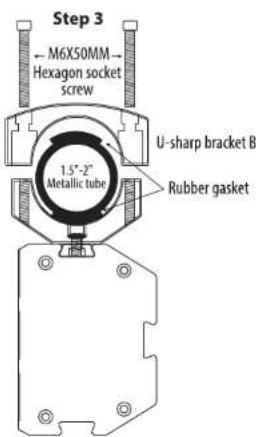

Step 3 M6X50MM Hexagon socket screw U-sharp bracket B 1.5"-2" Metallic tube Rubber gasket

Step 4 1.5"-2" Metallic tube

1. Follow the installation instructions provided.


CLEANING, MAINTENANCE, AND STORAGE GUIDE

Cleaning

• Use a soft, dry cloth to gently wipe the exterior of the sound bar. For stubborn dirt, use a mild soap or detergent with lukewarm water, and a soft cloth or sponge. Rinse with clean water and dry thoroughly.
• Avoid using abrasive materials, harsh chemicals, or solvents such as gasoline, acetone, or carbon tetrachloride, as they may damage the exterior finish.
• Do not clean the unit in direct sunlight or on very hot days, as this may affect the finish.

Maintenance

• Periodically check all connections to ensure they are secure and free of dust or debris.
• Inspect the LED power indicator and ensure it is functioning properly.
• Replace the fuse (15A) if needed, and use only the specified fuse type to avoid electrical hazards.
• If not in regular use, power off the unit and disconnect it from the power source to preserve battery life.

Storage

• Store the sound bar in a cool, dry place away from direct sunlight and extreme temperatures.
• If the sound bar is not in use for an extended period, disconnect it from the vehicle's power source or remove the cigarette power cable adapter.
• For added protection, place the sound bar in a padded storage case or cover to prevent dust buildup and potential scratches.
