USER MANUAL PEX4SFF8643 StarTech.com

x4 PCI Express to SFF-8643 Adapter for PCIe Based U.2 SSD

PEX4SFF8643

FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com

Introduction

The PEX4SFF8643 converts SFF-8643 to PCI Express ^® for use with PCIe SSDs, which enables you to use PCIe to connect a high-performance PCIe based U.2 SSD to your computer.

The adapter can be mounted in both low-profile and full-profile computer systems.

Product diagram

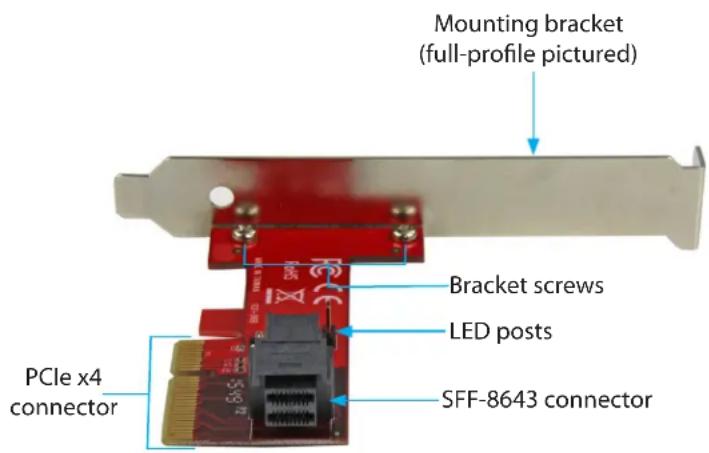

Mounting bracket (full-profile pictured) Bracket screws LED posts SFF-8643 connector PCIe x4 connector

*actual product may vary from photos

Package contents

• 1 x x4 PCI Express to SFF-8643 adapter
- 1 x low-profile bracket
- 1 x full-profile bracket (installed)
- 1 x quick-start guide

System requirements

• Computer enabled with PCI Express and an available PCIe x4, x8, or x16 slot
  • Phillips head screwdriver

For the latest information, technical specifications, and support for this product, please visit www.startech.com/PEX4SFF8643.

The PEX4SFF8643 is OS independent and doesn't require any additional drivers or software.

System requirements are subject to change. For the latest requirements, please visit www.startech.com/PEX4SFF8643.

Note: To determine if the drive and motherboard that you're using are compatible, consult the technical specifications that came with the drive and motherboard.

Install the low-profile bracket

The PEX4SFF8643 can be mounted in both low-profile and full-profile computer systems. The full-profile bracket comes preinstalled in the adapter but you can install the low-profile bracket instead.

1. Use a Phillips head screwdriver to remove the two bracket screws from the PEX4SFF8643.
2. Remove the full-profile bracket from the adapter.
3. Line up the low-profile bracket with the bracket holes on the back of the adapter.
4. Insert the two bracket screws that you removed in step 1 and tighten them in place.

Install the adapter in a computer

Warning! PC components can be severely damaged by static electricity. If an anti-static strap isn't available, discharge any built-up static electricity by touching a large, grounded metal surface for several seconds.

1. Turn off your computer and any devices or peripherals that are connected to it (for example, printers, external storage, and so on).
2. Unplug the power cable from the back of your computer.
3. Disconnect any peripheral devices that are connected to your computer.
4. Open your computer case. For more information about how to properly do this, consult the documentation that came with your computer system.

5. Locate an open PCIe slot and remove the corresponding metal cover plate from the back of your computer case. Consult the documentation that came with your computer for details about how to do this safely. This card works in PCIe slots of x4, x8, or x16 lanes.

6. Gently insert the card into the open PCIe slot and use a computer case screw (not included) to fasten the bracket to the back of the case.

7. Connect the card to the drive.

8. Place the cover back onto your computer case.

9. Reconnect the power cable to the back of your computer and all of the peripheral devices that you disconnected in step 3.

10. Turn on your computer.

There may be additional steps required to enable functionality, such as installing drivers or updating the firmware for the drive or motherboard. For more information, consult the documentation that came with the drive or motherboard.

About the LED indicators

You can connect an LED to the LED pins on the adapter. The LED terminals generate an activity LED, but the exact behavior of the LED indicator depends on the SSD connected to the device.
