Product Type	Internal Sound Card
Brand	StarTech.com
Model	PEXSOUND7CH
Interface	PCIe x1
Audio Channels	7.1 Surround Sound
Outputs	3x 3.5mm audio jacks (Front, Rear, Center/Subwoofer), 1x Optical S/PDIF
Inputs	1x 3.5mm microphone jack, 1x 3.5mm line-in jack
Sample Rate	Up to 192 kHz
Bit Depth	24-bit
Signal-to-Noise Ratio (SNR)	≥ 90 dB (typical)
Operating System Support	Windows 7, 8, 10, 11; Linux via generic drivers
Power Source	PCIe slot (no external power required)
Dimensions (L x W x H)	5.1 x 4.7 x 0.8 inches (130 x 120 x 20 mm)
Weight	3.5 oz (100 g)
Color	Black with gold-plated connectors
Package Contents	1x Sound Card, 1x Low-profile bracket, 1x Driver CD, 1x Quick Start Guide
Warranty	2 years
Compliance	FCC, CE, RoHS
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10% to 90% non-condensing

Frequently Asked Questions - PEXSOUND7CH StarTech.com

What operating systems are compatible with the PEXSOUND7CH?

The PEXSOUND7CH supports Windows 7, 8, 10, and 11. For Linux, generic USB audio drivers may work, but full functionality is not guaranteed.

Does this sound card require external power?

No, the PEXSOUND7CH is powered entirely through the PCIe slot and does not require any additional power connectors.

How do I install the PEXSOUND7CH drivers?

Insert the included driver CD, run the installer, and follow on-screen instructions. Alternatively, download the latest drivers from the StarTech.com support website.

Can I use this sound card with a low-profile case?

Yes, the package includes a low-profile bracket for installation in slim or small form factor cases.

What audio jacks are available on the PEXSOUND7CH?

It has 3x 3.5mm audio outputs (Front, Rear, Center/Subwoofer), 1x Optical S/PDIF output, and 2x 3.5mm inputs (Mic and Line-In).

Does this card support 7.1 surround sound?

Yes, the PEXSOUND7CH provides 7.1 channel high-definition audio for an immersive surround sound experience.

Why is my sound card not detected?

Ensure the card is fully seated in the PCIe slot. Check BIOS settings to confirm the slot is enabled. Try a different PCIe slot if available.

Can I use this card with a virtual reality headset?

Yes, the optical S/PDIF output and multiple analog outputs make it suitable for connecting VR audio systems, though compatibility depends on your VR hardware.

What is the warranty period for the PEXSOUND7CH?

StarTech.com offers a 2-year limited warranty for this product, covering defects in materials and workmanship.

How do I clean the sound card?

Use a soft, dry cloth to gently remove dust. Avoid moisture, solvents, or abrasive cleaners. Reinstall the card only when completely dry.

USER MANUAL PEXSOUND7CH StarTech.com

7.1 Channel PCI Express Digital Surround Sound Card - 24 Bit / 192KHz

PEXSOUND7CH

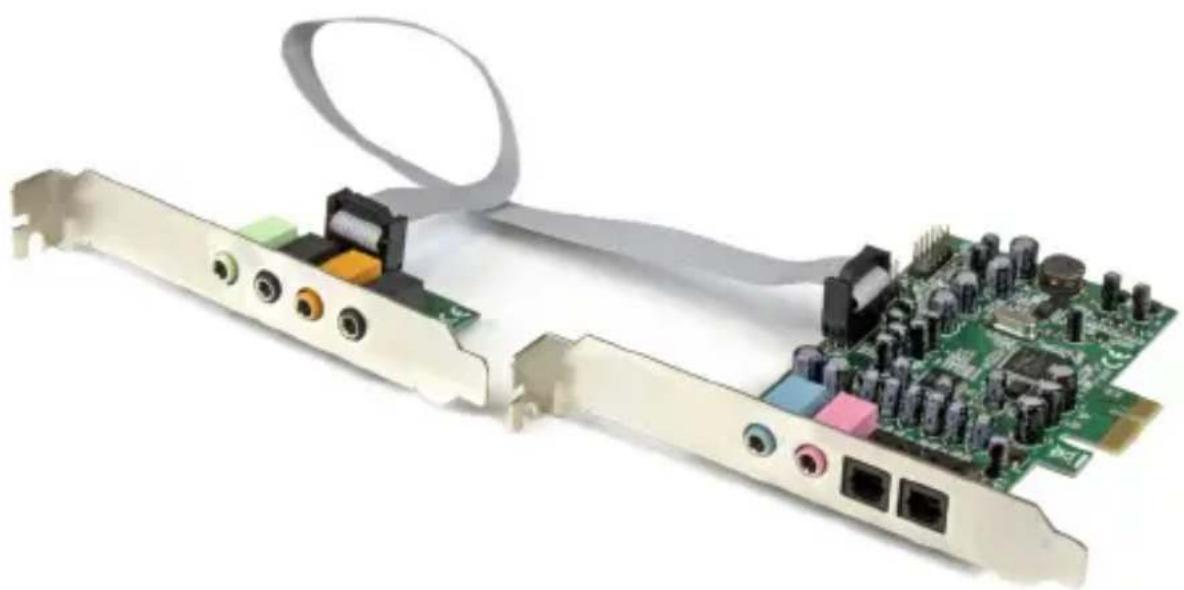

Close-up of a computer motherboard with a green card and cable, showing ports and connectors (no text or symbols visible)

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio/TV technician for help

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by StarTech.com could void the user's authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction......1

Packaging Contents .... 1

System Requirements....1

Product Diagram....2

Main Card....2

Header Bracket....3

Internal Headers....3

Installation 4

Hardware Installation .... 4

Driver/Software Installation & Operation....5

Technical Support 7

Warranty Information....7

Introduction

Packaging Contents

• 1x 7.1 Channel PCI Express Sound Card with Header Bracket & 10-pin Cable
• 2x Low-Profile Brackets
• 1x Instruction Manual

System Requirements

• PCI Express enabled computer with an available PCI Express x1 slot or higher (x4, x8, x16)
• Optional - Additional header bracket slot on your computer case if installing and using the Header Bracket
• Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64)

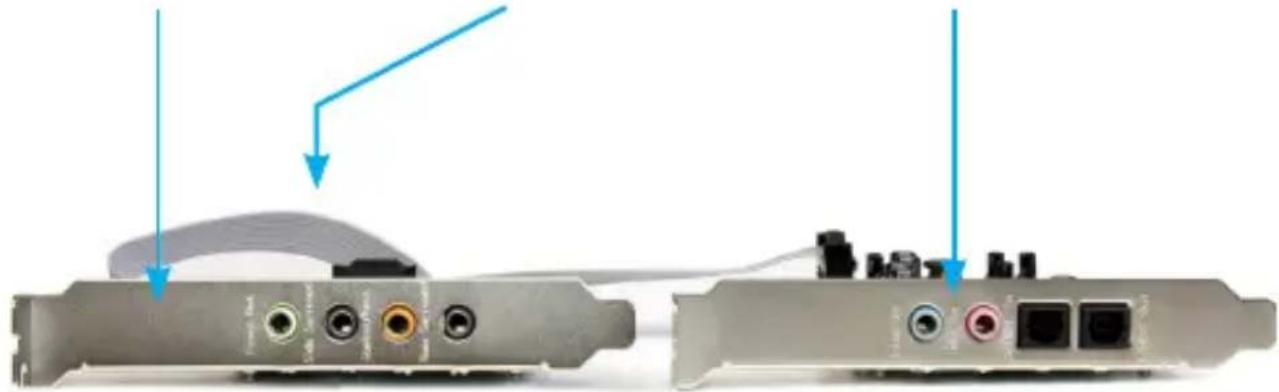

Product Diagram

Header Bracket 10-pin Cable PCI Express Main Card

Two computer hardware components with labeled ports and cables, showing connection points (no text or symbols visible)

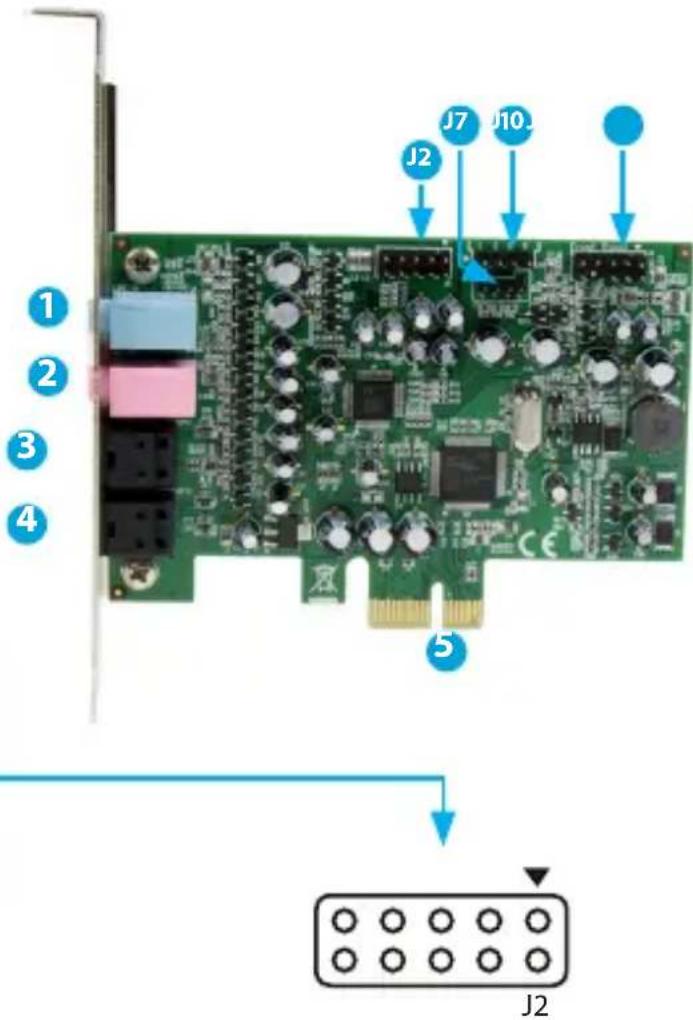

Main Card

1. Analog Left / Right Line Input
2. Analog Left / Right Microphone Input
3. S/PDIF Input - Connect to digital amplifier or decoder
4. S/PDIF Output - Connect to digital amplifier or decoder
5. PCI Express x1 Connector - Connect to PCI Express slot on computer motherboard
   J2. 10-Pin Header - Connects Main Card to Header Bracket using the provided 10-pin cable
   Note: The red color coded line on the provided 10-pin cable should connect to pin number 1 which is represented by a silkscreen triangle on the card, next to the header
   J4. 9-Pin Header - For connecting to Intel HD front panel audio
   J7. Analog CD-Input Header - Signal G-R-G-L
   J10. Analog CD-Input Header - Signal L-G-G-R

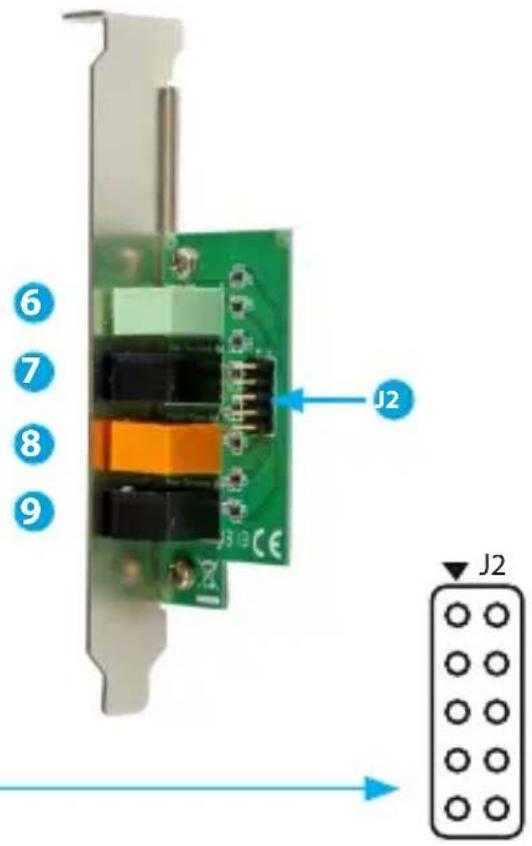

1. Front Left / Right Analog Output
2. Side Surround Left / Right Analog Output
3. Center / Subwoofer Analog Output
4. Rear Surround Left / Right Analog Output
   J2. 10-Pin Header - Connects Header Bracket to Main Card using the provided 10-pin cable

Note: The red color coded line on the provided 10-pin cable should connect to pin number 1 which is represented by a silkscreen triangle on the card, next to the header

The internal header pinout is silkscreen labeled directly on the Main Cards board, next to the header pins.

J7. Analog CD-Input Header: Signal G-R-G-L

Pin # Description

G Right channel ground

R Right channel signal

G Left channel ground

L Left channel signal

J10. Analog CD-Input Header: Signal L-G-G-R

Pin # Description

L Left channel signal

G Left channel ground

G Right channel ground

R Right channel signal

Installation

Hardware Installation

WARNING!

PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. Also be careful to handle the PCI Express card by its edges and not the gold connectors.

1. Turn your computer off and any peripherals connected to the computer (i.e. printers, external hard drives, etc.). Unplug the power cable from the rear of the power supply on the back of the computer and disconnect all peripheral devices.
2. Remove the cover from the computer case. (See your computer system documentation for details).
3. Locate an open PCI Express x1 slot and remove the metal cover plate on the rear of the computer case. (See your computer system documentation for details).

Note: This card will work in PCI Express slots of additional lanes (i.e. x4, x8, or x16 slots).

1. If using the Main Card in conjunction with the Header Bracket, remove a second metal cover plate on the rear of the computer case. (See your computer system documentation for details).

Note: If using the Main Card in conjunction with the Header Bracket, if not already connected, you must use the provided 10-Pin Cable to connect the Main Card and Header Bracket together via the J2 10-Pin Headers. The red color coded line on the 10-pin cable should connect to pin number 1 which is represented by a silkscreen triangle next to the header on the Main Card and the Header Bracket.

1. Gently insert the Main Card into the open PCI Express slot and fasten the bracket to the rear of the computer case. If using the Header Bracket, fasten the bracket to the computer case in the location where you removed the second metal cover plate in step #4.

Note: If installing the Main Card and Header Bracket into a small form-factor/low-profile desktop system, replacing the pre-installed standard-profile brackets with the included low-profile (half-height) installation brackets may be necessary.

1. OPTIONAL: If desired, connect Intel HD front panel audio to the Main Cards J4 9-Pin Header (cable not included). Once connected, you can switch the audio output through the front panel.

2. OPTIONAL: To connect an existing CD/DVD drive's analog audio signal to the sound card, use an appropriate audio cable (supplied with CD/DVD drive) from the audio output on the CD/DVD drive to one of the input headers on the card. Connect to the appropriate header depending on the make of CD/DVD drive

Header CD/DVD Drive Brand

J7 Panasonic

J10 Sony

1. Place the cover back onto the computer case.
2. Insert the power cable into the socket on the power supply of the computer, and reconnect all other connectors removed in Step 1.
3. Connect your speakers, audio sources, microphones etc, to the Main Card and Header Bracket as desired.

Note: If using a pair of stereo speakers (2 channels), or stereo headphones, connect using the #6. Front Left / Right Analog Output on the Header Bracket.

Driver/Software Installation & Operation

Windows®

Depending on your Operating System version, the card may auto-install with native drivers, however, follow the steps below to fully update and complete the driver / software installation process.

1. Upon starting Windows, if the Found New Hardware dialog appears on the screen, cancel/close the window.
2. Download the latest drivers from the www.startech.com website (recommended), applicable to the Operating System on the host computer that you are installing the card to.
3. Browse to the downloaded driver file location and run the ".exe" install application applicable to the Operating System on the host computer that you are installing the card to. Follow any on-screen instructions to complete the driver installation process.

Note: You may be prompted to restart your system.

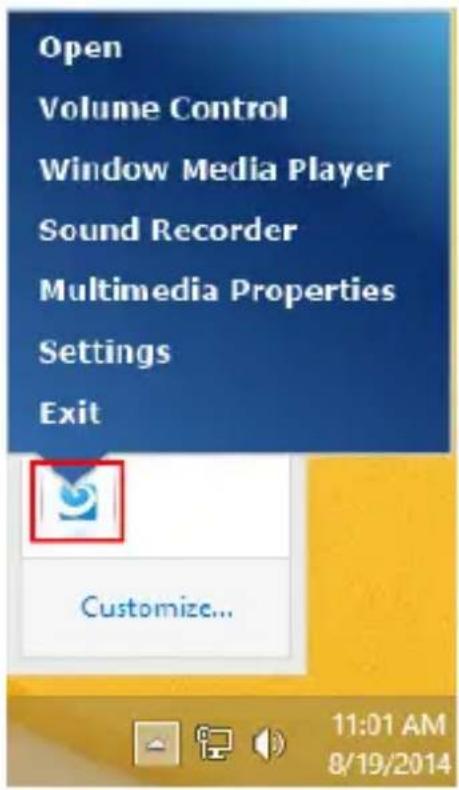

1. The Xear Audio Center icon should appear in your Windows task bar once installation is complete and installation was successful.

2. To access the Xear Audio Center, click on the icon within the Windows task bar. Use the Xear Audio Center as desired to control various functions and settings.
