Product Type	6.5" Coaxial Car Speaker
Model	FSB216
Brand	MB Quart
Outer Diameter	6.91 in (176 mm)
Mounting Depth	2.54 in (64.5 mm)
Cutout Diameter	Approx. 5.5 in (140 mm)
Impedance	4 ohms
Power Handling (RMS)	60 watts
Power Handling (Peak)	120 watts
Sensitivity	90 dB
Frequency Response	50 Hz - 20 kHz
Tweeter Type	Coaxial (integrated)
Cone Material	Polypropylene
Magnet Material	Ferrite
Installation Type	Coaxial, drop-in replacement
Warranty	1 year
Weight	1.5 lbs (0.68 kg)
Color	Black
Grille Included	No
Recommended Use	Car audio front or rear fill

Frequently Asked Questions - FSB216 MB QUART

What tools are needed to install the FSB216 speakers?

Installation typically requires a screwdriver (Phillips or flathead), interior panel removal tools, wire strippers, and electrical tape or crimp connectors. Always disconnect the car battery before starting.

How do I determine if the FSB216 will fit my vehicle?

Measure the factory speaker cutout diameter (usually 5.5-6.5 inches) and mounting depth (min 2.5 inches). The FSB216 has an outer diameter of 6.91 inches and a mounting depth of 2.54 inches. Compare with your vehicle's specs.

What is the difference between coaxial and component speakers?

Coaxial speakers (like FSB216) have a tweeter mounted on the woofer for simplicity. Component systems have separate tweeters and woofers for better sound staging. The FSB216 is a drop-in coaxial replacement.

How should I wire the positive and negative terminals?

Match the positive (+) terminal of the speaker to the positive wire from your car (usually red or marked) and negative (-) to negative. Reversing polarity will cause phase cancellation and poor bass response.

Can I install the FSB216 in the rear deck?

Yes, the FSB216 can be installed in rear deck locations if the mounting depth and cutout size match. Ensure access from the trunk and secure wiring away from moving parts.

What is the recommended amplifier power for these speakers?

Amp output between 30-80 watts RMS per channel is ideal. The FSB216 handles up to 60 watts RMS. Overpowering can damage the speakers.

Do I need to use a crossover?

No, the FSB216 is a coaxial speaker with a built-in crossover. Just connect directly to the speaker wires.

How do I remove the factory door panel?

Use a trim removal tool to gently pry off the panel. Look for screws (often behind pull handles or armrests) and plastic clips. Work slowly to avoid breaking clips.

What if my speaker wires are too short?

Extend the wires using automotive-grade speaker wire (16-18 gauge). Solder or crimp the connections and insulate with heat shrink or electrical tape.

How important is the speaker grille?

The FSB216 does not include a grille. If installing in a location with exposure, use a protective grille to prevent damage from debris or accidental impact.

USER MANUAL FSB216 MB QUART

Congratulations on your choice of a MB Quart speaker. This "Quick Start Installation" guide is meant to help you "hookup" and play music. For more detailed information on system setting, speaker and subwoofer configuration, and full specifications by model, visit the website at MBQuart.com

CAUTION

Always consider consulting a professional audio installer before installing new speakers. Many car manufacturers locate speakers behind interior panels that require special tools to remove those panels to access the speakers. Some panels will be screwed in, some will use plastic fasteners, many will have both. Be careful and take your time. If you are using the speaker wire supplied with your new speakers make sure that you run the speaker wires through the factory boot. Do not let speaker wire make contact with metal edges of doors or other access holes.

Speaker Dimensions

	A B C	D E F
FKB108	N/A1.63*	4(1)2.13*(54)	26*(70)3.07*(8)	4.62*(117)
FKB110	N/A1.8*(4)	5(2.08*(53)	26*(70)3.74*(9)	4.02*(102)
FKB146 N/A1	7*(43)2.12*(59)	2.76*(70)			3.46*/5.6*(88/142)	3.86*/6.02*(98/153)
FKB113	6.2*(158)2*	51(2.48*(63)	15*(80)4.53*(115)	5.14*(131)
FKB168 N/A2	4*(61)2.52*(69)	3.15*(80)			57/7.1*(127/180)	5.48*/8.68*(139/220)
FKB116S	6.91*(176)1	87*(47)1.92*(49)	3.15*(80)5.64*(143)	6.49*(155)
FKB116	6.91*(176)2	24*(57)2.54*(65)	3.15*(80)5.59*(142)	6.58*(157)
FSB216	6.91*(176)2	24*(57)2.54*(65)	3.15*(80)5.6(142)	6.58*(167)
FKB169	7.07*(10.24*(180/260)	3.07*(78)3.	59*(91)3.94*(100)		6*/8.7*(152/221)	6.5*/9.25*(165/235)

Before you start

It's a good idea to confirm that you have purchased the correct size speakers to fit your vehicle. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional. The removal of interior panels can be tricky and may require special tools. Be careful as you go.

Factory Speaker Removal

Access and remove factory door speakers

Most modern vehicles have speakers that are mounted directly to the structure of the door. Access is achieved by the removal of the door panel. Some vehicles may only require the removal of a small panel around the speaker itself.

Access and removal of rear factory speakers

Most rear speakers are accessed from within the trunk. Some may require the removal of the rear package tray. Hatchbacks and SUV's will usually require the removal of a side panel.

Line drawing of a car interior showing the rear compartment and side compartments (no text or symbols)

Fit and Wiring

Once the factory speakers are removed, check the fit and determine if there is enough depth clearance for the new speaker. A good way to do this is to roll the window down and back up while holding the speaker in place. If you decide to run wires, make sure to use factory harness boots and grommets where ever possible.

Line drawing of a car door and side panel showing interior components (no text or symbols)

Coax installation

Factory location behind door panel

Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace door panel.

Diagram showing a car interior with steering wheel and dashboard (no text or symbols)

Factory location behind small panel

Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace speaker cover panel.

Custom location

Some vehicles may not have a door speaker location. While it is possible to install the speakers in this situation, it is more difficult. Consider using a professional for custom installations.

Rear factory locations

Mount the speakers in same way that the factory speaker was mounted. Attach the positive and negative wires to the proper terminals. Make sure any wires are secured properly.

Line drawing of a car interior showing seat, handle, and mounting bracket (no text or symbols)

Component installation

Factory location

behind door panel

Vehicles that have premium sound systems will often have separate tweeters in a dash or door location. Try to use this location for mounting the component tweeter if possible.

Custom location

If there is not a suitable factory location for woofer or tweeter to be mounted, custom mounting may be necessary. Before making any permanent changes to your vehicle make sure there is adequate mounting depth.

Tweeter mounting

There are two primary ways the tweeter can be mounted. Surface and Flush mounting. The flush mount configuration is shown here.

Crossover wiring

The crossover is necessary for the proper operation of the component speaker system. Secure the crossover to a surface that is free of interference from window mechanisms and excessive moisture.

MBQuart.com

MUSIC DEFINED

WARRANTY

Maxxonsics USA Inc. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxxonsics USA Inc. will, at it's discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxxonsics USA Inc. retailer from where it was purchased. A photocopy of the original receipt must accompany the product being returned. The product is not yet determined by its accuracy. The sale price of Maxxonsics USA Inc. is subject to change in the price of the sale. This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. To view the full warranty, please visit the website.

MB Quart products are designed and engineered in the USA by

MAXXSONICS

www.maxxsonics.com

MBQ FKB QSG 01 - rev2

Quick Start

Installation Guide

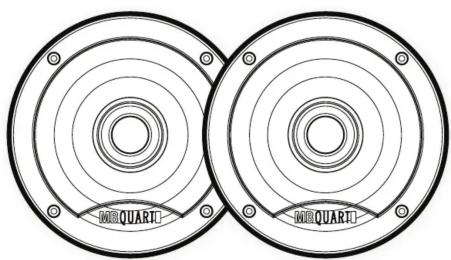

Two identical circular speaker or speaker panels with concentric rings and mounting holes, no text or symbols visible.

FKB108 - FKB110

FKB146 - FK B168

FKB 11 3 - FKB 116

FKB116S - FKB169

FSB216
