82-9010 - Car Speaker Metra - Free user manual and instructions

Brand	Metra
Model	82-9010
Product Type	Car Speaker
Speaker Size	6.5 inches (165 mm)
Impedance	4 ohms
Power Handling (RMS)	50 Watts
Power Handling (Peak)	100 Watts
Sensitivity	88 dB @ 1W/1m
Frequency Response	60 Hz - 20 kHz
Mounting Depth	2.5 inches (63.5 mm)
Mounting Cutout Diameter	5.7 inches (145 mm)
Cone Material	Polypropylene
Surround Material	Rubber
Magnet Type	Ferrite
Voice Coil Diameter	1 inch (25 mm)
Weight (per speaker)	1.2 lbs (0.54 kg)
Included Accessories	Grille, mounting hardware, wire harness
Cleaning Instructions	Wipe gently with a dry, soft cloth
Safety Notes	Disconnect battery before installation; ensure correct polarity
Warranty	1 year limited warranty

Frequently Asked Questions - 82-9010 Metra

Is the Metra 82-9010 compatible with my car?

The Metra 82-9010 is a 6.5-inch speaker designed as a direct replacement for most cars with factory 6.5-inch speakers. Always check the mounting depth and cutout diameter to ensure fitment.

What tools do I need for installation?

You will need a screwdriver, wire strippers, crimp connectors, and a panel removal tool. A soldering iron is optional for secure connections.

How do I wire the Metra 82-9010?

Connect the positive terminal to the positive speaker wire and negative to negative. Use the included harness or splice wires securely. Ensure polarity matches for correct phase.

What is the recommended amplifier for this speaker?

Any amplifier delivering up to 50 watts RMS per channel at 4 ohms is suitable. Avoid overpowering to prevent damage.

Are the Metra 82-9010 speakers waterproof?

No, they are not waterproof. They are designed for interior use only. Protect from moisture to avoid damage.

Can I use these speakers in the doors?

Yes, they are suitable for door installation as long as mounting depth does not interfere with window mechanism.

What is the break-in period?

Allow 20-30 hours of moderate use at low to medium volume for the speaker to reach optimal performance.

How do I clean the speaker grille?

Remove the grille and gently vacuum or wipe with a damp cloth. Do not use harsh chemicals.

What should I do if I hear distortion?

Check for loose connections, verify amplifier settings are not clipping, and ensure the speaker is not overpowered. Reduce volume or adjust EQ.

Does the Metra 82-9010 come with a warranty?

Yes, it includes a 1-year limited warranty against defects in materials and workmanship. Contact Metra support for claims.

USER MANUAL 82-9010 Metra

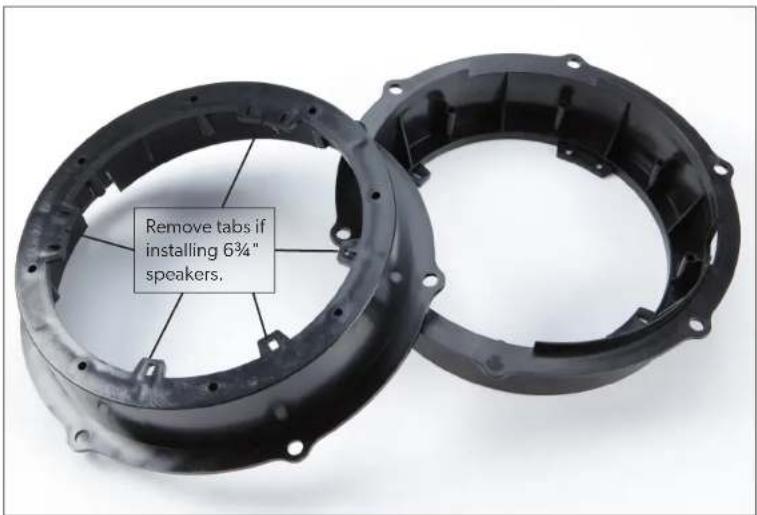

Speaker Adapter Bracket

IMPORTANT

Before starting, compare items on your invoice with items received. Thoroughly check packing materials. If an item is missing, please call Crutchfield at 1-888-955-6000.

120829010

Revision 3/27/2024

Vehicles with factory speakers secured by screws:

1. Secure speaker to adapter bracket.
2. Make wiring connections to vehicle.
3. Secure speaker/bracket assembly to vehicle location.

Vehicles with factory speakers secured by rivets:

1. Secure speaker adapter bracket to vehicle location.
2. Make wiring connections to vehicle.
3. Secure speaker to speaker adapter bracket.

Parts Supplied:

(2) Speaker Adapter Brackets
