82-1011 - Car Speaker Metra - Free user manual and instructions

Product Type	Car Audio Speaker
Model	82-1011
Brand	Metra
Speaker Size	6.5 inches (165 mm)
Impedance	4 Ohms
Peak Power Handling	150 Watts
RMS Power Handling	50 Watts
Frequency Response	60 Hz - 20 kHz
Sensitivity	91 dB
Voice Coil Type	Single voice coil
Cone Material	Polypropylene
Surround Material	Rubber
Mounting Depth	2.5 inches (63.5 mm)
Cutout Diameter	5.6 inches (142 mm)
Dimensions (Overall)	6.5 x 6.5 x 3 inches (165 x 165 x 76 mm)
Weight	1.1 lbs (0.5 kg)
Power Source	12V car audio system
Installation Hardware	Included (screws, wiring harness)
Compatibility	Most standard car stereo systems
Warranty	Limited lifetime warranty

Frequently Asked Questions - 82-1011 Metra

What size is the Metra 82-1011 speaker?

The Metra 82-1011 is a 6.5-inch car speaker, designed to fit most standard factory locations.

What is the power handling of this speaker?

It handles 50 Watts RMS and 150 Watts peak, suitable for moderate to high-power car audio systems.

What is the impedance?

The impedance is 4 Ohms, compatible with most car amplifiers and head units.

Does this speaker come with mounting hardware?

Yes, the speaker includes necessary screws and a wiring harness for easy installation.

What is the frequency response?

The frequency response ranges from 60 Hz to 20 kHz, providing balanced sound for music and vocals.

Is this speaker waterproof?

No, the Metra 82-1011 is not waterproof. It is designed for interior car use only.

Can I use this speaker with a factory radio?

Yes, it works well with most factory radios, but for best performance, use an external amplifier.

What is the mounting depth?

The mounting depth is 2.5 inches (63.5 mm), so ensure your door or panel has sufficient clearance.

How do I clean the speaker?

Gently wipe with a dry or slightly damp cloth. Avoid using harsh chemicals or water.

Does Metra offer a warranty?

Yes, it comes with a limited lifetime warranty. Register your product online for coverage.

USER MANUAL 82-1011 Metra

INSTALLATION INSTRUCTIONS FOR PART 82-1011

APPLICATIONS

Jeep Wrangler 1997-2006 82-1011

KIT FEATURES

- 82-1011 (adapts 4" x 6" speaker to dash location)

KIT COMPONENTS

• A) 82-1011 Speaker adaptor plates • B) (8) #8 x 1/2" Phillips screws

A

B

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 72-6512 speaker harness

Antenna Adapter: • Not required

TOOLS REQUIRED

• Phillips screwdriver

Table of Contents

Dash Disassembly

- Jeep Wrangler 1997-2006 2

Kit Preparation 2

Kit Assembly 3

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the aftermarket radio.

82-1011

Dash Disassembly Kit Preparation

Note: Parts 82-1011, 82-1012, 82-1013 installation directions cross reference. Use the following instructions for each dash location.

1. Remove (2) Phillips screws securing the speaker grille panel. (Figure A)
2. Unclip panel and remove. (Figure A)

Continue to kit preparation

Technical line drawing of a door panel with labeled components (no text or symbols present)

(Figure A)

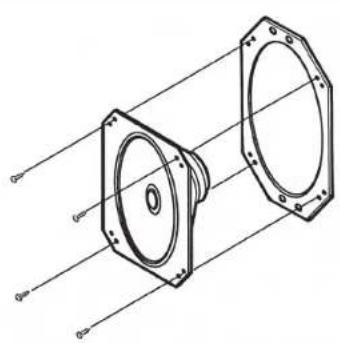

1. Mount aftermarket speaker to the speaker adaptor plate with the screws supplied with the speaker. (Figure A)

Continue to kit assembly

Technical line drawing of a mechanical assembly with exploded view, showing internal components and mounting holes (no text or labels)

(Figure A)

82-1011

Kit Assembly

1. Locate the factory wiring harness in the dash. Metra recommends using the 72-6512 speaker harness to connect to the factory wiring.

Note: For some speakers a small cut in the factory speaker support may be necessary.

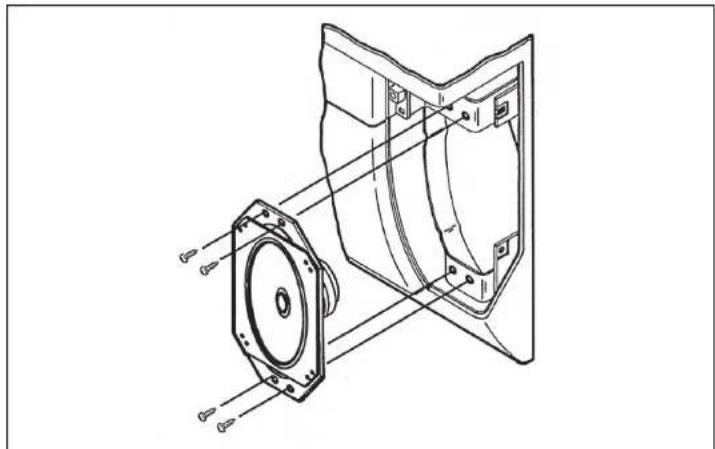

1. Mount the assembly to the dash location with the (4) supplied #8 x 1/2" Phillips screws.

Technical line drawing of a mechanical component with two flanged housing (no text or symbols)

(Figure A)

Notes

INSTALLATION INSTRUCTIONS FOR PART 82-1011

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or ca

600-354-6782 for more information and take steps

Metra recommends MECP

certified technicians
