USER MANUAL SUB 4118A Glemm
• OTROS IDOMAS •
• OUTRAS LINGUAS •
When you open the package check that product is in good condition and that all the parts are present. Immediately notify the seller if any part is damaged or missing.
| SUB 4118A | |
| Potenza max / Max power | 600W (300W RMS) |
| Woofer | 18" (4 Ohm) |
| Magnete / Magnet | 100 Oz |
| Risposta in freq. / Freq response | 40 Hz - 250Hz |
| Controllo phase / phase control | 0 - 180° |
| Prese in ingresso / Input sockets | XLR / Jack 6,3mm |
| Prese in uscita / Output sockets | XLR |
| Alimentazione / Power supply: | 220V AC~ - 50Hz |
| Dimensioni / Dimensions: | 555 x 500 x 685 mm |
| Peso / weight: | 49 Kg |
IT
The manufacturer, in order to improve its products, reserves the right to modify their characteristics whether technical or aesthetic, at any time and without notice.
GRAZIE PER IL VOSTRO ACQUISTO
The product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time.
The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety.
Please read this manual carefully before starting using the device in order to take advantage of its full potential.
Hoping that you will be satisfied of your purchase, we thank you again for your trust in our brand and we invite you to visit our website www.karmaitaliana.it where you will find the whole range of our products, along with useful information and updates.
CAUTIONS AND WARNINGS
- Read and follow strictly the instructions contained in this manual.
- Keep this manual for future reference and include it if you give the product to another user.
- When you open the package check that product is intact and that all the accessories are included.
- This device works with dangerous 220V mains power. Do not open, do not disassemble and don't try to operate inside it. In case of wrong use an electric shock may occur.
- The product is conceived for professional use. Its installation must be carried out exclusively by specialized technicians, skilled in electric and audio systems. In case of wrong installation or connections, the manufacturer doesn't take any responsibility for damages to people or objects.
• Make sure that your power outlet voltage matches with the voltage indicated on the product. A wrong voltage would seriously damage the fixture.
• To avoid the risk of dangerous electric shocks, before turning on the product always check that it is connected to ground. - Before making any connection with other devices, check that all the fixtures are disconnected from the power source and that all the volumes are set on minimum.
- The product is not suitable for outdoor use. To avoid the risk of shortcircuits don't expose it to high temperatures (above 40°), rain or humidity.
• Do not allow flammable liquid, water or metal objects to enter the product.
• Don't touch the product with wet hands. - Do not place any recipients filled with liquids, such as vases, on top of or directly next to the appliance.
• Install the product in a stable and ventilated position, far from heat sources and don't obstruct the air vents.
• Use the fixture and its controls with due accuracy, avoiding falls, vibrations or impacts. - If the product doesn't turn on, check the fuse and if necessary replace it with one of the same type and rating, after disconnecting the fixture from power.
- In the event of a serious operating problem, stop using the product immediately. Never try to repair it by yourself, but contact the authorized technical service center. Repairs carried out by unskilled persons could lead to serious damages both to the fixture and to people.
• Do not turn the product on and off at short intervals, it may reduce the life of the device. - Disconnect the unit from power when it is not used.
- Never disconnect the product from the power source by pulling on the cord. Do not cut, kink, otherwise damage nor modify the power supply cord and periodically check that it is in good condition.
• Wait for the product to cool before cleaning or maintenance.
• To clean the product, use only a damp cloth, avoiding solvents or detergents of any kind.
• If the product is used in the presence of children they must be supervised.
• To prevent possible hearing damage, do not listen at high volume levels for long periods.
WARNING
RISK OF ELECTRIC SHOCK, DO NOT OPEN
WARNING: to reduce the risk of electric shock, do not remove the cover. No serviceable parts for the user inside. For servicing refer to qualified personnel.
This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product
This symbol alerts you to the presence of uninsulated dangerous voltage within the product's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product's case.
The CE mark indicates that this product complies with the applicable European directives and their related standards. Compliance documentation in complete form is available at the company Karma Italiana Srl
Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).
The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste, or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).
WARRANTY CONDITIONS
The product is covered by warranty according to current national and European regulations.
For detailed warranty conditions and RMA requests please refer to our website: www.karmaitaliana.it.
- The warranty covers manufacturing defects and faults occurred in the first 2 years from the date of purchase. In case of purchase with invoice, the warranty is limited to 1 year.
• Damages caused by negligence or wrong use of the device are not covered by warranty.
• The warranty is no longer effective if the item is modified or disassembled by not authorized people.
• This warranty doesn't necessarily envisage the product's replacement. - External components, batteries, knobs, switches and any removable or subject to wear and tear parts are excluded from warranty.
- Shipment for the return of faulty items is at expense and risk of the owner.
- For all intents and porpuses the warranty is effective only upon exhibition of the invoice or of the purchase receipt.
- If you send the product for repair, it must be shipped with complete original packaging: we therefore recommend to save it.
We also suggest to register your product on our website www.karmaitaliana.it, after signing in to access the reserved area. In this way you will have the possibility to keep track of the warranty validity and to receive updates on our items.
SUB 4118A

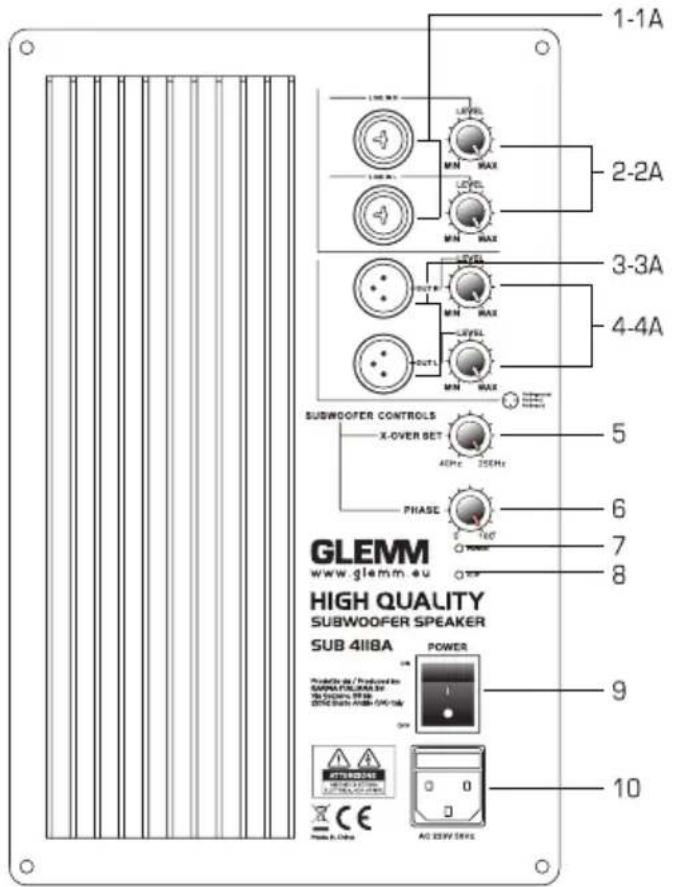

| N° | FUNCTION/DESCRIPTION |
| 1 - 1A | XLR-Jack 6,3mm mono R/L line inputs |
| 2 - 2A | R/L inputs volume controls |
| 3 - 3A | XLR R/L line outputs |
| 4 - 4A | R/L outputs volume controls |
| 5 | X-OVER SET control (40Hz- 250Hz) |
| 6 | Phase control (0°- 180°) |
| 7 | Power led indicator |
| 8 | Clip led indicator |
| 9 | ON/OFF switch |
| 10 | Power supply socket with fuse holder |

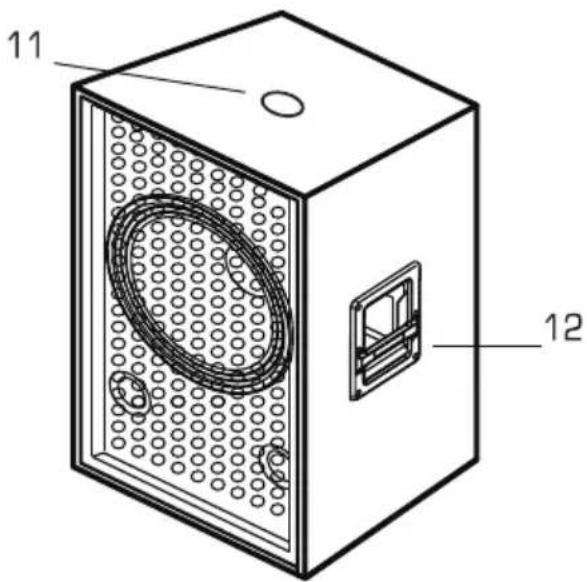

| 11 | Satellite mounting hole |
| 12 | Carriage handle |
OPERATING INSTRUCTIONS
- Position the subwoofer in a suitable place, away from moisture or from direct sunrays.
- Use the handles (12) on the sides of the speaker for carriage and be careful to place it gently on the ground.
- If you have satellite speakers to play mids and trebles, you can place them on the subwoofer using a mounting pole that you can insert into the specific hole (11).
- The amplification module comes with two sockets to receive the line signal (coming for example from a mixer) and send it to external satellites. Connect the plug of the input line signal related to the right channel of the IN R line socket [1], using either XLR or Jack 6,3 mm connectors. In the same way, connect the plug of the input line signal related to the left channel of the IN L Line socket(1A). The rotating knobs (2-2A) adjust the level of the corresponding signal.
-
To socket (3) you can connect the cable to transmit the signal to a satellite (if any) for reproduction of right channel. In the same way you can connect to socket (3A) the cable that will transmit the signal to a satellite (if any) for reproduction of left channel. The rotating knobs (4-4A) adjust the level of the corresponding signal.
-
The control (5) allows to set the frequency that will be reproduced by the subwoofer. The range is from 40Hz to 250Hz.
- The Phase control (6) allows to adjust the operating mode of the subwoofer, above all the phase. Thanks to this knob you can get the woofer to expand inwards or outwards to obtain a different effect.
- Connect the power cable to the socket (10) and then to a domestic power outlet.
- Once arranged the connection turn on the subwoofer by pressing the button (9). The led (7) will light up to confirm that the device is on.
- When you are using the subwoofer, if the led (8) remains on, turn down immediately the volumes, to avoid to damage the fixture. This led indicates in fact signal peaks.
GLEMM
Prodotto da/ Produced by:
KARMA ITALIANA SRL
Via Gozzano 38 bis
21052, Busto Arsizio (VA) - Italy
Ver. 23.1
Made in China
