CSL 90 - Loudspeaker Glemm - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Glemm
Model	CSL 90
Dimensions (approx)	20 × 10 × 10 cm
Weight	0.5 kg
Power Supply	Built-in rechargeable battery, USB-C charging
Battery Capacity	2000 mAh
Charging Time	Approximately 2 hours
Playback Time	Up to 8 hours at moderate volume
Connectivity	Bluetooth 5.0, 3.5mm AUX input
Bluetooth Range	Up to 10 meters
Speaker Type	Full-range mono speaker
Output Power	10W RMS
Frequency Response	80 Hz – 20 kHz
Controls	Power, Volume +/-, Play/Pause, Bluetooth pairing button
Additional Functions	Built-in microphone for hands-free calls, TWS pairing
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use water or cleaning agents.
Safety Warnings	Do not expose to water or moisture. Keep away from heat sources.
Spare Parts & Repairability	Not user-serviceable. Contact manufacturer for support.

Frequently Asked Questions - CSL 90 Glemm

How do I pair the Glemm CSL 90 with my phone?

Turn on the speaker by pressing the power button. The speaker will enter pairing mode automatically (indicated by a flashing LED). On your phone, enable Bluetooth and select Glemm CSL 90 from the available devices. If prompted, enter PIN 0000.

What is the battery life of the CSL 90?

The battery life is up to 8 hours at moderate volume levels. Actual battery life may vary depending on volume and audio content.

How do I charge the speaker?

Use the included USB-C cable to connect the speaker to a USB power adapter (not included). The LED indicator will turn red while charging and turn off when fully charged. Full charge takes approximately 2 hours.

Can I use the speaker while it is charging?

Yes, you can use the speaker while it is charging. However, charging time may be longer if the speaker is in use.

How do I connect the speaker to a non-Bluetooth device?

Use a 3.5mm AUX cable (not included) to connect the speaker to the audio output of your device. The speaker will automatically switch to AUX mode when a cable is inserted.

What does TWS pairing mean?

TWS (True Wireless Stereo) allows you to pair two Glemm CSL 90 speakers together for a stereo sound experience. To enable TWS, pair one speaker to your phone, then double-press the Bluetooth button on both speakers to link them.

How do I clean the speaker?

Clean the speaker with a soft, dry cloth. Do not use water, alcohol, or any chemical cleaners as they may damage the surface.

Is the speaker waterproof?

No, the Glemm CSL 90 is not waterproof. Avoid exposing it to water, rain, or high humidity.

What should I do if the speaker is not turning on?

First, ensure the battery is charged. Connect the speaker to a charger and wait a few minutes before trying to power it on. If it still does not turn on, press and hold the power button for 10 seconds to reset the device.

How do I update the firmware?

Firmware updates are not available for this model. The device is designed to work out of the box with the factory settings.

USER MANUAL CSL 90 Glemm

In-wall/ in-ceiling audio speaker operating at 8Ω and intended for Pa system installations. The high quality of the components used for its construction guarantees an excellent audio performance.

The installation of this product must be carried out exclusively by specialized technicians, skilled in electric and audio systems.

In case of wrong installation or connections, the manufacturer doesn't take any responsibility for damages to people or objects.

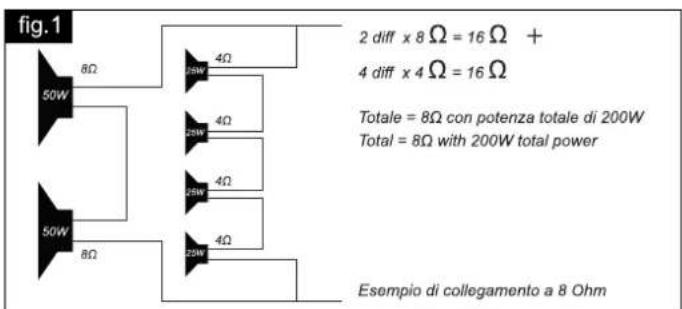

Refer to the below picture (pict.1) for correct cable connection. Before starting the installation make sure that the amplifier is turned off.

Keep this instruction manual for future reference. This product is not suitable for outdoor use. To avoid the risk of fire or shortcircuits don't expose it to rain or humidity.

WIRING

For connection insert the "+" and the "-" wire into output terminals of the amplifier, respecting the indicated polarities.

If you need to connect more than one speaker, after checking the total power, you have to make series or parallel wiring (see example in pict. 1), to obtain a final impedance supported by the amplifier (usually 4-16Ω).

Wrong impedances can seriously damage the connected fixtures.

Remember to consider the correct section of the cables, according to the distance of the speakers from the amplifier.

Consider carefully the total power of the speakers, which must correspond more or less to the amplifier's power.

COMPLIANCE, WARRANTY AND SERVICE

The CE brand indicates that the product complies with the essential requirements of the applicable European directives and related standards.

The product is covered by warranty according to current national and European regulations. Warranty is no longer valid if the device is tampered with or used inappropriately. For all intents and porpuses the warranty is effective only upon exhibition of the invoice or of the purchase receipt.

For complete warranty conditions and for technical service requests visit the website www.glemm.eu or www.karmaitaliana.it

To prevent possible hearing damage, do not listen at high volume levels for long periods.

The manufacturer, in order to improve its products, reserves the right to modify the characteristics whether technical or aesthetic, at any time and without notice.

At the end of its life the fixture must be conferred to an authorized disposal center for collection of electronic and electrical waste. (Dir. 2012/19/UE).
