Product Type	Electric Water Heater
Model	IWB-1600S
Brand	Imarflex
Power	1600 W
Capacity	15 L
Voltage	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	350 x 260 x 500 mm
Weight	5.5 kg
Material	Enamel-coated steel tank
Heating Element	Copper immersion heater
Temperature Control	Adjustable thermostat (30-75°C)
Safety Features	Thermal cut-off, pressure relief valve, anti-drip faucet
Installation	Wall-mounted horizontal or vertical
Water Connection	1/2 inch BSP thread
Energy Efficiency	Class B
Maintenance	Descaling every 6 months; replace anode every 2 years
Warranty	2 years
Included Accessories	Pressure relief valve, wall brackets, instruction manual

Frequently Asked Questions - IWB-1600S Imarflex

How do I install the Imarflex IWB-1600S water heater?

Installation should be done by a qualified professional. The unit must be mounted on a wall capable of supporting its weight when full. Ensure the power supply is disconnected before installation. Connect the water inlet and outlet using 1/2 inch BSP fittings, and attach the pressure relief valve as per the manual.

What is the maximum temperature setting?

The thermostat can be adjusted up to 75°C. For safety, it is recommended to set the temperature between 50-60°C to prevent scalding and reduce energy consumption.

How often should I descale the water heater?

Descaling should be performed every 6 months, especially in areas with hard water. Use a descaler suitable for enamel tanks and follow the instructions in the manual.

What does the pressure relief valve do?

The pressure relief valve releases excess pressure from the tank to prevent explosions. It may drip water during normal operation; ensure the drain pipe is directed to a safe location.

Why is my water heater not heating water?

Check if the power supply is on and the circuit breaker has not tripped. Ensure the thermostat is set above the current water temperature. If the problem persists, the heating element may be faulty and should be replaced by a professional.

Can the water heater be used with a timer?

Yes, you can connect an external timer to control operation. However, ensure the timer is rated for the heater's power (1600 W) and comply with local electrical codes.

How do I replace the anode rod?

The anode rod helps prevent corrosion. It should be checked every 2 years and replaced if heavily corroded. Drain the tank, unscrew the old anode, and install a new one with Teflon tape. Refer to the manual for exact location.

Is the water heater safe to leave on overnight?

Yes, the water heater is designed for continuous operation with built-in safety features like thermal cut-off. However, to save energy, you can use a timer to heat water only when needed.

What should I do if water leaks from the unit?

First, turn off the power and water supply. Check all connections for tightness. If the tank itself is leaking, it may be damaged and require replacement. Contact a service technician.

How long does it take to heat a full tank?

With a 1600 W element and 15 L capacity, it typically takes about 30-40 minutes to reach 60°C from a cold start, depending on the inlet water temperature.

USER MANUAL IWB-1600S Imarflex

SPECIFICATION

MODEL NO. : IWB-1600S

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 1500 Watts

BOX DIMENSION :

UNIT DIMENSION :

GROSS WEIGHT :

UNIT WEIGHT :

IMPORTANT SAFEGUARDS:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions thoroughly.

2. Before using the Water Boiler, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use a two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged, it must be replaced with the same type and size of a qualified person or bring the unit to the manufacturer or to the nearest lmarflex Authorized Service Center to avoid hazard.

5. Do not allow cord to touch hot surface of the Water Boiler.

6. To protect against electric shock, do not immerse the Water Boiler in water.

7. Do not place the Water Boiler near gas stove, electric burner or heated oven.

8. Do not exceed into the maximum capacity if the water boiler is overfilled, boiling water may come out and it may cause injuries.

9. Extreme caution must be exercised when using an appliance containing hot water when boiling.

10. The parts which are easy to touch may become hot; keep them out of the reach of babies and children.

11. Put the Water Boiler on stable surface; keep it away from the edge of counter to avoid accident.

12. Do not use the Water Boiler, if it is empty.

13. Children should be supervised to ensure that they do not play with the appliance.

14. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

15. Do not use this unit other than its intended use.

16. Do not use the Water Boiler for outdoor use.

17. Save this instruction for future reference.

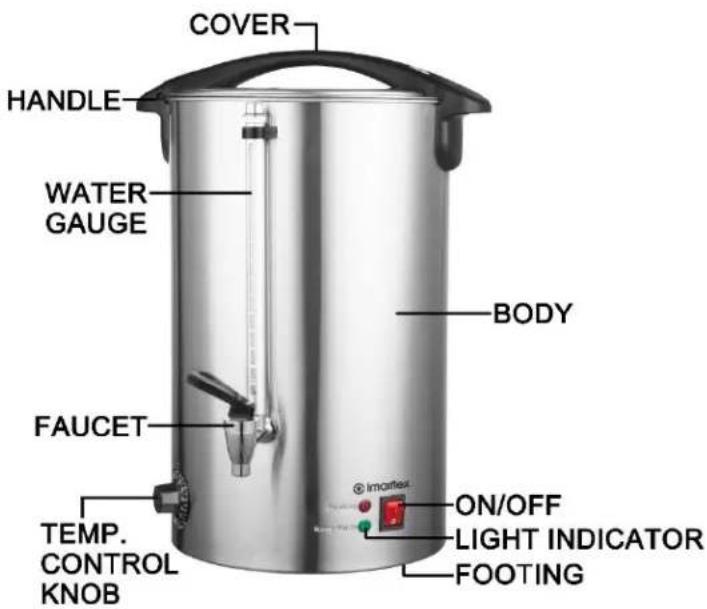

DESCRIPTION OF PARTS

HOW TO USE

1. Unlock the cover and turn the handle counter-clockwise and pour in water.

2. Pour water up to the water level indicator.

(Do not fill the Water Boiler over the max water level indicator.)

1. Plug the unit into the convenience outlet.

2. Switch ON the unit, the heating light indicator will light up.

3. When the water is boiling, it will automatically switch to "Keep Warm" green light indicator.

Note: The boil dry protection system of the unit will automatically shut off when the water level is too low.

CLEANING AND MAINTENANCE

1. Be sure to unplug the unit, discard any remaining water and allow to cool off before cleaning.

2. DISCOLORING OF THE WATER TANK

This is caused by oxidizing of iron content in tap water. It can be removed by using nylon brush and follow these simple steps:

a. Cut a lemon into four, wrap the lemon in cloth and place inside the unit.
b. Pour water up to the full water level indicator.
c. Boil the water and let the mixture remain inside the unit for about 1 hour.
d. Pour out the water and use a nylon brush to clean the inner part.
e. To remove the smell of the lemon, boil water again, and dispose the water.

1. Lid is washable with soap and water.

2. Use damp cloth to clean the body. Wipe it dry. Do not use abrasive materials to avoid scratches.

NOTE: ALWAYS CLEAN THE UNIT DAILY AS MUCH AS POSSIBLE.

REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address [e-mail]

Distributed By: Xelframe Enterprises Inc.

Unit 711 IPI Buendia Tower Condo.,

501 Gil Puyat Ave, Pasay

Made in China
