IF-322 - Household Fan Imarflex - Free user manual and instructions
Find the device manual for free IF-322 Imarflex in PDF.
| Product Type | Pedestal Fan |
| Model | IF-322 |
| Brand | Imarflex |
| Color | White / Gray |
| Height (with stand) | 130 cm |
| Blade Diameter | 40 cm (16 inches) |
| Weight | 4.5 kg |
| Power Supply | 220-240 V, 50 Hz |
| Power Consumption | 50 W |
| Speed Settings | 3 speeds (Low, Medium, High) |
| Oscillation | Yes, 90° wide-angle |
| Adjustable Tilt | Yes, manual tilt up/down |
| Control Type | Rotary switch on motor housing |
| Safety Features | Overheat protection, stable base |
| Blade Material | ABS plastic |
| Grill Material | Metal with powder coating |
| Cleaning | Wipe with damp cloth; do not immerse in water |
| Spare Parts Availability | Blades, motor, stand available through authorized service |
| Repairability | Modular design; motor and switch replaceable |
Frequently Asked Questions - IF-322 Imarflex
User questions about IF-322 Imarflex
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Household Fan in PDF format for free! Find your manual IF-322 - Imarflex and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IF-322 by Imarflex.
USER MANUAL IF-322 Imarflex


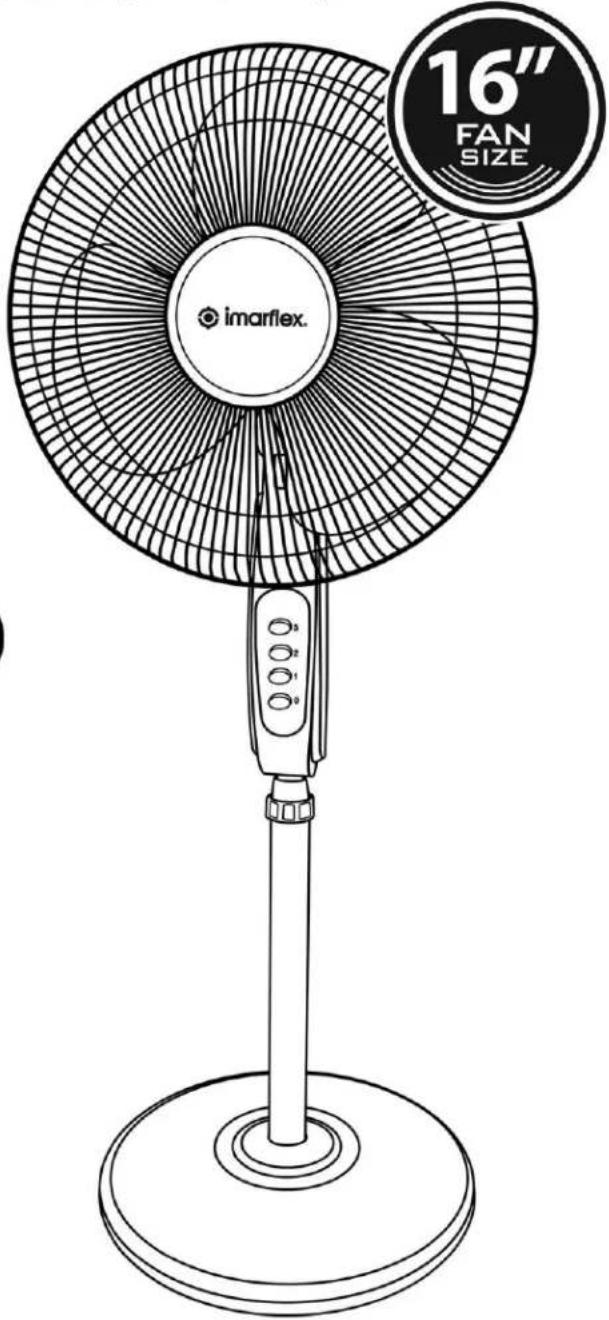

Line drawing of a imarflex air conditioner fan with a 16-inch fan size tag (no text or symbols on the fan itself)
imarflex®
In Every Home.
www.imarflex.com
IF-322
SPECIFICATION
MODEL NO. : IF-322
RATED VOLTAGE : 230Va.c. 60Hz
POWER CONSUMPTION : 50watts T
BOX DIMENSION : 540*134*530mm
UNIT DIMENSION : 430*430*14mm
GROSS WEIGHT : 6.2kg.
-
Read all instructions carefully.
-
Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
-
Do not use a two-way socket with another appliance.
-
Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
-
Do not place the unit near gas stove, electric stove or in a heated oven.
-
Put the unit on flat stable surface; keep it away from the edge of counter to avoid accident.
-
Children should be supervised to ensure that they do not play with the appliance.
-
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
-
To protect against electric shock, do not immerse the unit in water or any other liquid.
-
Do not use the unit for outdoor use.
-
This unit must only be used for room ventilation. Do not use in bathrooms.
-
Do not insert your fingers or any objects into the fan guard. It may cause accident or injuries.
-
Never touch the unit with wet hands.
-
Do not use the plug to stop or start the operation of the unit, use the switch button.
-
Be sure that the fan is switched off from the convenient outlet before removing the fan guard, any of its parts or before cleaning.
-
Avoid water spillage into the socket, connector, cord and alike.
-
Do not use this unit other than its intended use.
-
For household use only; not intended for any business purposes.
-
Save this instruction for future reference.
-
CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

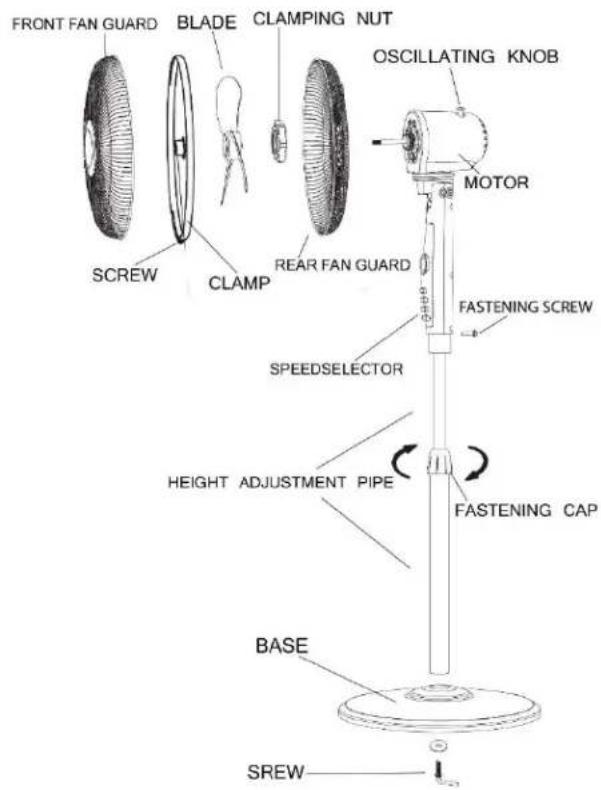

DESCRIPTION OF PARTS
ASSEMBLY
- Insert the Base Lock on the bottom of the Base and turn it clockwise.
Fit the Rear Fan Guard to the motor housing by matching the three Rear Holes of the back guard to the three round pins in front of the motor housing.
- Fasten the clamping nut by turning it clockwise.
- Insert the fan blade to the motor shaft.
- Fasten the Fan Cap by turning it counter clockwise.
- Fit the Rear Fan Guard and the Front Fan Guard, push-up the Clamp and tightened the Screw
HOW TO USE
- Plug the unit into the convenience outlet (230Va.c.).
- Press the Switch Button to the desired air flow. "1" indicates LOW speed; "2" indicates MEDIUM speed; "3" indicates HIGH speed; and "0" to turn it OFF.
- Push-down the Oscillating Knob for oscillation and Pull-up the Oscillating Knob for fixed position.
- The air flow can be adjusted upward or downward by moving the Motor Housing up or down.
- To adjust the height: Turn Fastening Cap clockwise and Pull-up/Push-down to desired height then turn the Fastening Cap counter clockwise to fix the height.
CLEANING MAINTENANCE
- Always disconnect the unit from the convenience outlet before disassembling the unit or before cleaning.
- To disassemble the unit, simply reverse the assembly instruction.
- Wash the Front Fan Guard, Fan Cap, Fan Blade, Clamping Nut and Rear Fan Guard with soap and water.
- Use a moistened cloth (NOT WET) to remove the dirt from the plastic and metal surfaces of Electric Fan.
- Do not immerse the Motor Base in water or other liquids.
- Allow the detachable parts to dry off before assembling the unit.
REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address imarflexfb@evergoodinc.com
Distributed By: Sabretech Technology Inc.
103-113 Sen Gil Puyat Ave. Pasay
Made in China
Brand : Imarflex
Model : IF-322
Category : Household Fan
